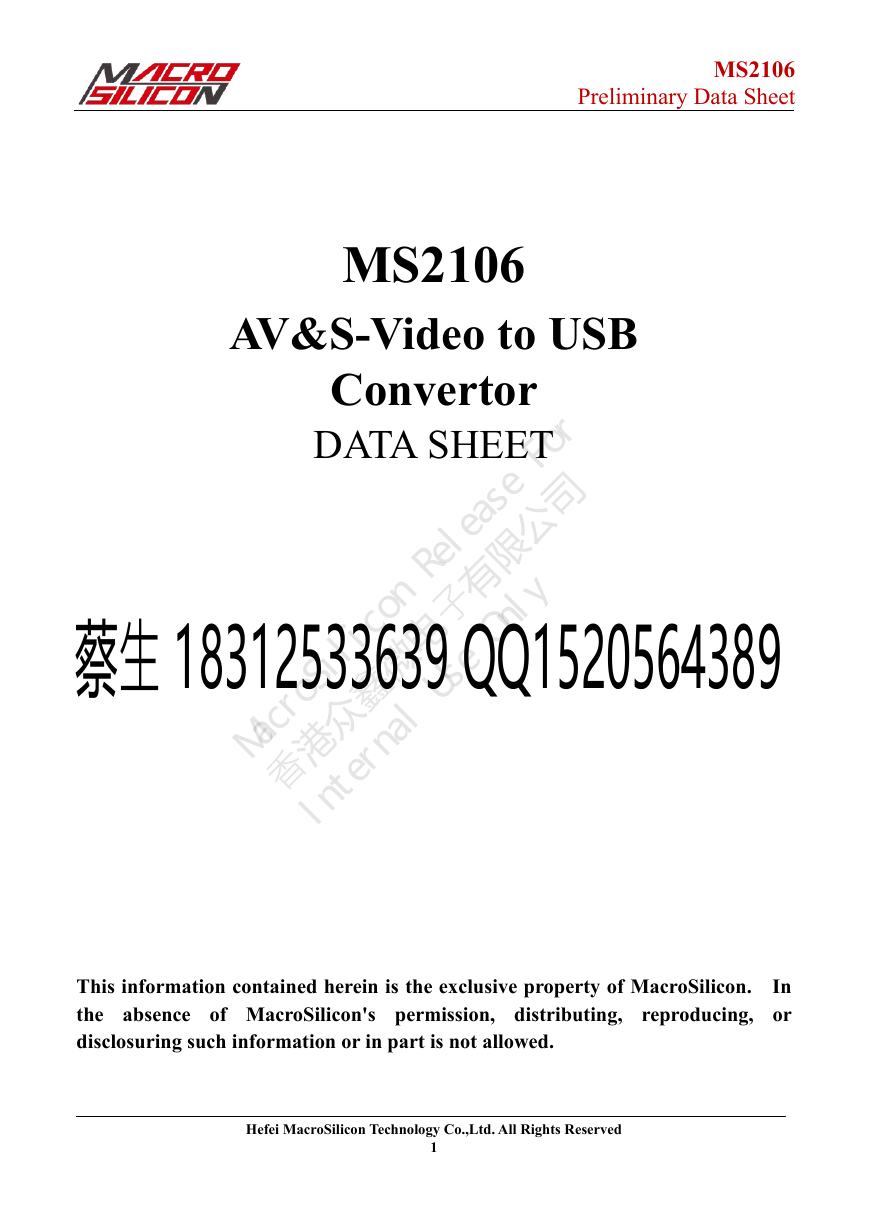

MS2106 Preliminary Data Sheet MS2106 AV&S-Video to USB Convertor DATA SHEET This information contained herein is the exclusive property of MacroSilicon. In the absence of MacroSilicon's permission, distributing, reproducing, or disclosuring such information or in part is not allowed. Hefei MacroSilicon Technology Co.,Ltd. All Rights Reserved 1

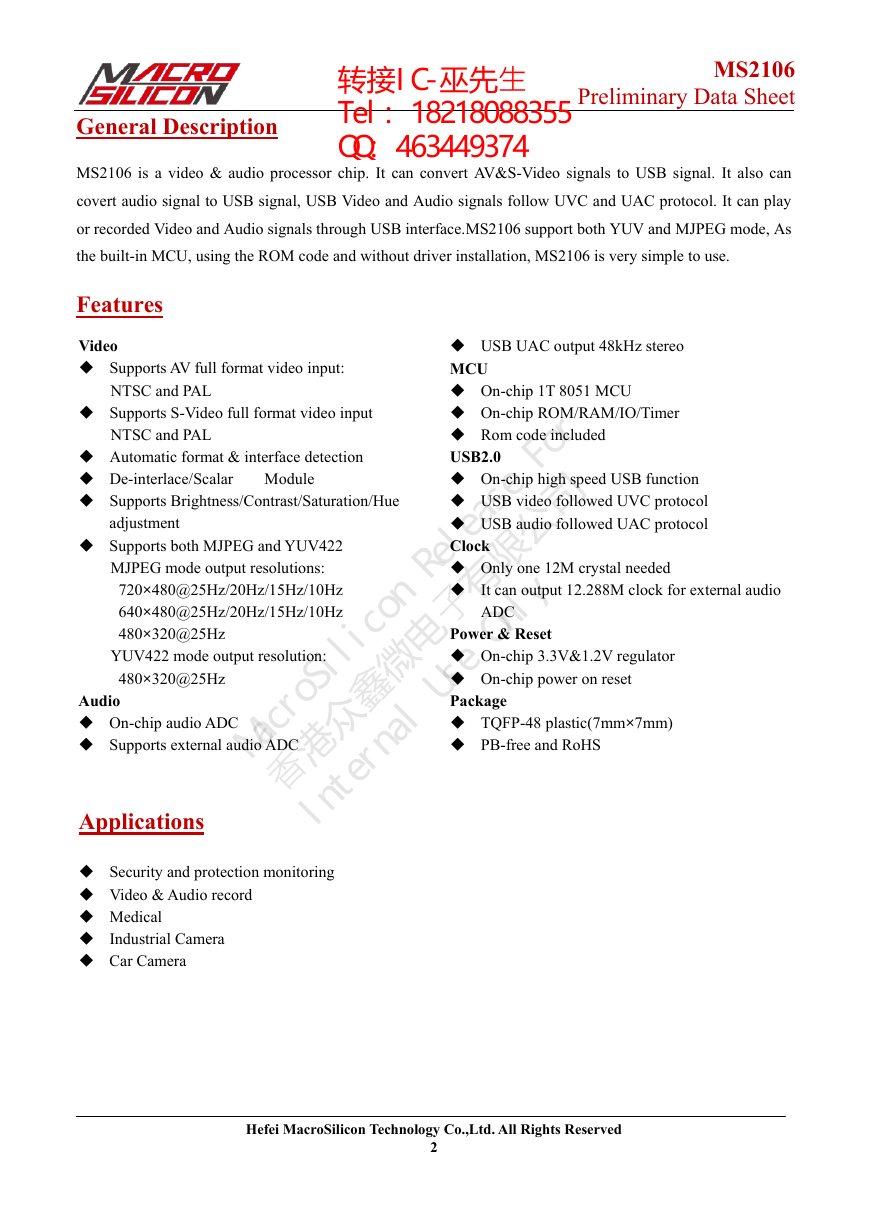

General Description MS2106 Preliminary Data Sheet MS2106 is a video & audio processor chip. It can convert AV&S-Video signals to USB signal. It also can covert audio signal to USB signal, USB Video and Audio signals follow UVC and UAC protocol. It can play or recorded Video and Audio signals through USB interface.MS2106 support both YUV and MJPEG mode, As the built-in MCU, using the ROM code and without driver installation, MS2106 is very simple to use. Features Video  Supports AV full format video input:  Supports S-Video full format video input NTSC and PAL NTSC and PAL  Automatic format & interface detection  De-interlace/Scalar Module  Supports Brightness/Contrast/Saturation/Hue  Supports both MJPEG and YUV422 adjustment  USB UAC output 48kHz stereo MCU  On-chip 1T 8051 MCU  On-chip ROM/RAM/IO/Timer  Rom code included USB2.0  On-chip high speed USB function  USB video followed UVC protocol  USB audio followed UAC protocol Clock  Only one 12M crystal needed  Power & Reset  On-chip 3.3V&1.2V regulator  On-chip power on reset Package  TQFP-48 plastic(7mm×7mm)  PB-free and RoHS MJPEG mode output resolutions: 720×480@25Hz/20Hz/15Hz/10Hz 640×480@25Hz/20Hz/15Hz/10Hz 480×320@25Hz YUV422 mode output resolution: 480×320@25Hz Audio  On-chip audio ADC  Supports external audio ADC Applications It can output 12.288M clock for external audio ADC  Security and protection monitoring  Video & Audio record  Medical   Car Camera Industrial Camera Hefei MacroSilicon Technology Co.,Ltd. All Rights Reserved 2

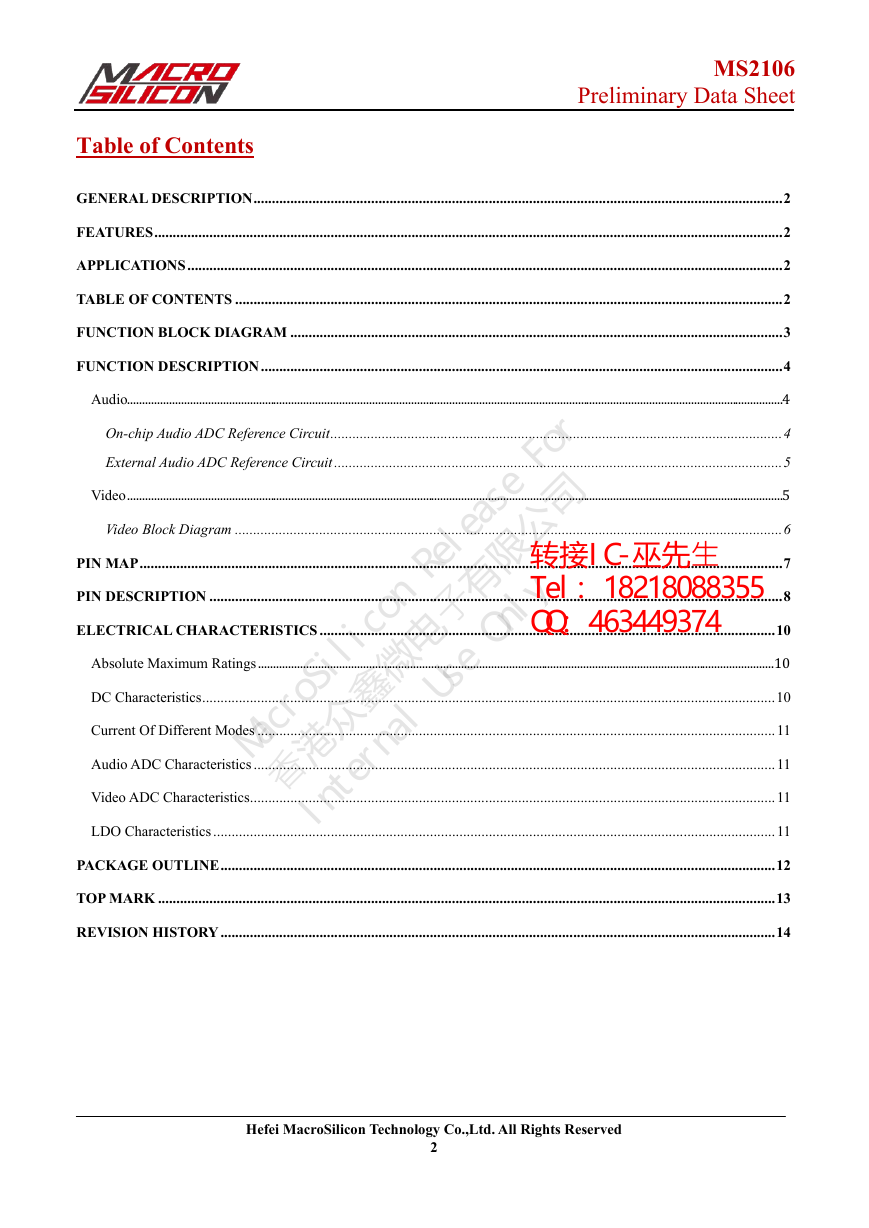

MS2106 Preliminary Data Sheet Table of Contents GENERAL DESCRIPTION ................................................................................................................................................ 2 FEATURES ........................................................................................................................................................................... 2 APPLICATIONS .................................................................................................................................................................. 2 TABLE OF CONTENTS ..................................................................................................................................................... 2 FUNCTION BLOCK DIAGRAM ...................................................................................................................................... 3 FUNCTION DESCRIPTION .............................................................................................................................................. 4 On-chip Audio ADC Reference Circuit ........................................................................................................................... 4 Audio ............................................................................................................................................................................................................................ 4 Video ............................................................................................................................................................................................................................ 5 External Audio ADC Reference Circuit .......................................................................................................................... 5 Video Block Diagram ..................................................................................................................................................... 6 PIN MAP ............................................................................................................................................................................... 7 PIN DESCRIPTION ............................................................................................................................................................ 8 ELECTRICAL CHARACTERISTICS ............................................................................................................................ 10 Absolute Maximum Ratings ............................................................................................................................................................................. 10 DC Characteristics ............................................................................................................................................................ 10 Current Of Different Modes ............................................................................................................................................. 11 Audio ADC Characteristics .............................................................................................................................................. 11 Video ADC Characteristics ............................................................................................................................................... 11 LDO Characteristics ......................................................................................................................................................... 11 PACKAGE OUTLINE ....................................................................................................................................................... 12 TOP MARK ........................................................................................................................................................................ 13 REVISION HISTORY ....................................................................................................................................................... 14 Hefei MacroSilicon Technology Co.,Ltd. All Rights Reserved 2

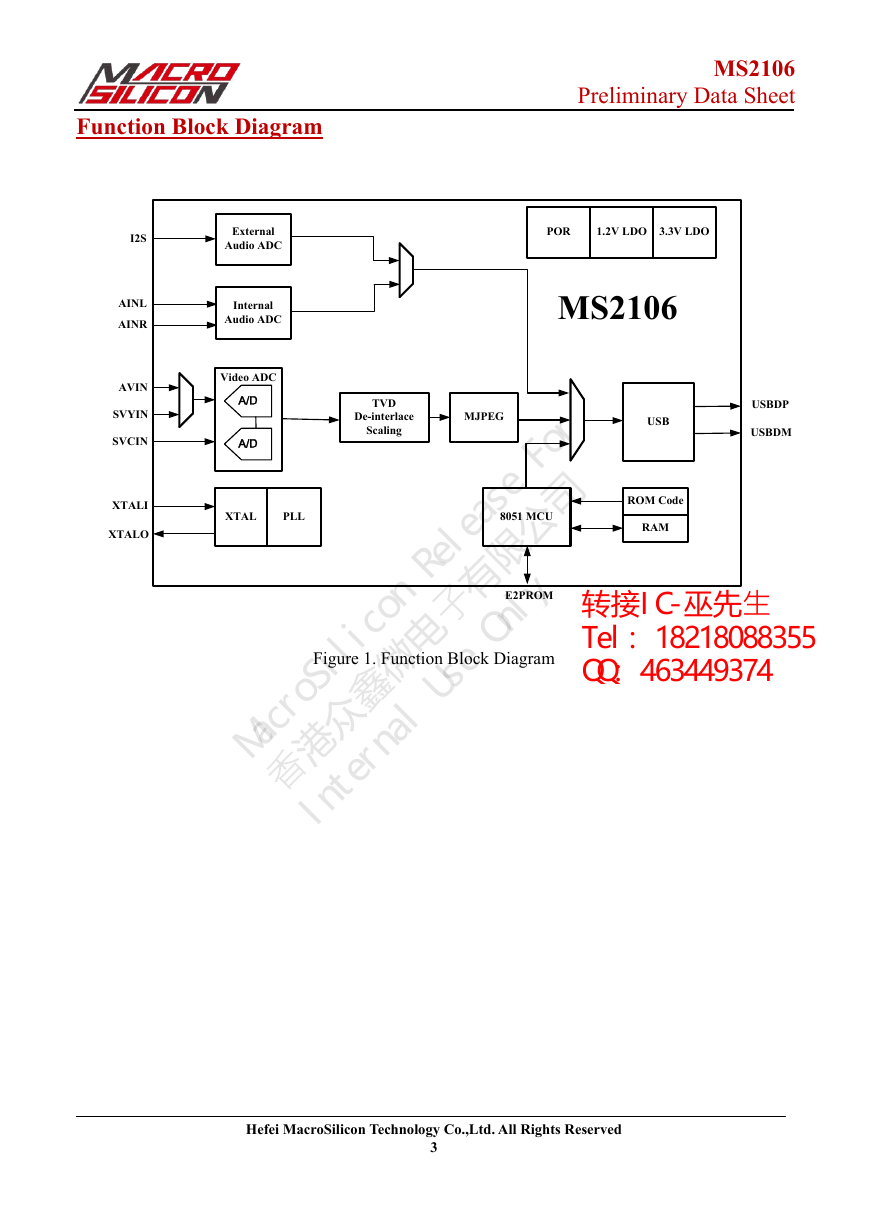

MS2106 Preliminary Data Sheet Function Block Diagram I2S AINL AINR AVIN SVYIN SVCIN XTALI XTALO External Audio ADC Internal Audio ADC Video ADC POR 1.2V LDO 3.3V LDO MS2106 USBDP USBDM USB ROM Code RAM A/D A/D XTAL PLL TVD MJPEG De-interlace Scaling 8051 MCU Figure 1. Function Block Diagram E2PROM Hefei MacroSilicon Technology Co.,Ltd. All Rights Reserved 3

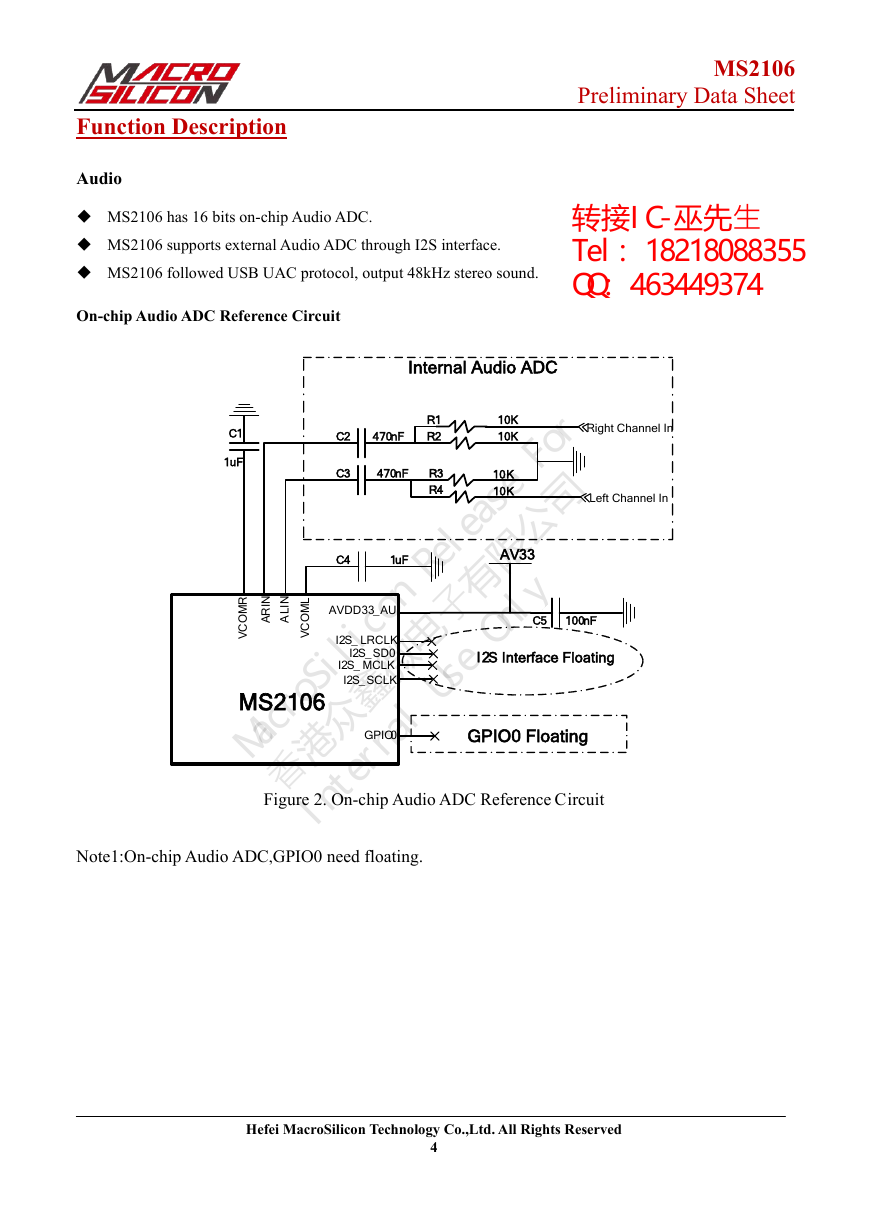

MS2106 Preliminary Data Sheet Function Description Audio  MS2106 has 16 bits on-chip Audio ADC.  MS2106 supports external Audio ADC through I2S interface.  MS2106 followed USB UAC protocol, output 48kHz stereo sound. On-chip Audio ADC Reference Circuit Internal Audio ADC C1 1uF Right Channel In Left Channel In C4 1uF R1 R2 R3 R4 C3 470nF AV33 C2 470nF 10K 10K 10 10 K K MS2106 I2S_ LRCLK I2S_SD0 I2S_ MCLK I2S_SCLK GPIO0 Floating AVDD33_AU I N R A N I L A R M O C V L M O C V Figure 2. On-chip Audio ADC Reference Circuit GPIO0 C5 100nF I2S Interface Floating Note1:On-chip Audio ADC,GPIO0 need floating. Hefei MacroSilicon Technology Co.,Ltd. All Rights Reserved 4

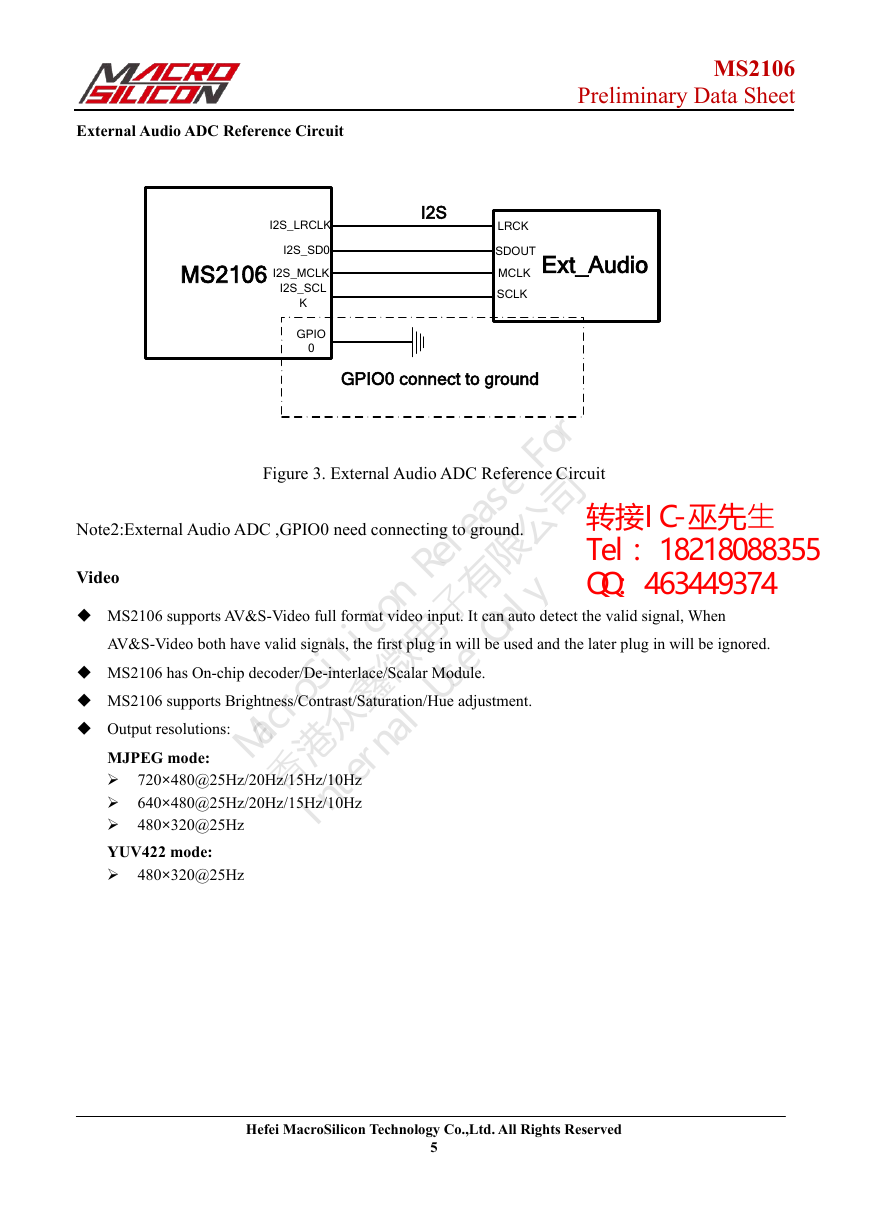

MS2106 Preliminary Data Sheet External Audio ADC Reference Circuit MS2106 I2S_LRCLK I2S_SD0 I2S_MCLK I2S_SCL K GPIO 0 I2S LRCK SDOUT MCLK SCLK Ext_Audio GPIO0 connect to ground Video Note2:External Audio ADC ,GPIO0 need connecting to ground. Figure 3. External Audio ADC Reference Circuit AV&S-Video both have valid signals, the first plug in will be used and the later plug in will be ignored.  MS2106 supports AV&S-Video full format video input. It can auto detect the valid signal, When  MS2106 has On-chip decoder/De-interlace/Scalar Module.  MS2106 supports Brightness/Contrast/Saturation/Hue adjustment.  Output resolutions: MJPEG mode:  720×480@25Hz/20Hz/15Hz/10Hz  640×480@25Hz/20Hz/15Hz/10Hz  480×320@25Hz YUV422 mode:  480×320@25Hz Hefei MacroSilicon Technology Co.,Ltd. All Rights Reserved 5

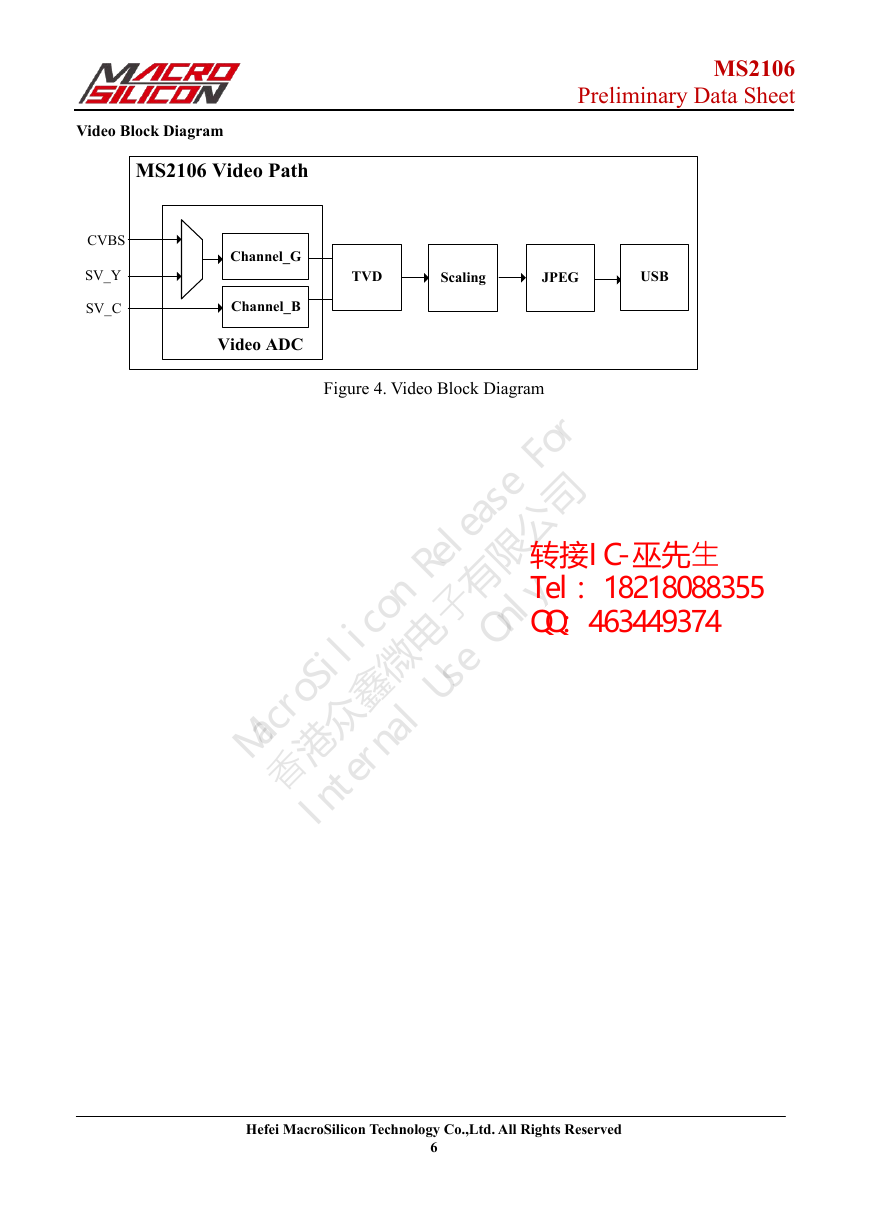

MS2106 Preliminary Data Sheet Video Block Diagram MS2106 Video Path CVBS SV_Y SV_C Channel_G Channel_B Video ADC TVD Scaling JPEG USB Figure 4. Video Block Diagram Hefei MacroSilicon Technology Co.,Ltd. All Rights Reserved 6

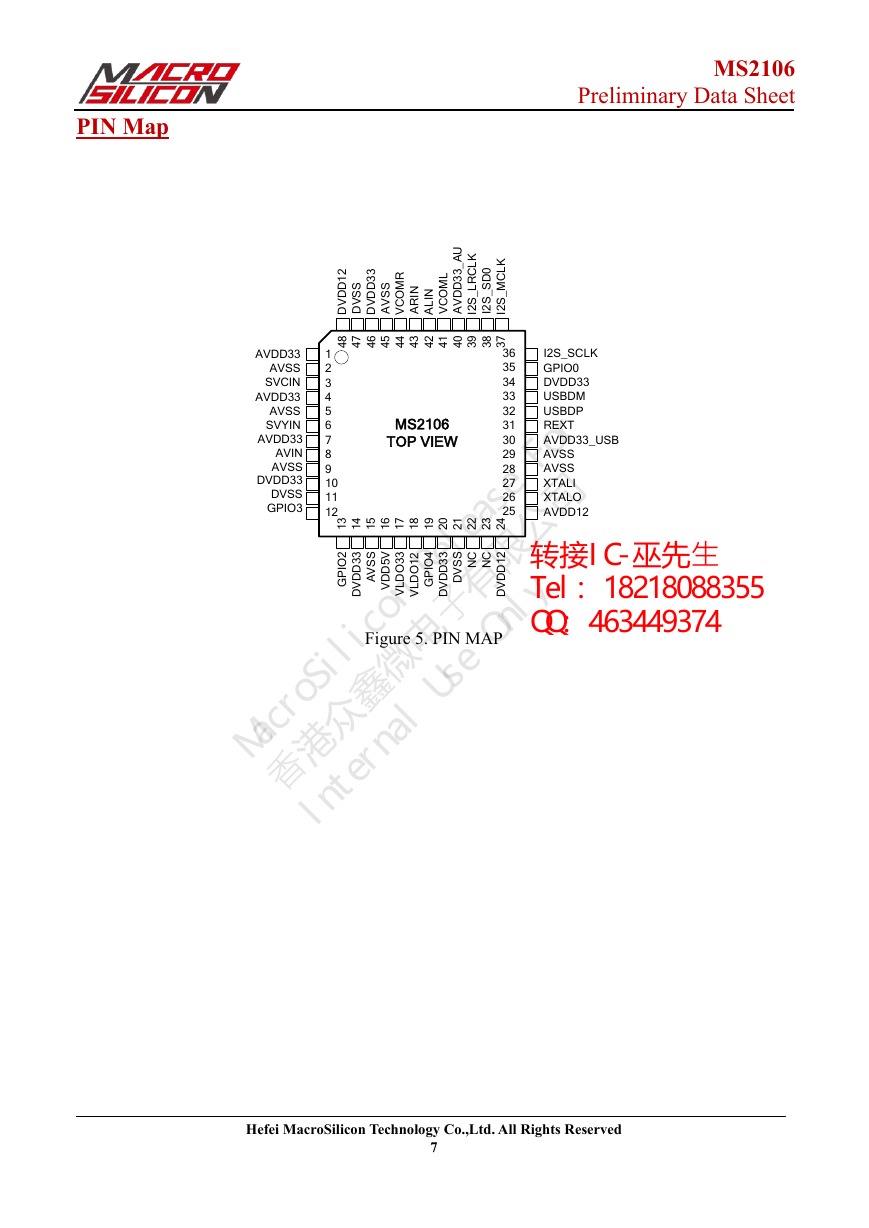

MS2106 Preliminary Data Sheet PIN Map I2S_SCLK GPIO0 DVDD33 USBDM USBDP REXT AVDD33_USB AVSS AVSS XTALI XTALO AVDD12 36 35 34 33 32 31 30 29 28 27 26 25 AVDD33 AVSS SVCIN AVDD33 AVSS SVYIN AVDD33 AVIN AVSS DVDD33 DVSS GPIO3 1 2 3 4 5 6 7 8 9 10 11 12 C N 2 2 3 2 4 2 S S V A 6 1 7 1 8 1 S S V D 9 1 0 2 1 2 3 1 4 1 5 1 I 4 O P G I 2 O P G V 5 D D V 3 3 O D L V 2 1 O D L V 3 3 D D V D 3 3 D D V D MS2106 TOP VIEW Figure 5. PIN MAP 2 1 D D V D C N 2 1 D D V D 3 3 D D V D R M O C V S S V A S S V D I N R A I N L A U A _ 3 3 D D V A K L C R L _ S 2 I K L C M _ S 2 I 0 D S _ S 2 I L M O C V 8 4 7 4 6 4 5 4 4 4 3 4 2 4 1 4 0 4 9 3 8 3 7 3 Hefei MacroSilicon Technology Co.,Ltd. All Rights Reserved 7
