EIP-25

Table of Contents

Introduction

Features

Projector Figure

Function list of control panel

Accessories

Remote Control

Operation guide

Connecting component

Function list of remote control panel

How to connect the projector to a DVD or VCR

Turning on the projector

Basic Image Adjustment

Turning off the projector

Adjusting the projected image height

Adjusting the image focus and zoom

OSD Menu

Image (Computer mode)

Image (Video mode)

Display (Computer mode)

Display (video mode)

Audio

Projection setting

Language

Maintenance and service

Replacing the lamp module

Cleaning the projector lens

Appendix

Common problems and solutions

Distance ratio of screen and projector

Specifications

Table of Contents 1. Introduction···················································································· 2 2. Features ···························································································2 3. Operation notice··········································································· 3 4. Projector figure············································································· 4 4.1 Function list of control panel 5. Accessories···················································································· 7 6. Operation guide·········································································· 11 11 12 5.1 Remote control 5.2 Function list of remote control panel 6.1 Connecting component 6.2 How to connect the projector to your computer 6.3 How to connect the projector to a DVD or VCR 6.4 Turning on the projector 6.5 Basic Image Adjustment 6.6 Turning off the projector 6.7 Adjusting the projected image height 6.8 Adjusting the image focus and zoom 7.1 Image (Computer mode) 7.2 Image (Video mode) 7.3 Display (Computer mode) 7.4 Display (Video mode) 7.5 Audio 7.6 Projection setting 7.7 Language 8.1 Replacing the lamp module 8.2 Cleaning the projector lens 9.1 Common problems and solutions 9.2 Distance ratio of screen and projector 9.3 Specifications 1 4 8 9 12 13 13 14 14 15 16 17 18 20 21 22 23 24 24 26 28 29 7. OSD menu ·····················································································16 8. Maintenance and service························································24 9. Appendix························································································26

1.Introduction Please read this manual carefully before using, to find out: • How to use the projector safely • How to use the remote control • How to set up and connect the projector • How to start and turn off the projector • How to use the On-screen display (OSD) menus • How to replace the lamp module • How to solve troubleshoot common problems 2.Features Expandable module design, compact and lightweight. Use the technology of chip TI 0.7”/ 0.6” DLPTM. Full-function remote including mouse controls. • • • High quality manual zoom lens. • Weight only 7.5 pounds with beautifully designed appearance. • • High brightness/high contrast. Clear images. • • • • Multi languages function window. Provide the adjustment of 4G3 / 16G9 aspect ratio. Compatible with the VGA of P- Scan (480P) & HDTV (1080i / 720P). Compatible with the video of NTSC / PAL / HDTV. 2

3.Operation notice: Please read and follow the following safety instructions and description carefully. Inappropriate operation method may result in fire, electrical shock, and personal injury or shorten the life span of projector. Warning: Do not cover the lens while the lamp lights up. Warning: To protect your eyes, do not look directly into the projector’s light source. Warning: Make sure that you provide adequate ventilation for the projector. Do not block the ventilation holes in the case Warning: To prevent electrical shock, never open the projector case. Warning: Before using, please make sure that the power cord is connected to an AC receptacle with a protective safety ground terminal. Do not neglect the receptacle with protective safety ground terminal. Warning: To replace the lamp, turn the projector off and unplug the power cord. To avoid burns, wait 1 hr before opening the lamp door. For relevant operation procedures, please refer to page 24 the section of “changing lamp”. Warning: Please use the power cord provided. And use the receptacle with a protective safety ground terminal. Warning: Do not block ventilation openings to avoid danger. Warning: Do not place any drinks on top of your projector. Spilled liquids may damage the projector. Warning: Do not place the projector on a hot surface, moisture or in direct sunlight. Warning: Handle carefully during transportation. Avoid dropping it. 3

4.Projector figure 4.1 Function list of control panel: ↑↓←→ LAMP LED TEMP LED POWER LED 4 Control panel Infrared remote sensor Zoom ring Focus ring Lens Cap POWER MENU SOURCE AUTO/ENTER

Power LED (Indicator light) • When the projector is on, Power LED will blink. Press “Power” button to enter screen, Power LED remains lit continually. Temp LED (Indicator light) • When fan malfunctions, the screen will shows the message stating “fan error, system is forced to turn off!”. Temp LED remains lit continually. • When the temperature is unusual, screen will shows the message stating “temperature error, system is forced to turn off!”. Temp LED blinks once every half of second. Lamp LED (Indicator light) • Lamp LED will turn on automatically when lamp is on. Lamp LED will turn off automatically when the lamp is off.. Power • Press to turn power off and on. • Please refer to the “Starting and turning off the projector” section in Page (On/Standby) Auto/Enter (confirm/Sync) • When using menu, this button is the Enter function. • Under general condition, this button is the Sync function. 5 13. Menu (OSD menu) • Press this button to display the menu, press once again to close the menu. • If no other action is taken after the menu is opened, it will disappear automatically after 20 sec. Source (Signal source) • Select the signal of Analog RGB, Analog Y Pb Pr, Digital RGB, Composite Video, S-Video and Component Video in proper order, and automatically adjust the phase and frequency.

(Up and down button) • OSD active: Press to move between menu options. • OSD inactive: Press to select the video input source. (Left and right button) • When using these buttons, press ”Auto/Enter” button then press right key to add setting value; on the contrary, left button to reduce the setting value. 6

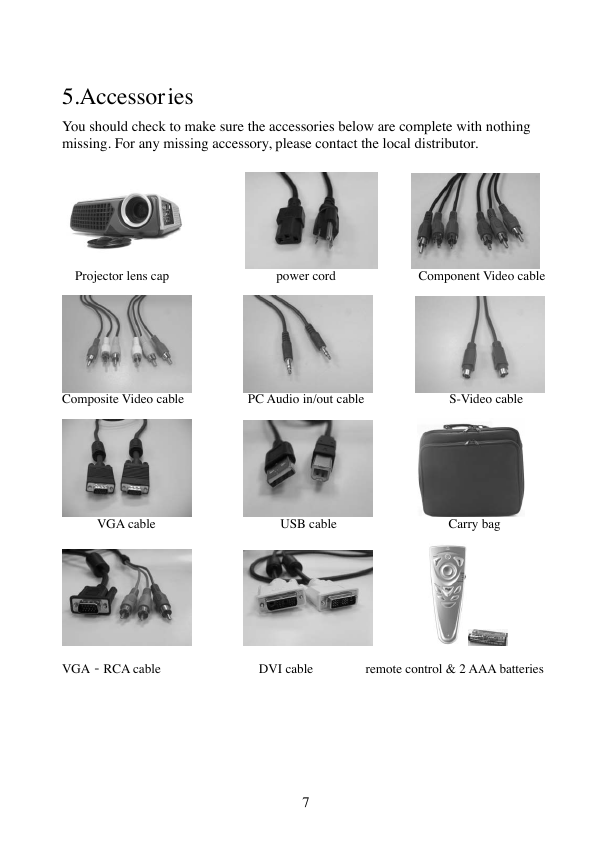

5.Accessories You should check to make sure the accessories below are complete with nothing missing. For any missing accessory, please contact the local distributor. Projector lens cap power cord Component Video cable Composite Video cable PC Audio in/out cable S-Video cable VGA cable USB cable Carry bag VGA RCA cable DVI cable remote control & 2 AAA batteries 7
