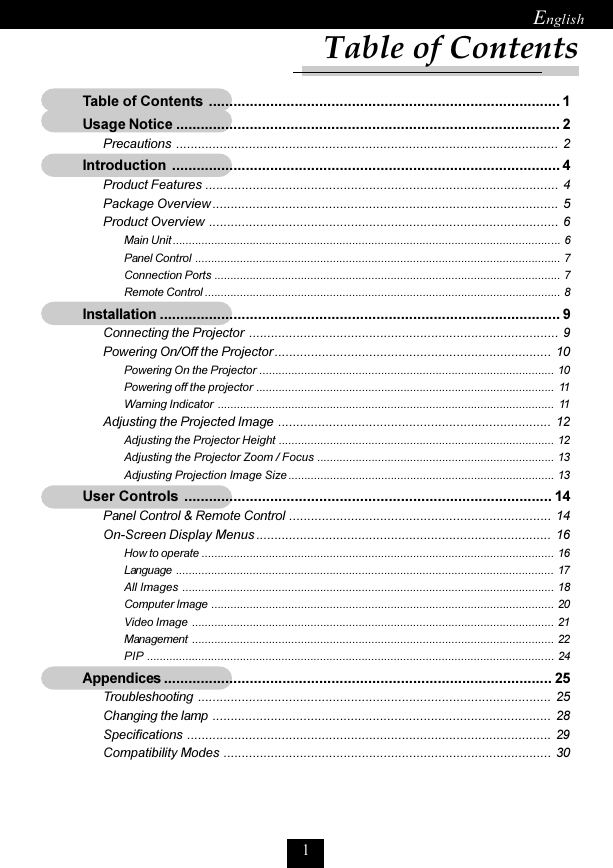

English Table of Contents Table of Contents ...................................................................................... 1 Usage Notice .............................................................................................. 2 Precautions ......................................................................................................... 2 Introduction ............................................................................................... 4 Product Features ................................................................................................. 4 Package Overview ............................................................................................... 5 Product Overview ................................................................................................ 6 Main Unit ......................................................................................................................... 6 Panel Control .................................................................................................................. 7 Connection Ports ............................................................................................................ 7 Remote Control ............................................................................................................... 8 Installation .................................................................................................. 9 Connecting the Projector ..................................................................................... 9 Powering On/Off the Projector ............................................................................ 10 Powering On the Projector ............................................................................................ 10 Powering off the projector ............................................................................................. 11 Warning Indicator ......................................................................................................... 11 Adjusting the Projected Image ........................................................................... 12 Adjusting the Projector Height ...................................................................................... 12 Adjusting the Projector Zoom / Focus .......................................................................... 13 Adjusting Projection Image Size ................................................................................... 13 User Controls .......................................................................................... 14 Panel Control & Remote Control ........................................................................ 14 On-Screen Display Menus ................................................................................. 16 How to operate .............................................................................................................. 16 Language ...................................................................................................................... 17 All Images .................................................................................................................... 18 Computer Image ........................................................................................................... 20 Video Image ................................................................................................................. 21 Management ................................................................................................................. 22 PIP ............................................................................................................................... 24 Appendices ............................................................................................... 25 Troubleshooting ................................................................................................. 25 Changing the lamp ............................................................................................. 28 Specifications .................................................................................................... 29 Compatibility Modes .......................................................................................... 30 1

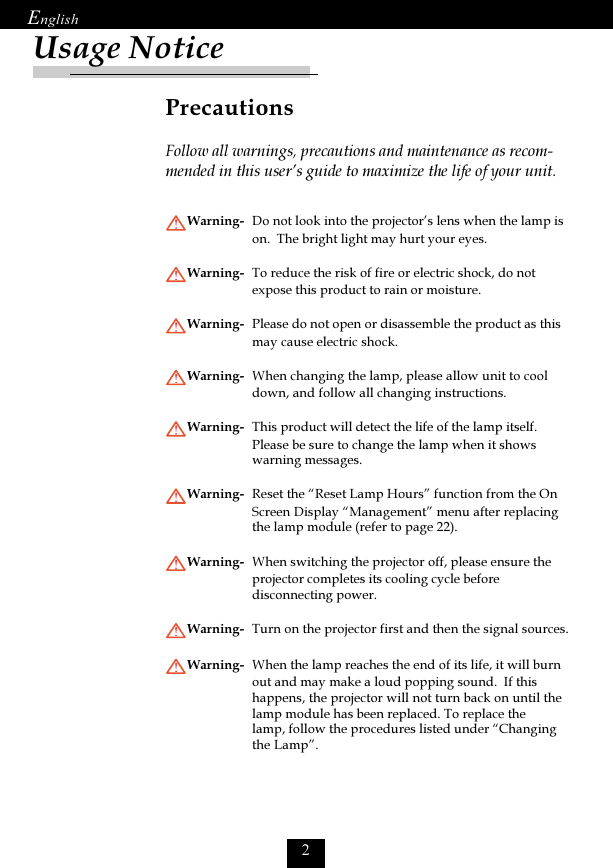

English Usage Notice Precautions Follow all warnings, precautions and maintenance as recom- mended in this users guide to maximize the life of your unit. Warning- Do not look into the projectors lens when the lamp is on. The bright light may hurt your eyes. Warning- To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Warning- Please do not open or disassemble the product as this may cause electric shock. Warning- When changing the lamp, please allow unit to cool down, and follow all changing instructions. Warning- This product will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages. Warning- Reset the Reset Lamp Hours function from the On Screen Display Management menu after replacing the lamp module (refer to page 22). Warning- When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power. Warning- Turn on the projector first and then the signal sources. Warning- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under Changing the Lamp. 2

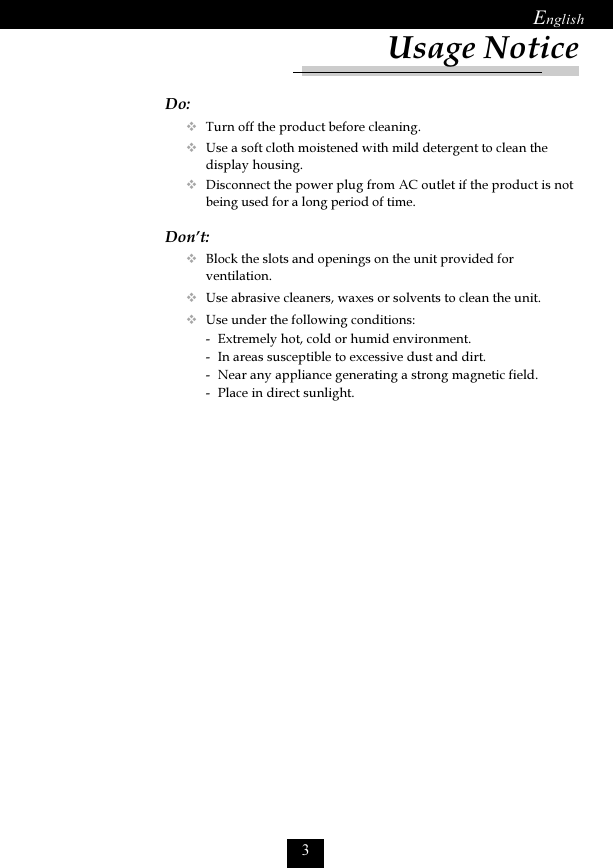

English Usage Notice Do: v Turn off the product before cleaning. v Use a soft cloth moistened with mild detergent to clean the display housing. v Disconnect the power plug from AC outlet if the product is not being used for a long period of time. Dont: v Block the slots and openings on the unit provided for ventilation. v Use abrasive cleaners, waxes or solvents to clean the unit. v Use under the following conditions: - Extremely hot, cold or humid environment. - In areas susceptible to excessive dust and dirt. - Near any appliance generating a strong magnetic field. - Place in direct sunlight. 3

English Introduction Product Features This product is an XGA single chip 0.7 DLPTM projector. The outstanding features of it are listed as follows: u True XGA, 1024 x 768 addressable pixels u 2.1 lbs (0.95 kgs) compact design u Single chip DLPTM technology u NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and HDTV compatible u Full function remote controller u User friendly multilingual on-screen display menu u Advanced electronic keystone correction and high quality full screen re-scaling image u User friendly control panel u SXGA compression and VGA, SVGA re-sizing u 120 Watts user replaceable P-VIP lamp u Mac compatible 4

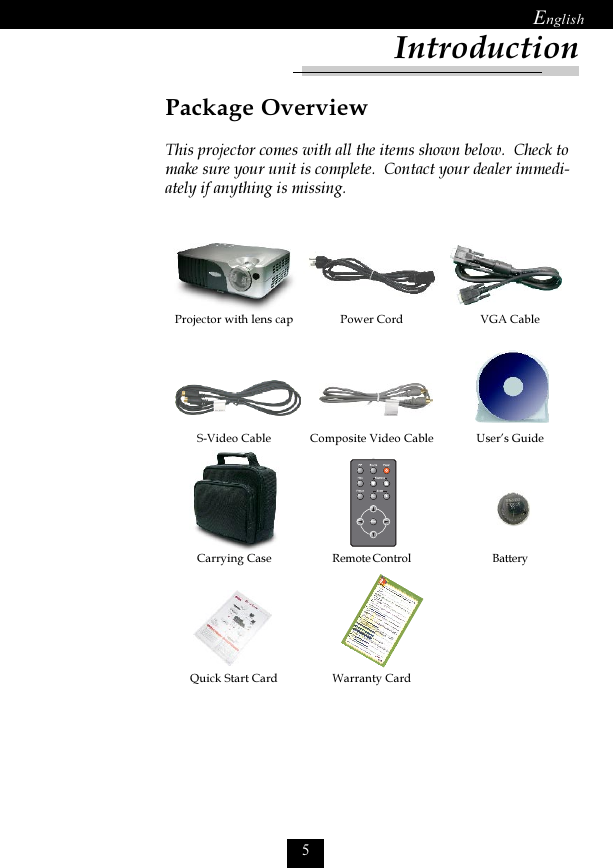

English Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immedi- ately if anything is missing. Projector with lens cap Power Cord VGA Cable S-Video Cable Composite Video Cable Users Guide Carrying Case Remote Control Battery Quick Start Card Warranty Card 5

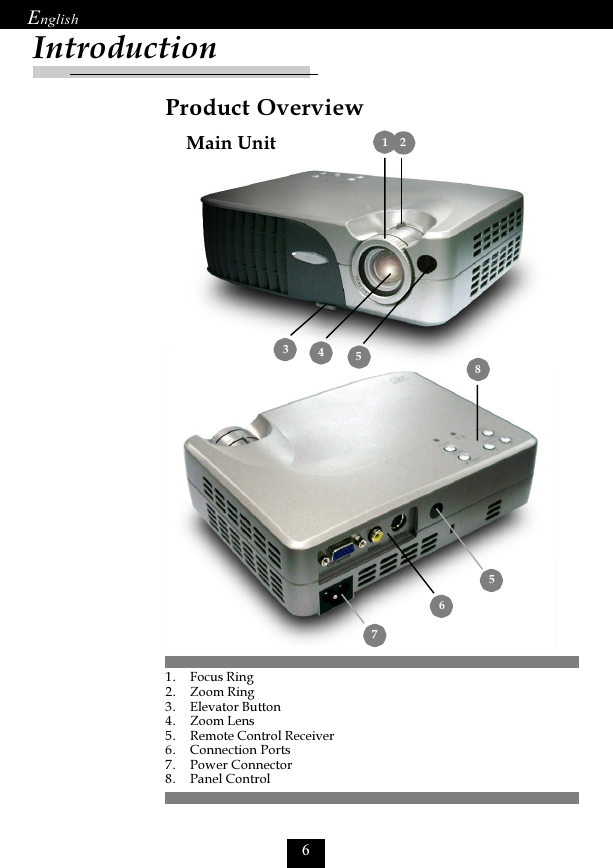

English Introduction Product Overview Main Unit 1 2 3 4 5 8 5 6 7 1. Focus Ring 2. Zoom Ring 3. Elevator Button 4. Zoom Lens 5. Remote Control Receiver 6. Connection Ports 7. Power Connector 8. Panel Control 6

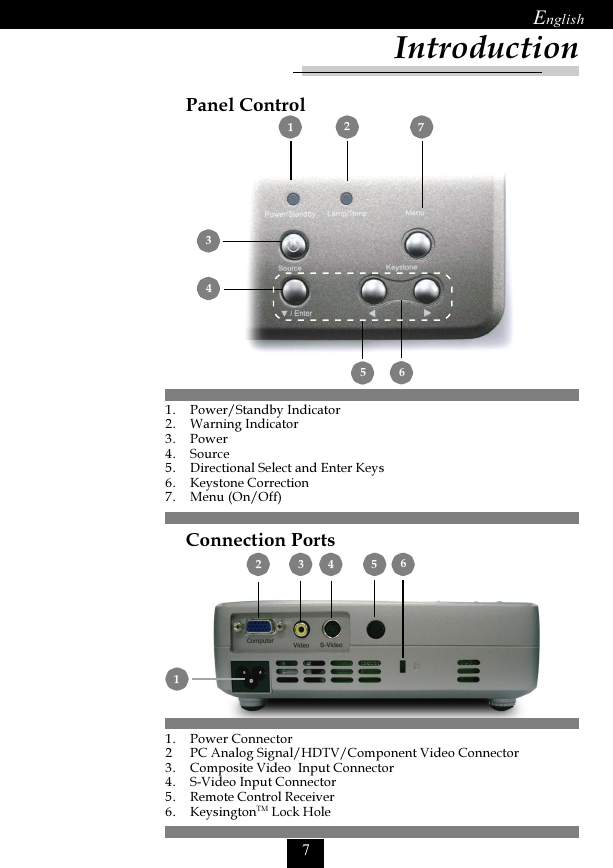

English Introduction Panel Control 1 2 7 3 4 5 6 1. Power/Standby Indicator 2. Warning Indicator 3. Power 4. Source 5. Directional Select and Enter Keys 6. Keystone Correction 7. Menu (On/Off) Connection Ports 2 3 4 5 6 1 PC Analog Signal/HDTV/Component Video Connector 1. Power Connector 2 3. Composite Video Input Connector S-Video Input Connector 4. 5. Remote Control Receiver 6. KeysingtonTM Lock Hole 7

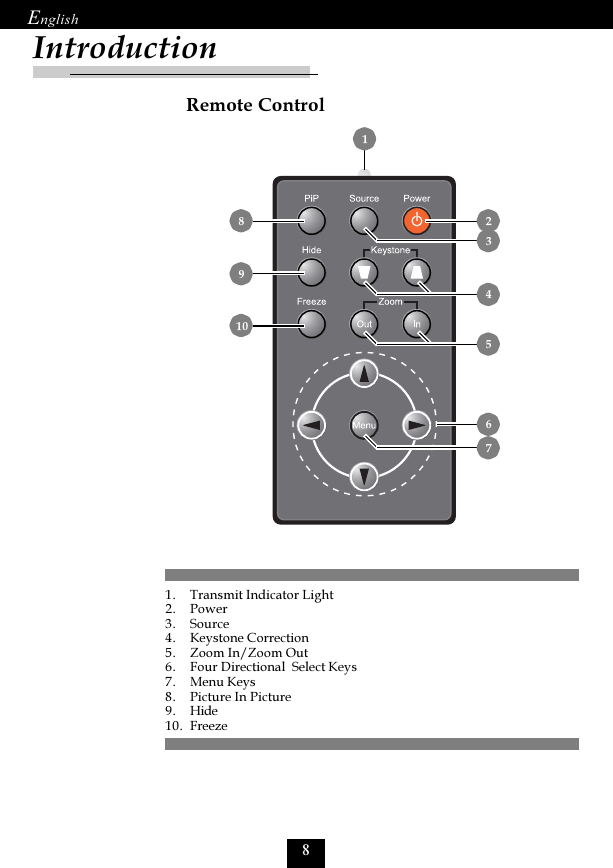

English Introduction Remote Control 1 8 9 10 2 3 4 5 6 7 1. Transmit Indicator Light 2. Power 3. Source 4. Keystone Correction 5. Zoom In/Zoom Out 6. Four Directional Select Keys 7. Menu Keys 8. Picture In Picture 9. Hide 10. Freeze 8
