三洋投影机-PLV-Z2000说明书.pdf
Features and Design
Table of Contents
To the Owner
Safety Instructions
Air Circulation
Installing the Projector in Proper Position
Moving the Projector
Compliance
Part Names and Functions
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control
Remote Control Operating Range
Remote Control Battery Installation
Installation
Positioning the Projector
Adjustable Feet
Moving the Lens
Connecting to Video Equipment (Video, S-Video)
Connecting to Video Equipment (Component)
Connecting to Video Equipment (HDMI, RGB Scart)
Connecting to a Computer
Connecting the AC Power Cord
Basic Operation
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu and its Functions
Zoom and Focus Adjustment
Remote Control Operation
Input
Input Source and System Selection
Image Mode Selection
Image Adjustment
Image Mode Adjustment
Picture Adjustment
Picture Position and Screen Adjustment
Screen
Screen Size Adjustment
Setting
Setting
Information
Input Source Information Display
Maintenance and Cleaning
Warning Indicator
Cleaning the RGB panels
Cleaning the Air Filter
Resetting the Filter Counter
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Lamp Replacement
Resetting the Lamp Replacement Counter
Appendix
Troubleshooting
Indicators and Projector Condition
Menu Tree
System Mode Chart
Technical Specifications
Configurations of Terminals
Optional Parts
Dimensions
Multimedia Projector
MODEL PLV-Z2000
Owner’s Manual
Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. It uses built-in
multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology.
◆ Short Throw & Wide-Range Zoom Lens
The 2x Short Throw & Wide-Range Zoom Lens is capable of
throwing a 100” diagonal image from a distance of 9.8’ (3.0
m) to 20.0’ (6.1 m).
◆ Automatic Slide Shutter
The automatic slide shutter protects the lens from dust and
scratches. It opens and closes automatically as you press
the POWER ON/STAND-BY button.
◆ Lens Shift
The Lens Shift function provides a greater installation
flexibility. You can use the projector at desired places
without images being distorted (see page 14).
◆ Wide Selection of Image Modes
You can select an ideal image mode for the viewing
environment or for your desired picture quality (see page
27). The seven different kinds of images of your choice can
also be stored (see pages 28 – 33).
◆ Color Management
The Color management function allows you to adjust the
details of picture colors to suit your preference and viewing
environments (see pages 32 – 33).
◆ Power Management
The Power management function reduces power
consumption and maintains the lamp life (see page 41).
◆ Auto Iris
The integration of the lamp aperture enhances the contrast
and depth of the projected image.
◆ Compatibility
The projector accepts signals from multiple sources:
computers, analog TV systems (PAL, SECAM, NTSC,
NTSC4.43, PAL-M, and PAL-N), component video, S-video,
RGB scart, and HDMI.
◆ Simple Computer System Setting
The Multi-scan system of the projector conforms to almost
all computer output signals quickly (see page 26).
◆ 16 : 9 Wide Screen
The wide LCD panels with 1920 x 1080 resolution (16:9
aspect ratio) can project the image from component video
signals such as DVD players and HDTV devices in full
screen.
◆ Interlace-Progressive Conversion
High-quality picture technology is available that converts
an interlaced signal into a progressively-scanned one (see
page 29).
◆ Logo
The Logo function allows you to customize the screen logo
(see page 40). You can capture an image for the screen
logo and use it for the starting-up display or between
presentations.
◆ Lamp Control
The brightness of the projection lamp can be selected (see
pages 23, 29).
◆ Multi-language Menu Display
Operation menu is available in 16 languages: English,
German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Finnish, Polish, Hungarian, Romanian, Russian,
Chinese, Korean, and Japanese (see page 37).
◆ Two HDMI Terminals
The projector has two HDMI (High Definition Multimedia
Interface) terminals. Simple connection with digital
equipment is offered through these terminals.
✔Note:
• The On-Screen Menu and figures in this manual may differ slightly from the actual product.
• The contents of this manual are subject to change without notice.
2
Table of Contents

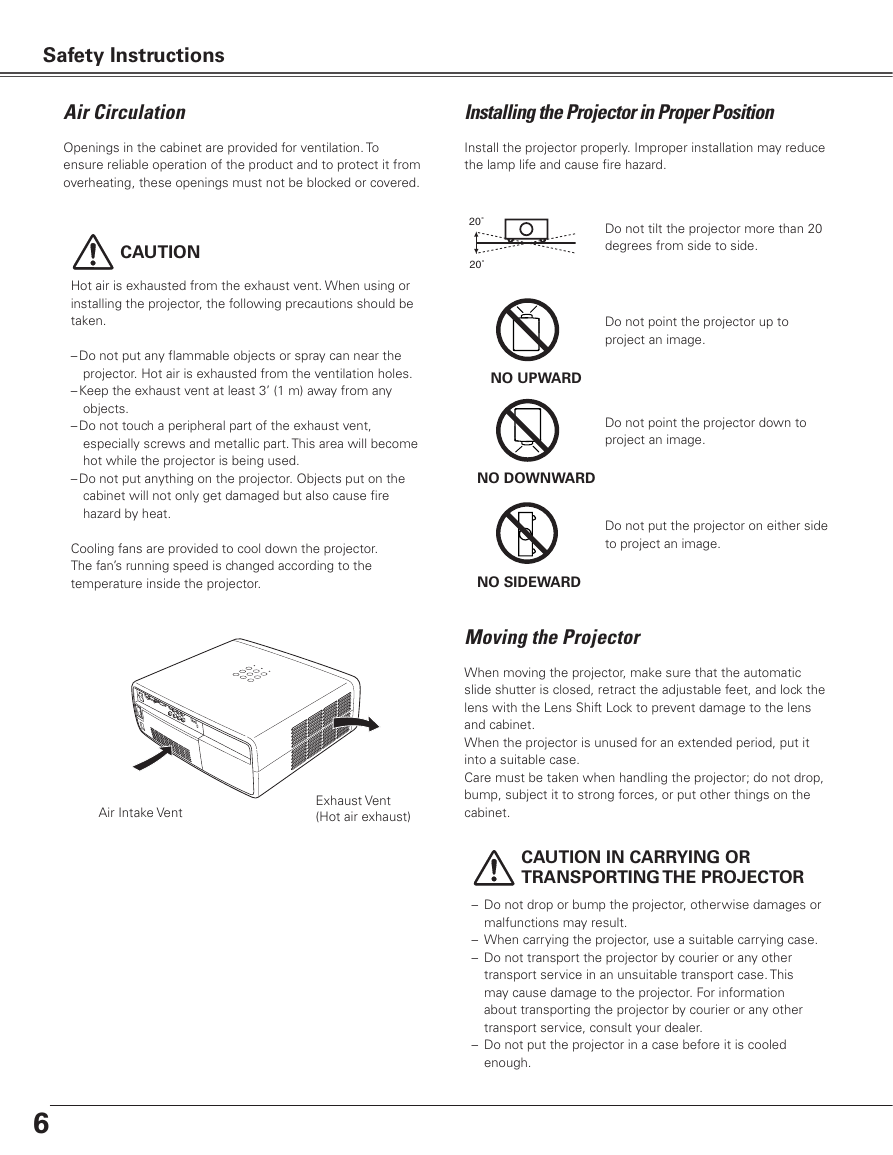

Air Circulation
Installing the Projector in Proper Position
Moving the Projector
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control
Remote Control Operating Range
Remote Control Battery Installation
Features and Design . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . .
To the Owner . . . . . . . . . . . . . . . . . . . . . 4
Safety Instructions . . . . . . . . . . . . . . . . . 5
6
6
6
Compliance . . . . . . . . . . . . . . . . . . . . . . . 7
Part Names and Functions . . . . . . . . . . . 8
8
8
8
9
10
11
12
12
Installation . . . . . . . . . . . . . . . . . . . . . . 1
13
Positioning the Projector
13
Adjustable Feet
14
Moving the Lens
15
Connecting to Video Equipment (Video, S-Video)
Connecting to Video Equipment (Component)
15
Connecting to Video Equipment (HDMI, RGB Scart) 16
Connecting to a Computer
16
17
Connecting the AC Power Cord
Basic Operation . . . . . . . . . . . . . . . . . . 18
18
19
20
21
22
22
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu and its Functions
Zoom and Focus Adjustment
Remote Control Operation
Screen Size Adjustment
Setting
Input Source Information Display
Image Mode Selection
Image Mode Adjustment
Input Source and System Selection
Picture Position and Screen Adjustment
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
24
Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
27
Image Adjustment . . . . . . . . . . . . . . . . 28
28
Picture Adjustment . . . . . . . . . . . . . . . . 4
34
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 5
35
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . 7
37
Information . . . . . . . . . . . . . . . . . . . . . . 4
43
Maintenance and Cleaning . . . . . . . . . 44
44
45
47
48
48
48
49
50
Appendix . . . . . . . . . . . . . . . . . . . . . . . . 51
51
53
54
56
57
58
58
59
Warning Indicator
Cleaning the RGB panels
Cleaning the Air Filter
Resetting the Filter Counter
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Lamp Replacement
Resetting the Lamp Replacement Counter
Troubleshooting
Indicators and Projector Condition
Menu Tree
System Mode Chart
Technical Specifications
Configurations of Terminals
Optional Parts
Dimensions
TRADEMARKS
● Each name of corporations or products in this owner’s manual is either a trademark or a registered trademark of its
respective corporation.
To the Owner
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintain it in good condition for
many years to come.
Improper operation may result in not only shortening the
product life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections, and
try the solutions in the “Troubleshooting” section in the back
of this manual. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Safety Precaution
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE .
– This projector produces intense light from the projection
lens. Avoid staring directly into the lens as much as possible,
otherwise eye damage could result. Be especially careful
that children do not stare directly into the beam.
– Install the projector in a proper position. Otherwise it may
result in fire hazard.
– Allowing the proper amount of space on the top, sides,
and rear of the projector cabinet is critical for proper air
circulation and cooling of the unit. The dimensions shown
here indicate the minimum space required. If the projector
is to be built into a compartment or similarly enclosed, these
minimum distances must be maintained.
– Do not cover the ventilation slot on the projector. Heat build-
up can reduce the service life of your projector, and can also
be dangerous.
SIDE and TOP
REAR
CAUTION: TO REDUCE THE RISK OF ELECTRIC
1.5' (50 cm)
SHOCK, DO NOT REMOVE COVER (OR
BACK) . NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT .
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL .
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER’S MANUAL WITH
THIS UNIT.
NOTE: This symbol and recycle system are applied to EU
countries only and not to the countries in the other area
of the world.
Your SANYO product is designed and
manufactured with high quality materials
and components which can be recycled
and reused.
This symbol means that electrical and
electronic equipment, at their end-of-life,
should be disposed of separately from
your household waste.
Please dispose of this equipment at your
local community waste collection/recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.
Please help us to conserve the environment we live in!
READ AND KEEP THIS OWNER’S MANUAL FOR LATER
USE .
4
3' (1 m)
1.5' (50 cm)
1.5' (50 cm)
– If the projector is unused for an extended time, unplug the
projector from the power outlet.
CAUTION ON HANGING FROM THE CEILING
When hanging the projector from the
ceiling, clean the air intake vents, air filters,
and the top of the projector periodically
with a vacuum cleaner. If you leave the
projector unclean for a long time, the
cooling fans can be clogged with dust, and
it may cause a breakdown or a disaster.
DO NOT SET THE PROjECTOR IN GREASy, WET,
OR SMOKy CONDITIONS SUCH AS IN A KITCHEN
TO PREVENT A BREAKDOWN OR DISASTER . IF THE
PROjECTOR COMES IN CONTACT WITH OIL OR
CHEMICALS, IT MAy BECOME DETERIORATED .
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle
que définie dans la norme ANSI/NFPA 75 Standard for
Protection of Electronic Computer/Data Processing
Equipment.
Safety Instructions
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for
later use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during lightning storm, or
when it is left unattended and unused for long periods of time,
unplug it from the wall outlet. This will prevent damage due to
lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or
table. The projector may fall, causing serious injury to a child
or adult, and serious damage to the projector. Use only with
a cart or stand recommended by the manufacturer, or sold
with the projector. Wall or shelf mounting should follow the
manufacturer’s instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening
or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following
the operating instructions. Adjust only those controls that
are covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance, this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or injury to persons.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to ensure reliable operation of the
equipment and to protect it from overheating.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked
by placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a bookcase unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
Voor de klanten in Nederland
Bij dit produkt zijn batterijen
geleverd.
Wanneer deze leeg zijn, moet u ze
niet weggooien maar inleveren als
KCA.
NL
5
Safety Instructions
Air Circulation
Openings in the cabinet are provided for ventilation. To
ensure reliable operation of the product and to protect it from
overheating, these openings must not be blocked or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using or
installing the projector, the following precautions should be
taken.
– Do not put any flammable objects or spray can near the
projector. Hot air is exhausted from the ventilation holes.
– Keep the exhaust vent at least 3’ (1 m) away from any
objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will become
hot while the projector is being used.
– Do not put anything on the projector. Objects put on the
cabinet will not only get damaged but also cause fire
hazard by heat.
Cooling fans are provided to cool down the projector.
The fan’s running speed is changed according to the
temperature inside the projector.
Air Intake Vent
Exhaust Vent
(Hot air exhaust)
6
Installing the Projector in Proper Position
Install the projector properly. Improper installation may reduce
the lamp life and cause fire hazard.
20˚
20˚
Do not tilt the projector more than 20
degrees from side to side.
Do not point the projector up to
project an image.
Do not point the projector down to
project an image.
NO UPWARD
NO DOWNWARD
Do not put the projector on either side
to project an image.
NO SIDEWARD
Moving the Projector
When moving the projector, make sure that the automatic
slide shutter is closed, retract the adjustable feet, and lock the
lens with the Lens Shift Lock to prevent damage to the lens
and cabinet.
When the projector is unused for an extended period, put it
into a suitable case.
Care must be taken when handling the projector; do not drop,
bump, subject it to strong forces, or put other things on the
cabinet.
CAUTION IN CARRyING OR
TRANSPORTING THE PROjECTOR
– Do not drop or bump the projector, otherwise damages or
malfunctions may result.
– When carrying the projector, use a suitable carrying case.
– Do not transport the projector by courier or any other
transport service in an unsuitable transport case. This
may cause damage to the projector. For information
about transporting the projector by courier or any other
transport service, consult your dealer.
– Do not put the projector in a case before it is cooled
enough.
Compliance
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications
should be made, you could be required to stop operation of the equipment.
Model Number(s)
Trade Name
Responsible party
Address
Telephone No.
: PLV-Z2000
: Sanyo
: SANYO FISHER COMPANY
: 21605 Plummer Street, Chatsworth, California 91311
: (818)998-7322
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and
certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the
power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet,
contact your electrician.
GROUND
AC Power Cord for the United Kingdom:
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the
fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ASA . If the fuse cover is
detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it
visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User
Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted.
WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
is of the same colour as that
OUTLET .
The Wires in this mains lead are coloured in accordance with the following code:
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in
Green-and-yellow ············ Earth
Blue ································· Neutral
Brown ······························ Live
your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety
earth symbol
or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING: THIS APPARATUS MUST BE EARTHED .
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILy ACCESSIBLE .
7
Part Names and Functions
Front
q Exhaust Vent
q
w
Air flow
e r
yt
u
i
o
!0
Back
!2
!1
CAUTION
Hot air is exhausted from the exhaust vent.
Do not put heat-sensitive objects near this
side.
w Top Controls and Indicators
e Automatic Slide Shutter
r Projection Lens
t Focus Ring
y Zoom Lever
u Infrared Remote Receiver
i Vertical Lens Shift Ring (Up/Down)
o Horizontal Lens Shift Ring (Left/Right)
!0 Lens Shift Lock
!1 Terminals and Connectors
!2 Main On/Off Switch
!3 Power Cord Connector
!4 Air Intake Vent
!5 Lamp Cover
✽ Kensington Security Slot
This slot is for a Kensington lock used to deter theft of
the projector.
*Kensington is a registered trademark of ACCO Brands Corporation.
!3
!4
!5
Bottom
!6
!6 Adjustable Feet
!7 RGB Panel Cleaning Hole Cover
8
!7
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
