爱克发数码相机-AgfaPhoto sensor 530s说明书.pdf
sensor 530s
User manual

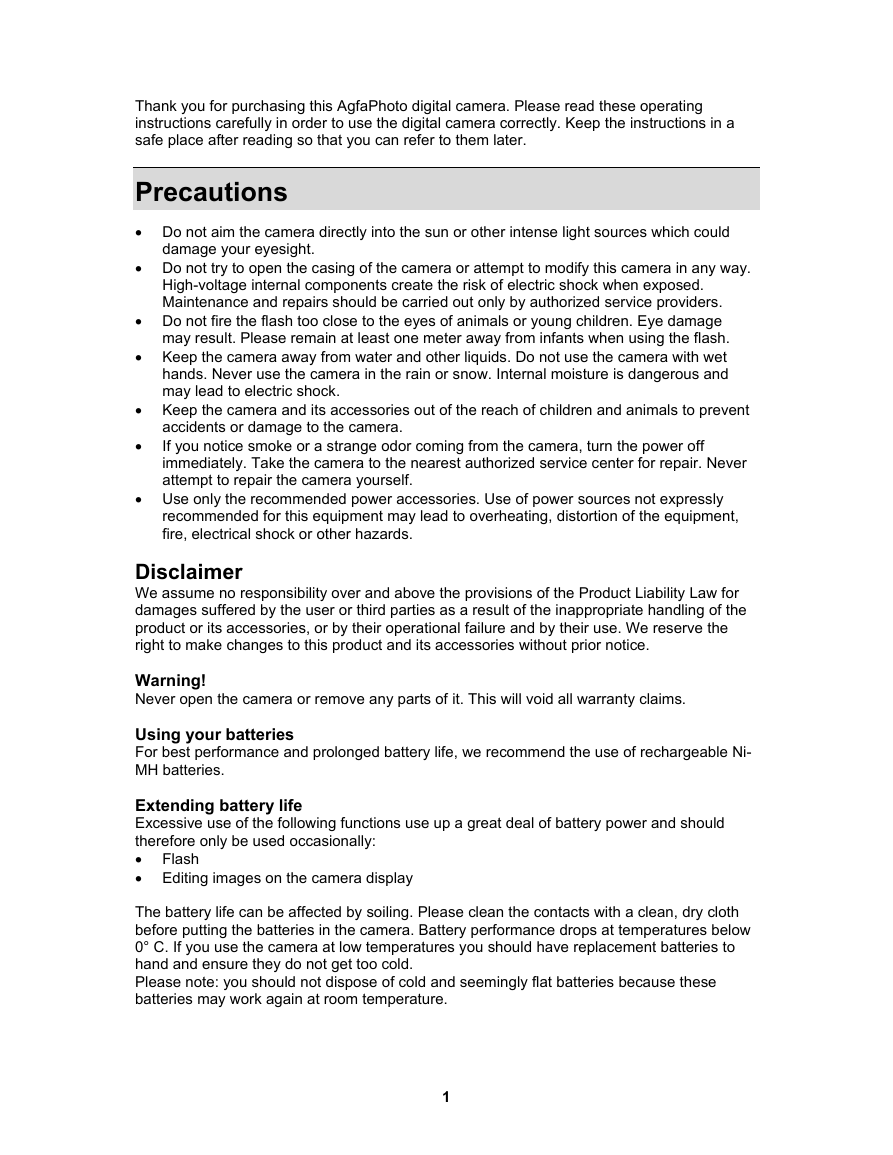

Thank you for purchasing this AgfaPhoto digital camera. Please read these operating
instructions carefully in order to use the digital camera correctly. Keep the instructions in a
safe place after reading so that you can refer to them later.
Precautions
• Do not aim the camera directly into the sun or other intense light sources which could
damage your eyesight.
• Do not try to open the casing of the camera or attempt to modify this camera in any way.
High-voltage internal components create the risk of electric shock when exposed.
Maintenance and repairs should be carried out only by authorized service providers.
• Do not fire the flash too close to the eyes of animals or young children. Eye damage
may result. Please remain at least one meter away from infants when using the flash.
• Keep the camera away from water and other liquids. Do not use the camera with wet
hands. Never use the camera in the rain or snow. Internal moisture is dangerous and
may lead to electric shock.
• Keep the camera and its accessories out of the reach of children and animals to prevent
accidents or damage to the camera.
If you notice smoke or a strange odor coming from the camera, turn the power off
immediately. Take the camera to the nearest authorized service center for repair. Never
attempt to repair the camera yourself.
•
• Use only the recommended power accessories. Use of power sources not expressly
recommended for this equipment may lead to overheating, distortion of the equipment,
fire, electrical shock or other hazards.
Disclaimer
We assume no responsibility over and above the provisions of the Product Liability Law for
damages suffered by the user or third parties as a result of the inappropriate handling of the
product or its accessories, or by their operational failure and by their use. We reserve the
right to make changes to this product and its accessories without prior notice.
Warning!
Never open the camera or remove any parts of it. This will void all warranty claims.
Using your batteries
For best performance and prolonged battery life, we recommend the use of rechargeable Ni-
MH batteries.
Extending battery life
Excessive use of the following functions use up a great deal of battery power and should
therefore only be used occasionally:
• Flash
• Editing images on the camera display
The battery life can be affected by soiling. Please clean the contacts with a clean, dry cloth
before putting the batteries in the camera. Battery performance drops at temperatures below
0° C. If you use the camera at low temperatures you should have replacement batteries to
hand and ensure they do not get too cold.
Please note: you should not dispose of cold and seemingly flat batteries because these
batteries may work again at room temperature.
1
1.0 Table of Contents
Precautions ............................................ 1
Disclaimer...................................................... 1
Warning!........................................................ 1
Using your batteries ...................................... 1
Extending battery life..................................... 1
1.0 Table of Contents.......................... 2
2.0 General Introduction..................... 3
2.1 Package contents................................. 3
2.2 External View ....................................... 3
2.3 Display Information .............................. 5
3.0 Getting Started .............................. 7
3.1 Turning Power On & Off....................... 7
3.2
Inserting / Removing the Batteries....... 7
3.3
Inserting / Removing a Memory Card .. 8
3.4 Attaching the Wrist Strap ..................... 8
4.0 Buttons & Functions..................... 9
4.1 Power................................................... 9
4.2 Shutter ................................................. 9
4.3 Tele / Wide........................................... 9
4.4 Playback ............................................ 10
4.5 Mode .................................................. 10
4.6 Basic Operations................................ 10
4.6.1 EV ...................................................... 10
4.6.2 ISO..................................................... 11
4.6.3 WB ..................................................... 11
4.7 Menu .................................................. 12
4.7.1 Up / Play & Pause / Macro................. 12
4.7.2 Right / Flash....................................... 12
4.7.3 Down / Voice Memo........................... 12
4.7.4 Left / Self-timer................................... 12
5.0 Still Image Mode.......................... 14
5.1 Capturing Images............................... 14
5.2 Menu Mode ........................................ 14
5.2.1 Size (Default: 5M) .............................. 14
5.2.2 Quality (Default: Fine) ........................ 14
5.2.3 Sharpness (Default: Normal).............. 15
5.2.4 Saturation (Default: Normal) .............. 15
5.2.5 Effect (Default: Normal)...................... 15
5.2.6 Metering (Default: Multi)..................... 15
5.2.7 Scene Mode (Default: Auto Mode)..... 15
5.2.8 Shooting (Continuous)
(Default: Single) ................................. 15
6.0 Movie Clip Mode.......................... 16
6.1 Movie Recording ................................ 16
6.2 Movie Size ......................................... 16
7.0 Voice Recording Mode ............... 17
8.0 Playback Mode............................ 18
8.1 Playing a Still Image........................... 18
8.2 Playing Movie Clips............................ 18
8.3 Thumbnail Display (Small Images) .... 19
8.4 Exploring an Image ............................ 19
8.5 Slide ................................................... 19
8.6 Protect................................................ 20
8.7 Delete................................................. 21
8.8 Copy To Card..................................... 21
8.9 DPOF ................................................. 22
9.0 SETUP Mode................................ 23
9.1 Auto Off.............................................. 23
9.2 Language .............................................. 24
9.3 Format................................................ 24
9.4 Date Input .......................................... 24
9.5
Imprint ................................................ 25
9.6 Beep................................................... 25
9.7 Light Frequency ................................. 25
9.8 Q. View .............................................. 25
9.9 Sys. Reset.......................................... 26
9.10 USB.................................................... 26
9.10.1 PC Cam: ....................................... 26
9.10.2 Disk Drive:..................................... 26
9.10.3 Printer: .......................................... 26
10.0 Specifications.............................. 27
System Requirements ................................. 28
11.0 Customer care............................. 29
11.1 Customer care.................................... 29
11.2 Disposal of Waste Equipment by
Users in Private Households in the
European Union .......................................... 30
11.3 Compliance and Advisory .................. 30
2

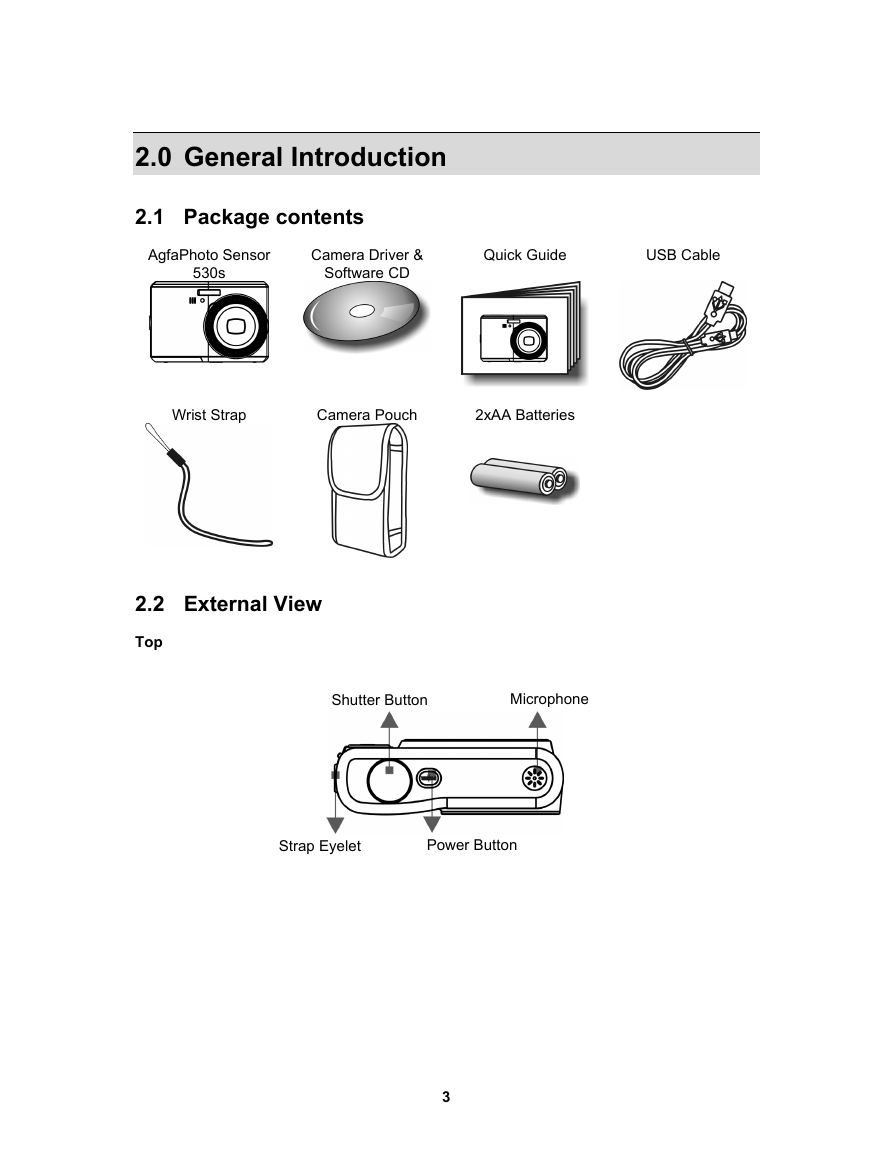

2.0 General Introduction
2.1 Package contents
AgfaPhoto Sensor
Camera Driver &
530s
Software CD
Quick Guide
USB Cable
Camera Pouch
2xAA Batteries
Wrist Strap
2.2 External View
Top
Shutter Button
Microphone
Strap Eyelet
Power Button
3
Side
Front
Back
USB Connector
Battery/Memory
Card/Compartment Cover
LED
Flash
Lens
Wide/Tele Button
LCD Monitor
Tripod Socket
4

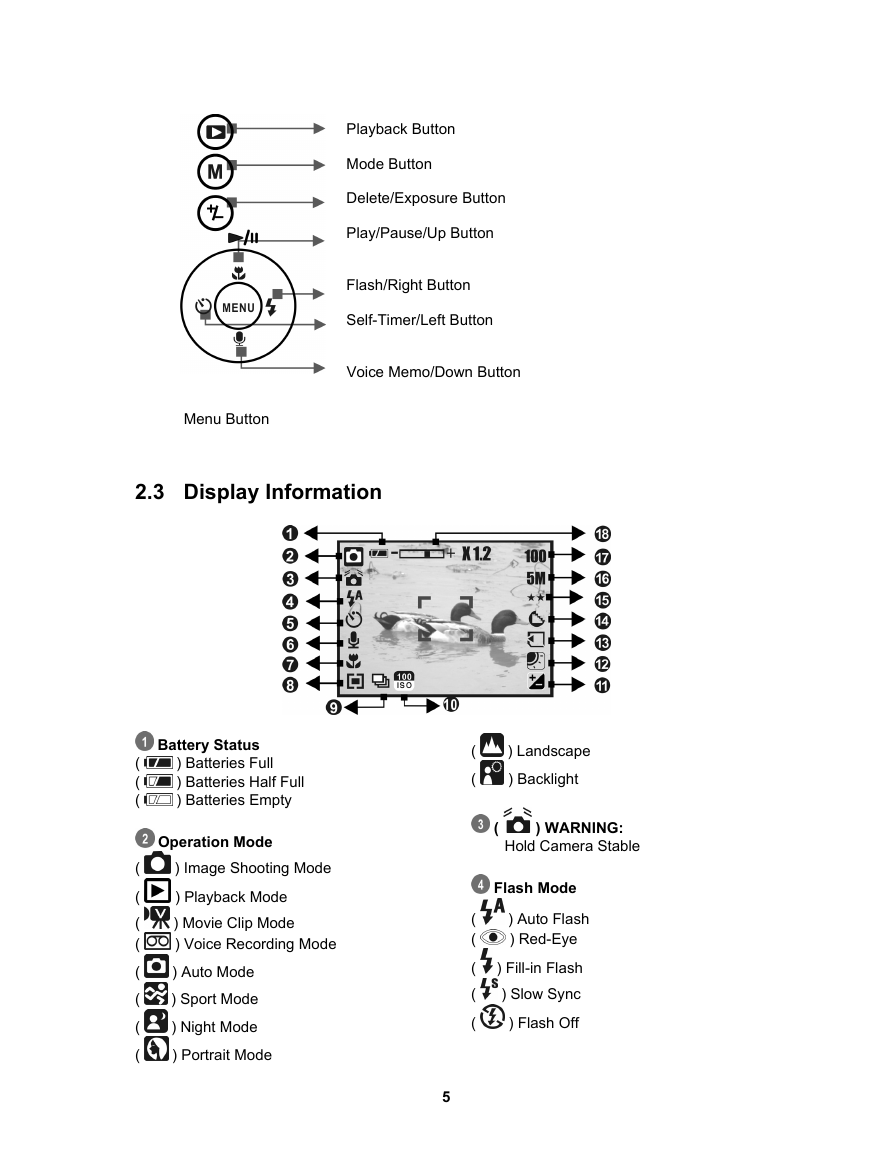

Playback Button
Mode Button
Delete/Exposure Button
Play/Pause/Up Button
Flash/Right Button
Self-Timer/Left Button
Voice Memo/Down Button
Menu Button
2.3 Display Information
(
(
(
(
(
(
(
(
(
(
(
Battery Status
) Batteries Full
) Batteries Half Full
) Batteries Empty
Operation Mode
) Image Shooting Mode
) Playback Mode
) Movie Clip Mode
) Voice Recording Mode
) Auto Mode
) Sport Mode
) Night Mode
) Portrait Mode
) Landscape
) Backlight
(
(
(
) WARNING:
Hold Camera Stable
Flash Mode
) Auto Flash
) Red-Eye
) Fill-in Flash
) Slow Sync
) Flash Off
(
(
(
(
(
5
Self-timer
) 10 Seconds
) 2 Seconds
(
) Voice Memo
Focus Range
) Macro
Metering
) Multi
) Spot
Shooting
(
(
(
(
(
) Continuous
(
Single
ISO Value
) 100
) 200
) 400
(
) Exposure ± 2
W. Balance
) Auto
) Daylight
(
(
(
(
(
) Cloudy
) Tungsten
) Fluorescent
(
) Memory Card Inserted
Sharpness
) Soft
) Normal
) Vivid
Quality
) S. Fine
) Fine
) Normal
(
(
(
(
(
(
(
(
(
Size
(12M) (Via interpolation)
(5M)
(3M)
(VGA)
(100) Available Shots
Zoom Status Indicator
)
(
3.0X Optical Zoom
8.0X Digital Zoom
6
3.0 Getting Started
3.1 Turning Power On & Off
• Press the Power Button to turn the camera on.
• Press the Power Button again to turn the camera off.
Inserting / Removing the Batteries
3.2
1.
2.
3.
4.
Power off the camera.
Slide open the battery compartment cover.
Remove the batteries or, respecting the polarity indications, insert them.
Close the battery cover.
7
Battery status indicator.
(
(
(
• The batteries will discharge if kept inside the camera for a long time without use.
): Batteries full.
): Batteries half full.
): Batteries empty. Replace with new batteries.
Remove the batteries when the camera is not in use.
• The batteries may not work normally under 0oC or over 40oC.
