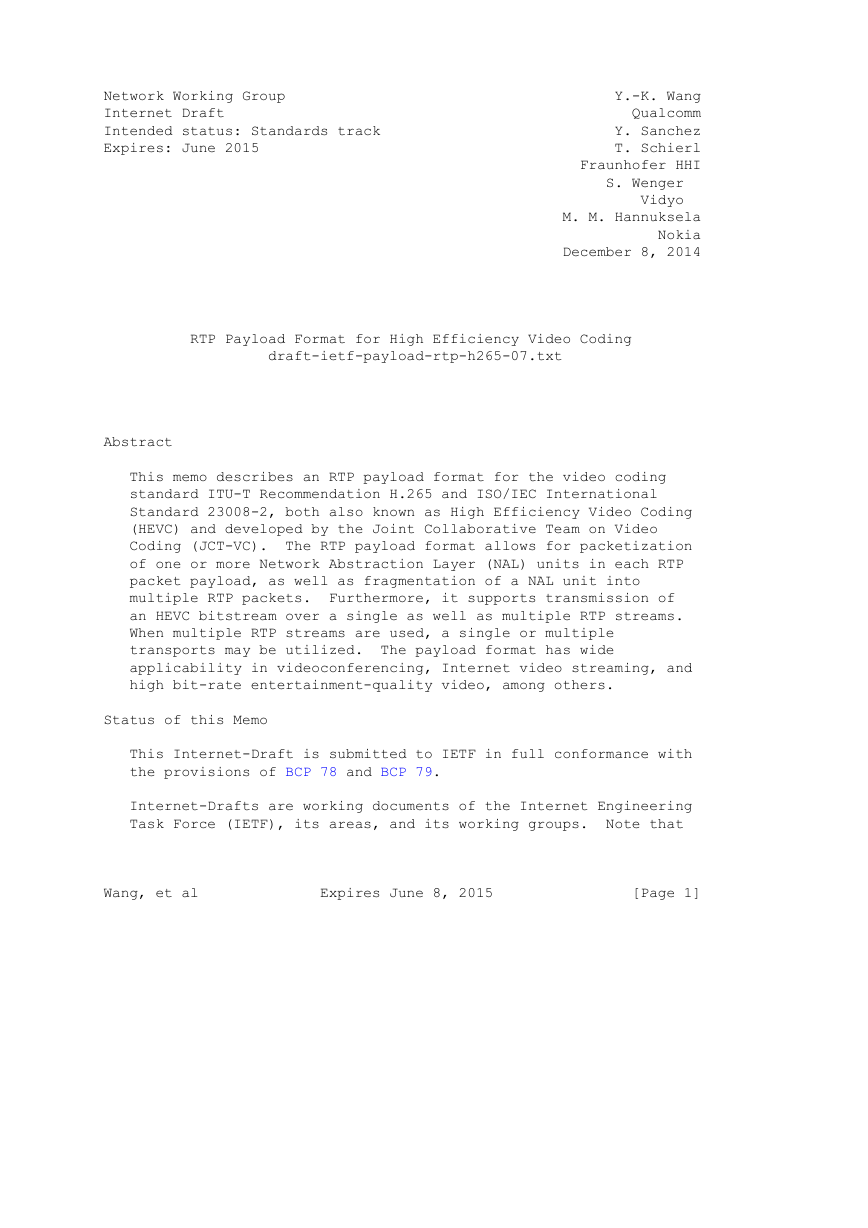

Network Working Group Y.-K. Wang Internet Draft Qualcomm Intended status: Standards track Y. Sanchez Expires: June 2015 T. Schierl Fraunhofer HHI S. Wenger Vidyo M. M. Hannuksela Nokia December 8, 2014 RTP Payload Format for High Efficiency Video Coding draft-ietf-payload-rtp-h265-07.txt Abstract This memo describes an RTP payload format for the video coding standard ITU-T Recommendation H.265 and ISO/IEC International Standard 23008-2, both also known as High Efficiency Video Coding (HEVC) and developed by the Joint Collaborative Team on Video Coding (JCT-VC). The RTP payload format allows for packetization of one or more Network Abstraction Layer (NAL) units in each RTP packet payload, as well as fragmentation of a NAL unit into multiple RTP packets. Furthermore, it supports transmission of an HEVC bitstream over a single as well as multiple RTP streams. When multiple RTP streams are used, a single or multiple transports may be utilized. The payload format has wide applicability in videoconferencing, Internet video streaming, and high bit-rate entertainment-quality video, among others. Status of this Memo This Internet-Draft is submitted to IETF in full conformance with the provisions of BCP 78 and BCP 79. Internet-Drafts are working documents of the Internet Engineering Task Force (IETF), its areas, and its working groups. Note that Wang, et al Expires June 8, 2015 [Page 1]

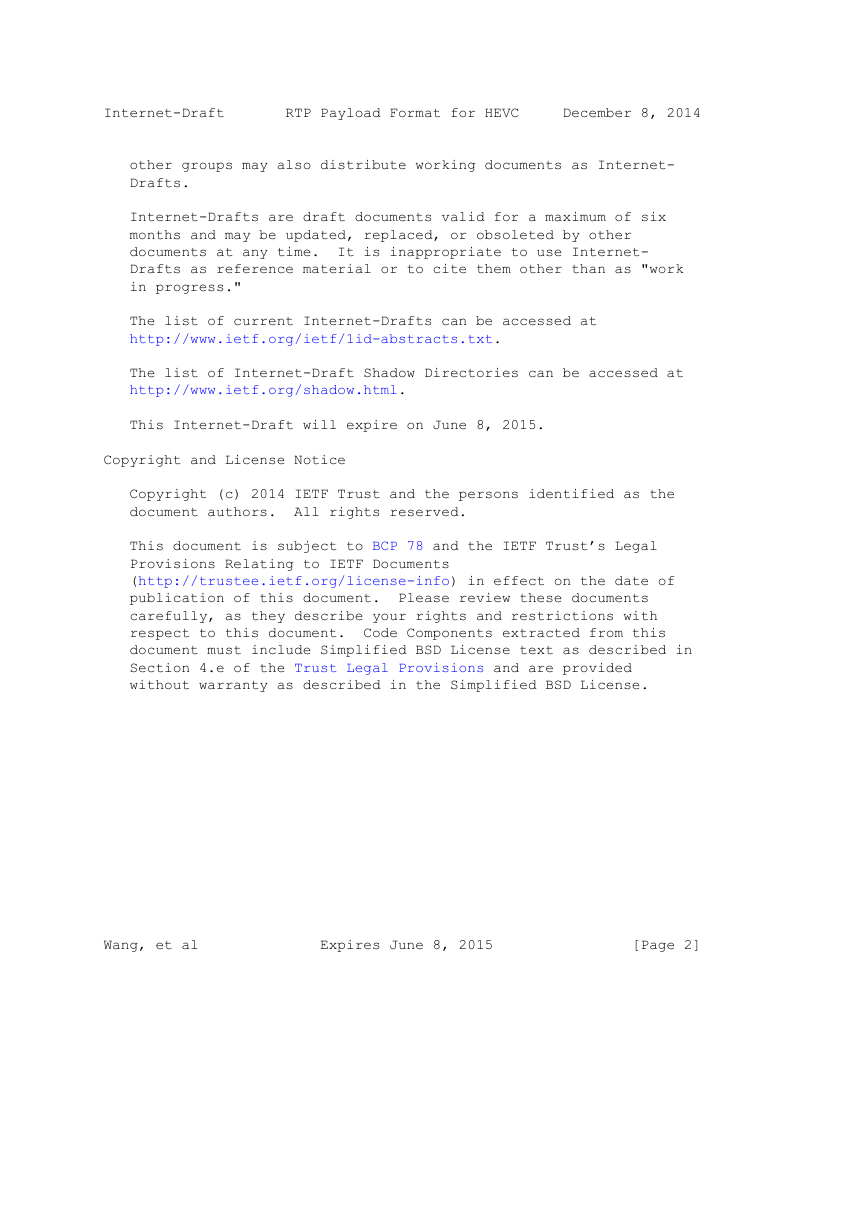

Internet-Draft RTP Payload Format for HEVC December 8, 2014 other groups may also distribute working documents as Internet- Drafts. Internet-Drafts are draft documents valid for a maximum of six months and may be updated, replaced, or obsoleted by other documents at any time. It is inappropriate to use Internet- Drafts as reference material or to cite them other than as "work in progress." The list of current Internet-Drafts can be accessed at http://www.ietf.org/ietf/1id-abstracts.txt. The list of Internet-Draft Shadow Directories can be accessed at http://www.ietf.org/shadow.html. This Internet-Draft will expire on June 8, 2015. Copyright and License Notice Copyright (c) 2014 IETF Trust and the persons identified as the document authors. All rights reserved. This document is subject to BCP 78 and the IETF Trust’s Legal Provisions Relating to IETF Documents (http://trustee.ietf.org/license-info) in effect on the date of publication of this document. Please review these documents carefully, as they describe your rights and restrictions with respect to this document. Code Components extracted from this document must include Simplified BSD License text as described in Section 4.e of the Trust Legal Provisions and are provided without warranty as described in the Simplified BSD License. Wang, et al Expires June 8, 2015 [Page 2]

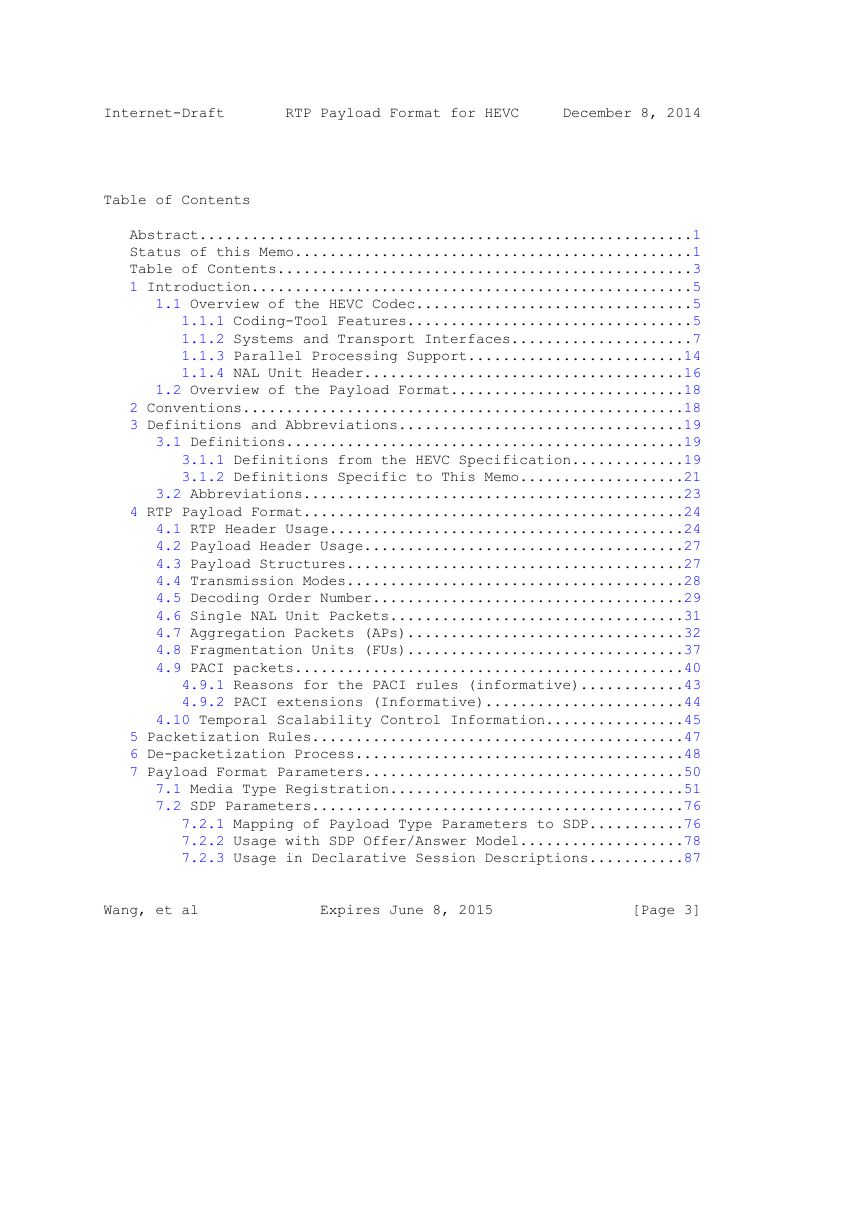

Internet-Draft RTP Payload Format for HEVC December 8, 2014 Table of Contents Abstract.........................................................1 Status of this Memo..............................................1 Table of Contents................................................3 1 Introduction...................................................5 1.1 Overview of the HEVC Codec................................5 1.1.1 Coding-Tool Features.................................5 1.1.2 Systems and Transport Interfaces.....................7 1.1.3 Parallel Processing Support.........................14 1.1.4 NAL Unit Header.....................................16 1.2 Overview of the Payload Format...........................18 2 Conventions...................................................18 3 Definitions and Abbreviations.................................19 3.1 Definitions..............................................19 3.1.1 Definitions from the HEVC Specification.............19 3.1.2 Definitions Specific to This Memo...................21 3.2 Abbreviations............................................23 4 RTP Payload Format............................................24 4.1 RTP Header Usage.........................................24 4.2 Payload Header Usage.....................................27 4.3 Payload Structures.......................................27 4.4 Transmission Modes.......................................28 4.5 Decoding Order Number....................................29 4.6 Single NAL Unit Packets..................................31 4.7 Aggregation Packets (APs)................................32 4.8 Fragmentation Units (FUs)................................37 4.9 PACI packets.............................................40 4.9.1 Reasons for the PACI rules (informative)............43 4.9.2 PACI extensions (Informative).......................44 4.10 Temporal Scalability Control Information................45 5 Packetization Rules...........................................47 6 De-packetization Process......................................48 7 Payload Format Parameters.....................................50 7.1 Media Type Registration..................................51 7.2 SDP Parameters...........................................76 7.2.1 Mapping of Payload Type Parameters to SDP...........76 7.2.2 Usage with SDP Offer/Answer Model...................78 7.2.3 Usage in Declarative Session Descriptions...........87 Wang, et al Expires June 8, 2015 [Page 3]

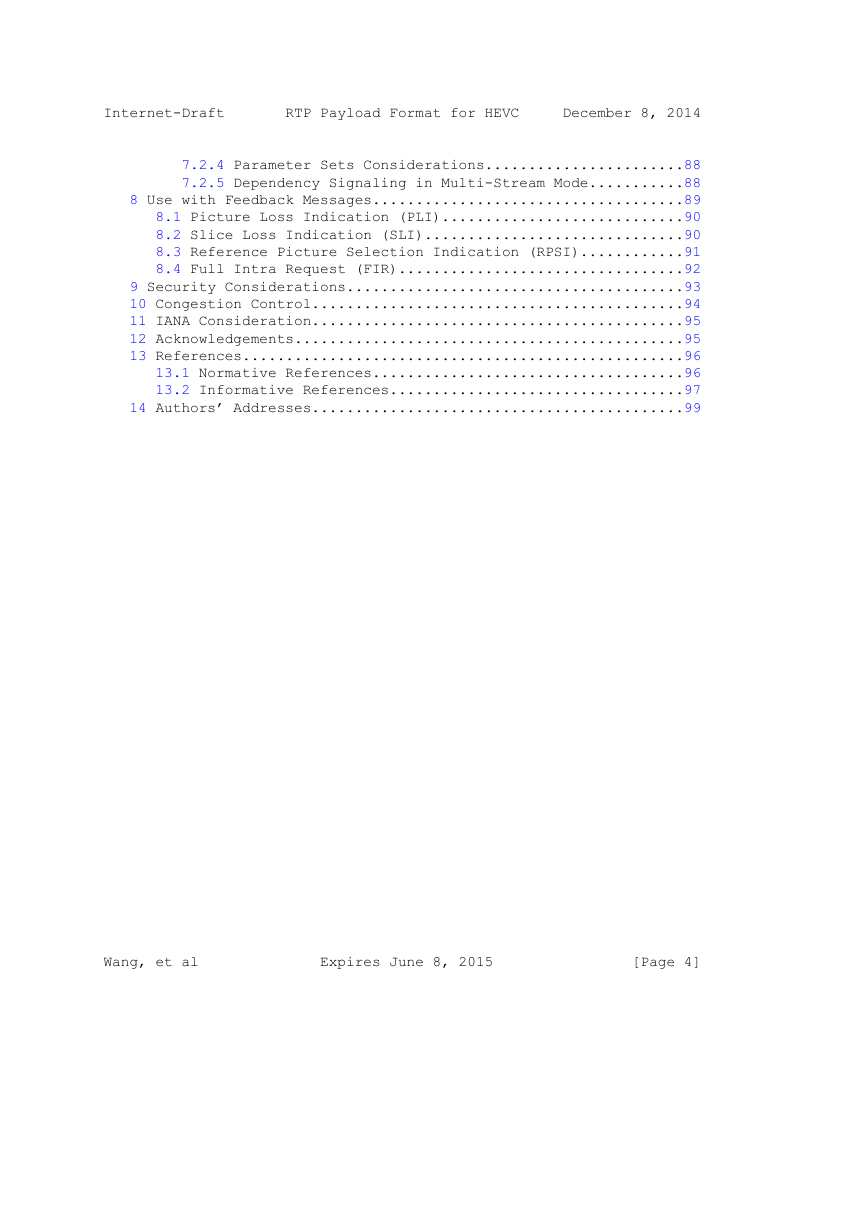

Internet-Draft RTP Payload Format for HEVC December 8, 2014 7.2.4 Parameter Sets Considerations.......................88 7.2.5 Dependency Signaling in Multi-Stream Mode...........88 8 Use with Feedback Messages....................................89 8.1 Picture Loss Indication (PLI)............................90 8.2 Slice Loss Indication (SLI)..............................90 8.3 Reference Picture Selection Indication (RPSI)............91 8.4 Full Intra Request (FIR).................................92 9 Security Considerations.......................................93 10 Congestion Control...........................................94 11 IANA Consideration...........................................95 12 Acknowledgements.............................................95 13 References...................................................96 13.1 Normative References....................................96 13.2 Informative References..................................97 14 Authors’ Addresses...........................................99 Wang, et al Expires June 8, 2015 [Page 4]

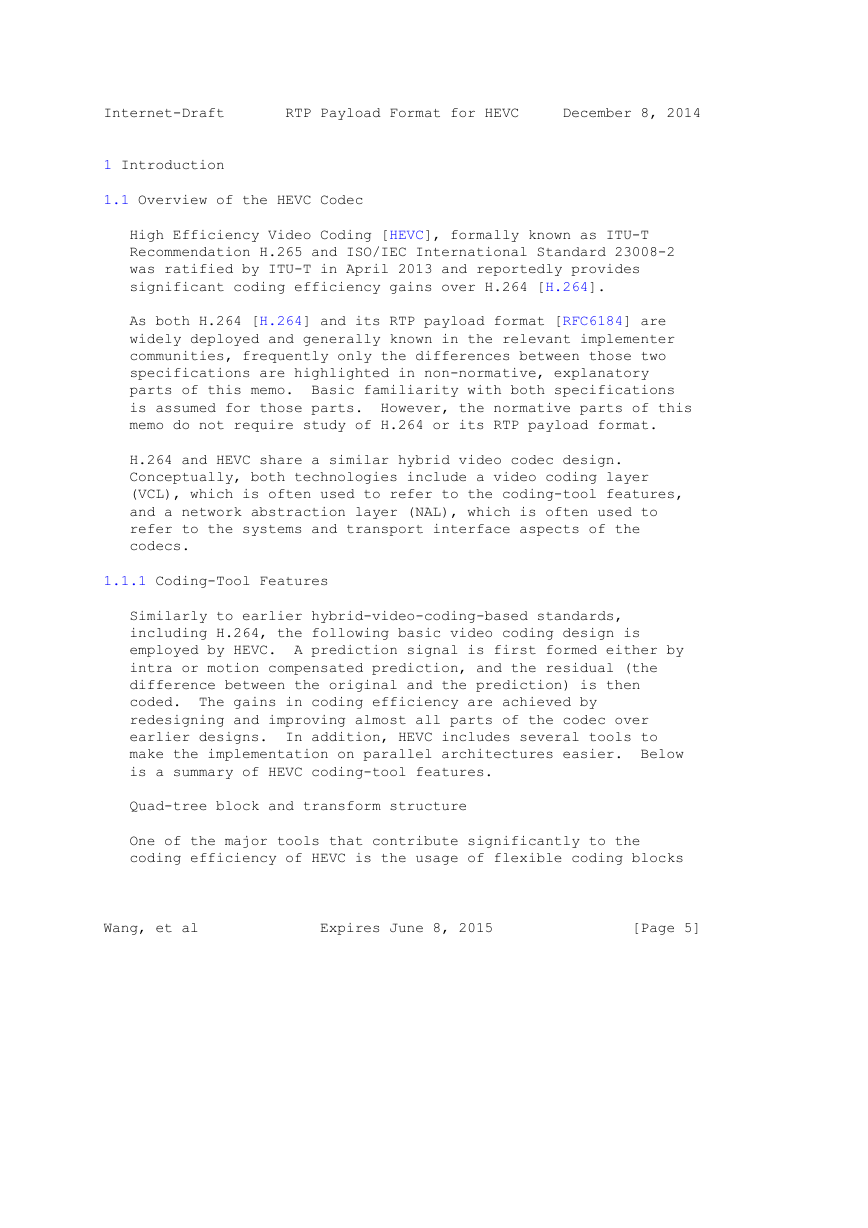

Internet-Draft RTP Payload Format for HEVC December 8, 2014 1 Introduction 1.1 Overview of the HEVC Codec High Efficiency Video Coding [HEVC], formally known as ITU-T Recommendation H.265 and ISO/IEC International Standard 23008-2 was ratified by ITU-T in April 2013 and reportedly provides significant coding efficiency gains over H.264 [H.264]. As both H.264 [H.264] and its RTP payload format [RFC6184] are widely deployed and generally known in the relevant implementer communities, frequently only the differences between those two specifications are highlighted in non-normative, explanatory parts of this memo. Basic familiarity with both specifications is assumed for those parts. However, the normative parts of this memo do not require study of H.264 or its RTP payload format. H.264 and HEVC share a similar hybrid video codec design. Conceptually, both technologies include a video coding layer (VCL), which is often used to refer to the coding-tool features, and a network abstraction layer (NAL), which is often used to refer to the systems and transport interface aspects of the codecs. 1.1.1 Coding-Tool Features Similarly to earlier hybrid-video-coding-based standards, including H.264, the following basic video coding design is employed by HEVC. A prediction signal is first formed either by intra or motion compensated prediction, and the residual (the difference between the original and the prediction) is then coded. The gains in coding efficiency are achieved by redesigning and improving almost all parts of the codec over earlier designs. In addition, HEVC includes several tools to make the implementation on parallel architectures easier. Below is a summary of HEVC coding-tool features. Quad-tree block and transform structure One of the major tools that contribute significantly to the coding efficiency of HEVC is the usage of flexible coding blocks Wang, et al Expires June 8, 2015 [Page 5]

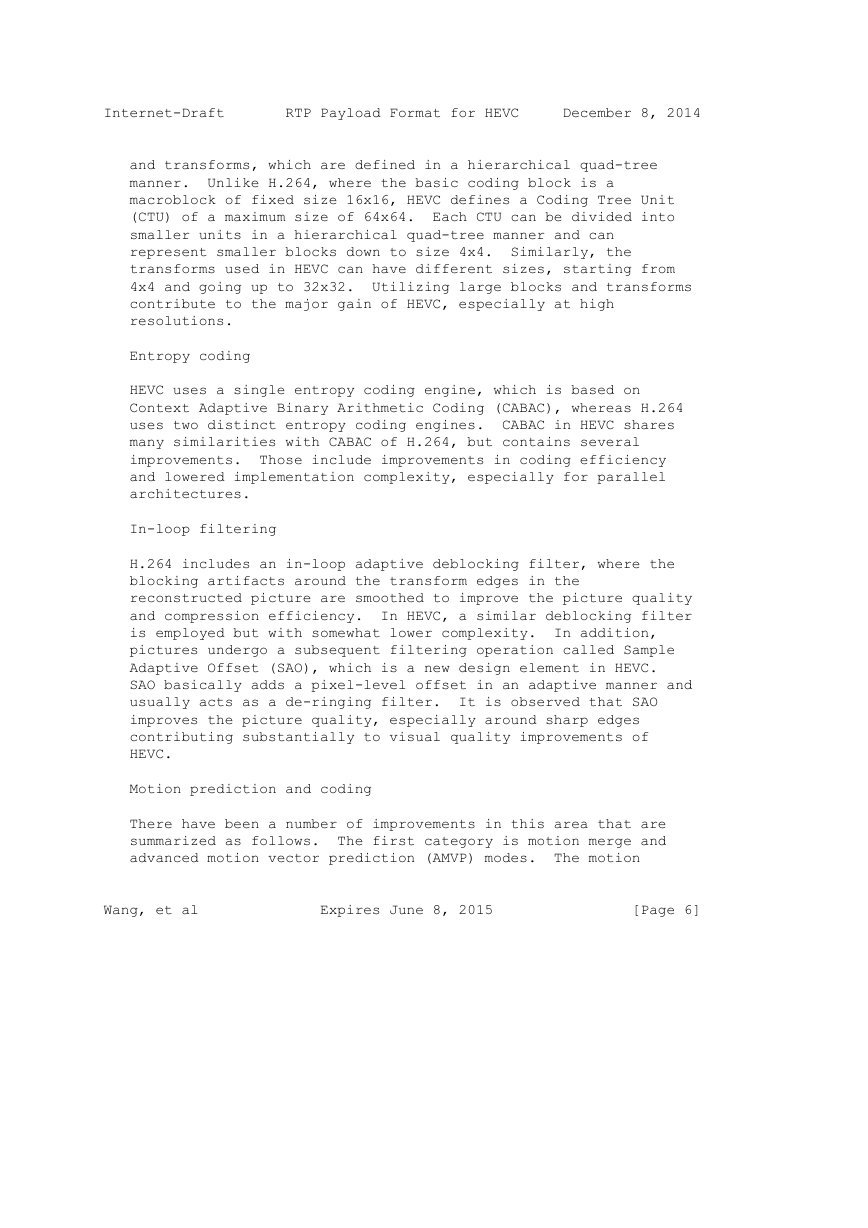

Internet-Draft RTP Payload Format for HEVC December 8, 2014 and transforms, which are defined in a hierarchical quad-tree manner. Unlike H.264, where the basic coding block is a macroblock of fixed size 16x16, HEVC defines a Coding Tree Unit (CTU) of a maximum size of 64x64. Each CTU can be divided into smaller units in a hierarchical quad-tree manner and can represent smaller blocks down to size 4x4. Similarly, the transforms used in HEVC can have different sizes, starting from 4x4 and going up to 32x32. Utilizing large blocks and transforms contribute to the major gain of HEVC, especially at high resolutions. Entropy coding HEVC uses a single entropy coding engine, which is based on Context Adaptive Binary Arithmetic Coding (CABAC), whereas H.264 uses two distinct entropy coding engines. CABAC in HEVC shares many similarities with CABAC of H.264, but contains several improvements. Those include improvements in coding efficiency and lowered implementation complexity, especially for parallel architectures. In-loop filtering H.264 includes an in-loop adaptive deblocking filter, where the blocking artifacts around the transform edges in the reconstructed picture are smoothed to improve the picture quality and compression efficiency. In HEVC, a similar deblocking filter is employed but with somewhat lower complexity. In addition, pictures undergo a subsequent filtering operation called Sample Adaptive Offset (SAO), which is a new design element in HEVC. SAO basically adds a pixel-level offset in an adaptive manner and usually acts as a de-ringing filter. It is observed that SAO improves the picture quality, especially around sharp edges contributing substantially to visual quality improvements of HEVC. Motion prediction and coding There have been a number of improvements in this area that are summarized as follows. The first category is motion merge and advanced motion vector prediction (AMVP) modes. The motion Wang, et al Expires June 8, 2015 [Page 6]

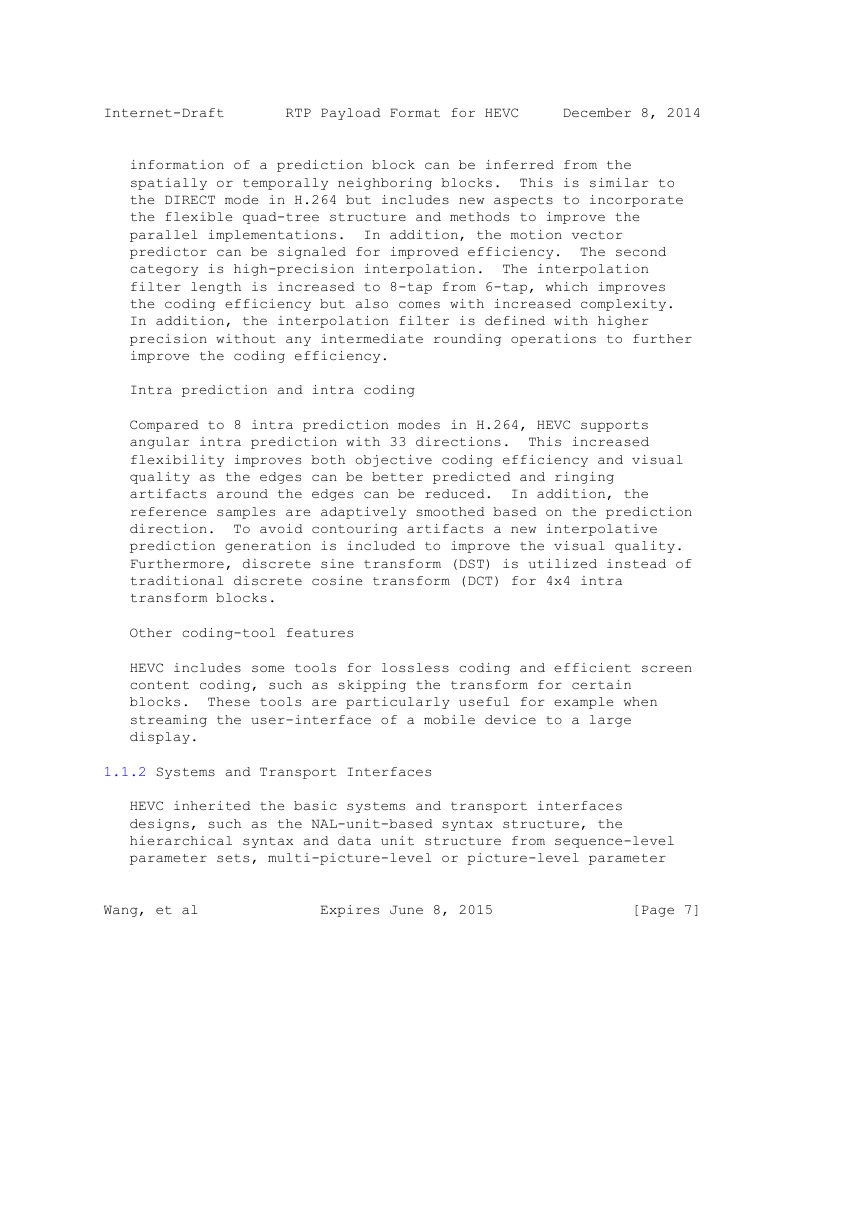

Internet-Draft RTP Payload Format for HEVC December 8, 2014 information of a prediction block can be inferred from the spatially or temporally neighboring blocks. This is similar to the DIRECT mode in H.264 but includes new aspects to incorporate the flexible quad-tree structure and methods to improve the parallel implementations. In addition, the motion vector predictor can be signaled for improved efficiency. The second category is high-precision interpolation. The interpolation filter length is increased to 8-tap from 6-tap, which improves the coding efficiency but also comes with increased complexity. In addition, the interpolation filter is defined with higher precision without any intermediate rounding operations to further improve the coding efficiency. Intra prediction and intra coding Compared to 8 intra prediction modes in H.264, HEVC supports angular intra prediction with 33 directions. This increased flexibility improves both objective coding efficiency and visual quality as the edges can be better predicted and ringing artifacts around the edges can be reduced. In addition, the reference samples are adaptively smoothed based on the prediction direction. To avoid contouring artifacts a new interpolative prediction generation is included to improve the visual quality. Furthermore, discrete sine transform (DST) is utilized instead of traditional discrete cosine transform (DCT) for 4x4 intra transform blocks. Other coding-tool features HEVC includes some tools for lossless coding and efficient screen content coding, such as skipping the transform for certain blocks. These tools are particularly useful for example when streaming the user-interface of a mobile device to a large display. 1.1.2 Systems and Transport Interfaces HEVC inherited the basic systems and transport interfaces designs, such as the NAL-unit-based syntax structure, the hierarchical syntax and data unit structure from sequence-level parameter sets, multi-picture-level or picture-level parameter Wang, et al Expires June 8, 2015 [Page 7]

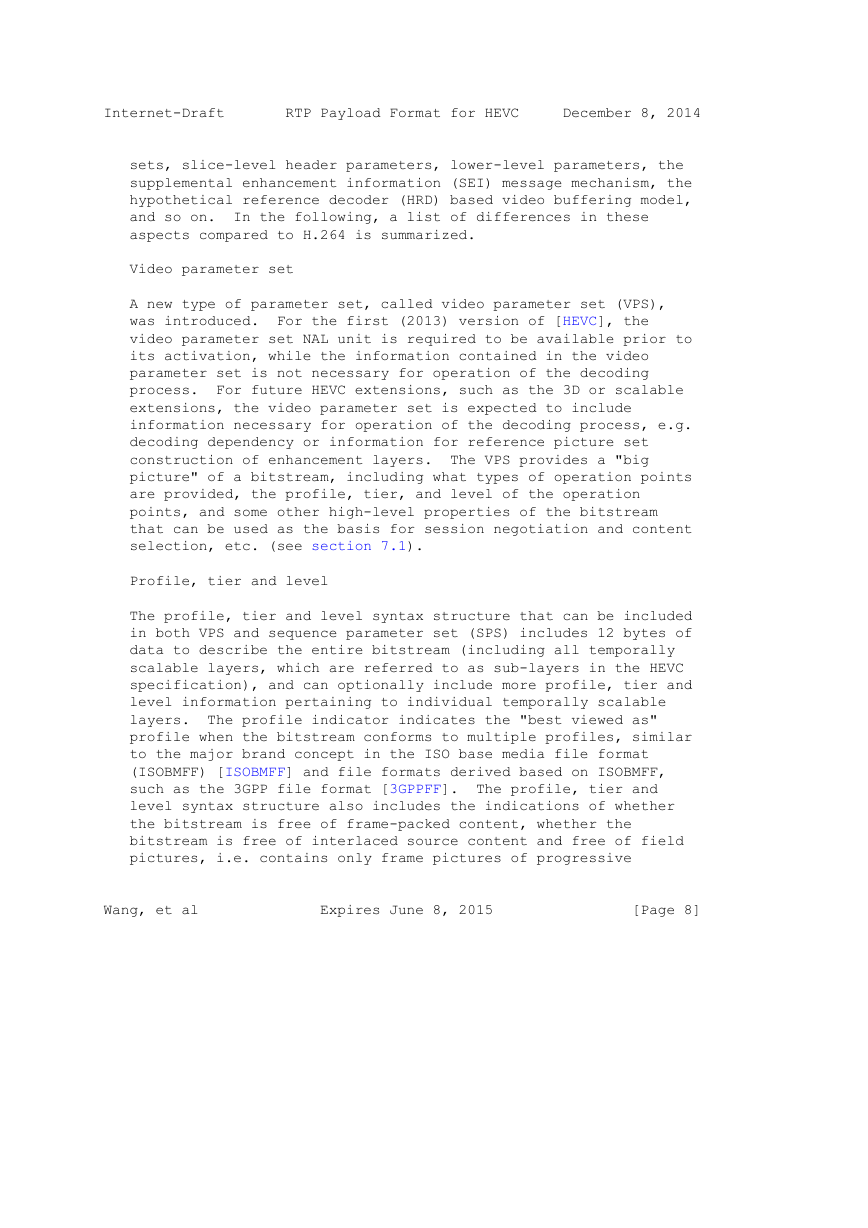

Internet-Draft RTP Payload Format for HEVC December 8, 2014 sets, slice-level header parameters, lower-level parameters, the supplemental enhancement information (SEI) message mechanism, the hypothetical reference decoder (HRD) based video buffering model, and so on. In the following, a list of differences in these aspects compared to H.264 is summarized. Video parameter set A new type of parameter set, called video parameter set (VPS), was introduced. For the first (2013) version of [HEVC], the video parameter set NAL unit is required to be available prior to its activation, while the information contained in the video parameter set is not necessary for operation of the decoding process. For future HEVC extensions, such as the 3D or scalable extensions, the video parameter set is expected to include information necessary for operation of the decoding process, e.g. decoding dependency or information for reference picture set construction of enhancement layers. The VPS provides a "big picture" of a bitstream, including what types of operation points are provided, the profile, tier, and level of the operation points, and some other high-level properties of the bitstream that can be used as the basis for session negotiation and content selection, etc. (see section 7.1). Profile, tier and level The profile, tier and level syntax structure that can be included in both VPS and sequence parameter set (SPS) includes 12 bytes of data to describe the entire bitstream (including all temporally scalable layers, which are referred to as sub-layers in the HEVC specification), and can optionally include more profile, tier and level information pertaining to individual temporally scalable layers. The profile indicator indicates the "best viewed as" profile when the bitstream conforms to multiple profiles, similar to the major brand concept in the ISO base media file format (ISOBMFF) [ISOBMFF] and file formats derived based on ISOBMFF, such as the 3GPP file format [3GPPFF]. The profile, tier and level syntax structure also includes the indications of whether the bitstream is free of frame-packed content, whether the bitstream is free of interlaced source content and free of field pictures, i.e. contains only frame pictures of progressive Wang, et al Expires June 8, 2015 [Page 8]
