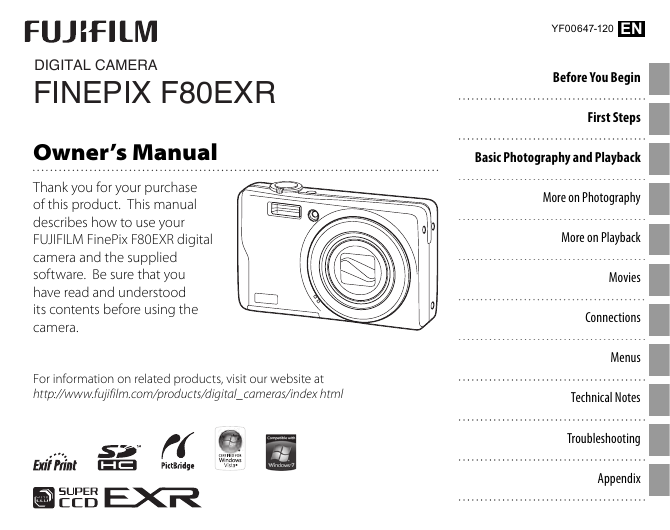

富士数码相机-FinePix F80EXR说明书.pdf
DIGITAL CAMERA
FINEPIX F80EXR
Owner’s Manual
Thank you for your purchase
of this product. This manual
describes how to use your
FUJIFILM FinePix F80EXR digital
camera and the supplied
software. Be sure that you
have read and understood
its contents before using the
camera.
For information on related products, visit our website at
http://www.fujifilm.com/products/digital_cameras/index html
YF00647-120 EN
Before You Begin
First Steps
Basic Photography and Playback
More on Photography
More on Playback
Movies
Connections
Menus
Technical Notes
Troubleshooting
Appendix
Notes and Cautions
Read Instructions: All the safety
and operating instructions should
be read before the appliance is
operated.
Retain Instructions: The safety and
operating instructions should be
retained for future reference.
Heed Warnings: All warnings on the
appliance and in the operating
instructions should be adhered to.
Follow Instructions: All operating
and use instructions should be
followed.
Installation
Installation
Power Sources: This video product
should be operated only from the
type of power source indicated on
the marking label. If you are not sure
of the type of power supply to your
home, consult your appliance dealer
or local power company. For video
products intended to operate from
battery power, or other sources,
refer to the operating instructions.
Grounding or Polarization: This
video product is equipped with a
polarized alternating-current line
plug (a plug having one blade
wider than the other). This plug will
fit into the power outlet only one
way. This is a safety feature. If you
are unable to insert the plug fully
into the outlet, try reversing the
plug. If the plug should still fail to fit,
contact your electrician to replace
ii
IMPORTANT SAFETY INSTRUCTIONS
your obsolete outlet. Do not defeat
the safety purpose of the polarized
plug.
Alternate Warnings: This video
product is equipped with a 3-wire
grounding-type plug, a plug having
a third (grounding) pin. This plug
will only fit into a grounding-type
power outlet. This is a safety feature.
If you are unable to insert the
plug into the outlet, contact your
electrician to replace your obsolete
outlet. Do not defeat the safety
purpose of the grounding-type
plug.
Overloading: Do not overload wall
outlets and extension cords as this
can result in a risk of fire or electric
shock.
Ventilation: Slots and openings
in the cabinet are provided for
ventilation and to ensure reliable
operation of the video product
and to protect it from overheating,
and these openings must not be
blocked or covered.
The openings should never be
blocked by placing the video
product on a bed, sofa, rug, or other
similar surface.
This video product should not
be placed in a built-in installation
such as a bookcase or rack unless
proper ventilation is provided or the
manufacturer’s instructions have
been adhered to.
This video product should never
be placed near or over a radiator or
heat register.
Attachments: Do not use
attachments not recommended by
the video product manufacturer as
they may cause hazards.
Water and Moisture: Do not use this
video product near water – for
example, near a bath tub, wash
bowl, kitchen sink, or laundry
tub, in a wet basement, or near a
swimming pool, and the like.
Power-Cord Protection: Power-Supply
cords should be routed so that
they are not likely to be walked
on or pinched by items placed
upon or against them, paying
particular attention to cords at
plugs, convenience receptacles, and
the point where they exit from the
appliance.
Accessories: Do not place this video
product on an unstable cart, stand,
tripod, bracket, or table. The video
product may fall, causing serious
injury to a child or adult, and
serious damage to the appliance.
Use only with a cart, stand, tripod,
bracket, or table recommended
by the manufacturer, or sold with
the video product. Any mounting
of the appliance should follow the
manufacturer’s instructions, and
should use a mounting accessory
recommended by the manufacturer.
An appliance and
cart combination
should be moved
with care. Quick
stops, excessive
force, and uneven
surfaces may
cause the appliance and cart
combination to overturn.
Antennas
Antennas
Outdoor Antenna Grounding: If an
outside antenna or cable system is
connected to the video product, be
sure the antenna or cable system
is grounded so as to provide some
protection against voltage surges and
built-up static charges. Section 810
of the National Electrical Code, ANSI/
NFPA No. 70, provides information
with respect to proper grounding of
the mast and supporting structure,
grounding of the lead-in wire to
an antennadischarge unit, size of
grounding conductors, location of
antenna-discharge unit, connection
to grounding electrodes, and
requirements for the grounding
electrode.
those controls that are covered
by the operating instructions as
an improper adjustment of other
controls may result in damage and
will often require extensive work
by a qualified technician to restore
the video product to its normal
operation.
When the video product exhibits
a distinct change in performance
- this indicates a need for service.
Replacement Parts: When
replacement parts are required, be
sure the service technician has used
replacement parts specified by the
manufacturer or have the same
characteristics as the original part.
Unauthorized substitutions may
result in fire, electric shock or other
hazards.
Safety Check: Upon completion of
any service or repairs to this video
product, ask the service technician
to perform safety checks to
determine that the video product is
in proper operating condition.

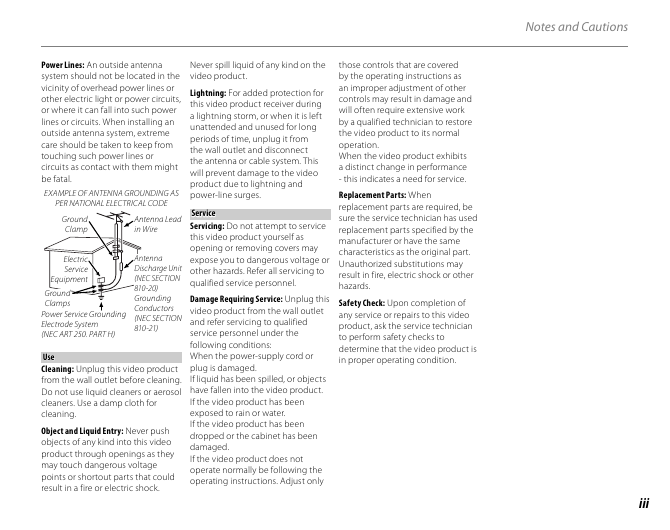

Power Lines: An outside antenna
system should not be located in the
vicinity of overhead power lines or
other electric light or power circuits,
or where it can fall into such power
lines or circuits. When installing an
outside antenna system, extreme
care should be taken to keep from
touching such power lines or
circuits as contact with them might
be fatal.
EXAMPLE OF ANTENNA GROUNDING AS
PER NATIONAL ELECTRICAL CODE
Ground
Clamp
Electric
Service
Equipment
Ground
Clamps
Power Service Grounding
Electrode System
(NEC ART 250. PART H)
Antenna Lead
in Wire
Antenna
Discharge Unit
(NEC SECTION
810-20)
Grounding
Conductors
(NEC SECTION
810-21)
UseUse
Cleaning: Unplug this video product
from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for
cleaning.
Object and Liquid Entry: Never push
objects of any kind into this video
product through openings as they
may touch dangerous voltage
points or shortout parts that could
result in a fire or electric shock.
Never spill liquid of any kind on the
video product.
Lightning: For added protection for
this video product receiver during
a lightning storm, or when it is left
unattended and unused for long
periods of time, unplug it from
the wall outlet and disconnect
the antenna or cable system. This
will prevent damage to the video
product due to lightning and
power-line surges.
Service
Service
Servicing: Do not attempt to service
this video product yourself as
opening or removing covers may
expose you to dangerous voltage or
other hazards. Refer all servicing to
qualified service personnel.
Damage Requiring Service: Unplug this
video product from the wall outlet
and refer servicing to qualified
service personnel under the
following conditions:
When the power-supply cord or
plug is damaged.
If liquid has been spilled, or objects
have fallen into the video product.
If the video product has been
exposed to rain or water.
If the video product has been
dropped or the cabinet has been
damaged.
If the video product does not
operate normally be following the
operating instructions. Adjust only
Notes and Cautions
iii

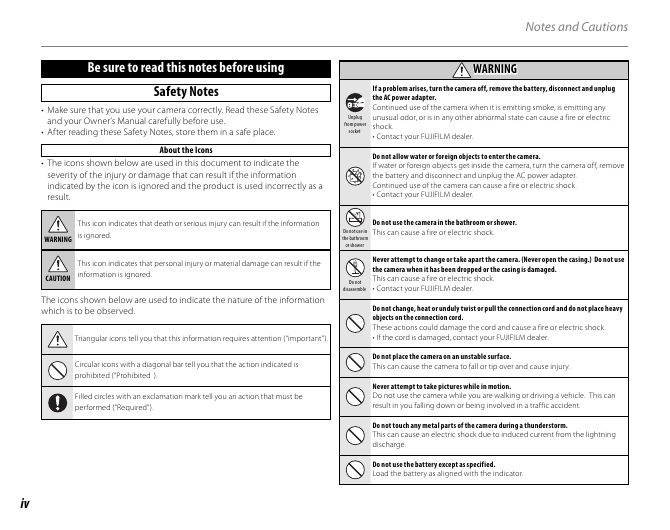

Notes and Cautions
Be sure to read this notes before using
Safety Notes
Make sure that you use your camera correctly. Read these Safety Notes
and your Owner’s Manual carefully before use.
After reading these Safety Notes, store them in a safe place.
Unplug
from power
socket
About the Icons
The icons shown below are used in this document to indicate the
severity of the injury or damage that can result if the information
indicated by the icon is ignored and the product is used incorrectly as a
result.
WARNING
WARNING
If a problem arises, turn the camera off, remove the battery, disconnect and unplug
the AC power adapter.
Continued use of the camera when it is emitting smoke, is emitting any
unusual odor, or is in any other abnormal state can cause a fire or electric
shock.
Contact your FUJIFILM dealer.
Do not allow water or foreign objects to enter the camera.
If water or foreign objects get inside the camera, turn the camera off, remove
the battery and disconnect and unplug the AC power adapter.
Continued use of the camera can cause a fire or electric shock.
Contact your FUJIFILM dealer.
WARNING
CAUTION
This icon indicates that death or serious injury can result if the information
is ignored.
Do not use the camera in the bathroom or shower.
This can cause a fire or electric shock.
Do not use in
the bathroom
or shower
This icon indicates that personal injury or material damage can result if the
information is ignored.
Never attempt to change or take apart the camera. (Never open the casing.) Do not use
the camera when it has been dropped or the casing is damaged.
This can cause a fire or electric shock.
Contact your FUJIFILM dealer.
Do not
disassemble
The icons shown below are used to indicate the nature of the information
which is to be observed.
Triangular icons tell you that this information requires attention (“important”).
Circular icons with a diagonal bar tell you that the action indicated is
prohibited (“Prohibited ).
Filled circles with an exclamation mark tell you an action that must be
performed (“Required”).
Do not change, heat or unduly twist or pull the connection cord and do not place heavy
objects on the connection cord.
These actions could damage the cord and cause a fire or electric shock.
If the cord is damaged, contact your FUJIFILM dealer.
Do not place the camera on an unstable surface.
This can cause the camera to fall or tip over and cause injury.
Never attempt to take pictures while in motion.
Do not use the camera while you are walking or driving a vehicle. This can
result in you falling down or being involved in a traffic accident.
Do not touch any metal parts of the camera during a thunderstorm.
This can cause an electric shock due to induced current from the lightning
discharge.
Do not use the battery except as specified.
Load the battery as aligned with the indicator.
iv
Notes and Cautions
WARNING
WARNING
CAUTION
CAUTION

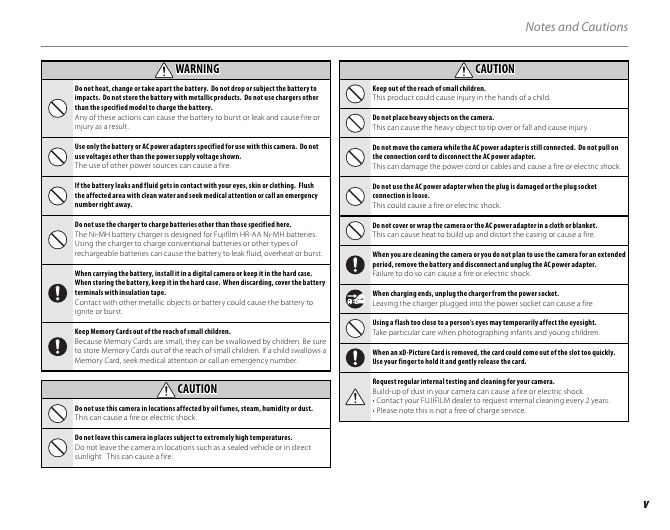

Do not heat, change or take apart the battery. Do not drop or subject the battery to
impacts. Do not store the battery with metallic products. Do not use chargers other
than the specified model to charge the battery.
Any of these actions can cause the battery to burst or leak and cause fire or
injury as a result.
Keep out of the reach of small children.
This product could cause injury in the hands of a child.
Do not place heavy objects on the camera.
This can cause the heavy object to tip over or fall and cause injury.
Use only the battery or AC power adapters specified for use with this camera. Do not
use voltages other than the power supply voltage shown.
The use of other power sources can cause a fire.
Do not move the camera while the AC power adapter is still connected. Do not pull on
the connection cord to disconnect the AC power adapter.
This can damage the power cord or cables and cause a fire or electric shock.
If the battery leaks and fluid gets in contact with your eyes, skin or clothing. Flush
the affected area with clean water and seek medical attention or call an emergency
number right away.
Do not use the AC power adapter when the plug is damaged or the plug socket
connection is loose.
This could cause a fire or electric shock.
Do not use the charger to charge batteries other than those specified here.
The Ni-MH battery charger is designed for Fujifilm HR-AA Ni-MH batteries.
Using the charger to charge conventional batteries or other types of
rechargeable batteries can cause the battery to leak fluid, overheat or burst.
When carrying the battery, install it in a digital camera or keep it in the hard case.
When storing the battery, keep it in the hard case. When discarding, cover the battery
terminals with insulation tape.
Contact with other metallic objects or battery could cause the battery to
ignite or burst.
Keep Memory Cards out of the reach of small children.
Because Memory Cards are small, they can be swallowed by children. Be sure
to store Memory Cards out of the reach of small children. If a child swallows a
Memory Card, seek medical attention or call an emergency number.
CAUTION
CAUTION
Do not use this camera in locations affected by oil fumes, steam, humidity or dust.
This can cause a fire or electric shock.
Do not leave this camera in places subject to extremely high temperatures.
Do not leave the camera in locations such as a sealed vehicle or in direct
sunlight. This can cause a fire.
Do not cover or wrap the camera or the AC power adapter in a cloth or blanket.
This can cause heat to build up and distort the casing or cause a fire.
When you are cleaning the camera or you do not plan to use the camera for an extended
period, remove the battery and disconnect and unplug the AC power adapter.
Failure to do so can cause a fire or electric shock.
When charging ends, unplug the charger from the power socket.
Leaving the charger plugged into the power socket can cause a fire.
Using a flash too close to a person’s eyes may temporarily affect the eyesight.
Take particular care when photographing infants and young children.
When an xD-Picture Card is removed, the card could come out of the slot too quickly.
Use your finger to hold it and gently release the card.
Request regular internal testing and cleaning for your camera.
Build-up of dust in your camera can cause a fire or electric shock.
Contact your FUJIFILM dealer to request internal cleaning every 2 years.
Please note this is not a free of charge service.
v
Notes and Cautions
Power Supply and Battery
* Confirm your battery type before reading
the following descriptions.
The following explains proper use
of batteries and how to prolong
their life. Incorrect use of batteries
can cause shorter battery life, as
well as leakage, excessive heat, fire
or explosion.
1 Camera uses the Rechargeable
Lithium-ion Battery
* When shipped, the battery is not
fully charged. Always charge the
battery before using it.
* When carrying the battery, install
it in a digital camera or keep it in
the soft case.
Battery Features
The battery gradually loses its
charge even when not used. Use
a battery that has been charged
recently (in the last day or two) to
take pictures.
To maximize the life of the battery,
turn the camera off as quickly as
possible when it is not being used.
The number of available frames
will be lower in cold locations or
at low temperatures. Take along
a spare fully charged battery. You
can also increase the amount of
power produced by putting the
battery in your pocket or another
warm place to heat it and then
loading it into the camera just
before you take a picture.
If you are using a heating pad,
take care not to place the battery
directly against the pad. The
camera may not operate if you
use a depleted battery in cold
conditions.
Charging the Battery
You can charge the battery using
the battery charger (included).
The battery can be charged at
ambient temperatures between
0°C and +40°C (+32°F and
+104°F). Refer to the OWNER’S
MANUAL for the time of
charging battery.
You should charge the battery
at an ambient temperature
between +10°C and +35°C
(+50°F and +95°F). If you charge
the battery at a temperature
outside this range, charging
takes longer because the
performance of the battery is
impaired.
You cannot charge the battery
at temperatures of 0°C (+32°F) or
below.
The Rechargeable Lithium-ion
Battery does not need to be fully
discharged or exhausted flat
before being charged.
The battery may feel warm after it
has been charged or immediately
after being used. This is perfectly
normal.
Do not recharge a fully charged
battery.
Battery Life
At normal temperatures, the battery
can be used at least 300 times.
If the time for which the battery
provides power shortens markedly,
this indicates that the battery has
reached the end of its effective life
and should be replaced.
Notes on storage
If a battery is stored for long
periods while charged, the
performance of the battery can
be impaired. If the battery will not
be used for some time, run the
battery out before storing it.
If you do not intend to use the
camera for a long period of time,
remove the battery from the
camera.
Store the battery in a cool place.
The battery should be stored in
a dry location with an ambient
temperature between +15°C and
+25°C (+59°F and +77°F).
Do not leave the battery in hot
or extremely cold places.
Handling the Battery
Cautions for Your Safety:
Do not carry or store battery with
metal objects such as necklaces or
hairpins.
Do not heat the battery or throw it
into a fire.
Do not attempt to take apart or
change the battery.
Do not recharge the battery with
chargers other those specified.
Dispose of used battery promptly.
Do not drop the battery or
otherwise subject it to strong
impacts.
Do not expose the battery to
water.
Always keep the battery terminals
clean.
Do not store batteries in hot
places. Also, if you use the battery
for a long period, the camera body
and the battery itself will become
warm. This is normal. Use the AC
power adapter if you are taking
pictures or viewing images for a
long period of time.
2 Camera uses AA-size alkaline
or Ni-MH (nickelmetal hydride)
rechargeable batteries
* For details on the batteries that
you can use, refer to the OWNER’S
MANUAL of your camera.
Cautions for Using Battey
Do not heat the batteries or throw
them into a fire.
Do not carry or store batteries
with metal objects such as
necklaces or hairpins.
Do not expose the batteries to
water, and keep batteries from
getting wet or stored in moist
locations.
Do not attempt to take apart or
change the batteries, including
battery casings.
Do not subject the batteries to
strong impacts.
vi
■
■
■
■
■
■
Do not use batteries that are
leaking, deformed, discolored.
Do not store batteries in warm or
humid places.
Keep the batteries out of reach of
babies and small children.
Make sure that the battery polarity
(E and F) is correct.
Do not use new with used
batteries. Do not use charged and
discharged batteries together.
Do not use different types or
brands of batteries at the same
time.
If you do not intend to use the
camera for a long period of time,
remove the batteries from the
camera. Note if the camera is left
with the batteries removed, the
time and date settings are cleared.
The batteries feel warm right after
being used. Before removing the
batteries, turn the camera off
and wait for the batteries to cool
down.
Since batteries do not work well in
cold weather or locations, warm
the batteries by placing them
inside your garments before use.
Batteries do not work well when
cold. They will work again when
the temperature returns to normal.
Soil (such as fingerprints) on
the battery terminals makes the
batteries charge less reducing the
number of images. Carefully wipe
the battery terminals with a soft
dry cloth before loading.
If any liquid at all leaks from
the batteries, wipe the battery
compartment thoroughly and
then load new batteries.
If any battery fluid comes
into contact with your hands
or clothing, flush the area
thoroughly with water. Note
that battery fluid can cause
loss of eyesight if it gets into
your eyes. If this occurs, do
not rub your eyes. Flush the
fluid out with clean water and
contact your physician for
treatment.
Using the AA-size Ni-MH batteries
correctly
Ni-MH batteries left unused in
storage for long periods can
become “deactivated”. Also,
repeatedly charging Ni-MH
batteries that are only partially
discharged can cause them
to suffer from the “memory
effect”. Ni-MH batteries that
are “deactivated” or affected by
“memory” suffer from the problem
of only providing power for a
short time after being charged. To
prevent this problem, discharge
and recharge them several times
using the camera’s “Discharging
rechargeable batteries” function.
Deactivation and memory are
specific to Ni-MH batteries and are
not in fact battery faults.
See OWNER’S MANUAL for the
procedure for “Discharging
rechargeable batteries”.
CAUTION
Do not use the “Discharging
rechargeable batteries” function
when alkaline batteries being used.
To charge Ni-MH batteries,
use the quick battery charger
(sold separately). Refer to the
instructions supplied with the
charger to make sure that the
charger is used correctly.
Do not use the battery charger to
charge other batteries.
Note that the batteries feel warm
after being charged.
Due to the way the camera is
constructed, a small amount of
current is used even when the
camera is turned off. Note in
particular that leaving Ni-MH
batteries in the camera for a long
period will overdischarge the
batteries and may render them
unusable even after recharging.
Ni-MH batteries will self-discharge
even when not used, and the time
for which they can be used may
be shortened as a result.
Ni-MH batteries will deteriorate
rapidly if overdischarged (e.g.
by discharging the batteries in a
flashlight). Use the “Discharging
rechargeable batteries” function
provided in the camera to
discharge the batteries.
Ni-MH batteries have a limited
service life. If a battery can only be
Notes and Cautions
used for a short time even after
repeated discharge-charge cycles,
it may have reached the end of its
service life.
Disposing of Batteries
When disposing of batteries, do
so in accordance with your local
waste disposal regulations.
3 Notes on both models ( 1 , 2 )
AC Power Adapter
Always use the AC Power Adapter
with the camera. The use of an AC
Power adapter other than FUJIFILM
AC Power Adapter can be damaged
to your digital camera.
For details on the AC power adapter,
refer to the OWNER’S MANUAL of
your camera.
Use the AC power adapter for
indoor use only.
Plug the connection cord plug
securely into the DC input
terminal.
Turn off the FUJIFILM Digital
camera before disconnecting the
cord from the DC input terminal.
To disconnect, pull out the plug
gently. Do not pull on the cord.
Do not use the AC power adapter
with any device other than your
camera.
During use, the AC power adapter
will become hot to the touch. This
is normal.
vii
■
■
■
Notes and Cautions
Explanation of Color Television
System
NTSC: National Television System
Committee, color television
telecasting specifications
adopted mainly in the U.S.A.,
Canada and Japan.
PAL: Phase Alternation by Line,
a color television system
adopted mainly by European
countries and China.
Exif Print (Exif ver. 2.2)
Exif Print Format is a newly revised
digital camera file format that
contains a variety of shooting
information for optimal printing.
Do not take apart the AC power
adapter. Doing so could be
dangerous.
Do not use the AC power adapter
in a hot and humid place.
Do not subject the AC power
adapter to strong shocks.
The AC power adapter may emit a
humming. This is normal.
If used near a radio, the AC power
adapter may cause static. If this
happens, move the camera away
from the radio.
Before Using the Camera
Test Shots Prior to Photography
For important photographs (such
as weddings and overseas trips),
always take a test shot and view the
image to make sure that the camera
is working normally.
FUJIFILM Corporation cannot
accept liability for any incidental
losses (such as the costs of
photography or the loss of income
from photography) incurred as a
result of faults with this product.
Notes on Copyright
Images recorded using your digital
camera system cannot be used in
ways that infringe copyright laws
without the consent of the owner,
unless intended only for personal
use. Note that some restrictions
apply to the photographing of
stage performances, entertainments
and exhibits, even when intended
purely for personal use. Users are
also asked to note that the transfer
of Memory Card containing images
or data protected under copyright
laws is only permissible within
the restrictions imposed by those
copyright laws.
Handling Your Digital Camera
To ensure that images are recorded
correctly, do not subject the camera
to impact or shock while an image is
being recorded.
Liquid Crystal
If the LCD monitor is damaged,
take particular care with the liquid
crystal in the monitor. If any of the
following situations arise, take the
urgent action indicated.
If liquid crystal comes in contact
with your skin:
Wipe the area with a cloth and
then wash thoroughly with soap
and running water.
If liquid crystal gets into your eye:
Flush the affected eye with clean
water for at least 15 minutes and
then seek medical assistance.
If liquid crystal is swallowed:
Flush your mouth thoroughly with
water. Drink large quantities of
water and induce vomiting. Then
seek medical assistance.
Trademark Information
and xD-Picture Card™
are trademarks of FUJIFILM
Corporation.
IBM PC/AT is a registered
trademark of International
Business Machines Corp. of the
U.S.A.
Macintosh, Quick-Time, and Mac
OS are trademarks of Apple Inc. in
the U.S.A. and other countries.
Windows 7, Windows Vista and the
Windows logo are trademarks of
the Microsoft group of companies.
IrSimple™ Trademark is owned by
the Infrared Data Association®.
IrSS™ Trademark or IrSimpleShot™
Trademark is owned by the
Infrared Data Association®.
SDHC logo is a trademark.
HDMI logo is a trademark.
YouTube is a trademark of Google
Inc.
Other company or product names
are trademarks or registered
trademarks of the respective
companies.
Notes on Electrical Interference
If the camera is to be used in
hospitals or aircrafts, please
note that this camera may cause
interference to other equipment in
the hospital or aircraft. For details,
please check with the applicable
regulations.
viii
■
■
■
■
■
■
■
■
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
