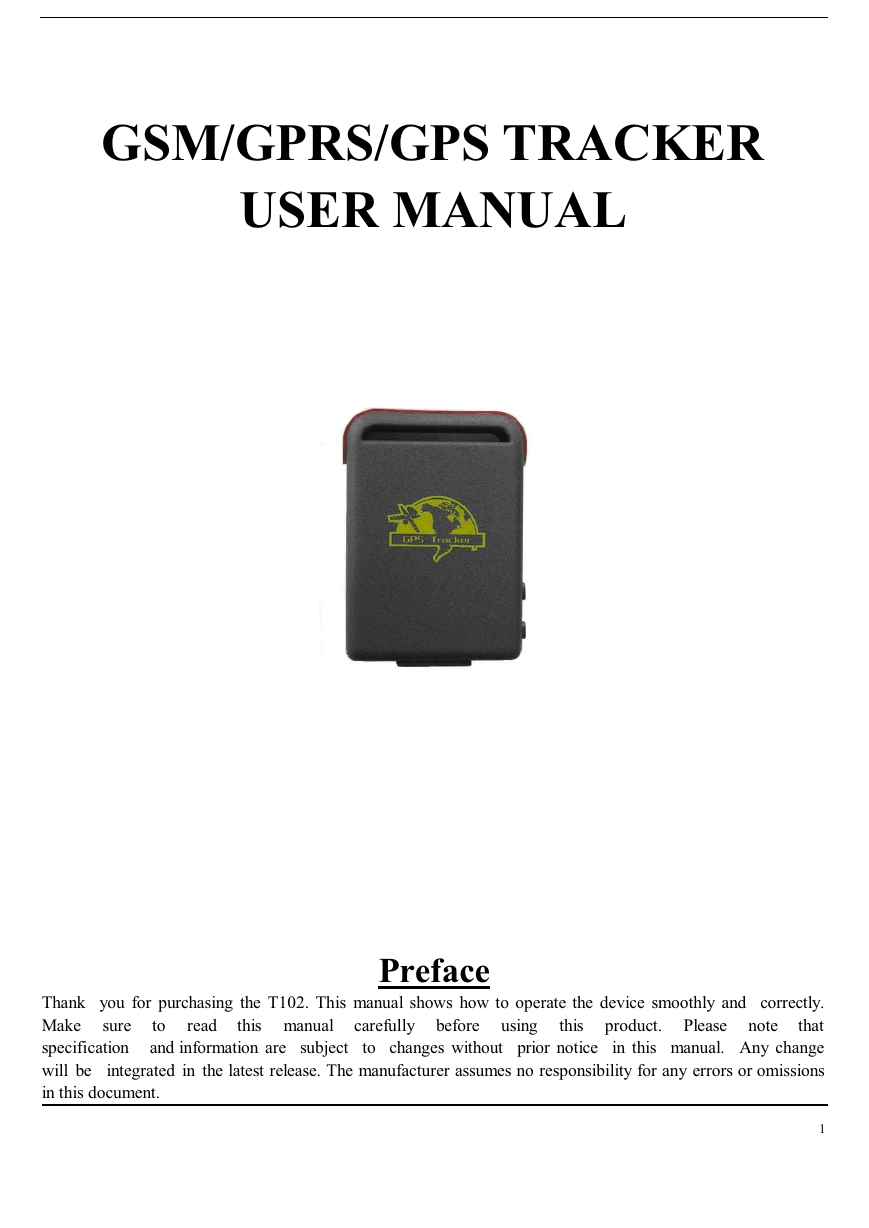

GSM/GPRS/GPS TRACKER USER MANUAL UPreface this Please note Thank you for purchasing the T102. This manual shows how to operate the device smoothly and correctly. carefully Make sure that specification to changes without prior notice in this manual. Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or omissions in this document. to and information are subject product. read this manual before using 1

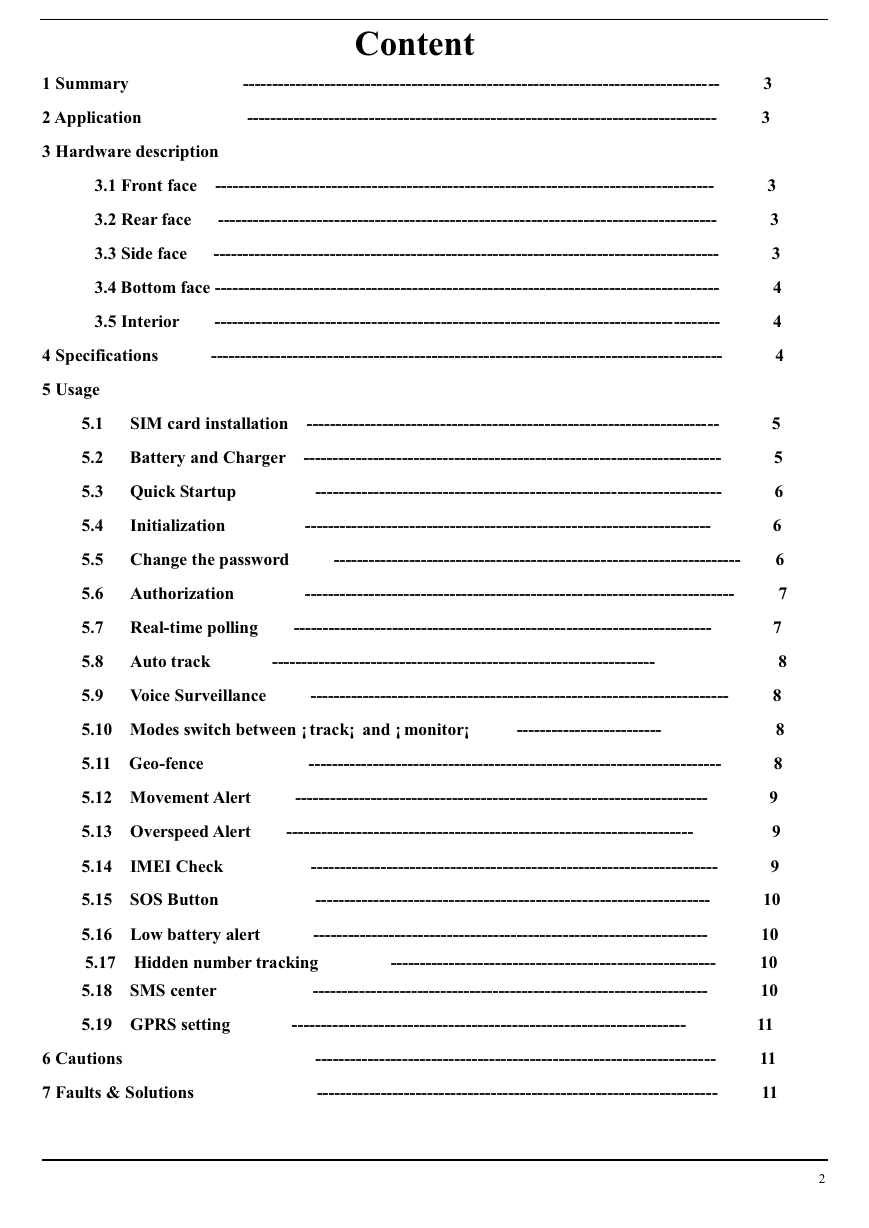

Content 1 Summary ---------------------------------------------------------------------------------- 3 2 Application --------------------------------------------------------------------------------- 3 3 Hardware description 3.1 Front face -------------------------------------------------------------------------------------- 3 3.2 Rear face -------------------------------------------------------------------------------------- 3 3.3 Side face --------------------------------------------------------------------------------------- 3 3.4 Bottom face --------------------------------------------------------------------------------------- 4 3.5 Interior --------------------------------------------------------------------------------------- 4 4 Specifications ---------------------------------------------------------------------------------------- 4 5 Usage 5.1 SIM card installation ----------------------------------------------------------------------- 5 5.2 Battery and Charger ------------------------------------------------------------------------ 5 5.3 Quick Startup ---------------------------------------------------------------------- 6 5.4 Initialization ---------------------------------------------------------------------- 6 5.5 Change the password ---------------------------------------------------------------------- 6 5.6 Authorization -------------------------------------------------------------------------- 7 5.7 Real-time polling ------------------------------------------------------------------------ 7 5.8 Auto track ------------------------------------------------------------------ 8 5.9 Voice Surveillance ------------------------------------------------------------------------ 8 5.10 Modes switch between ¡ track¡ and ¡ monitor¡ ------------------------- 8 5.11 Geo-fence ----------------------------------------------------------------------- 8 5.12 Movement Alert ----------------------------------------------------------------------- 9 5.13 Overspeed Alert ---------------------------------------------------------------------- 9 5.14 IMEI Check ---------------------------------------------------------------------- 9 5.15 SOS Button -------------------------------------------------------------------- 10 5.16 Low battery alert -------------------------------------------------------------------- 10 5.17 Hidden number tracking -------------------------------------------------------- 10 5.18 SMS center -------------------------------------------------------------------- 10 5.19 GPRS setting -------------------------------------------------------------------- 11 6 Cautions --------------------------------------------------------------------- 11 7 Faults & Solutions --------------------------------------------------------------------- 11 2

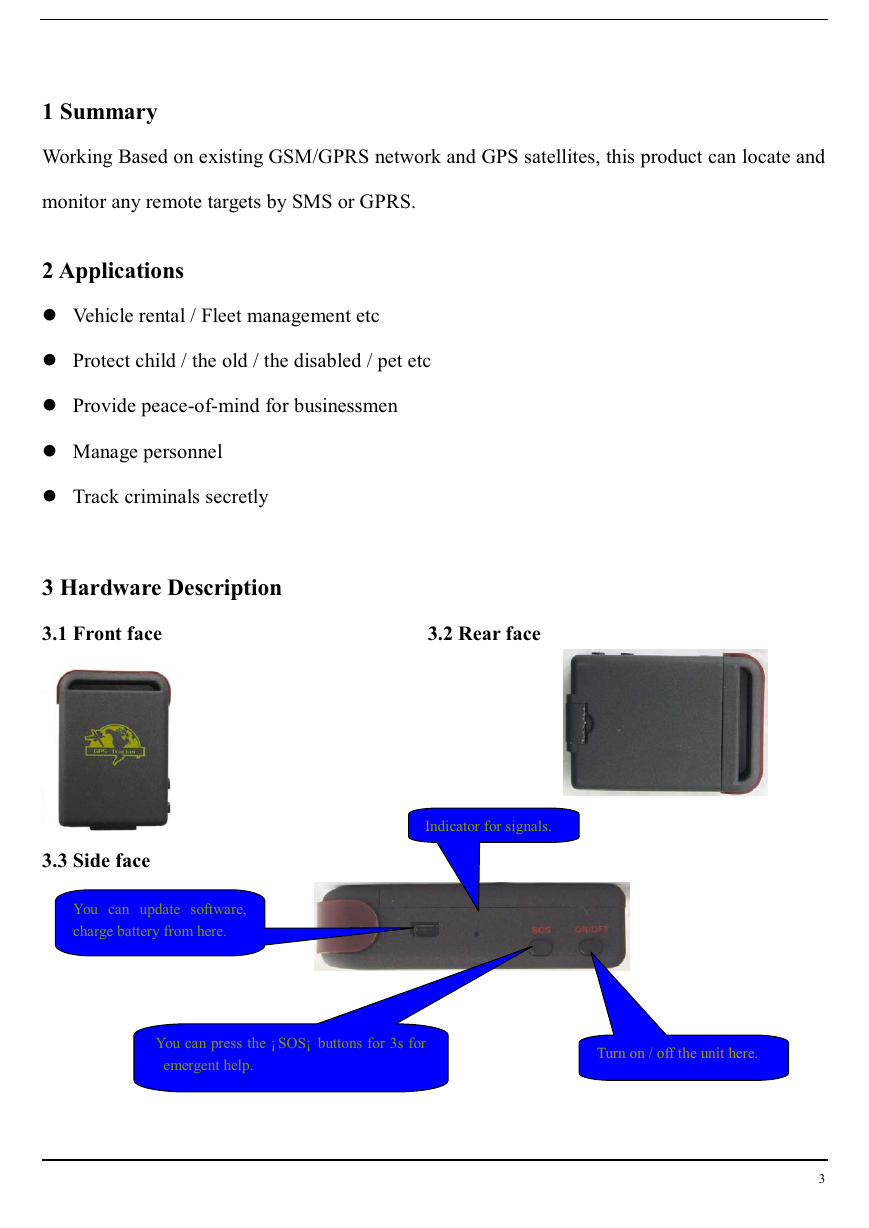

1 Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS. 2 Applications Vehicle rental / Fleet management etc Protect child / the old / the disabled / pet etc Provide peace-of-mind for businessmen Manage personnel Track criminals secretly 3 Hardware Description 3.1 Front face 3.2 Rear face Indicator for signals. 3.3 Side face You can update software, charge battery from here. You can press the ¡ SOS¡ buttons for 3s for emergent help. Turn on / off the unit here. 3

3.4 Bottom face GSM/GPRS antenna is inside Microphone 3.5 Interior Put SIM card here. 4 Specs. Content Dim. Weight Network Band GPS chip GSM/GPRS module GPS sensitivity GPS accuracy Time To First Fix Car charger Wall charger Battery Standby Storage Temp. Operation Temp. Humidity Install the battery like this. Specs. 64mm x 46mm x 17mm(1.8¡*2.5¡*0.65¡) 50g GSM/GPRS 850/1800/1900Mhz or 900/1800/1900Mhz SIRF3 chip Siemens MC55 or Simcom300 -159dBm 5m Cold status 45s Warm status 35s Hot status 1s 12¡ 24V input 5V output 110220V input 5V output Chargeable changeable 3.7V 800mAh Li-ion battery 48hours -40¡C to +85¡C -20¡C to +55¡C 5%--95% non-condensing 4

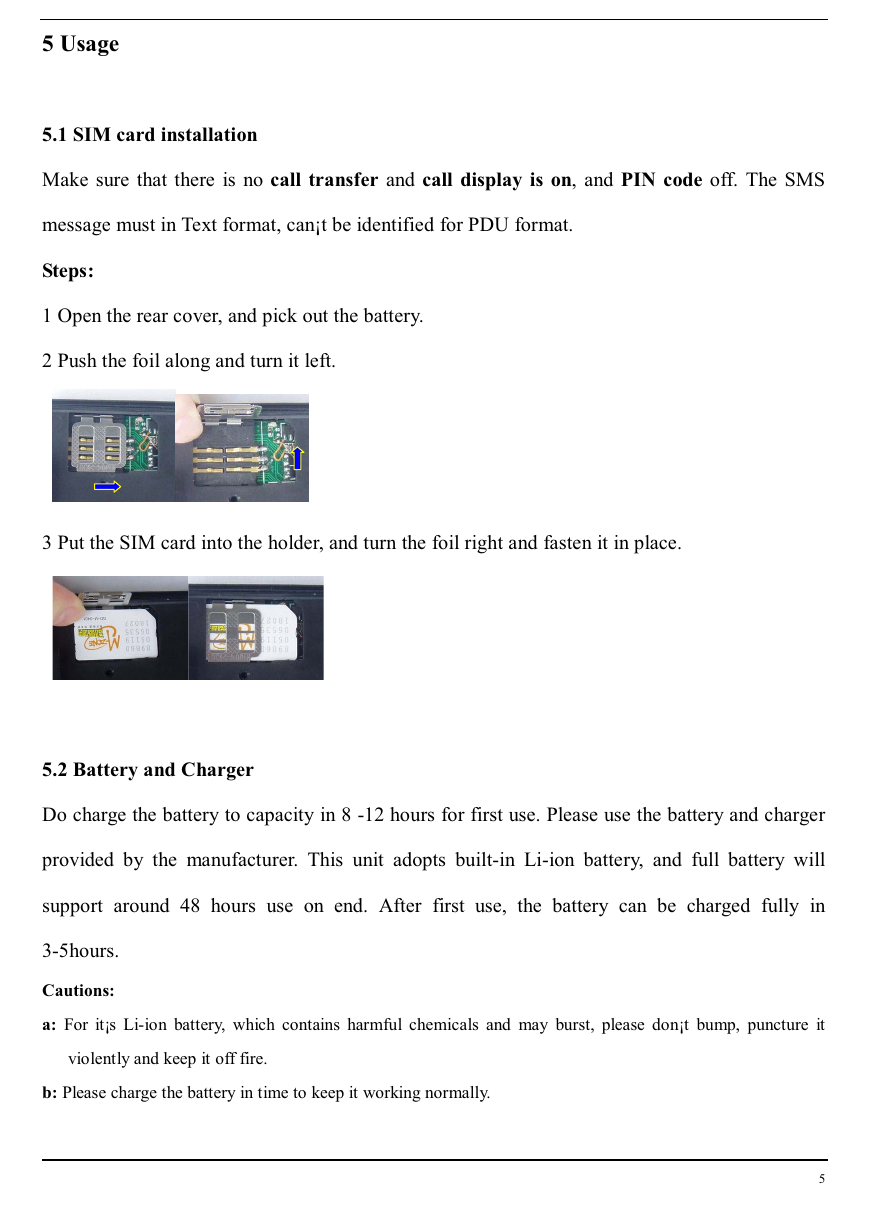

5 Usage 5.1 SIM card installation Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text format, can¡t be identified for PDU format. Steps: 1 Open the rear cover, and pick out the battery. 2 Push the foil along and turn it left. 3 Put the SIM card into the holder, and turn the foil right and fasten it in place. 5.2 Battery and Charger Do charge the battery to capacity in 8 -12 hours for first use. Please use the battery and charger provided by the manufacturer. This unit adopts built-in Li-ion battery, and full battery will support around 48 hours use on end. After first use, the battery can be charged fully in 3-5hours. Cautions: a: For it¡s Li-ion battery, which contains harmful chemicals and may burst, please don¡t bump, puncture it violently and keep it off fire. b: Please charge the battery in time to keep it working normally. 5

5.3 Startup Put the SIM card and battery in place. Turn on the unit outdoors by pressing the ¡ on/off¡ button until the indicator is on. For first use, please initialize the unit and restore it to default setting.( please refer to 5.4 for instruction.) In 10 or 40seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals. The indicator will keep flashing every 4 seconds when the unit has received the signals, otherwise it will keep on. When this unit receives GPS signals normally, you can use it and do all the following settings. 5.4 Initialization Send ¡ begin+password¡ in SMS to the unit, it will reply ¡ begin ok¡ and initialize all the settings. (default password: 123456) 5.5 Change the password Send SMS password+old password+space+new password to change the password. Remark: 5.5.1 Be sure keep the new password in mind, you have to upload the software to restore the original setting in case of losing the new password. 5.5.2 Make sure the new password is in 6 digits, or else the tracker can not recognize the password. 6

5.6 Authorization There are only 5 numbers able to be authorized. 5.6.1 Call the tracker for 10 times, it will make the cell phone number as the authorized number automatically. 5.6.2 Send SMS admin+password+space+cell phone number to set up a authorized number. The other authorized numbers should be set by the first authorized number. If the number is successfully authorized, the unit will reply ¡ admin ok!¡ in SMS. 5.6.3 Send SMS noadmin+password+space+authorized number to delete the authorized number. 5.6.4 For roaming purpose, you have to add your country code ahead of the cell phone number, for example, please send admin123456 008613322221111 to tracker to set 13322221111 as an authorized number. 5.7 Real-time polling 5.7.1 If there is no authorized number, when any number dials up the unit, it will report a Geo-info; If there is already an authorized number, then it will not respond when an unauthorized number calls it up. 5.7.2 When an authorized number dials up the unit, it will hang up and report a real-time Geo-info as below: 7

5.8 Auto Track Report a Geo-info at 30s intervals to the authorized numbers for 5 times: 5.8.1 Set up: Send SMS t030s005n+password to the unit, it will report the Geo-info at 30s intervals for 5 times.(s: second, m: minute, h: hour). The setting must be in 3 digits and at maximum 255 in value. 5.8.2 Send SMS t030s***n+password to the unit, it will reply SMS heaps of times 5.8.3 Cancel: Send notn+password to delete the ¡ auto track ¡ Remark: the interval must not be less than 20s. 5.9 Voice Surveillance In this mode, the user can dial up the unit to monitor the voice (please refer to 5.10 for instruction). 5.10 Modes switch between ¡ track¡ and ¡ monitor¡ 5.10.1. The default mode is ¡ track¡. 5.10.2. Send SMS monitor+password to the unit, and it will reply ¡monitor ok !¡ and switch to ¡ monitor¡mode. 5.10.3. Send SMS tracker+password to the unit, it will reply ¡tracker ok!¡ and restore to ¡ track¡ mode. 5.11 Geo-fence Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district. 5.11.1 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can Send SMS stockade+password+space+latitude,longitude; latitude,longitude to unit to set the 8
