TEEN 协议代码.docx
%
%
%
heterogeneous wireless sensor networks
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%
%

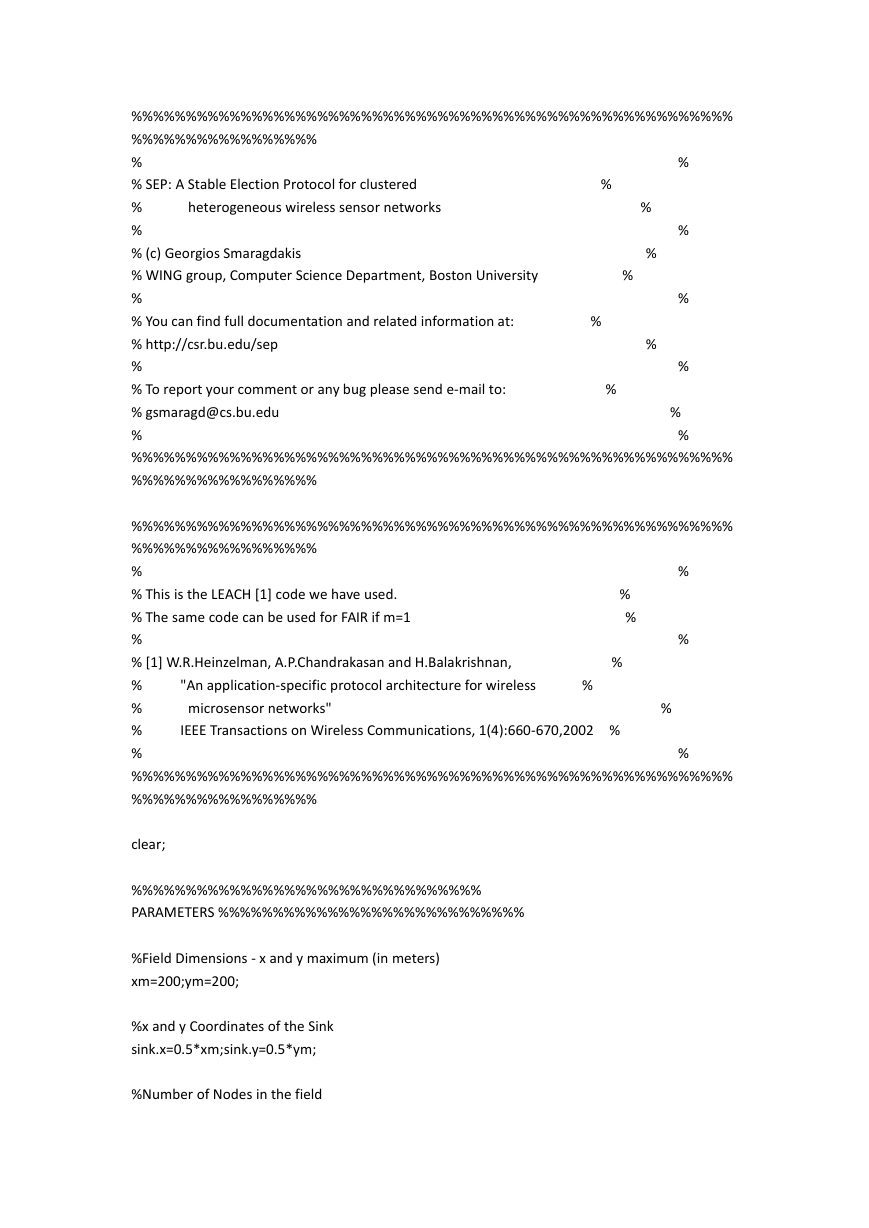

% SEP: A Stable Election Protocol for clustered
%
%
% (c) Georgios Smaragdakis
% WING group, Computer Science Department, Boston University
%
% You can find full documentation and related information at:
% http://csr.bu.edu/sep
%
% To report your comment or any bug please send e-mail to:
% gsmaragd@cs.bu.edu
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%
%
%
%
%
%
%
%
%
%
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%
%
% This is the LEACH [1] code we have used.
% The same code can be used for FAIR if m=1
%
% [1] W.R.Heinzelman, A.P.Chandrakasan and H.Balakrishnan,
%
%
%
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%
"An application-specific protocol architecture for wireless
microsensor networks"
IEEE Transactions on Wireless Communications, 1(4):660-670,2002 %
%
%
%
%
%
%
%
%
clear;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
PARAMETERS %%%%%%%%%%%%%%%%%%%%%%%%%%%%
%Field Dimensions - x and y maximum (in meters)
xm=200;ym=200;
%x and y Coordinates of the Sink
sink.x=0.5*xm;sink.y=0.5*ym;
%Number of Nodes in the field

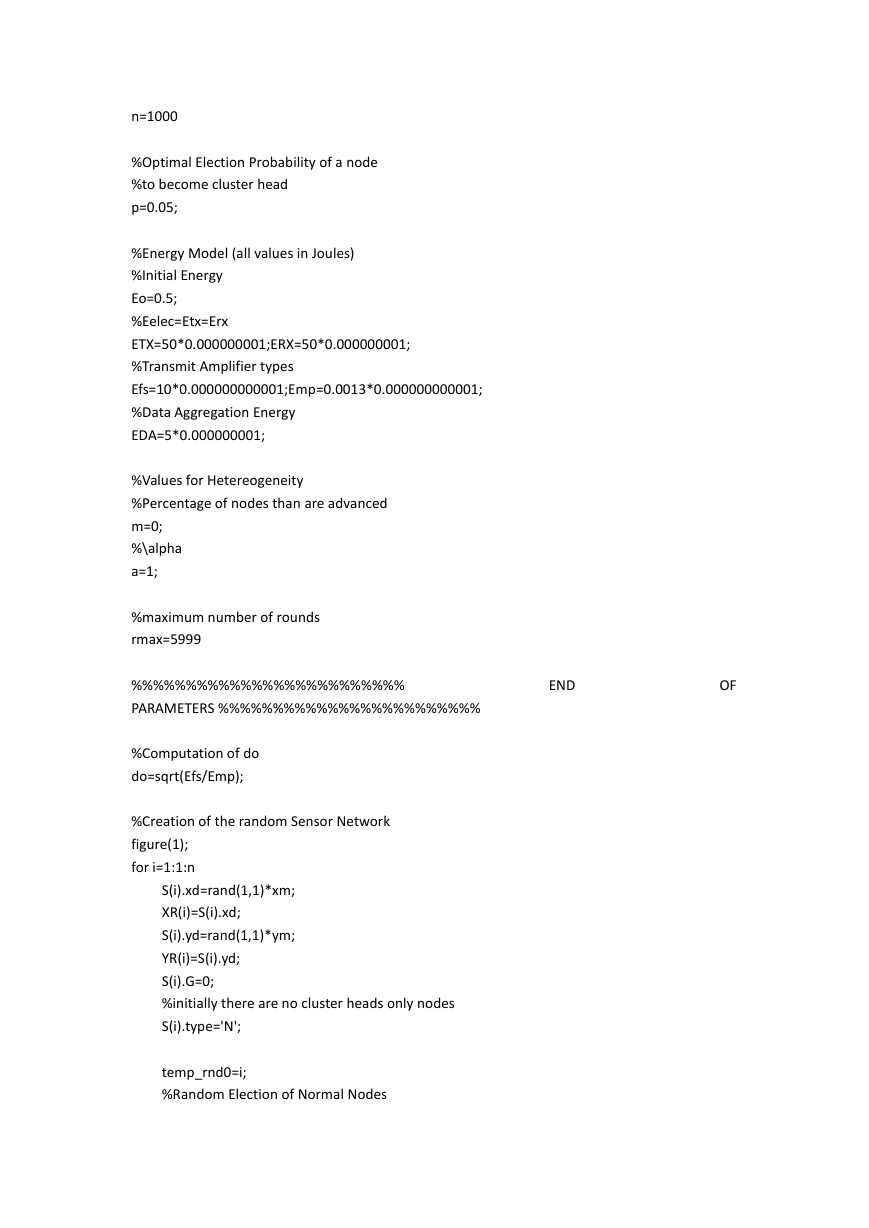

n=1000
%Optimal Election Probability of a node
%to become cluster head
p=0.05;
%Energy Model (all values in Joules)
%Initial Energy
Eo=0.5;
%Eelec=Etx=Erx
ETX=50*0.000000001;ERX=50*0.000000001;
%Transmit Amplifier types
Efs=10*0.000000000001;Emp=0.0013*0.000000000001;
%Data Aggregation Energy
EDA=5*0.000000001;
%Values for Hetereogeneity
%Percentage of nodes than are advanced
m=0;
%\alpha
a=1;
%maximum number of rounds
rmax=5999
%%%%%%%%%%%%%%%%%%%%%%%%%
PARAMETERS %%%%%%%%%%%%%%%%%%%%%%%%
END
OF
%Computation of do
do=sqrt(Efs/Emp);
%Creation of the random Sensor Network
figure(1);
for i=1:1:n
S(i).xd=rand(1,1)*xm;
XR(i)=S(i).xd;
S(i).yd=rand(1,1)*ym;
YR(i)=S(i).yd;
S(i).G=0;
%initially there are no cluster heads only nodes
S(i).type='N';
temp_rnd0=i;
%Random Election of Normal Nodes

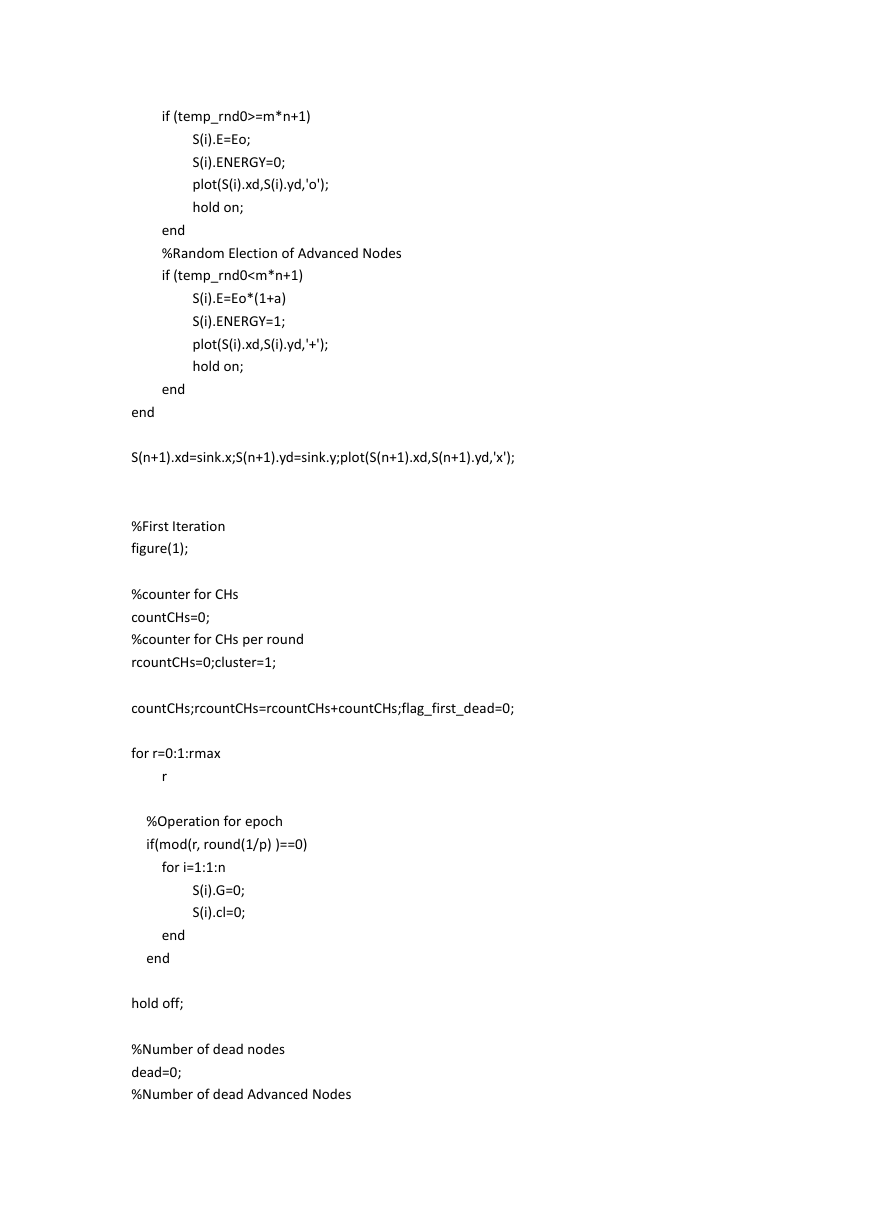

if (temp_rnd0>=m*n+1)
S(i).E=Eo;
S(i).ENERGY=0;
plot(S(i).xd,S(i).yd,'o');
hold on;
end
%Random Election of Advanced Nodes
if (temp_rnd0
dead_a=0;
%Number of dead Normal Nodes
dead_n=0;
%counter for bit transmitted to Bases Station and to Cluster Heads
packets_TO_BS=0;packets_TO_CH=0;
%counter for bit transmitted to Bases Station and to Cluster Heads
%per round
PACKETS_TO_CH(r+1)=0;PACKETS_TO_BS(r+1)=0;
figure(1);
for i=1:1:n
%checking if there is a dead node
if (S(i).E<=0)
plot(S(i).xd,S(i).yd,'red .');
dead=dead+1;
if(S(i).ENERGY==1)
dead_a=dead_a+1;
end
if(S(i).ENERGY==0)
dead_n=dead_n+1;
end
hold on;
end
if S(i).E>0
S(i).type='N';
if (S(i).ENERGY==0)
plot(S(i).xd,S(i).yd,'o');
end
if (S(i).ENERGY==1)
plot(S(i).xd,S(i).yd,'+');
end
hold on;
end
end
plot(S(n+1).xd,S(n+1).yd,'x');
STATISTICS(r+1).DEAD=dead;
DEAD(r+1)=dead;
DEAD_N(r+1)=dead_n;
DEAD_A(r+1)=dead_a;
R_DEAD(r+1)=n-dead;
%When the first node dies
if (dead==1)
if(flag_first_dead==0)
first_dead=r
flag_first_dead=1;
end
end
countCHs=0;cluster=1;for i=1:1:n
if(S(i).E>0)
temp_rand=rand;
if ( (S(i).G)<=0)
%Election of Cluster Heads
if(temp_rand<= (p/(1-p*mod(r,round(1/p)))))
countCHs=countCHs+1;
packets_TO_BS=packets_TO_BS+1;
PACKETS_TO_BS(r+1)=packets_TO_BS;
S(i).type='C';
S(i).G=round(1/p)-1;
C(cluster).xd=S(i).xd;
C(cluster).yd=S(i).yd;
plot(S(i).xd,S(i).yd,'k*');
distance=sqrt( (S(i).xd-(S(n+1).xd) )^2 + (S(i).yd-(S(n+1).yd) )^2 );
C(cluster).distance=distance;
C(cluster).id=i;
X(cluster)=S(i).xd;
Y(cluster)=S(i).yd;
cluster=cluster+1;
%Calculation of Energy dissipated
distance;
if (distance>do)
S(i).E=S(i).E-
(
Emp*4000*( distance*distance*distance*distance ));
end
if (distance<=do)
(ETX+EDA)*(4000)
+
S(i).E=S(i).E- ( (ETX+EDA)*(4000)
+ Efs*4000*( distance * distance ));
end
end
end
end
end
STATISTICS(r+1).CLUSTERHEADS=cluster-1;CLUSTERHS(r+1)=cluster-1;
%Election of Associated Cluster Head for Normal Nodes
for i=1:1:n
if ( S(i).type=='N' && S(i).E>0 )
if(cluster-1>=1)
min_dis=sqrt( (S(i).xd-S(n+1).xd)^2 + (S(i).yd-S(n+1).yd)^2 );
min_dis_cluster=1;
for c=1:1:cluster-1
temp=min(min_dis,sqrt( (S(i).xd-C(c).xd)^2 + (S(i).yd-C(c).yd)^2 ) );
if ( tempdo)
S(i).E=S(i).E- ( ETX*(4000) + Emp*4000*( min_dis * min_dis * min_dis *
min_dis));
end
if (min_dis<=do)
S(i).E=S(i).E- ( ETX*(4000) + Efs*4000*( min_dis * min_dis));
end
%Energy dissipated
if(min_dis>0 && rand(1,1)<=0.1)
S(C(min_dis_cluster).id).E = S(C(min_dis_cluster).id).E- ( (ERX + EDA)*4000 );
PACKETS_TO_CH(r+1)=n-dead-cluster+1;
end
S(i).min_dis=min_dis;
S(i).min_dis_cluster=min_dis_cluster;
end
end
end
hold on;

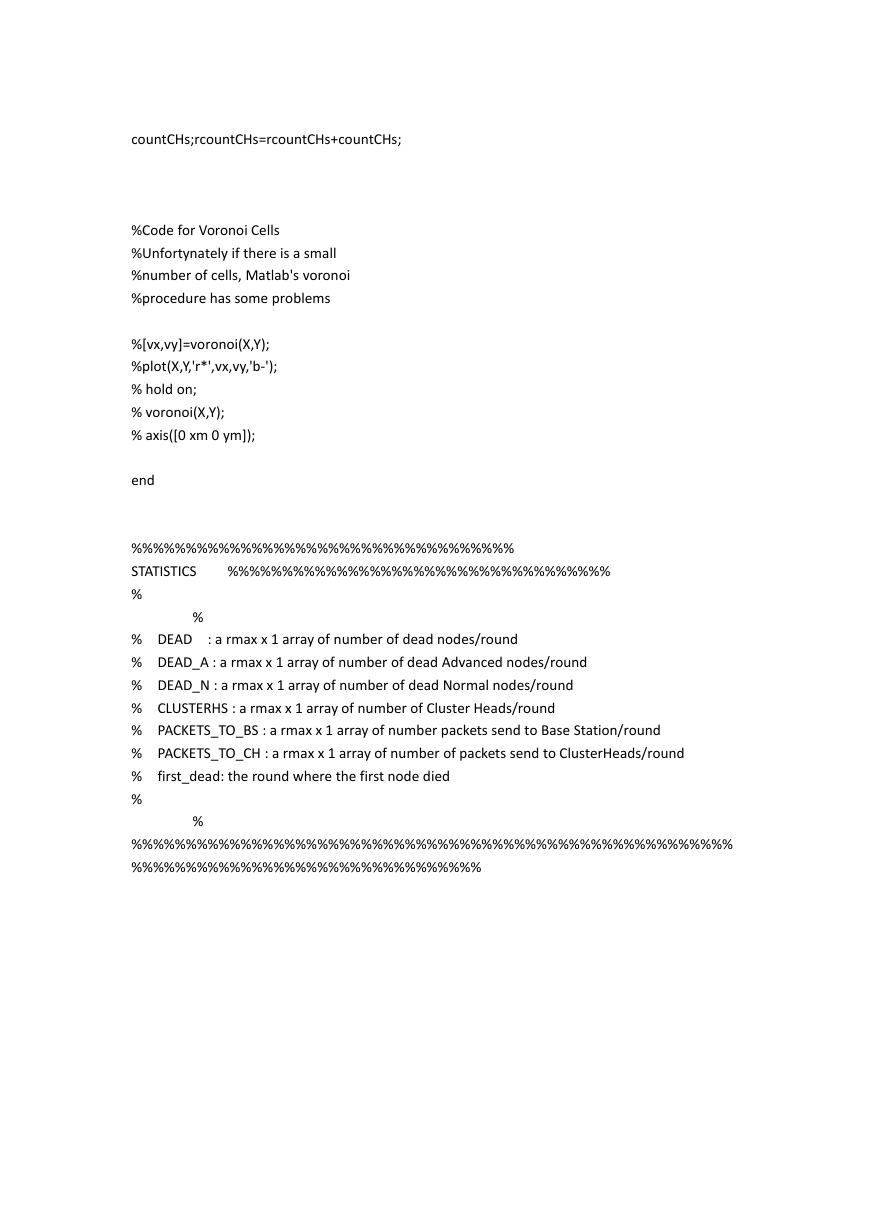

countCHs;rcountCHs=rcountCHs+countCHs;
%Code for Voronoi Cells
%Unfortynately if there is a small
%number of cells, Matlab's voronoi
%procedure has some problems
%[vx,vy]=voronoi(X,Y);
%plot(X,Y,'r*',vx,vy,'b-');
% hold on;
% voronoi(X,Y);
% axis([0 xm 0 ym]);
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
STATISTICS
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
% DEAD : a rmax x 1 array of number of dead nodes/round
% DEAD_A : a rmax x 1 array of number of dead Advanced nodes/round
% DEAD_N : a rmax x 1 array of number of dead Normal nodes/round
% CLUSTERHS : a rmax x 1 array of number of Cluster Heads/round
% PACKETS_TO_BS : a rmax x 1 array of number packets send to Base Station/round
% PACKETS_TO_CH : a rmax x 1 array of number of packets send to ClusterHeads/round
% first_dead: the round where the first node died
%
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
