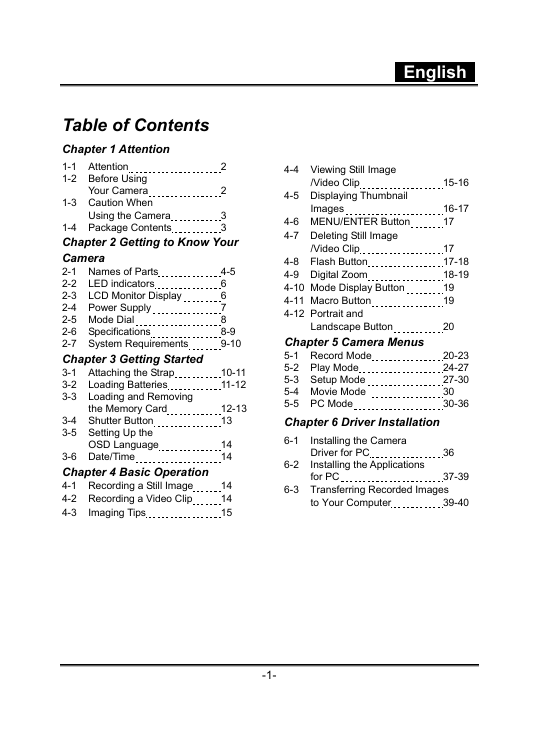

Table of Contents Chapter 1 Attention 1-1 Attention 1-2 Before Using Your Camera 1-3 Caution When 2 2 3 3 Using the Camera 1-4 Package Contents Chapter 2 Getting to Know Your Camera 2-1 Names of Parts 2-2 LED indicators 2-3 LCD Monitor Display 2-4 Power Supply 2-5 Mode Dial 2-6 Specifications 2-7 System Requirements Chapter 3 Getting Started 3-1 Attaching the Strap 3-2 Loading Batteries 3-3 Loading and Removing 4-5 6 6 7 8 8-9 9-10 10-11 11-12 the Memory Card 3-4 Shutter Button 3-5 Setting Up the OSD Language 3-6 Date/Time Chapter 4 Basic Operation 4-1 Recording a Still Image 4-2 Recording a Video Clip 4-3 Imaging Tips 12-13 13 14 14 14 14 15 English 4-4 Viewing Still Image /Video Clip 4-5 Displaying Thumbnail Images 4-6 MENU/ENTER Button 4-7 Deleting Still Image /Video Clip 4-8 Flash Button 4-9 Digital Zoom 4-10 Mode Display Button 4-11 Macro Button 4-12 Portrait and Landscape Button Chapter 5 Camera Menus 5-1 Record Mode 5-2 Play Mode 5-3 Setup Mode 5-4 Movie Mode 5-5 PC Mode Chapter 6 Driver Installation 6-1 Installing the Camera Driver for PC Installing the Applications for PC 6-2 6-3 Transferring Recorded Images to Your Computer 15-16 16-17 17 17 17-18 18-19 19 19 20 20-23 24-27 27-30 30 30-36 36 37-39 39-40 -1-

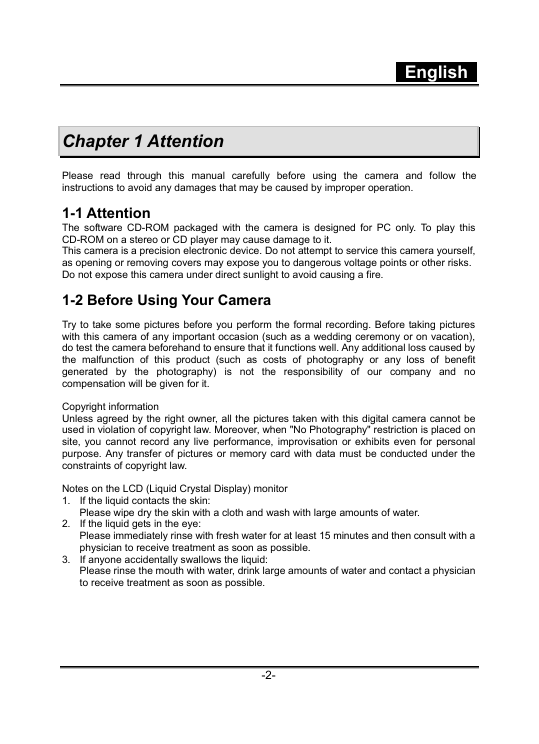

Chapter 1 Attention English Please read through this manual carefully before using the camera and follow the instructions to avoid any damages that may be caused by improper operation. 1-1 Attention The software CD-ROM packaged with the camera is designed for PC only. To play this CD-ROM on a stereo or CD player may cause damage to it. This camera is a precision electronic device. Do not attempt to service this camera yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Do not expose this camera under direct sunlight to avoid causing a fire. 1-2 Before Using Your Camera Try to take some pictures before you perform the formal recording. Before taking pictures with this camera of any important occasion (such as a wedding ceremony or on vacation), do test the camera beforehand to ensure that it functions well. Any additional loss caused by the malfunction of this product (such as costs of photography or any loss of benefit generated by the photography) is not the responsibility of our company and no compensation will be given for it. Copyright information Unless agreed by the right owner, all the pictures taken with this digital camera cannot be used in violation of copyright law. Moreover, when "No Photography" restriction is placed on site, you cannot record any live performance, improvisation or exhibits even for personal purpose. Any transfer of pictures or memory card with data must be conducted under the constraints of copyright law. Notes on the LCD (Liquid Crystal Display) monitor 1. If the liquid contacts the skin: Please wipe dry the skin with a cloth and wash with large amounts of water. If the liquid gets in the eye: Please immediately rinse with fresh water for at least 15 minutes and then consult with a physician to receive treatment as soon as possible. If anyone accidentally swallows the liquid: Please rinse the mouth with water, drink large amounts of water and contact a physician to receive treatment as soon as possible. 2. 3. -2-

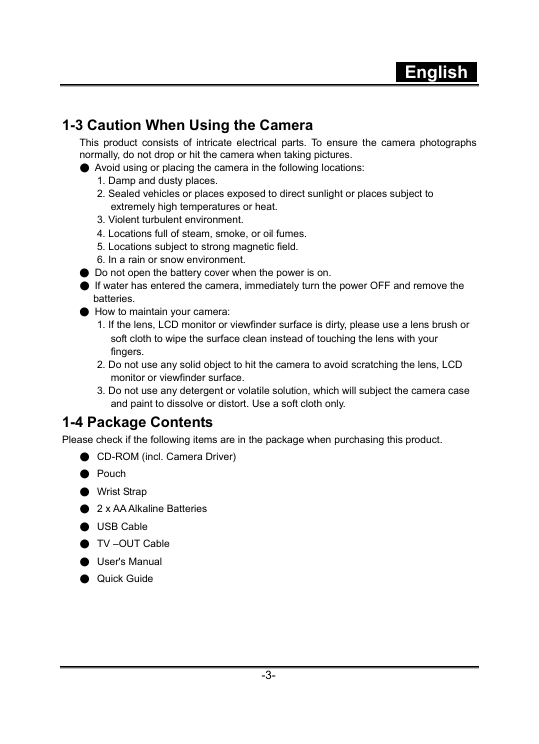

1-3 Caution When Using the Camera English This product consists of intricate electrical parts. To ensure the camera photographs normally, do not drop or hit the camera when taking pictures. ● Avoid using or placing the camera in the following locations: 1. Damp and dusty places. 2. Sealed vehicles or places exposed to direct sunlight or places subject to extremely high temperatures or heat. 3. Violent turbulent environment. 4. Locations full of steam, smoke, or oil fumes. 5. Locations subject to strong magnetic field. 6. In a rain or snow environment. ● Do not open the battery cover when the power is on. ● If water has entered the camera, immediately turn the power OFF and remove the batteries. ● How to maintain your camera: 1. If the lens, LCD monitor or viewfinder surface is dirty, please use a lens brush or soft cloth to wipe the surface clean instead of touching the lens with your fingers. 2. Do not use any solid object to hit the camera to avoid scratching the lens, LCD monitor or viewfinder surface. 3. Do not use any detergent or volatile solution, which will subject the camera case and paint to dissolve or distort. Use a soft cloth only. 1-4 Package Contents Please check if the following items are in the package when purchasing this product. ● CD-ROM (incl. Camera Driver) ● Pouch ● Wrist Strap ● 2 x AA Alkaline Batteries ● USB Cable ● TV –OUT Cable ● User's Manual ● Quick Guide -3-

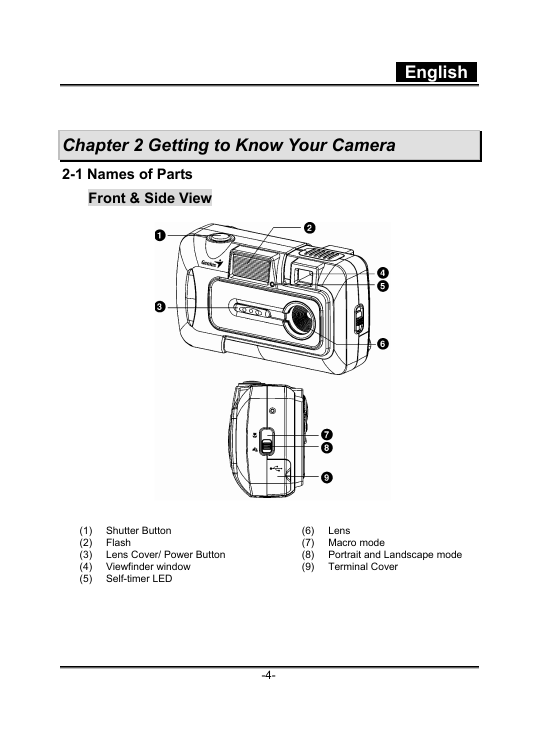

English Chapter 2 Getting to Know Your Camera 2-1 Names of Parts Front & Side View (1) Shutter Button (2) Flash (3) Lens Cover/ Power Button (4) Viewfinder window (5) Self-timer LED (6) Lens (7) Macro mode (8) Portrait and Landscape mode (9) Terminal Cover -4-

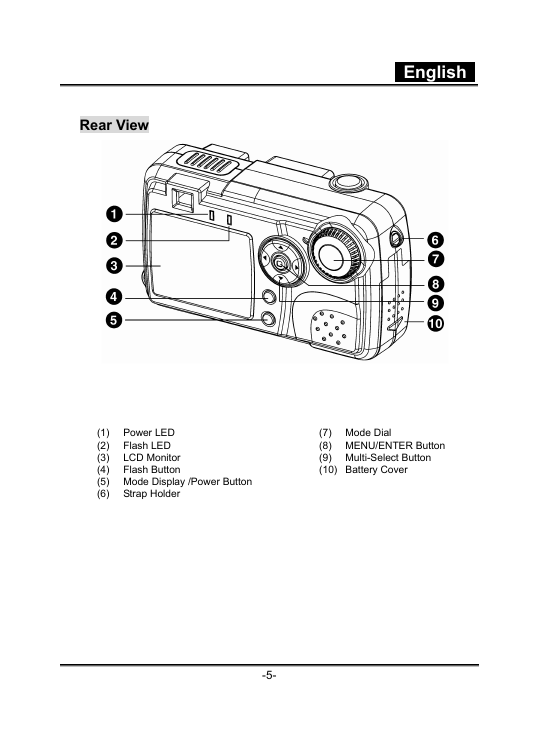

Rear View English (1) Power LED (2) Flash LED (3) LCD Monitor (4) Flash Button (5) Mode Display /Power Button (6) Strap Holder (7) Mode Dial (8) MENU/ENTER Button (9) Multi-Select Button (10) Battery Cover -5-

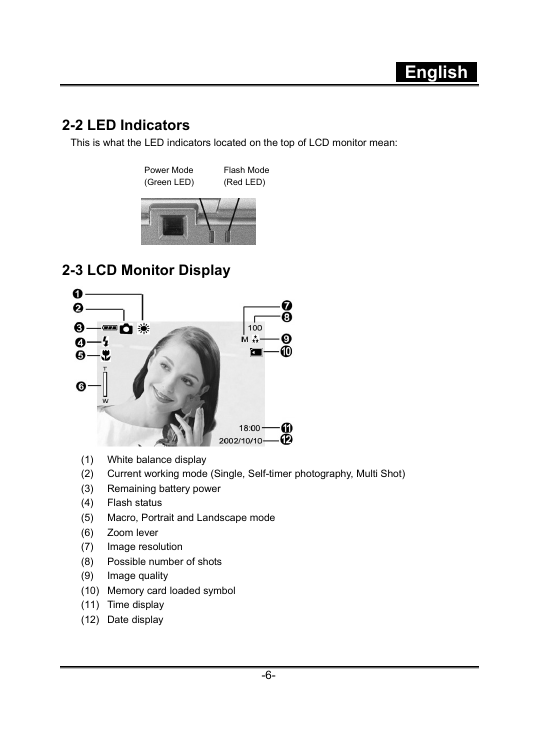

2-2 LED Indicators This is what the LED indicators located on the top of LCD monitor mean: English Power Mode (Green LED) Flash Mode (Red LED) 2-3 LCD Monitor Display (1) White balance display (2) Current working mode (Single, Self-timer photography, Multi Shot) (3) Remaining battery power (4) Flash status (5) Macro, Portrait and Landscape mode (6) Zoom lever (7) (8) Possible number of shots (9) (10) Memory card loaded symbol (11) Time display (12) Date display Image resolution Image quality -6-

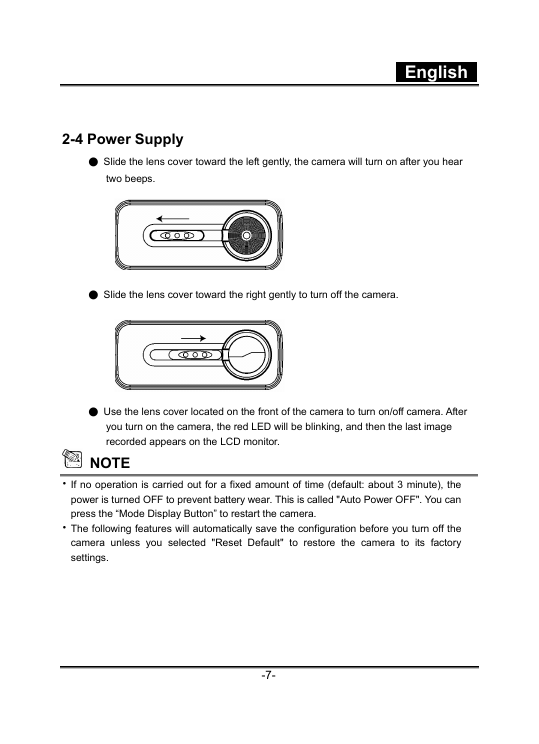

2-4 Power Supply English ● Slide the lens cover toward the left gently, the camera will turn on after you hear two beeps. ● Slide the lens cover toward the right gently to turn off the camera. ● Use the lens cover located on the front of the camera to turn on/off camera. After you turn on the camera, the red LED will be blinking, and then the last image recorded appears on the LCD monitor. NOTE If no operation is carried out for a fixed amount of time (default: about 3 minute), the power is turned OFF to prevent battery wear. This is called "Auto Power OFF". You can press the “Mode Display Button” to restart the camera. The following features will automatically save the configuration before you turn off the camera unless you selected "Reset Default" to restore the camera to its factory settings. -7-

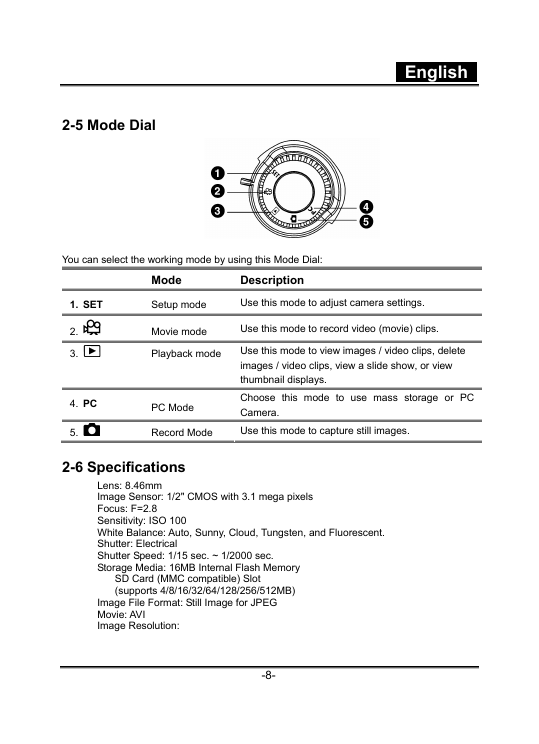

English 2-5 Mode Dial You can select the working mode by using this Mode Dial: Mode Description 1. SET Setup mode Use this mode to adjust camera settings. 2. 3. Movie mode Playback mode 4. PC 5. PC Mode Record Mode 2-6 Specifications Use this mode to record video (movie) clips. Use this mode to view images / video clips, delete images / video clips, view a slide show, or view thumbnail displays. Choose this mode to use mass storage or PC Camera. Use this mode to capture still images. Lens: 8.46mm Image Sensor: 1/2" CMOS with 3.1 mega pixels Focus: F=2.8 Sensitivity: ISO 100 White Balance: Auto, Sunny, Cloud, Tungsten, and Fluorescent. Shutter: Electrical Shutter Speed: 1/15 sec. ~ 1/2000 sec. Storage Media: 16MB Internal Flash Memory SD Card (MMC compatible) Slot (supports 4/8/16/32/64/128/256/512MB) Image File Format: Still Image for JPEG Movie: AVI Image Resolution: -8-
