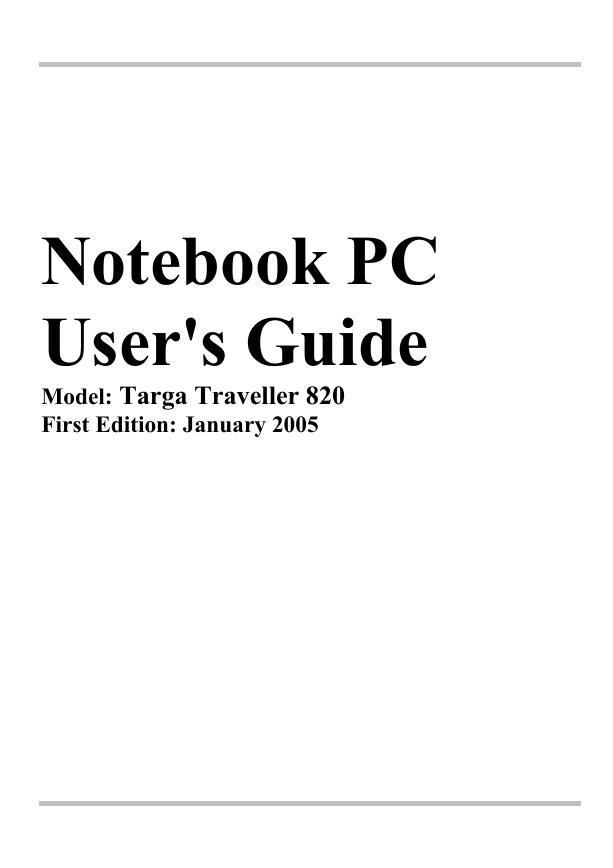

Notebook PC User's Guide Model: Targa Traveller 820 First Edition: January 2005

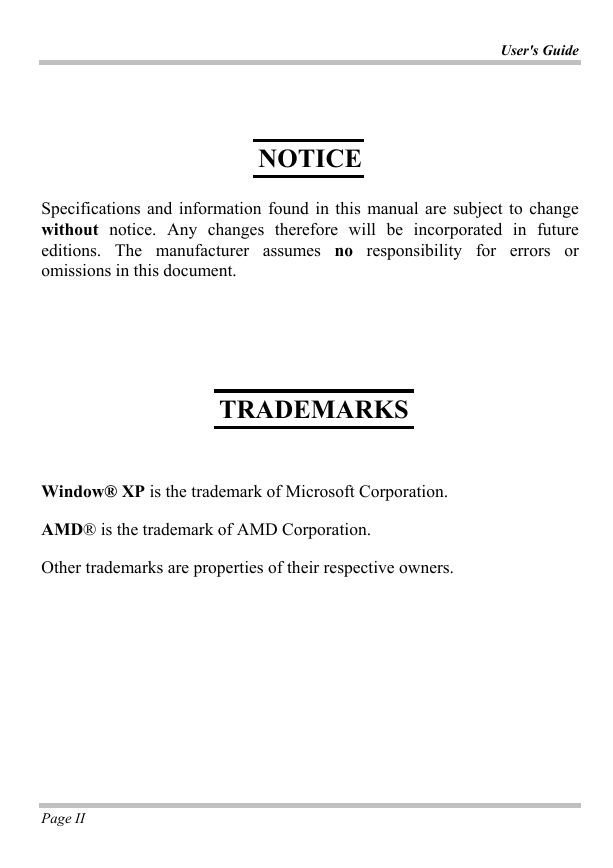

User's Guide NOTICE Specifications and information found in this manual are subject to change without notice. Any changes therefore will be incorporated in future editions. The manufacturer assumes no responsibility for errors or omissions in this document. TRADEMARKS Window® XP is the trademark of Microsoft Corporation. AMD® is the trademark of AMD Corporation. Other trademarks are properties of their respective owners. Page II

User's Guide Standards The following standards are adopted throughout this manual: Notebook in boldface (with or without capitalization) refers to the notebook computer that you have purchased. Boldface type is also used to highlight important information in this document. Whenever extra caution is called for, the information will be boxed in a dark frame preceded by "Note:" or "Warning:" Page III

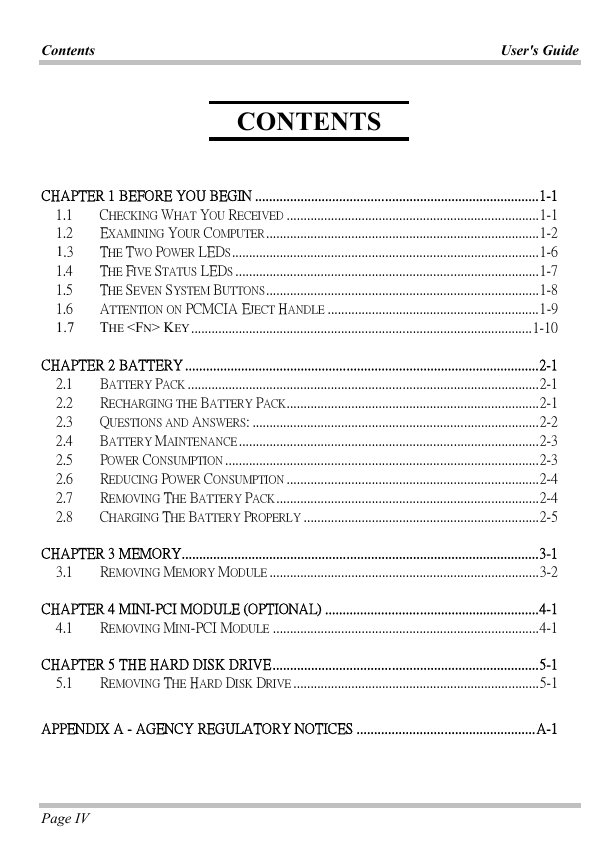

Contents User's Guide CONTENTS CHAPTER 1 BEFORE YOU BEGIN .................................................................................1-1 CHECKING WHAT YOU RECEIVED ..........................................................................1-1 EXAMINING YOUR COMPUTER................................................................................1-2 THE TWO POWER LEDS..........................................................................................1-6 THE FIVE STATUS LEDS .........................................................................................1-7 THE SEVEN SYSTEM BUTTONS................................................................................1-8 ATTENTION ON PCMCIA EJECT HANDLE ..............................................................1-9 THE KEY....................................................................................................1-10 1.1 1.2 1.3 1.4 1.5 1.6 1.7 CHAPTER 2 BATTERY .....................................................................................................2-1 2.1 BATTERY PACK .......................................................................................................2-1 2.2 RECHARGING THE BATTERY PACK..........................................................................2-1 2.3 QUESTIONS AND ANSWERS: ....................................................................................2-2 2.4 BATTERY MAINTENANCE ........................................................................................2-3 2.5 POWER CONSUMPTION ............................................................................................2-3 2.6 REDUCING POWER CONSUMPTION ..........................................................................2-4 2.7 REMOVING THE BATTERY PACK.............................................................................2-4 2.8 CHARGING THE BATTERY PROPERLY .....................................................................2-5 CHAPTER 3 MEMORY......................................................................................................3-1 REMOVING MEMORY MODULE ...............................................................................3-2 3.1 CHAPTER 4 MINI-PCI MODULE (OPTIONAL) .............................................................4-1 REMOVING MINI-PCI MODULE ..............................................................................4-1 4.1 CHAPTER 5 THE HARD DISK DRIVE ............................................................................5-1 REMOVING THE HARD DISK DRIVE ........................................................................5-1 5.1 APPENDIX A - AGENCY REGULATORY NOTICES ...................................................A-1 Page IV

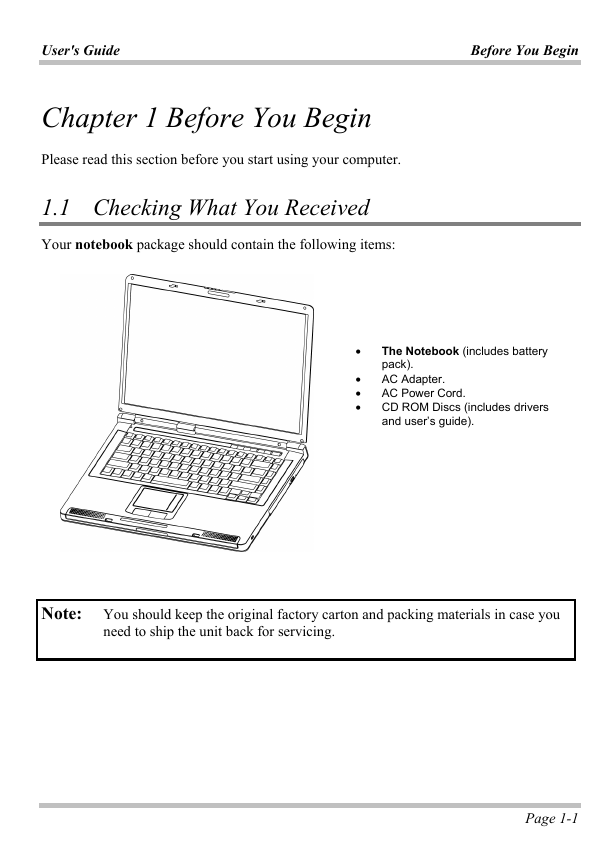

User's Guide Before You Begin Chapter 1 Before You Begin Please read this section before you start using your computer. 1.1 Checking What You Received Your notebook package should contain the following items: • • • • The Notebook (includes battery pack). AC Adapter. AC Power Cord. CD ROM Discs (includes drivers and user’s guide). Note: You should keep the original factory carton and packing materials in case you need to ship the unit back for servicing. Page 1-1

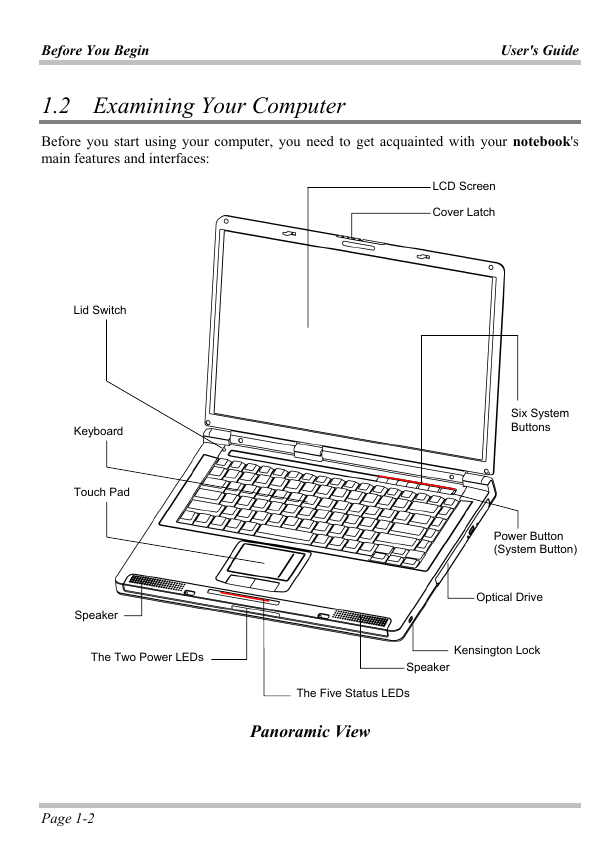

Before You Begin User's Guide 1.2 Examining Your Computer Before you start using your computer, you need to get acquainted with your notebook's main features and interfaces: LCD Screen Cover Latch Six System Buttons Power Button (System Button) Optical Drive Kensington Lock Speaker Lid Switch Keyboard Touch Pad Speaker The Two Power LEDs Page 1-2 The Five Status LEDs Panoramic View

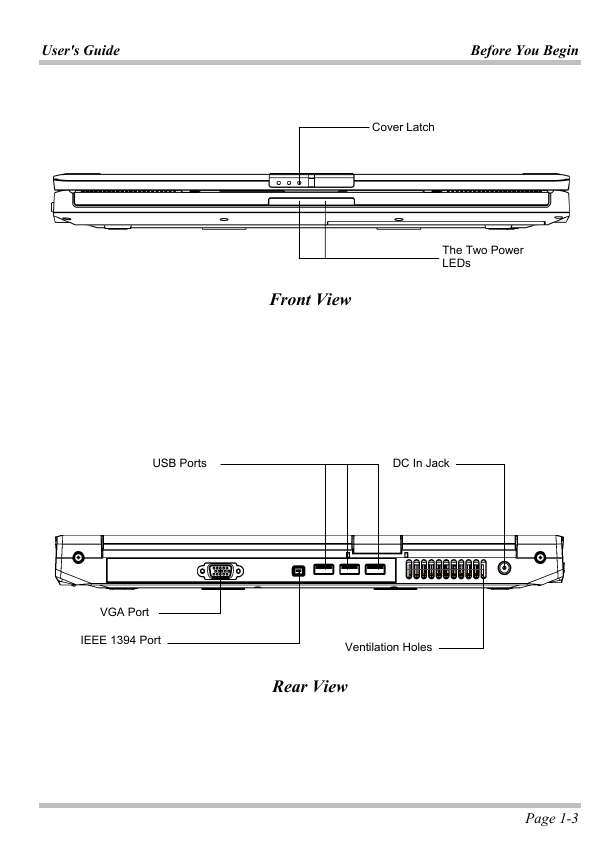

User's Guide Before You Begin Cover Latch The Two Power LEDs Front View USB Ports DC In Jack VGA Port IEEE 1394 Port Ventilation Holes Rear View Page 1-3

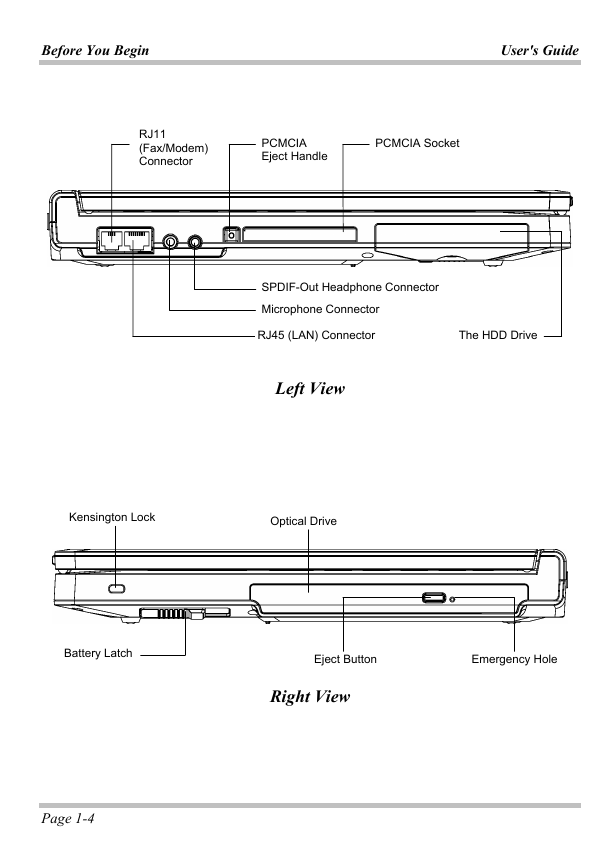

Before You Begin User's Guide RJ11 (Fax/Modem) Connector PCMCIA Eject Handle PCMCIA Socket SPDIF-Out Headphone Connector Microphone Connector RJ45 (LAN) Connector The HDD Drive Left View Kensington Lock Optical Drive Battery Latch Eject Button Emergency Hole Right View Page 1-4
