User Manual Bluetooth GPS Receiver BT-359 Ver 1.1 1

1. BT-359 at a glance 1.1 Appearance and Function 1.2 How to change battery 1. Bluetooth Status LED 2. GPS Status LED 3. Power LED 4. Power Button 1.3 Accessories BT-359 USB cable Car charger Travel charge adapter (optional) 2

2. Introduction The BT-359 is a GPS receiver with Bluetooth interface and built-in active antenna for high sensitivity to tracking signal. Based on the SiRF star III Low power chip set and supports all functions (Single Sat updates in reduced visibility, Superior urban canyon performance, FoliageLock for weak signal tracking, etc.). The BT-359 is well suited to system integrations including PDA, Smart phone, Tablet PC and Notebook PC with Bluetooth devices. It satisfies a wide variety of applications that are purposes in automotive and outdoor recreation navigation systems. 2.1 Package Before you start up, make sure that your package includes following items. If any item is missing or damaged, please contact your dealer immediately. Bluetooth GPS Receiver A CD with the User Manual and the Testing Program. AC Power Charger (optional) DC Car Power Charger 2.2 Power Switch Power on: Press the power button 1 second until the GPS status LED is on. Power off: Press the power button 1 second until the GPS status LED is off. Reset: Press the power button for 5 seconds. 2.3 LED Function 2.4 Power-saving Function When you start the power of the Bluetooth GPS Receiver BT-359, if the Bluetooth is not connected to any devices within 10 minutes, BT-359 will turn off the power automatically, and all the LED will go off simultaneously. Red ---- Battery power is critically low. Charge it immediately. Yellow ---- Battery is charging now. LED off ---- Battery is partially full or fully charged. Battery Status LED (Red/Yellow): GPS Status LED (Green): Blinking ---- GPS position is fixed Steady light ---- GPS position is not fixed Bluetooth Status LED (Blue): Blinking (Slowly) ---- Not connected to any Bluetooth device. Blinking (Quickly) ---- Connected to other Bluetooth device. 3

2.5 Auto Shut-Off Function By default, your BT-359 has a built-in timer that will automatically power down your BT-359 GPS receiver whenever it looses the Bluetooth paring connection to the host device for more than 10 minutes. This will help to keep you from returning to a dead GPS battery in the event you accidentally might have left the vehicle and forgot to turn off the GPS. Auto Shut-Off Override Switch This feature is not found on all models of the BT-359 and is usually not required by most users. However, for those who may have applications that require an override to the Auto Shut-Off feature to keep the BT-359 powered at all times regardless of the Bluetooth paring status, then only these GPS models, the BT-359 can be used since they come equipped with the special override slide switch located under the battery. To disable the Auto Shut-Off feature, simple use a thin sharp object like a pin, or paper clip to gently slide the switch into the OFF position. The GPS will now remain ON indefinitely until the power switch is turned off, or until the battery is dead, so use caution when operating in this mode. Auto Shut-Off Enabled = ON Auto Shut-Off Disabled = OFF We strongly suggest that you first test your GPS with the included GPS Info utility program to confirm that the GPS receiver if functioning properly on your PC and that you have successfully configured the right COM Port setting. Once this has been done, close the GPS Info program and start your application for COM port configuration. NOTE: By default, your PC will not allow you to run multiple applications from a single COM port. It is important that you close any previously opened GPS application before switching to another GPS application as the GPS receiver and data will not be found by the new program. 4

3. Specification 3.1 System Specification Electrical Characteristics GPS standard SiRF StarⅢ GPS Antenna Built-in ceramic patch antenna Bluetooth standard Bluetooth V2.0 Operation range Bluetooth Default PIN 10 meters (33 feet) 0000 Operation time Up to 11 hrs Charge time Auto Shut-Off When no active Bluetooth connection has been detected within 10 4~5 hrs minutes. Battery Charging Mini USB connector (not for data) POWER BUTTON Power On Pressing the Power button for approximately 1 second will cause the unit to turn ON Power Off Pressing the Power button for approximately 1 second will cause the unit to turn OFF Perform reset Pressing the ON-OFF button for approximately 5 seconds will cause the unit to reset itself. STATUS LED’S GPS status Flashing – GPS position is fixed Steady – GPS position is not fixed Power status Solid Red – Battery Low Bluetooth status TEMPERATURE Solid Amber – Battery is being charged Flashing (Slow) – Not connected to a Bluetooth device Flashing (Fast) – Connected to a Bluetooth device Operating Storage Humidity Operational up to 95% non-condensing -10°C ~ 60°C (14°F ~ 140°F) -20°C ~ 70°C (-4°F ~ 158°F) POWER DC supplies 4.5V~5.5V / 0.5A BATTERY Battery Cell Type Lithium –ion Rechargeable Battery MECHANICAL Dimension 82.0 mm x 41.0 mm x 13.4 mm 5

3.2 GPS Specification Electrical Characteristics GPS Chipset SiRF Star III Frequency C/A Code Channels 20 channel all-in-view tracking L1, 1575.42 MHz 1.023 MHz chip rate ACCURACY Position Horizontal 10 meters, 2D RMS 1-5 meters 2D RMS, WAAS corrected 0.1m/sec 1 micro-second synchronized to GPS time Velocity Time DATUM Datum Default: WGS-84 ACQUISITION RATE Hot start Warm start Cold start Reacquisition 1 sec., average 38 sec., average 42 sec., average 0.1 sec. average PROTOCOL GPS Protocol Default: NMEA 0183 (Secondary: SiRF binary) GPS Output format GGA(1sec), GSA(1sec), GSV(5sec), RMC(1sec), GLL, VTG is optional DYNAMIC CONDITION Acceleration Limit Altitude Limit Velocity Limit Jerk Limit Less than 4g 18,000 meters (60,000 feet) max. 515 meters/sec. (1,000 knots) max. 20 m/sec**3 3.3 Bluetooth Specification Electrical Characteristics Bluetooth Chipset CSR BC4 Frequency 2402MHz to 2480MHz Standard Bluetooth V2.0 Bluetooth Profile SPP (Serial Port Profile) Operation Range Output Power 10 meters (33 feet) 0 dBm (class II) 6

4. Usage 4.1. For PDA with built-in Bluetooth 1. Turn on the power switch in BT-359. 2. Please refer to the user manual of PDA to enable the Bluetooth of PDA connecting to the BT-359. Some PDAs may need the Bluetooth passkey, the passkey is “0000”. 3. Check the number of COM port used by Bluetooth. 4. Run the suitable mapping/navigation software and select the correct COM port & baud rate: 38400 4.2. For PDA with Bluetooth Compact Flash card 1. Turn on the power switch in BT-359. 2. Please refer to the user manual of Bluetooth Compact Flash card to enable it to connect with the BT-359. Some Bluetooth devices may need the Bluetooth passkey, the passkey is “0000”. 3. Check the number of COM port used by Bluetooth.(Example COM 6). 4. Running the suitable mapping/navigation software and select the correct COM port & baud rate: 38400. 4.3. For Notebook with Bluetooth device 1. Turn on the power switch in BT-359. 2. Please refer to the user manual of Bluetooth device to enable it connects to the BT-359. Some Bluetooth devices may need the Bluetooth passkey, the passkey is “0000”. 3. Check the number of COM port used by Bluetooth.(Example COM 6). 4. Running the suitable mapping/navigation software and select the correct COM port & baud rate: 38400. Note: The Bluetooth device in most of the applications have an “auto-detect” feature that you do not need to select the Baud Rate. 7

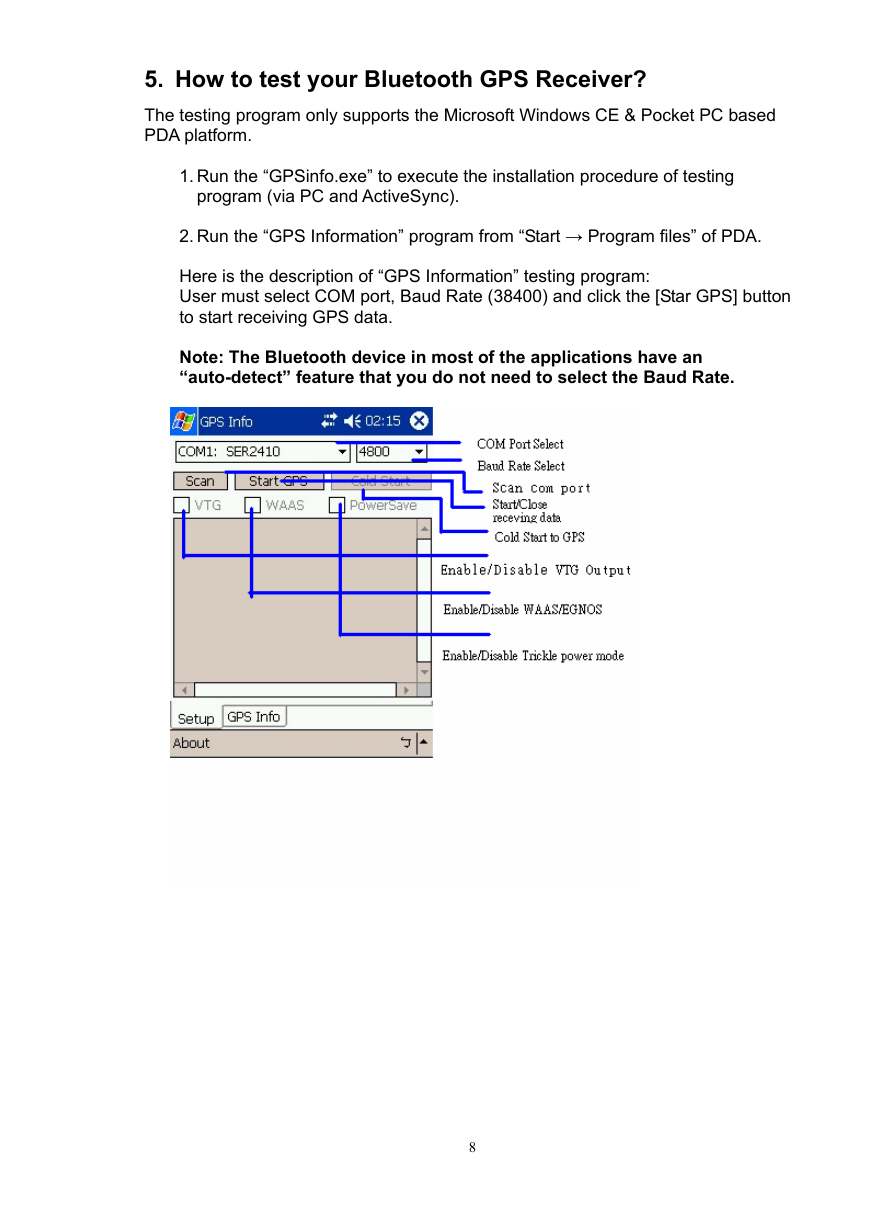

5. How to test your Bluetooth GPS Receiver? The testing program only supports the Microsoft Windows CE & Pocket PC based PDA platform. 1. Run the “GPSinfo.exe” to execute the installation procedure of testing program (via PC and ActiveSync). 2. Run the “GPS Information” program from “Start → Program files” of PDA. Here is the description of “GPS Information” testing program: User must select COM port, Baud Rate (38400) and click the [Star GPS] button to start receiving GPS data. Note: The Bluetooth device in most of the applications have an “auto-detect” feature that you do not need to select the Baud Rate. 8
