How to efficiently combine test methods for an automated ISO 26262 compliant software unit/integration test Markus Gros Vice President Marketing & Sales BTC Embedded Systems AG Berlin, Germany markus.gros@btc-es.de Abstract— The verification of embedded software in today’s development projects is becoming more and more a challenge. This is in particular true for the automotive industry, where we can observe a rapidly growing software complexity combined with shortened development cycles and an increasing number of safety critical applications. New methodologies like Model-based design or agile processes on one hand clearly help to make the development more efficient, on the other hand they even bring additional challenges related to the test process. One effect is for example, that tests need to be executed earlier and more often and due to the Model-based development approach on more execution levels like MIL/SIL/PIL. One more dimension of complexity comes from the fact, that one test method is not enough to get the necessary confidence regarding the correctness and robustness of the system-under-test. This conclusion is also part of several standards like ISO 26262, which recommend a combination of different test activities on model and code level. interfaces, data This paper presents a concept for an integrated verification platform for models and production code, which addresses the challenges explained above by focusing on three main aspects: integration, separation and automation. The integration aspect can be divided in two different approaches. First of all, the platform should be integrated with other development tools like modelling tool, requirements management tool or code generator. All information needed for the verification of a component should be extracted as automatically as possible, including information about types, data ranges, requirements or code files. As this kind of information is needed in a similar way for different verification methods, the second integration approach consists of integrating different test methodologies on top of a shared database within one environment. The first obvious benefit is, that the information described above needs to be extracted only once for all verification activities which can include guideline checking, static analysis, dynamic analysis and formal methods. We will also describe a second benefit coming from the fact, that these different methods deeply leverage from each other’s results. Separation means that software units shall be thoroughly verified before they are integrated into software components. Integrated components are then being verified according to the software architecture definition. The verification platform should support this divide and conquer approach as recommended and described in ISO 26262 or Automotive SPICE. One final topic to be discussed is automation, which should be made possible by a complete API as well as integration with technologies like Jenkins. The discussed verification platform approach automates many testing activities, from the more mundane activities to develop MBD and code centric test harnesses to the more sophisticating activities of automatic test generation. Keywords—Model-based Development, ISO 26262, Software Unit Test, Software Integration Test I. INTRODUCTION In today’s development projects for embedded software, the complexity is growing in many dimensions, which brings in particular many challenges for the test and verification process. The size of software in terms of lines of code and number of software components is constantly growing, which obviously also increases the number of test projects and test cases. On top of this, the Model-based development approach is becoming more and more popular and, despite all advantages, it brings some additional challenges to the testing workflow because test activities need to be done on model level as well as on code level. While these observations seem to lead to an increasing test effort, it is also obvious that the competitive pressure in the industry leads to a need to control or even reduce development cost and time. The amount of test activities is even further increased by the adoption of agile development methods, which require a frequent repletion of test tasks on slightly modified components. As a consequence, software tools are introduced in the process in order to automate tasks like test execution, test evaluation or report generation. One more challenge we can see in particular in the automotive industry is, that software is more and more taking over safety critical features related to steering or braking, slowly leading the way to fully autonomous vehicles. The level of confidence which is needed for these kinds of features can only be achieved by combining multiple test methods. This is also reflected in standards like ISO 26262 and leads to a growing number of software tools which contribute to the www.embedded-world.eu 

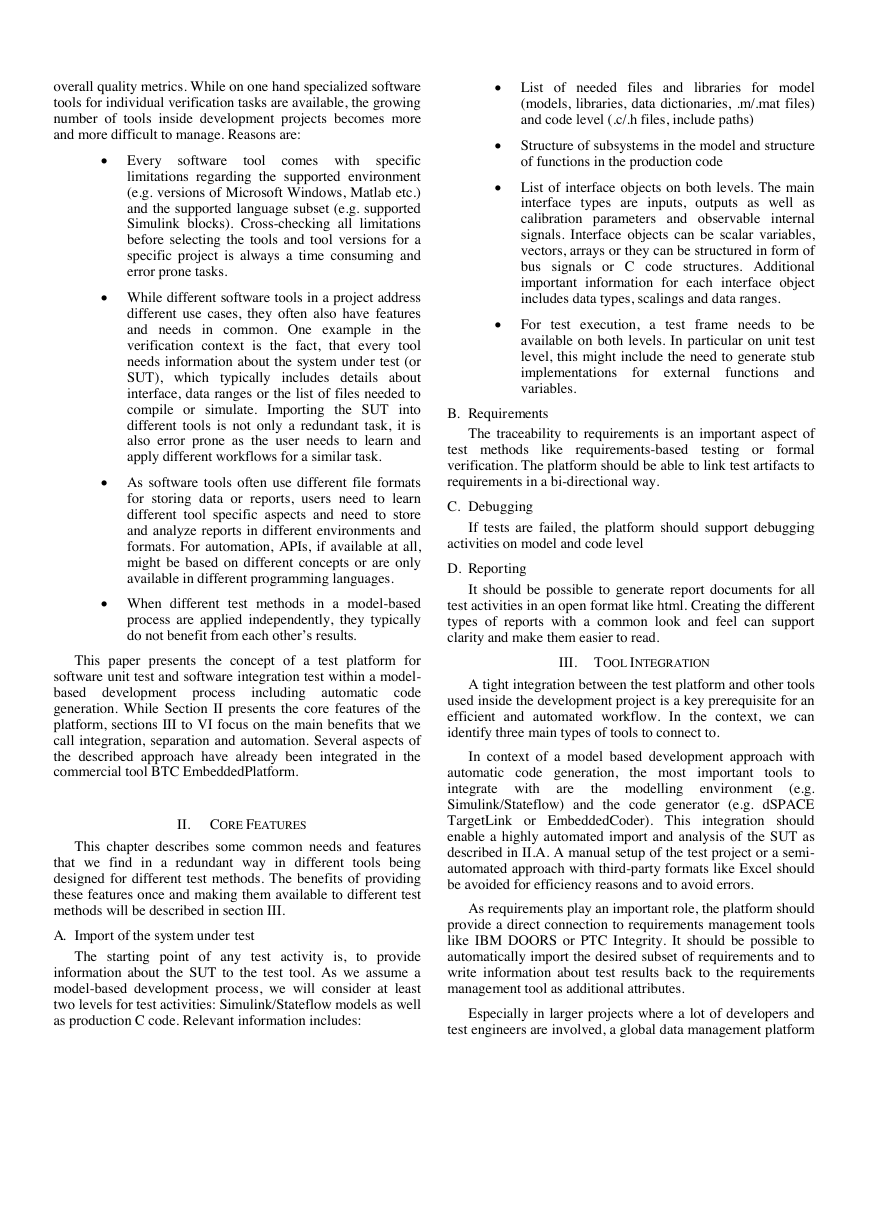

overall quality metrics. While on one hand specialized software tools for individual verification tasks are available, the growing number of tools inside development projects becomes more and more difficult to manage. Reasons are: • Every software tool comes with specific limitations regarding the supported environment (e.g. versions of Microsoft Windows, Matlab etc.) and the supported language subset (e.g. supported Simulink blocks). Cross-checking all limitations before selecting the tools and tool versions for a specific project is always a time consuming and error prone tasks. • While different software tools in a project address different use cases, they often also have features and needs in common. One example in the verification context is the fact, that every tool needs information about the system under test (or SUT), which typically includes details about interface, data ranges or the list of files needed to compile or simulate. Importing the SUT into different tools is not only a redundant task, it is also error prone as the user needs to learn and apply different workflows for a similar task. • As software tools often use different file formats for storing data or reports, users need to learn different tool specific aspects and need to store and analyze reports in different environments and formats. For automation, APIs, if available at all, might be based on different concepts or are only available in different programming languages. • When different test methods in a model-based process are applied independently, they typically do not benefit from each other’s results. This paper presents the concept of a test platform for software unit test and software integration test within a model- based development process including automatic code generation. While Section II presents the core features of the platform, sections III to VI focus on the main benefits that we call integration, separation and automation. Several aspects of the described approach have already been integrated in the commercial tool BTC EmbeddedPlatform. II. CORE FEATURES This chapter describes some common needs and features that we find in a redundant way in different tools being designed for different test methods. The benefits of providing these features once and making them available to different test methods will be described in section III. A. Import of the system under test The starting point of any test activity is, to provide information about the SUT to the test tool. As we assume a model-based development process, we will consider at least two levels for test activities: Simulink/Stateflow models as well as production C code. Relevant information includes: • List of needed files and libraries for model (models, libraries, data dictionaries, .m/.mat files) and code level (.c/.h files, include paths) • Structure of subsystems in the model and structure of functions in the production code • List of interface objects on both levels. The main interface types are inputs, outputs as well as calibration parameters and observable internal signals. Interface objects can be scalar variables, vectors, arrays or they can be structured in form of bus signals or C code structures. Additional important information for each interface object includes data types, scalings and data ranges. • For test execution, a test frame needs to be available on both levels. In particular on unit test level, this might include the need to generate stub implementations functions and variables. for external B. Requirements The traceability to requirements is an important aspect of test methods testing or formal verification. The platform should be able to link test artifacts to requirements in a bi-directional way. like requirements-based C. Debugging If tests are failed, the platform should support debugging activities on model and code level D. Reporting It should be possible to generate report documents for all test activities in an open format like html. Creating the different types of reports with a common look and feel can support clarity and make them easier to read. III. TOOL INTEGRATION A tight integration between the test platform and other tools used inside the development project is a key prerequisite for an efficient and automated workflow. In the context, we can identify three main types of tools to connect to. are the modelling environment In context of a model based development approach with automatic code generation, the most important tools to integrate with (e.g. Simulink/Stateflow) and the code generator (e.g. dSPACE TargetLink or EmbeddedCoder). This integration should enable a highly automated import and analysis of the SUT as described in II.A. A manual setup of the test project or a semi- automated approach with third-party formats like Excel should be avoided for efficiency reasons and to avoid errors. As requirements play an important role, the platform should provide a direct connection to requirements management tools like IBM DOORS or PTC Integrity. It should be possible to automatically import the desired subset of requirements and to write information about test results back to the requirements management tool as additional attributes. Especially in larger projects where a lot of developers and test engineers are involved, a global data management platform 

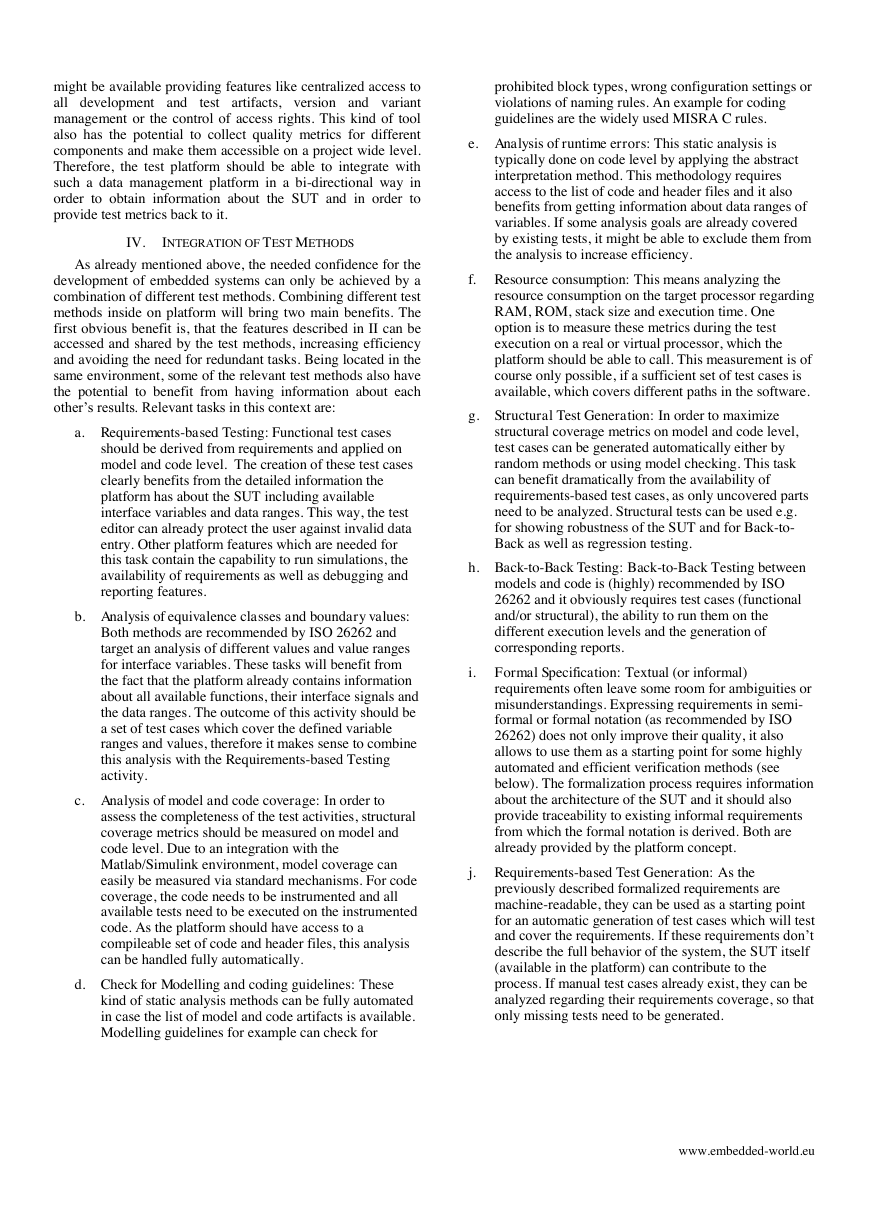

might be available providing features like centralized access to all development and test artifacts, version and variant management or the control of access rights. This kind of tool also has the potential to collect quality metrics for different components and make them accessible on a project wide level. Therefore, the test platform should be able to integrate with such a data management platform in a bi-directional way in order to obtain information about the SUT and in order to provide test metrics back to it. IV. INTEGRATION OF TEST METHODS As already mentioned above, the needed confidence for the development of embedded systems can only be achieved by a combination of different test methods. Combining different test methods inside on platform will bring two main benefits. The first obvious benefit is, that the features described in II can be accessed and shared by the test methods, increasing efficiency and avoiding the need for redundant tasks. Being located in the same environment, some of the relevant test methods also have the potential to benefit from having information about each other’s results. Relevant tasks in this context are: a. Requirements-based Testing: Functional test cases should be derived from requirements and applied on model and code level. The creation of these test cases clearly benefits from the detailed information the platform has about the SUT including available interface variables and data ranges. This way, the test editor can already protect the user against invalid data entry. Other platform features which are needed for this task contain the capability to run simulations, the availability of requirements as well as debugging and reporting features. b. Analysis of equivalence classes and boundary values: Both methods are recommended by ISO 26262 and target an analysis of different values and value ranges for interface variables. These tasks will benefit from the fact that the platform already contains information about all available functions, their interface signals and the data ranges. The outcome of this activity should be a set of test cases which cover the defined variable ranges and values, therefore it makes sense to combine this analysis with the Requirements-based Testing activity. c. Analysis of model and code coverage: In order to assess the completeness of the test activities, structural coverage metrics should be measured on model and code level. Due to an integration with the Matlab/Simulink environment, model coverage can easily be measured via standard mechanisms. For code coverage, the code needs to be instrumented and all available tests need to be executed on the instrumented code. As the platform should have access to a compileable set of code and header files, this analysis can be handled fully automatically. d. Check for Modelling and coding guidelines: These kind of static analysis methods can be fully automated in case the list of model and code artifacts is available. Modelling guidelines for example can check for prohibited block types, wrong configuration settings or violations of naming rules. An example for coding guidelines are the widely used MISRA C rules. e. Analysis of runtime errors: This static analysis is typically done on code level by applying the abstract interpretation method. This methodology requires access to the list of code and header files and it also benefits from getting information about data ranges of variables. If some analysis goals are already covered by existing tests, it might be able to exclude them from the analysis to increase efficiency. f. Resource consumption: This means analyzing the resource consumption on the target processor regarding RAM, ROM, stack size and execution time. One option is to measure these metrics during the test execution on a real or virtual processor, which the platform should be able to call. This measurement is of course only possible, if a sufficient set of test cases is available, which covers different paths in the software. g. Structural Test Generation: In order to maximize structural coverage metrics on model and code level, test cases can be generated automatically either by random methods or using model checking. This task can benefit dramatically from the availability of requirements-based test cases, as only uncovered parts need to be analyzed. Structural tests can be used e.g. for showing robustness of the SUT and for Back-to- Back as well as regression testing. h. Back-to-Back Testing: Back-to-Back Testing between models and code is (highly) recommended by ISO 26262 and it obviously requires test cases (functional and/or structural), the ability to run them on the different execution levels and the generation of corresponding reports. i. Formal Specification: Textual (or informal) requirements often leave some room for ambiguities or misunderstandings. Expressing requirements in semi- formal or formal notation (as recommended by ISO 26262) does not only improve their quality, it also allows to use them as a starting point for some highly automated and efficient verification methods (see below). The formalization process requires information about the architecture of the SUT and it should also provide traceability to existing informal requirements from which the formal notation is derived. Both are already provided by the platform concept. j. Requirements-based Test Generation: As the previously described formalized requirements are machine-readable, they can be used as a starting point for an automatic generation of test cases which will test and cover the requirements. If these requirements don’t describe the full behavior of the system, the SUT itself (available in the platform) can contribute to the process. If manual test cases already exist, they can be analyzed regarding their requirements coverage, so that only missing tests need to be generated. www.embedded-world.eu 

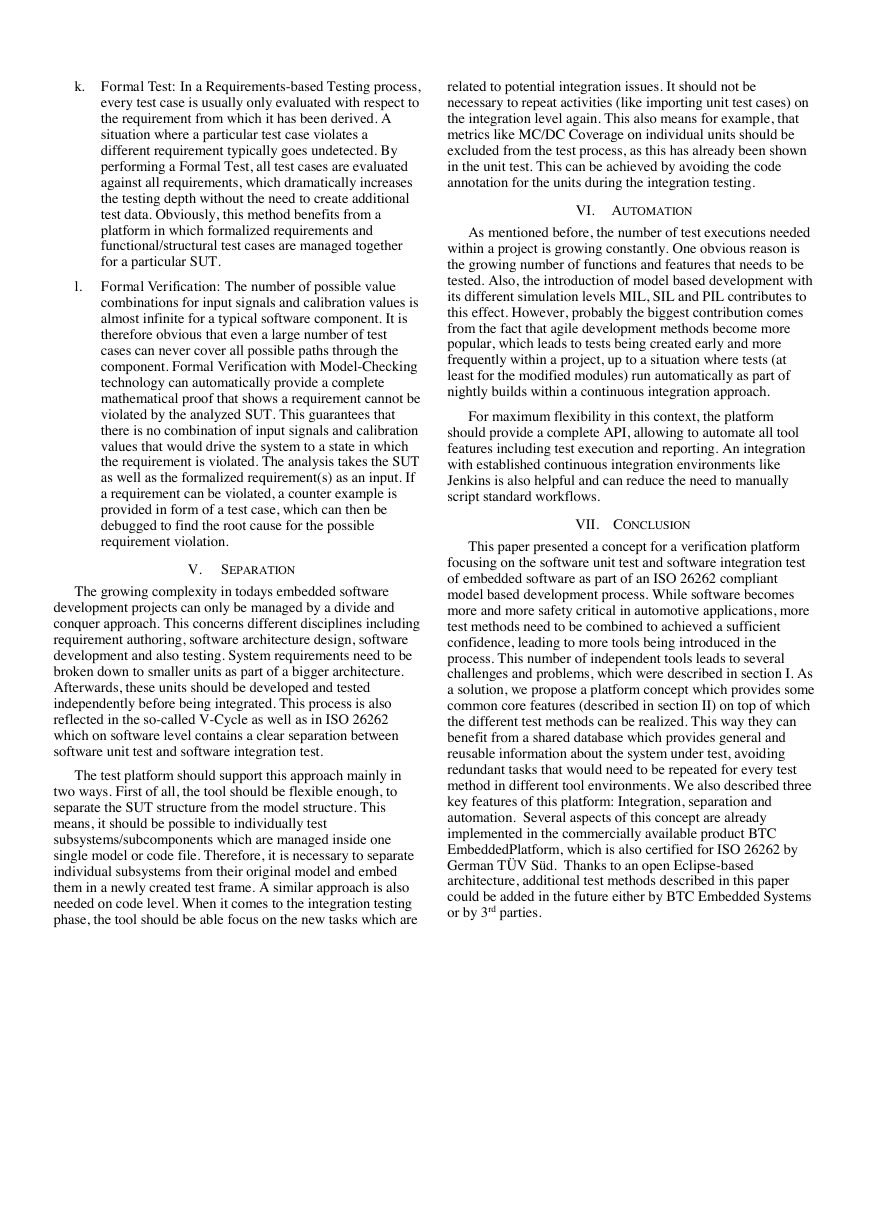

k. Formal Test: In a Requirements-based Testing process, every test case is usually only evaluated with respect to the requirement from which it has been derived. A situation where a particular test case violates a different requirement typically goes undetected. By performing a Formal Test, all test cases are evaluated against all requirements, which dramatically increases the testing depth without the need to create additional test data. Obviously, this method benefits from a platform in which formalized requirements and functional/structural test cases are managed together for a particular SUT. l. Formal Verification: The number of possible value combinations for input signals and calibration values is almost infinite for a typical software component. It is therefore obvious that even a large number of test cases can never cover all possible paths through the component. Formal Verification with Model-Checking technology can automatically provide a complete mathematical proof that shows a requirement cannot be violated by the analyzed SUT. This guarantees that there is no combination of input signals and calibration values that would drive the system to a state in which the requirement is violated. The analysis takes the SUT as well as the formalized requirement(s) as an input. If a requirement can be violated, a counter example is provided in form of a test case, which can then be debugged to find the root cause for the possible requirement violation. V. SEPARATION The growing complexity in todays embedded software development projects can only be managed by a divide and conquer approach. This concerns different disciplines including requirement authoring, software architecture design, software development and also testing. System requirements need to be broken down to smaller units as part of a bigger architecture. Afterwards, these units should be developed and tested independently before being integrated. This process is also reflected in the so-called V-Cycle as well as in ISO 26262 which on software level contains a clear separation between software unit test and software integration test. The test platform should support this approach mainly in two ways. First of all, the tool should be flexible enough, to separate the SUT structure from the model structure. This means, it should be possible to individually test subsystems/subcomponents which are managed inside one single model or code file. Therefore, it is necessary to separate individual subsystems from their original model and embed them in a newly created test frame. A similar approach is also needed on code level. When it comes to the integration testing phase, the tool should be able focus on the new tasks which are related to potential integration issues. It should not be necessary to repeat activities (like importing unit test cases) on the integration level again. This also means for example, that metrics like MC/DC Coverage on individual units should be excluded from the test process, as this has already been shown in the unit test. This can be achieved by avoiding the code annotation for the units during the integration testing. VI. AUTOMATION As mentioned before, the number of test executions needed within a project is growing constantly. One obvious reason is the growing number of functions and features that needs to be tested. Also, the introduction of model based development with its different simulation levels MIL, SIL and PIL contributes to this effect. However, probably the biggest contribution comes from the fact that agile development methods become more popular, which leads to tests being created early and more frequently within a project, up to a situation where tests (at least for the modified modules) run automatically as part of nightly builds within a continuous integration approach. For maximum flexibility in this context, the platform should provide a complete API, allowing to automate all tool features including test execution and reporting. An integration with established continuous integration environments like Jenkins is also helpful and can reduce the need to manually script standard workflows. VII. CONCLUSION This paper presented a concept for a verification platform focusing on the software unit test and software integration test of embedded software as part of an ISO 26262 compliant model based development process. While software becomes more and more safety critical in automotive applications, more test methods need to be combined to achieved a sufficient confidence, leading to more tools being introduced in the process. This number of independent tools leads to several challenges and problems, which were described in section I. As a solution, we propose a platform concept which provides some common core features (described in section II) on top of which the different test methods can be realized. This way they can benefit from a shared database which provides general and reusable information about the system under test, avoiding redundant tasks that would need to be repeated for every test method in different tool environments. We also described three key features of this platform: Integration, separation and automation. Several aspects of this concept are already implemented in the commercially available product BTC EmbeddedPlatform, which is also certified for ISO 26262 by German TÜV Süd. Thanks to an open Eclipse-based architecture, additional test methods described in this paper could be added in the future either by BTC Embedded Systems or by 3rd parties.
