Operating Instructions Digital Camera Model No. DMC-ZS3 DMC-ZS1 Before connecting, operating or adjusting this product, please read the instructions completely. All descriptions and logos pertaining to HDMI, VIERA Link, AVCHD Lite, and Dolby pertain to DMC-ZS3 only. For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or send e-mail to: lumixconcierge@ca.panasonic.com P PC VQT1Z82-1

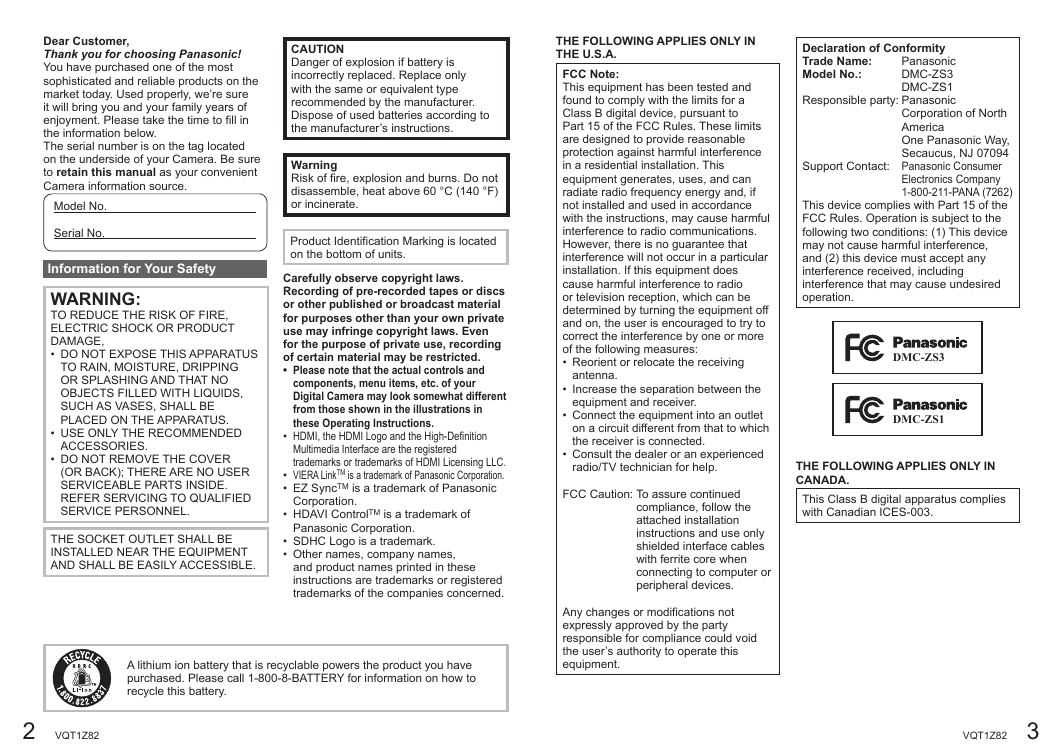

Dear Customer, Thank you for choosing Panasonic! You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take the time to fill in the information below. The serial number is on the tag located on the underside of your Camera. Be sure to retain this manual as your convenient Camera information source. Model No. Serial No. Information for Your Safety WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, • DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. • USE ONLY THE RECOMMENDED ACCESSORIES. • DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Warning Risk of fire, explosion and burns. Do not disassemble, heat above 60 °C (140 °F) or incinerate. Product Identification Marking is located on the bottom of units. Carefully observe copyright laws. Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted. • Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions. • HDMI, the HDMI Logo and the High-Definition Multimedia Interface are the registered trademarks or trademarks of HDMI Licensing LLC. • VIERA LinkTM is a trademark of Panasonic Corporation. • EZ SyncTM is a trademark of Panasonic Corporation. • HDAVI ControlTM is a trademark of Panasonic Corporation. • SDHC Logo is a trademark. • Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned. A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery. 2 VQT1Z82 THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables with ferrite core when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Declaration of Conformity Trade Name: Panasonic Model No.: DMC-ZS3 DMC-ZS1 Responsible party: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Support Contact: Panasonic Consumer Electronics Company 1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DMC-ZS3 DMC-ZS1 THE FOLLOWING APPLIES ONLY IN CANADA. This Class B digital apparatus complies with Canadian ICES-003. VQT1Z82 3

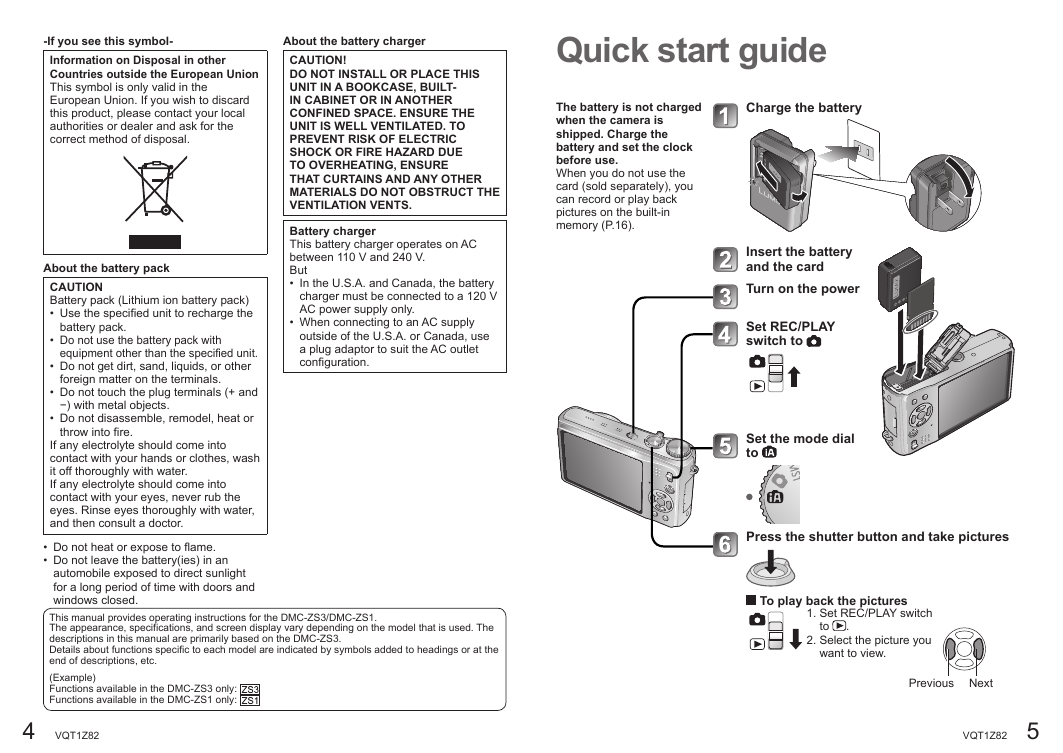

-If you see this symbol- Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. About the battery charger CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT- IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. Battery charger This battery charger operates on AC between 110 V and 240 V. But • In the U.S.A. and Canada, the battery charger must be connected to a 120 V AC power supply only. • When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit the AC outlet configuration. About the battery pack CAUTION Battery pack (Lithium ion battery pack) • Use the specified unit to recharge the battery pack. • Do not use the battery pack with equipment other than the specified unit. • Do not get dirt, sand, liquids, or other foreign matter on the terminals. • Do not touch the plug terminals (+ and −) with metal objects. • Do not disassemble, remodel, heat or throw into fire. If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water. If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse eyes thoroughly with water, and then consult a doctor. • Do not heat or expose to flame. • Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period of time with doors and windows closed. This manual provides operating instructions for the DMC-ZS3/DMC-ZS1. The appearance, specifications, and screen display vary depending on the model that is used. The descriptions in this manual are primarily based on the DMC-ZS3. Details about functions specific to each model are indicated by symbols added to headings or at the end of descriptions, etc. (Example) Functions available in the DMC-ZS3 only: Functions available in the DMC-ZS1 only: 4 VQT1Z82 Quick start guide The battery is not charged when the camera is shipped. Charge the battery and set the clock before use. When you do not use the card (sold separately), you can record or play back pictures on the built-in memory (P.16). Charge the battery Insert the battery and the card Turn on the power Set REC/PLAY switch to Set the mode dial to Press the shutter button and take pictures To play back the pictures 1. Set REC/PLAY switch to . 2. Select the picture you want to view. Previous Next VQT1Z82 5

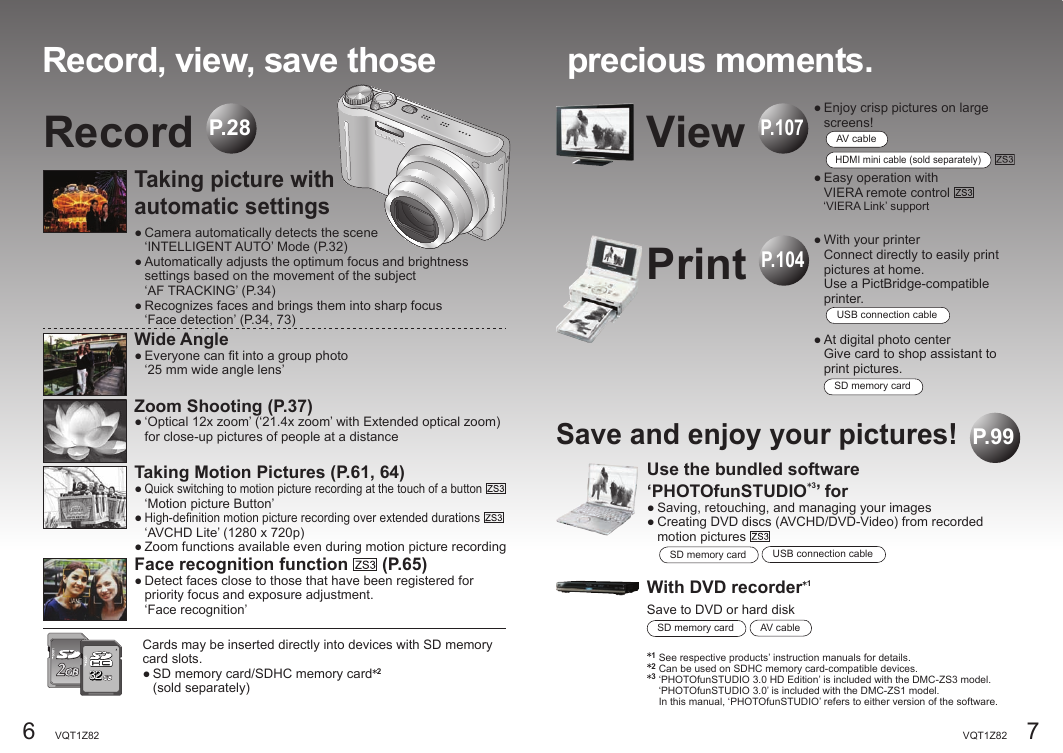

Record, view, save those Record P.28 Taking picture with automatic settings ● Camera automatically detects the scene ‘INTELLIGENT AUTO’ Mode (P.32) ● Automatically adjusts the optimum focus and brightness settings based on the movement of the subject ‘AF TRACKING’ (P.34) ● Recognizes faces and brings them into sharp focus ‘Face detection’ (P.34, 73) Wide Angle ● Everyone can fit into a group photo ‘25 mm wide angle lens’ Zoom Shooting (P.37) ● ‘Optical 12x zoom’ (‘21.4x zoom’ with Extended optical zoom) for close-up pictures of people at a distance Taking Motion Pictures (P.61, 64) ● Quick switching to motion picture recording at the touch of a button ‘Motion picture Button’ ● High-definition motion picture recording over extended durations ‘AVCHD Lite’ (1280 x 720p) ● Zoom functions available even during motion picture recording Face recognition function ● Detect faces close to those that have been registered for priority focus and exposure adjustment. ‘Face recognition’ (P.65) Cards may be inserted directly into devices with SD memory card slots. ● SD memory card/SDHC memory card 2 (sold separately) 323232 6 VQT1Z82 precious moments. View P.107 ● Enjoy crisp pictures on large screens! AV cable HDMI mini cable (sold separately) ● Easy operation with VIERA remote control ‘VIERA Link’ support Print P.104 ● With your printer Connect directly to easily print pictures at home. Use a PictBridge-compatible printer. USB connection cable ● At digital photo center Give card to shop assistant to print pictures. SD memory card Save and enjoy your pictures! P.99 Use the bundled software ‘PHOTOfunSTUDIO 3’ for ● Saving, retouching, and managing your images ● Creating DVD discs (AVCHD/DVD-Video) from recorded motion pictures SD memory card USB connection cable With DVD recorder 1 Save to DVD or hard disk AV cable SD memory card 1 See respective products’ instruction manuals for details. 2 Can be used on SDHC memory card-compatible devices. 3 ‘PHOTOfunSTUDIO 3.0 HD Edition’ is included with the DMC-ZS3 model. ‘PHOTOfunSTUDIO 3.0’ is included with the DMC-ZS1 model. In this manual, ‘PHOTOfunSTUDIO’ refers to either version of the software. VQT1Z82 7

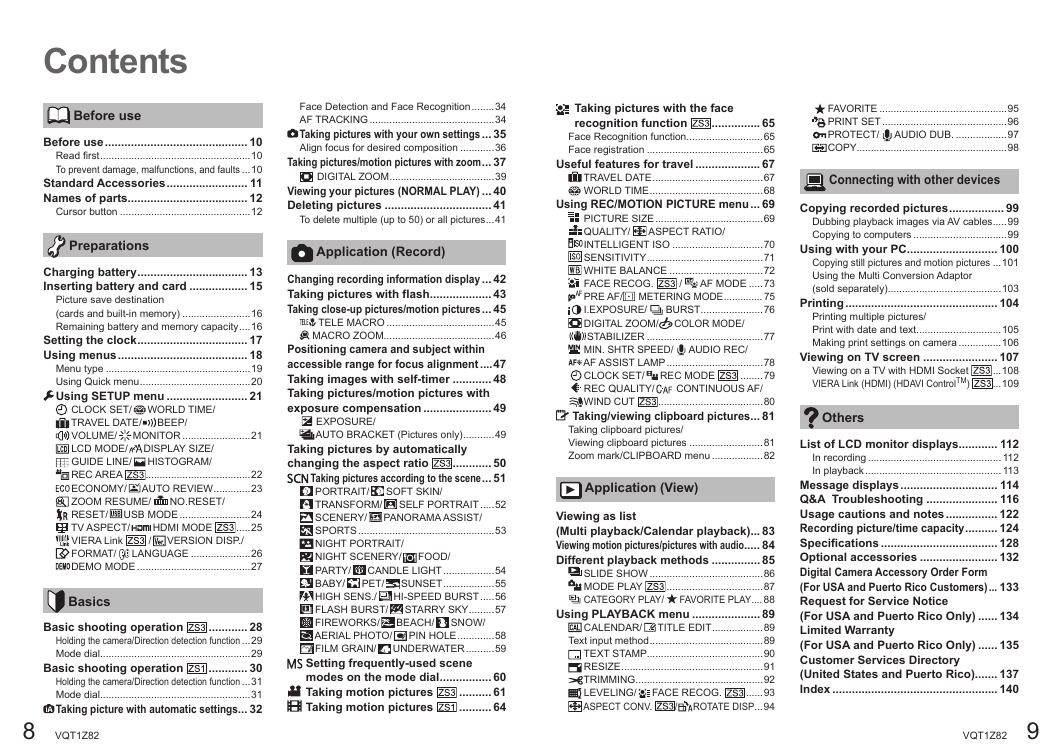

Contents Before use Before use ............................................ 10 Read first .....................................................10 To prevent damage, malfunctions, and faults ...10 Standard Accessories ......................... 11 Names of parts..................................... 12 Cursor button ..............................................12 Preparations Face Detection and Face Recognition ........34 AF TRACKING ............................................34 Taking pictures with your own settings ... 35 Align focus for desired composition ............36 Taking pictures/motion pictures with zoom ... 37 DIGITAL ZOOM .....................................39 Viewing your pictures (NORMAL PLAY) ... 40 Deleting pictures ................................. 41 To delete multiple (up to 50) or all pictures ...41 Application (Record) Charging battery .................................. 13 Inserting battery and card .................. 15 Picture save destination (cards and built-in memory) ........................16 Remaining battery and memory capacity ....16 Setting the clock .................................. 17 Using menus ........................................ 18 Menu type ...................................................19 Using Quick menu .......................................20 Using SETUP menu ......................... 21 BEEP/ DISPLAY SIZE/ HISTOGRAM/ .....................................22 AUTO REVIEW .............23 CLOCK SET/ WORLD TIME/ TRAVEL DATE/ VOLUME/ MONITOR ........................21 LCD MODE/ GUIDE LINE/ REC AREA ECONOMY/ ZOOM RESUME/ RESET/ TV ASPECT/ VIERA Link FORMAT/ LANGUAGE .....................26 DEMO MODE ........................................27 USB MODE .........................24 .....25 VERSION DISP./ HDMI MODE NO.RESET/ / Basics Basic shooting operation Basic shooting operation ............ 28 Holding the camera/Direction detection function ...29 Mode dial .....................................................29 ............ 30 Holding the camera/Direction detection function ...31 Mode dial .....................................................31 Taking picture with automatic settings... 32 8 VQT1Z82 Changing recording information display ... 42 Taking pictures with flash ................... 43 Taking close-up pictures/motion pictures ... 45 TELE MACRO ......................................45 MACRO ZOOM.......................................46 Positioning camera and subject within accessible range for focus alignment ....47 Taking images with self-timer ............ 48 Taking pictures/motion pictures with exposure compensation ..................... 49 EXPOSURE/ AUTO BRACKET (Pictures only) ...........49 Taking pictures by automatically changing the aspect ratio SOFT SKIN/ PANORAMA ASSIST/ SELF PORTRAIT .....52 ............ 50 Taking pictures according to the scene ... 51 PORTRAIT/ TRANSFORM/ SCENERY/ SPORTS ................................................53 NIGHT PORTRAIT/ NIGHT SCENERY/ PARTY/ BABY/ HIGH SENS./ FLASH BURST/ FIREWORKS/ AERIAL PHOTO/ FILM GRAIN/ CANDLE LIGHT ..................54 SUNSET ..................55 PET/ HI-SPEED BURST .....56 STARRY SKY .........57 PIN HOLE .............58 UNDERWATER ..........59 BEACH/ SNOW/ FOOD/ Setting frequently-used scene modes on the mode dial ................ 60 .......... 61 Taking motion pictures Taking motion pictures .......... 64 ASPECT RATIO/ Taking pictures with the face recognition function ............... 65 Face Recognition function ...........................65 Face registration .........................................65 Useful features for travel .................... 67 TRAVEL DATE .......................................67 WORLD TIME ........................................68 Using REC/MOTION PICTURE menu ... 69 PICTURE SIZE ......................................69 QUALITY/ INTELLIGENT ISO ................................70 SENSITIVITY .........................................71 WHITE BALANCE .................................72 FACE RECOG. AF MODE .....73 PRE AF/ METERING MODE .............. 75 I.EXPOSURE/ BURST ......................76 DIGITAL ZOOM/ STABILIZER .........................................77 MIN. SHTR SPEED/ AF ASSIST LAMP ..................................78 CLOCK SET/ ........79 REC QUALITY/ WIND CUT .....................................80 Taking/viewing clipboard pictures ... 81 Taking clipboard pictures/ Viewing clipboard pictures ..........................81 Zoom mark/CLIPBOARD menu ..................82 CONTINUOUS AF/ COLOR MODE/ AUDIO REC/ REC MODE / Application (View) Viewing as list (Multi playback/Calendar playback)... 83 Viewing motion pictures/pictures with audio..... 84 Different playback methods ............... 85 SLIDE SHOW ........................................86 ..................................87 MODE PLAY CATEGORY PLAY/ FAVORITE PLAY .... 88 Using PLAYBACK menu ..................... 89 TITLE EDIT ..................89 Text input method ........................................89 TEXT STAMP .........................................90 RESIZE ..................................................91 TRIMMING .............................................92 LEVELING/ ......93 ROTATE DISP. ..94 ASPECT CONV. FACE RECOG. CALENDAR/ / FAVORITE .............................................95 PRINT SET ............................................96 PROTECT/ AUDIO DUB. ..................97 COPY .....................................................98 Connecting with other devices Copying recorded pictures ................. 99 Dubbing playback images via AV cables .....99 Copying to computers .................................99 Using with your PC ............................ 100 Copying still pictures and motion pictures ...101 Using the Multi Conversion Adaptor (sold separately) ........................................103 Printing ............................................... 104 Printing multiple pictures/ Print with date and text ..............................105 Making print settings on camera ...............106 Viewing on TV screen ....................... 107 ...108 ...109 Viewing on a TV with HDMI Socket VIERA Link (HDMI) (HDAVI ControlTM) Others List of LCD monitor displays ............ 112 In recording ............................................... 112 In playback ................................................ 113 Message displays .............................. 114 Q&A Troubleshooting ...................... 116 Usage cautions and notes ................ 122 Recording picture/time capacity .......... 124 Specifications .................................... 128 Optional accessories ........................ 132 Digital Camera Accessory Order Form (For USA and Puerto Rico Customers) ... 133 Request for Service Notice (For USA and Puerto Rico Only) ...... 134 Limited Warranty (For USA and Puerto Rico Only) ...... 135 Customer Services Directory (United States and Puerto Rico) ....... 137 Index ................................................... 140 VQT1Z82 9
