数字图像的 lab正交空间颜色校正.doc
lab 正交空间颜色校正
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
using System.Windows.Forms;
using ESRI.ArcGIS.Geodatabase;
using ESRI.ArcGIS.DataSourcesRaster;
namespace MapControlApplication1
{
public partial class lab : Form
{
public lab()
{
}
InitializeComponent();
private void Read_ref_image_Click(object sender, EventArgs e)
{
openFileDialog1.FileName = "";
openFileDialog1.Multiselect = false;
openFileDialog1.ShowDialog(this);
if (openFileDialog1.FileName != "")
{
Ref_layerlist.Items.Clear();
string[] strFileNames = openFileDialog1.FileNames;
foreach (string strFileName in strFileNames)
Ref_layerlist.Items.Add(strFileName);
//将文件在 list 中列表
{
}
}
}
private void Del_ref_image_Click(object sender, EventArgs e)
{
}
Ref_layerlist.Items.Clear();
private void Cancel_Click(object sender, EventArgs e)
{
}
this.Close();
this.Dispose();
private void Read_calibrate_image_Click(object sender, EventArgs e)
{

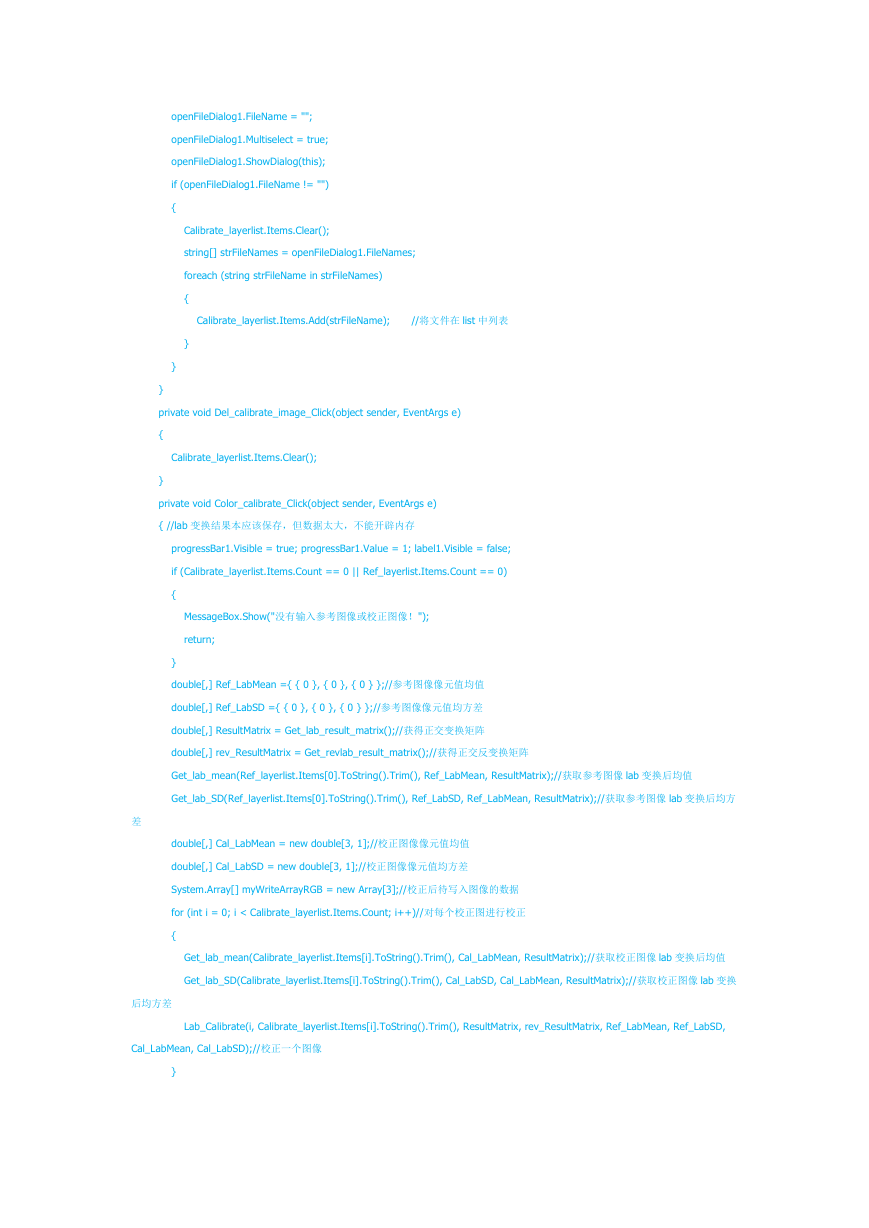

openFileDialog1.FileName = "";
openFileDialog1.Multiselect = true;
openFileDialog1.ShowDialog(this);
if (openFileDialog1.FileName != "")
{
Calibrate_layerlist.Items.Clear();
string[] strFileNames = openFileDialog1.FileNames;
foreach (string strFileName in strFileNames)
Calibrate_layerlist.Items.Add(strFileName);
//将文件在 list 中列表
{
}
}
}
private void Del_calibrate_image_Click(object sender, EventArgs e)
{
}
Calibrate_layerlist.Items.Clear();
private void Color_calibrate_Click(object sender, EventArgs e)
{ //lab 变换结果本应该保存，但数据太大，不能开辟内存
progressBar1.Visible = true; progressBar1.Value = 1; label1.Visible = false;
if (Calibrate_layerlist.Items.Count == 0 || Ref_layerlist.Items.Count == 0)
{
}
MessageBox.Show("没有输入参考图像或校正图像！");
return;
double[,] Ref_LabMean ={ { 0 }, { 0 }, { 0 } };//参考图像像元值均值
double[,] Ref_LabSD ={ { 0 }, { 0 }, { 0 } };//参考图像像元值均方差
double[,] ResultMatrix = Get_lab_result_matrix();//获得正交变换矩阵
double[,] rev_ResultMatrix = Get_revlab_result_matrix();//获得正交反变换矩阵
Get_lab_mean(Ref_layerlist.Items[0].ToString().Trim(), Ref_LabMean, ResultMatrix);//获取参考图像 lab 变换后均值
Get_lab_SD(Ref_layerlist.Items[0].ToString().Trim(), Ref_LabSD, Ref_LabMean, ResultMatrix);//获取参考图像 lab 变换后均方
差
double[,] Cal_LabMean = new double[3, 1];//校正图像像元值均值
double[,] Cal_LabSD = new double[3, 1];//校正图像像元值均方差
System.Array[] myWriteArrayRGB = new Array[3];//校正后待写入图像的数据
for (int i = 0; i < Calibrate_layerlist.Items.Count; i++)//对每个校正图进行校正
{
后均方差
Get_lab_mean(Calibrate_layerlist.Items[i].ToString().Trim(), Cal_LabMean, ResultMatrix);//获取校正图像 lab 变换后均值
Get_lab_SD(Calibrate_layerlist.Items[i].ToString().Trim(), Cal_LabSD, Cal_LabMean, ResultMatrix);//获取校正图像 lab 变换
Lab_Calibrate(i, Calibrate_layerlist.Items[i].ToString().Trim(), ResultMatrix, rev_ResultMatrix, Ref_LabMean, Ref_LabSD,
Cal_LabMean, Cal_LabSD);//校正一个图像
}

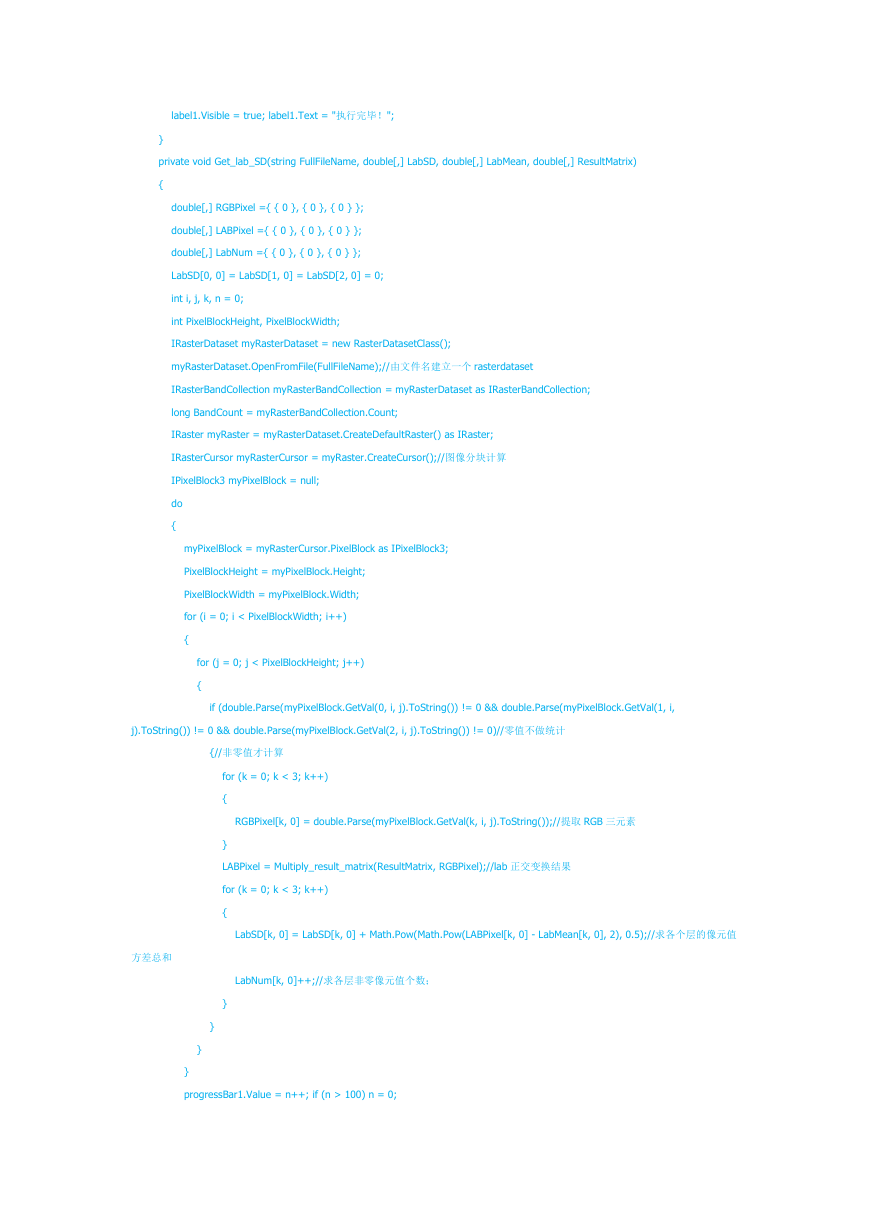

label1.Visible = true; label1.Text = "执行完毕！";
}
private void Get_lab_SD(string FullFileName, double[,] LabSD, double[,] LabMean, double[,] ResultMatrix)
{
double[,] RGBPixel ={ { 0 }, { 0 }, { 0 } };
double[,] LABPixel ={ { 0 }, { 0 }, { 0 } };
double[,] LabNum ={ { 0 }, { 0 }, { 0 } };
LabSD[0, 0] = LabSD[1, 0] = LabSD[2, 0] = 0;
int i, j, k, n = 0;
int PixelBlockHeight, PixelBlockWidth;
IRasterDataset myRasterDataset = new RasterDatasetClass();
myRasterDataset.OpenFromFile(FullFileName);//由文件名建立一个 rasterdataset
IRasterBandCollection myRasterBandCollection = myRasterDataset as IRasterBandCollection;
long BandCount = myRasterBandCollection.Count;
IRaster myRaster = myRasterDataset.CreateDefaultRaster() as IRaster;
IRasterCursor myRasterCursor = myRaster.CreateCursor();//图像分块计算
IPixelBlock3 myPixelBlock = null;
do
{
myPixelBlock = myRasterCursor.PixelBlock as IPixelBlock3;
PixelBlockHeight = myPixelBlock.Height;
PixelBlockWidth = myPixelBlock.Width;
for (i = 0; i < PixelBlockWidth; i++)
{
for (j = 0; j < PixelBlockHeight; j++)
{
if (double.Parse(myPixelBlock.GetVal(0, i, j).ToString()) != 0 && double.Parse(myPixelBlock.GetVal(1, i,
j).ToString()) != 0 && double.Parse(myPixelBlock.GetVal(2, i, j).ToString()) != 0)//零值不做统计
{//非零值才计算
for (k = 0; k < 3; k++)
{
}
RGBPixel[k, 0] = double.Parse(myPixelBlock.GetVal(k, i, j).ToString());//提取 RGB 三元素
LABPixel = Multiply_result_matrix(ResultMatrix, RGBPixel);//lab 正交变换结果
for (k = 0; k < 3; k++)
LabSD[k, 0] = LabSD[k, 0] + Math.Pow(Math.Pow(LABPixel[k, 0] - LabMean[k, 0], 2), 0.5);//求各个层的像元值
LabNum[k, 0]++;//求各层非零像元值个数；
方差总和
{
}
}
}
}
progressBar1.Value = n++; if (n > 100) n = 0;

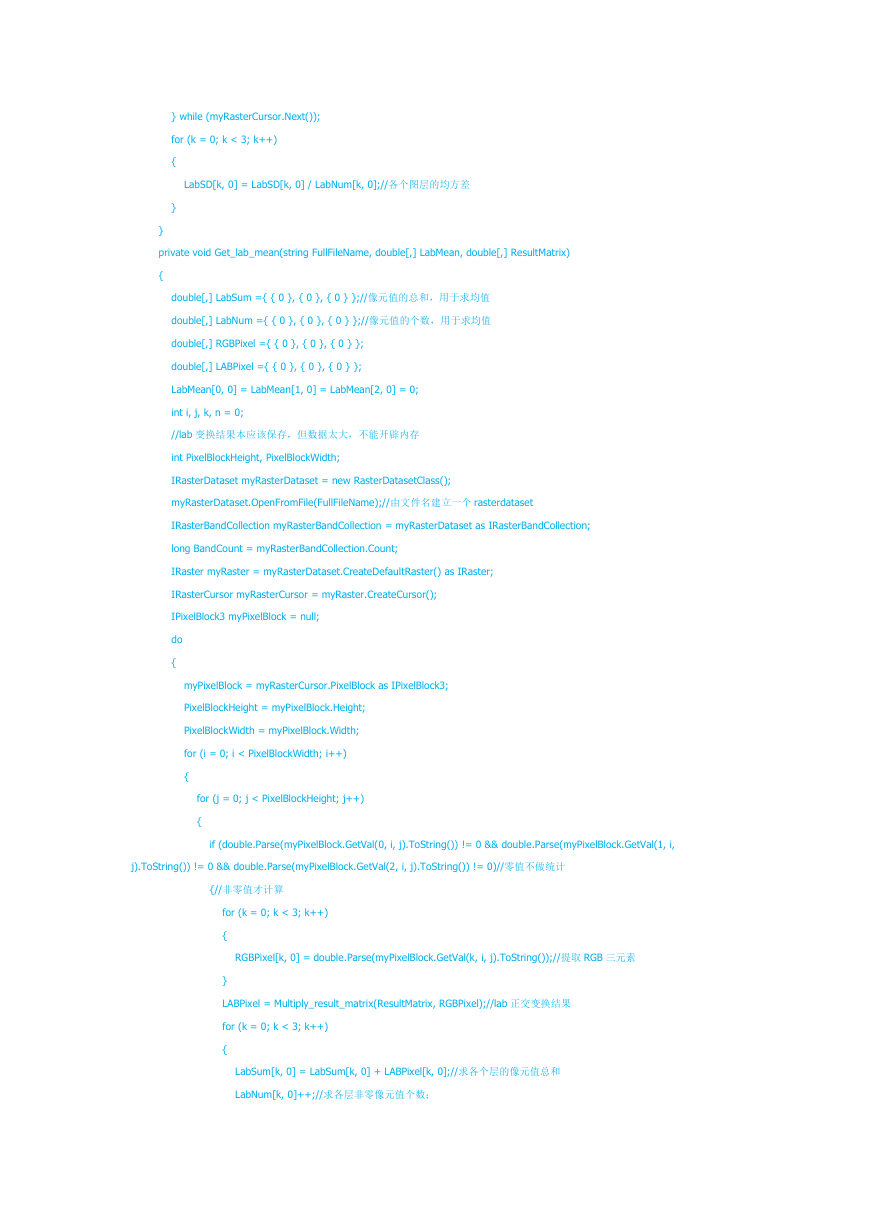

} while (myRasterCursor.Next());
for (k = 0; k < 3; k++)
LabSD[k, 0] = LabSD[k, 0] / LabNum[k, 0];//各个图层的均方差
{
}
}
private void Get_lab_mean(string FullFileName, double[,] LabMean, double[,] ResultMatrix)
{
double[,] LabSum ={ { 0 }, { 0 }, { 0 } };//像元值的总和，用于求均值
double[,] LabNum ={ { 0 }, { 0 }, { 0 } };//像元值的个数，用于求均值
double[,] RGBPixel ={ { 0 }, { 0 }, { 0 } };
double[,] LABPixel ={ { 0 }, { 0 }, { 0 } };
LabMean[0, 0] = LabMean[1, 0] = LabMean[2, 0] = 0;
int i, j, k, n = 0;
//lab 变换结果本应该保存，但数据太大，不能开辟内存
int PixelBlockHeight, PixelBlockWidth;
IRasterDataset myRasterDataset = new RasterDatasetClass();
myRasterDataset.OpenFromFile(FullFileName);//由文件名建立一个 rasterdataset
IRasterBandCollection myRasterBandCollection = myRasterDataset as IRasterBandCollection;
long BandCount = myRasterBandCollection.Count;
IRaster myRaster = myRasterDataset.CreateDefaultRaster() as IRaster;
IRasterCursor myRasterCursor = myRaster.CreateCursor();
IPixelBlock3 myPixelBlock = null;
do
{
myPixelBlock = myRasterCursor.PixelBlock as IPixelBlock3;
PixelBlockHeight = myPixelBlock.Height;
PixelBlockWidth = myPixelBlock.Width;
for (i = 0; i < PixelBlockWidth; i++)
{
for (j = 0; j < PixelBlockHeight; j++)
{
if (double.Parse(myPixelBlock.GetVal(0, i, j).ToString()) != 0 && double.Parse(myPixelBlock.GetVal(1, i,
j).ToString()) != 0 && double.Parse(myPixelBlock.GetVal(2, i, j).ToString()) != 0)//零值不做统计
{//非零值才计算
for (k = 0; k < 3; k++)
{
}
RGBPixel[k, 0] = double.Parse(myPixelBlock.GetVal(k, i, j).ToString());//提取 RGB 三元素
LABPixel = Multiply_result_matrix(ResultMatrix, RGBPixel);//lab 正交变换结果
for (k = 0; k < 3; k++)
{
LabSum[k, 0] = LabSum[k, 0] + LABPixel[k, 0];//求各个层的像元值总和
LabNum[k, 0]++;//求各层非零像元值个数；
}
}
}
}
progressBar1.Value = n++; if (n > 100) n = 0;
} while (myRasterCursor.Next());
for (i = 0; i < 3; i++)
LabMean[i, 0] = LabSum[i, 0] / LabNum[i, 0];
{
}
}
private void Lab_Calibrate(int ImageCount, string FullFileName, double[,] ResultMatrix, double[,] rev_ResultMatrix,
double[,] Ref_LabMean, double[,] Ref_LabSD, double[,] Cal_LabMean, double[,] Cal_LabSD)
{
int k, n = 0;
IRasterDataset myRasterDataset = new RasterDatasetClass();
myRasterDataset.OpenFromFile(FullFileName);//由文件名建立一个 rasterdataset
IRasterBandCollection myRasterBandCollection = myRasterDataset as IRasterBandCollection;
long BandCount = myRasterBandCollection.Count;
IRaster myRaster = myRasterDataset.CreateDefaultRaster() as IRaster;
IRasterCursor myRasterCursor = myRaster.CreateCursor();//待处理图像的 RasterCursor
IPixelBlock3 myPixelBlock = null;
int speraIdx = FullFileName.LastIndexOf("\\");
string Pathname = FullFileName.Substring(0, speraIdx);
string ByFilename = FullFileName.Substring(speraIdx + 1);
string WriteFilename = ByFilename.Substring(0, ByFilename.Length - 4) + "_calibrate" + ".tif";
IWorkspaceFactory WorkspaceFactory = new RasterWorkspaceFactoryClass();//创建一个和输入图像相同的写入图像
IRasterWorkspace2 myRasterWorkspace = WorkspaceFactory.OpenFromFile(Pathname, 0) as IRasterWorkspace2;
IRasterDataset myWriteRasterDataset = CreateRasterbyFile(Pathname, "WriteTempRaster" + ImageCount.ToString() + ".tif",
ByFilename);
IRaster myWriteRaster = myWriteRasterDataset.CreateDefaultRaster();
IRasterProps myWriteRasterProps = myWriteRaster as IRasterProps;
IRasterCursor myWriteRasterCursor = myWriteRaster.CreateCursor();//写图像的 RasterCursor
IPnt myPnt = new PntClass();
IPixelBlock3 myWritePixelBlock = null;
int PixelBlockHeight, PixelBlockWidth;
System.Array[] myWriteArrayRGB = new Array[3];
IRasterEdit myRasterEdit = null;

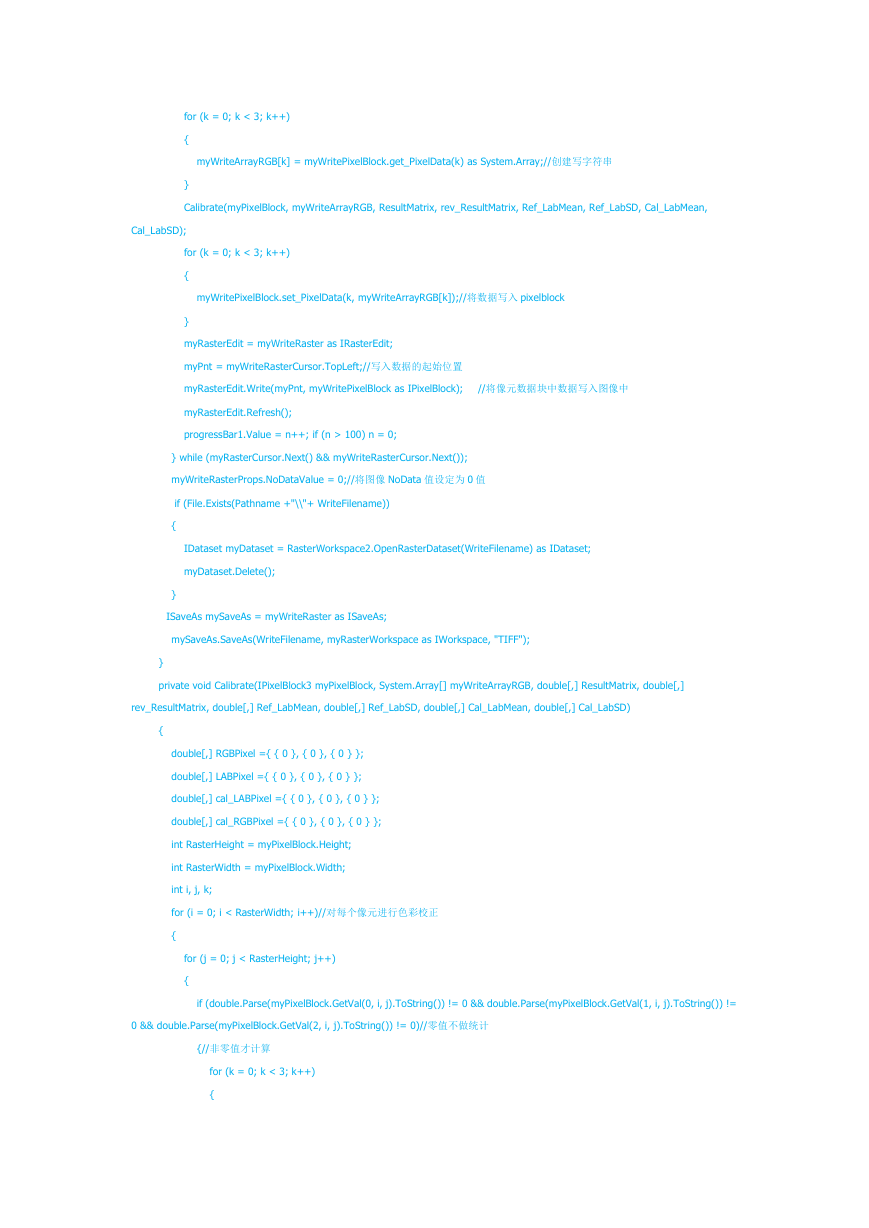

do
{
myPixelBlock = myRasterCursor.PixelBlock as IPixelBlock3;
myWritePixelBlock = myWriteRasterCursor.PixelBlock as IPixelBlock3;
PixelBlockHeight = myPixelBlock.Height;
PixelBlockWidth = myPixelBlock.Width;
for (k = 0; k < 3; k++)
{
}
myWriteArrayRGB[k] = myWritePixelBlock.get_PixelData(k) as System.Array;//创建写字符串
Calibrate(myPixelBlock, myWriteArrayRGB, ResultMatrix, rev_ResultMatrix, Ref_LabMean, Ref_LabSD, Cal_LabMean,
Cal_LabSD);
for (k = 0; k < 3; k++)
{
}
myWritePixelBlock.set_PixelData(k, myWriteArrayRGB[k]);//将数据写入 pixelblock
myRasterEdit = myWriteRaster as IRasterEdit;
myPnt = myWriteRasterCursor.TopLeft;//写入数据的起始位置
myRasterEdit.Write(myPnt, myWritePixelBlock as IPixelBlock);
//将像元数据块中数据写入图像中
myRasterEdit.Refresh();
progressBar1.Value = n++; if (n > 100) n = 0;
} while (myRasterCursor.Next() && myWriteRasterCursor.Next());
myWriteRasterProps.NoDataValue = 0;//将图像 NoData 值设定为 0 值
if (File.Exists(Pathname +"\\"+ WriteFilename))
{
}
IDataset myDataset = RasterWorkspace2.OpenRasterDataset(WriteFilename) as IDataset;
myDataset.Delete();
ISaveAs mySaveAs = myWriteRaster as ISaveAs;
mySaveAs.SaveAs(WriteFilename, myRasterWorkspace as IWorkspace, "TIFF");
}
private void Calibrate(IPixelBlock3 myPixelBlock, System.Array[] myWriteArrayRGB, double[,] ResultMatrix, double[,]
rev_ResultMatrix, double[,] Ref_LabMean, double[,] Ref_LabSD, double[,] Cal_LabMean, double[,] Cal_LabSD)
{
double[,] RGBPixel ={ { 0 }, { 0 }, { 0 } };
double[,] LABPixel ={ { 0 }, { 0 }, { 0 } };
double[,] cal_LABPixel ={ { 0 }, { 0 }, { 0 } };
double[,] cal_RGBPixel ={ { 0 }, { 0 }, { 0 } };
int RasterHeight = myPixelBlock.Height;
int RasterWidth = myPixelBlock.Width;
int i, j, k;
for (i = 0; i < RasterWidth; i++)//对每个像元进行色彩校正
{
for (j = 0; j < RasterHeight; j++)
{
if (double.Parse(myPixelBlock.GetVal(0, i, j).ToString()) != 0 && double.Parse(myPixelBlock.GetVal(1, i, j).ToString()) !=
0 && double.Parse(myPixelBlock.GetVal(2, i, j).ToString()) != 0)//零值不做统计
{//非零值才计算
for (k = 0; k < 3; k++)
{

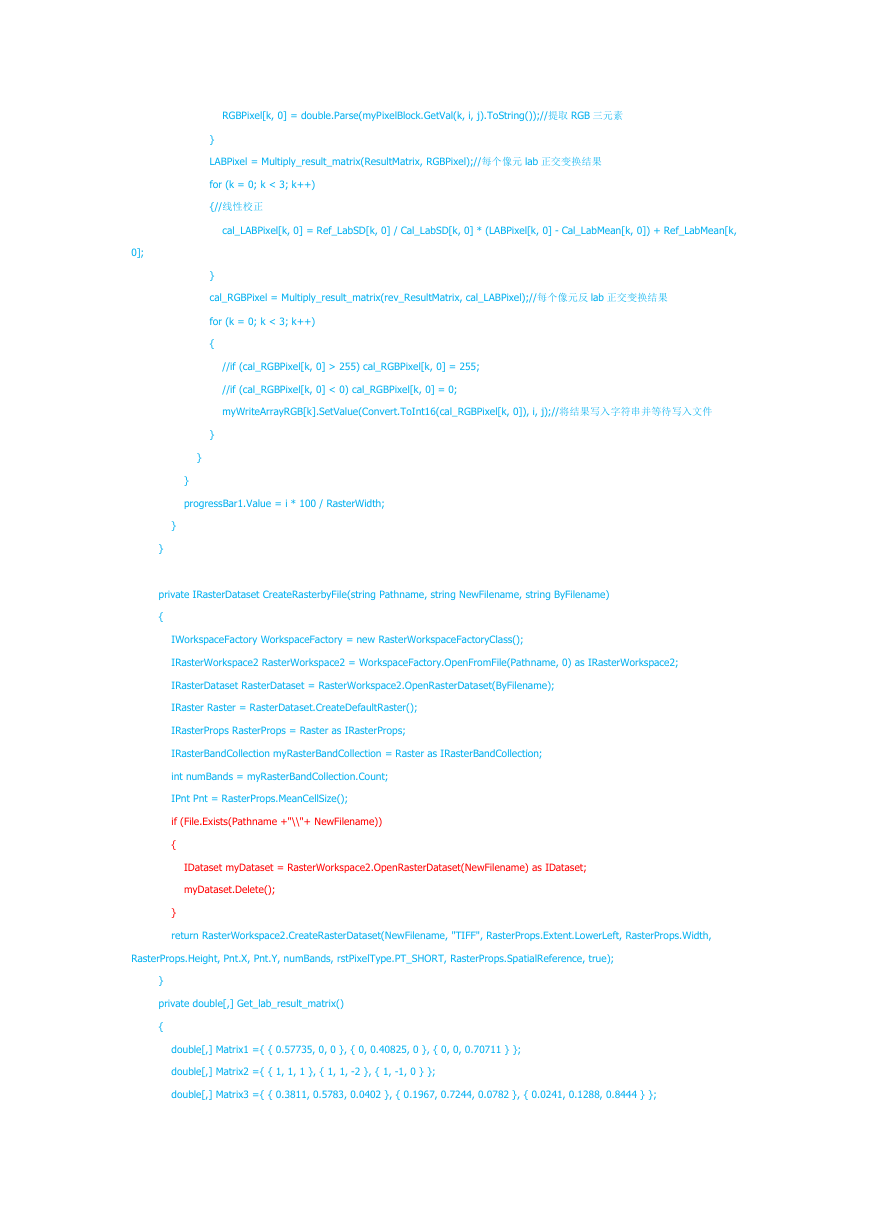

RGBPixel[k, 0] = double.Parse(myPixelBlock.GetVal(k, i, j).ToString());//提取 RGB 三元素
}
LABPixel = Multiply_result_matrix(ResultMatrix, RGBPixel);//每个像元 lab 正交变换结果
for (k = 0; k < 3; k++)
{//线性校正
cal_LABPixel[k, 0] = Ref_LabSD[k, 0] / Cal_LabSD[k, 0] * (LABPixel[k, 0] - Cal_LabMean[k, 0]) + Ref_LabMean[k,
0];
}
cal_RGBPixel = Multiply_result_matrix(rev_ResultMatrix, cal_LABPixel);//每个像元反 lab 正交变换结果
for (k = 0; k < 3; k++)
//if (cal_RGBPixel[k, 0] > 255) cal_RGBPixel[k, 0] = 255;
//if (cal_RGBPixel[k, 0] < 0) cal_RGBPixel[k, 0] = 0;
myWriteArrayRGB[k].SetValue(Convert.ToInt16(cal_RGBPixel[k, 0]), i, j);//将结果写入字符串并等待写入文件
{
}
}
}
progressBar1.Value = i * 100 / RasterWidth;
}
}
private IRasterDataset CreateRasterbyFile(string Pathname, string NewFilename, string ByFilename)
{
IWorkspaceFactory WorkspaceFactory = new RasterWorkspaceFactoryClass();
IRasterWorkspace2 RasterWorkspace2 = WorkspaceFactory.OpenFromFile(Pathname, 0) as IRasterWorkspace2;
IRasterDataset RasterDataset = RasterWorkspace2.OpenRasterDataset(ByFilename);
IRaster Raster = RasterDataset.CreateDefaultRaster();
IRasterProps RasterProps = Raster as IRasterProps;
IRasterBandCollection myRasterBandCollection = Raster as IRasterBandCollection;
int numBands = myRasterBandCollection.Count;
IPnt Pnt = RasterProps.MeanCellSize();
if (File.Exists(Pathname +"\\"+ NewFilename))
{
}
IDataset myDataset = RasterWorkspace2.OpenRasterDataset(NewFilename) as IDataset;
myDataset.Delete();
return RasterWorkspace2.CreateRasterDataset(NewFilename, "TIFF", RasterProps.Extent.LowerLeft, RasterProps.Width,
RasterProps.Height, Pnt.X, Pnt.Y, numBands, rstPixelType.PT_SHORT, RasterProps.SpatialReference, true);
}
private double[,] Get_lab_result_matrix()
{
double[,] Matrix1 ={ { 0.57735, 0, 0 }, { 0, 0.40825, 0 }, { 0, 0, 0.70711 } };
double[,] Matrix2 ={ { 1, 1, 1 }, { 1, 1, -2 }, { 1, -1, 0 } };
double[,] Matrix3 ={ { 0.3811, 0.5783, 0.0402 }, { 0.1967, 0.7244, 0.0782 }, { 0.0241, 0.1288, 0.8444 } };
double[,] ResultMatrix = Multiply_result_matrix(Matrix1, Matrix2);
ResultMatrix = Multiply_result_matrix(ResultMatrix, Matrix3);//变换矩阵结果
return ResultMatrix;
}
private double[,] Get_revlab_result_matrix()
{
}
double[,] Matrix1 ={ { 4.4679, -3.5873, 0.1193 }, { -1.2186, 2.3809, -0.1624 }, { 0.0497, -0.2439, 1.2045 } };
double[,] Matrix2 ={ { 1, 1, 1 }, { 1, 1, -1 }, { 1, -2, 0 } };
double[,] Matrix3 ={ { 0.57735, 0, 0 }, { 0, 0.40825, 0 }, { 0, 0, 0.70711 } };
double[,] ResultMatrix = Multiply_result_matrix(Matrix1, Matrix2);
ResultMatrix = Multiply_result_matrix(ResultMatrix, Matrix3);//变换矩阵结果
return ResultMatrix;
private double[,] Multiply_result_matrix(double[,] matrix1, double[,] matrix2)
{
int row1 = matrix1.GetLength(0);
int col1 = matrix1.Length / matrix1.GetLength(0);
int row2 = matrix2.GetLength(0);
int col2 = matrix2.Length / matrix2.GetLength(0);
if (col1 != row2)
{
}
MessageBox.Show("矩阵大小不匹配，不能做矩阵乘法！");
return null;
double[,] ResultMatrix = new double[row1, col2];
int i, j, k;
for (i = 0; i < row1; i++)//结果矩阵行数
{
}
for (j = 0; j < col2; j++)//结果矩阵列数
{
}
for (k = 0; k < col1; k++)//col1 与 row2 必须相等
{
}
ResultMatrix[i, j] = ResultMatrix[i, j] + matrix1[i, k] * matrix2[k, j];
return ResultMatrix;
}
}
}
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
