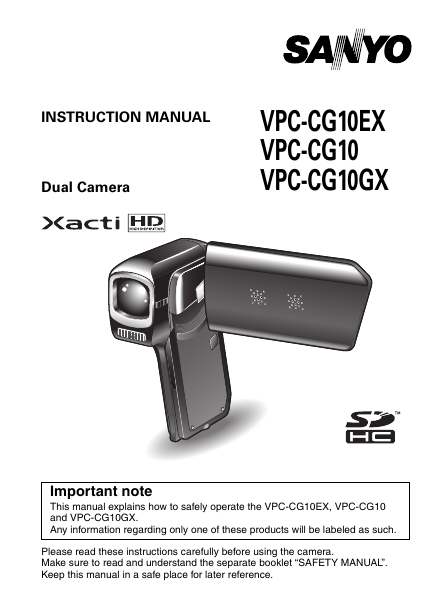

INSTRUCTION MANUAL Dual Camera VPC-CG10EX VPC-CG10 VPC-CG10GX Important note This manual explains how to safely operate the VPC-CG10EX, VPC-CG10 and VPC-CG10GX. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”. Keep this manual in a safe place for later reference.

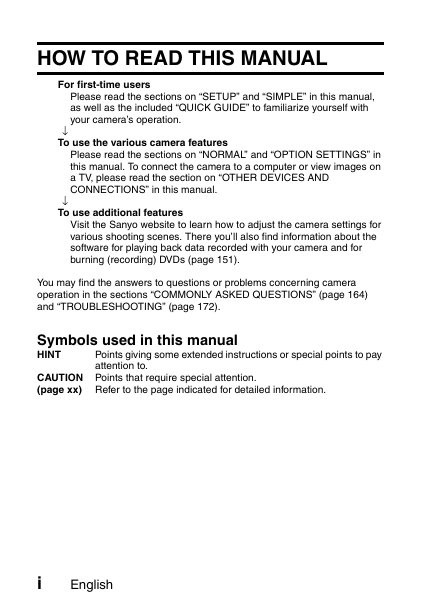

HOW TO READ THIS MANUAL For first-time users Please read the sections on “SETUP” and “SIMPLE” in this manual, as well as the included “QUICK GUIDE” to familiarize yourself with your camera’s operation. ↓ To use the various camera features Please read the sections on “NORMAL” and “OPTION SETTINGS” in this manual. To connect the camera to a computer or view images on a TV, please read the section on “OTHER DEVICES AND CONNECTIONS” in this manual. ↓ To use additional features Visit the Sanyo website to learn how to adjust the camera settings for various shooting scenes. There you’ll also find information about the software for playing back data recorded with your camera and for burning (recording) DVDs (page 151). You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS” (page 164) and “TROUBLESHOOTING” (page 172). Symbols used in this manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information. i English

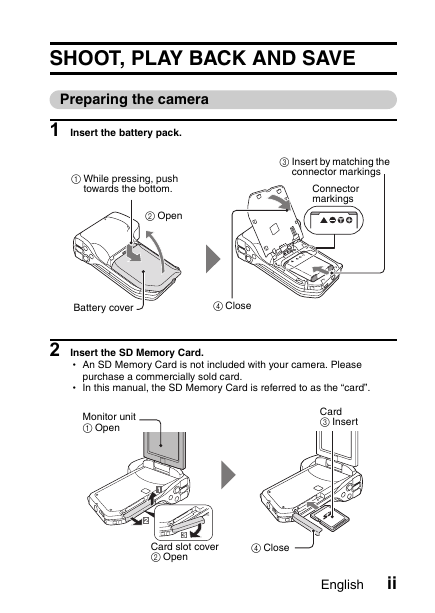

SHOOT, PLAY BACK AND SAVE Preparing the camera 1 Insert the battery pack. 1 While pressing, push towards the bottom. 2 Open 3 Insert by matching the connector markings Connector markings Battery cover 4 Close 2 Insert the SD Memory Card. h An SD Memory Card is not included with your camera. Please purchase a commercially sold card. h In this manual, the SD Memory Card is referred to as the “card”. Monitor unit 1 Open Card 3 Insert Card slot cover 2 Open 4 Close English ii

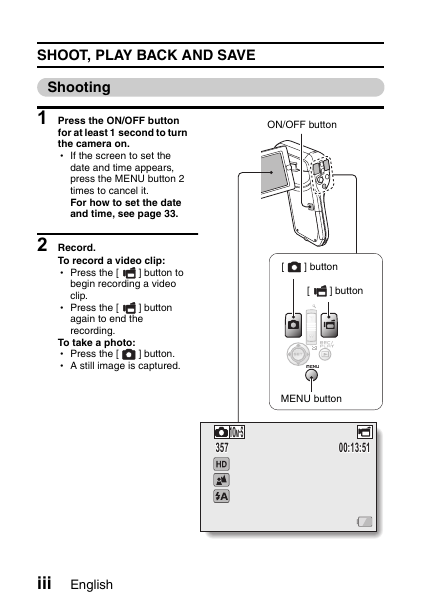

SHOOT, PLAY BACK AND SAVE Shooting 1 Press the ON/OFF button for at least 1 second to turn the camera on. h If the screen to set the date and time appears, press the MENU button 2 times to cancel it. For how to set the date and time, see page 33. ON/OFF button 2 Record. To record a video clip: h Press the [ ] button to begin recording a video clip. h Press the [ ] button again to end the recording. To take a photo: h Press the [ ] button. h A still image is captured. [ ] button [ ] button MENU button 10M-S 357 00:13:51 357 00:13:51 357 00:13:51 iii English

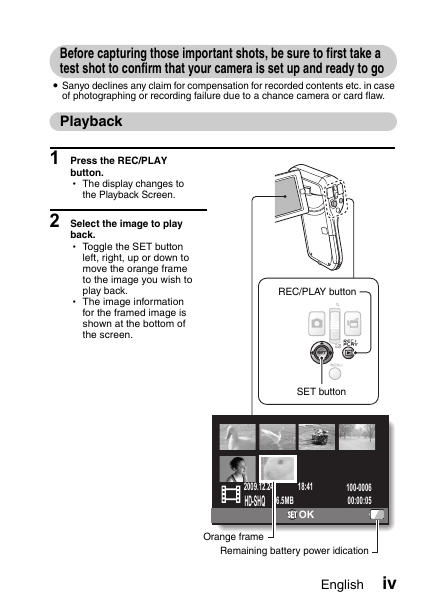

Before capturing those important shots, be sure to first take a test shot to confirm that your camera is set up and ready to go i Sanyo declines any claim for compensation for recorded contents etc. in case of photographing or recording failure due to a chance camera or card flaw. Playback 1 Press the REC/PLAY button. h The display changes to the Playback Screen. 2 Select the image to play back. h Toggle the SET button left, right, up or down to move the orange frame to the image you wish to play back. h The image information for the framed image is shown at the bottom of the screen. REC/PLAY button SET button 2009.12.24 HD-SHQ 6.5MB 18:41 OK 100-0006 00:00:05 Orange frame Remaining battery power idication English iv

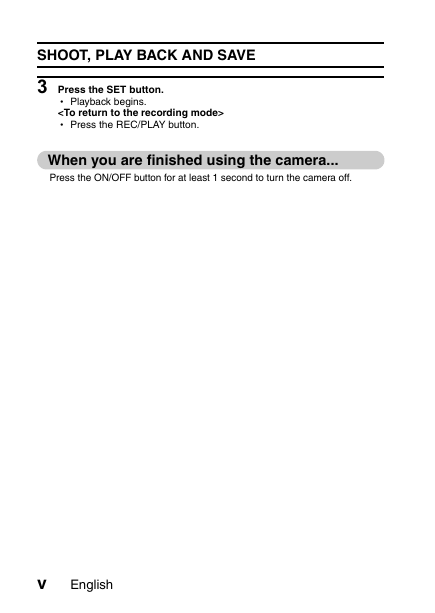

SHOOT, PLAY BACK AND SAVE 3 Press the SET button. h Playback begins. h Press the REC/PLAY button. When you are finished using the camera... Press the ON/OFF button for at least 1 second to turn the camera off. v English

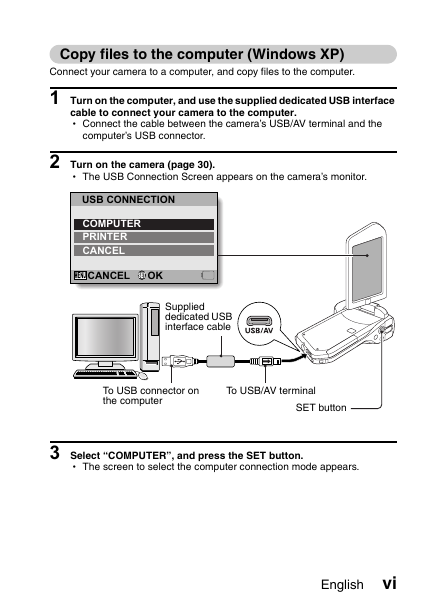

Copy files to the computer (Windows XP) Connect your camera to a computer, and copy files to the computer. 1 Turn on the computer, and use the supplied dedicated USB interface cable to connect your camera to the computer. h Connect the cable between the camera’s USB/AV terminal and the computer’s USB connector. 2 Turn on the camera (page 30). h The USB Connection Screen appears on the camera’s monitor. USB CONNECTION COMPUTER PRINTER CANCEL CANCEL OK Supplied dedicated USB interface cable To USB connector on the computer To USB/AV terminal SET button 3 Select “COMPUTER”, and press the SET button. h The screen to select the computer connection mode appears. English vi

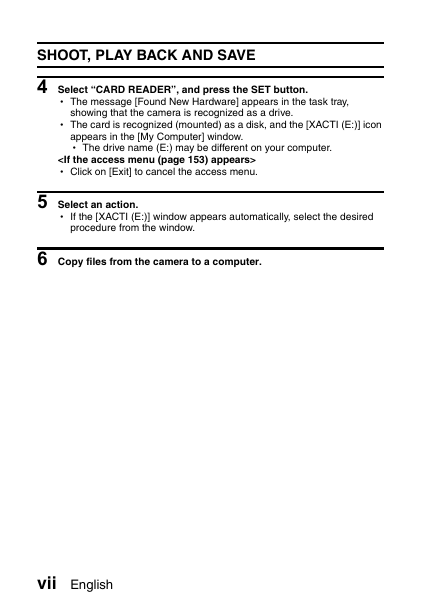

SHOOT, PLAY BACK AND SAVE 4 Select “CARD READER”, and press the SET button. h The message [Found New Hardware] appears in the task tray, showing that the camera is recognized as a drive. h The card is recognized (mounted) as a disk, and the [XACTI (E:)] icon appears in the [My Computer] window. h The drive name (E:) may be different on your computer. h Click on [Exit] to cancel the access menu. 5 Select an action. h If the [XACTI (E:)] window appears automatically, select the desired procedure from the window. 6 Copy files from the camera to a computer. vii English
