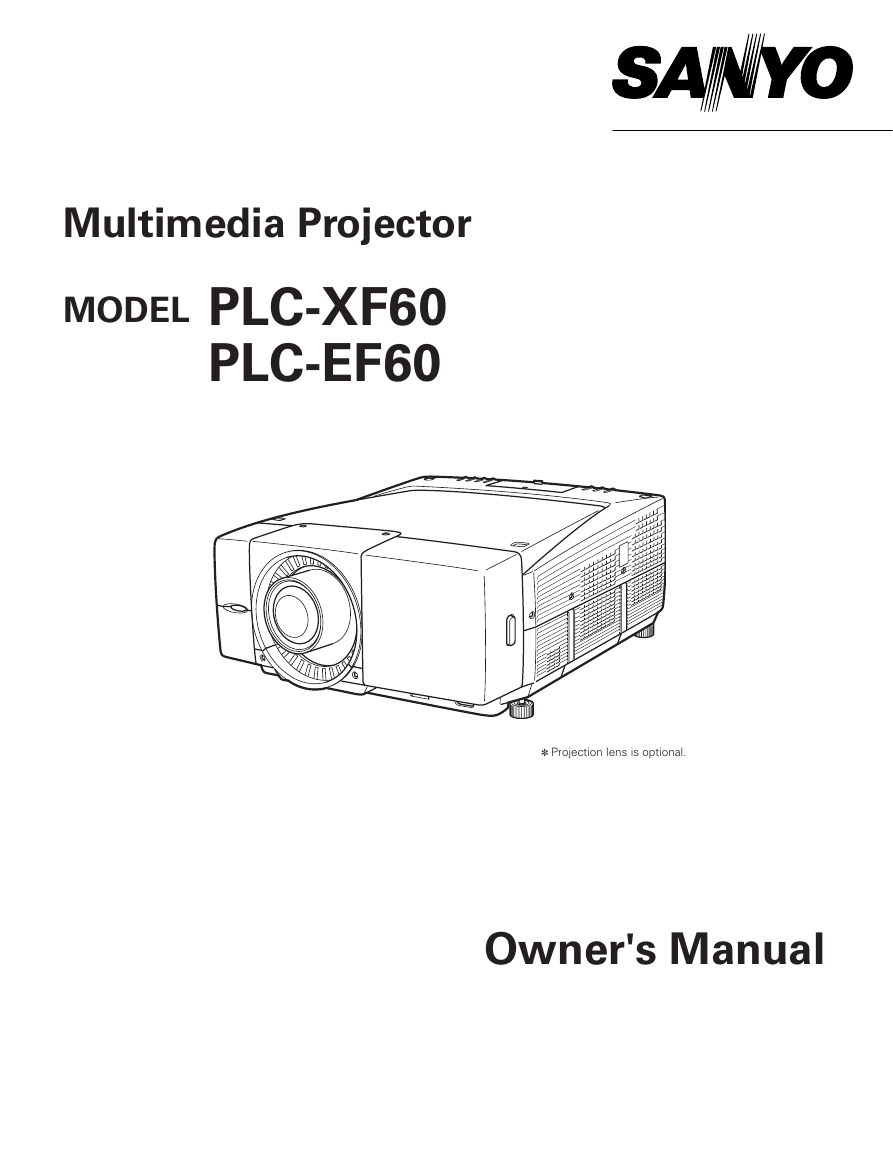

Multimedia Projector
PLC-XF60
PLC-EF60
MODEL
✽ Projection lens is optional.
Owner's Manual

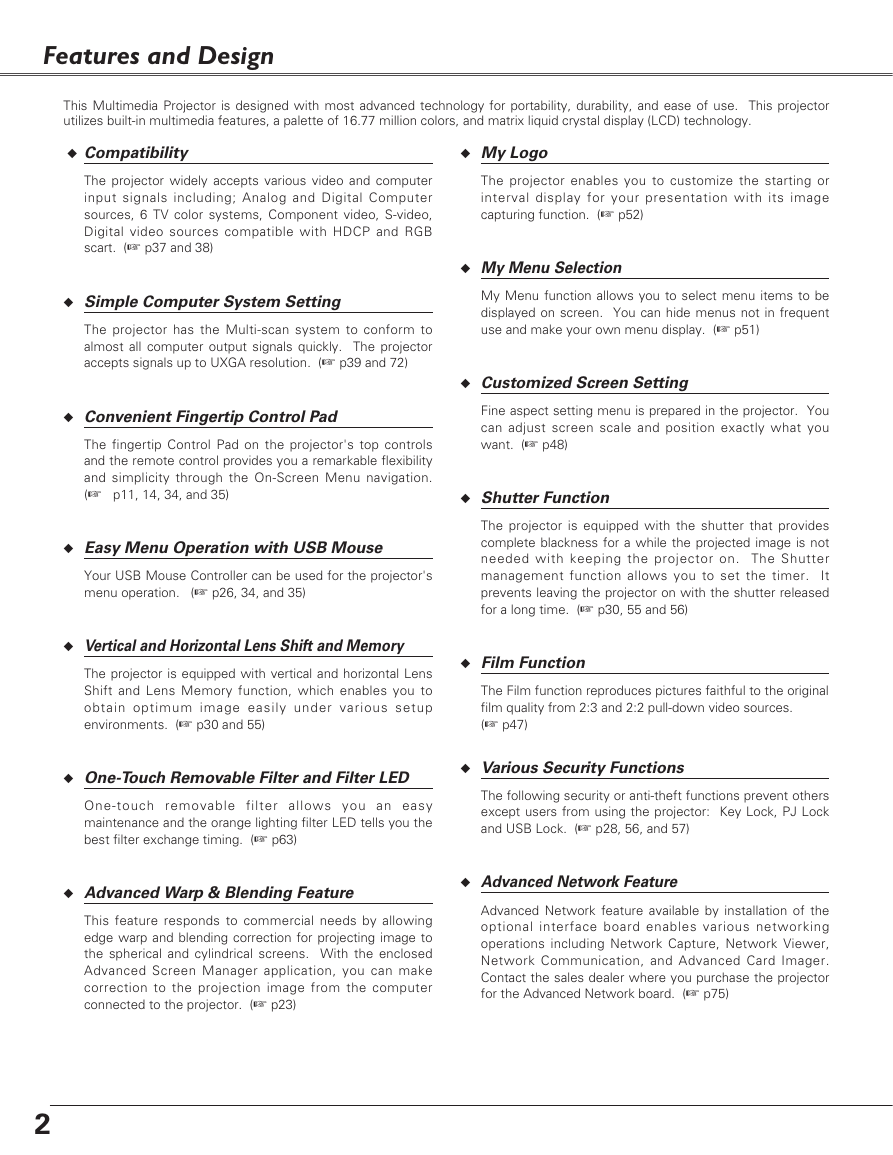

Features and Design
This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector
utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.
◆ Compatibility
◆ My Logo
The projector widely accepts various video and computer
input signals including; Analog and Digital Computer
sources, 6 TV color systems, Component video, S-video,
Digital video sources compatible with HDCP and RGB
scart. (☞ p37 and 38)
◆ Simple Computer System Setting
The projector has the Multi-scan system to conform to
almost all computer output signals quickly. The projector
accepts signals up to UXGA resolution. (☞ p39 and 72)
◆ Convenient Fingertip Control Pad
The fingertip Control Pad on the projector's top controls
and the remote control provides you a remarkable flexibility
and simplicity through the On-Screen Menu navigation.
(☞ p11, 14, 34, and 35)
◆ Easy Menu Operation with USB Mouse
Your USB Mouse Controller can be used for the projector's
menu operation. (☞ p26, 34, and 35)
The projector enables you to customize the starting or
interval display for your presentation with its image
capturing function. (☞ p52)
◆ My Menu Selection
My Menu function allows you to select menu items to be
displayed on screen. You can hide menus not in frequent
use and make your own menu display. (☞ p51)
◆ Customized Screen Setting
Fine aspect setting menu is prepared in the projector. You
can adjust screen scale and position exactly what you
want. (☞ p48)
◆ Shutter Function
The projector is equipped with the shutter that provides
complete blackness for a while the projected image is not
needed with keeping the projector on. The Shutter
management function allows you to set the timer. It
prevents leaving the projector on with the shutter released
for a long time. (☞ p30, 55 and 56)
◆ Vertical and Horizontal Lens Shift and Memory
The projector is equipped with vertical and horizontal Lens
Shift and Lens Memory function, which enables you to
obtain optimum image easily under various setup
environments. (☞ p30 and 55)
◆ Film Function
The Film function reproduces pictures faithful to the original
film quality from 2:3 and 2:2 pull-down video sources.
(☞ p47)
◆ One-Touch Removable Filter and Filter LED
One-touch removable filter allows you an easy
maintenance and the orange lighting filter LED tells you the
best filter exchange timing. (☞ p63)
◆ Various Security Functions
The following security or anti-theft functions prevent others
except users from using the projector: Key Lock, PJ Lock
and USB Lock. (☞ p28, 56, and 57)
◆ Advanced Warp & Blending Feature
This feature responds to commercial needs by allowing
edge warp and blending correction for projecting image to
the spherical and cylindrical screens. With the enclosed
Advanced Screen Manager application, you can make
correction to the projection image from the computer
connected to the projector. (☞ p23)
◆ Advanced Network Feature
Advanced Network feature available by installation of the
optional interface board enables various networking
operations including Network Capture, Network Viewer,
Network Communication, and Advanced Card Imager.
Contact the sales dealer where you purchase the projector
for the Advanced Network board. (☞ p75)
2

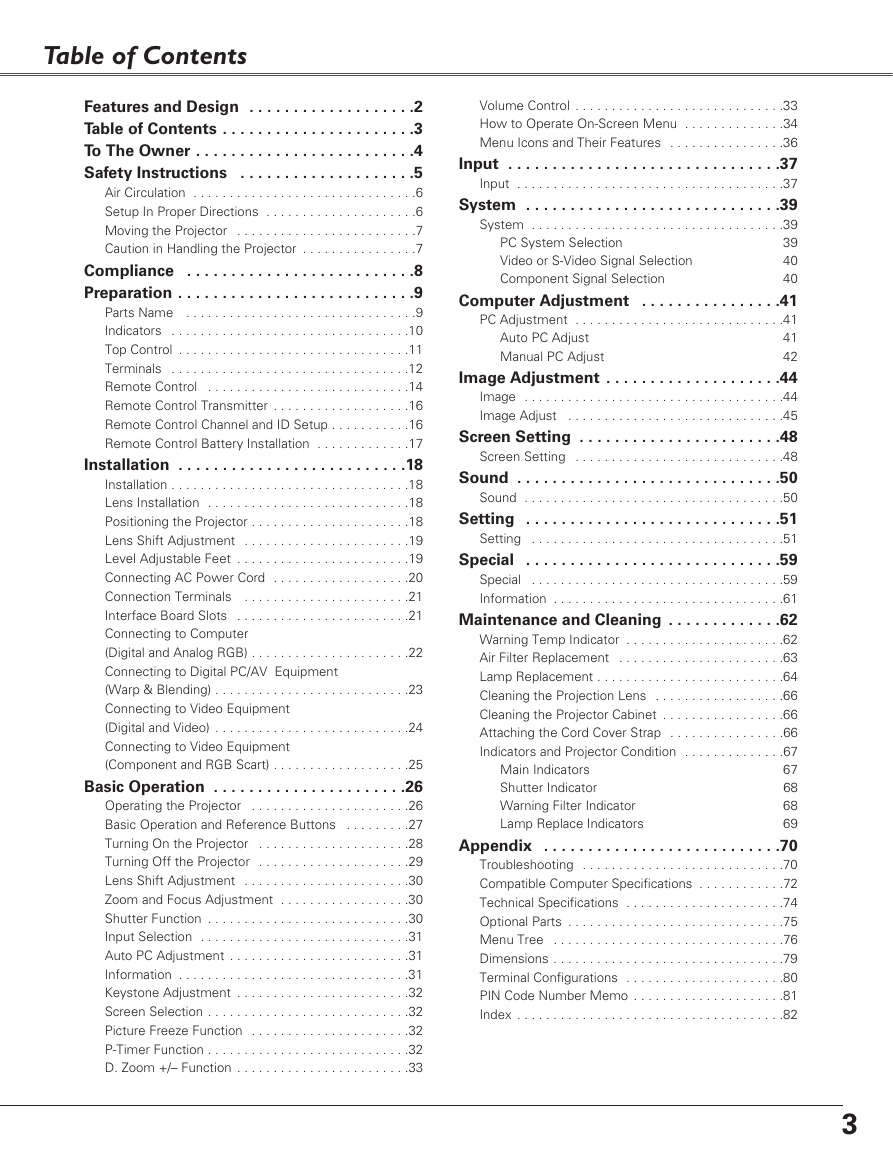

Table of Contents
Features and Design . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . .3
To The Owner . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . . . . . . .5
Air Circulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Setup In Proper Directions . . . . . . . . . . . . . . . . . . . . .6
Moving the Projector . . . . . . . . . . . . . . . . . . . . . . . . .7
Caution in Handling the Projector . . . . . . . . . . . . . . . .7
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .8
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Parts Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Top Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Remote Control Transmitter . . . . . . . . . . . . . . . . . . .16
Remote Control Channel and ID Setup . . . . . . . . . . .16
Remote Control Battery Installation . . . . . . . . . . . . .17
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .18
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Lens Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Positioning the Projector . . . . . . . . . . . . . . . . . . . . . .18
Lens Shift Adjustment . . . . . . . . . . . . . . . . . . . . . . .19
Level Adjustable Feet . . . . . . . . . . . . . . . . . . . . . . . .19
Connecting AC Power Cord . . . . . . . . . . . . . . . . . . .20
Connection Terminals . . . . . . . . . . . . . . . . . . . . . . .21
Interface Board Slots . . . . . . . . . . . . . . . . . . . . . . . .21
Connecting to Computer
(Digital and Analog RGB) . . . . . . . . . . . . . . . . . . . . . .22
Connecting to Digital PC/AV Equipment
(Warp & Blending) . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Connecting to Video Equipment
(Digital and Video) . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Connecting to Video Equipment
(Component and RGB Scart) . . . . . . . . . . . . . . . . . . .25
Basic Operation . . . . . . . . . . . . . . . . . . . . . .26
Operating the Projector . . . . . . . . . . . . . . . . . . . . . .26
Basic Operation and Reference Buttons . . . . . . . . .27
Turning On the Projector . . . . . . . . . . . . . . . . . . . . .28
Turning Off the Projector . . . . . . . . . . . . . . . . . . . . .29
Lens Shift Adjustment . . . . . . . . . . . . . . . . . . . . . . .30
Zoom and Focus Adjustment . . . . . . . . . . . . . . . . . .30
Shutter Function . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Input Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Auto PC Adjustment . . . . . . . . . . . . . . . . . . . . . . . . .31
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Keystone Adjustment . . . . . . . . . . . . . . . . . . . . . . . .32
Screen Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Picture Freeze Function . . . . . . . . . . . . . . . . . . . . . .32
P-Timer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
D. Zoom +/– Function . . . . . . . . . . . . . . . . . . . . . . . .33
PC System Selection
Video or S-Video Signal Selection
Component Signal Selection
Auto PC Adjust
Manual PC Adjust
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
How to Operate On-Screen Menu . . . . . . . . . . . . . .34
Menu Icons and Their Features . . . . . . . . . . . . . . . .36
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
39
40
40
Computer Adjustment . . . . . . . . . . . . . . . .41
PC Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
41
42
Image Adjustment . . . . . . . . . . . . . . . . . . . .44
Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Image Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Screen Setting . . . . . . . . . . . . . . . . . . . . . . .48
Screen Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Special . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Special . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Maintenance and Cleaning . . . . . . . . . . . . .62
Warning Temp Indicator . . . . . . . . . . . . . . . . . . . . . .62
Air Filter Replacement . . . . . . . . . . . . . . . . . . . . . . .63
Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . .64
Cleaning the Projection Lens . . . . . . . . . . . . . . . . . .66
Cleaning the Projector Cabinet . . . . . . . . . . . . . . . . .66
Attaching the Cord Cover Strap . . . . . . . . . . . . . . . .66
Indicators and Projector Condition . . . . . . . . . . . . . .67
67
68
68
69
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Compatible Computer Specifications . . . . . . . . . . . .72
Technical Specifications . . . . . . . . . . . . . . . . . . . . . .74
Optional Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Terminal Configurations . . . . . . . . . . . . . . . . . . . . . .80
PIN Code Number Memo . . . . . . . . . . . . . . . . . . . . .81
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Main Indicators
Shutter Indicator
Warning Filter Indicator
Lamp Replace Indicators
3

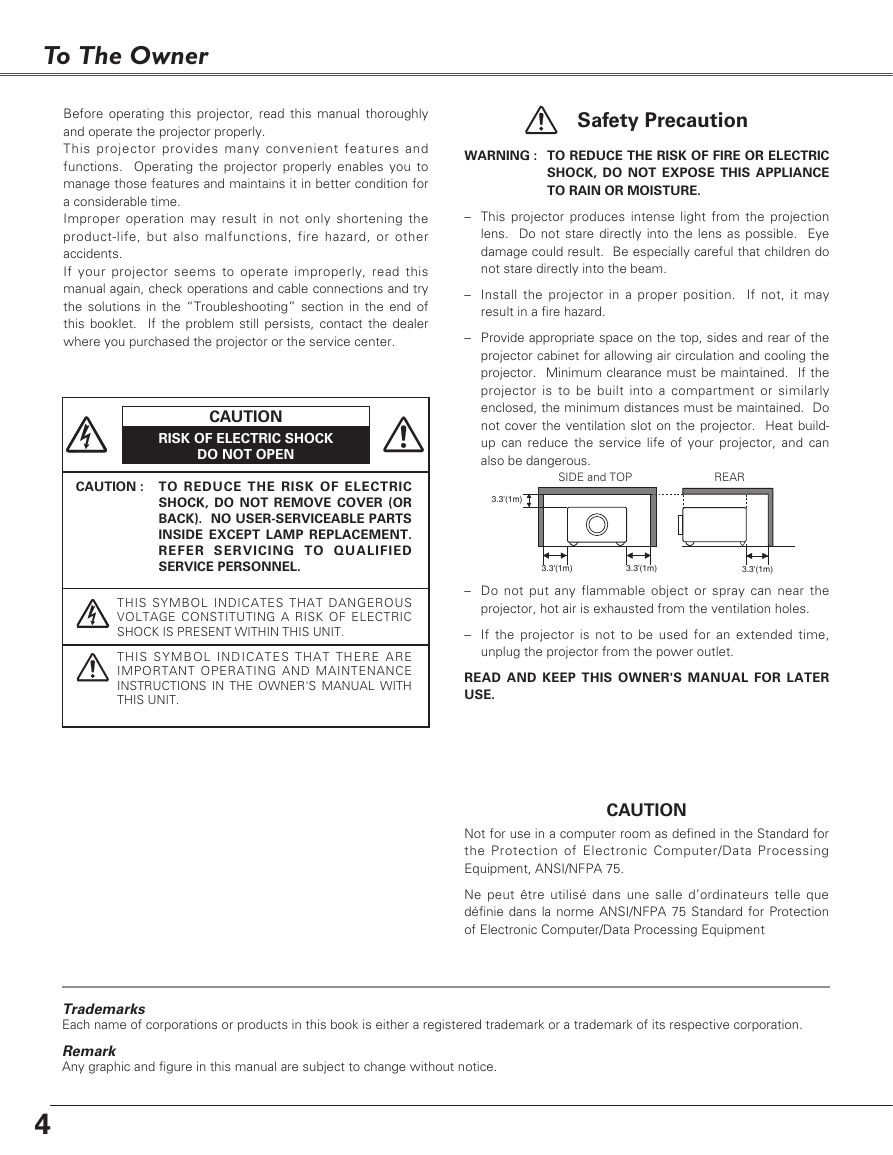

To The Owner
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for
a considerable time.
Improper operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and try
the solutions in the “Troubleshooting” section in the end of
this booklet. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
Safety Precaution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
– This projector produces intense light from the projection
lens. Do not stare directly into the lens as possible. Eye
damage could result. Be especially careful that children do
not stare directly into the beam.
– Install the projector in a proper position. If not, it may
result in a fire hazard.
– Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly
enclosed, the minimum distances must be maintained. Do
not cover the ventilation slot on the projector. Heat build-
up can reduce the service life of your projector, and can
also be dangerous.
SIDE and TOP
REAR
3.3'(1m)
3.3'(1m)
3.3'(1m)
3.3'(1m)
– Do not put any flammable object or spray can near the
projector, hot air is exhausted from the ventilation holes.
– If the projector is not to be used for an extended time,
unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE.
CAUTION
Not for use in a computer room as defined in the Standard for
the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle que
définie dans la norme ANSI/NFPA 75 Standard for Protection
of Electronic Computer/Data Processing Equipment
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.
Remark
Any graphic and figure in this manual are subject to change without notice.
4

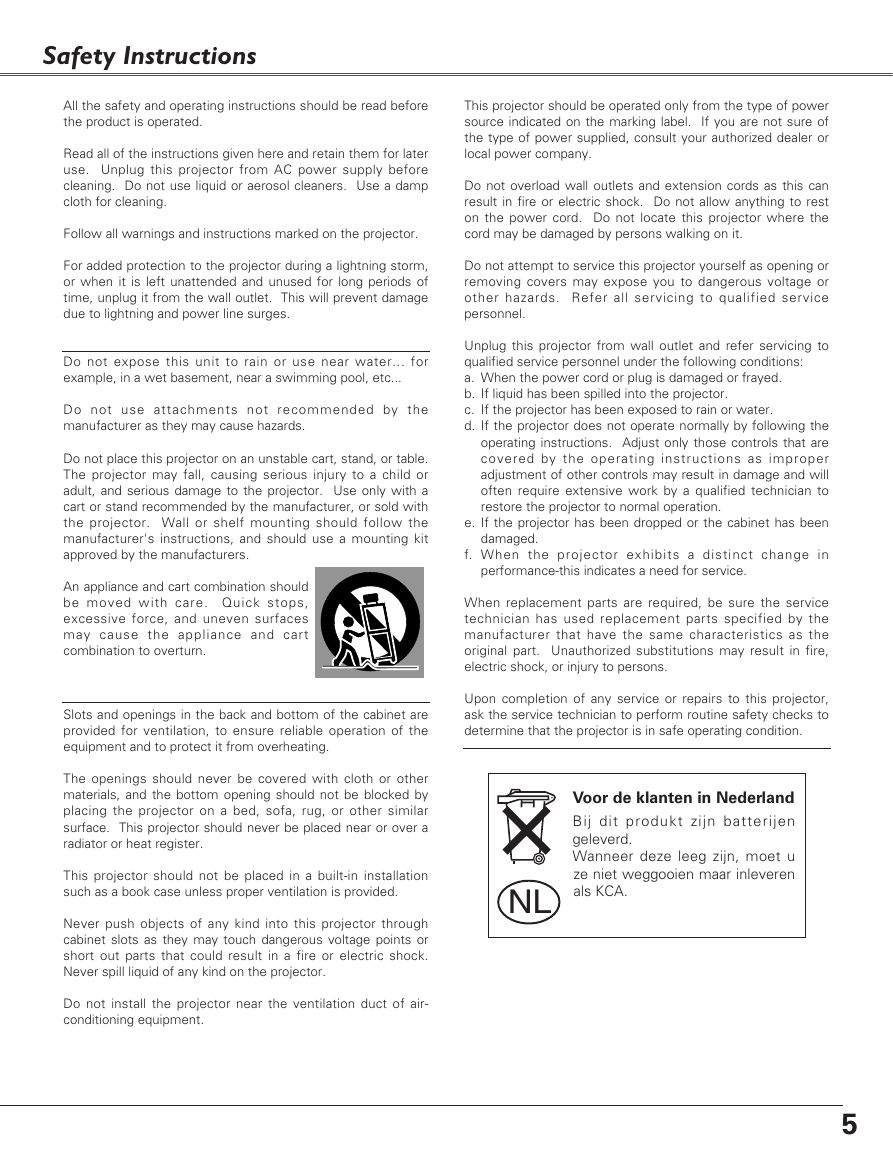

Safety Instructions
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest
on the power cord. Do not locate this projector where the
cord may be damaged by persons walking on it.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to ensure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Voor de klanten in Nederland
Bij dit produkt zijn batterijen
geleverd.
Wanneer deze leeg zijn, moet u
ze niet weggooien maar inleveren
als KCA.
NL
5
Safety Instructions

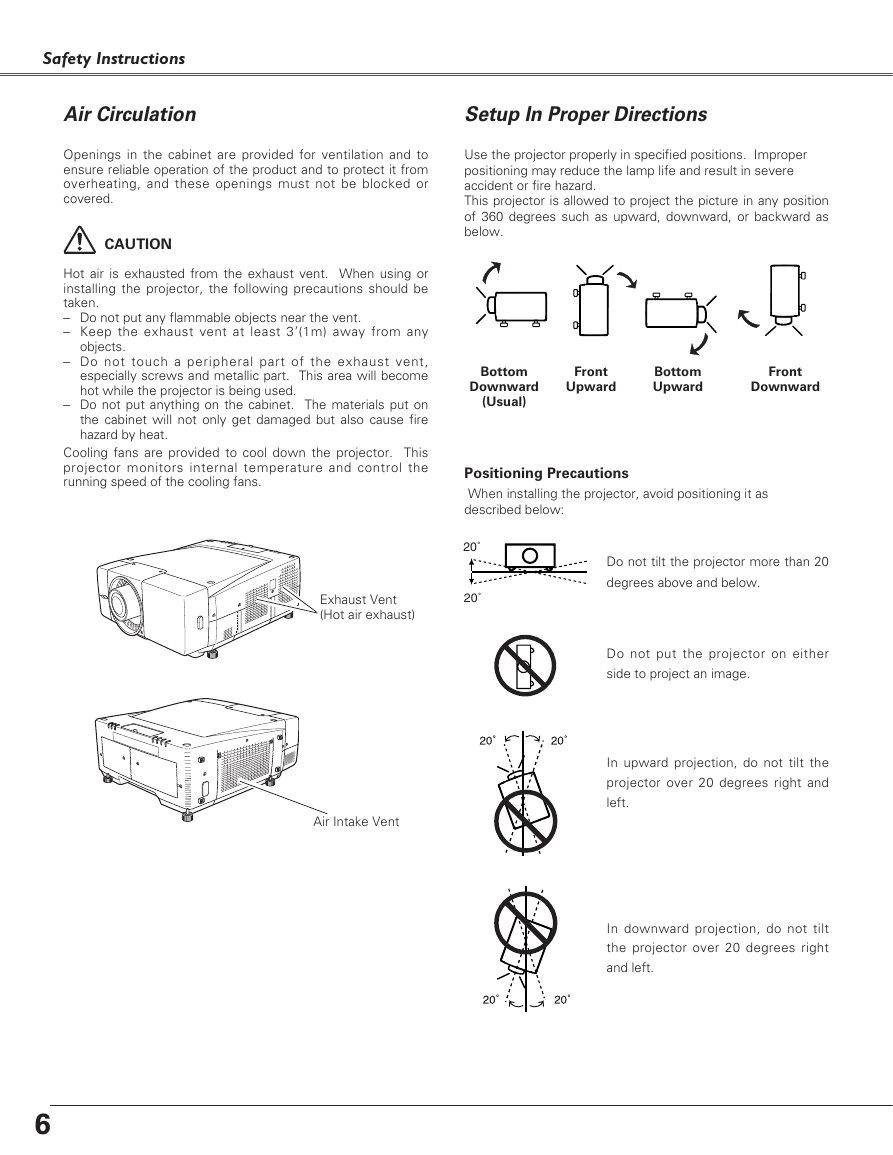

Air Circulation
Openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it from
overheating, and these openings must not be blocked or
covered.
CAUTION
Setup In Proper Directions
Use the projector properly in specified positions. Improper
positioning may reduce the lamp life and result in severe
accident or fire hazard.
This projector is allowed to project the picture in any position
of 360 degrees such as upward, downward, or backward as
below.
Hot air is exhausted from the exhaust vent. When using or
installing the projector, the following precautions should be
taken.
– Do not put any flammable objects near the vent.
– Keep the exhaust vent at least 3’(1m) away from any
objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will become
hot while the projector is being used.
– Do not put anything on the cabinet. The materials put on
the cabinet will not only get damaged but also cause fire
hazard by heat.
Bottom
Downward
(Usual)
Front
Upward
Bottom
Upward
Front
Downward
Cooling fans are provided to cool down the projector. This
projector monitors internal temperature and control the
running speed of the cooling fans.
Positioning Precautions
When installing the projector, avoid positioning it as
described below:
20˚
20˚
Exhaust Vent
(Hot air exhaust)
Air Intake Vent
Do not tilt the projector more than 20
degrees above and below.
Do not put the projector on either
side to project an image.
In upward projection, do not tilt the
projector over 20 degrees right and
left.
In downward projection, do not tilt
the projector over 20 degrees right
and left.
6
Safety Instructions
Carrying Handle
Lens Cover
Replace the Lens cover when carrying or not
using the projector.

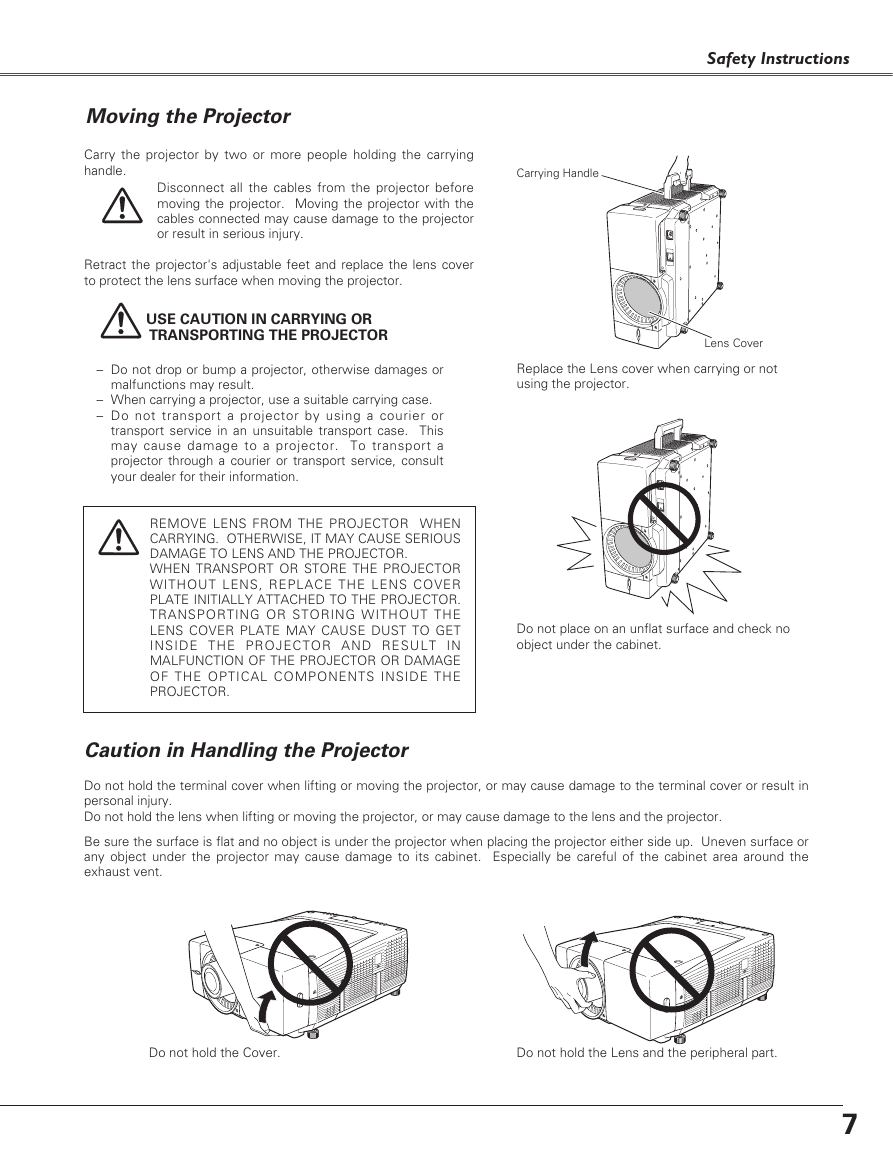

Moving the Projector
Carry the projector by two or more people holding the carrying
handle.
Disconnect all the cables from the projector before
moving the projector. Moving the projector with the
cables connected may cause damage to the projector
or result in serious injury.
Retract the projector's adjustable feet and replace the lens cover
to protect the lens surface when moving the projector.
USE CAUTION IN CARRYING OR
TRANSPORTING THE PROJECTOR
– Do not drop or bump a projector, otherwise damages or
malfunctions may result.
– When carrying a projector, use a suitable carrying case.
– Do not transport a projector by using a courier or
transport service in an unsuitable transport case. This
may cause damage to a projector. To transport a
projector through a courier or transport service, consult
your dealer for their information.
REMOVE LENS FROM THE PROJECTOR WHEN
CARRYING. OTHERWISE, IT MAY CAUSE SERIOUS
DAMAGE TO LENS AND THE PROJECTOR.
WHEN TRANSPORT OR STORE THE PROJECTOR
WITHOUT LENS, REPLACE THE LENS COVER
PLATE INITIALLY ATTACHED TO THE PROJECTOR.
TRANSPORTING OR STORING WITHOUT THE
LENS COVER PLATE MAY CAUSE DUST TO GET
INSIDE THE PROJECTOR AND RESULT IN
MALFUNCTION OF THE PROJECTOR OR DAMAGE
OF THE OPTICAL COMPONENTS INSIDE THE
PROJECTOR.
Do not place on an unflat surface and check no
object under the cabinet.
Caution in Handling the Projector
Do not hold the terminal cover when lifting or moving the projector, or may cause damage to the terminal cover or result in
personal injury.
Do not hold the lens when lifting or moving the projector, or may cause damage to the lens and the projector.
Be sure the surface is flat and no object is under the projector when placing the projector either side up. Uneven surface or
any object under the projector may cause damage to its cabinet. Especially be careful of the cabinet area around the
exhaust vent.
Do not hold the Cover.
Do not hold the Lens and the peripheral part.
7

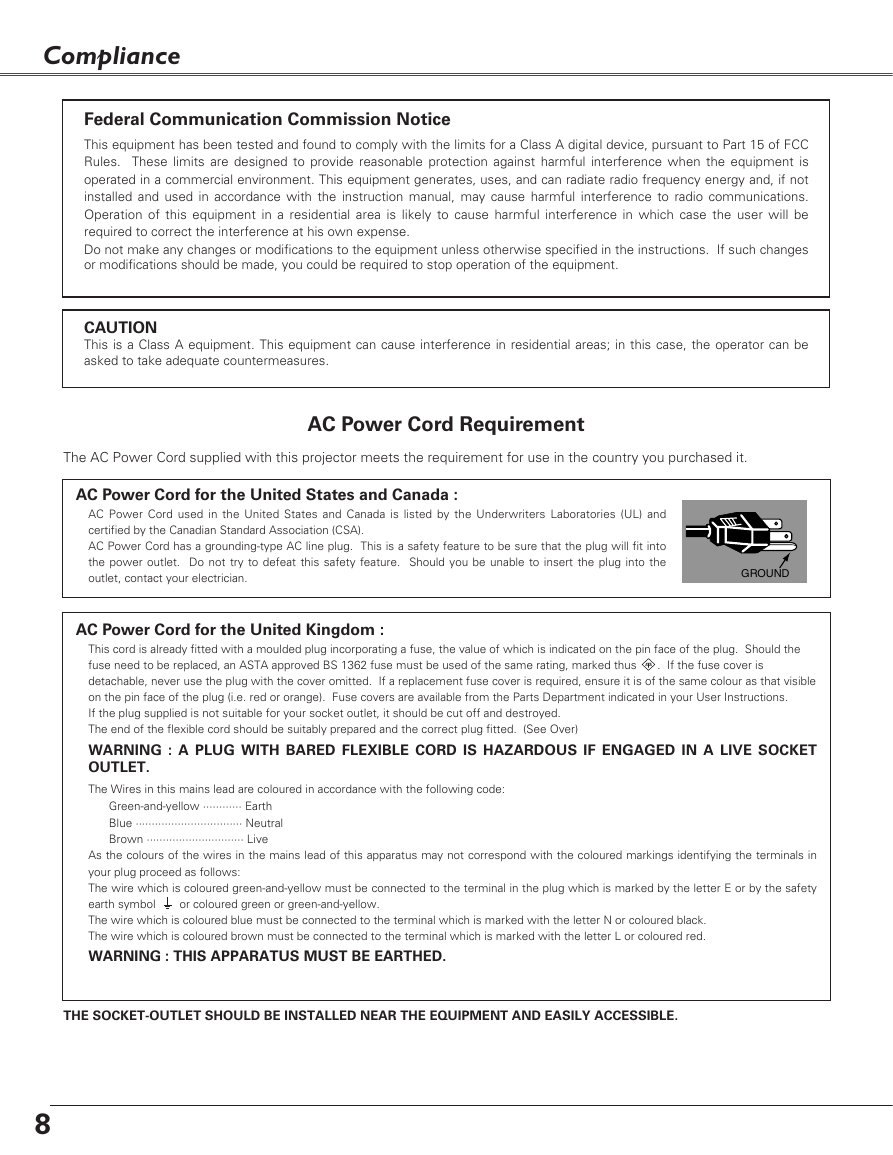

Compliance
Federal Communication Commission Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes
or modifications should be made, you could be required to stop operation of the equipment.
CAUTION
This is a Class A equipment. This equipment can cause interference in residential areas; in this case, the operator can be
asked to take adequate countermeasures.
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and
certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into
the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the
outlet, contact your electrician.
GROUND
AC Power Cord for the United Kingdom :
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the
fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus
detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible
on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
. If the fuse cover is
ASA
Green-and-yellow ············ Earth
Blue ································· Neutral
Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in
your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety
earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING : THIS APPARATUS MUST BE EARTHED.
or coloured green or green-and-yellow.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
