读书笔记之 IRUN
1. Overview
1.1 IRUN 整合了多个工具,执行 IRUN 一般分为三个阶段:
1) Ncvlog/Ncvhdl 等多个 compiler 工具, 负责 compile 工作;
2) Ncelab,elaborate the design;
3) Ncsim, simulation.
1.2 IRUN 是如何工作的:
1) 创造 INCA_libs 文件夹;
2) 在 INCA_libs 下创建子文件夹 irun.***.nc;
3) 解析 IRUN 命令行;
4) Compile;
5)
6)
Invoke ncelab to elaborate the design and generate a simulation snapshot.
Invokes the simulator (ncsim) to simulate the snapshot. 默 认 的 log 在
irun.log, 可以通过-l xxx.log 来重命名。
常用命令分析
1)
-prep
a)
2)
3)
4)
5)
6)
7)
8)
9)
IRUN 会识别命令行中的选项,但不会执行仿真,并为命令行自动产生
multi-step 的脚本,产生的文件有 cds.lib, hdl.var, executable.args, RUN_NC
-helpargs
a) 显示 command line 中所有文件和选项的信息,不会做 simulation
-f/-F
a) 引用 argument file(simfile),-f,argument file 中的相对路径按照 sim 根
目录计算,-F,argument file 中的相对路径按照 argument file 本身路径来
计算。使用-F 有风险,需避开引用循环的情形
-f simfile.f
b)
-vlog_ext
a) 为 Verilog 添加识别后缀
b)
-default_ext
a) 为不识别的文件添加默认的识别方式
b)
-c
a) 执行 compile, elaborate,但不仿真
-debugscript
a) 捕获 IRUN 环境变量和命令行执行情形,IRUN 遇到问题时,非常有用
-vlog_ext .v, .rtl, .vg
-default_ext verilog
的 debug 方式
-debugscript debug.script
b)
-l
a) 重命名 log 文件,默认是 irun.log
b)
-perfstat
a) Performance 统计器,生成 ncperfstat.out 文件,里面有 compile,elaborate,
-l test.log
simulation 阶段时间及内存资源分析

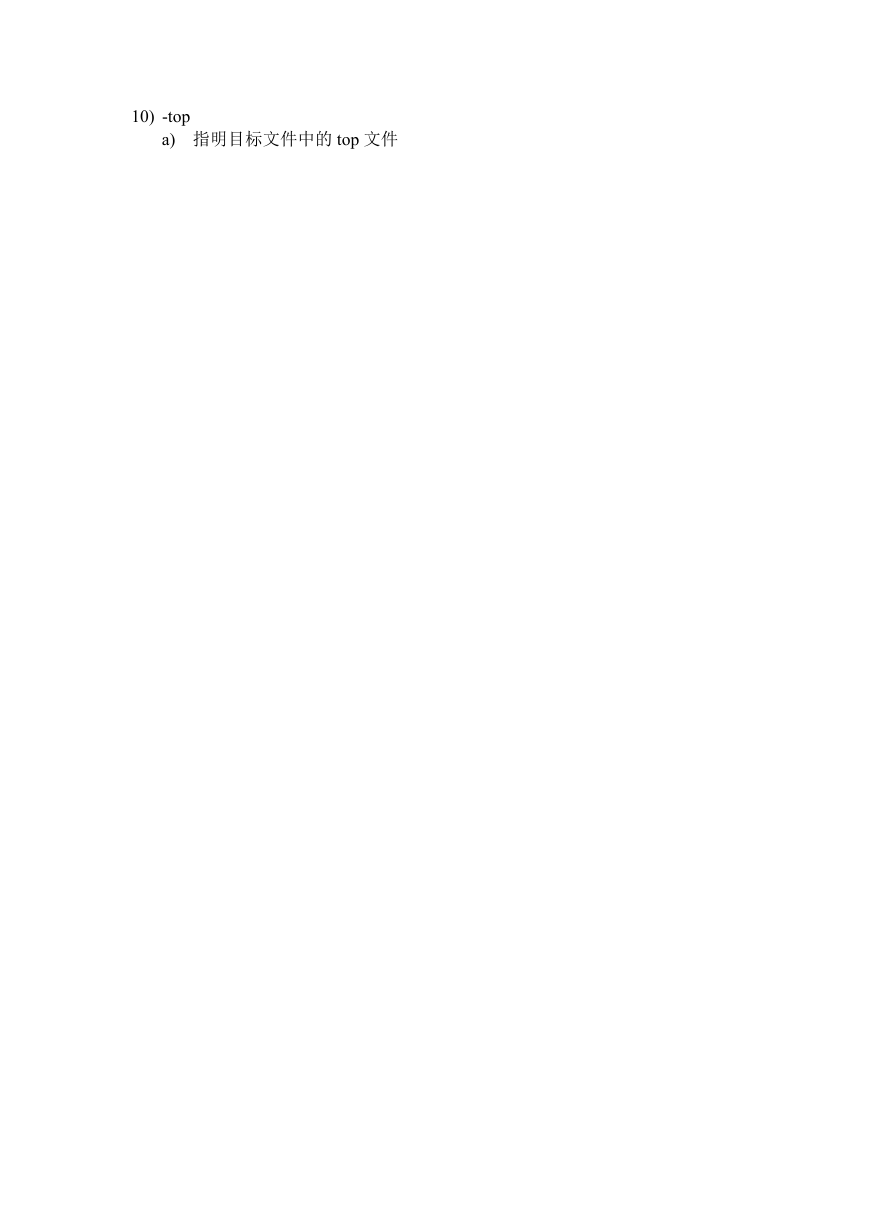

10) -top
a) 指明目标文件中的 top 文件
