A proven methodology to hierarchically
reuse interface connections from the block
to the chip level
UVM
Harness
Whitepaper
The missing link in interface
connectivity.
By David Larson, Director of Corporate Verification
verification@synapse-da.com
Revision 1.1
August 4, 2011

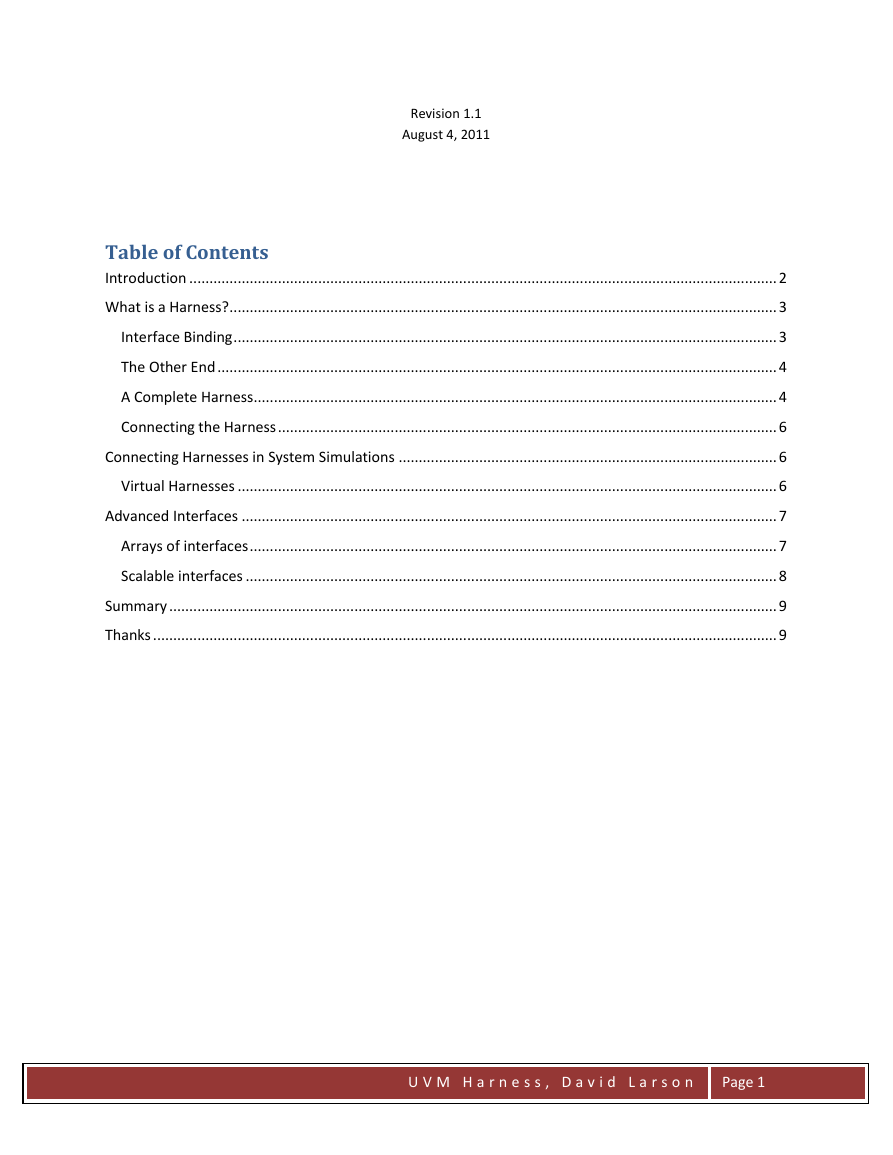

Table of Contents
Introduction .................................................................................................................................................. 2
What is a Harness? ........................................................................................................................................ 3
Interface Binding ....................................................................................................................................... 3
The Other End ........................................................................................................................................... 4
A Complete Harness .................................................................................................................................. 4
Connecting the Harness ............................................................................................................................ 6
Connecting Harnesses in System Simulations .............................................................................................. 6
Virtual Harnesses ...................................................................................................................................... 6
Advanced Interfaces ..................................................................................................................................... 7
Arrays of interfaces ................................................................................................................................... 7
Scalable interfaces .................................................................................................................................... 8
Summary ....................................................................................................................................................... 9
Thanks ........................................................................................................................................................... 9
U V M H a r n e s s , D a v i d L a r s o n
Page 1

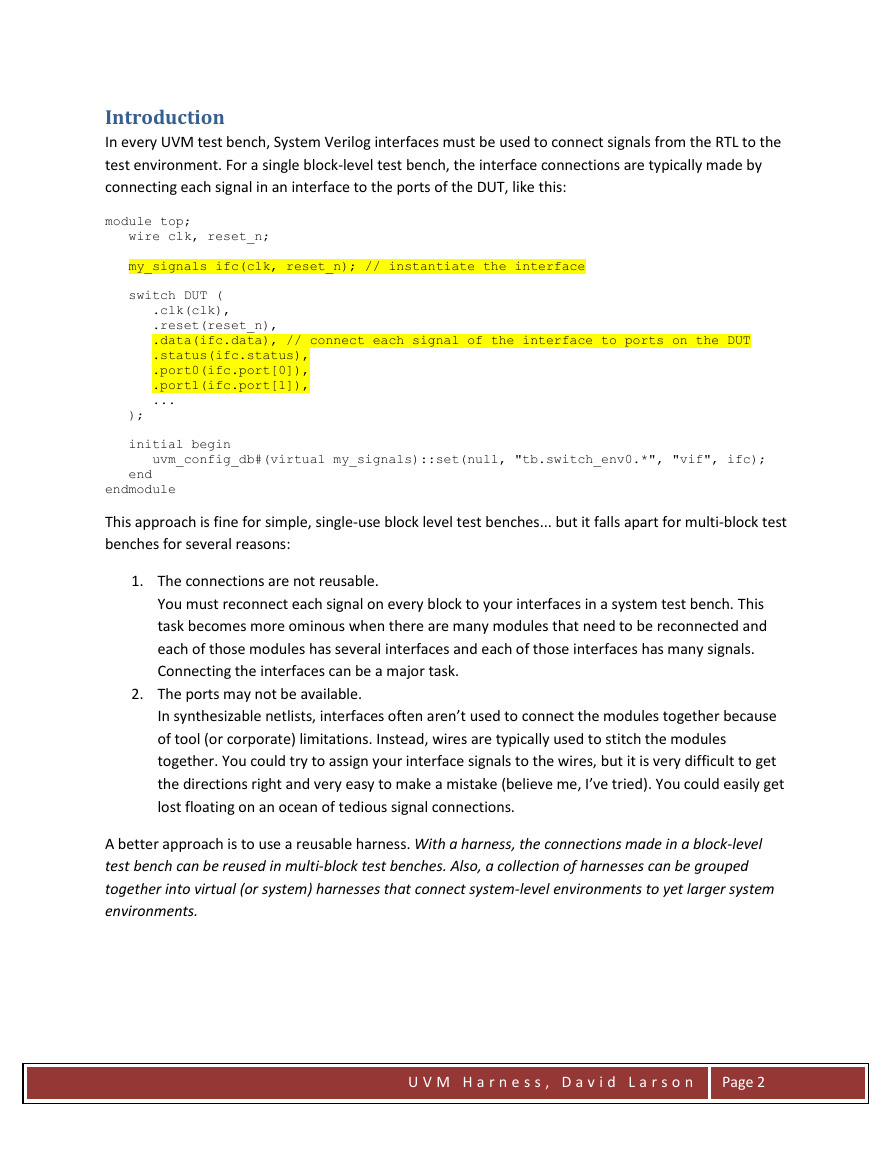

Introduction
In every UVM test bench, System Verilog interfaces must be used to connect signals from the RTL to the
test environment. For a single block-level test bench, the interface connections are typically made by
connecting each signal in an interface to the ports of the DUT, like this:
module top;
wire clk, reset_n;
my_signals ifc(clk, reset_n); // instantiate the interface
switch DUT (
.clk(clk),
.reset(reset_n),
.data(ifc.data), // connect each signal of the interface to ports on the DUT
.status(ifc.status),
.port0(ifc.port[0]),
.port1(ifc.port[1]),
...
);
initial begin
uvm_config_db#(virtual my_signals)::set(null, "tb.switch_env0.*", "vif", ifc);
end
endmodule
This approach is fine for simple, single-use block level test benches... but it falls apart for multi-block test
benches for several reasons:
1. The connections are not reusable.
You must reconnect each signal on every block to your interfaces in a system test bench. This
task becomes more ominous when there are many modules that need to be reconnected and
each of those modules has several interfaces and each of those interfaces has many signals.
Connecting the interfaces can be a major task.
2. The ports may not be available.
In synthesizable netlists, interfaces often aren’t used to connect the modules together because
of tool (or corporate) limitations. Instead, wires are typically used to stitch the modules
together. You could try to assign your interface signals to the wires, but it is very difficult to get
the directions right and very easy to make a mistake (believe me, I’ve tried). You could easily get
lost floating on an ocean of tedious signal connections.
A better approach is to use a reusable harness. With a harness, the connections made in a block-level
test bench can be reused in multi-block test benches. Also, a collection of harnesses can be grouped
together into virtual (or system) harnesses that connect system-level environments to yet larger system
environments.
U V M H a r n e s s , D a v i d L a r s o n
Page 2

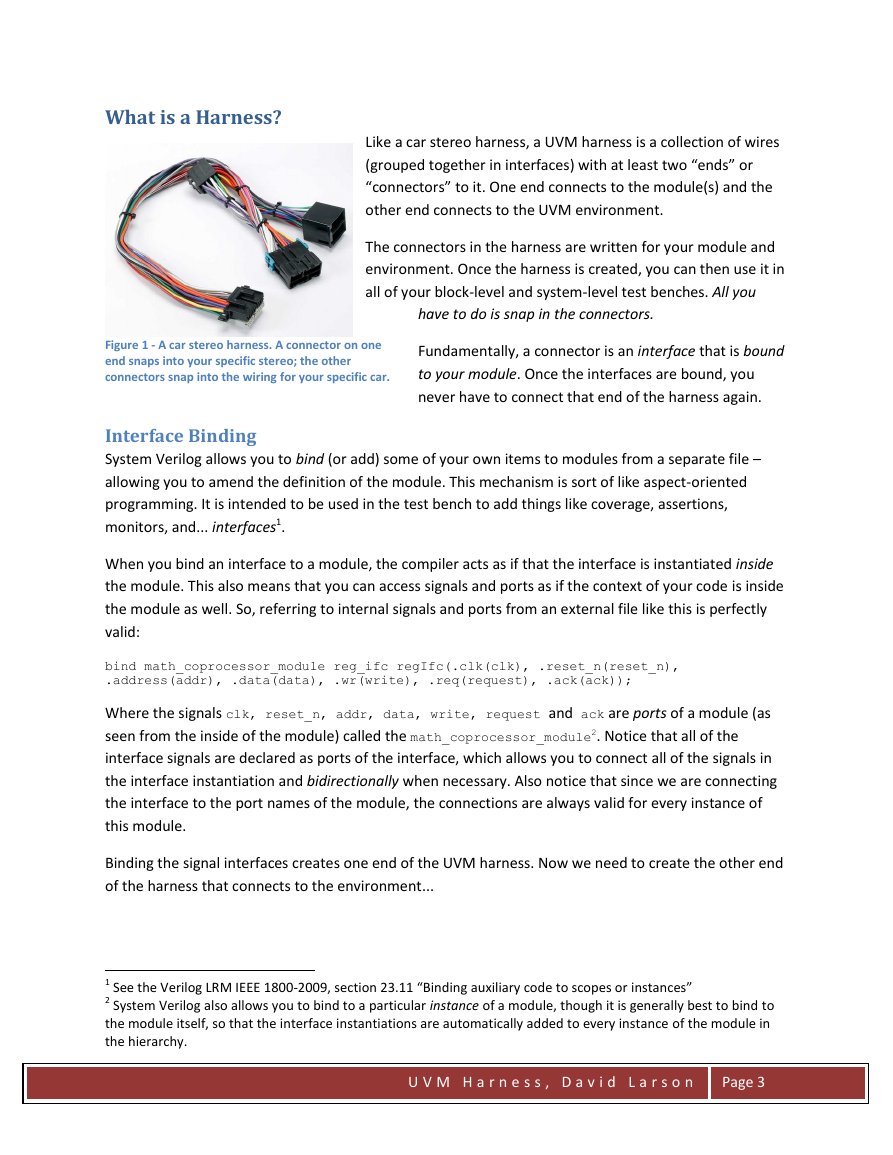

What is a Harness?
Like a car stereo harness, a UVM harness is a collection of wires
(grouped together in interfaces) with at least two “ends” or
“connectors” to it. One end connects to the module(s) and the
other end connects to the UVM environment.
The connectors in the harness are written for your module and
environment. Once the harness is created, you can then use it in
all of your block-level and system-level test benches. All you
have to do is snap in the connectors.
Figure 1 - A car stereo harness. A connector on one
end snaps into your specific stereo; the other
connectors snap into the wiring for your specific car.
Fundamentally, a connector is an interface that is bound
to your module. Once the interfaces are bound, you
never have to connect that end of the harness again.
Interface Binding
System Verilog allows you to bind (or add) some of your own items to modules from a separate file –
allowing you to amend the definition of the module. This mechanism is sort of like aspect-oriented
programming. It is intended to be used in the test bench to add things like coverage, assertions,
monitors, and... interfaces1.
When you bind an interface to a module, the compiler acts as if that the interface is instantiated inside
the module. This also means that you can access signals and ports as if the context of your code is inside
the module as well. So, referring to internal signals and ports from an external file like this is perfectly
valid:
bind math_coprocessor_module reg_ifc regIfc(.clk(clk), .reset_n(reset_n),
.address(addr), .data(data), .wr(write), .req(request), .ack(ack));
Where the signals clk, reset_n, addr, data, write, request and ack are ports of a module (as
seen from the inside of the module) called the math_coprocessor_module2. Notice that all of the
interface signals are declared as ports of the interface, which allows you to connect all of the signals in
the interface instantiation and bidirectionally when necessary. Also notice that since we are connecting
the interface to the port names of the module, the connections are always valid for every instance of
this module.
Binding the signal interfaces creates one end of the UVM harness. Now we need to create the other end
of the harness that connects to the environment...
1 See the Verilog LRM IEEE 1800-2009, section 23.11 “Binding auxiliary code to scopes or instances”
2 System Verilog also allows you to bind to a particular instance of a module, though it is generally best to bind to
the module itself, so that the interface instantiations are automatically added to every instance of the module in
the hierarchy.
U V M H a r n e s s , D a v i d L a r s o n
Page 3

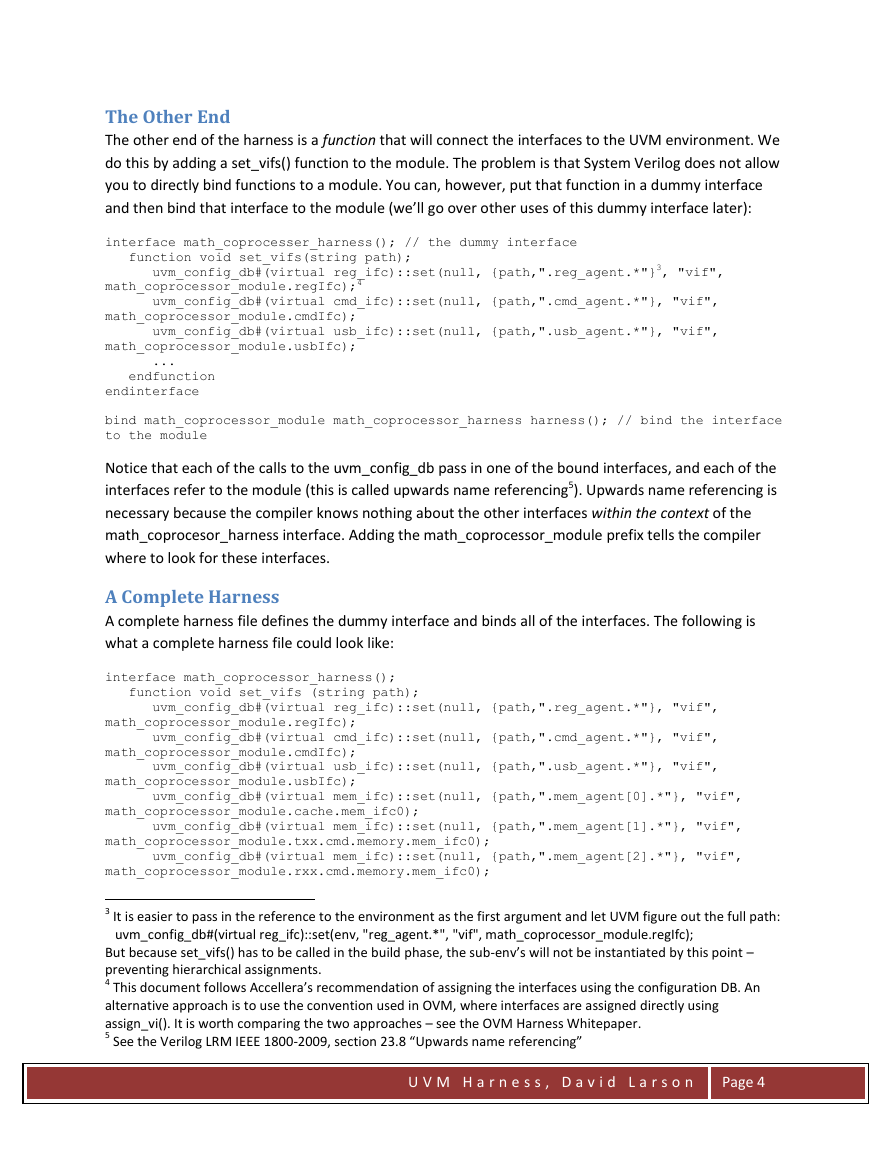

The Other End
The other end of the harness is a function that will connect the interfaces to the UVM environment. We
do this by adding a set_vifs() function to the module. The problem is that System Verilog does not allow
you to directly bind functions to a module. You can, however, put that function in a dummy interface
and then bind that interface to the module (we’ll go over other uses of this dummy interface later):
interface math_coprocesser_harness(); // the dummy interface
function void set_vifs(string path);
uvm_config_db#(virtual reg_ifc)::set(null, {path,".reg_agent.*"}3, "vif",
math_coprocessor_module.regIfc);4
uvm_config_db#(virtual cmd_ifc)::set(null, {path,".cmd_agent.*"}, "vif",
math_coprocessor_module.cmdIfc);
uvm_config_db#(virtual usb_ifc)::set(null, {path,".usb_agent.*"}, "vif",
math_coprocessor_module.usbIfc);
...
endfunction
endinterface
bind math_coprocessor_module math_coprocessor_harness harness(); // bind the interface
to the module
Notice that each of the calls to the uvm_config_db pass in one of the bound interfaces, and each of the
interfaces refer to the module (this is called upwards name referencing5). Upwards name referencing is
necessary because the compiler knows nothing about the other interfaces within the context of the
math_coprocesor_harness interface. Adding the math_coprocessor_module prefix tells the compiler
where to look for these interfaces.

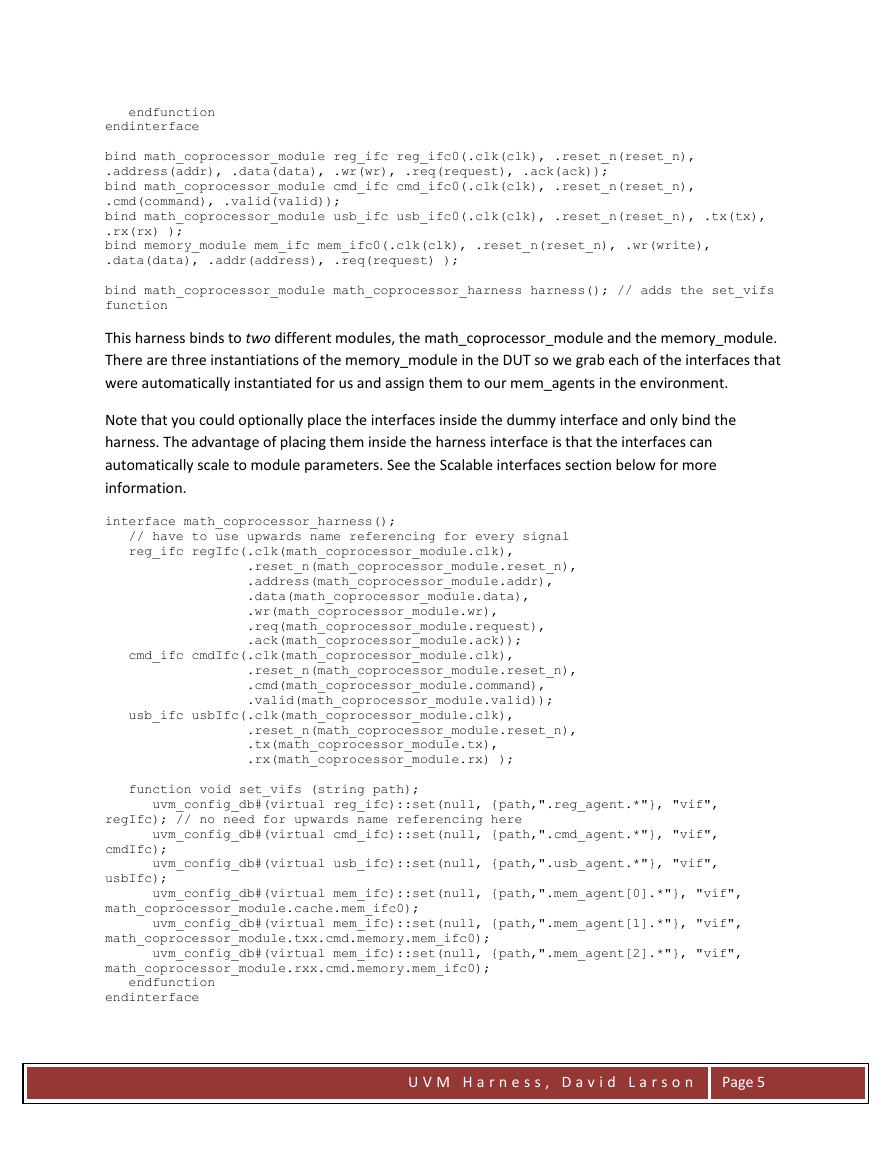

A Complete Harness
A complete harness file defines the dummy interface and binds all of the interfaces. The following is
what a complete harness file could look like:
interface math_coprocessor_harness();
function void set_vifs (string path);
uvm_config_db#(virtual reg_ifc)::set(null, {path,".reg_agent.*"}, "vif",
math_coprocessor_module.regIfc);
uvm_config_db#(virtual cmd_ifc)::set(null, {path,".cmd_agent.*"}, "vif",
math_coprocessor_module.cmdIfc);
uvm_config_db#(virtual usb_ifc)::set(null, {path,".usb_agent.*"}, "vif",
math_coprocessor_module.usbIfc);
uvm_config_db#(virtual mem_ifc)::set(null, {path,".mem_agent[0].*"}, "vif",
math_coprocessor_module.cache.mem_ifc0);
uvm_config_db#(virtual mem_ifc)::set(null, {path,".mem_agent[1].*"}, "vif",
math_coprocessor_module.txx.cmd.memory.mem_ifc0);
uvm_config_db#(virtual mem_ifc)::set(null, {path,".mem_agent[2].*"}, "vif",
math_coprocessor_module.rxx.cmd.memory.mem_ifc0);
3 It is easier to pass in the reference to the environment as the first argument and let UVM figure out the full path:
uvm_config_db#(virtual reg_ifc)::set(env, "reg_agent.*", "vif", math_coprocessor_module.regIfc);
But because set_vifs() has to be called in the build phase, the sub-env’s will not be instantiated by this point –
preventing hierarchical assignments.
4 This document follows Accellera’s recommendation of assigning the interfaces using the configuration DB. An
alternative approach is to use the convention used in OVM, where interfaces are assigned directly using
assign_vi(). It is worth comparing the two approaches – see the OVM Harness Whitepaper.
5 See the Verilog LRM IEEE 1800-2009, section 23.8 “Upwards name referencing”
U V M H a r n e s s , D a v i d L a r s o n
Page 4
endfunction
endinterface
bind math_coprocessor_module reg_ifc reg_ifc0(.clk(clk), .reset_n(reset_n),
.address(addr), .data(data), .wr(wr), .req(request), .ack(ack));
bind math_coprocessor_module cmd_ifc cmd_ifc0(.clk(clk), .reset_n(reset_n),
.cmd(command), .valid(valid));
bind math_coprocessor_module usb_ifc usb_ifc0(.clk(clk), .reset_n(reset_n), .tx(tx),
.rx(rx) );
bind memory_module mem_ifc mem_ifc0(.clk(clk), .reset_n(reset_n), .wr(write),
.data(data), .addr(address), .req(request) );
bind math_coprocessor_module math_coprocessor_harness harness(); // adds the set_vifs
function
This harness binds to two different modules, the math_coprocessor_module and the memory_module.
There are three instantiations of the memory_module in the DUT so we grab each of the interfaces that
were automatically instantiated for us and assign them to our mem_agents in the environment.
Note that you could optionally place the interfaces inside the dummy interface and only bind the
harness. The advantage of placing them inside the harness interface is that the interfaces can
automatically scale to module parameters. See the Scalable interfaces section below for more
information.
interface math_coprocessor_harness();
// have to use upwards name referencing for every signal
reg_ifc regIfc(.clk(math_coprocessor_module.clk),
.reset_n(math_coprocessor_module.reset_n),
.address(math_coprocessor_module.addr),
.data(math_coprocessor_module.data),
.wr(math_coprocessor_module.wr),
.req(math_coprocessor_module.request),
.ack(math_coprocessor_module.ack));
cmd_ifc cmdIfc(.clk(math_coprocessor_module.clk),
.reset_n(math_coprocessor_module.reset_n),
.cmd(math_coprocessor_module.command),
.valid(math_coprocessor_module.valid));
usb_ifc usbIfc(.clk(math_coprocessor_module.clk),
.reset_n(math_coprocessor_module.reset_n),
.tx(math_coprocessor_module.tx),
.rx(math_coprocessor_module.rx) );
function void set_vifs (string path);
uvm_config_db#(virtual reg_ifc)::set(null, {path,".reg_agent.*"}, "vif",
regIfc); // no need for upwards name referencing here
uvm_config_db#(virtual cmd_ifc)::set(null, {path,".cmd_agent.*"}, "vif",
cmdIfc);
uvm_config_db#(virtual usb_ifc)::set(null, {path,".usb_agent.*"}, "vif",
usbIfc);
uvm_config_db#(virtual mem_ifc)::set(null, {path,".mem_agent[0].*"}, "vif",
math_coprocessor_module.cache.mem_ifc0);
uvm_config_db#(virtual mem_ifc)::set(null, {path,".mem_agent[1].*"}, "vif",
math_coprocessor_module.txx.cmd.memory.mem_ifc0);
uvm_config_db#(virtual mem_ifc)::set(null, {path,".mem_agent[2].*"}, "vif",
math_coprocessor_module.rxx.cmd.memory.mem_ifc0);
endfunction
endinterface
U V M H a r n e s s , D a v i d L a r s o n
Page 5
bind memory_module mem_ifc mem_ifc0(.clk(clk), .reset_n(reset_n), .wr(write),
.data(data), .addr(address), .req(request) );
bind math_coprocessor_module math_coprocessor_harness harness(); // only one bind
There are two minor disadvantages to this alternate approach though:
1. Upwards name referencing has to be used for the signals connections to internal interfaces.
2. Only interfaces that are to be bound to the DUT can be placed in the dummy interface. All of the
other ones (if any) have to remain outside (like the memory_module in our example).

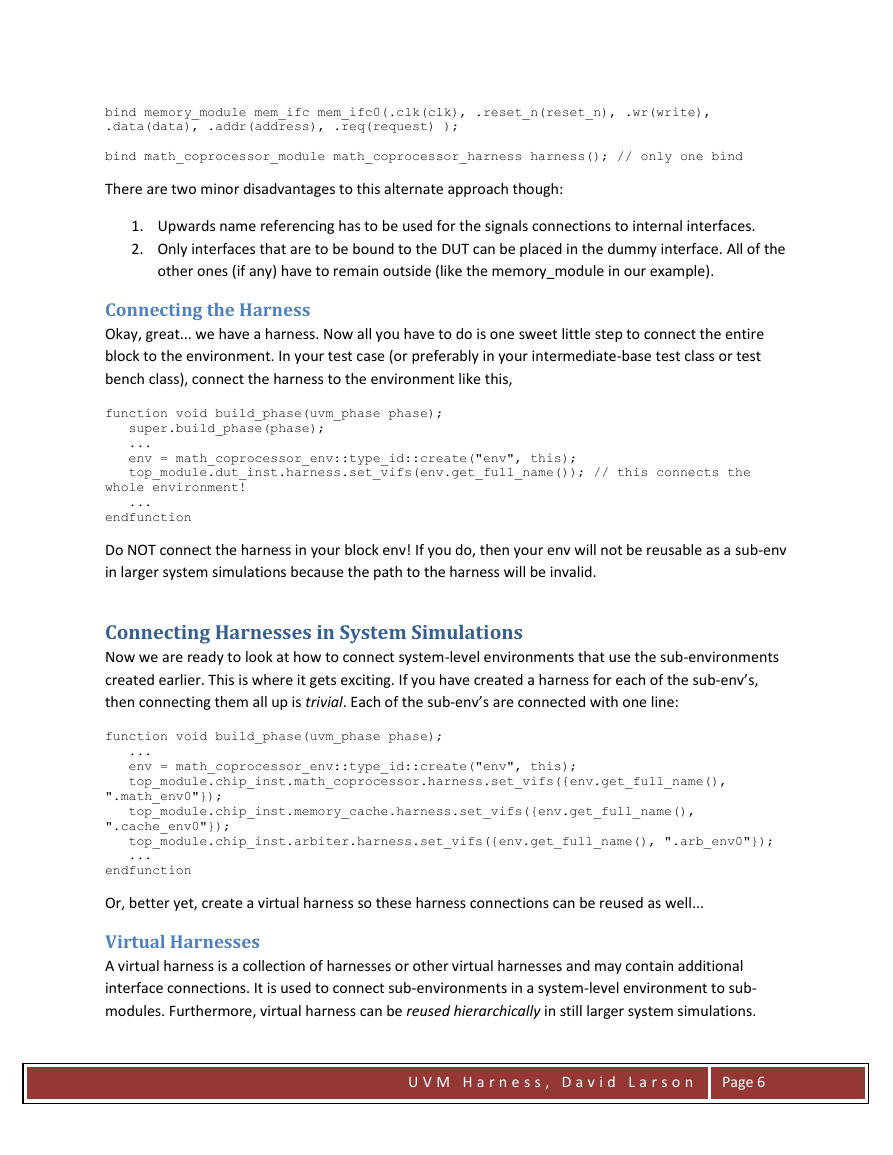

Connecting the Harness
Okay, great... we have a harness. Now all you have to do is one sweet little step to connect the entire
block to the environment. In your test case (or preferably in your intermediate-base test class or test
bench class), connect the harness to the environment like this,
function void build_phase(uvm_phase phase);
super.build_phase(phase);
...
env = math_coprocessor_env::type_id::create("env", this);
top_module.dut_inst.harness.set_vifs(env.get_full_name()); // this connects the
whole environment!
...
endfunction
Do NOT connect the harness in your block env! If you do, then your env will not be reusable as a sub-env
in larger system simulations because the path to the harness will be invalid.
Connecting Harnesses in System Simulations
Now we are ready to look at how to connect system-level environments that use the sub-environments
created earlier. This is where it gets exciting. If you have created a harness for each of the sub-env’s,
then connecting them all up is trivial. Each of the sub-env’s are connected with one line:
function void build_phase(uvm_phase phase);
...
env = math_coprocessor_env::type_id::create("env", this);
top_module.chip_inst.math_coprocessor.harness.set_vifs({env.get_full_name(),
".math_env0"});
top_module.chip_inst.memory_cache.harness.set_vifs({env.get_full_name(),
".cache_env0"});
top_module.chip_inst.arbiter.harness.set_vifs({env.get_full_name(), ".arb_env0"});
...
endfunction
Or, better yet, create a virtual harness so these harness connections can be reused as well...
Virtual Harnesses
A virtual harness is a collection of harnesses or other virtual harnesses and may contain additional
interface connections. It is used to connect sub-environments in a system-level environment to sub-
modules. Furthermore, virtual harness can be reused hierarchically in still larger system simulations.
U V M H a r n e s s , D a v i d L a r s o n
Page 6
interface chip_virtual_harness ();
function void set_vifs(string path);
// connect the sub-harnesses using upwards name referencing
chip_module.math.harness.set_vifs({path, ".math_env"});
chip_module.regs.harness.set_vifs({path, ".regs_env"});
chip_module.sys.harness.set_vifs({path, ".sys_env"});
// ... others ...
// connect agents used in this environment (if any)
uvm_config_db#(virtual jtag_ifc)::set(null, {path,".jtag_agent.*"}, "vif",
chip_module.jtagIfc);
// ... others ...
endfunction
endinterface
bind chip_module jtag_ifc jtagIfc(.clk(tck), .reset(trst), .data_in(tdi),
.data_out(tdo), .test_mode_select(tms));
bind chip_module chip_virtual_harness harness();
Notice that we use upwards name referencing when connecting the sub-harnesses to the sub-
environments. That allows the virtual harness to be reused in larger test benches since the path to the
sub-harnesses are still correct with respect to the definition of the module.
Now in the test, you only have to connect the virtual harness to connect all the signals for this block and
all sub-blocks:
top.dxx.chip.harness.set_vifs(env.get_full_name()); // BAM! Hierarchically connect
everything!

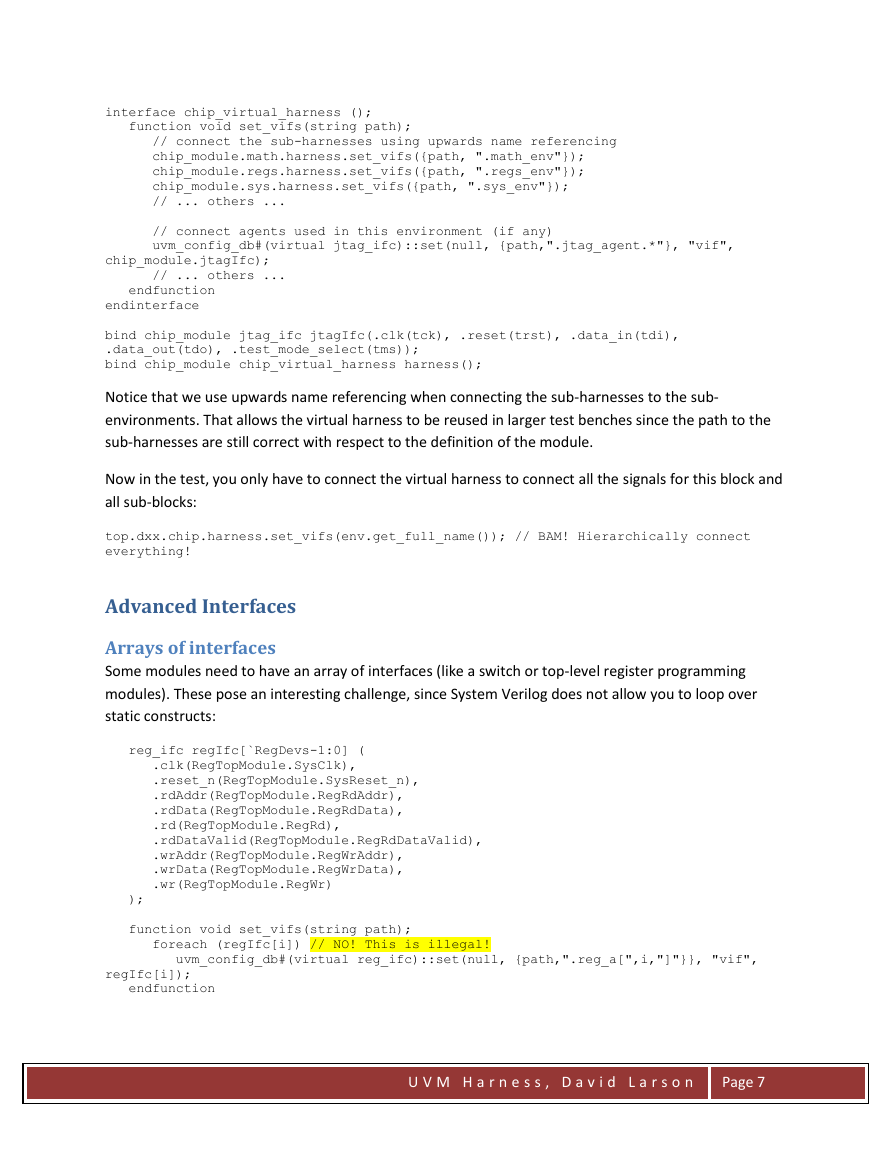

Advanced Interfaces
Arrays of interfaces
Some modules need to have an array of interfaces (like a switch or top-level register programming
modules). These pose an interesting challenge, since System Verilog does not allow you to loop over
static constructs:
reg_ifc regIfc[`RegDevs-1:0] (
.clk(RegTopModule.SysClk),
.reset_n(RegTopModule.SysReset_n),
.rdAddr(RegTopModule.RegRdAddr),
.rdData(RegTopModule.RegRdData),
.rd(RegTopModule.RegRd),
.rdDataValid(RegTopModule.RegRdDataValid),
.wrAddr(RegTopModule.RegWrAddr),
.wrData(RegTopModule.RegWrData),
.wr(RegTopModule.RegWr)
);
function void set_vifs(string path);
foreach (regIfc[i]) // NO! This is illegal!
uvm_config_db#(virtual reg_ifc)::set(null, {path,".reg_a[",i,"]"}}, "vif",
regIfc[i]);
endfunction
U V M H a r n e s s , D a v i d L a r s o n
Page 7
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
