华擎主板-775Twins-HDTV R2.0(BIOS设置)说明书.pdf

发布时间：2022-05-11 发布人：admin 分类：说明书资料大小：1.05M 资料格式：pdf 举报版权申诉

第1页 / 共15页

第2页 / 共15页

第3页 / 共15页

第4页 / 共15页

第5页 / 共15页

第6页 / 共15页

第7页 / 共15页

第8页 / 共15页

文本预览

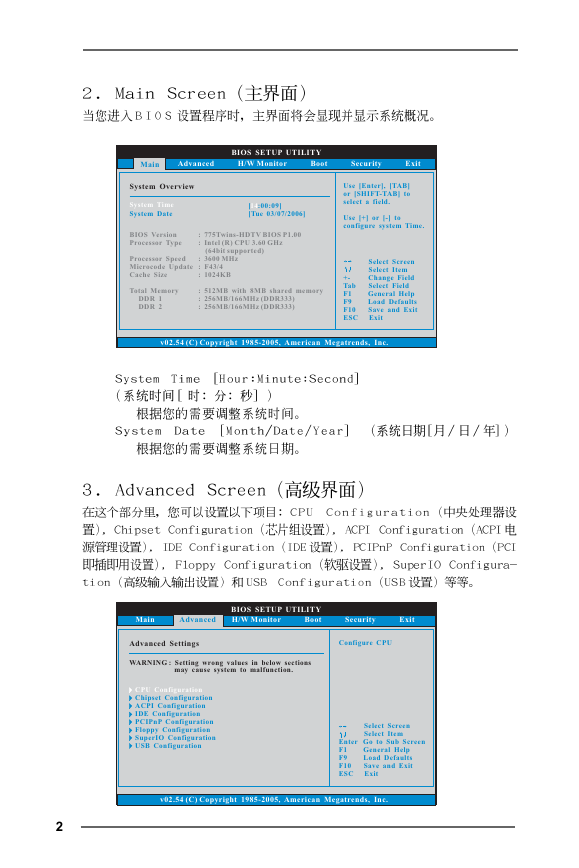

Main Advanced H/W Monitor Boot Security Exit BIOS SETUP UTILITY System Overview System Time System Date :00:09] [ 14 [Tue 03/07/2006] BIOS Version Processor Type : 775Twins-HDTV BIOS P1.00 : Intel (R) CPU 3.60 GHz (64bit supported) Processor Speed Microcode Update Cache Size : 3600 MHz : F43/4 : 1024KB Total Memory DDR 1 DDR 2 : 512MB with 8MB shared memory : 256MB/166MHz (DDR333) : 256MB/166MHz (DDR333) Use [Enter], [TAB] or [SHIFT-TAB] to select a field. Use [+] or [-] to configure system Time. Select Screen Select Item Change Field Select Field General Help Load Defaults Save and Exit Exit +- Tab F1 F9 F10 ESC v02.54 (C) Copyright 1985-2005, American Megatrends, Inc. Main Advanced BIOS SETUP UTILITY H/W Monitor Boot Security Exit Advanced Settings Configure CPU WARNING : Setting wrong values in below sections may cause system to malfunction. CPU Configuration Chipset Configuration ACPI Configuration IDE Configuration PCIPnP Configuration Floppy Configuration SuperIO Configuration USB Configuration Select Screen Select Item Enter Go to Sub Screen F1 F9 F10 ESC General Help Load Defaults Save and Exit Exit v02.54 (C) Copyright 1985-2005, American Megatrends, Inc. 2

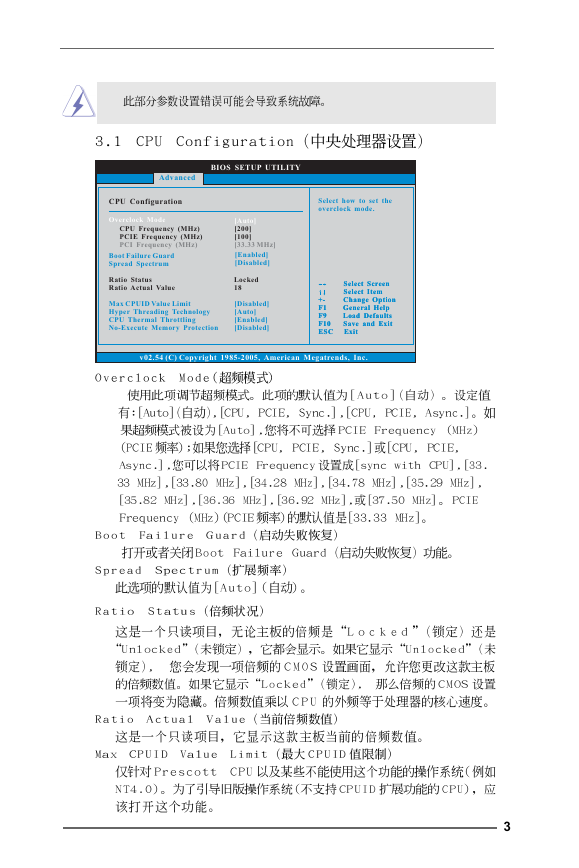

BIOS SETUP UTILITY Advanced CPU Configuration Overclock Mode CPU Frequency (MHz) PCIE Frequency (MHz) PCI Frequency (MHz) Boot Failure Guard Spread Spectrum Ratio Status Ratio Actual Value [Auto] [200] [100] [33.33 MHz] [Enabled] [Disabled] Locked 18 Max CPUID Value Limit Hyper Threading Technology CPU Thermal Throttling No-Execute Memory Protection [Disabled] [Auto] [Enabled] [Disabled] Select how to set the overclock mode. Select Screen Select Screen Select Item Select Item Change Option Change Option General Help General Help Load Defaults Load Defaults Save and Exit Save and Exit Exit Exit +- +- F1 F1 F9 F9 F10 F10 ESC ESC v02.54 (C) Copyright 1985-2005, American Megatrends, Inc. 3

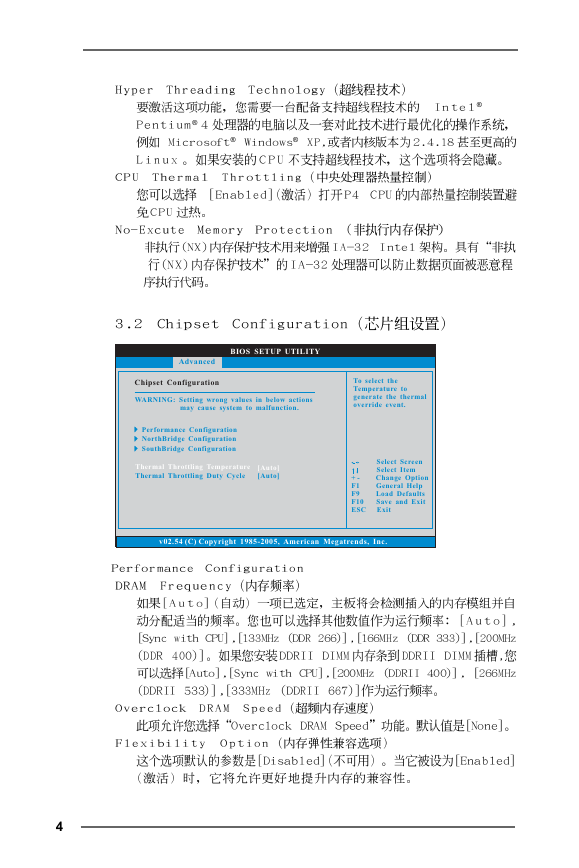

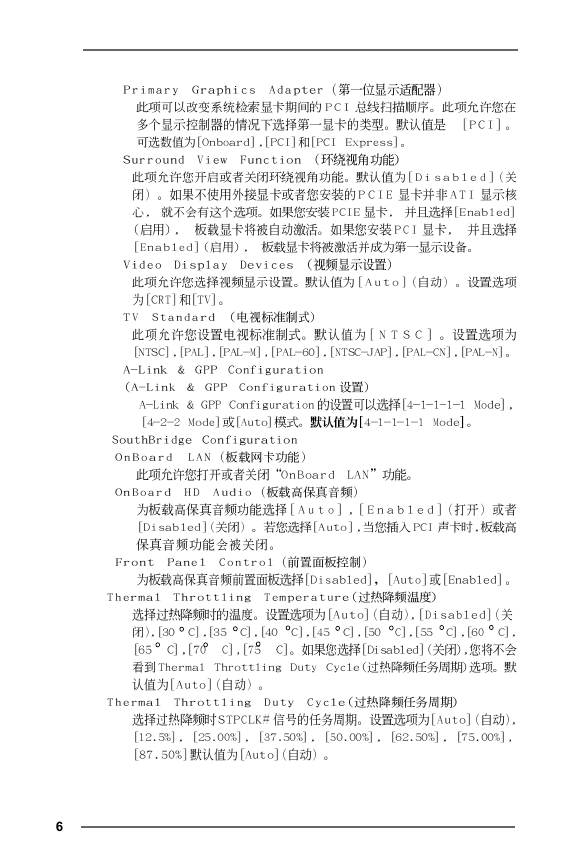

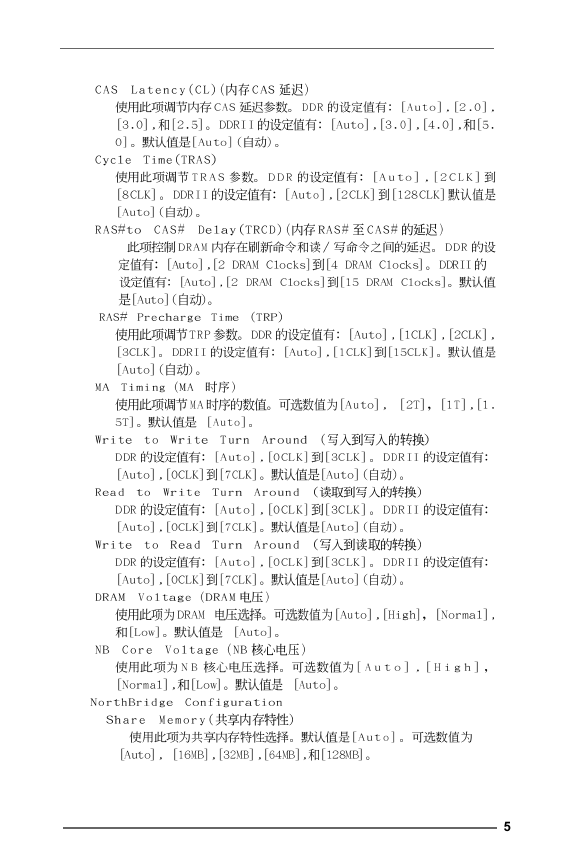

® ® ® ® BIOS SETUP UTILITY Advanced Chipset Configuration WARNING: Setting wrong values in below actions may cause system to malfunction. To select the Temperature to generate the thermal override event. Performance Configuration NorthBridge Configuration SouthBridge Configuration Thermal Throttling Temperature Thermal Throttling Duty Cycle [Auto] [Auto] Select Screen Select Item Change Option General Help Load Defaults Save and Exit Exit + - F1 F9 F10 ESC v02.54 (C) Copyright 1985-2005, American Megatrends, Inc. 4

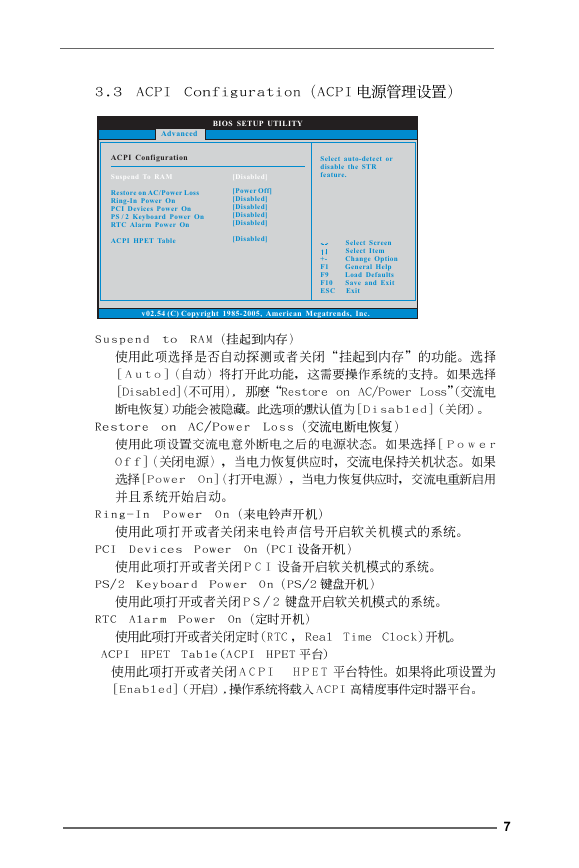

BIOS SETUP UTILITY Advanced ACPI Configuration Suspend To RAM Restore on AC/Power Loss Ring-In Power On PCI Devices Power On PS / 2 Keyboard Power On RTC Alarm Power On ACPI HPET Table [Disabled] [Power Off] [Disabled] [Disabled] [Disabled] [Disabled] [Disabled] Select auto-detect or disable the STR feature. Select Screen Select Item Change Option General Help Load Defaults Save and Exit Exit +- F1 F9 F10 ESC v02.54 (C) Copyright 1985-2005, American Megatrends, Inc. 7

BIOS SETUP UTILITY Advanced IDE Configuration ATA Combination Mode OnBoard IDE Controller OnBoard SATA Controller SATA Class Code [Disabled] [Both] [Enabled] [AHCI] Primary IDE Master Primary IDE Slave Secondary IDE Master Secondary IDE Slave [Hard Disk] [Not Detected] [ATAPI CDROM] [Not Detected] DISABLED: disables the integrated IDE Controller. PRIMARY: enables only the Primary IDE Controller. SECONDARY: enables only the Secondary IDE Controller. BOTH: enables both IDE Controllers. Select Screen Select Screen Select Item Select Item Change Option Change Option General Help General Help Load Defaults Load Defaults Save and Exit Save and Exit Exit Exit +- +- F1 F1 F9 F9 F10 F10 ESC ESC v02.54 (C) Copyright 1985-2005, American Megatrends, Inc. 8
