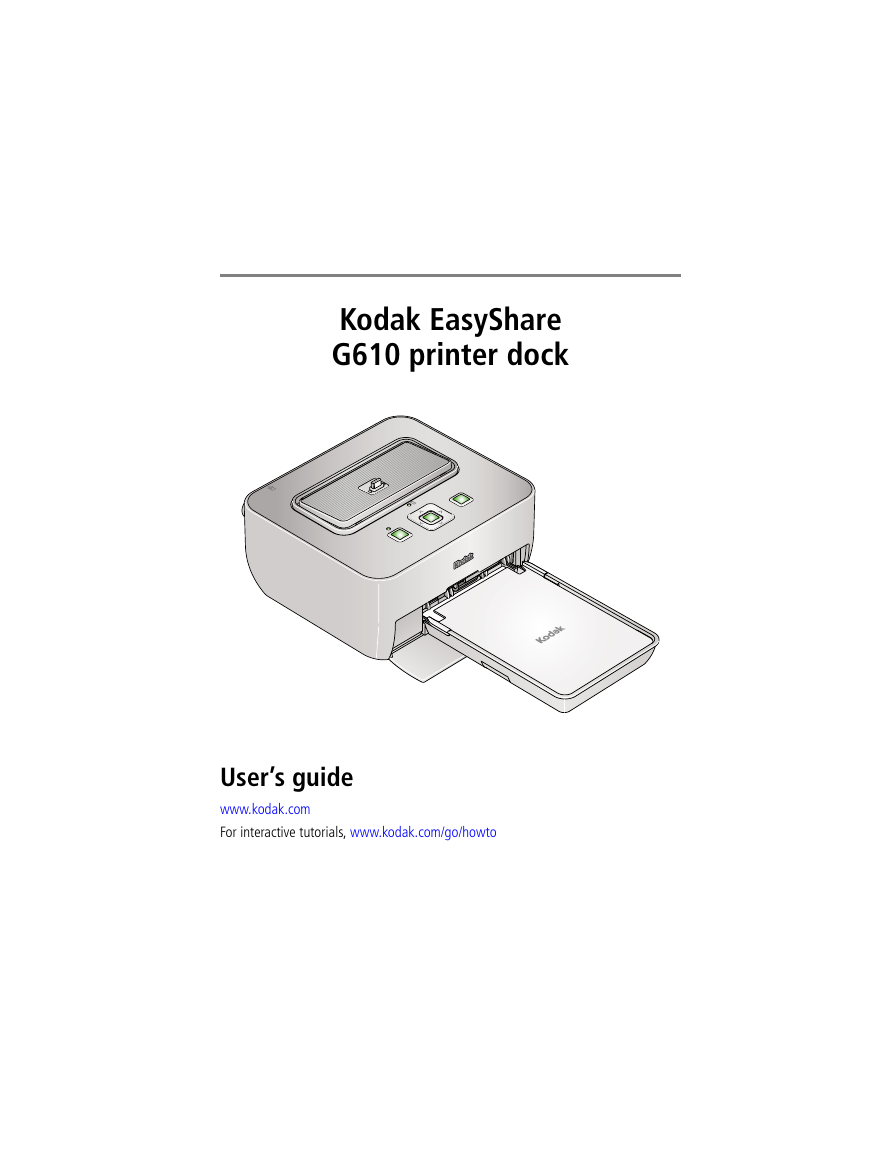

Kodak EasyShare G610 printer dock User’s guide www.kodak.com For interactive tutorials, www.kodak.com/go/howto

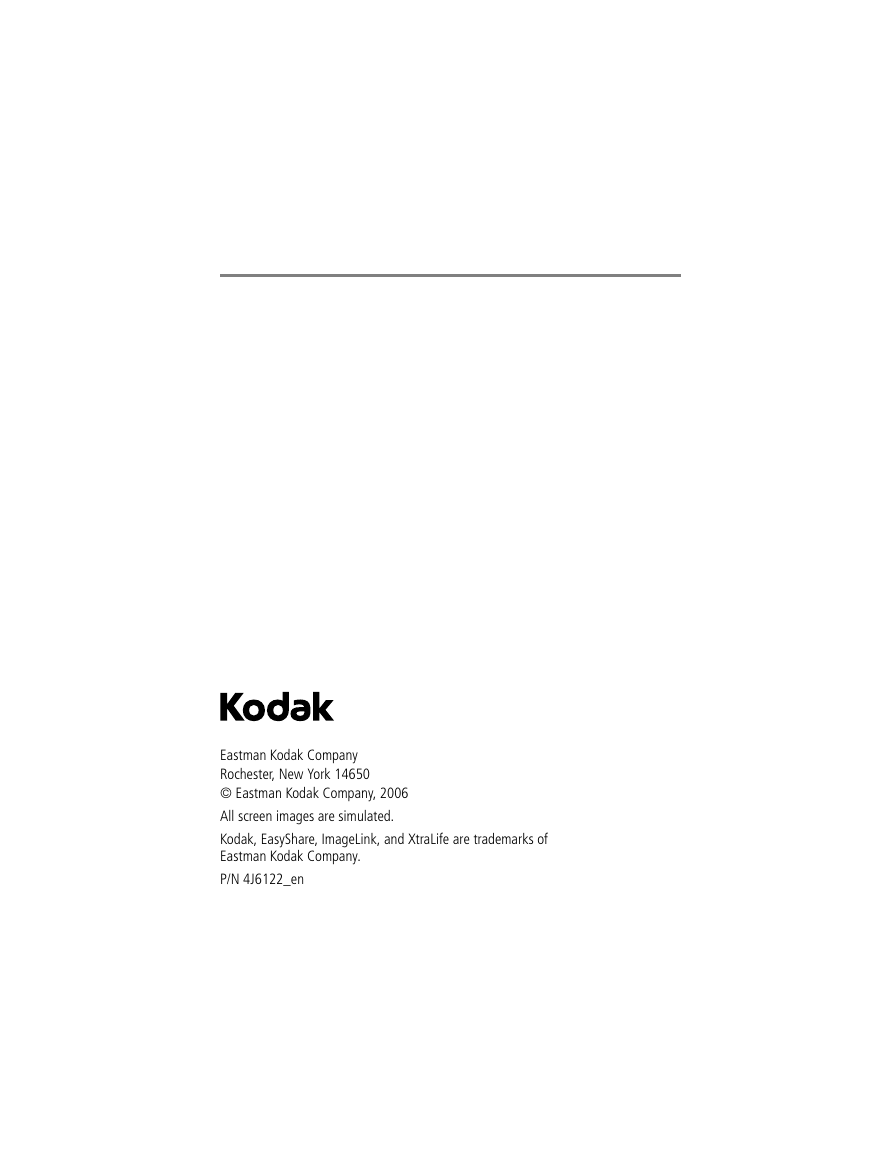

Eastman Kodak Company Rochester, New York 14650 © Eastman Kodak Company, 2006 All screen images are simulated. Kodak, EasyShare, ImageLink, and XtraLife are trademarks of Eastman Kodak Company. P/N 4J6122_en

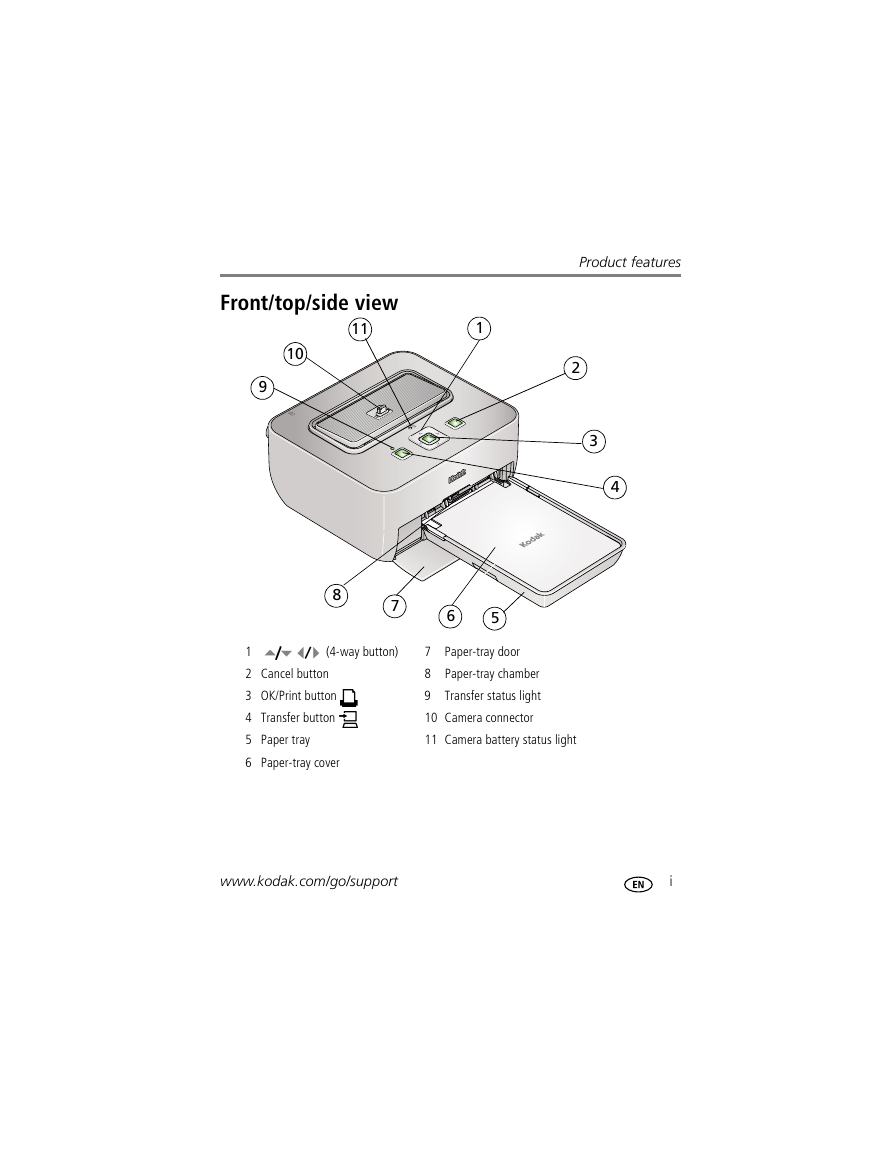

Front/top/side view 11 1 10 9 Product features 2 3 4 8 7 6 5 (4-way button) 1 2 Cancel button 3 OK/Print button 4 Transfer button 5 Paper tray 6 Paper-tray cover Paper-tray door 7 Paper-tray chamber 8 Transfer status light 9 10 Camera connector 11 Camera battery status light www.kodak.com/go/support i

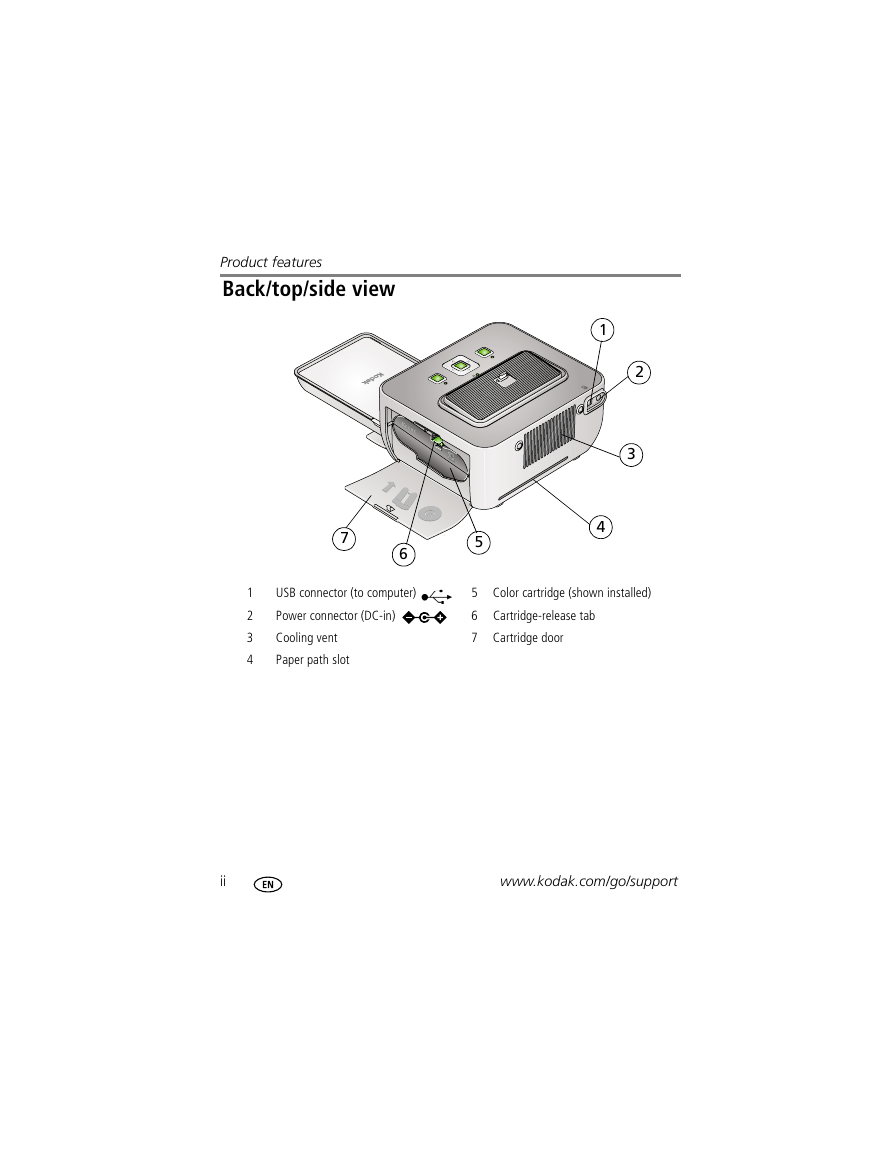

Product features Back/top/side view 2 3 1 4 7 6 5 1 2 3 4 USB connector (to computer) Power connector (DC-in) Cooling vent Paper path slot 5 6 7 Color cartridge (shown installed) Cartridge-release tab Cartridge door ii www.kodak.com/go/support

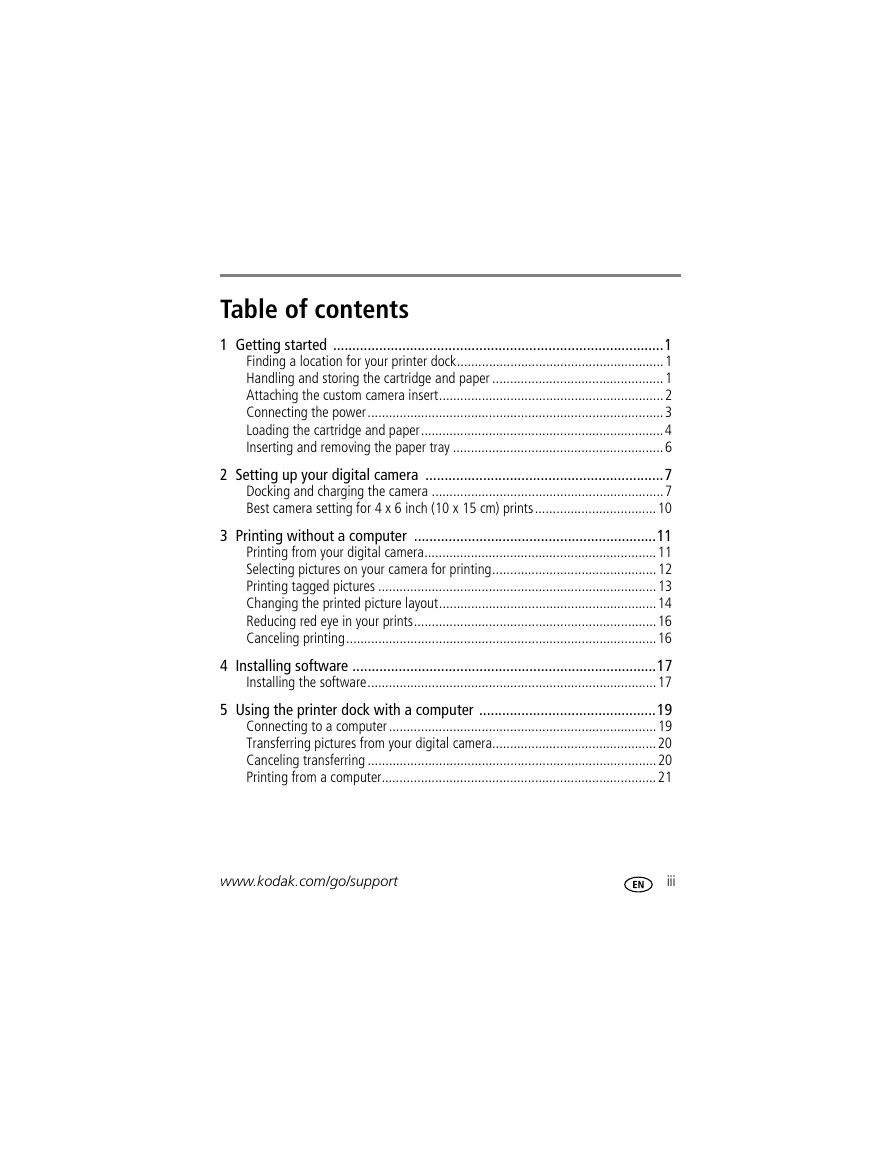

1 Table of contents 1 Getting started ......................................................................................1 Finding a location for your printer dock..........................................................1 Handling and storing the cartridge and paper ................................................1 Attaching the custom camera insert...............................................................2 Connecting the power...................................................................................3 Loading the cartridge and paper....................................................................4 Inserting and removing the paper tray ...........................................................6 2 Setting up your digital camera ..............................................................7 Docking and charging the camera .................................................................7 Best camera setting for 4 x 6 inch (10 x 15 cm) prints..................................10 3 Printing without a computer ...............................................................11 Printing from your digital camera.................................................................11 Selecting pictures on your camera for printing..............................................12 Printing tagged pictures ..............................................................................13 Changing the printed picture layout.............................................................14 Reducing red eye in your prints....................................................................16 Canceling printing.......................................................................................16 4 Installing software ...............................................................................17 Installing the software.................................................................................17 5 Using the printer dock with a computer ..............................................19 Connecting to a computer ...........................................................................19 Transferring pictures from your digital camera..............................................20 Canceling transferring .................................................................................20 Printing from a computer.............................................................................21 www.kodak.com/go/support iii

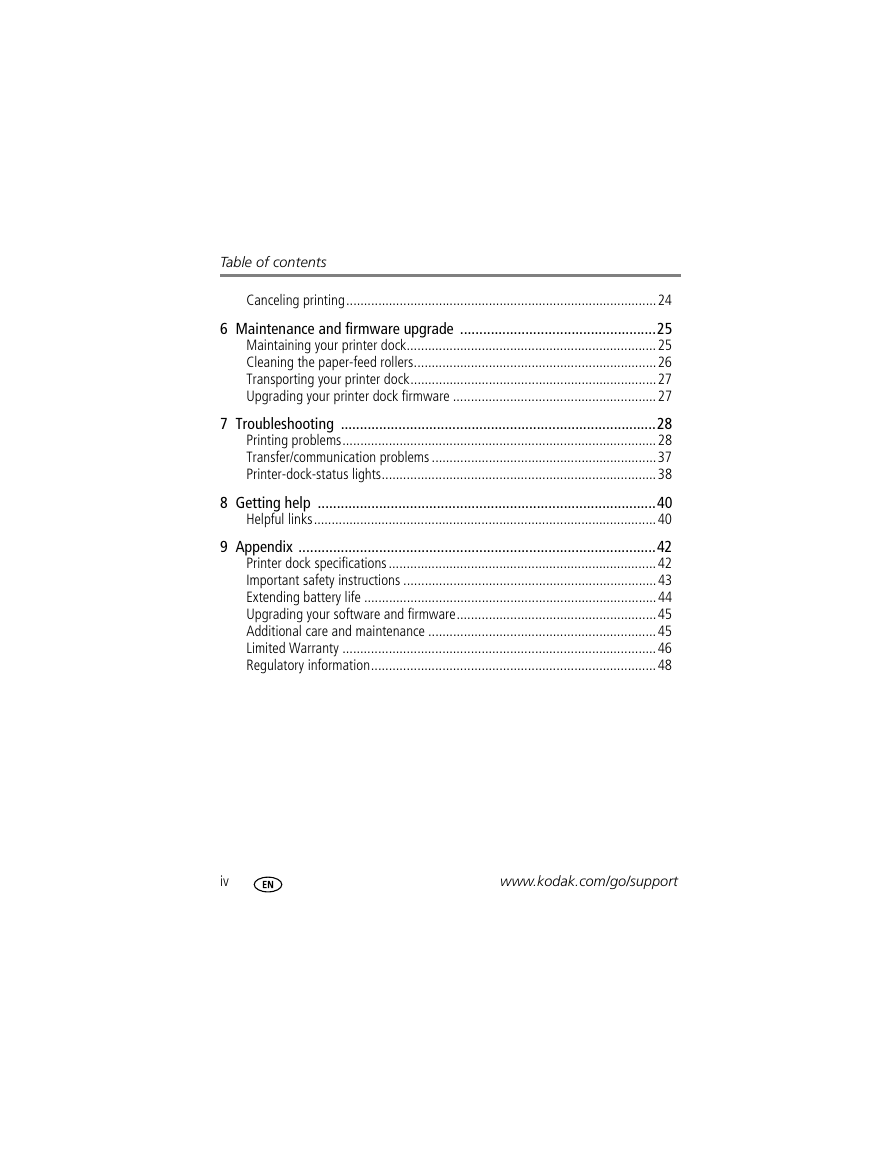

Table of contents Canceling printing.......................................................................................24 6 Maintenance and firmware upgrade ...................................................25 Maintaining your printer dock......................................................................25 Cleaning the paper-feed rollers....................................................................26 Transporting your printer dock.....................................................................27 Upgrading your printer dock firmware .........................................................27 7 Troubleshooting ..................................................................................28 Printing problems........................................................................................28 Transfer/communication problems ...............................................................37 Printer-dock-status lights.............................................................................38 8 Getting help ........................................................................................40 Helpful links................................................................................................40 9 Appendix .............................................................................................42 Printer dock specifications ...........................................................................42 Important safety instructions .......................................................................43 Extending battery life ..................................................................................44 Upgrading your software and firmware........................................................45 Additional care and maintenance ................................................................45 Limited Warranty ........................................................................................46 Regulatory information................................................................................48 iv www.kodak.com/go/support

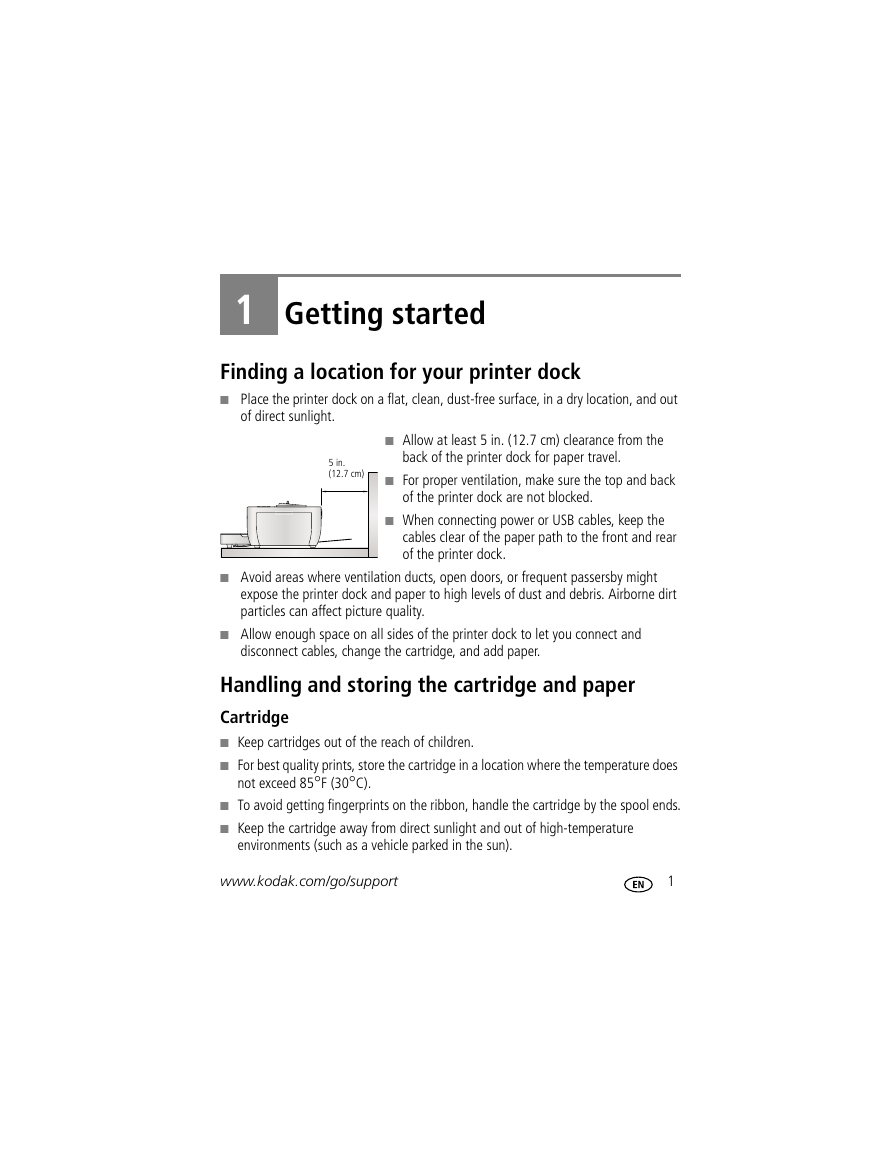

1 Getting started Finding a location for your printer dock I Place the printer dock on a flat, clean, dust-free surface, in a dry location, and out of direct sunlight. 5 in. (12.7 cm) I Allow at least 5 in. (12.7 cm) clearance from the back of the printer dock for paper travel. I For proper ventilation, make sure the top and back of the printer dock are not blocked. I When connecting power or USB cables, keep the cables clear of the paper path to the front and rear of the printer dock. I Avoid areas where ventilation ducts, open doors, or frequent passersby might expose the printer dock and paper to high levels of dust and debris. Airborne dirt particles can affect picture quality. I Allow enough space on all sides of the printer dock to let you connect and disconnect cables, change the cartridge, and add paper. Handling and storing the cartridge and paper Cartridge I Keep cartridges out of the reach of children. I For best quality prints, store the cartridge in a location where the temperature does not exceed 85°F (30°C). I To avoid getting fingerprints on the ribbon, handle the cartridge by the spool ends. I Keep the cartridge away from direct sunlight and out of high-temperature environments (such as a vehicle parked in the sun). www.kodak.com/go/support 1

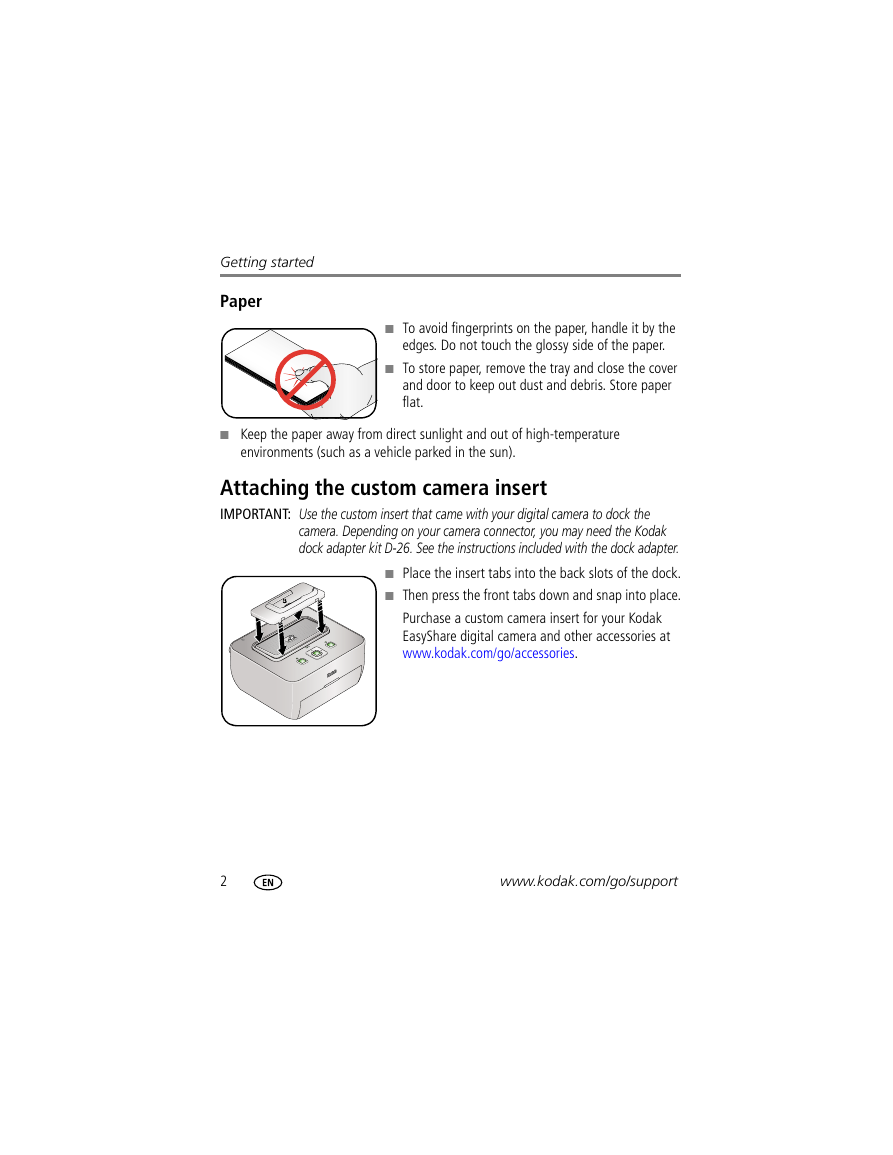

Getting started Paper I To avoid fingerprints on the paper, handle it by the edges. Do not touch the glossy side of the paper. I To store paper, remove the tray and close the cover and door to keep out dust and debris. Store paper flat. I Keep the paper away from direct sunlight and out of high-temperature environments (such as a vehicle parked in the sun). Attaching the custom camera insert IMPORTANT: Use the custom insert that came with your digital camera to dock the camera. Depending on your camera connector, you may need the Kodak dock adapter kit D-26. See the instructions included with the dock adapter. I Place the insert tabs into the back slots of the dock. I Then press the front tabs down and snap into place. Purchase a custom camera insert for your Kodak EasyShare digital camera and other accessories at www.kodak.com/go/accessories. 2 www.kodak.com/go/support
