Warning

Navigation Function

Other Special Functions

Accessories List

NOTE

Front View

Side View

Rear View

Connecting to PC

Inserting SD Card

Connecting to Headphones

About Rechargeable Battery

Working conditions and precautions for the rechargeable battery

Charging the Battery Pack

General Setup

Settings Menu

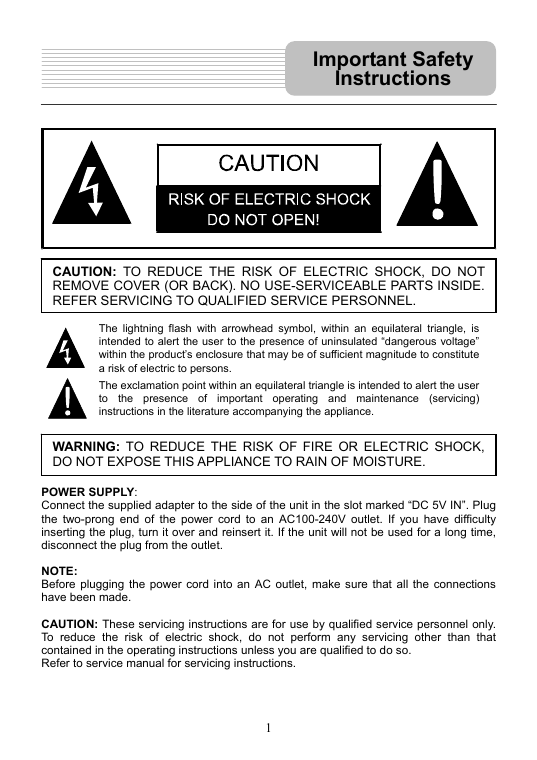

Important Safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. POWER SUPPLY: Connect the supplied adapter to the side of the unit in the slot marked “DC 5V IN”. Plug the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty inserting the plug, turn it over and reinsert it. If the unit will not be used for a long time, disconnect the plug from the outlet. NOTE: Before plugging the power cord into an AC outlet, make sure that all the connections have been made. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer to service manual for servicing instructions. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. The exclamation point within an equilateral triangle is intended to alert the user to important operating and maintenance (servicing) instructions in the literature accompanying the appliance. the presence of WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE. 1

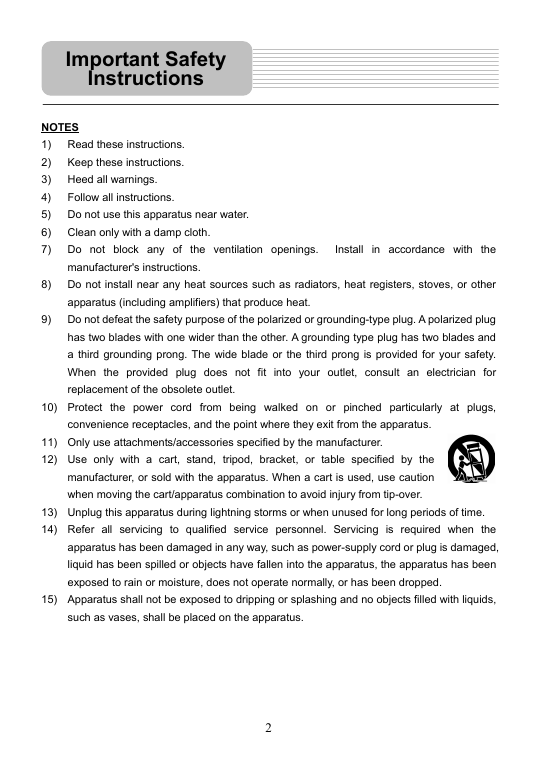

Instructions Follow all instructions. Important Safety NOTES 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) 5) Do not use this apparatus near water. 6) Clean only with a damp cloth. 7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 2

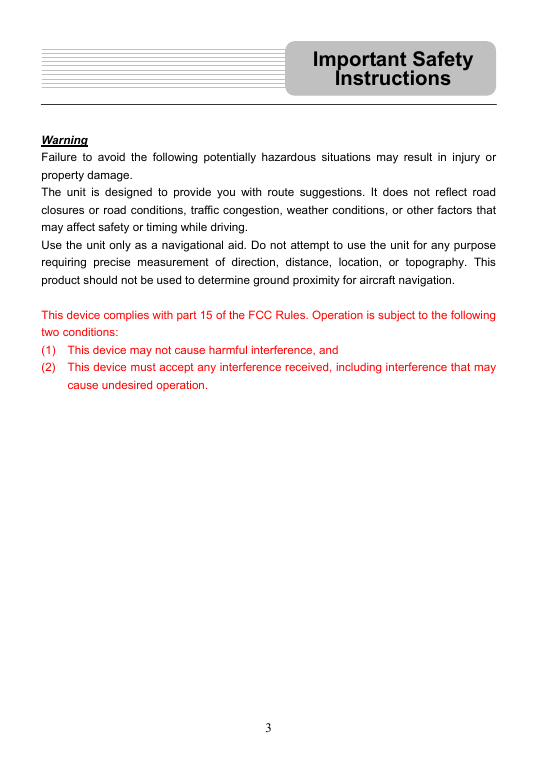

Instructions Important Safety Warning Failure to avoid the following potentially hazardous situations may result in injury or property damage. The unit is designed to provide you with route suggestions. It does not reflect road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety or timing while driving. Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose requiring precise measurement of direction, distance, location, or topography. This product should not be used to determine ground proximity for aircraft navigation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 3

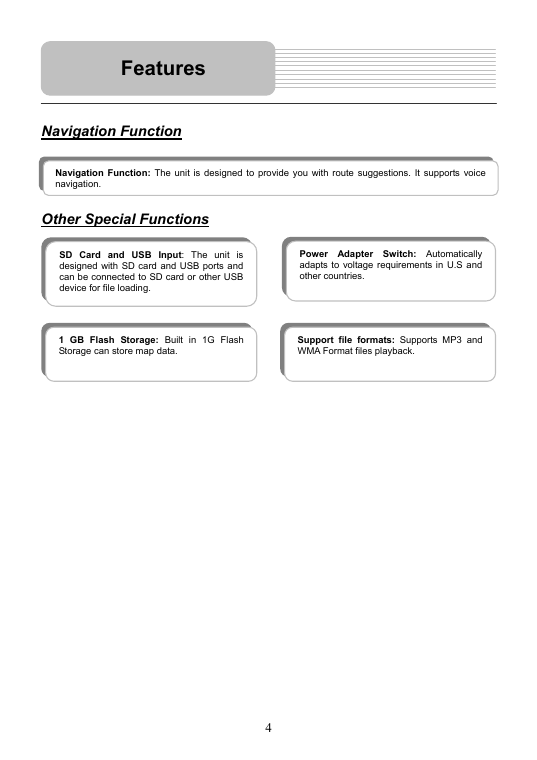

SD Card and USB Input: The unit is designed with SD card and USB ports and can be connected to SD card or other USB device for file loading. 1 GB Flash Storage: Built in 1G Flash Storage can store map data. Power Adapter Switch: Automatically adapts to voltage requirements in U.S and other countries. Support file formats: Supports MP3 and WMA Format files playback. Navigation Function: The unit is designed to provide you with route suggestions. It supports voice navigation. Features Navigation Function Other Special Functions 4

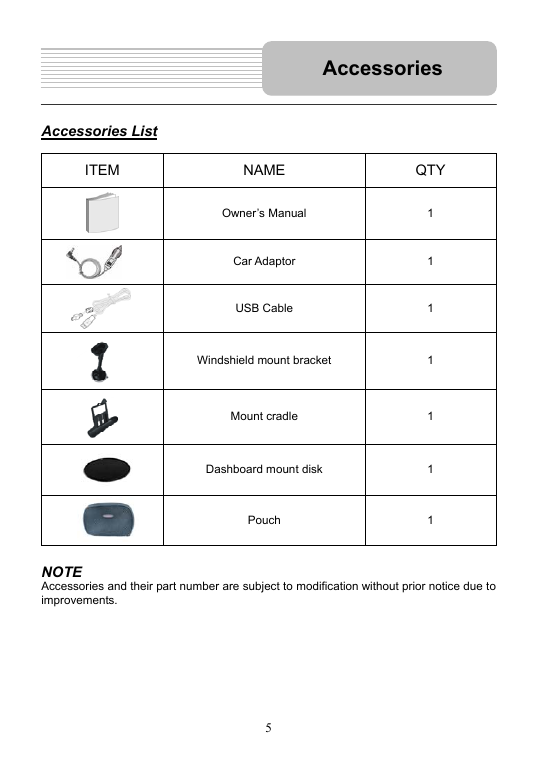

Accessories List Accessories ITEM NAME QTY Owner’s Manual Car Adaptor USB Cable Windshield mount bracket Mount cradle Dashboard mount disk Pouch 1 1 1 1 1 1 1 NOTE Accessories and their part number are subject to modification without prior notice due to improvements. 5

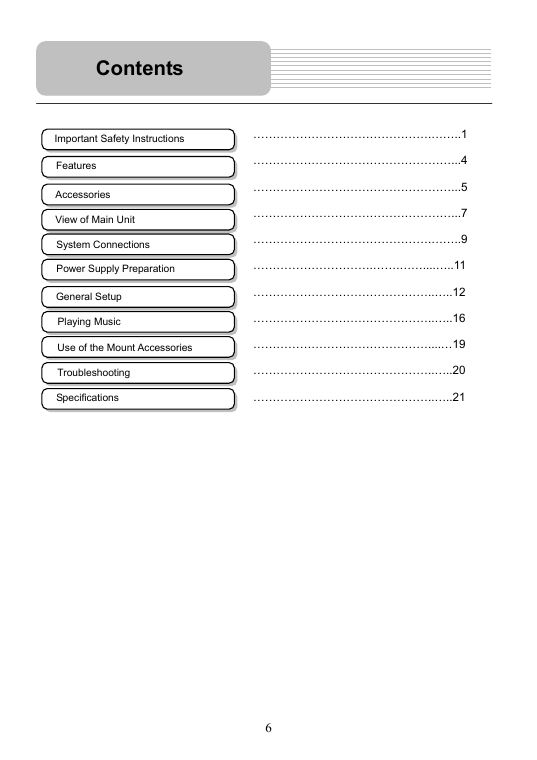

Contents Important Safety Instructions Features Accessories View of Main Unit System Connections Power Supply Preparation General Setup Playing Music Use of the Mount Accessories Troubleshooting Specifications ……………………………………….……..1 ……………………………………………...4 ……………………………………………...5 ……………………………………………...7 ……………………………………….……..9 ………………………….…….……....…..11 ………………………………………..…..12 ………………………………………..…..16 ………………………………………....…19 ………………………………………..…..20 ………………………………………..…..21 6

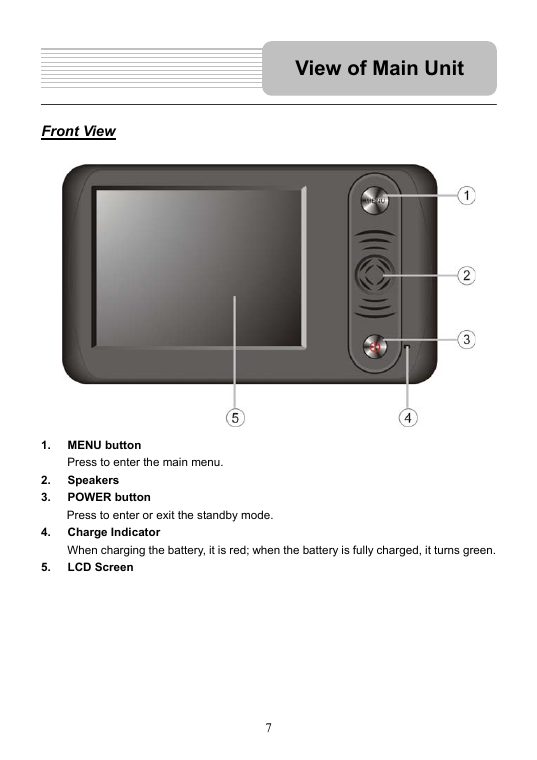

Front View View of Main Unit 1. MENU button Press to enter the main menu. 2. Speakers 3. POWER button Press to enter or exit the standby mode. 4. Charge Indicator When charging the battery, it is red; when the battery is fully charged, it turns green. 5. LCD Screen 7

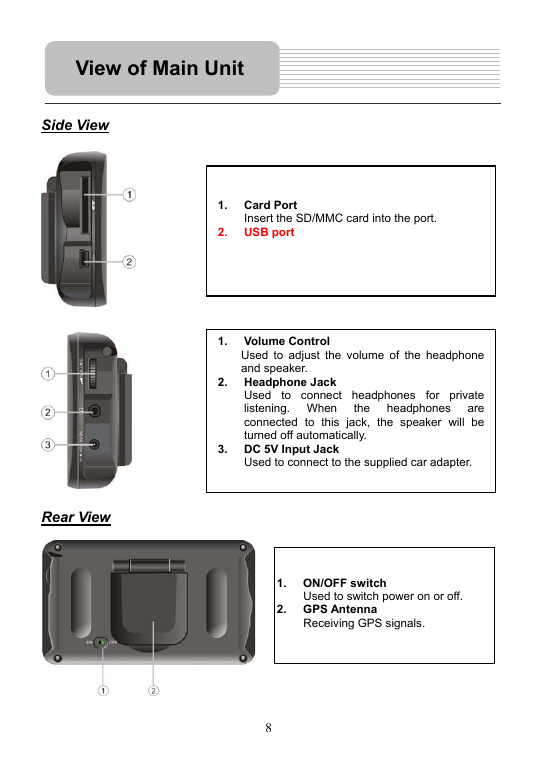

View of Main Unit Side View Rear View 1. Card Port 2. USB port Insert the SD/MMC card into the port. 1. Volume Control Used to adjust the volume of the headphone and speaker. 2. Headphone Jack to connect headphones for private Used listening. When are connected to this jack, the speaker will be turned off automatically. the headphones 3. DC 5V Input Jack Used to connect to the supplied car adapter. 1. ON/OFF switch Used to switch power on or off. 2. GPS Antenna Receiving GPS signals. 8
