INSERTING OR REMOVING THE CASSETTE

CAMERA RECORDING

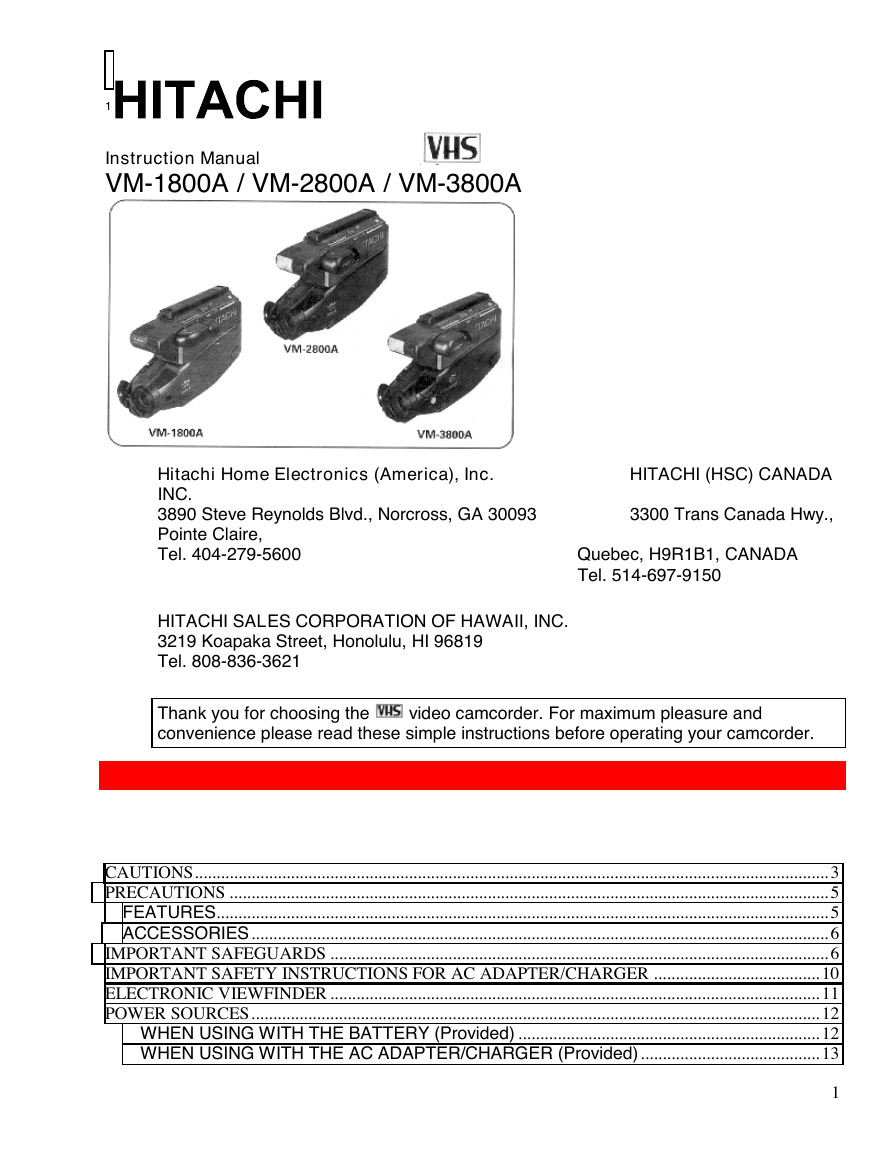

1 Instruction Manual VM-1800A / VM-2800A / VM-3800A Hitachi Home Electronics (America), Inc. INC. 3890 Steve Reynolds Blvd., Norcross, GA 30093 Pointe Claire, Tel. 404-279-5600 HITACHI (HSC) CANADA 3300 Trans Canada Hwy., Quebec, H9R1B1, CANADA Tel. 514-697-9150 HITACHI SALES CORPORATION OF HAWAII, INC. 3219 Koapaka Street, Honolulu, HI 96819 Tel. 808-836-3621 Thank you for choosing the convenience please read these simple instructions before operating your camcorder. video camcorder. For maximum pleasure and CAUTIONS.................................................................................................................................................3 PRECAUTIONS .........................................................................................................................................5 FEATURES............................................................................................................................................5 ACCESSORIES....................................................................................................................................6 IMPORTANT SAFEGUARDS ..................................................................................................................6 IMPORTANT SAFETY INSTRUCTIONS FOR AC ADAPTER/CHARGER ......................................10 ELECTRONIC VIEWFINDER ................................................................................................................11 POWER SOURCES..................................................................................................................................12 WHEN USING WITH THE BATTERY (Provided) .....................................................................12 WHEN USING WITH THE AC ADAPTER/CHARGER (Provided).........................................13 1

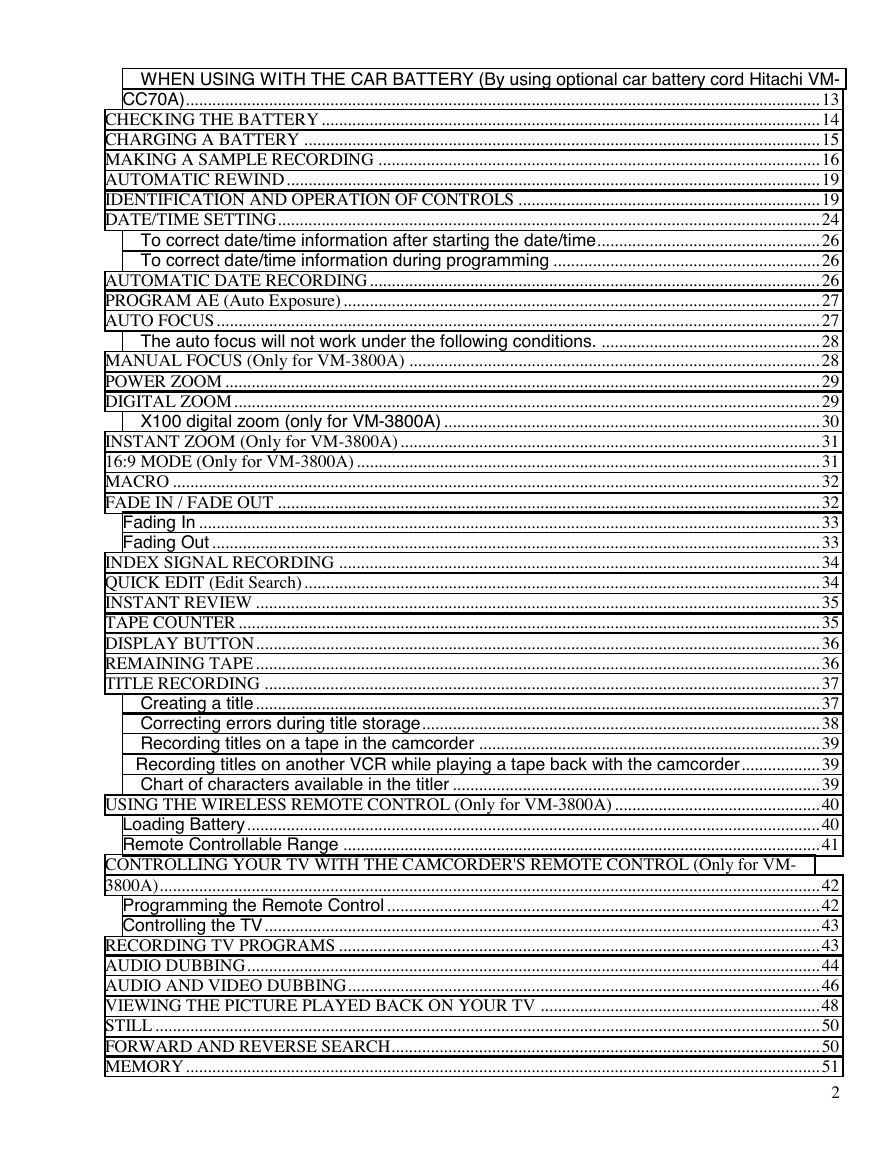

WHEN USING WITH THE CAR BATTERY (By using optional car battery cord Hitachi VM- CC70A).................................................................................................................................................13 CHECKING THE BATTERY..................................................................................................................14 CHARGING A BATTERY ......................................................................................................................15 MAKING A SAMPLE RECORDING .....................................................................................................16 AUTOMATIC REWIND..........................................................................................................................19 IDENTIFICATION AND OPERATION OF CONTROLS .....................................................................19 DATE/TIME SETTING............................................................................................................................24 To correct date/time information after starting the date/time...................................................26 To correct date/time information during programming .............................................................26 AUTOMATIC DATE RECORDING....................................................................................................... 26 PROGRAM AE (Auto Exposure).............................................................................................................27 AUTO FOCUS..........................................................................................................................................27 The auto focus will not work under the following conditions. ..................................................28 MANUAL FOCUS (Only for VM-3800A) ..............................................................................................28 POWER ZOOM ........................................................................................................................................29 DIGITAL ZOOM......................................................................................................................................29 X100 digital zoom (only for VM-3800A)......................................................................................30 INSTANT ZOOM (Only for VM-3800A)................................................................................................31 16:9 MODE (Only for VM-3800A)..........................................................................................................31 MACRO ....................................................................................................................................................32 FADE IN / FADE OUT ............................................................................................................................32 Fading In ..............................................................................................................................................33 Fading Out...........................................................................................................................................33 INDEX SIGNAL RECORDING ..............................................................................................................34 QUICK EDIT (Edit Search)......................................................................................................................34 INSTANT REVIEW .................................................................................................................................35 TAPE COUNTER.....................................................................................................................................35 DISPLAY BUTTON.................................................................................................................................36 REMAINING TAPE.................................................................................................................................36 TITLE RECORDING ...............................................................................................................................37 Creating a title.................................................................................................................................37 Correcting errors during title storage...........................................................................................38 Recording titles on a tape in the camcorder ..............................................................................39 Recording titles on another VCR while playing a tape back with the camcorder..................39 Chart of characters available in the titler ....................................................................................39 USING THE WIRELESS REMOTE CONTROL (Only for VM-3800A)...............................................40 Loading Battery...................................................................................................................................40 Remote Controllable Range .............................................................................................................41 CONTROLLING YOUR TV WITH THE CAMCORDER'S REMOTE CONTROL (Only for VM- 3800A).......................................................................................................................................................42 Programming the Remote Control...................................................................................................42 Controlling the TV...............................................................................................................................43 RECORDING TV PROGRAMS ..............................................................................................................43 AUDIO DUBBING...................................................................................................................................44 AUDIO AND VIDEO DUBBING............................................................................................................46 VIEWING THE PICTURE PLAYED BACK ON YOUR TV ................................................................48 STILL........................................................................................................................................................50 FORWARD AND REVERSE SEARCH..................................................................................................50 MEMORY.................................................................................................................................................51 2

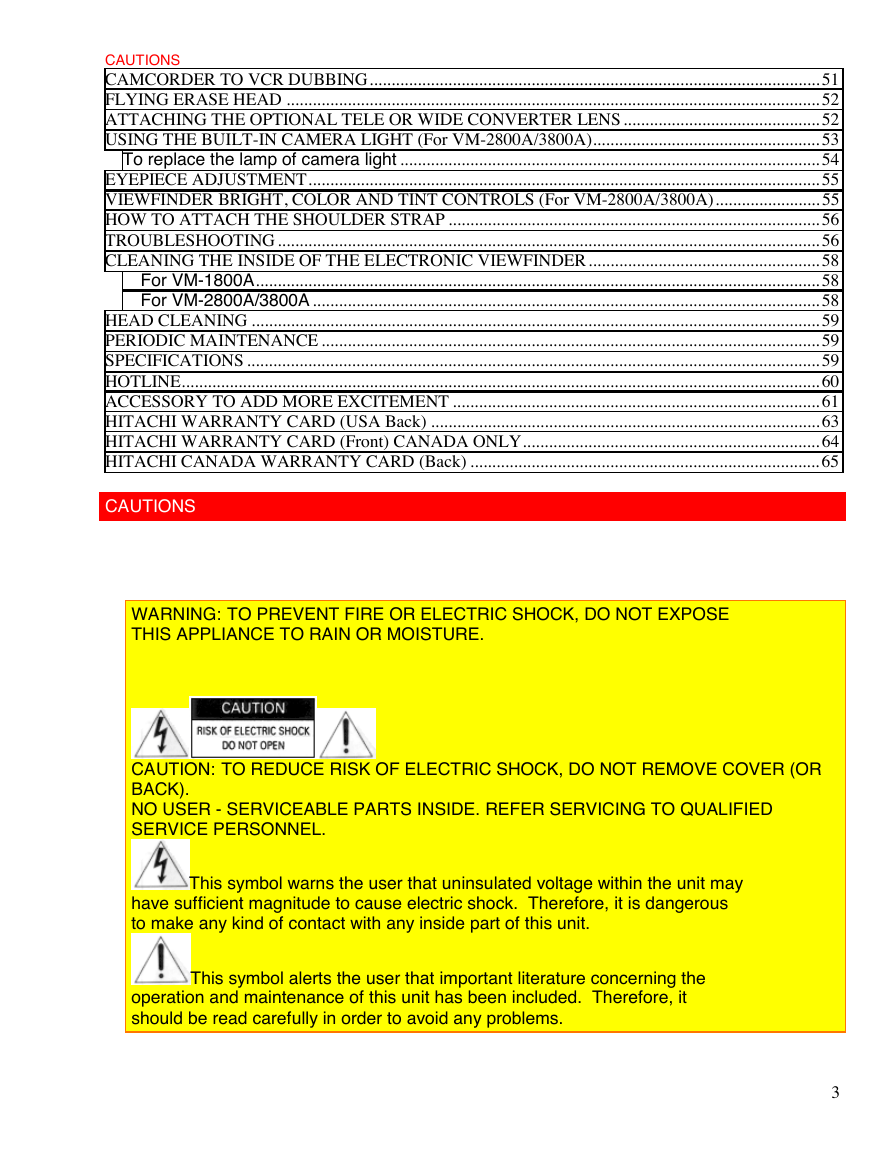

CAUTIONS CAMCORDER TO VCR DUBBING.......................................................................................................51 FLYING ERASE HEAD ..........................................................................................................................52 ATTACHING THE OPTIONAL TELE OR WIDE CONVERTER LENS.............................................52 USING THE BUILT-IN CAMERA LIGHT (For VM-2800A/3800A)....................................................53 To replace the lamp of camera light ................................................................................................54 EYEPIECE ADJUSTMENT.....................................................................................................................55 VIEWFINDER BRIGHT, COLOR AND TINT CONTROLS (For VM-2800A/3800A)........................55 HOW TO ATTACH THE SHOULDER STRAP .....................................................................................56 TROUBLESHOOTING............................................................................................................................56 CLEANING THE INSIDE OF THE ELECTRONIC VIEWFINDER.....................................................58 For VM-1800A.................................................................................................................................58 For VM-2800A/3800A ....................................................................................................................58 HEAD CLEANING ..................................................................................................................................59 PERIODIC MAINTENANCE ..................................................................................................................59 SPECIFICATIONS ...................................................................................................................................59 HOTLINE..................................................................................................................................................60 ACCESSORY TO ADD MORE EXCITEMENT ....................................................................................61 HITACHI WARRANTY CARD (USA Back) .........................................................................................63 HITACHI WARRANTY CARD (Front) CANADA ONLY....................................................................64 HITACHI CANADA WARRANTY CARD (Back) ................................................................................65 CAUTIONS WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. 3

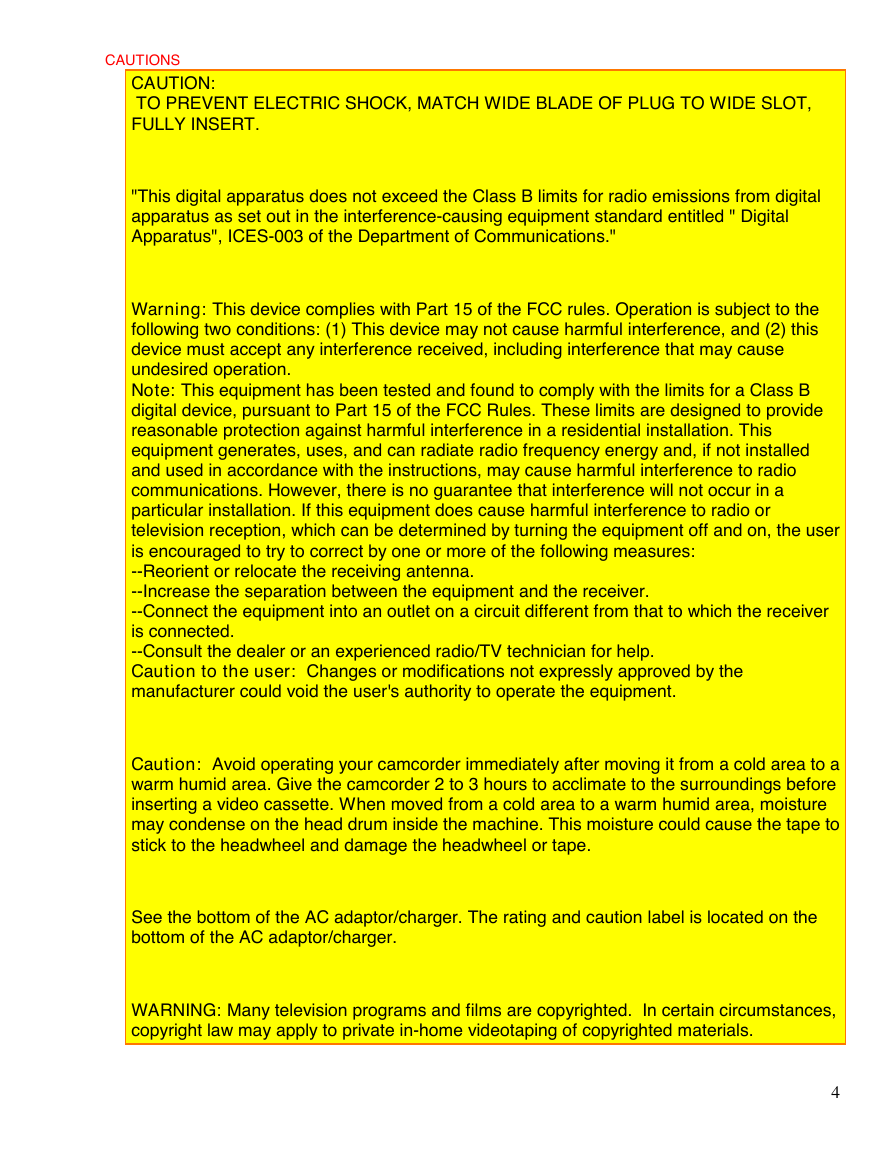

CAUTIONS CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. "This digital apparatus does not exceed the Class B limits for radio emissions from digital apparatus as set out in the interference-causing equipment standard entitled " Digital Apparatus", ICES-003 of the Department of Communications." Warning: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and the receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Caution to the user: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Caution: Avoid operating your camcorder immediately after moving it from a cold area to a warm humid area. Give the camcorder 2 to 3 hours to acclimate to the surroundings before inserting a video cassette. When moved from a cold area to a warm humid area, moisture may condense on the head drum inside the machine. This moisture could cause the tape to stick to the headwheel and damage the headwheel or tape. See the bottom of the AC adaptor/charger. The rating and caution label is located on the bottom of the AC adaptor/charger. WARNING: Many television programs and films are copyrighted. In certain circumstances, copyright law may apply to private in-home videotaping of copyrighted materials. 4

PRECAUTIONS PRECAUTIONS Any problems that occur as a result of any of the following conditions will not be covered by our warranty. Be careful that no water, dust, or sand enters the camcorder. When you are not using the camcorder, switch off the power and attach the lens cap. When you shoot at a scene which contains an extremely bright object such as the the sun or a light source, a bright vertical bar may appear in the picture. Your camcorder is functioning properly, but the solid-state pickup device (CCD) usually causes this as an inherent characteristic. Try to avoid shooting an excessive bright object directly. Be sure not to leave the camcorder in a place where the temperature exceeds 140 deg. F (60 deg. C), or the pickup device may be damaged. Dangerous includes: Do not point the electronic viewfinder to direct sunlight; it could damage the viewfinder. The liquid crystal display (LCD) panel is made by highly precise technology. More than 99.99% of its picture elements (pixels) are effective, but some (less than 0.01%) may not appear as coloured bright dots. This does not indicate a fault as the LCD panel stretches the limits of current technology. (for VM-2800A/VM-3800A) FEATURES High Quality picture technology Digital zoom up to X24 Digital zoom up to X100 (only for VM-3800A) Solid-state camera pickup Auto focus power zoom lens with macro feature Full record and playback capability with standard Program AE (Auto Exposure) Fade in / fade out Color electronic viewfinder (EVF) (for VM-2800A/ VM-3800A) Flying erase head Time and date Titler Index signal Audio / video dub Audio dub Built-in camera light (for VM-2800A/VM-3800A) cassette Differences between Models VM-1800A/2800A/3800A) 5

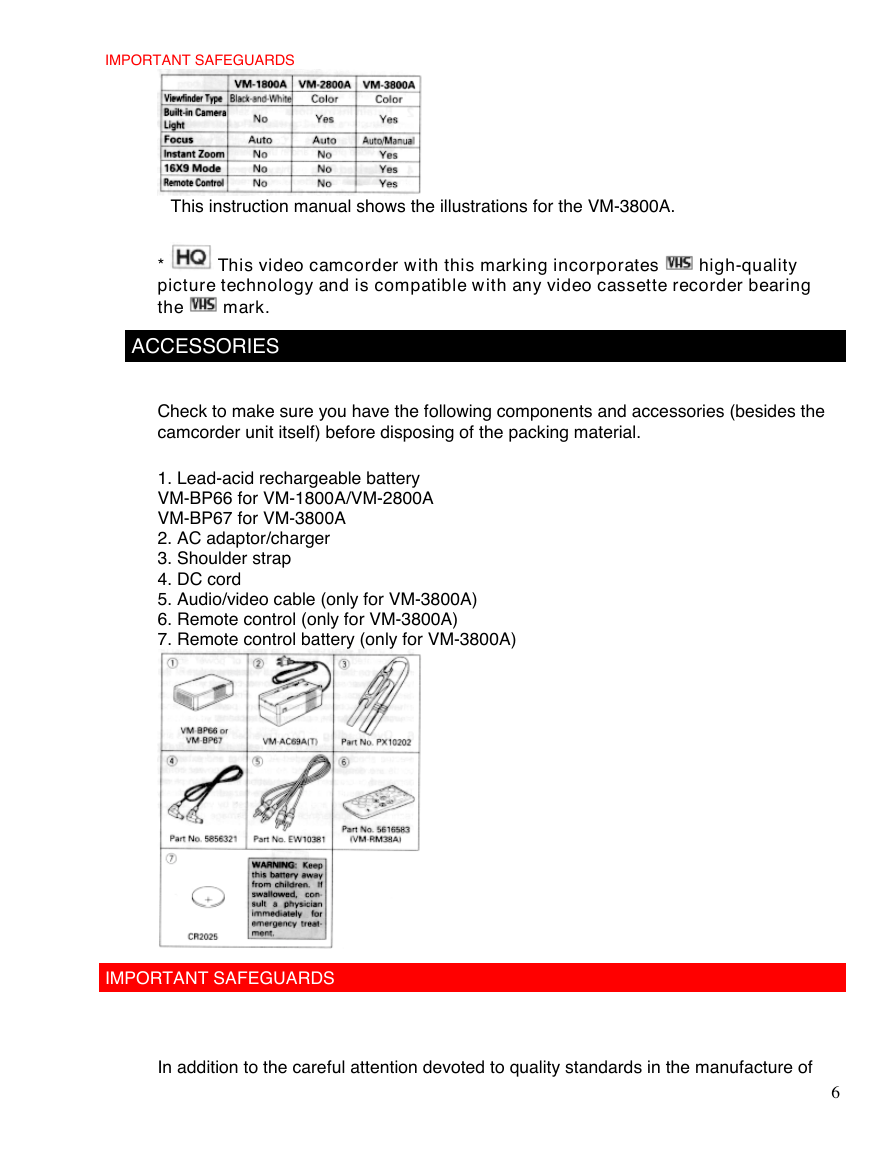

IMPORTANT SAFEGUARDS This instruction manual shows the illustrations for the VM-3800A. high-quality This video camcorder with this marking incorporates * picture technology and is compatible with any video cassette recorder bearing the mark. ACCESSORIES Check to make sure you have the following components and accessories (besides the camcorder unit itself) before disposing of the packing material. 1. Lead-acid rechargeable battery VM-BP66 for VM-1800A/VM-2800A VM-BP67 for VM-3800A 2. AC adaptor/charger 3. Shoulder strap 4. DC cord 5. Audio/video cable (only for VM-3800A) 6. Remote control (only for VM-3800A) 7. Remote control battery (only for VM-3800A) IMPORTANT SAFEGUARDS In addition to the careful attention devoted to quality standards in the manufacture of 6

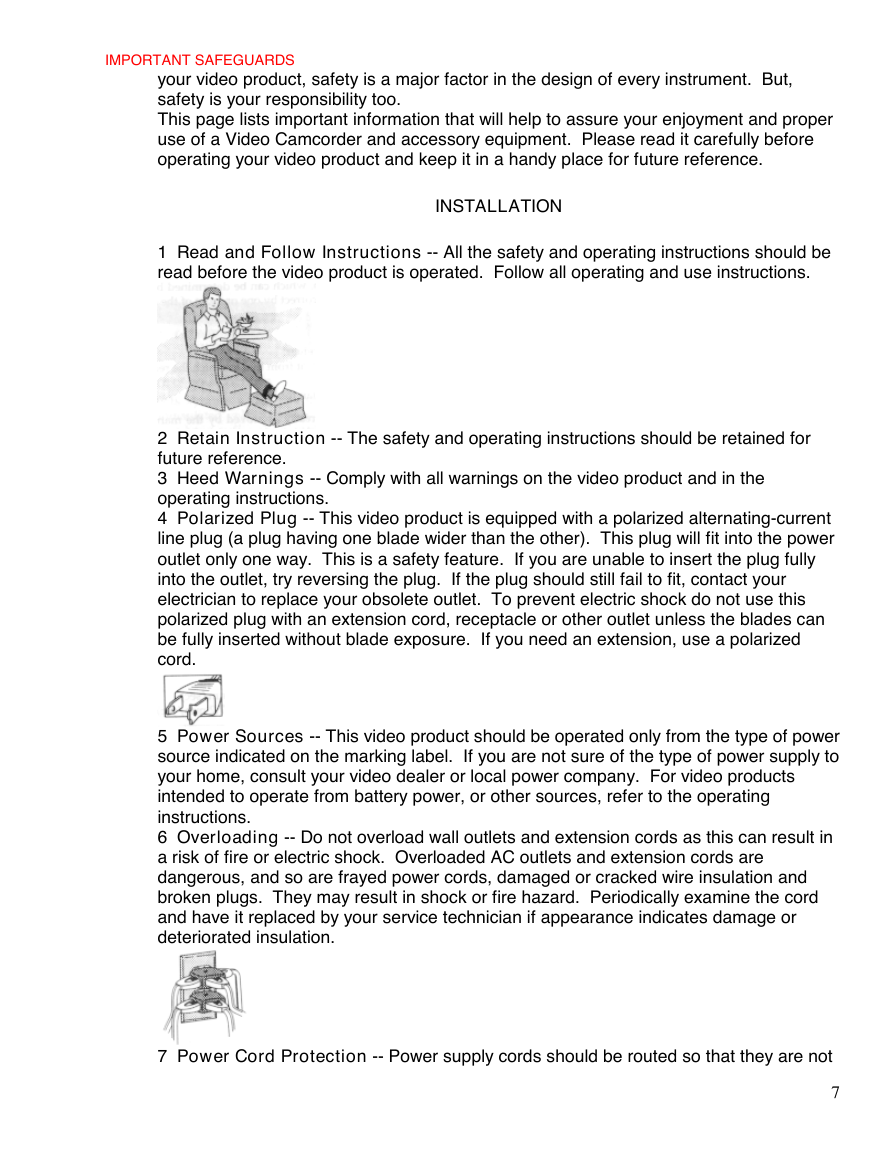

IMPORTANT SAFEGUARDS your video product, safety is a major factor in the design of every instrument. But, safety is your responsibility too. This page lists important information that will help to assure your enjoyment and proper use of a Video Camcorder and accessory equipment. Please read it carefully before operating your video product and keep it in a handy place for future reference. INSTALLATION 1 Read and Follow Instructions -- All the safety and operating instructions should be read before the video product is operated. Follow all operating and use instructions. 2 Retain Instruction -- The safety and operating instructions should be retained for future reference. 3 Heed Warnings -- Comply with all warnings on the video product and in the operating instructions. 4 Polarized Plug -- This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted without blade exposure. If you need an extension, use a polarized cord. 5 Power Sources -- This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your video dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions. 6 Overloading -- Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords, damaged or cracked wire insulation and broken plugs. They may result in shock or fire hazard. Periodically examine the cord and have it replaced by your service technician if appearance indicates damage or deteriorated insulation. 7 Power Cord Protection -- Power supply cords should be routed so that they are not 7

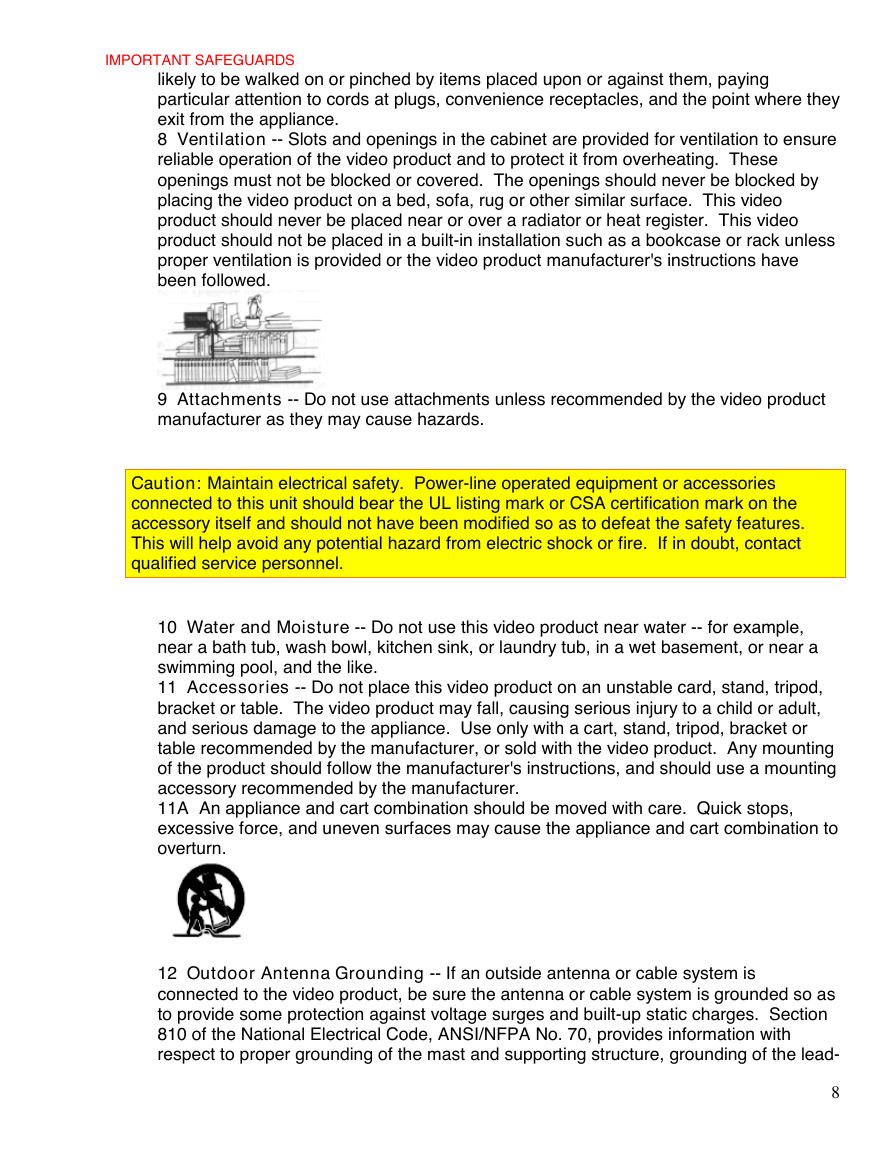

IMPORTANT SAFEGUARDS likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. 8 Ventilation -- Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the video product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug or other similar surface. This video product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the video product manufacturer's instructions have been followed. 9 Attachments -- Do not use attachments unless recommended by the video product manufacturer as they may cause hazards. Caution: Maintain electrical safety. Power-line operated equipment or accessories connected to this unit should bear the UL listing mark or CSA certification mark on the accessory itself and should not have been modified so as to defeat the safety features. This will help avoid any potential hazard from electric shock or fire. If in doubt, contact qualified service personnel. 10 Water and Moisture -- Do not use this video product near water -- for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. 11 Accessories -- Do not place this video product on an unstable card, stand, tripod, bracket or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer, or sold with the video product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. 11A An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 12 Outdoor Antenna Grounding -- If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead- 8
