Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 Disclaimer The information in this document is subject to change without notice. The manufac- turer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publica- tion and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. AMD, Phenom, Athlon, Sempron, Turion, and Duron are registered trademarks of AMD Corporation. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits govern- ing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. A960M-MV USER MANUAL

Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the follow- ing conditions: • • This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This device is in conformity with the following EC/EMC directives: Limits and methods of mesurement of radio disturbance char- acteristics of information technology equipment EN 55022 EN 61000-3-2 Disturbances in supply systems caused EN 61000-3-3 Disturbances in supply systems caused by household appli- ances and similar electrical equipment “ Voltage fluctuations” Information technology equipment-Immunity characteristics- Limits and methods of measurement Safety for information technology equipment including electri- cal business equipment EN 55024 EN 60950 CE marking Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Describes features of the motherboard. page 1 Chapter 2 Using BIOS Chapter 3 Using the Motherboard Software Provides information on us- ing the BIOS Setup Utility. page 7 Describes the motherboard software. page 33 Chapter 4 Trouble Shooting Provides shooting tips. basic trouble page 39 Multi-language Quick Installation Guide Describes motherboard components. installation of page 43 Appendix Provides header pin definition and jumper settings. page 77 ii A960M-MV USER MANUAL

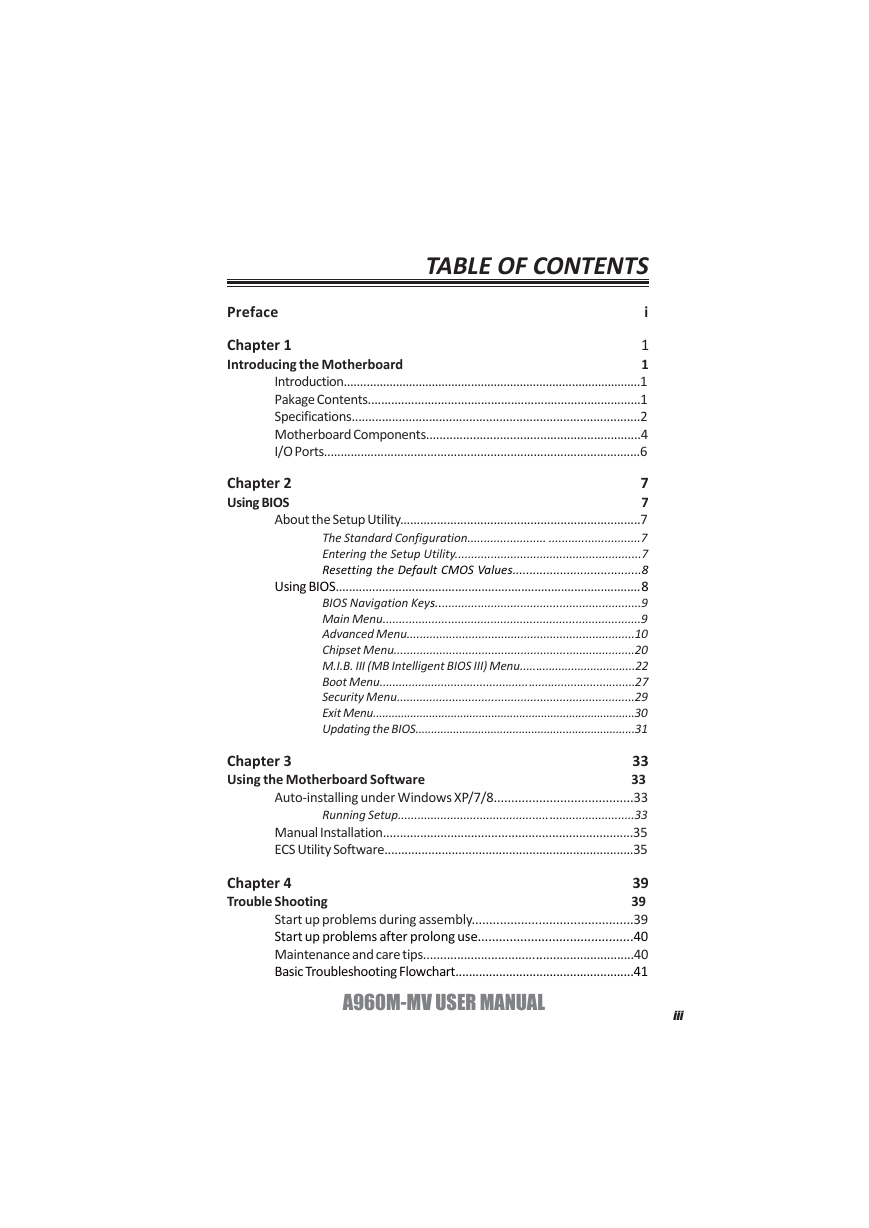

TABLE OF CONTENTS Preface i Chapter 1 Introducing the Motherboard 1 1 Introduction...........................................................................................1 Pakage Contents..................................................................................1 Specifications......................................................................................2 Motherboard Components................................................................4 I/O Ports...............................................................................................6 Chapter 2 Using BIOS 7 7 About the Setup Utility........................................................................7 The Standard Configuration........................ ............................7 Entering the Setup Utility.........................................................7 Resetting the Default CMOS Values......................................8 Using BIOS............................................................................................8 BIOS Navigation Keys...............................................................9 Main Menu...............................................................................9 Advanced Menu......................................................................10 Chipset Menu..........................................................................20 M.I.B. III (MB Intelligent BIOS III) Menu....................................22 Boot Menu...............................................................................27 Security Menu.........................................................................29 Exit Menu....................................................................................30 Updating the BIOS......................................................................31 Chapter 3 Using the Motherboard Software 33 33 Auto-installing under Windows XP/7/8........................................33 Running Setup........................................................................33 Manual Installation..........................................................................35 ECS Utility Software..........................................................................35 Chapter 4 Trouble Shooting 39 39 Start up problems during assembly..............................................39 Start up problems after prolong use............................................40 Maintenance and care tips..............................................................40 Basic Troubleshooting Flowchart.....................................................41 A960M-MV USER MANUAL iii

Multi-language Quick Installation Guide 43 English..................................................................................................43 Brazilian Portuguese......................................................................46 Hindi.....................................................................................................49 French.................................................................................................52 Deutsch..................................................................................................55 Russian................................................................................................58 Spanish....................................................................................................61 Indonesian..............................................................................................64 Arabic................................................................................................67 Simplified Chinese.................................................................................70 Korean...................................................................................................73 Appendix Header Pin Definition and Jumper Settings 77 77 iv A960M-MV USER MANUAL

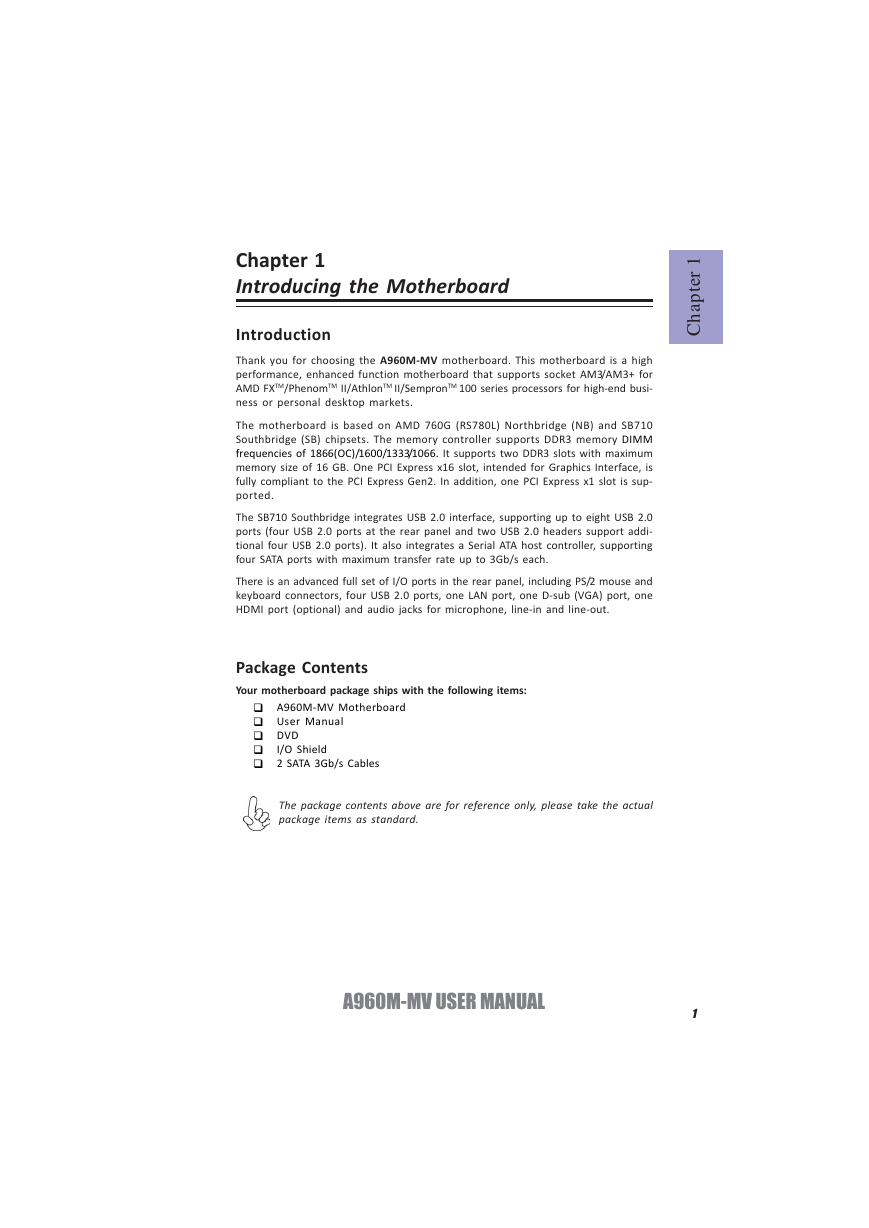

1 r e t p a h C Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the A960M-MV motherboard. This motherboard is a high performance, enhanced function motherboard that supports socket AM3/AM3+ for AMD FXTM/PhenomTM II/AthlonTM II/SempronTM 100 series processors for high-end busi- ness or personal desktop markets. The motherboard is based on AMD 760G (RS780L) Northbridge (NB) and SB710 Southbridge (SB) chipsets. The memory controller supports DDR3 memory DIMM frequencies of 1866(OC)/1600/1333/1066. It supports two DDR3 slots with maximum memory size of 16 GB. One PCI Express x16 slot, intended for Graphics Interface, is fully compliant to the PCI Express Gen2. In addition, one PCI Express x1 slot is sup- ported. The SB710 Southbridge integrates USB 2.0 interface, supporting up to eight USB 2.0 ports (four USB 2.0 ports at the rear panel and two USB 2.0 headers support addi- tional four USB 2.0 ports). It also integrates a Serial ATA host controller, supporting four SATA ports with maximum transfer rate up to 3Gb/s each. There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, four USB 2.0 ports, one LAN port, one D-sub (VGA) port, one HDMI port (optional) and audio jacks for microphone, line-in and line-out. Package Contents Your motherboard package ships with the following items: A960M-MV Motherboard User Manual DVD I/O Shield 2 SATA 3Gb/s Cables The package contents above are for reference only, please take the actual package items as standard. A960M-MV USER MANUAL 1

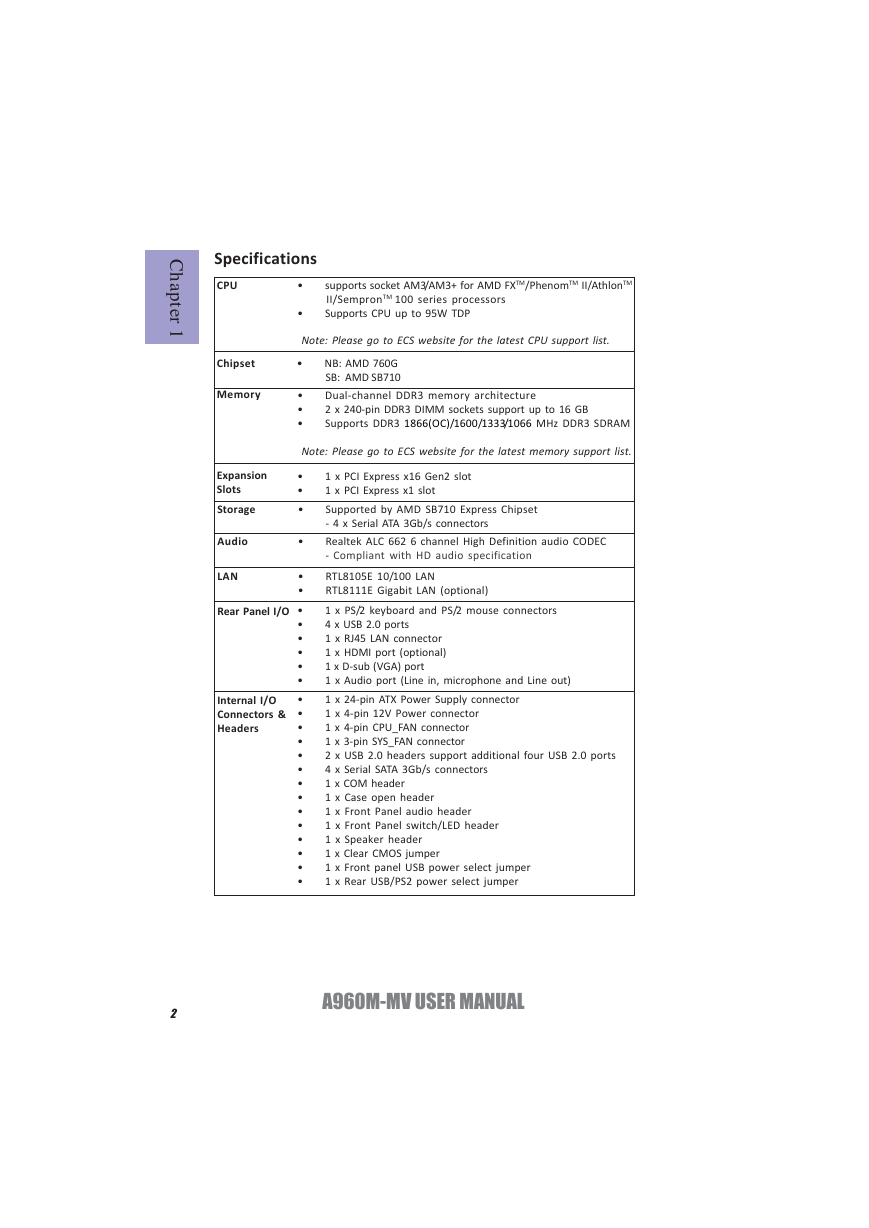

C h a p t e r 1 Specifications CPU • • supports socket AM3/AM3+ for AMD FXTM/PhenomTM II/AthlonTM II/SempronTM 100 series processors Supports CPU up to 95W TDP Chipset Memory Expansion Slots Storage Audio LAN Rear Panel I/O Internal I/O Connectors & Headers Note: Please go to ECS website for the latest CPU support list. • NB: AMD 760G SB: AMD SB710 • • • Dual-channel DDR3 memory architecture 2 x 240-pin DDR3 DIMM sockets support up to 16 GB Supports DDR3 1866(OC)/1600/1333/1066 MHz DDR3 SDRAM Note: Please go to ECS website for the latest memory support list. • • • • • • • • • • • • • • • • • • • • • • • • • • 1 x PCI Express x16 Gen2 slot 1 x PCI Express x1 slot Supported by AMD SB710 Express Chipset - 4 x Serial ATA 3Gb/s connectors Realtek ALC 662 6 channel High Definition audio CODEC - Compliant with HD audio specification RTL8105E 10/100 LAN RTL8111E Gigabit LAN (optional) 1 x PS/2 keyboard and PS/2 mouse connectors 4 x USB 2.0 ports 1 x RJ45 LAN connector 1 x HDMI port (optional) 1 x D-sub (VGA) port 1 x Audio port (Line in, microphone and Line out) 1 x 24-pin ATX Power Supply connector 1 x 4-pin 12V Power connector 1 x 4-pin CPU_FAN connector 1 x 3-pin SYS_FAN connector 2 x USB 2.0 headers support additional four USB 2.0 ports 4 x Serial SATA 3Gb/s connectors 1 x COM header 1 x Case open header 1 x Front Panel audio header 1 x Front Panel switch/LED header 1 x Speaker header 1 x Clear CMOS jumper 1 x Front panel USB power select jumper 1 x Rear USB/PS2 power select jumper 2 A960M-MV USER MANUAL

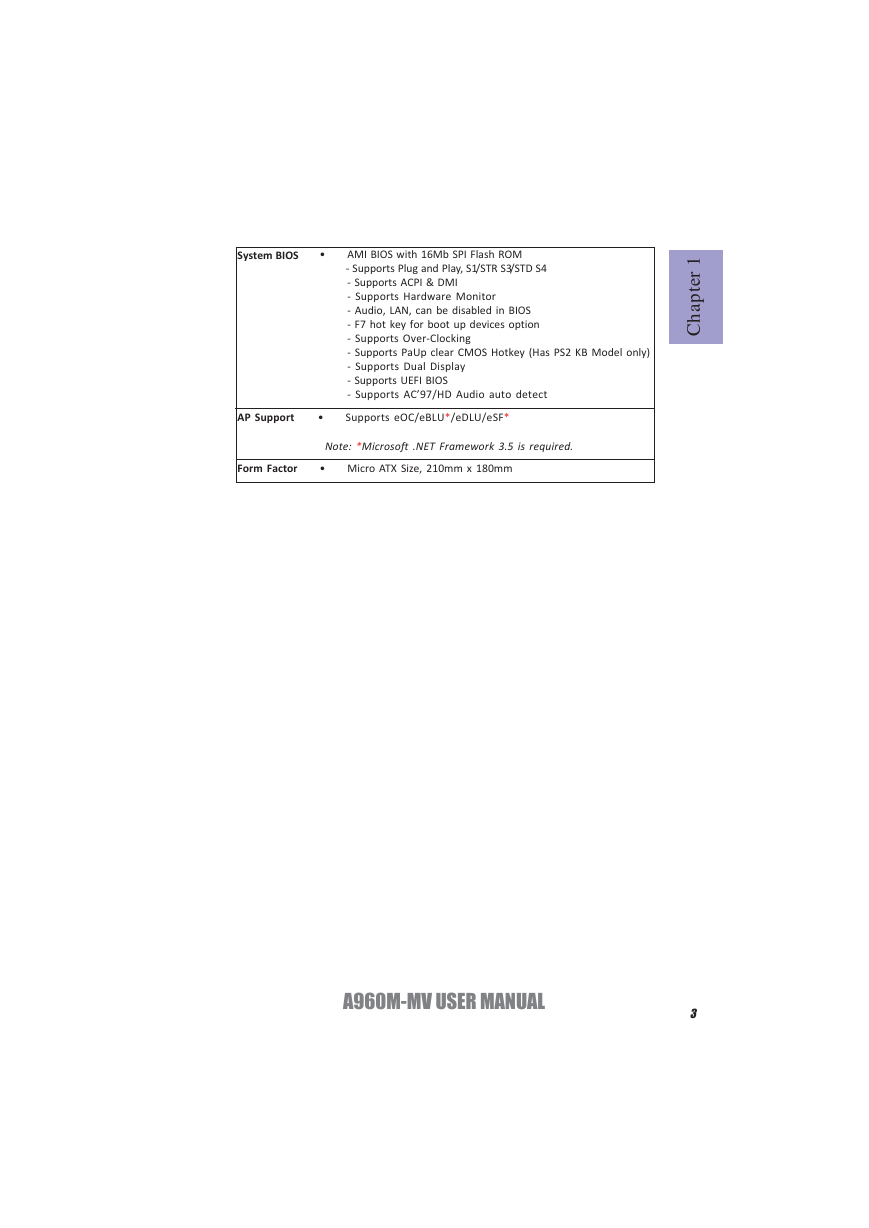

System BIOS AMI BIOS with 16Mb SPI Flash ROM • - Supports Plug and Play, S1/STR S3/STD S4 - Supports ACPI & DMI - Supports Hardware Monitor - Audio, LAN, can be disabled in BIOS - F7 hot key for boot up devices option - Supports Over-Clocking - Supports PaUp clear CMOS Hotkey (Has PS2 KB Model only) - Supports Dual Display - Supports UEFI BIOS - Supports AC’97/HD Audio auto detect 1 r e t p a h C AP Support • Supports eOC/eBLU*/eDLU/eSF* Form Factor Note: *Microsoft .NET Framework 3.5 is required. • Micro ATX Size, 210mm x 180mm A960M-MV USER MANUAL 3

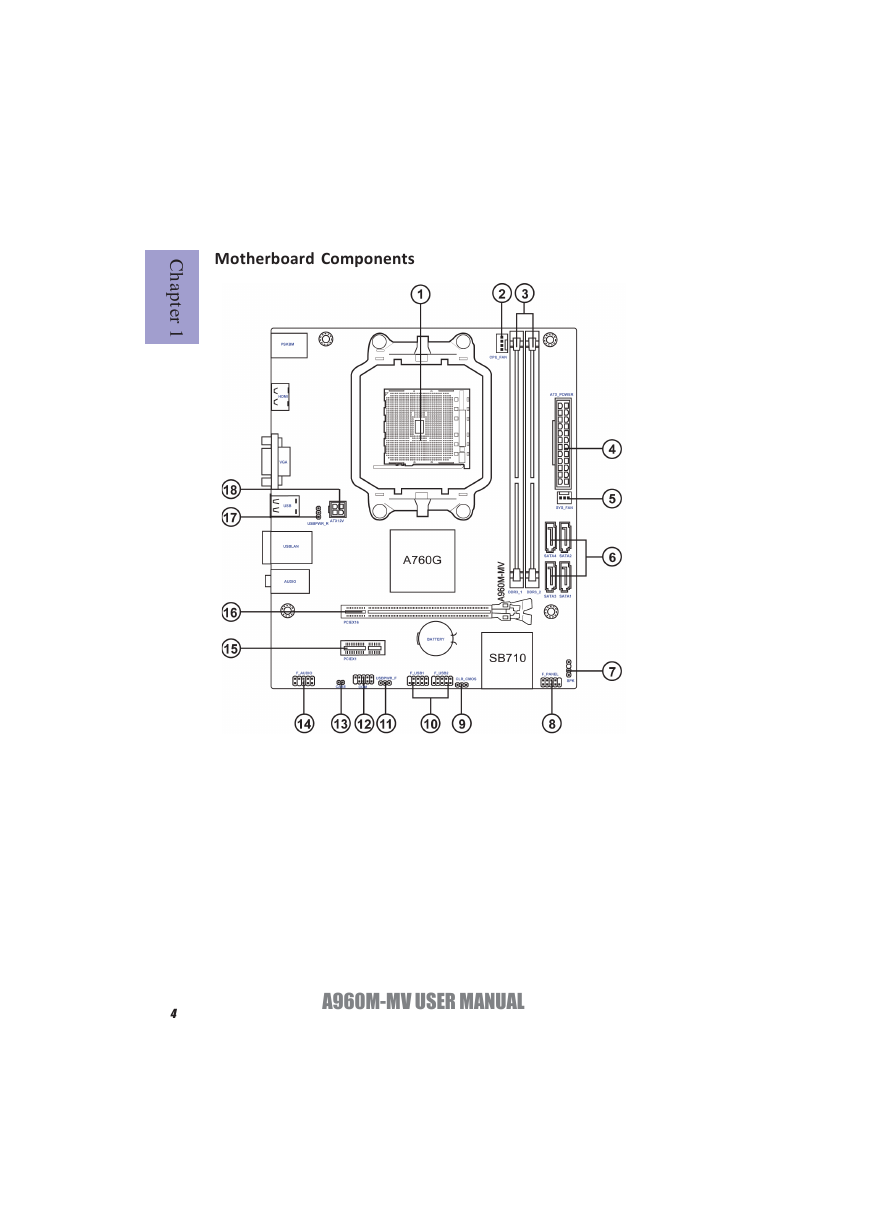

Motherboard Components C h a p t e r 1 4 A960M-MV USER MANUAL
