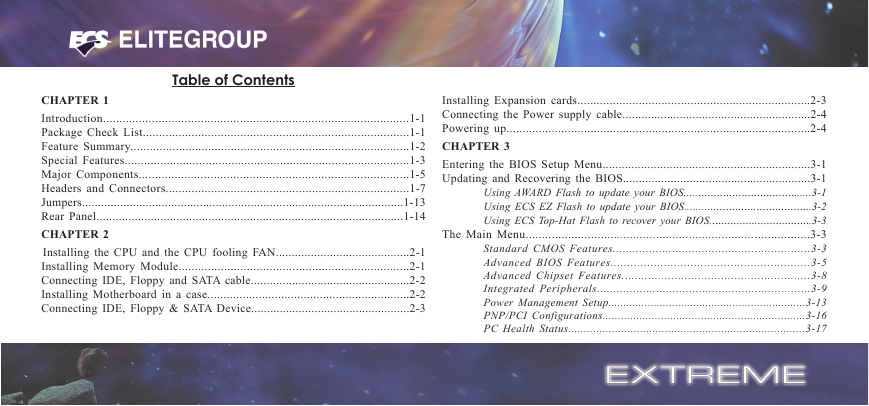

Table of Contents CHAPTER 1 Introduction..............................................................................................1-1 Package Check List..................................................................................1-1 Feature Summary......................................................................................1-2 Special Features........................................................................................1-3 Major Components...................................................................................1-5 Headers and Connectors...........................................................................1-7 Jumpers.....................................................................................................1-13 Rear Panel................................................................................................1-14 CHAPTER 2 Installing the CPU and the CPU fooling FAN..........................................2-1 Installing Memory Module.......................................................................2-1 Connecting IDE, Floppy and SATA cable..................................................2-2 Installing Motherboard in a case...............................................................2-2 Connecting IDE, Floppy & SATA Device..................................................2-3 Installing Expansion cards........................................................................2-3 Connecting the Power supply cable...........................................................2-4 Powering up..............................................................................................2-4 CHAPTER 3 Entering the BIOS Setup Menu.................................................................3-1 Updating and Recovering the BIOS...........................................................3-1 Using AWARD Flash to update your BIOS..........................................3-1 Using ECS EZ Flash to update your BIOS..........................................3-2 Using ECS Top-Hat Flash to recover your BIOS..................................3-3 The Main Menu.......................................................................................3-3 Standard CMOS Features............................................................3-3 Advanced BIOS Features............................................................3-5 Advanced Chipset Features.........................................................3-8 Integrated Peripherals.................................................................3-9 Power Management Setup.................................................................3-13 PNP/PCI Configurations..................................................................3-16 PC Health Status............................................................................3-17

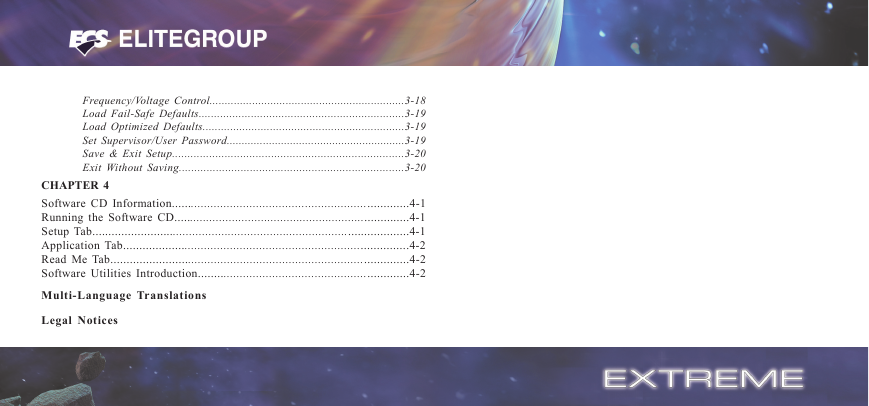

Frequency/Voltage Control................................................................3-18 Load Fail-Safe Defaults...................................................................3-19 Load Optimized Defaults..................................................................3-19 Set Supervisor/User Password...........................................................3-19 Save & Exit Setup...........................................................................3-20 Exit Without Saving.........................................................................3-20 CHAPTER 4 Software CD Information.........................................................................4-1 Running the Software CD.........................................................................4-1 Setup Tab..................................................................................................4-1 Application Tab........................................................................................4-2 Read Me Tab............................................................................................4-2 Software Utilities Introduction.................................................................4-2 Multi-Language Translations Legal Notices

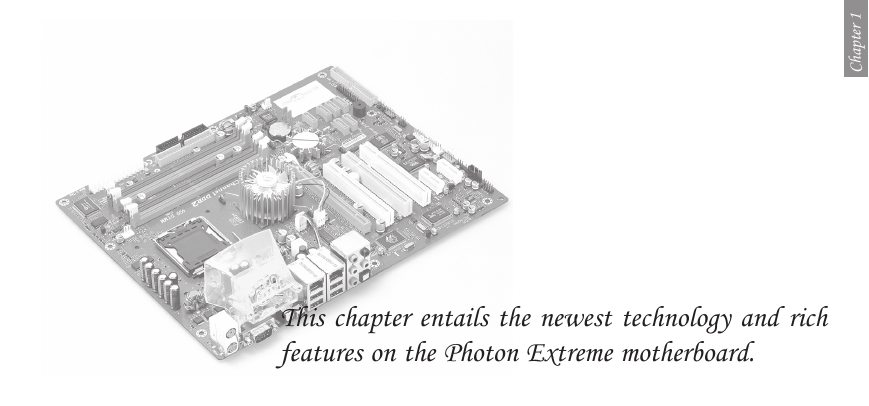

1 r e t p a h C This chapter entails the newest technology and rich features on the Photon Extreme motherboard.

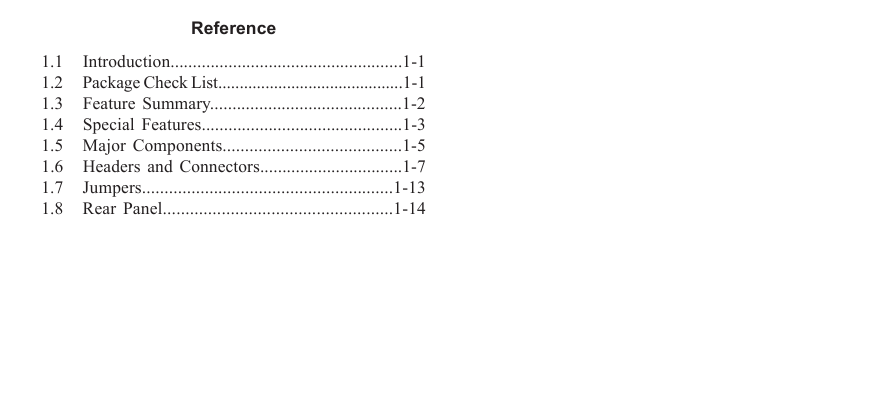

Reference 1.1 Introduction....................................................1-1 1.2 Package Check List...........................................1-1 1.3 Feature Summary...........................................1-2 1.4 Special Features.............................................1-3 1.5 Major Components........................................1-5 1.6 Headers and Connectors................................1-7 1.7 Jumpers........................................................1-13 1.8 Rear Panel...................................................1-14

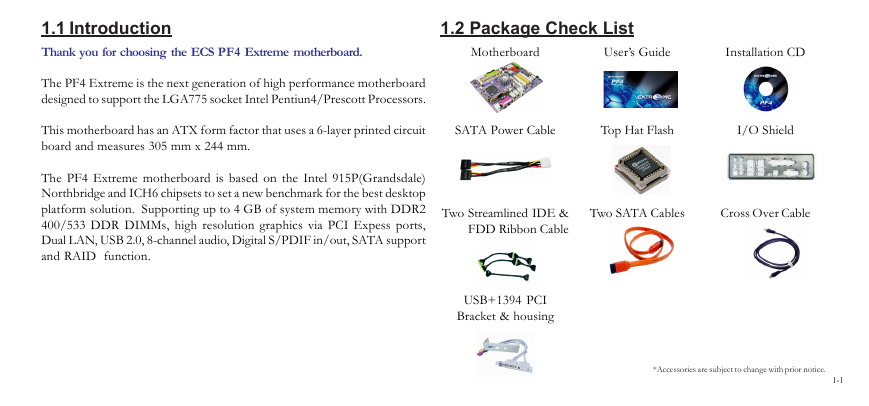

1.1 Introduction Thank you for choosing the ECS PF4 Extreme motherboard. 1.2 Package Check List Motherboard User’s Guide Installation CD The PF4 Extreme is the next generation of high performance motherboard designed to support the LGA775 socket Intel Pentiun4/Prescott Processors. This motherboard has an ATX form factor that uses a 6-layer printed circuit board and measures 305 mm x 244 mm. The PF4 Extreme motherboard is based on the Intel 915P(Grandsdale) Northbridge and ICH6 chipsets to set a new benchmark for the best desktop platform solution. Supporting up to 4 GB of system memory with DDR2 400/533 DDR DIMMs, high resolution graphics via PCI Expess ports, Dual LAN, USB 2.0, 8-channel audio, Digital S/PDIF in/out, SATA support and RAID function. SATA Power Cable Top Hat Flash I/O Shield Two Streamlined IDE & FDD Ribbon Cable Two SATA Cables Cross Over Cable USB+1394 PCI Bracket & housing *Accessories are subject to change with prior notice. 1-1

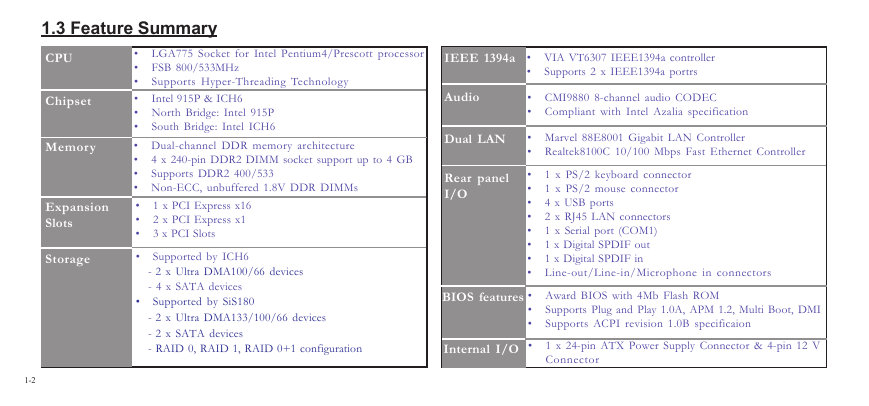

1.3 Feature Summary CPU Chipset Memory Expansion Slots Storage 1-2 LGA775 Socket for Intel Pentium4/Prescott processor FSB 800/533MHz Supports Hyper-Threading Technology Intel 915P & ICH6 • • • • • North Bridge: Intel 915P • South Bridge: Intel ICH6 • Dual-channel DDR memory architecture • • • Non-ECC, unbuffered 1.8V DDR DIMMs • • • 1 x PCI Express x16 2 x PCI Express x1 3 x PCI Slots 4 x 240-pin DDR2 DIMM socket support up to 4 GB Supports DDR2 400/533 • • Supported by ICH6 - 2 x Ultra DMA100/66 devices - 4 x SATA devices Supported by SiS180 - 2 x Ultra DMA133/100/66 devices - 2 x SATA devices - RAID 0, RAID 1, RAID 0+1 configuration IEEE 1394a • VIA VT6307 IEEE1394a controller • Supports 2 x IEEE1394a portrs Audio • CMI9880 8-channel audio CODEC • Compliant with Intel Azalia specification Dual LAN • Marvel 88E8001 Gigabit LAN Controller • Realtek8100C 10/100 Mbps Fast Ethernet Controller Rear panel I/O 1 x PS/2 keyboard connector 1 x PS/2 mouse connector 4 x USB ports 2 x RJ45 LAN connectors 1 x Serial port (COM1) 1 x Digital SPDIF out 1 x Digital SPDIF in • • • • • • • • Line-out/Line-in/Microphone in connectors BIOS features • Award BIOS with 4Mb Flash ROM • • Internal I/O • Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Supports ACPI revision 1.0B specificaion 1 x 24-pin ATX Power Supply Connector & 4-pin 12 V Connector

• 1 x Floppy connector- supports 360K ~ 2.88M Bytes, 3 Mode FDDs or LS120 2 x IDE connectors 6 x Serial ATA connectors 2 x USB 2.0 headers support additional 4 USB ports 1 x 1394a header 1 x SMBus header 1 x Front panel switch/LED header 1 x Front panel audio header 1 x LPT header 1 x CHS1 header 1 x SMI1 header • • • • • • • • • • • CD in header • CPUFAN/NB_FAN/SYSFAN connectors Form Factor • ATX size • 305mm x 244mm 1.4 Special Features Extreme Power Extreme Power Extreme Power Extreme Power Extreme Power Device plug with USB-like ease! Upgrade your PC to Server-grade power now! Slash memory access time! One-key boot device selection! Awesome overclocking! Uncompromising DVD audio quality! The best aluminum capacitors empowering! 6-layer PCB! Extreme Guardian Extreme Guardian Extreme Guardian Extreme Guardian Extreme Guardian Auto restart after power loss! PC protection tool kit! A ‘time machine’ to protect and restore files! Become your own BIOS ‘doctor’! 1-3
