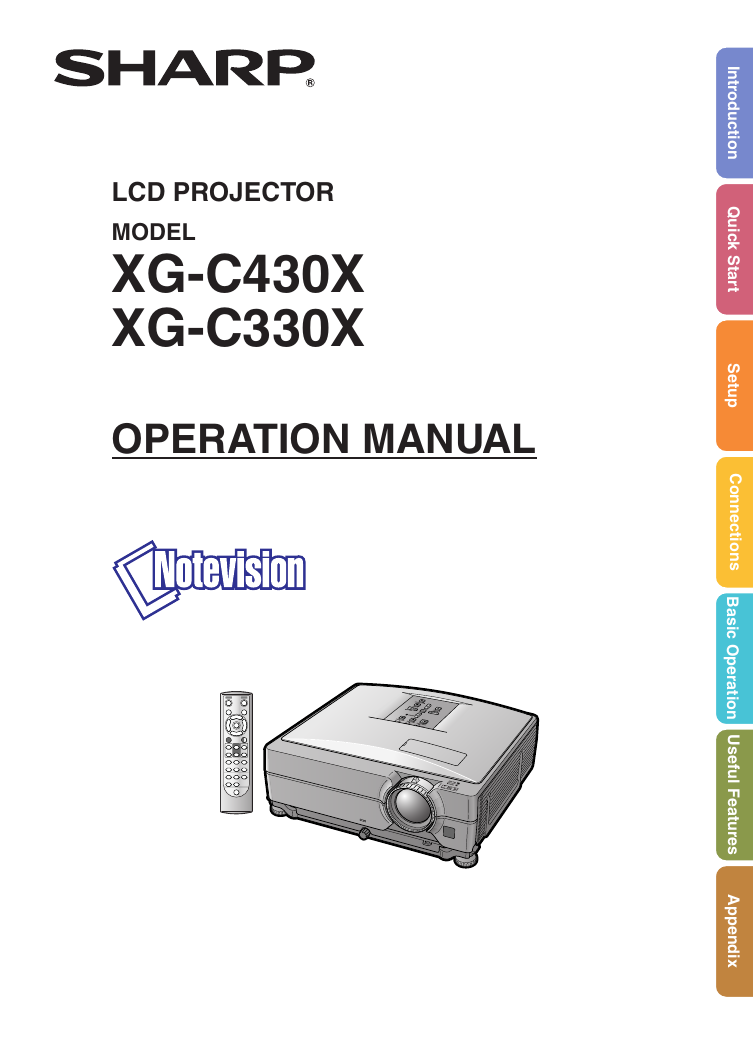

LCD PROJECTOR MODEL XG-C430X XG-C330X OPERATION MANUAL I n t r o d u c t i o n i Q u c k S t a r t S e t u p C o n n e c t i o n s B a s i c O p e r a t i o n U s e f u l F e a t u r e s A p p e n d x i

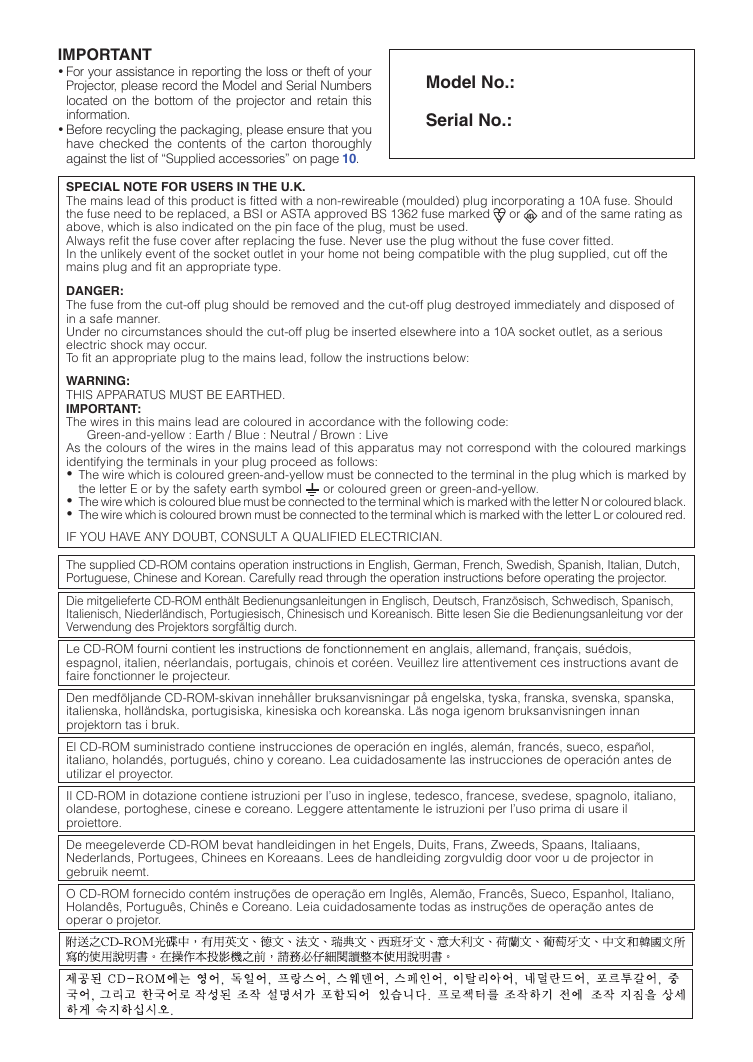

IMPORTANT • For your assistance in reporting the loss or theft of your Projector, please record the Model and Serial Numbers located on the bottom of the projector and retain this information. • Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page 10. Model No.: Serial No.: SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked above, which is also indicated on the pin face of the plug, must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type. and of the same rating as or DANGER: The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 10A socket outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below: WARNING: THIS APPARATUS MUST BE EARTHED. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Green-and-yellow : Earth / Blue : Neutral / Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: • The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. • The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. • The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN. The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch, Portuguese, Chinese and Korean. Carefully read through the operation instructions before operating the projector. Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch, Italienisch, Niederländisch, Portugiesisch, Chinesisch und Koreanisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch. Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois, espagnol, italien, néerlandais, portugais, chinois et coréen. Veuillez lire attentivement ces instructions avant de faire fonctionner le projecteur. Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska, italienska, holländska, portugisiska, kinesiska och koreanska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk. El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español, italiano, holandés, portugués, chino y coreano. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector. Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, svedese, spagnolo, italiano, olandese, portoghese, cinese e coreano. Leggere attentamente le istruzioni per l’uso prima di usare il proiettore. De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans, Nederlands, Portugees, Chinees en Koreaans. Lees de handleiding zorgvuldig door voor u de projector in gebruik neemt. O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano, Holandês, Português, Chinês e Coreano. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.

Before using the projector, please read this operation manual carefully. Introduction ENGLISH There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector. 1. WARRANTY This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase. 2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE. U.S.A. ONLY WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. I n t r o d u c t i o n See bottom of projector. CAUTION RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons. The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equip- ment. U.S.A. ONLY INFORMATION This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. U.S.A. ONLY The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A verification. U.S.A. ONLY WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. -1

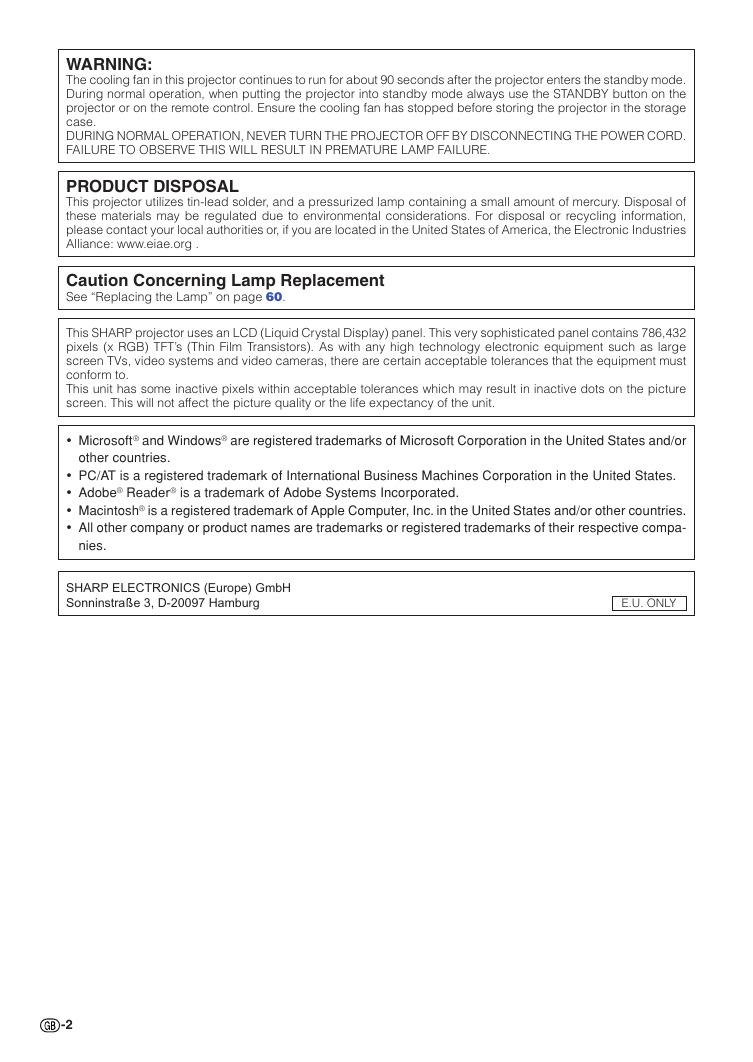

WARNING: The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY button on the projector or on the remote control. Ensure the cooling fan has stopped before storing the projector in the storage case. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE. PRODUCT DISPOSAL This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org . Caution Concerning Lamp Replacement See “Replacing the Lamp” on page 60. This SHARP projector uses an LCD (Liquid Crystal Display) panel. This very sophisticated panel contains 786,432 pixels (x RGB) TFT’s (Thin Film Transistors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit. • Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries. • PC/AT is a registered trademark of International Business Machines Corporation in the United States. • Adobe® Reader® is a trademark of Adobe Systems Incorporated. • Macintosh® is a registered trademark of Apple Computer, Inc. in the United States and/or other countries. • All other company or product names are trademarks or registered trademarks of their respective compa- nies. SHARP ELECTRONICS (Europe) GmbH Sonninstra e 3, D-20097 Hamburg E.U. ONLY -2

How to Read this Operation Manual ••••• In this operation manual, the illustrations and on-screen displays are simplified for explana- tion. This may differ from the actual on-screen display. Using the Menu Screen Buttons used in this operation Adjustment buttons ('/"/\/|) ENTER button MENU button RETURN button MOUSE/Adjustment buttons ('/"/\/|) ENTER button MENU button RETURN button Buttons used in this operation I n t r o d u c t i o n Menu Selections Button used in this step Example: Adjusting “Bright” • This operation can also be performed by using the buttons on the projector. 1 Press MENU. • The “Picture” menu screen for the se- lected input mode is displayed. Example: “Picture” screen menu for COMPUTER/COMPONENT 1 (RGB) mode Picture Picture Mode Contrast Bright Red Blue CLR Temp Reset Signal Type 0 0 0 0 Menu icons COMP.1 Standard 7500K Auto SEL./ADJ. RETURN ENTER END On-screen display 2 Press ||||| or \\\\\ to display the other menu screens. • The menu icon for the selected menu screen is highlighted. Menu icon Menu screen Picture Fine Sync Options1 Options2 Language Note • The “Fine Sync” menu is not available for selecting VIDEO or S-VIDEO. -42 Info ...........Indicates safeguards when using the projector. Note ........Indicates additional information for setting up and operating the projector. For Future Reference Maintenance Page 55 Troubleshooting Pages 64 and 65 Index Page 68 -3

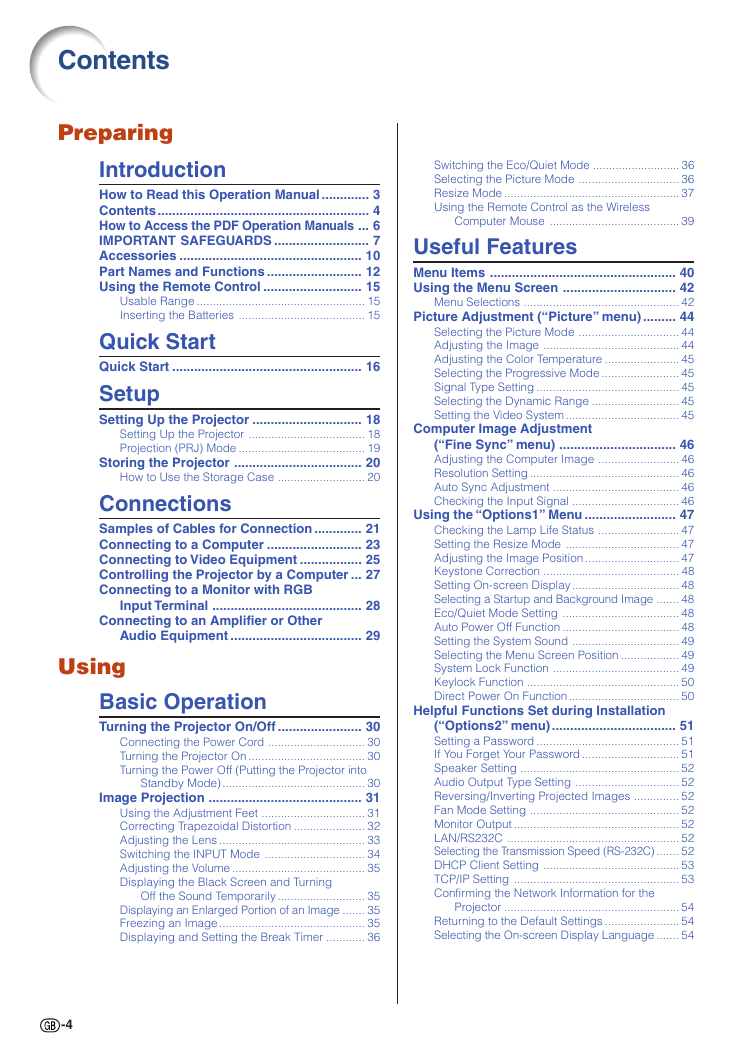

Contents Preparing Introduction How to Read this Operation Manual ............. 3 Contents.......................................................... 4 How to Access the PDF Operation Manuals ... 6 IMPORTANT SAFEGUARDS .......................... 7 Accessories .................................................. 10 Part Names and Functions .......................... 12 Using the Remote Control ........................... 15 Usable Range .................................................... 15 Inserting the Batteries ....................................... 15 Quick Start Quick Start .................................................... 16 Setup Setting Up the Projector .............................. 18 Setting Up the Projector .................................... 18 Projection (PRJ) Mode ....................................... 19 Storing the Projector ................................... 20 How to Use the Storage Case ........................... 20 Connections Samples of Cables for Connection ............. 21 Connecting to a Computer .......................... 23 Connecting to Video Equipment ................. 25 Controlling the Projector by a Computer ... 27 Connecting to a Monitor with RGB Input Terminal ......................................... 28 Connecting to an Amplifier or Other Audio Equipment .................................... 29 Using Basic Operation Turning the Projector On/Off ....................... 30 Connecting the Power Cord .............................. 30 Turning the Projector On .................................... 30 Turning the Power Off (Putting the Projector into Standby Mode) ............................................ 30 Image Projection .......................................... 31 Using the Adjustment Feet ................................ 31 Correcting Trapezoidal Distortion ...................... 32 Adjusting the Lens ............................................. 33 Switching the INPUT Mode ............................... 34 Adjusting the Volume ......................................... 35 Displaying the Black Screen and Turning Off the Sound Temporarily ........................... 35 Displaying an Enlarged Portion of an Image ....... 35 Freezing an Image ............................................. 35 Displaying and Setting the Break Timer ............ 36 -4 Switching the Eco/Quiet Mode ........................... 36 Selecting the Picture Mode ............................... 36 Resize Mode ...................................................... 37 Using the Remote Control as the Wireless Computer Mouse ........................................ 39 Useful Features Menu Items ................................................... 40 Using the Menu Screen ............................... 42 Menu Selections ................................................ 42 Picture Adjustment (“Picture” menu) ......... 44 Selecting the Picture Mode ............................... 44 Adjusting the Image .......................................... 44 Adjusting the Color Temperature ....................... 45 Selecting the Progressive Mode ........................ 45 Signal Type Setting ............................................ 45 Selecting the Dynamic Range ........................... 45 Setting the Video System ................................... 45 Computer Image Adjustment (“Fine Sync” menu) ................................ 46 Adjusting the Computer Image ......................... 46 Resolution Setting .............................................. 46 Auto Sync Adjustment ....................................... 46 Checking the Input Signal ................................. 46 Using the “Options1” Menu ......................... 47 Checking the Lamp Life Status ......................... 47 Setting the Resize Mode ................................... 47 Adjusting the Image Position ............................. 47 Keystone Correction .......................................... 48 Setting On-screen Display ................................. 48 Selecting a Startup and Background Image ....... 48 Eco/Quiet Mode Setting .................................... 48 Auto Power Off Function .................................... 48 Setting the System Sound ................................. 49 Selecting the Menu Screen Position .................. 49 System Lock Function ....................................... 49 Keylock Function ............................................... 50 Direct Power On Function .................................. 50 Helpful Functions Set during Installation (“Options2” menu) .................................. 51 Setting a Password ............................................ 51 If You Forget Your Password .............................. 51 Speaker Setting ................................................. 52 Audio Output Type Setting ................................ 52 Reversing/Inverting Projected Images .............. 52 Fan Mode Setting .............................................. 52 Monitor Output ................................................... 52 LAN/RS232C ..................................................... 52 Selecting the Transmission Speed (RS-232C) ....... 52 DHCP Client Setting .......................................... 53 TCP/IP Setting ................................................... 53 Confirming the Network Information for the Projector ...................................................... 54 Returning to the Default Settings ....................... 54 Selecting the On-screen Display Language ....... 54

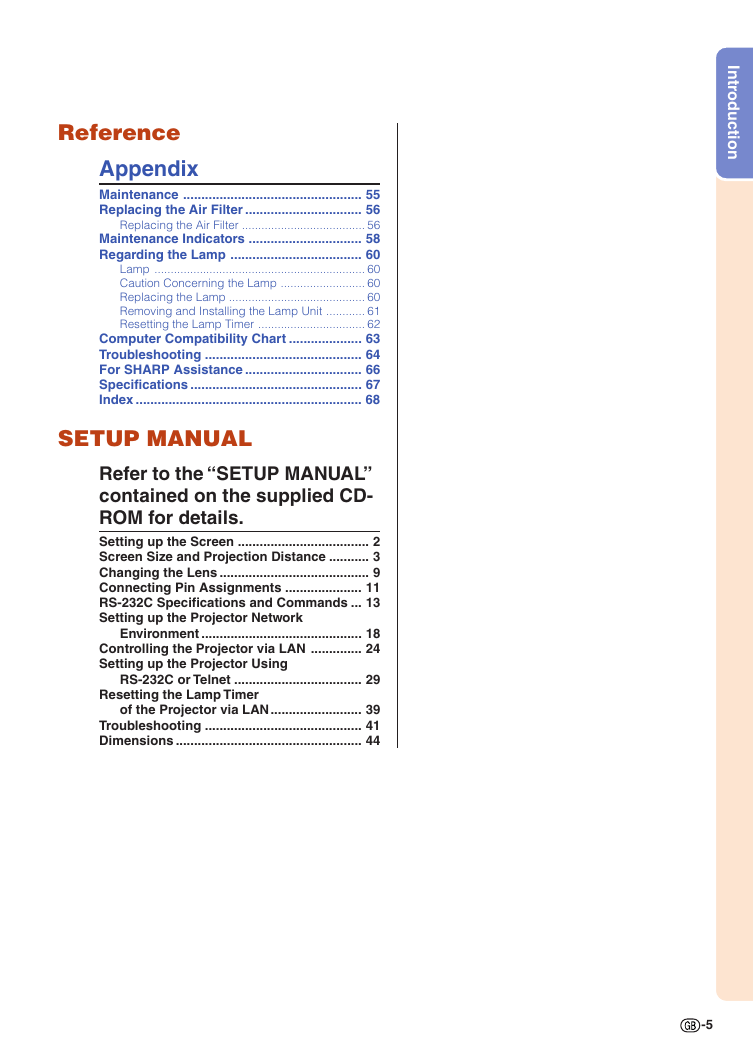

Reference Appendix Maintenance ................................................. 55 Replacing the Air Filter ................................ 56 Replacing the Air Filter ...................................... 56 Maintenance Indicators ............................... 58 Regarding the Lamp .................................... 60 Lamp ................................................................. 60 Caution Concerning the Lamp .......................... 60 Replacing the Lamp .......................................... 60 Removing and Installing the Lamp Unit ............ 61 Resetting the Lamp Timer ................................. 62 Computer Compatibility Chart .................... 63 Troubleshooting ........................................... 64 For SHARP Assistance ................................ 66 Specifications ............................................... 67 Index .............................................................. 68 SETUP MANUAL Refer to the “SETUP MANUAL” contained on the supplied CD- ROM for details. Setting up the Screen .................................... 2 Screen Size and Projection Distance ........... 3 Changing the Lens ......................................... 9 Connecting Pin Assignments ..................... 11 RS-232C Specifications and Commands ... 13 Setting up the Projector Network Environment ............................................ 18 Controlling the Projector via LAN .............. 24 Setting up the Projector Using RS-232C or Telnet ................................... 29 Resetting the Lamp Timer of the Projector via LAN......................... 39 Troubleshooting ........................................... 41 Dimensions ................................................... 44 I n t r o d u c t i o n -5

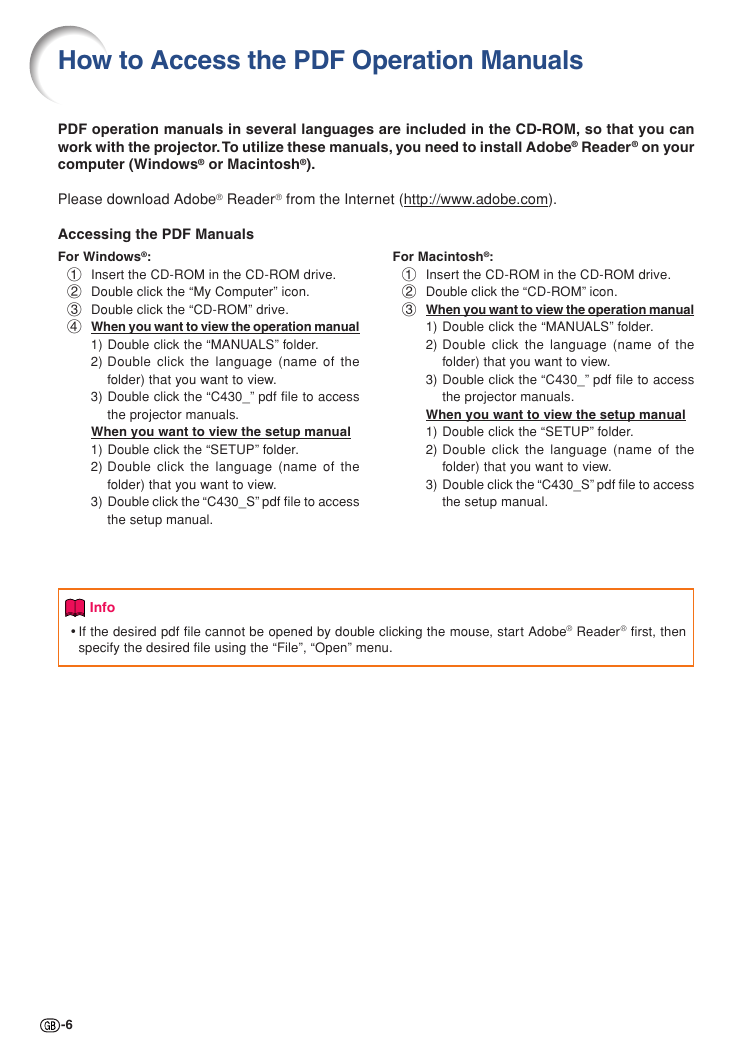

How to Access the PDF Operation Manuals PDF operation manuals in several languages are included in the CD-ROM, so that you can work with the projector. To utilize these manuals, you need to install Adobe® Reader® on your computer (Windows® or Macintosh®). Please download Adobe® Reader® from the Internet (http://www.adobe.com). Accessing the PDF Manuals For Windows®: 1 Insert the CD-ROM in the CD-ROM drive. 2 Double click the “My Computer” icon. 3 Double click the “CD-ROM” drive. 4 When you want to view the operation manual 1) Double click the “MANUALS” folder. 2) Double click the language (name of the folder) that you want to view. For Macintosh®: 1 Insert the CD-ROM in the CD-ROM drive. 2 Double click the “CD-ROM” icon. 3 When you want to view the operation manual 1) Double click the “MANUALS” folder. 2) Double click the language (name of the folder) that you want to view. 3) Double click the “C430_” pdf file to access 3) Double click the “C430_” pdf file to access the projector manuals. the projector manuals. When you want to view the setup manual 1) Double click the “SETUP” folder. 2) Double click the language (name of the folder) that you want to view. When you want to view the setup manual 1) Double click the “SETUP” folder. 2) Double click the language (name of the folder) that you want to view. 3) Double click the “C430_S” pdf file to access 3) Double click the “C430_S” pdf file to access the setup manual. the setup manual. Info • If the desired pdf file cannot be opened by double clicking the mouse, start Adobe® Reader ® first, then specify the desired file using the “File”, “Open” menu. -6
