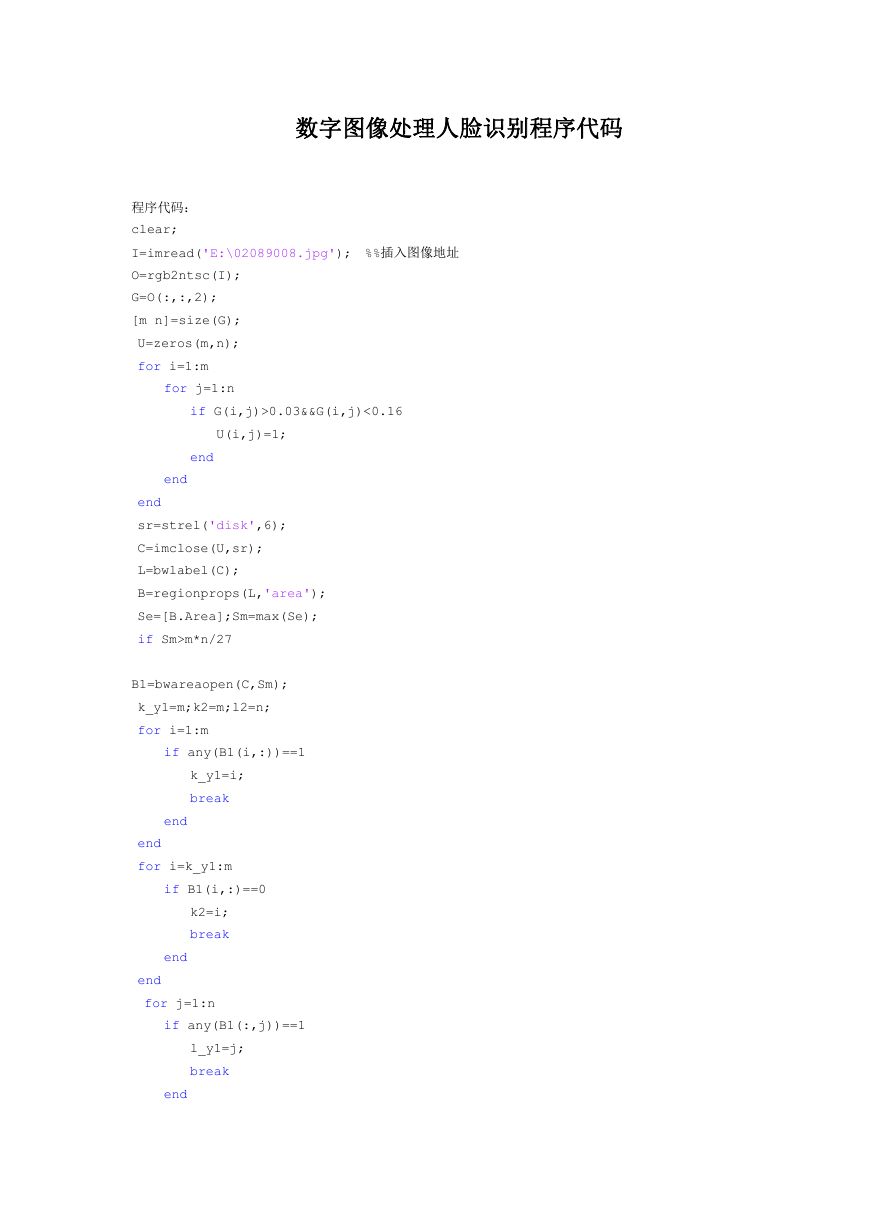

数字图像处理人脸识别程序代码 程序代码： clear; I=imread('E:\02089008.jpg'); %%插入图像地址 O=rgb2ntsc(I); G=O(:,:,2); [m n]=size(G); U=zeros(m,n); for i=1:m for j=1:n if G(i,j)>0.03&&G(i,j)<0.16 U(i,j)=1; end end end sr=strel('disk',6); C=imclose(U,sr); L=bwlabel(C); B=regionprops(L,'area'); Se=[B.Area];Sm=max(Se); if Sm>m*n/27 B1=bwareaopen(C,Sm); k_y1=m;k2=m;l2=n; for i=1:m if any(B1(i,:))==1 k_y1=i; break end end for i=k_y1:m if B1(i,:)==0 k2=i; break end end for j=1:n if any(B1(:,j))==1 l_y1=j; break end 

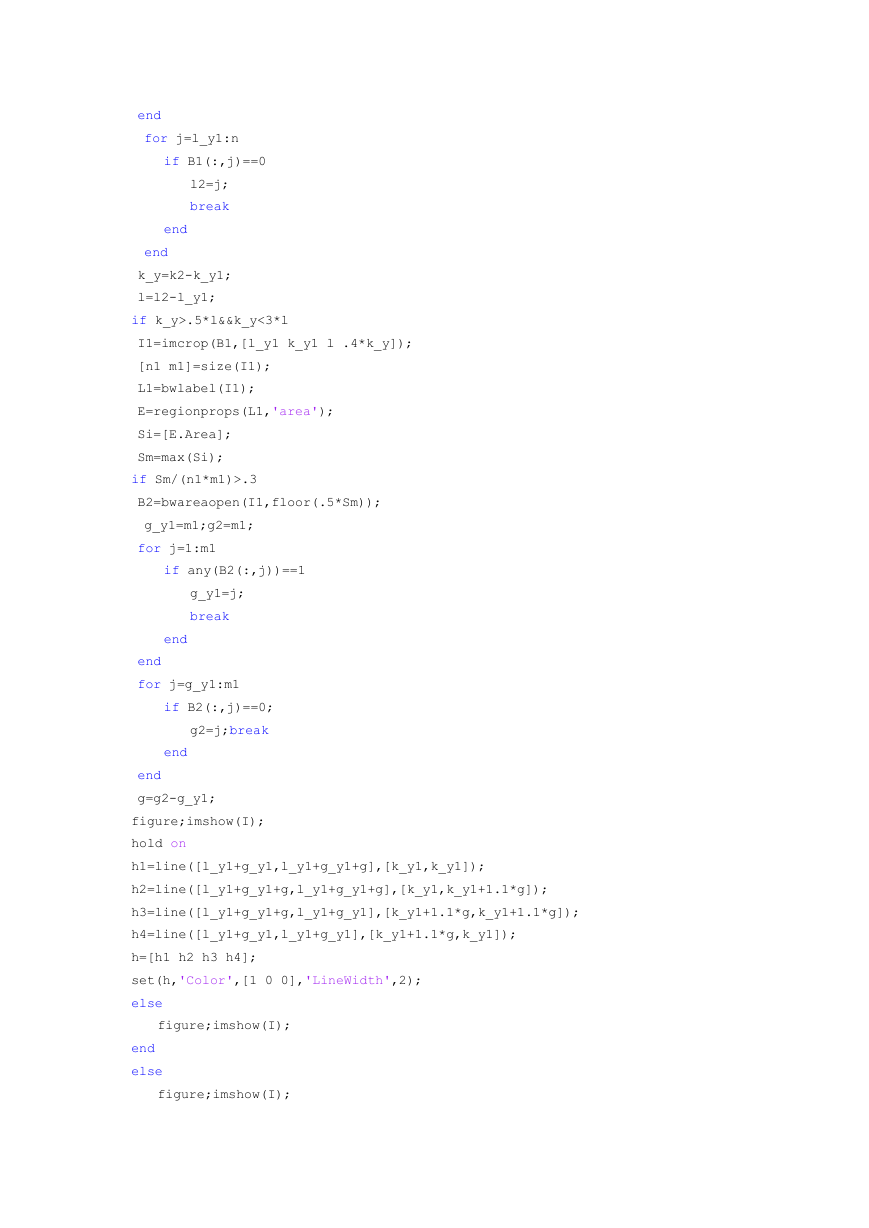

end for j=l_y1:n if B1(:,j)==0 l2=j; break end end k_y=k2-k_y1; l=l2-l_y1; if k_y>.5*l&&k_y<3*l I1=imcrop(B1,[l_y1 k_y1 l .4*k_y]); [n1 m1]=size(I1); L1=bwlabel(I1); E=regionprops(L1,'area'); Si=[E.Area]; Sm=max(Si); if Sm/(n1*m1)>.3 B2=bwareaopen(I1,floor(.5*Sm)); g_y1=m1;g2=m1; for j=1:m1 if any(B2(:,j))==1 g_y1=j; break end end for j=g_y1:m1 if B2(:,j)==0; g2=j;break end end g=g2-g_y1; figure;imshow(I); hold on h1=line([l_y1+g_y1,l_y1+g_y1+g],[k_y1,k_y1]); h2=line([l_y1+g_y1+g,l_y1+g_y1+g],[k_y1,k_y1+1.1*g]); h3=line([l_y1+g_y1+g,l_y1+g_y1],[k_y1+1.1*g,k_y1+1.1*g]); h4=line([l_y1+g_y1,l_y1+g_y1],[k_y1+1.1*g,k_y1]); h=[h1 h2 h3 h4]; set(h,'Color',[1 0 0],'LineWidth',2); else figure;imshow(I); end else figure;imshow(I); 

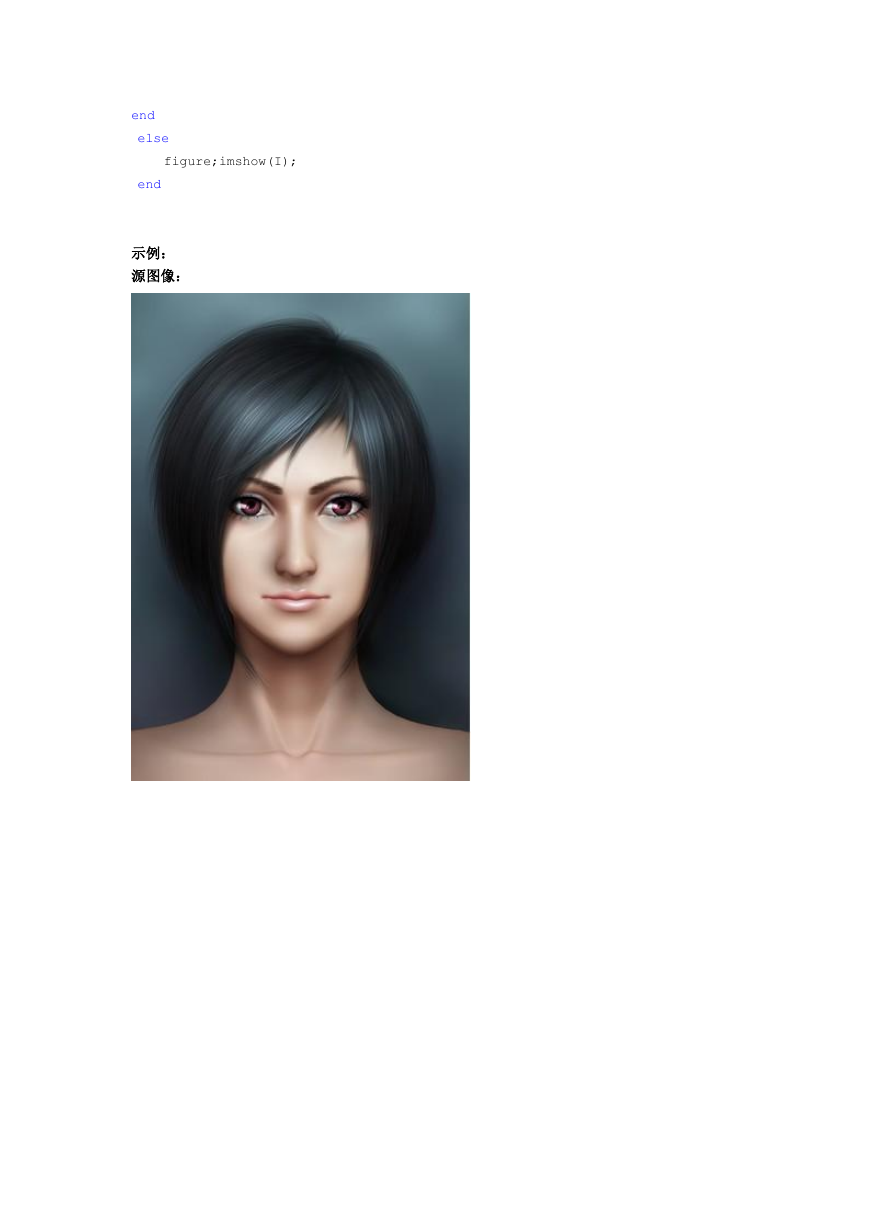

end else figure;imshow(I); end 示例： 源图像： 

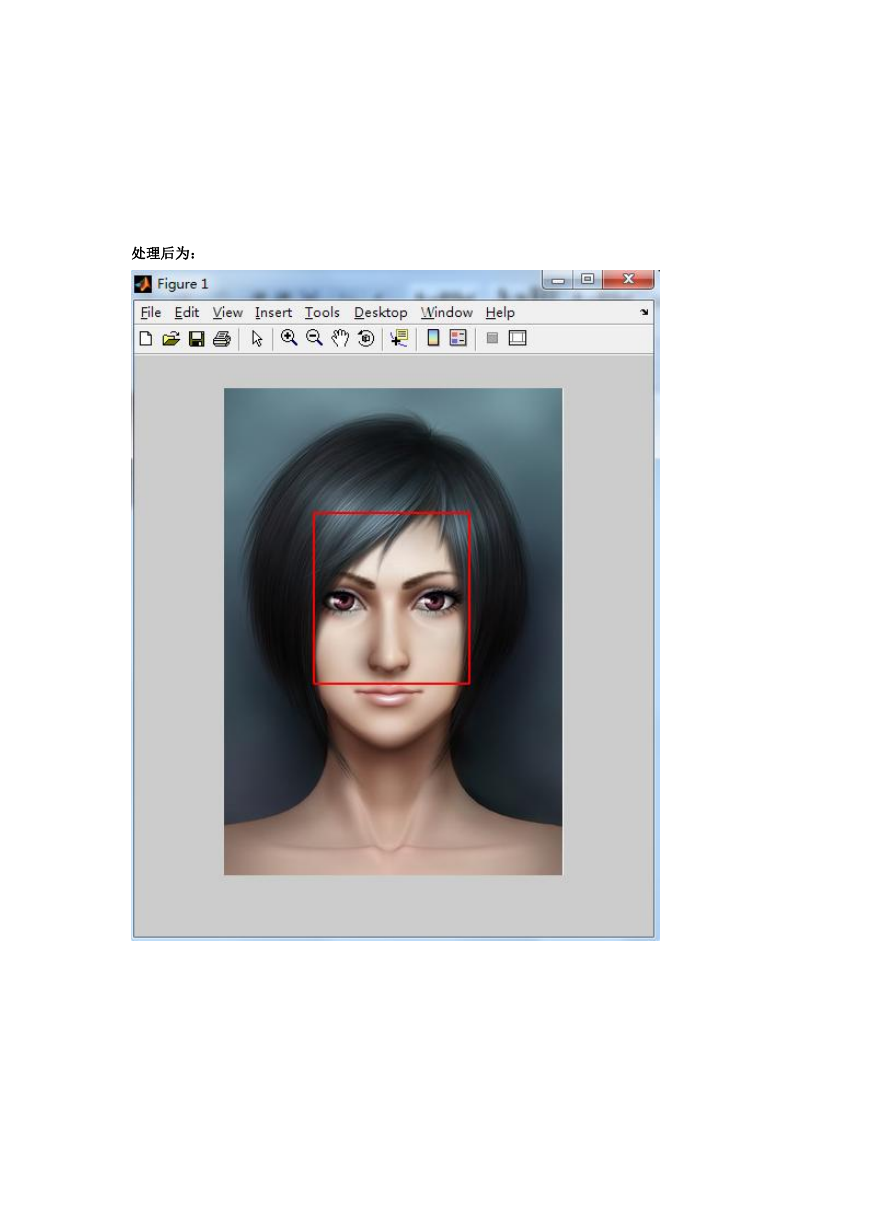

处理后为：
