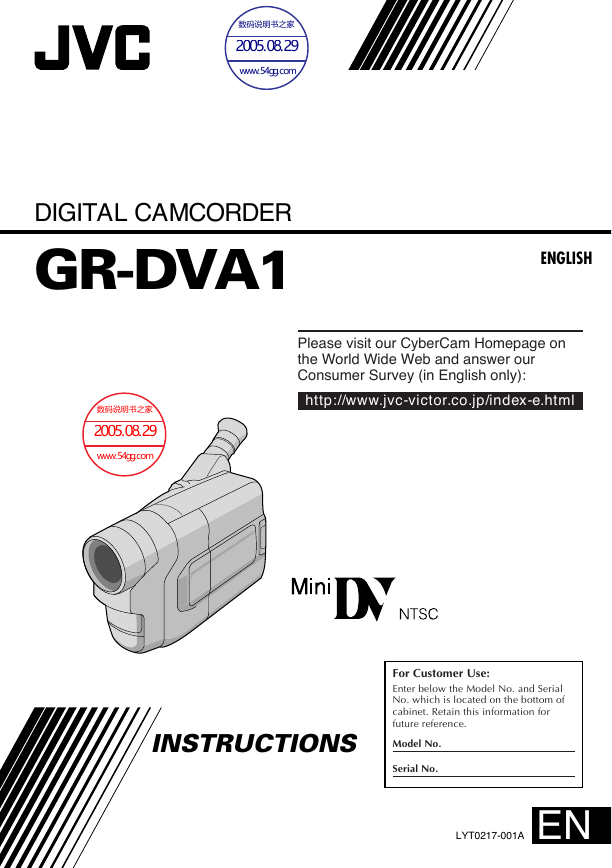

JVC数码摄像机-GR-DVA1说明书.pdf
DIGITAL CAMCORDER
GR-DVA1
ENGLISH
Please visit our CyberCam Homepage on
the World Wide Web and answer our
Consumer Survey (in English only):
http://www.jvc-victor.co.jp/index-e.html
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial
No. which is located on the bottom of
cabinet. Retain this information for
future reference.
Model No.
Serial No.
LYT0217-001A
EN

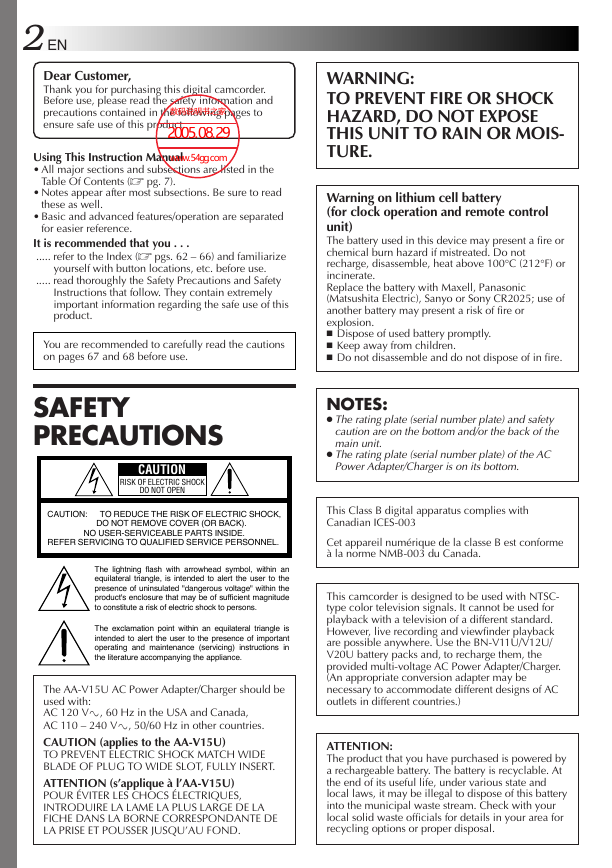

2 EN
Dear Customer,
Thank you for purchasing this digital camcorder.
Before use, please read the safety information and
precautions contained in the following pages to
ensure safe use of this product.
Using This Instruction Manual
• All major sections and subsections are listed in the
Table Of Contents (墌 pg. 7).
• Notes appear after most subsections. Be sure to read
• Basic and advanced features/operation are separated
these as well.
for easier reference.
It is recommended that you . . .
..... refer to the Index (墌 pgs. 62 – 66) and familiarize
yourself with button locations, etc. before use.
..... read thoroughly the Safety Precautions and Safety
Instructions that follow. They contain extremely
important information regarding the safe use of this
product.
You are recommended to carefully read the cautions
on pages 67 and 68 before use.
SAFETY
PRECAUTIONS
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
The AA-V15U AC Power Adapter/Charger should be
used with:
AC 120 V‘, 60 Hz in the USA and Canada,
AC 110 – 240 V‘, 50/60 Hz in other countries.
CAUTION (applies to the AA-V15U)
TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION (s’applique à l’AA-V15U)
POUR ÉVITER LES CHOCS ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQU’AU FOND.
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOIS-
TURE.
Warning on lithium cell battery
(for clock operation and remote control
unit)
The battery used in this device may present a fire or
chemical burn hazard if mistreated. Do not
recharge, disassemble, heat above 100°C (212°F) or
incinerate.
Replace the battery with Maxell, Panasonic
(Matsushita Electric), Sanyo or Sony CR2025; use of
another battery may present a risk of fire or
explosion.
䡲 Dispose of used battery promptly.
䡲 Keep away from children.
䡲 Do not disassemble and do not dispose of in fire.
NOTES:
● The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of the
main unit.
● The rating plate (serial number plate) of the AC
Power Adapter/Charger is on its bottom.
This Class B digital apparatus complies with
Canadian ICES-003
Cet appareil numérique de la classe B est conforme
à la norme NMB-003 du Canada.
This camcorder is designed to be used with NTSC-
type color television signals. It cannot be used for
playback with a television of a different standard.
However, live recording and viewfinder playback
are possible anywhere. Use the BN-V11U/V12U/
V20U battery packs and, to recharge them, the
provided multi-voltage AC Power Adapter/Charger.
(An appropriate conversion adapter may be
necessary to accommodate different designs of AC
outlets in different countries.)
ATTENTION:
The product that you have purchased is powered by
a rechargeable battery. The battery is recyclable. At
the end of its useful life, under various state and
local laws, it may be illegal to dispose of this battery
into the municipal waste stream. Check with your
local solid waste officials for details in your area for
recycling options or proper disposal.

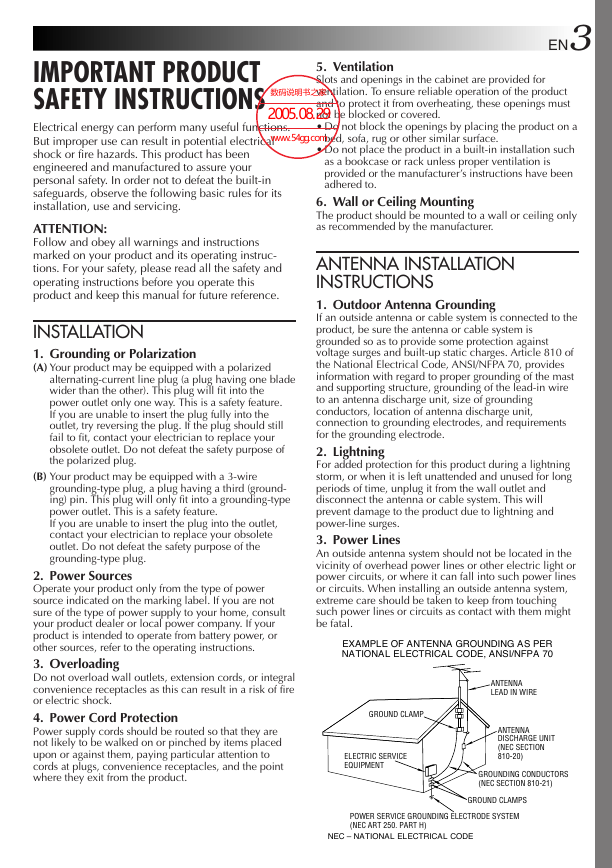

IMPORTANT PRODUCT
SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions.
But improper use can result in potential electrical
shock or fire hazards. This product has been
engineered and manufactured to assure your
personal safety. In order not to defeat the built-in
safeguards, observe the following basic rules for its
installation, use and servicing.
ATTENTION:
Follow and obey all warnings and instructions
marked on your product and its operating instruc-
tions. For your safety, please read all the safety and
operating instructions before you operate this
product and keep this manual for future reference.
INSTALLATION
1. Grounding or Polarization
(A) Your product may be equipped with a polarized
alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still
fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of
the polarized plug.
(B) Your product may be equipped with a 3-wire
grounding-type plug, a plug having a third (ground-
ing) pin. This plug will only fit into a grounding-type
power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
grounding-type plug.
2. Power Sources
Operate your product only from the type of power
source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult
your product dealer or local power company. If your
product is intended to operate from battery power, or
other sources, refer to the operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire
or electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point
where they exit from the product.
EN3
5. Ventilation
Slots and openings in the cabinet are provided for
ventilation. To ensure reliable operation of the product
and to protect it from overheating, these openings must
not be blocked or covered.
• Do not block the openings by placing the product on a
bed, sofa, rug or other similar surface.
• Do not place the product in a built-in installation such
as a bookcase or rack unless proper ventilation is
provided or the manufacturer’s instructions have been
adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only
as recommended by the manufacturer.
ANTENNA INSTALLATION
INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is
grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of
the National Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements
for the grounding electrode.
2. Lightning
For added protection for this product during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will
prevent damage to the product due to lightning and
power-line surges.
3. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching
such power lines or circuits as contact with them might
be fatal.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
GROUND CLAMP
ELECTRIC SERVICE
EQUIPMENT
ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION
810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE

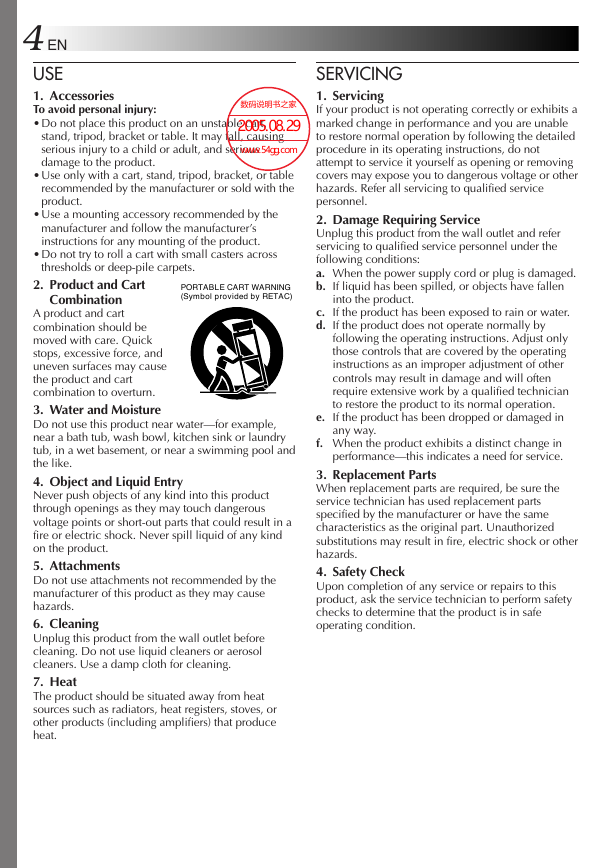

4 EN
USE
1. Accessories
To avoid personal injury:
•Do not place this product on an unstable cart,
stand, tripod, bracket or table. It may fall, causing
serious injury to a child or adult, and serious
damage to the product.
•Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer or sold with the
product.
•Use a mounting accessory recommended by the
manufacturer and follow the manufacturer’s
instructions for any mounting of the product.
•Do not try to roll a cart with small casters across
thresholds or deep-pile carpets.
2. Product and Cart
PORTABLE CART WARNING
(Symbol provided by RETAC)
Combination
A product and cart
combination should be
moved with care. Quick
stops, excessive force, and
uneven surfaces may cause
the product and cart
combination to overturn.
3. Water and Moisture
Do not use this product near water—for example,
near a bath tub, wash bowl, kitchen sink or laundry
tub, in a wet basement, or near a swimming pool and
the like.
4. Object and Liquid Entry
Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind
on the product.
5. Attachments
Do not use attachments not recommended by the
manufacturer of this product as they may cause
hazards.
6. Cleaning
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
7. Heat
The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a
marked change in performance and you are unable
to restore normal operation by following the detailed
procedure in its operating instructions, do not
attempt to service it yourself as opening or removing
covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
a. When the power supply cord or plug is damaged.
b.
If liquid has been spilled, or objects have fallen
into the product.
If the product has been exposed to rain or water.
If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the product to its normal operation.
If the product has been dropped or damaged in
any way.
c.
d.
e.
f. When the product exhibits a distinct change in
performance—this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or other
hazards.
4. Safety Check
Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in safe
operating condition.

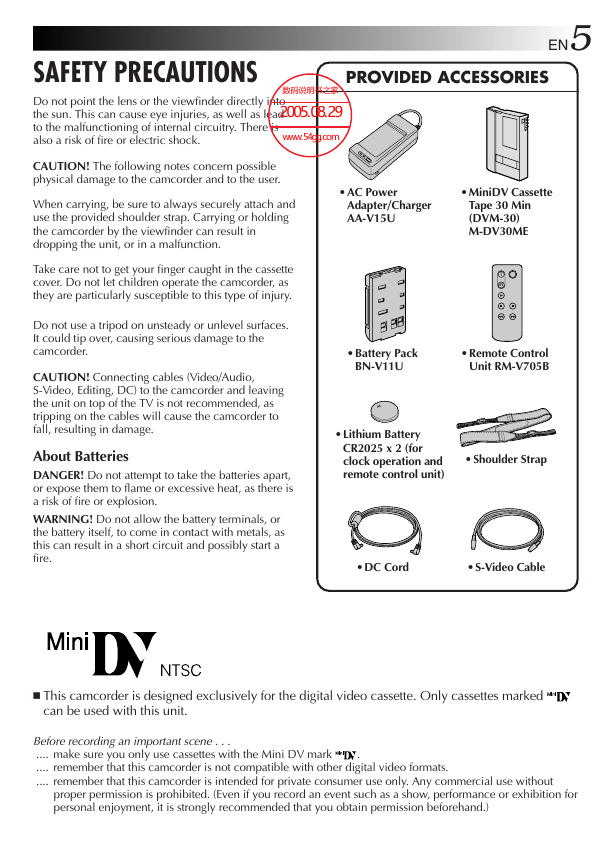

SAFETY PRECAUTIONS
Do not point the lens or the viewfinder directly into
the sun. This can cause eye injuries, as well as lead
to the malfunctioning of internal circuitry. There is
also a risk of fire or electric shock.
CAUTION! The following notes concern possible
physical damage to the camcorder and to the user.
When carrying, be sure to always securely attach and
use the provided shoulder strap. Carrying or holding
the camcorder by the viewfinder can result in
dropping the unit, or in a malfunction.
Take care not to get your finger caught in the cassette
cover. Do not let children operate the camcorder, as
they are particularly susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel surfaces.
It could tip over, causing serious damage to the
camcorder.
CAUTION! Connecting cables (Video/Audio,
S-Video, Editing, DC) to the camcorder and leaving
the unit on top of the TV is not recommended, as
tripping on the cables will cause the camcorder to
fall, resulting in damage.
About Batteries
DANGER! Do not attempt to take the batteries apart,
or expose them to flame or excessive heat, as there is
a risk of fire or explosion.
WARNING! Do not allow the battery terminals, or
the battery itself, to come in contact with metals, as
this can result in a short circuit and possibly start a
fire.
EN5
PROVIDED ACCESSORIES
•AC Power
Adapter/Charger
AA-V15U
•MiniDV Cassette
Tape 30 Min
(DVM-30)
M-DV30ME
T
W
•Battery Pack
BN-V11U
•Remote Control
Unit RM-V705B
•Lithium Battery
CR2025 x 2 (for
clock operation and
remote control unit)
•Shoulder Strap
•DC Cord
•S-Video Cable
䡲 This camcorder is designed exclusively for the digital video cassette. Only cassettes marked
can be used with this unit.
Before recording an important scene . . .
.... make sure you only use cassettes with the Mini DV mark
.... remember that this camcorder is not compatible with other digital video formats.
.... remember that this camcorder is intended for private consumer use only. Any commercial use without
.
proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for
personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

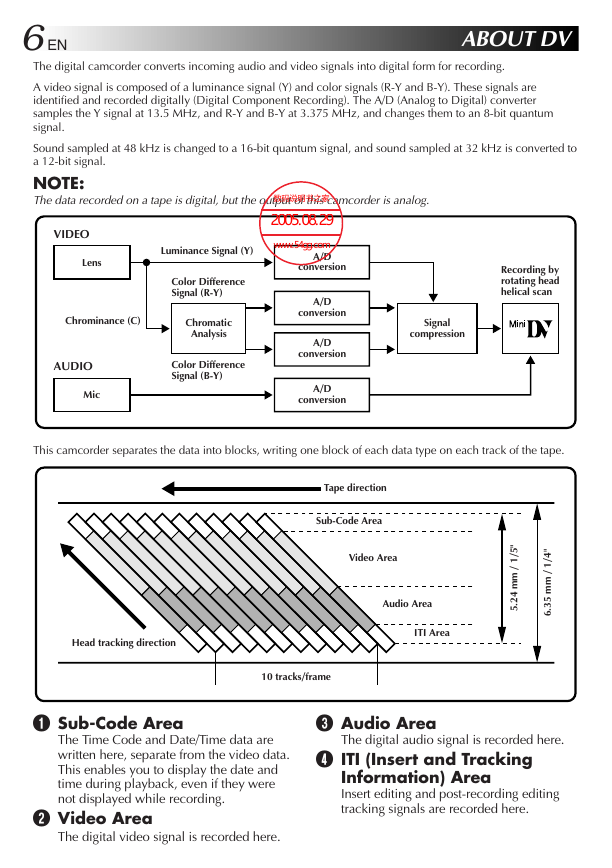

6 EN
ABOUT DV
The digital camcorder converts incoming audio and video signals into digital form for recording.
A video signal is composed of a luminance signal (Y) and color signals (R-Y and B-Y). These signals are
identified and recorded digitally (Digital Component Recording). The A/D (Analog to Digital) converter
samples the Y signal at 13.5 MHz, and R-Y and B-Y at 3.375 MHz, and changes them to an 8-bit quantum
signal.
Sound sampled at 48 kHz is changed to a 16-bit quantum signal, and sound sampled at 32 kHz is converted to
a 12-bit signal.
NOTE:
The data recorded on a tape is digital, but the output of this camcorder is analog.
VIDEO
Lens
Chrominance (C)
AUDIO
Mic
Luminance Signal (Y)
Color Difference
Signal (R-Y)
Chromatic
Analysis
Color Difference
Signal (B-Y)
A/D
conversion
A/D
conversion
A/D
conversion
A/D
conversion
Recording by
rotating head
helical scan
Signal
compression
This camcorder separates the data into blocks, writing one block of each data type on each track of the tape.
Tape direction
Sub-Code Area
Video Area
Head tracking direction
10 tracks/frame
Audio Area
ITI Area
"
5
/
1
/
m
m
4
2
5
.
"
4
/
1
/
m
m
5
3
6
.
1 Sub-Code Area
The Time Code and Date/Time data are
written here, separate from the video data.
This enables you to display the date and
time during playback, even if they were
not displayed while recording.
2 Video Area
The digital video signal is recorded here.
3 Audio Area
4 ITI (Insert and Tracking
The digital audio signal is recorded here.
Information) Area
Insert editing and post-recording editing
tracking signals are recorded here.

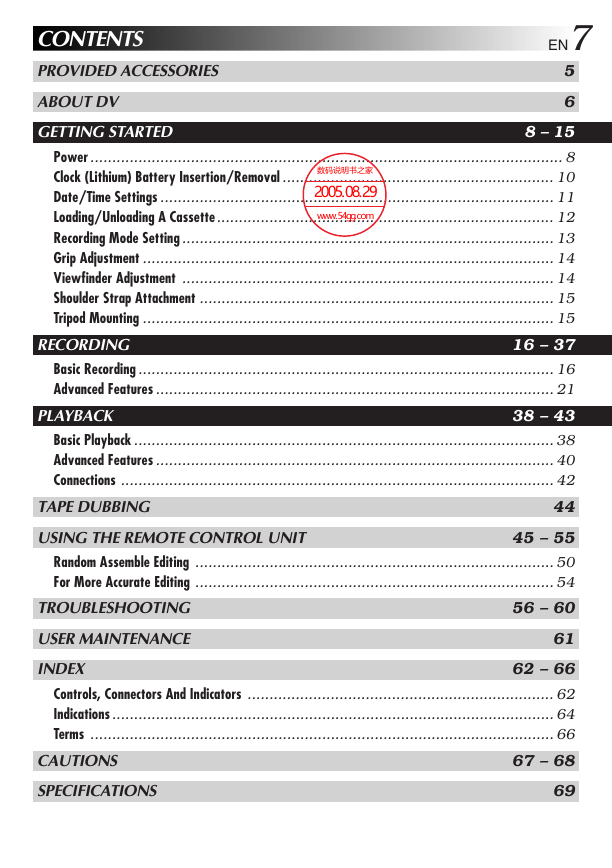

CONTENTS
PROVIDED ACCESSORIES
ABOUT DV
EN7
5
6
GETTING STARTED
8 – 15
Power ............................................................................................................ 8
Clock (Lithium) Battery Insertion/Removal .............................................................. 10
Date/Time Settings .......................................................................................... 11
Loading/Unloading A Cassette............................................................................. 12
Recording Mode Setting ..................................................................................... 13
Grip Adjustment .............................................................................................. 14
Viewfinder Adjustment ..................................................................................... 14
Shoulder Strap Attachment ................................................................................. 15
Tripod Mounting .............................................................................................. 15
16 – 37
Basic Recording ............................................................................................... 16
Advanced Features ........................................................................................... 21
38 – 43
Basic Playback ................................................................................................ 38
Advanced Features ........................................................................................... 40
Connections ................................................................................................... 42
44
TAPE DUBBING
RECORDING
PLAYBACK
USING THE REMOTE CONTROL UNIT
45 – 55
Random Assemble Editing .................................................................................. 50
For More Accurate Editing .................................................................................. 54
56 – 60
TROUBLESHOOTING
USER MAINTENANCE
61
INDEX
62 – 66
Controls, Connectors And Indicators ...................................................................... 62
Indications..................................................................................................... 64
Terms .......................................................................................................... 66
67 – 68
CAUTIONS
SPECIFICATIONS
69

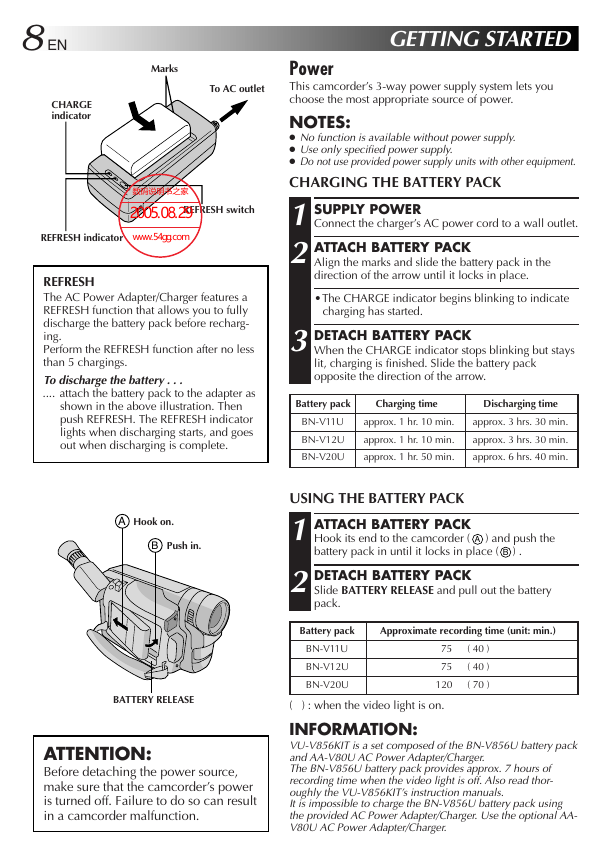

8 EN
CHARGE
indicator
Marks
To AC outlet
GETTING STARTED
Power
This camcorder’s 3-way power supply system lets you
choose the most appropriate source of power.
NOTES:
● No function is available without power supply.
● Use only specified power supply.
● Do not use provided power supply units with other equipment.
CHARGING THE BATTERY PACK
REFRESH switch
REFRESH indicator
REFRESH
The AC Power Adapter/Charger features a
REFRESH function that allows you to fully
discharge the battery pack before recharg-
ing.
Perform the REFRESH function after no less
than 5 chargings.
To discharge the battery . . .
.... attach the battery pack to the adapter as
shown in the above illustration. Then
push REFRESH. The REFRESH indicator
lights when discharging starts, and goes
out when discharging is complete.
A
Hook on.
B
Push in.
Connect the charger’s AC power cord to a wall outlet.
1SUPPLY POWER
2ATTACH BATTERY PACK
Align the marks and slide the battery pack in the
direction of the arrow until it locks in place.
•The CHARGE indicator begins blinking to indicate
charging has started.
3DETACH BATTERY PACK
When the CHARGE indicator stops blinking but stays
lit, charging is finished. Slide the battery pack
opposite the direction of the arrow.
Battery pack
Charging time
Discharging time
BN-V11U
BN-V12U
BN-V20U
approx. 1 hr. 10 min.
approx. 1 hr. 10 min.
approx. 1 hr. 50 min.
approx. 3 hrs. 30 min.
approx. 3 hrs. 30 min.
approx. 6 hrs. 40 min.
USING THE BATTERY PACK
Hook its end to the camcorder ( A ) and push the
battery pack in until it locks in place ( B ) .
1ATTACH BATTERY PACK
2DETACH BATTERY PACK
Slide BATTERY RELEASE and pull out the battery
pack.
BATTERY RELEASE
ATTENTION:
Before detaching the power source,
make sure that the camcorder’s power
is turned off. Failure to do so can result
in a camcorder malfunction.
Battery pack
Approximate recording time (unit: min.)
BN-V11U
BN-V12U
BN-V20U
75
75
120
( 40 )
( 40 )
( 70 )
( ) : when the video light is on.
INFORMATION:
VU-V856KIT is a set composed of the BN-V856U battery pack
and AA-V80U AC Power Adapter/Charger.
The BN-V856U battery pack provides approx. 7 hours of
recording time when the video light is off. Also read thor-
oughly the VU-V856KIT’s instruction manuals.
It is impossible to charge the BN-V856U battery pack using
the provided AC Power Adapter/Charger. Use the optional AA-
V80U AC Power Adapter/Charger.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
