EIKI爱其投影机-EIP-X5500说明书.pdf
Getting Started
Packing Checklist
Views of Projector Parts
Front-right View
Top view—On-screen Display (OSD) buttons and LEDs
Rear view
Bottom view
Remote Control Parts
Remote Control Operating Range
Projector and Remote Control Buttons
Inserting the Remote Control Batteries
Setup and Operation
Starting and Shutting down the Projector
Setting an Access Password (Security Lock)
Adjusting the Projector Level
Adjusting the Zoom, Focus and Keystone
Adjusting the Volume
On-Screen Display (OSD) Menu Settings
OSD Menu Controls
Navigating the OSD
Setting the OSD Language
OSD Menu Overview
Image Menu
Computer Menu
Advanced Feature
Color Manager
Settings 1 Menu
Audio
Advanced 1 Feature
3D Setting
Advanced 2 Feature
Settings 2 Menu
Status
Advanced 1 Feature
Lamp Hour Reset
Network
Advanced 2 Feature
Source Filter
Maintenance and Security
Replacing the Projection Lamp
Resetting the Lamp
Cleaning the Projector
Cleaning the Lens
Cleaning the Case
Using the Kensington® Lock & Using the Security Bar
Using the Kensington® Lock
Using the Security Bar
Troubleshooting
Common problems and solutions
Tips for Troubleshooting
LED Error Messages
Image Problems
Lamp Problems
Remote Control Problems
Audio Problems
Having the Projector Serviced
HDMI Q & A
Specifications
Specifications
Projection Distance vs. Projection Size
Projection Distance and Size Table
Timing Mode Table
Projector Dimensions
Regulatory Compliance
FCC Warning
Canada
Owner's Manual
Multimedia Projector
Model
EIP-X5500
EIP-W4600
EIP-U4700

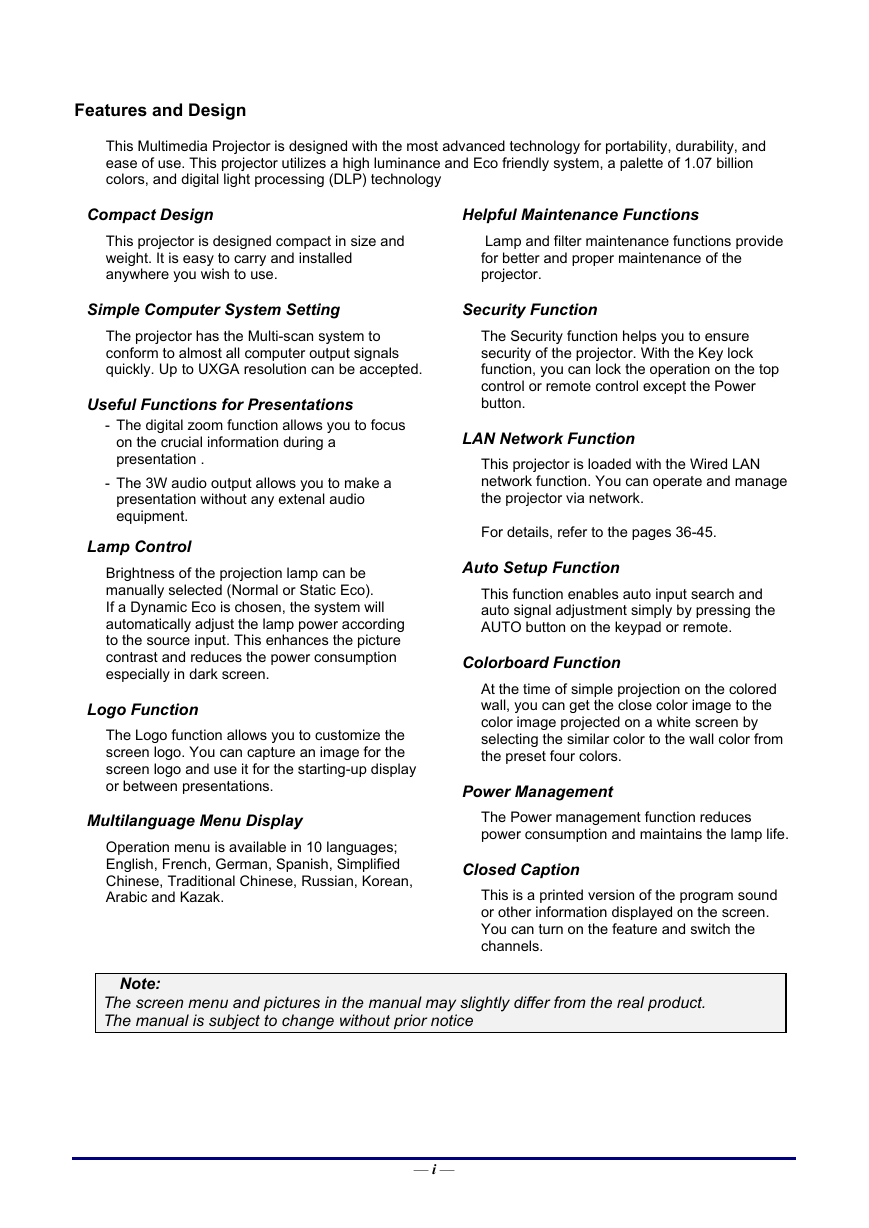

Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and
ease of use. This projector utilizes a high luminance and Eco friendly system, a palette of 1.07 billion
colors, and digital light processing (DLP) technology
Compact Design
Helpful Maintenance Functions
This projector is designed compact in size and
weight. It is easy to carry and installed
anywhere you wish to use.
Lamp and filter maintenance functions provide
for better and proper maintenance of the
projector.
Simple Computer System Setting
Security Function
The projector has the Multi-scan system to
conform to almost all computer output signals
quickly. Up to UXGA resolution can be accepted.
Useful Functions for Presentations
- The digital zoom function allows you to focus
on the crucial information during a
presentation .
- The 3W audio output allows you to make a
presentation without any extenal audio
equipment.
Lamp Control
Brightness of the projection lamp can be
manually selected (Normal or Static Eco).
If a Dynamic Eco is chosen, the system will
automatically adjust the lamp power according
to the source input. This enhances the picture
contrast and reduces the power consumption
especially in dark screen.
Logo Function
The Logo function allows you to customize the
screen logo. You can capture an image for the
screen logo and use it for the starting-up display
or between presentations.
Multilanguage Menu Display
Operation menu is available in 10 languages;
English, French, German, Spanish, Simplified
Chinese, Traditional Chinese, Russian, Korean,
Arabic and Kazak.
The Security function helps you to ensure
security of the projector. With the Key lock
function, you can lock the operation on the top
control or remote control except the Power
button.
LAN Network Function
This projector is loaded with the Wired LAN
network function. You can operate and manage
the projector via network.
For details, refer to the pages 36-45.
Auto Setup Function
This function enables auto input search and
auto signal adjustment simply by pressing the
AUTO button on the keypad or remote.
Colorboard Function
At the time of simple projection on the colored
wall, you can get the close color image to the
color image projected on a white screen by
selecting the similar color to the wall color from
the preset four colors.
Power Management
The Power management function reduces
power consumption and maintains the lamp life.
Closed Caption
This is a printed version of the program sound
or other information displayed on the screen.
You can turn on the feature and switch the
channels.
Note:
The screen menu and pictures in the manual may slightly differ from the real product.
The manual is subject to change without prior notice
— i —
DLP Projector—Owner’s Manual
Copyright
This publication, including all photographs, illustrations and software, is protected under international
copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may
be reproduced without written consent of the author.
© Copyright 2013
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no
representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations
and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
All other product names used in this manual are the properties of their respective owners and are
acknowledged.
— ii —
Preface

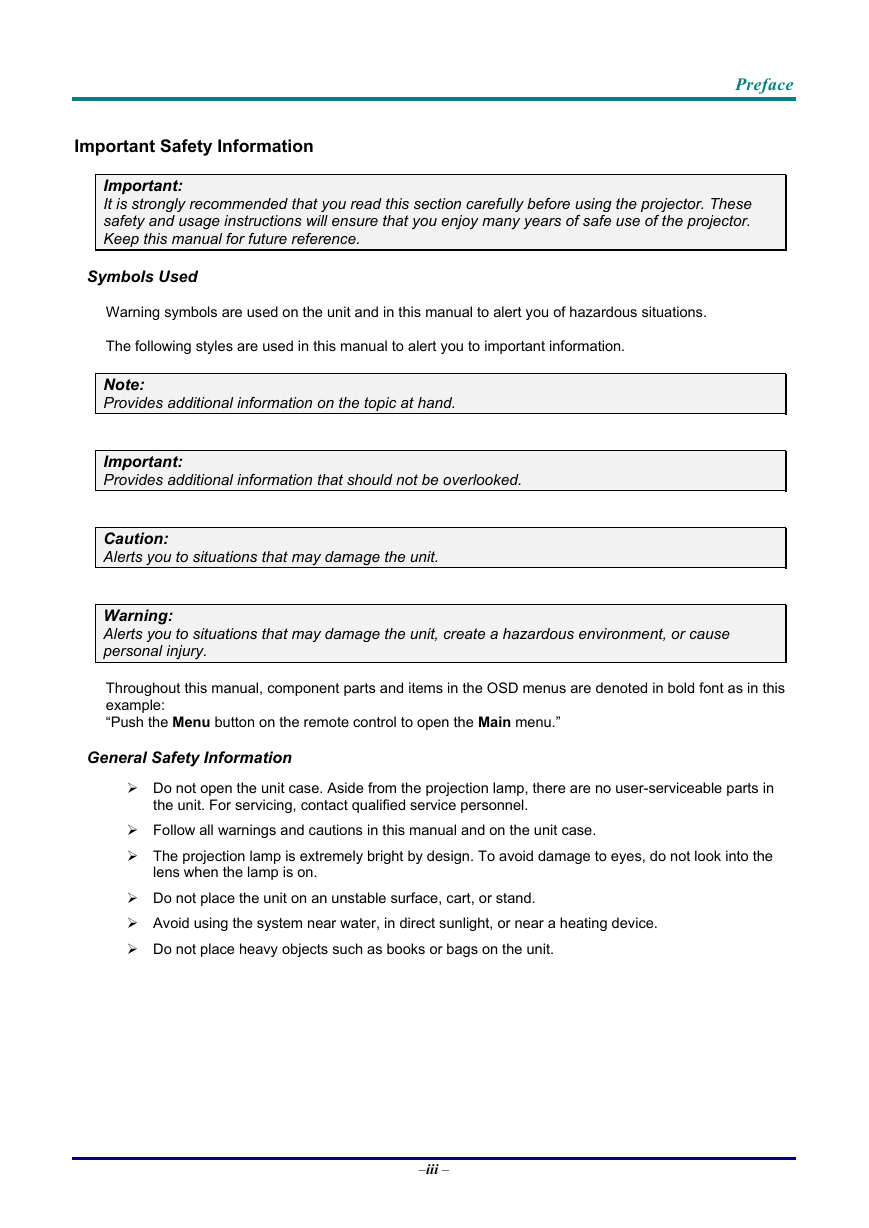

Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause
personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.
–iii –
DLP Projector—Owner’s Manual

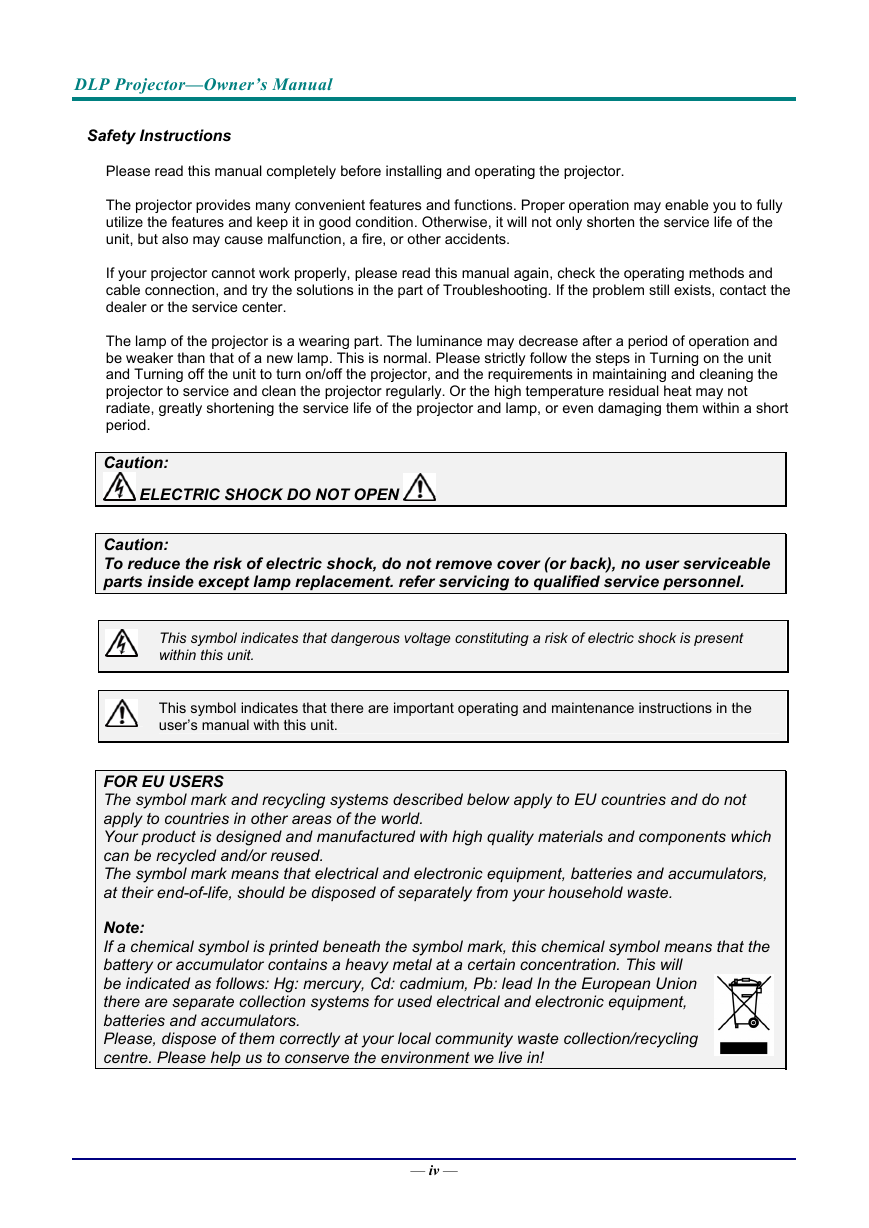

Safety Instructions
Please read this manual completely before installing and operating the projector.
The projector provides many convenient features and functions. Proper operation may enable you to fully
utilize the features and keep it in good condition. Otherwise, it will not only shorten the service life of the
unit, but also may cause malfunction, a fire, or other accidents.
If your projector cannot work properly, please read this manual again, check the operating methods and
cable connection, and try the solutions in the part of Troubleshooting. If the problem still exists, contact the
dealer or the service center.
The lamp of the projector is a wearing part. The luminance may decrease after a period of operation and
be weaker than that of a new lamp. This is normal. Please strictly follow the steps in Turning on the unit
and Turning off the unit to turn on/off the projector, and the requirements in maintaining and cleaning the
projector to service and clean the projector regularly. Or the high temperature residual heat may not
radiate, greatly shortening the service life of the projector and lamp, or even damaging them within a short
period.
Caution:
ELECTRIC SHOCK DO NOT OPEN
Caution:
To reduce the risk of electric shock, do not remove cover (or back), no user serviceable
parts inside except lamp replacement. refer servicing to qualified service personnel.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present
within this unit.
This symbol indicates that there are important operating and maintenance instructions in the
user’s manual with this unit.
FOR EU USERS
The symbol mark and recycling systems described below apply to EU countries and do not
apply to countries in other areas of the world.
Your product is designed and manufactured with high quality materials and components which
can be recycled and/or reused.
The symbol mark means that electrical and electronic equipment, batteries and accumulators,
at their end-of-life, should be disposed of separately from your household waste.
Note:
If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the
battery or accumulator contains a heavy metal at a certain concentration. This will
be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead In the European Union
there are separate collection systems for used electrical and electronic equipment,
batteries and accumulators.
Please, dispose of them correctly at your local community waste collection/recycling
centre. Please help us to conserve the environment we live in!
— iv —
Preface
Safety precautions
Caution:
The projector must be grounded.
Do not expose the projector to raindrops or high humidity to avoid a fire or electric shock.
- This projector produces intense light from the projection lens. Avoid staring directly into the lens,
otherwise eye damage could be caused. Be especially careful that children do not stare directly into the
beam.
- Place the projector in a proper position. Otherwise it may result in fire hazard.
- Leave an appropriate space from the top, sides, and back of the shell in order to ventilate and cool down
the projector. The figures below indicate the minimum distance to be left. It must be satisfied if the
projector is placed in sealed environment like a cabinet.
- Do not cover the vent of the projector. Poor radiation may shorten the service life or even cause dangers.
- Remove the AC power plug if the projector is not to be used for a long time.
Caution
Do not set the projector in greasy, wet, or smoky conditions such as in a kitchen, to prevent a
malfunction or accident. If the projector comes in contact with oil or chemicals, it may become
deteriorated.
Read and keep this manual for future reference.
The mains plug/appliance coupler is used as disconnect device, the disconnect device shall
remain readily operable.
–v –
DLP Projector—Owner’s Manual

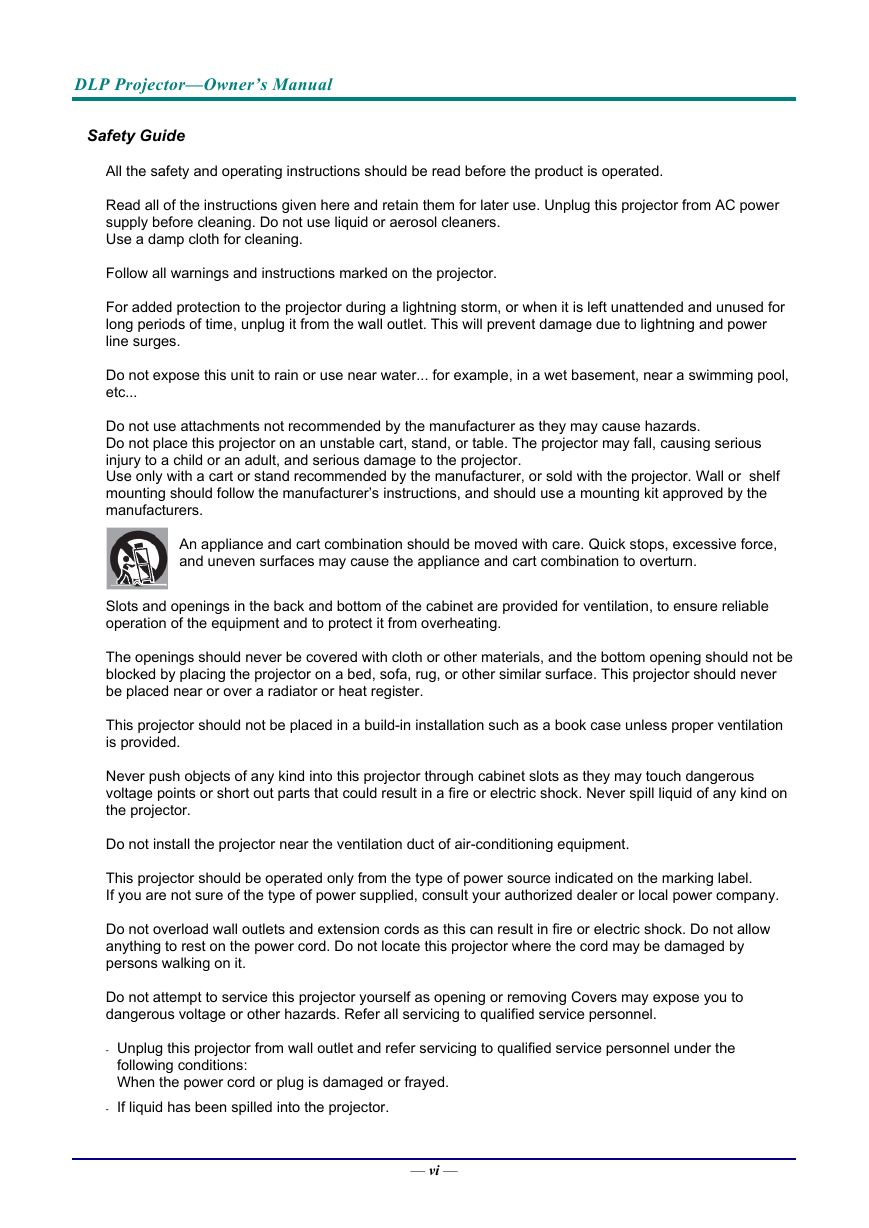

Safety Guide
All the safety and operating instructions should be read before the product is operated.
Read all of the instructions given here and retain them for later use. Unplug this projector from AC power
supply before cleaning. Do not use liquid or aerosol cleaners.
Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power
line surges.
Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool,
etc...
Do not use attachments not recommended by the manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious
injury to a child or an adult, and serious damage to the projector.
Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf
mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the
manufacturers.
An appliance and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance and cart combination to overturn.
Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable
operation of the equipment and to protect it from overheating.
The openings should never be covered with cloth or other materials, and the bottom opening should not be
blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never
be placed near or over a radiator or heat register.
This projector should not be placed in a build-in installation such as a book case unless proper ventilation
is provided.
Never push objects of any kind into this projector through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on
the projector.
Do not install the projector near the ventilation duct of air-conditioning equipment.
This projector should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supplied, consult your authorized dealer or local power company.
Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow
anything to rest on the power cord. Do not locate this projector where the cord may be damaged by
persons walking on it.
Do not attempt to service this projector yourself as opening or removing Covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
- Unplug this projector from wall outlet and refer servicing to qualified service personnel under the
following conditions:
When the power cord or plug is damaged or frayed.
- If liquid has been spilled into the projector.
— vi —

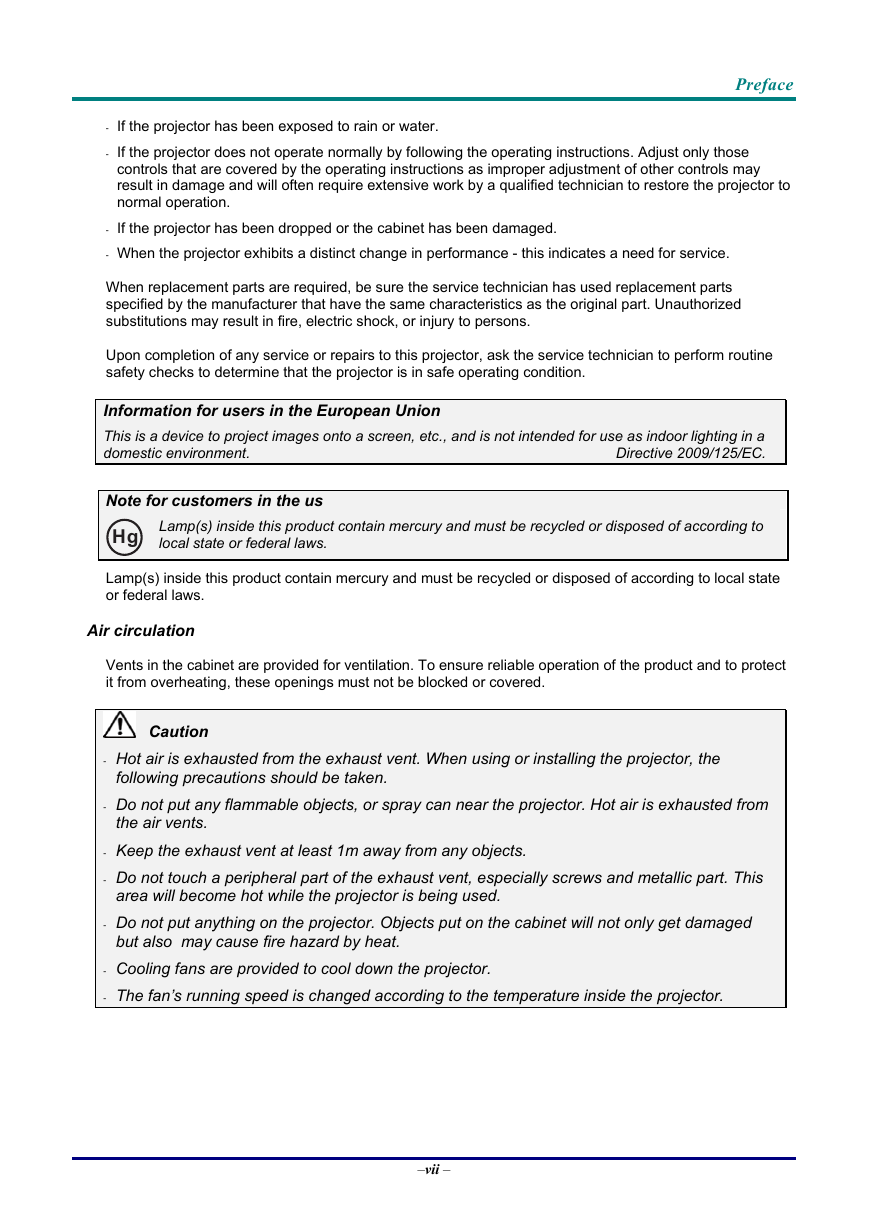

Preface
- If the projector has been exposed to rain or water.
- If the projector does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the projector to
normal operation.
- If the projector has been dropped or the cabinet has been damaged.
- When the projector exhibits a distinct change in performance - this indicates a need for service.
When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask the service technician to perform routine
safety checks to determine that the projector is in safe operating condition.
Information for users in the European Union
This is a device to project images onto a screen, etc., and is not intended for use as indoor lighting in a
domestic environment.
Directive 2009/125/EC.
Note for customers in the us
Lamp(s) inside this product contain mercury and must be recycled or disposed of according to
local state or federal laws.
Hg
Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local state
or federal laws.
Air circulation
Vents in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect
it from overheating, these openings must not be blocked or covered.
Caution
- Hot air is exhausted from the exhaust vent. When using or installing the projector, the
following precautions should be taken.
- Do not put any flammable objects, or spray can near the projector. Hot air is exhausted from
the air vents.
- Keep the exhaust vent at least 1m away from any objects.
- Do not touch a peripheral part of the exhaust vent, especially screws and metallic part. This
area will become hot while the projector is being used.
- Do not put anything on the projector. Objects put on the cabinet will not only get damaged
but also may cause fire hazard by heat.
- Cooling fans are provided to cool down the projector.
- The fan’s running speed is changed according to the temperature inside the projector.
–vii –
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
