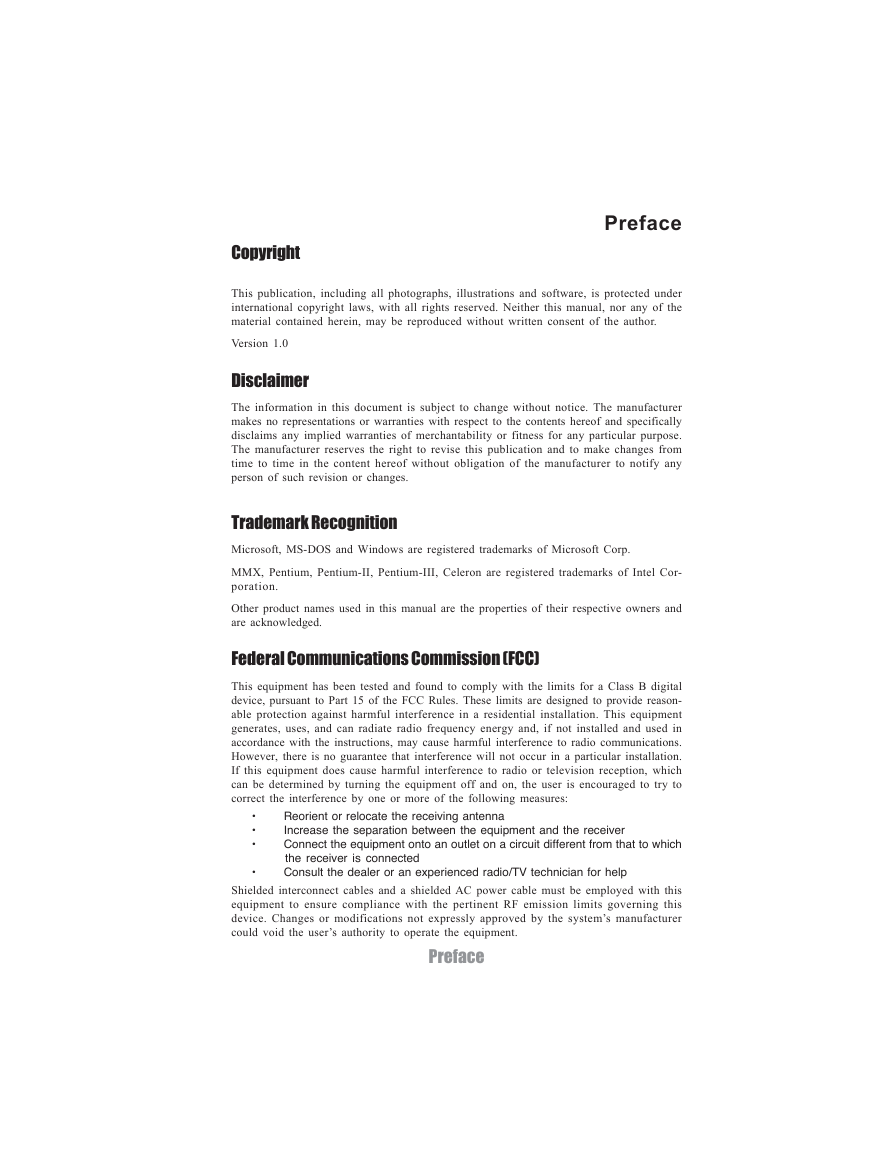

Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Cor- poration. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. Preface

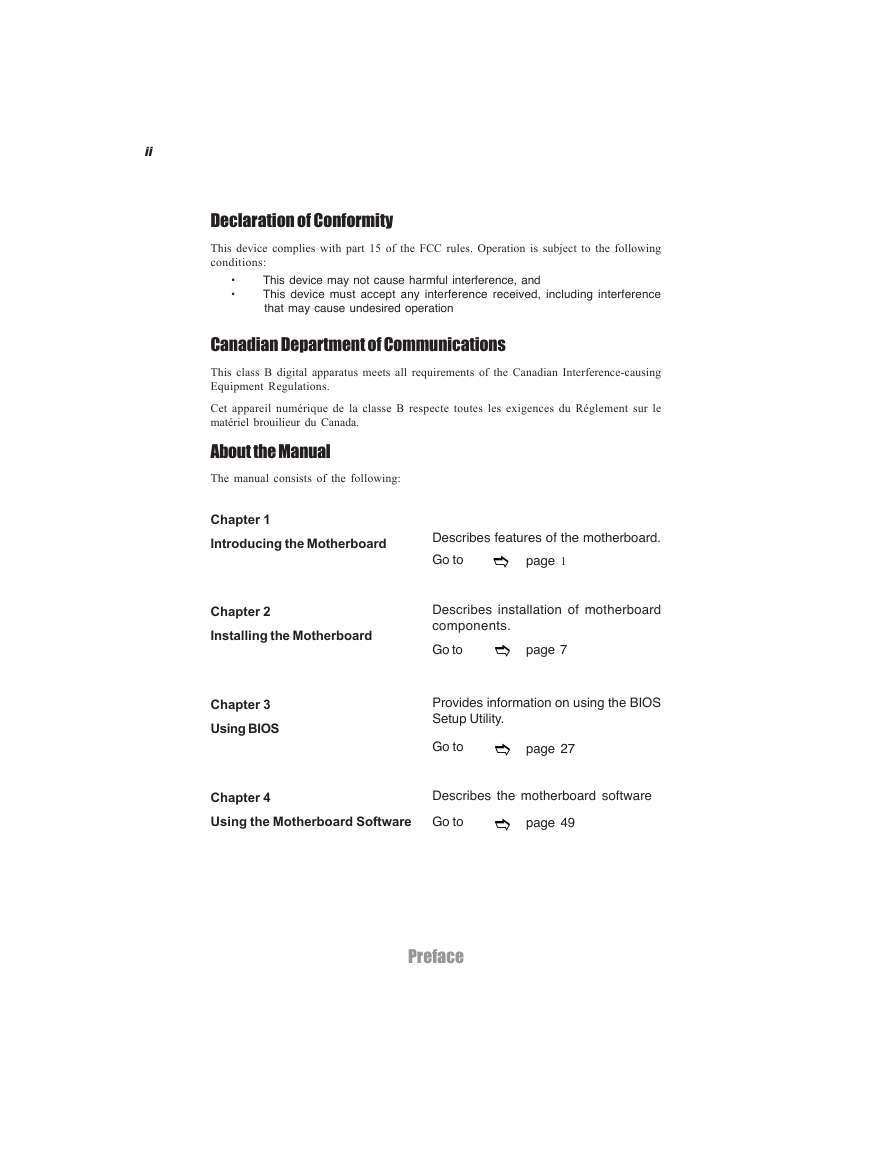

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Chapter 2 Installing the Motherboard Chapter 3 Using BIOS Describes features of the motherboard. Go to page 1 Describes installation of motherboard components. Go to page 7 Provides information on using the BIOS Setup Utility. Go to page 27 Chapter 4 Using the Motherboard Software Describes the motherboard software Go to page 49 Preface

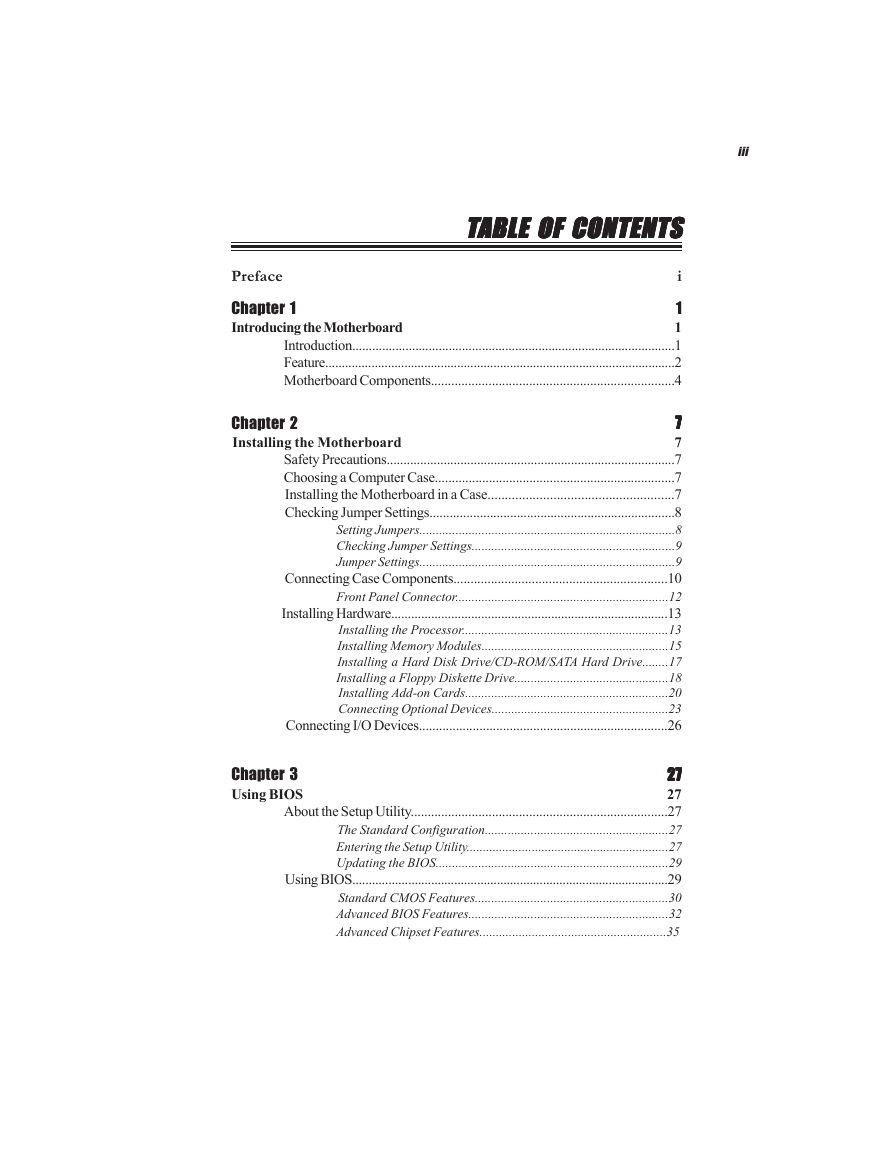

iii TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface i Chapter 1 Introducing the Motherboard 1 1 Introduction.................................................................................................1 Feature..........................................................................................................2 Motherboard Components........................................................................4 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions......................................................................................7 Choosing a Computer Case.......................................................................7 Installing the Motherboard in a Case......................................................7 Checking Jumper Settings.........................................................................8 Setting Jumpers..............................................................................8 Checking Jumper Settings..............................................................9 Jumper Settings..............................................................................9 Connecting Case Components...............................................................10 Front Panel Connector.................................................................12 Installing Hardware...................................................................................13 Installing the Processor...............................................................13 Installing Memory Modules.........................................................15 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive........17 Installing a Floppy Diskette Drive...............................................18 Installing Add-on Cards..............................................................20 Connecting Optional Devices......................................................23 Connecting I/O Devices..........................................................................26 Chapter 3 Using BIOS 27 27 27 27 27 27 About the Setup Utility............................................................................27 The Standard Configuration........................................................27 Entering the Setup Utility..............................................................27 Updating the BIOS.......................................................................29 Using BIOS................................................................................................29 Standard CMOS Features...........................................................30 Advanced BIOS Features.............................................................32 Advanced Chipset Features.........................................................35

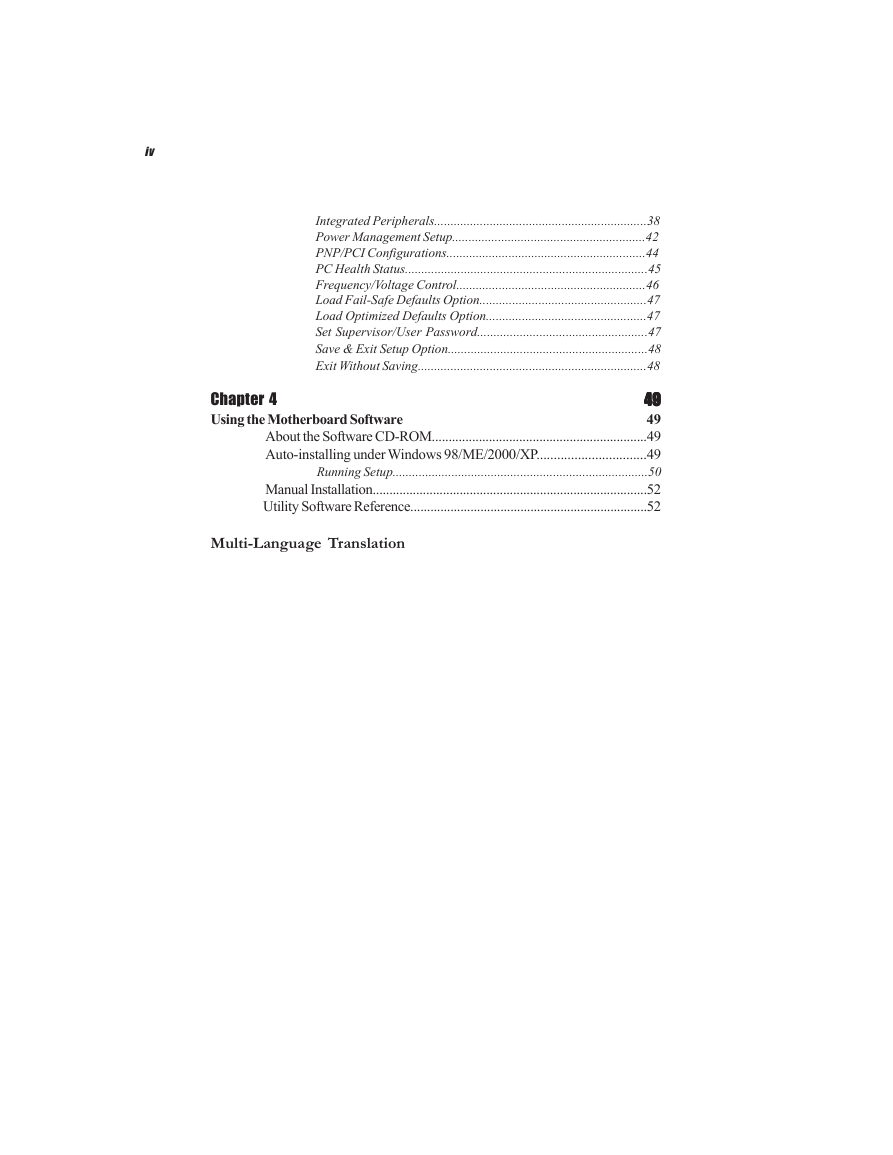

iv Integrated Peripherals.................................................................38 Power Management Setup...........................................................42 PNP/PCI Configurations.............................................................44 PC Health Status..........................................................................45 Frequency/Voltage Control..........................................................46 Load Fail-Safe Defaults Option...................................................47 Load Optimized Defaults Option.................................................47 Set Supervisor/User Password....................................................47 Save & Exit Setup Option.............................................................48 Exit Without Saving......................................................................48 Chapter 4 Using the Motherboard Software 49 49 49 49 49 49 About the Software CD-ROM................................................................49 Auto-installing under Windows 98/ME/2000/XP................................49 Running Setup..............................................................................50 Manual Installation..................................................................................52 Utility Software Reference.......................................................................52 Multi-Language Translation

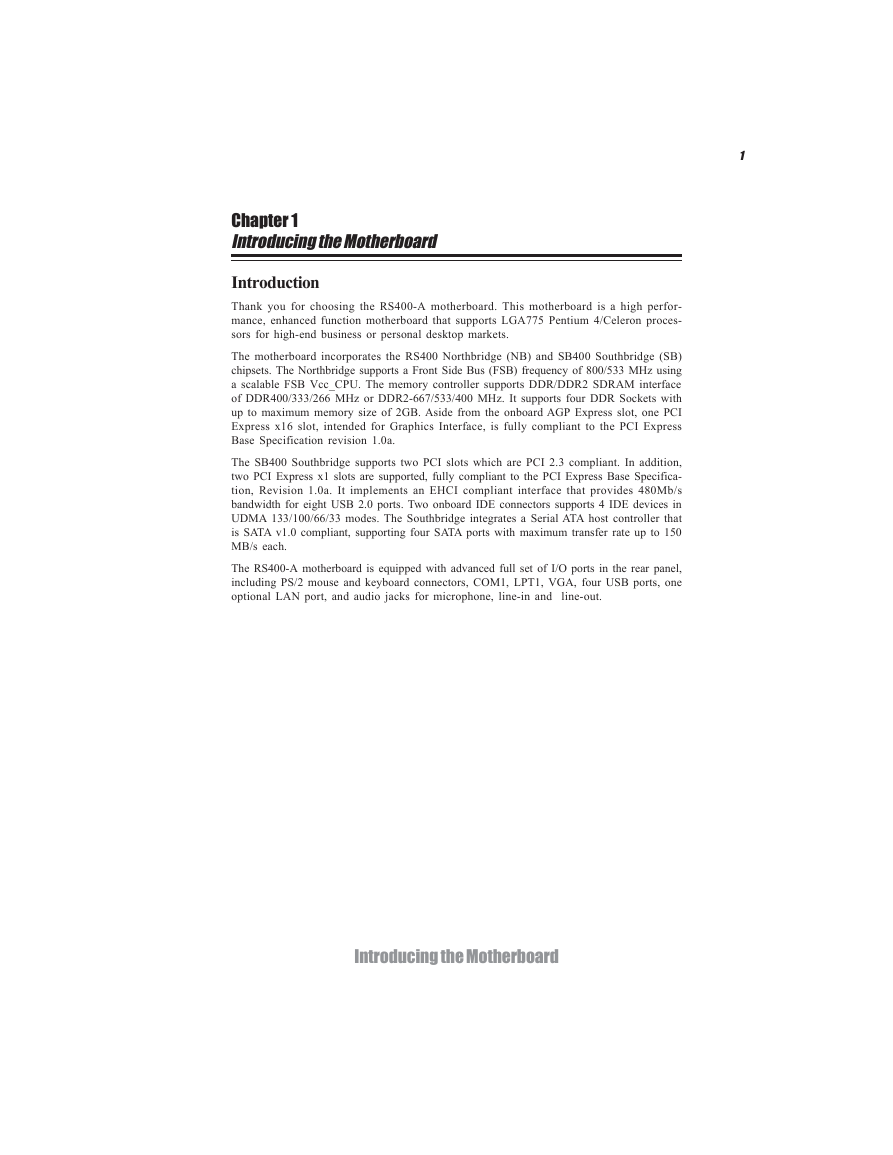

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the RS400-A motherboard. This motherboard is a high perfor- mance, enhanced function motherboard that supports LGA775 Pentium 4/Celeron proces- sors for high-end business or personal desktop markets. The motherboard incorporates the RS400 Northbridge (NB) and SB400 Southbridge (SB) chipsets. The Northbridge supports a Front Side Bus (FSB) frequency of 800/533 MHz using a scalable FSB Vcc_CPU. The memory controller supports DDR/DDR2 SDRAM interface of DDR400/333/266 MHz or DDR2-667/533/400 MHz. It supports four DDR Sockets with up to maximum memory size of 2GB. Aside from the onboard AGP Express slot, one PCI Express x16 slot, intended for Graphics Interface, is fully compliant to the PCI Express Base Specification revision 1.0a. The SB400 Southbridge supports two PCI slots which are PCI 2.3 compliant. In addition, two PCI Express x1 slots are supported, fully compliant to the PCI Express Base Specifica- tion, Revision 1.0a. It implements an EHCI compliant interface that provides 480Mb/s bandwidth for eight USB 2.0 ports. Two onboard IDE connectors supports 4 IDE devices in UDMA 133/100/66/33 modes. The Southbridge integrates a Serial ATA host controller that is SATA v1.0 compliant, supporting four SATA ports with maximum transfer rate up to 150 MB/s each. The RS400-A motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, COM1, LPT1, VGA, four USB ports, one optional LAN port, and audio jacks for microphone, line-in and line-out. Introducing the Motherboard

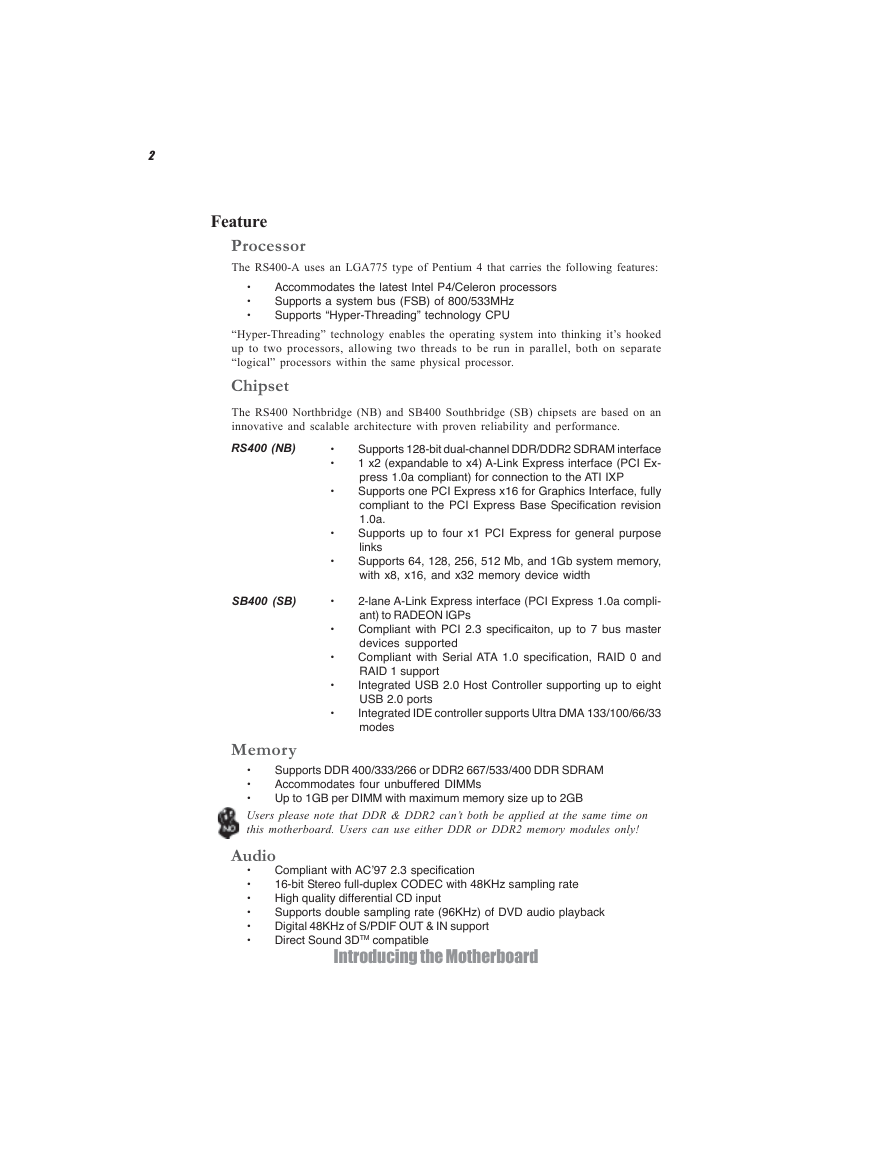

2 Feature Processor The RS400-A uses an LGA775 type of Pentium 4 that carries the following features: • • • Accommodates the latest Intel P4/Celeron processors Supports a system bus (FSB) of 800/533MHz Supports “Hyper-Threading” technology CPU “Hyper-Threading” technology enables the operating system into thinking it’s hooked up to two processors, allowing two threads to be run in parallel, both on separate “logical” processors within the same physical processor. Chipset The RS400 Northbridge (NB) and SB400 Southbridge (SB) chipsets are based on an innovative and scalable architecture with proven reliability and performance. RS400 (NB) • • SB400 (SB) • • • • • • • • Supports 128-bit dual-channel DDR/DDR2 SDRAM interface 1 x2 (expandable to x4) A-Link Express interface (PCI Ex- press 1.0a compliant) for connection to the ATI IXP Supports one PCI Express x16 for Graphics Interface, fully compliant to the PCI Express Base Specification revision 1.0a. Supports up to four x1 PCI Express for general purpose links Supports 64, 128, 256, 512 Mb, and 1Gb system memory, with x8, x16, and x32 memory device width 2-lane A-Link Express interface (PCI Express 1.0a compli- ant) to RADEON IGPs Compliant with PCI 2.3 specificaiton, up to 7 bus master devices supported Compliant with Serial ATA 1.0 specification, RAID 0 and RAID 1 support Integrated USB 2.0 Host Controller supporting up to eight USB 2.0 ports Integrated IDE controller supports Ultra DMA 133/100/66/33 modes Memory Supports DDR 400/333/266 or DDR2 667/533/400 DDR SDRAM Accommodates four unbuffered DIMMs Up to 1GB per DIMM with maximum memory size up to 2GB • • • Users please note that DDR & DDR2 can’t both be applied at the same time on this motherboard. Users can use either DDR or DDR2 memory modules only! Audio • • • • • • Compliant with AC’97 2.3 specification 16-bit Stereo full-duplex CODEC with 48KHz sampling rate High quality differential CD input Supports double sampling rate (96KHz) of DVD audio playback Digital 48KHz of S/PDIF OUT & IN support Direct Sound 3DTM compatible Introducing the Motherboard
