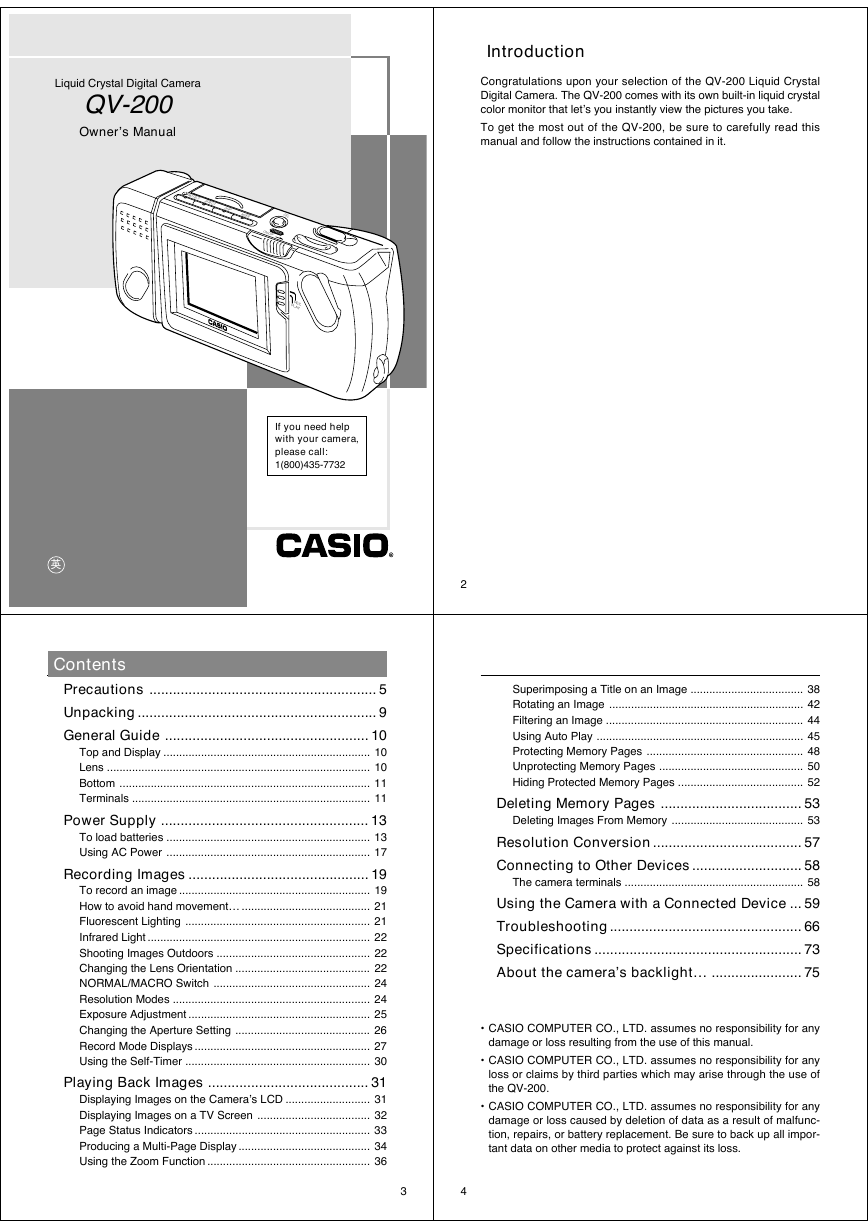

Liquid Crystal Digital Camera QV-200 Owner’s Manual Introduction Congratulations upon your selection of the QV-200 Liquid Crystal Digital Camera. The QV-200 comes with its own built-in liquid crystal color monitor that let’s you instantly view the pictures you take. To get the most out of the QV-200, be sure to carefully read this manual and follow the instructions contained in it. PROTECT EFFECT DISP MODE DEL POWER ON/OFF REC PLAY If you need help with your camera, please call: 1(800)435-7732 英 2 Contents Precautions .......................................................... 5 Unpacking ............................................................. 9 General Guide .................................................... 10 Top and Display .................................................................. 10 Lens .................................................................................... 10 Bottom ................................................................................ 11 Terminals ............................................................................ 11 Power Supply ..................................................... 13 To load batteries ................................................................. 13 Using AC Power ................................................................. 17 Recording Images .............................................. 19 To record an image ............................................................. 19 How to avoid hand movement… ......................................... 21 Fluorescent Lighting ........................................................... 21 Infrared Light ....................................................................... 22 Shooting Images Outdoors ................................................. 22 Changing the Lens Orientation ........................................... 22 NORMAL/MACRO Switch .................................................. 24 Resolution Modes ............................................................... 24 Exposure Adjustment .......................................................... 25 Changing the Aperture Setting ........................................... 26 Record Mode Displays ........................................................ 27 Using the Self-Timer ........................................................... 30 Playing Back Images ......................................... 31 Displaying Images on the Camera’s LCD ........................... 31 Displaying Images on a TV Screen .................................... 32 Page Status Indicators ........................................................ 33 Producing a Multi-Page Display .......................................... 34 Using the Zoom Function .................................................... 36 3 4 Superimposing a Title on an Image .................................... 38 Rotating an Image .............................................................. 42 Filtering an Image ............................................................... 44 Using Auto Play .................................................................. 45 Protecting Memory Pages .................................................. 48 Unprotecting Memory Pages .............................................. 50 Hiding Protected Memory Pages ........................................ 52 Deleting Memory Pages .................................... 53 Deleting Images From Memory .......................................... 53 Resolution Conversion ...................................... 57 Connecting to Other Devices ............................ 58 The camera terminals ......................................................... 58 Using the Camera with a Connected Device ... 59 Troubleshooting ................................................. 66 Specifications ..................................................... 73 About the camera’s backlight… ....................... 75 • CASIO COMPUTER CO., LTD. assumes no responsibility for any damage or loss resulting from the use of this manual. • CASIO COMPUTER CO., LTD. assumes no responsibility for any loss or claims by third parties which may arise through the use of the QV-200. • CASIO COMPUTER CO., LTD. assumes no responsibility for any damage or loss caused by deletion of data as a result of malfunc- tion, repairs, or battery replacement. Be sure to back up all impor- tant data on other media to protect against its loss.

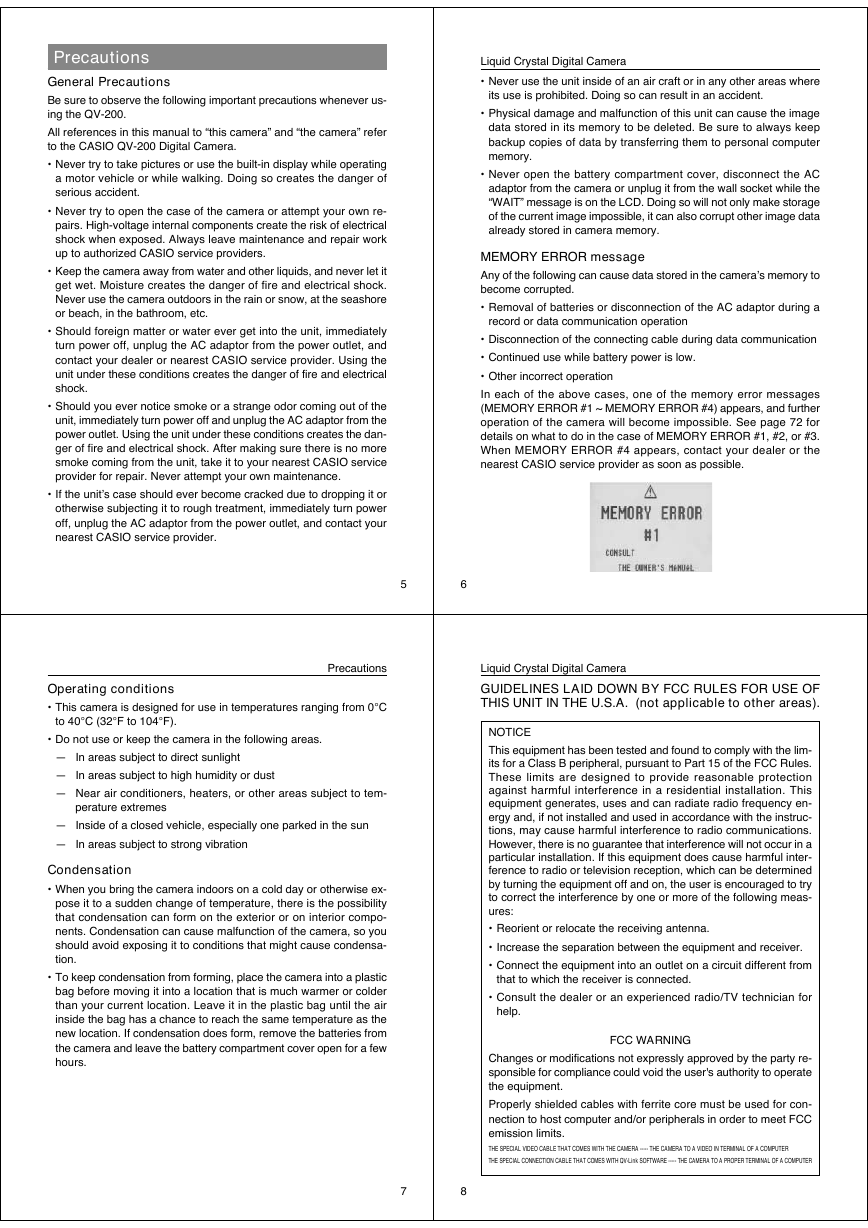

Precautions General Precautions Be sure to observe the following important precautions whenever us- ing the QV-200. All references in this manual to “this camera” and “the camera” refer to the CASIO QV-200 Digital Camera. • Never try to take pictures or use the built-in display while operating a motor vehicle or while walking. Doing so creates the danger of serious accident. • Never try to open the case of the camera or attempt your own re- pairs. High-voltage internal components create the risk of electrical shock when exposed. Always leave maintenance and repair work up to authorized CASIO service providers. • Keep the camera away from water and other liquids, and never let it get wet. Moisture creates the danger of fire and electrical shock. Never use the camera outdoors in the rain or snow, at the seashore or beach, in the bathroom, etc. • Should foreign matter or water ever get into the unit, immediately turn power off, unplug the AC adaptor from the power outlet, and contact your dealer or nearest CASIO service provider. Using the unit under these conditions creates the danger of fire and electrical shock. • Should you ever notice smoke or a strange odor coming out of the unit, immediately turn power off and unplug the AC adaptor from the power outlet. Using the unit under these conditions creates the dan- ger of fire and electrical shock. After making sure there is no more smoke coming from the unit, take it to your nearest CASIO service provider for repair. Never attempt your own maintenance. • If the unit’s case should ever become cracked due to dropping it or otherwise subjecting it to rough treatment, immediately turn power off, unplug the AC adaptor from the power outlet, and contact your nearest CASIO service provider. Precautions Operating conditions • This camera is designed for use in temperatures ranging from 0°C to 40°C (32°F to 104°F). • Do not use or keep the camera in the following areas. — In areas subject to direct sunlight — In areas subject to high humidity or dust — Near air conditioners, heaters, or other areas subject to tem- perature extremes — Inside of a closed vehicle, especially one parked in the sun — In areas subject to strong vibration Condensation • When you bring the camera indoors on a cold day or otherwise ex- pose it to a sudden change of temperature, there is the possibility that condensation can form on the exterior or on interior compo- nents. Condensation can cause malfunction of the camera, so you should avoid exposing it to conditions that might cause condensa- tion. • To keep condensation from forming, place the camera into a plastic bag before moving it into a location that is much warmer or colder than your current location. Leave it in the plastic bag until the air inside the bag has a chance to reach the same temperature as the new location. If condensation does form, remove the batteries from the camera and leave the battery compartment cover open for a few hours. Liquid Crystal Digital Camera • Never use the unit inside of an air craft or in any other areas where its use is prohibited. Doing so can result in an accident. • Physical damage and malfunction of this unit can cause the image data stored in its memory to be deleted. Be sure to always keep backup copies of data by transferring them to personal computer memory. • Never open the battery compartment cover, disconnect the AC adaptor from the camera or unplug it from the wall socket while the “WAIT” message is on the LCD. Doing so will not only make storage of the current image impossible, it can also corrupt other image data already stored in camera memory. MEMORY ERROR message Any of the following can cause data stored in the camera’s memory to become corrupted. • Removal of batteries or disconnection of the AC adaptor during a record or data communication operation • Disconnection of the connecting cable during data communication • Continued use while battery power is low. • Other incorrect operation In each of the above cases, one of the memory error messages (MEMORY ERROR #1 ~ MEMORY ERROR #4) appears, and further operation of the camera will become impossible. See page 72 for details on what to do in the case of MEMORY ERROR #1, #2, or #3. When MEMORY ERROR #4 appears, contact your dealer or the nearest CASIO service provider as soon as possible. 5 6 7 8 Liquid Crystal Digital Camera GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THIS UNIT IN THE U.S.A. (not applicable to other areas). NOTICE This equipment has been tested and found to comply with the lim- its for a Class B peripheral, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency en- ergy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter- ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following meas- ures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressly approved by the party re- sponsible for compliance could void the user's authority to operate the equipment. Properly shielded cables with ferrite core must be used for con- nection to host computer and/or peripherals in order to meet FCC emission limits. THE SPECIAL VIDEO CABLE THAT COMES WITH THE CAMERA ----- THE CAMERA TO A VIDEO IN TERMINAL OF A COMPUTER THE SPECIAL CONNECTION CABLE THAT COMES WITH QV-Link SOFTWARE ----- THE CAMERA TO A PROPER TERMINAL OF A COMPUTER

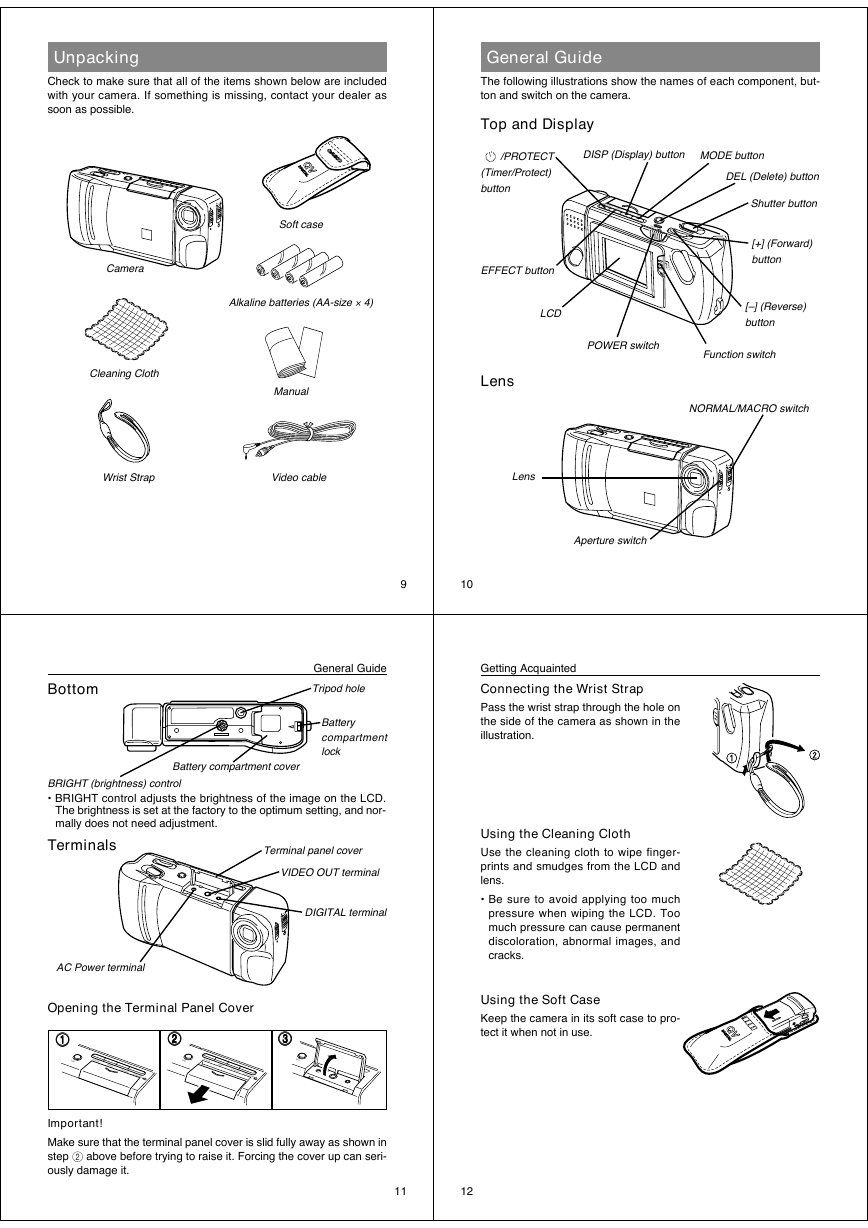

Unpacking Check to make sure that all of the items shown below are included with your camera. If something is missing, contact your dealer as soon as possible. General Guide Getting Acquainted The following illustrations show the names of each component, but- ton and switch on the camera. Top and Display ON/OFF DEL Camera Soft case PROTECT EFFECT DISP MODE DEL POWER ON/OFF Alkaline batteries (AA-size × 4) LCD EFFECT button REC PLAY DISP (Display) button MODE button /PROTECT (Timer/Protect) button DEL (Delete) button Shutter button [+] (Forward) button [–] (Reverse) button Cleaning Cloth Manual Lens Wrist Strap Video cable Lens POWER switch Function switch NORMAL/MACRO switch ON/OFF DEL Aperture switch 9 10 Bottom General Guide Tripod hole Battery compartment lock Getting Acquainted Connecting the Wrist Strap Pass the wrist strap through the hole on the side of the camera as shown in the illustration. Battery compartment cover BRIGHT (brightness) control • BRIGHT control adjusts the brightness of the image on the LCD. The brightness is set at the factory to the optimum setting, and nor- mally does not need adjustment. Terminals Terminal panel cover VIDEO OUT terminal DIGITAL terminal AC Power terminal Opening the Terminal Panel Cover 11111 22222 DEL MODE DISP DEL MODE DISP EFFECT PROTECT EFFECT PROTECT 33333 DEL Important! Make sure that the terminal panel cover is slid fully away as shown in step 2 above before trying to raise it. Forcing the cover up can seri- ously damage it. 11 12 Using the Cleaning Cloth Use the cleaning cloth to wipe finger- prints and smudges from the LCD and lens. • Be sure to avoid applying too much pressure when wiping the LCD. Too much pressure can cause permanent discoloration, abnormal images, and cracks. Using the Soft Case Keep the camera in its soft case to pro- tect it when not in use. DEL POWER ON/OFF MODE DISP

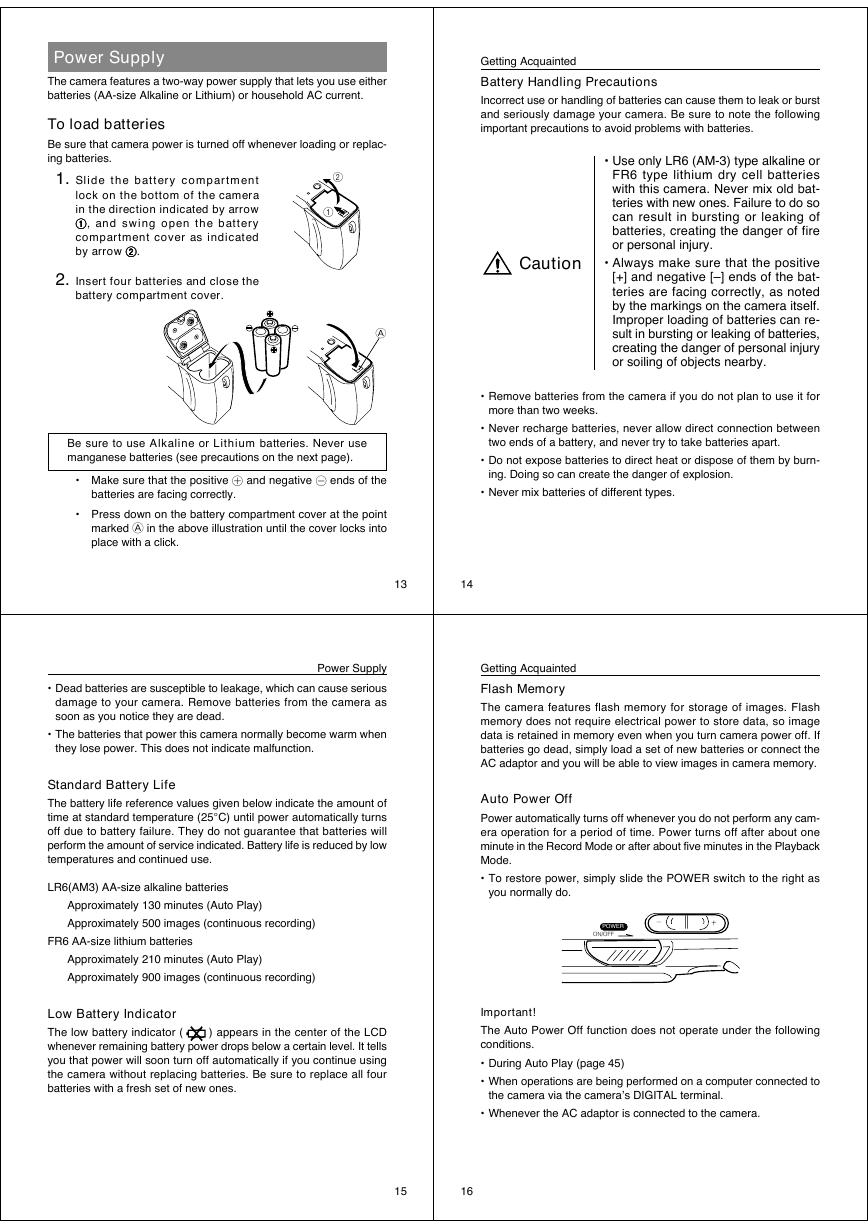

Power Supply The camera features a two-way power supply that lets you use either batteries (AA-size Alkaline or Lithium) or household AC current. To load batteries Be sure that camera power is turned off whenever loading or replac- ing batteries. 1. Slide the battery compartment lock on the bottom of the camera in the direction indicated by arrow 11111, and swing open the battery compartment cover as indicated by arrow 22222. 2 1 2. Insert four batteries and close the battery compartment cover. A Be sure to use Alkaline or Lithium batteries. Never use manganese batteries (see precautions on the next page). • Make sure that the positive + and negative - ends of the batteries are facing correctly. • Press down on the battery compartment cover at the point marked A in the above illustration until the cover locks into place with a click. 13 14 Getting Acquainted Battery Handling Precautions Incorrect use or handling of batteries can cause them to leak or burst and seriously damage your camera. Be sure to note the following important precautions to avoid problems with batteries. Caution • Use only LR6 (AM-3) type alkaline or FR6 type lithium dry cell batteries with this camera. Never mix old bat- teries with new ones. Failure to do so can result in bursting or leaking of batteries, creating the danger of fire or personal injury. • Always make sure that the positive [+] and negative [–] ends of the bat- teries are facing correctly, as noted by the markings on the camera itself. Improper loading of batteries can re- sult in bursting or leaking of batteries, creating the danger of personal injury or soiling of objects nearby. • Remove batteries from the camera if you do not plan to use it for more than two weeks. • Never recharge batteries, never allow direct connection between two ends of a battery, and never try to take batteries apart. • Do not expose batteries to direct heat or dispose of them by burn- ing. Doing so can create the danger of explosion. • Never mix batteries of different types. Power Supply • Dead batteries are susceptible to leakage, which can cause serious damage to your camera. Remove batteries from the camera as soon as you notice they are dead. • The batteries that power this camera normally become warm when they lose power. This does not indicate malfunction. Standard Battery Life The battery life reference values given below indicate the amount of time at standard temperature (25°C) until power automatically turns off due to battery failure. They do not guarantee that batteries will perform the amount of service indicated. Battery life is reduced by low temperatures and continued use. LR6(AM3) AA-size alkaline batteries Approximately 130 minutes (Auto Play) Approximately 500 images (continuous recording) FR6 AA-size lithium batteries Approximately 210 minutes (Auto Play) Approximately 900 images (continuous recording) Low Battery Indicator The low battery indicator ( ) appears in the center of the LCD whenever remaining battery power drops below a certain level. It tells you that power will soon turn off automatically if you continue using the camera without replacing batteries. Be sure to replace all four batteries with a fresh set of new ones. Getting Acquainted Flash Memory The camera features flash memory for storage of images. Flash memory does not require electrical power to store data, so image data is retained in memory even when you turn camera power off. If batteries go dead, simply load a set of new batteries or connect the AC adaptor and you will be able to view images in camera memory. Auto Power Off Power automatically turns off whenever you do not perform any cam- era operation for a period of time. Power turns off after about one minute in the Record Mode or after about five minutes in the Playback Mode. • To restore power, simply slide the POWER switch to the right as you normally do. POWER ON/OFF Important! The Auto Power Off function does not operate under the following conditions. • During Auto Play (page 45) • When operations are being performed on a computer connected to the camera via the camera’s DIGITAL terminal. • Whenever the AC adaptor is connected to the camera. 15 16

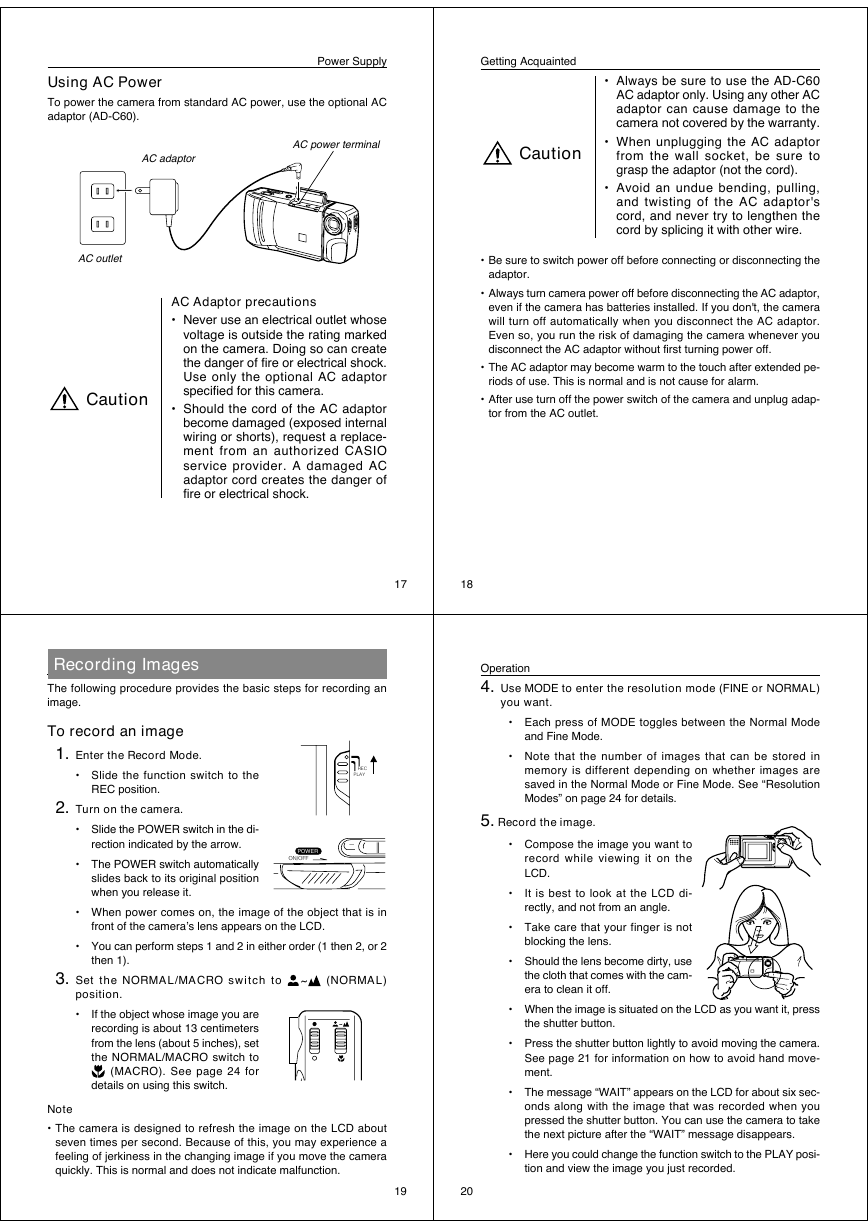

Using AC Power To power the camera from standard AC power, use the optional AC adaptor (AD-C60). Power Supply Getting Acquainted AC adaptor AC power terminal Caution ON/OFF DEL • Always be sure to use the AD-C60 AC adaptor only. Using any other AC adaptor can cause damage to the camera not covered by the warranty. • When unplugging the AC adaptor from the wall socket, be sure to grasp the adaptor (not the cord). • Avoid an undue bending, pulling, and twisting of the AC adaptor's cord, and never try to lengthen the cord by splicing it with other wire. AC outlet Caution AC Adaptor precautions • Never use an electrical outlet whose voltage is outside the rating marked on the camera. Doing so can create the danger of fire or electrical shock. Use only the optional AC adaptor specified for this camera. • Should the cord of the AC adaptor become damaged (exposed internal wiring or shorts), request a replace- ment from an authorized CASIO service provider. A damaged AC adaptor cord creates the danger of fire or electrical shock. • Be sure to switch power off before connecting or disconnecting the adaptor. • Always turn camera power off before disconnecting the AC adaptor, even if the camera has batteries installed. If you don't, the camera will turn off automatically when you disconnect the AC adaptor. Even so, you run the risk of damaging the camera whenever you disconnect the AC adaptor without first turning power off. • The AC adaptor may become warm to the touch after extended pe- riods of use. This is normal and is not cause for alarm. • After use turn off the power switch of the camera and unplug adap- tor from the AC outlet. 17 18 Recording Images The following procedure provides the basic steps for recording an image. Recording Images To record an image 1. Enter the Record Mode. • Slide the function switch to the REC PLAY REC position. 2. Turn on the camera. • Slide the POWER switch in the di- rection indicated by the arrow. • The POWER switch automatically slides back to its original position when you release it. POWER ON/OFF • When power comes on, the image of the object that is in front of the camera’s lens appears on the LCD. • You can perform steps 1 and 2 in either order (1 then 2, or 2 then 1). 3. Set the NORMAL/MACRO switch to position. (NORMAL) • If the object whose image you are recording is about 13 centimeters from the lens (about 5 inches), set the NORMAL/MACRO switch to (MACRO). See page 24 for details on using this switch. Note • The camera is designed to refresh the image on the LCD about seven times per second. Because of this, you may experience a feeling of jerkiness in the changing image if you move the camera quickly. This is normal and does not indicate malfunction. 19 20 Operation 4. Use MODE to enter the resolution mode (FINE or NORMAL) you want. • Each press of MODE toggles between the Normal Mode and Fine Mode. • Note that the number of images that can be stored in memory is different depending on whether images are saved in the Normal Mode or Fine Mode. See “Resolution Modes” on page 24 for details. 5. Record the image. • Compose the image you want to record while viewing it on the LCD. • It is best to look at the LCD di- rectly, and not from an angle. • Take care that your finger is not blocking the lens. • Should the lens become dirty, use the cloth that comes with the cam- era to clean it off. • When the image is situated on the LCD as you want it, press the shutter button. • Press the shutter button lightly to avoid moving the camera. See page 21 for information on how to avoid hand move- ment. • The message “WAIT” appears on the LCD for about six sec- onds along with the image that was recorded when you pressed the shutter button. You can use the camera to take the next picture after the “WAIT” message disappears. • Here you could change the function switch to the PLAY posi- tion and view the image you just recorded.

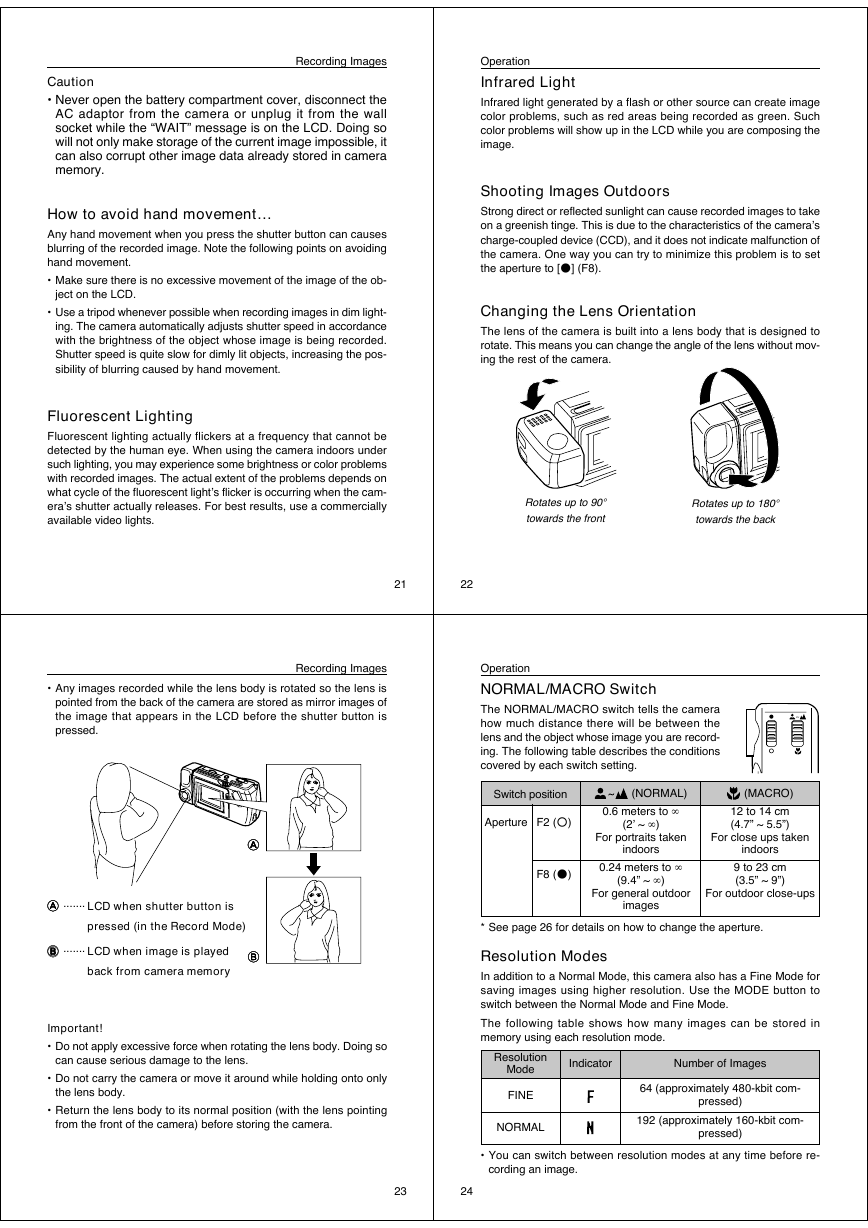

Recording Images Caution • Never open the battery compartment cover, disconnect the AC adaptor from the camera or unplug it from the wall socket while the “WAIT” message is on the LCD. Doing so will not only make storage of the current image impossible, it can also corrupt other image data already stored in camera memory. How to avoid hand movement… Any hand movement when you press the shutter button can causes blurring of the recorded image. Note the following points on avoiding hand movement. • Make sure there is no excessive movement of the image of the ob- ject on the LCD. • Use a tripod whenever possible when recording images in dim light- ing. The camera automatically adjusts shutter speed in accordance with the brightness of the object whose image is being recorded. Shutter speed is quite slow for dimly lit objects, increasing the pos- sibility of blurring caused by hand movement. Fluorescent Lighting Fluorescent lighting actually flickers at a frequency that cannot be detected by the human eye. When using the camera indoors under such lighting, you may experience some brightness or color problems with recorded images. The actual extent of the problems depends on what cycle of the fluorescent light’s flicker is occurring when the cam- era’s shutter actually releases. For best results, use a commercially available video lights. • Any images recorded while the lens body is rotated so the lens is pointed from the back of the camera are stored as mirror images of the image that appears in the LCD before the shutter button is pressed. Recording Images PROTECT EFFECT DISP MODE DEL POWER ON/OFF RECPLAY AAAAA AAAAA ....... BBBBB ....... LCD when shutter button is pressed (in the Record Mode) LCD when image is played back from camera memory BBBBB Important! • Do not apply excessive force when rotating the lens body. Doing so can cause serious damage to the lens. • Do not carry the camera or move it around while holding onto only the lens body. • Return the lens body to its normal position (with the lens pointing from the front of the camera) before storing the camera. Operation Infrared Light Infrared light generated by a flash or other source can create image color problems, such as red areas being recorded as green. Such color problems will show up in the LCD while you are composing the image. Shooting Images Outdoors Strong direct or reflected sunlight can cause recorded images to take on a greenish tinge. This is due to the characteristics of the camera’s charge-coupled device (CCD), and it does not indicate malfunction of the camera. One way you can try to minimize this problem is to set the aperture to [●] (F8). Changing the Lens Orientation The lens of the camera is built into a lens body that is designed to rotate. This means you can change the angle of the lens without mov- ing the rest of the camera. Rotates up to 90° towards the front Rotates up to 180° towards the back 21 22 Operation NORMAL/MACRO Switch The NORMAL/MACRO switch tells the camera how much distance there will be between the lens and the object whose image you are record- ing. The following table describes the conditions covered by each switch setting. Switch position Aperture F2 (○) F8 (●) (NORMAL) 0.6 meters to ∞ (2’ ~ ∞) (MACRO) 12 to 14 cm (4.7” ~ 5.5”) For portraits taken For close ups taken indoors indoors 0.24 meters to ∞ (9.4” ~ ∞) For general outdoor images 9 to 23 cm (3.5” ~ 9”) For outdoor close-ups * See page 26 for details on how to change the aperture. Resolution Modes In addition to a Normal Mode, this camera also has a Fine Mode for saving images using higher resolution. Use the MODE button to switch between the Normal Mode and Fine Mode. The following table shows how many images can be stored in memory using each resolution mode. Resolution Mode FINE NORMAL Indicator Number of Images 64 (approximately 480-kbit com- pressed) 192 (approximately 160-kbit com- pressed) • You can switch between resolution modes at any time before re- cording an image. 23 24

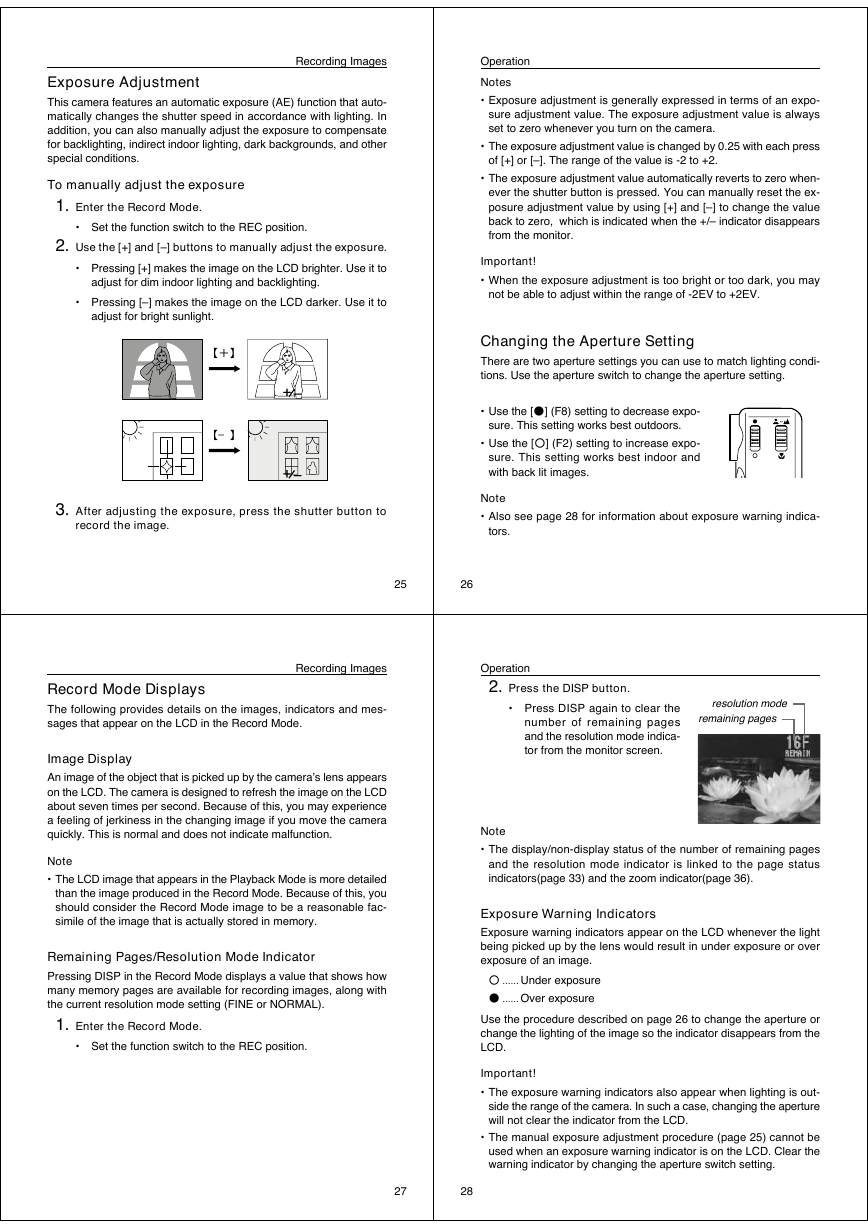

Recording Images Operation Exposure Adjustment This camera features an automatic exposure (AE) function that auto- matically changes the shutter speed in accordance with lighting. In addition, you can also manually adjust the exposure to compensate for backlighting, indirect indoor lighting, dark backgrounds, and other special conditions. To manually adjust the exposure 1. Enter the Record Mode. • Set the function switch to the REC position. 2. Use the [+] and [–] buttons to manually adjust the exposure. • Pressing [+] makes the image on the LCD brighter. Use it to adjust for dim indoor lighting and backlighting. • Pressing [–] makes the image on the LCD darker. Use it to adjust for bright sunlight. 【＋】【−】 + – + – Notes • Exposure adjustment is generally expressed in terms of an expo- sure adjustment value. The exposure adjustment value is always set to zero whenever you turn on the camera. • The exposure adjustment value is changed by 0.25 with each press of [+] or [–]. The range of the value is -2 to +2. • The exposure adjustment value automatically reverts to zero when- ever the shutter button is pressed. You can manually reset the ex- posure adjustment value by using [+] and [–] to change the value back to zero, which is indicated when the +/– indicator disappears from the monitor. Important! • When the exposure adjustment is too bright or too dark, you may not be able to adjust within the range of -2EV to +2EV. Changing the Aperture Setting There are two aperture settings you can use to match lighting condi- tions. Use the aperture switch to change the aperture setting. • Use the [●] (F8) setting to decrease expo- sure. This setting works best outdoors. • Use the [○] (F2) setting to increase expo- sure. This setting works best indoor and with back lit images. 3. After adjusting the exposure, press the shutter button to record the image. Note • Also see page 28 for information about exposure warning indica- tors. 25 26 Record Mode Displays The following provides details on the images, indicators and mes- sages that appear on the LCD in the Record Mode. Recording Images Image Display An image of the object that is picked up by the camera’s lens appears on the LCD. The camera is designed to refresh the image on the LCD about seven times per second. Because of this, you may experience a feeling of jerkiness in the changing image if you move the camera quickly. This is normal and does not indicate malfunction. Note • The LCD image that appears in the Playback Mode is more detailed than the image produced in the Record Mode. Because of this, you should consider the Record Mode image to be a reasonable fac- simile of the image that is actually stored in memory. Remaining Pages/Resolution Mode Indicator Pressing DISP in the Record Mode displays a value that shows how many memory pages are available for recording images, along with the current resolution mode setting (FINE or NORMAL). 1. Enter the Record Mode. • Set the function switch to the REC position. Operation 2. Press the DISP button. • Press DISP again to clear the number of remaining pages and the resolution mode indica- tor from the monitor screen. resolution mode remaining pages Note • The display/non-display status of the number of remaining pages and the resolution mode indicator is linked to the page status indicators(page 33) and the zoom indicator(page 36). Exposure Warning Indicators Exposure warning indicators appear on the LCD whenever the light being picked up by the lens would result in under exposure or over exposure of an image. ○ ...... Under exposure ● ...... Over exposure Use the procedure described on page 26 to change the aperture or change the lighting of the image so the indicator disappears from the LCD. Important! • The exposure warning indicators also appear when lighting is out- side the range of the camera. In such a case, changing the aperture will not clear the indicator from the LCD. • The manual exposure adjustment procedure (page 25) cannot be used when an exposure warning indicator is on the LCD. Clear the warning indicator by changing the aperture switch setting. 27 28

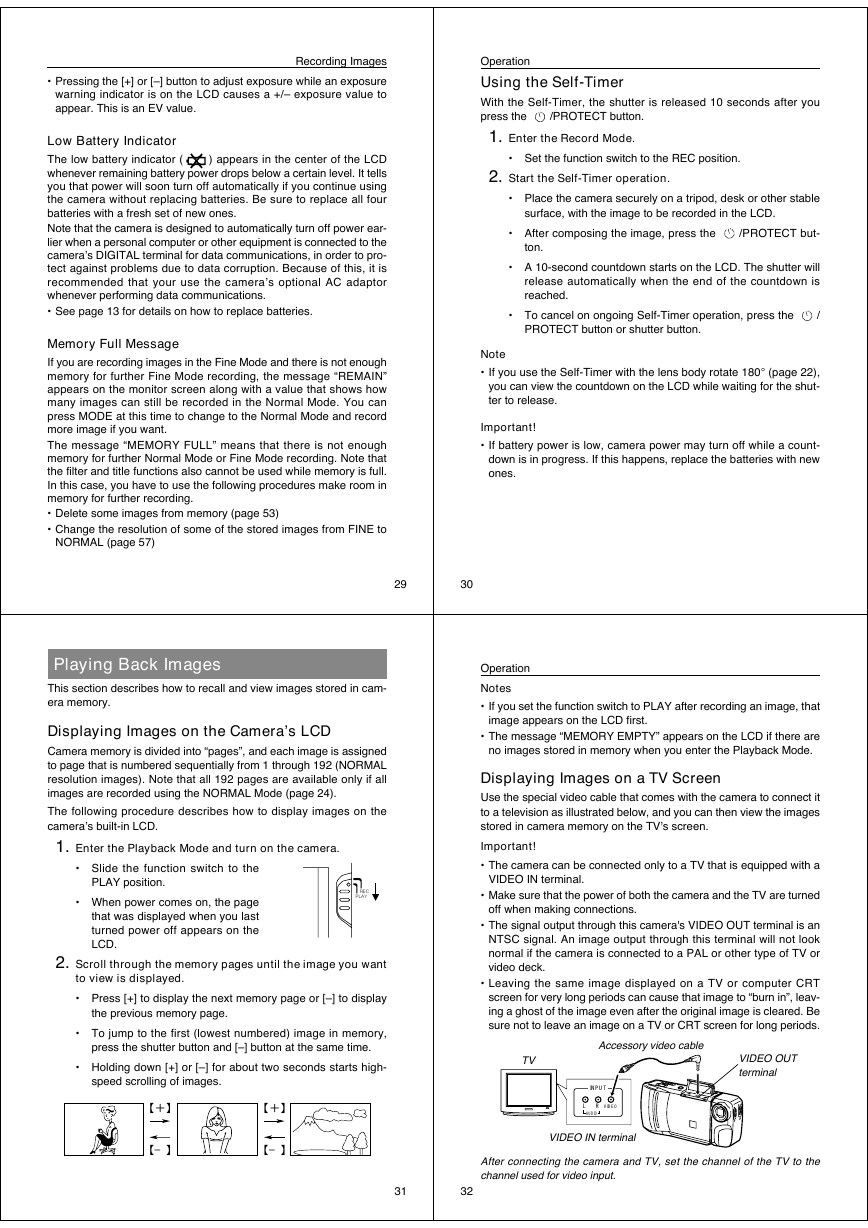

Recording Images • Pressing the [+] or [–] button to adjust exposure while an exposure warning indicator is on the LCD causes a +/– exposure value to appear. This is an EV value. Low Battery Indicator The low battery indicator ( ) appears in the center of the LCD whenever remaining battery power drops below a certain level. It tells you that power will soon turn off automatically if you continue using the camera without replacing batteries. Be sure to replace all four batteries with a fresh set of new ones. Note that the camera is designed to automatically turn off power ear- lier when a personal computer or other equipment is connected to the camera’s DIGITAL terminal for data communications, in order to pro- tect against problems due to data corruption. Because of this, it is recommended that your use the camera’s optional AC adaptor whenever performing data communications. • See page 13 for details on how to replace batteries. Memory Full Message If you are recording images in the Fine Mode and there is not enough memory for further Fine Mode recording, the message “REMAIN” appears on the monitor screen along with a value that shows how many images can still be recorded in the Normal Mode. You can press MODE at this time to change to the Normal Mode and record more image if you want. The message “MEMORY FULL” means that there is not enough memory for further Normal Mode or Fine Mode recording. Note that the filter and title functions also cannot be used while memory is full. In this case, you have to use the following procedures make room in memory for further recording. • Delete some images from memory (page 53) • Change the resolution of some of the stored images from FINE to NORMAL (page 57) Playing Back Images This section describes how to recall and view images stored in cam- era memory. Playing Back Images Displaying Images on the Camera’s LCD Camera memory is divided into “pages”, and each image is assigned to page that is numbered sequentially from 1 through 192 (NORMAL resolution images). Note that all 192 pages are available only if all images are recorded using the NORMAL Mode (page 24). The following procedure describes how to display images on the camera’s built-in LCD. 1. Enter the Playback Mode and turn on the camera. Operation Using the Self-Timer With the Self-Timer, the shutter is released 10 seconds after you press the /PROTECT button. 1. Enter the Record Mode. • Set the function switch to the REC position. 2. Start the Self-Timer operation. • Place the camera securely on a tripod, desk or other stable surface, with the image to be recorded in the LCD. • After composing the image, press the /PROTECT but- ton. • A 10-second countdown starts on the LCD. The shutter will release automatically when the end of the countdown is reached. • To cancel on ongoing Self-Timer operation, press the / PROTECT button or shutter button. Note • If you use the Self-Timer with the lens body rotate 180° (page 22), you can view the countdown on the LCD while waiting for the shut- ter to release. Important! • If battery power is low, camera power may turn off while a count- down is in progress. If this happens, replace the batteries with new ones. 29 30 Operation Notes • If you set the function switch to PLAY after recording an image, that image appears on the LCD first. • The message “MEMORY EMPTY” appears on the LCD if there are no images stored in memory when you enter the Playback Mode. Displaying Images on a TV Screen Use the special video cable that comes with the camera to connect it to a television as illustrated below, and you can then view the images stored in camera memory on the TV’s screen. Important! • The camera can be connected only to a TV that is equipped with a VIDEO IN terminal. • Slide the function switch to the PLAY position. • When power comes on, the page that was displayed when you last turned power off appears on the LCD. 2. Scroll through the memory pages until the image you want to view is displayed. • Press [+] to display the next memory page or [–] to display the previous memory page. • To jump to the first (lowest numbered) image in memory, press the shutter button and [–] button at the same time. • Holding down [+] or [–] for about two seconds starts high- speed scrolling of images. 【＋】【−】【＋】【−】 REC PLAY • Make sure that the power of both the camera and the TV are turned off when making connections. • The signal output through this camera's VIDEO OUT terminal is an NTSC signal. An image output through this terminal will not look normal if the camera is connected to a PAL or other type of TV or video deck. • Leaving the same image displayed on a TV or computer CRT screen for very long periods can cause that image to “burn in”, leav- ing a ghost of the image even after the original image is cleared. Be sure not to leave an image on a TV or CRT screen for long periods. Accessory video cable TV VIDEO OUT terminal INPUT L R AUDIO VIDEO ON/OFF DEL VIDEO IN terminal After connecting the camera and TV, set the channel of the TV to the channel used for video input. 31 32
