About this Manual

Introduction

Connection Functions

deviceStatus

canInitializeLibrary

canUnloadLibrary

CANlib Equivalent Functions

canOpenChannel

canClose

canSetBusParams

canBusOn

canBusOff

canSetBusOutputControl

canRead

canWrite

canIoCtl

Connection flow examples

Document Revision History

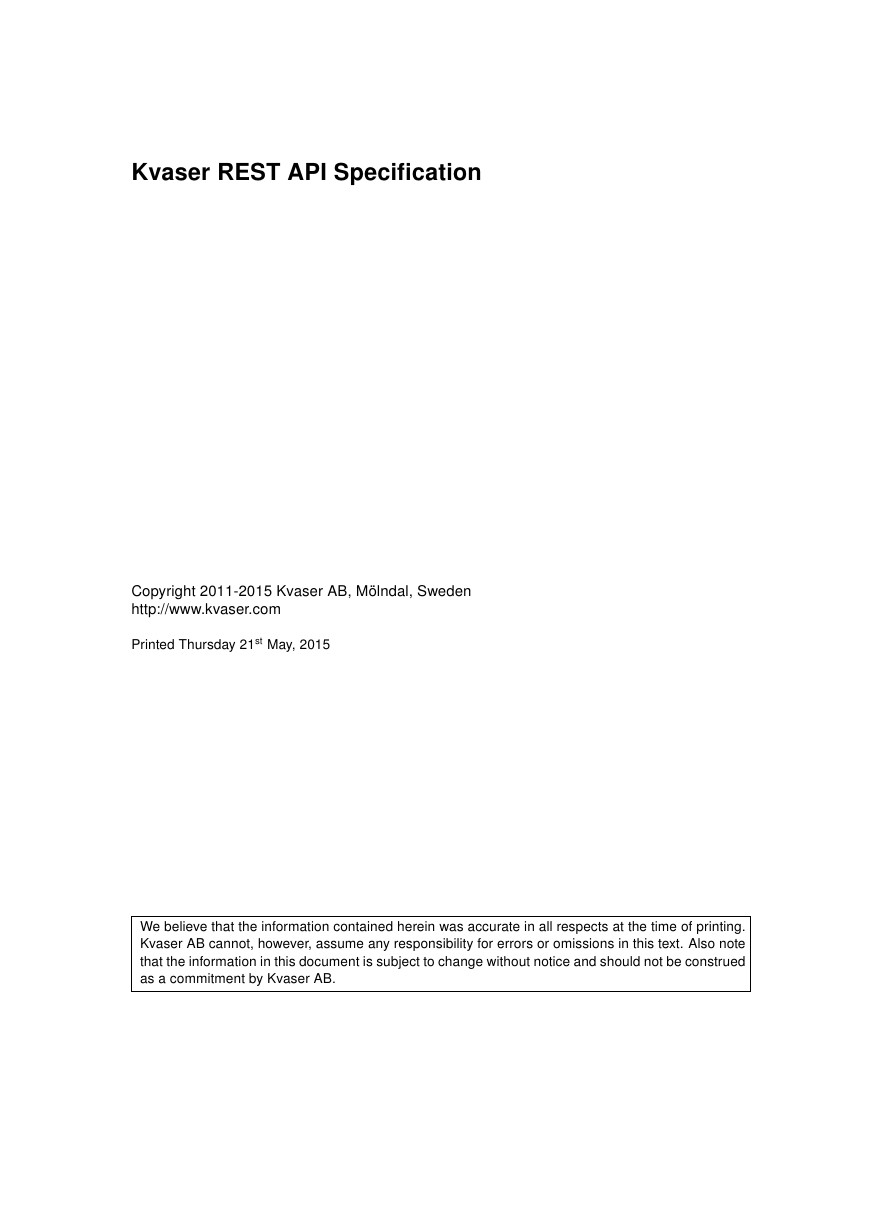

Kvaser REST API Speciﬁcation Copyright 2011-2015 Kvaser AB, Mölndal, Sweden http://www.kvaser.com Printed Thursday 21st May, 2015 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by Kvaser AB.

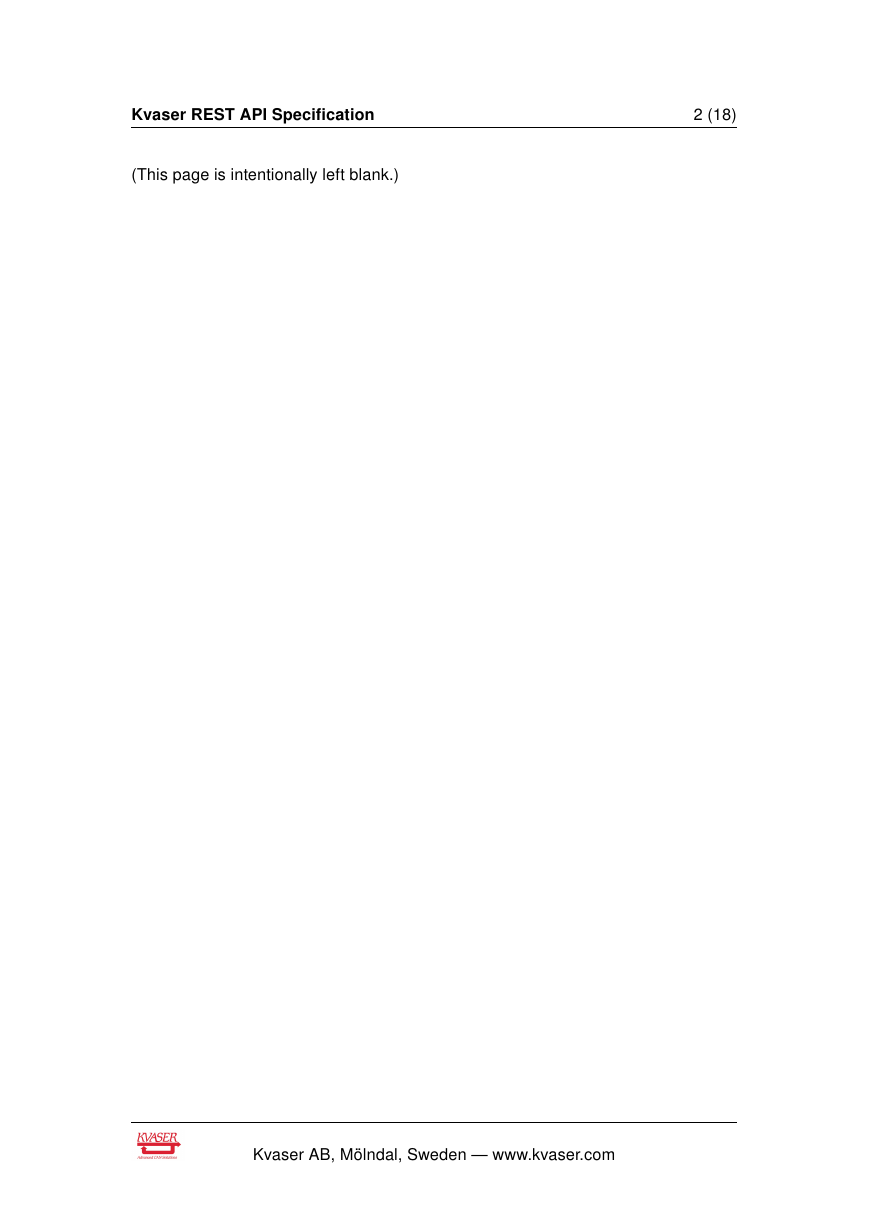

Kvaser REST API Speciﬁcation 2 (18) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com

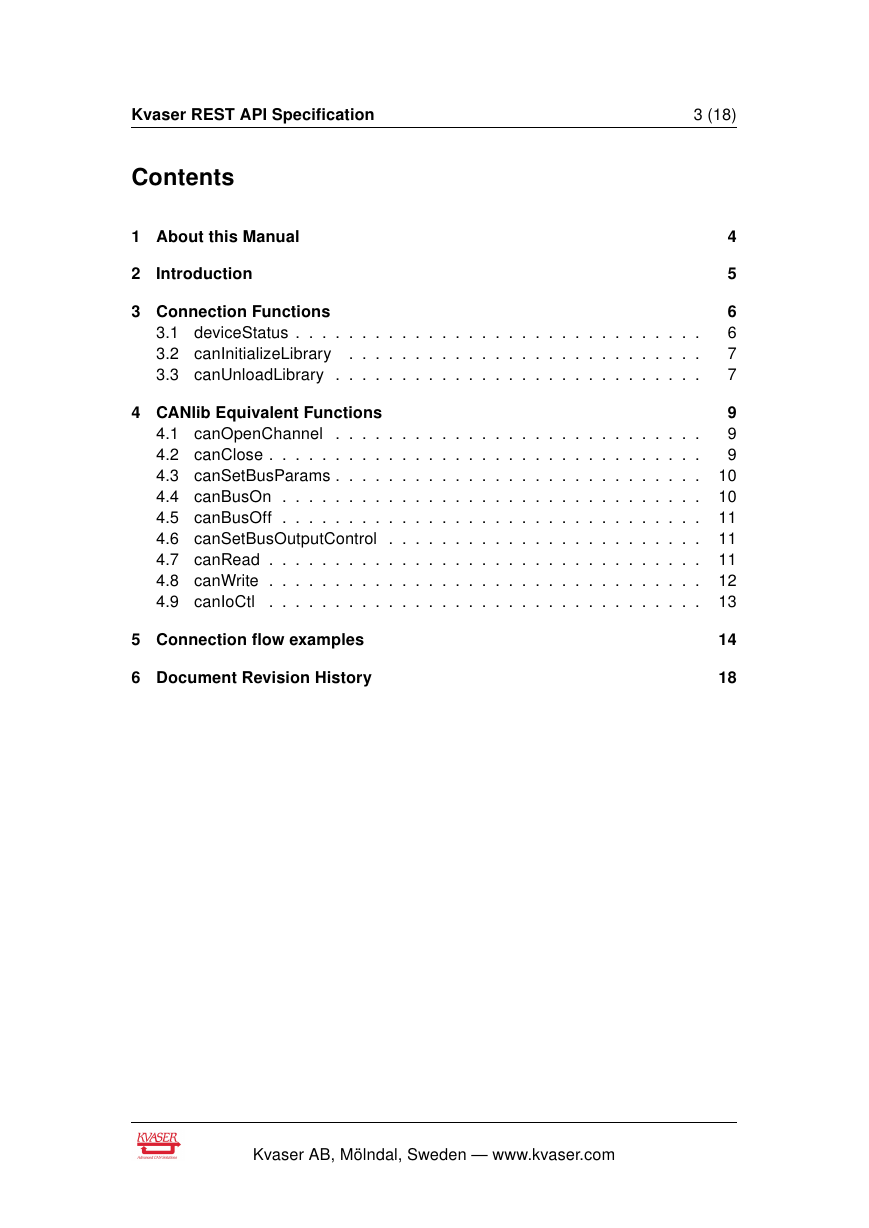

Kvaser REST API Speciﬁcation 3 (18) Contents 1 About this Manual 2 Introduction 3 Connection Functions 3.1 deviceStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2 canInitializeLibrary . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3 canUnloadLibrary . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CANlib Equivalent Functions 4.1 canOpenChannel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2 canClose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3 canSetBusParams . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4 canBusOn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 canBusOff 4.6 canSetBusOutputControl . . . . . . . . . . . . . . . . . . . . . . . . 4.7 canRead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8 canWrite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9 canIoCtl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Connection ﬂow examples 6 Document Revision History 4 5 6 6 7 7 9 9 9 10 10 11 11 11 12 13 14 18 Kvaser AB, Mölndal, Sweden — www.kvaser.com

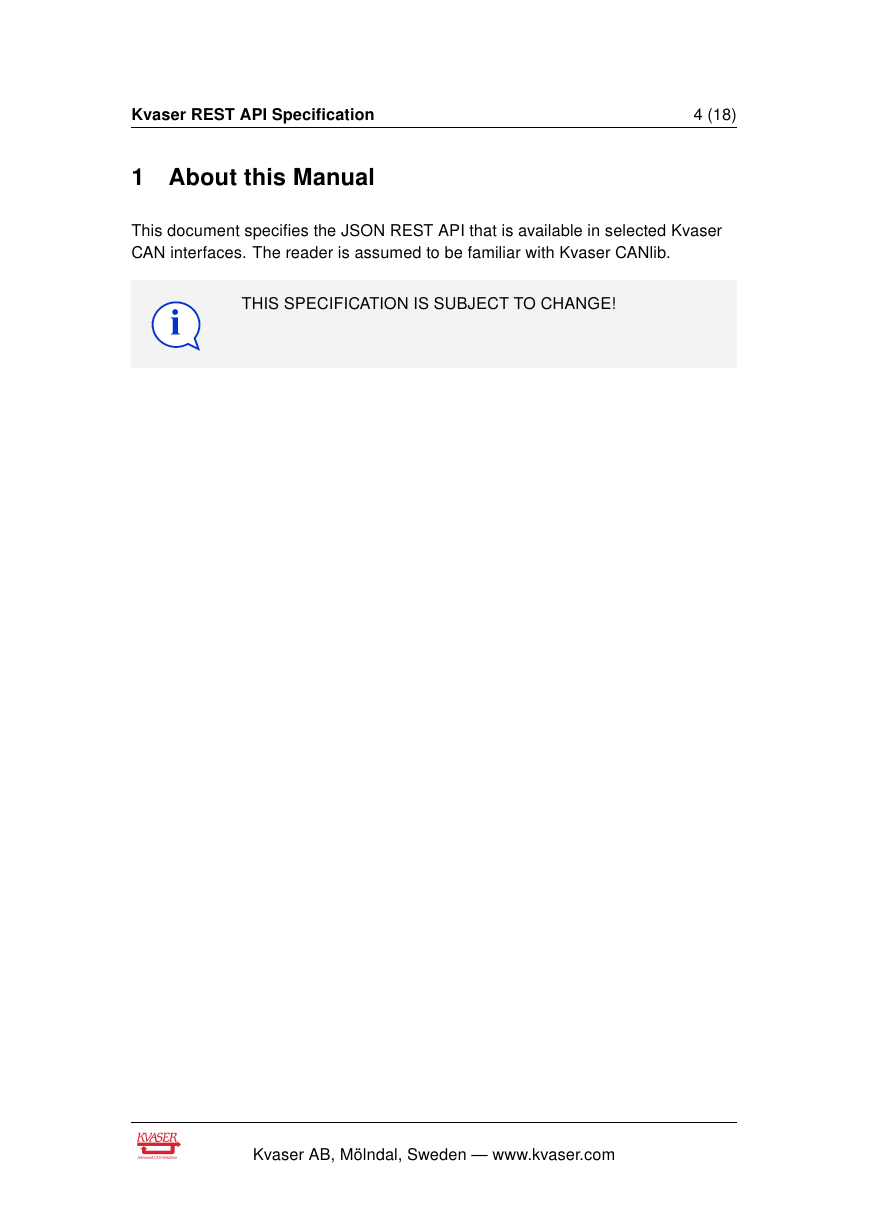

Kvaser REST API Speciﬁcation 4 (18) 1 About this Manual This document speciﬁes the JSON REST API that is available in selected Kvaser CAN interfaces. The reader is assumed to be familiar with Kvaser CANlib. THIS SPECIFICATION IS SUBJECT TO CHANGE! Kvaser AB, Mölndal, Sweden — www.kvaser.com

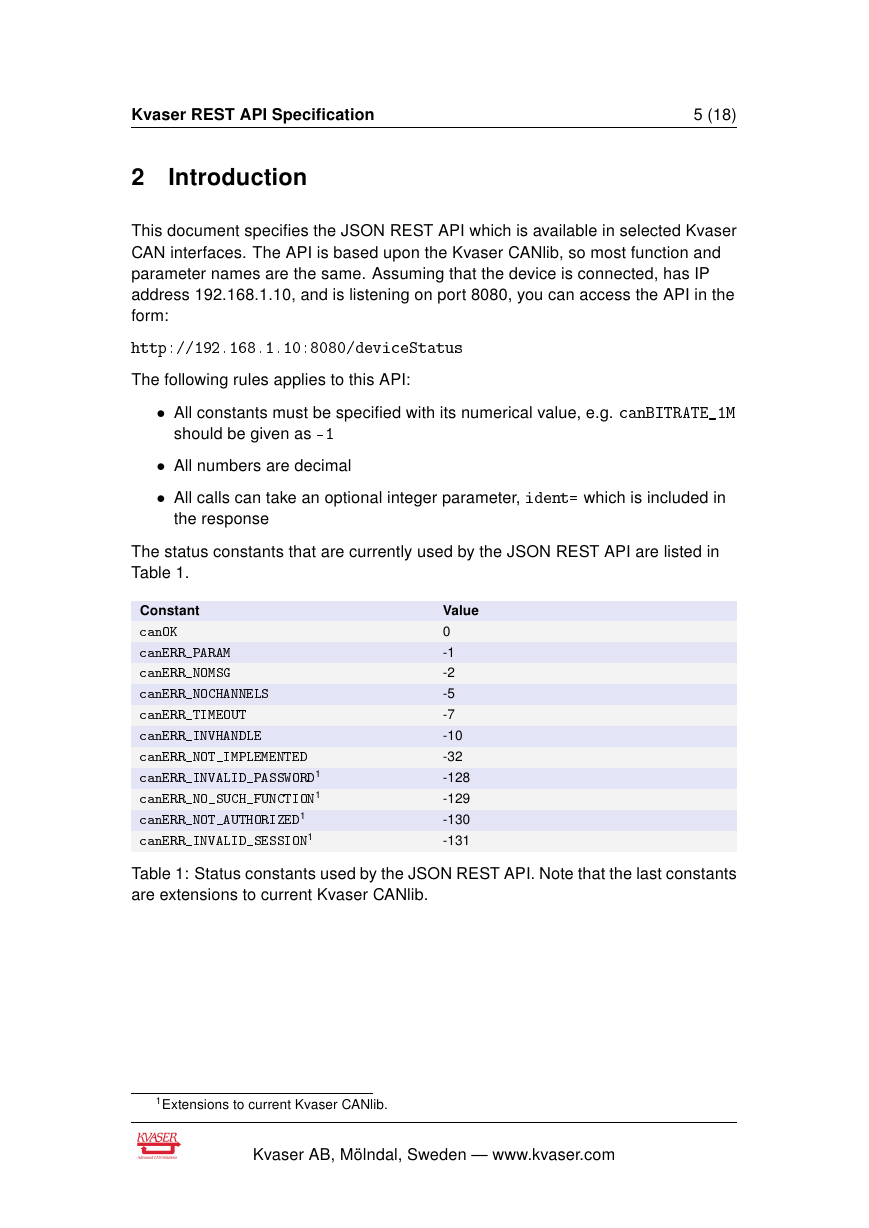

Kvaser REST API Speciﬁcation 5 (18) 2 Introduction This document speciﬁes the JSON REST API which is available in selected Kvaser CAN interfaces. The API is based upon the Kvaser CANlib, so most function and parameter names are the same. Assuming that the device is connected, has IP address 192.168.1.10, and is listening on port 8080, you can access the API in the form: http://192.168.1.10:8080/deviceStatus The following rules applies to this API: • All constants must be speciﬁed with its numerical value, e.g. canBITRATE_1M should be given as -1 • All numbers are decimal • All calls can take an optional integer parameter, ident= which is included in the response The status constants that are currently used by the JSON REST API are listed in Table 1. Constant canOK canERR_PARAM canERR_NOMSG canERR_NOCHANNELS canERR_TIMEOUT canERR_INVHANDLE canERR_NOT_IMPLEMENTED canERR_INVALID_PASSWORD1 canERR_NO_SUCH_FUNCTION1 canERR_NOT_AUTHORIZED1 canERR_INVALID_SESSION1 Value 0 -1 -2 -5 -7 -10 -32 -128 -129 -130 -131 Table 1: Status constants used by the JSON REST API. Note that the last constants are extensions to current Kvaser CANlib. 1Extensions to current Kvaser CANlib. Kvaser AB, Mölndal, Sweden — www.kvaser.com

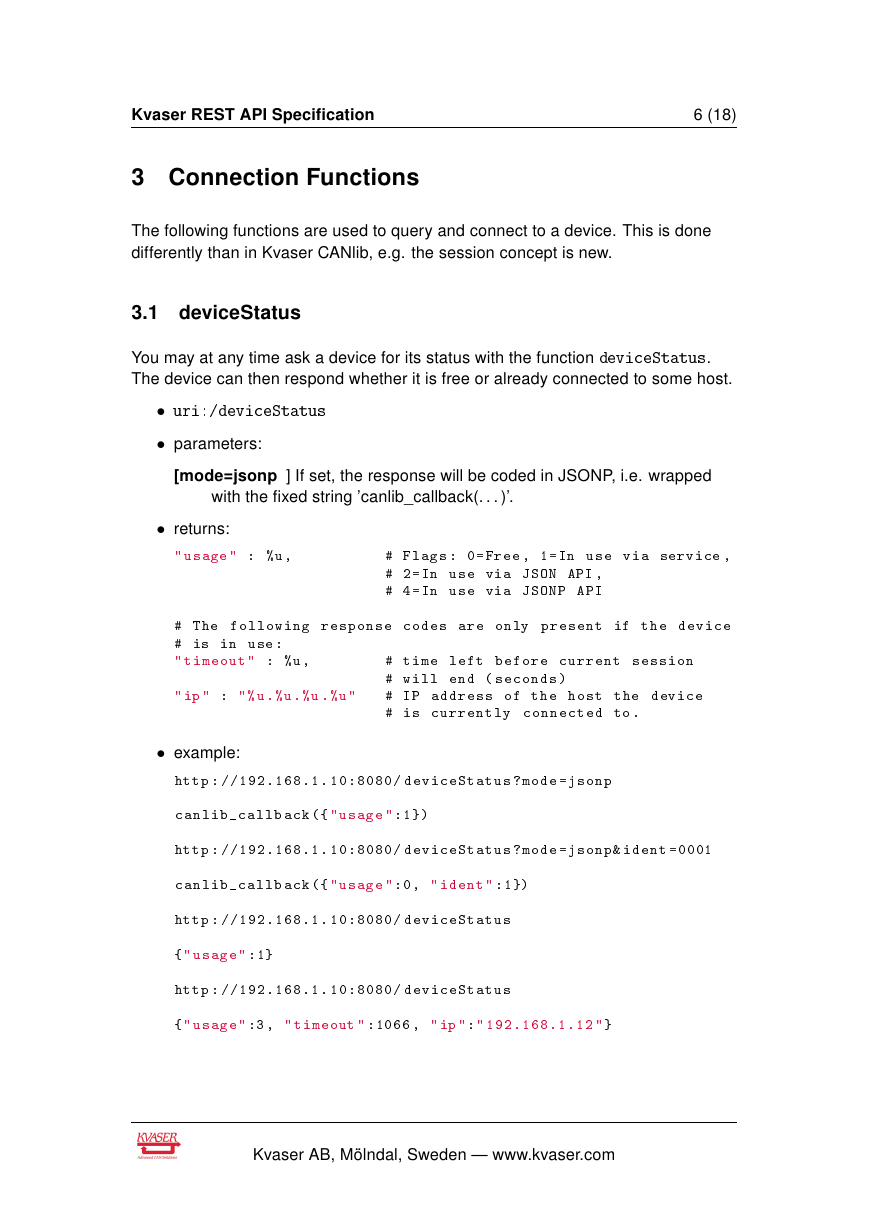

Kvaser REST API Speciﬁcation 6 (18) 3 Connection Functions The following functions are used to query and connect to a device. This is done differently than in Kvaser CANlib, e.g. the session concept is new. 3.1 deviceStatus You may at any time ask a device for its status with the function deviceStatus. The device can then respond whether it is free or already connected to some host. • uri:/deviceStatus • parameters: [mode=jsonp ] If set, the response will be coded in JSONP, i.e. wrapped with the ﬁxed string ’canlib_callback(. . . )’. • returns: " usage " : %u , # Flags : 0= Free , 1= In use via service , # 2= In use via JSON API , # 4= In use via JSONP API # The f o l l o w i n g r e s p o n s e codes are only present if the device # is in use : " timeout " : %u , # time left before current session # will end ( seconds ) # IP address of the host the device # is c u r r e n t l y c o n n e c t e d to . " ip " : " % u .% u .% u .% u " • example: http : / / 1 9 2 . 1 6 8 . 1 . 1 0 : 8 0 8 0 / d e v i c e S t a t u s ? mode = jsonp c a n l i b _ c a l l b a c k ({ " usage " :1}) http : / / 1 9 2 . 1 6 8 . 1 . 1 0 : 8 0 8 0 / d e v i c e S t a t u s ? mode = jsonp & ident =0001 c a n l i b _ c a l l b a c k ({ " usage " :0 , " ident " :1}) http : / / 1 9 2 . 1 6 8 . 1 . 1 0 : 8 0 8 0 / d e v i c e S t a t u s { " usage " :1} http : / / 1 9 2 . 1 6 8 . 1 . 1 0 : 8 0 8 0 / d e v i c e S t a t u s { " usage " :3 , " timeout " :1066 , " ip " : " 1 9 2 . 1 6 8 . 1 . 1 2 " } Kvaser AB, Mölndal, Sweden — www.kvaser.com

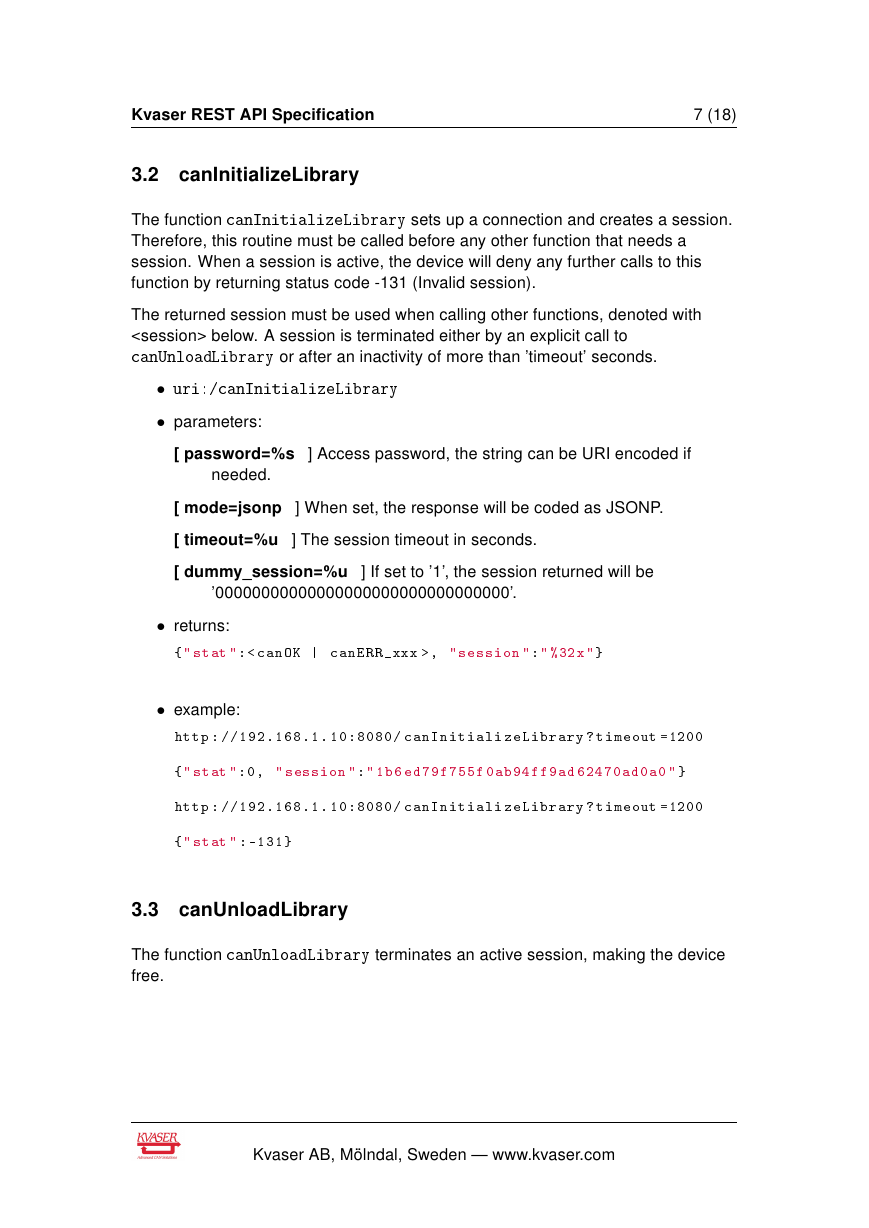

Kvaser REST API Speciﬁcation 7 (18) 3.2 canInitializeLibrary The function canInitializeLibrary sets up a connection and creates a session. Therefore, this routine must be called before any other function that needs a session. When a session is active, the device will deny any further calls to this function by returning status code -131 (Invalid session). The returned session must be used when calling other functions, denoted with below. A session is terminated either by an explicit call to canUnloadLibrary or after an inactivity of more than ’timeout’ seconds. • uri:/canInitializeLibrary • parameters: [ password=%s ] Access password, the string can be URI encoded if needed. [ mode=jsonp ] When set, the response will be coded as JSONP. [ timeout=%u ] The session timeout in seconds. [ dummy_session=%u ] If set to ’1’, the session returned will be ’00000000000000000000000000000000’. • returns: { " stat " : < canOK | canERR_xxx > , " session " : " %32 x " } • example: http : / / 1 9 2 . 1 6 8 . 1 . 1 0 : 8 0 8 0 / c a n I n i t i a l i z e L i b r a r y ? timeout =1200 { " stat " :0 , " session " : " 1 b 6 e d 7 9 f 7 5 5 f 0 a b 9 4 f f 9 a d 6 2 4 7 0 a d 0 a 0 " } http : / / 1 9 2 . 1 6 8 . 1 . 1 0 : 8 0 8 0 / c a n I n i t i a l i z e L i b r a r y ? timeout =1200 { " stat " : -131} 3.3 canUnloadLibrary The function canUnloadLibrary terminates an active session, making the device free. Kvaser AB, Mölndal, Sweden — www.kvaser.com

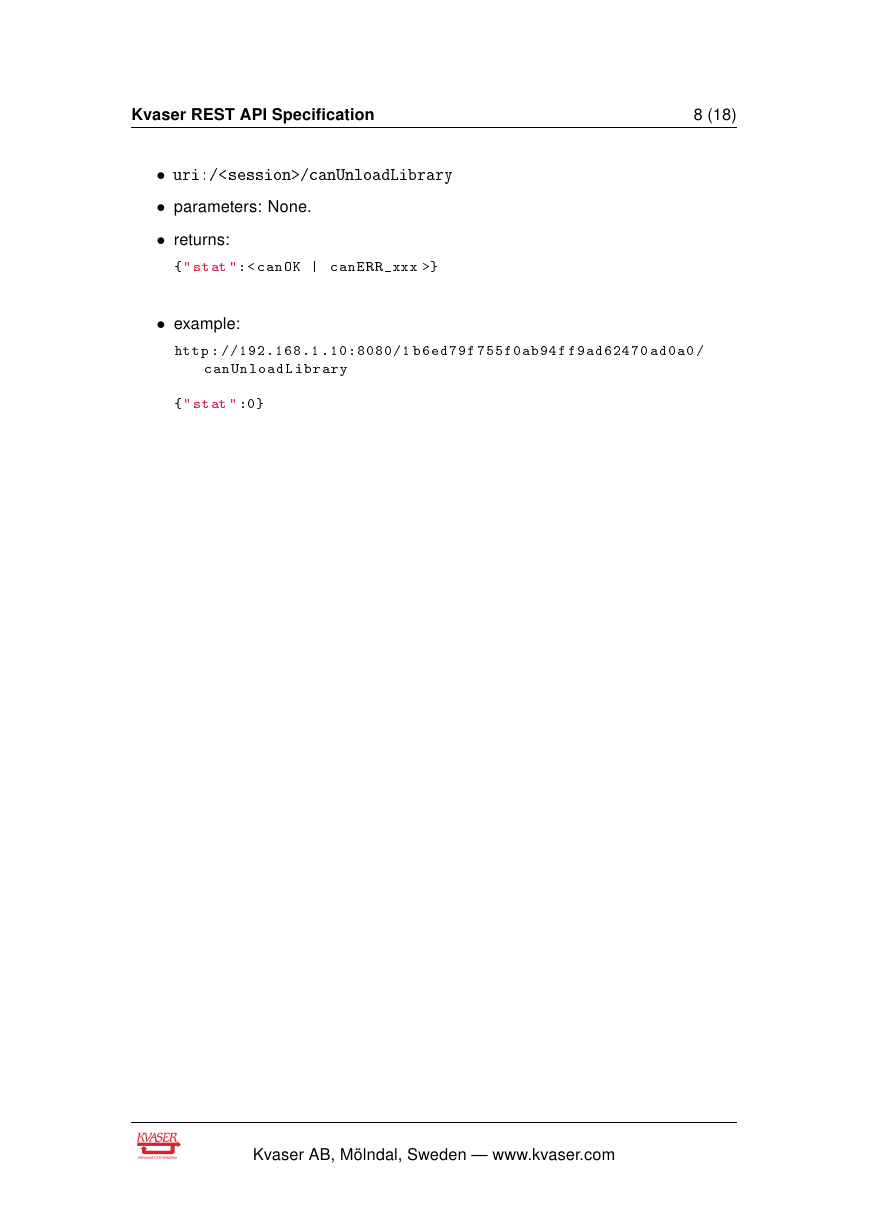

Kvaser REST API Speciﬁcation 8 (18) • uri://canUnloadLibrary • parameters: None. • returns: { " stat " : < canOK | canERR_xxx >} • example: http : / / 1 9 2 . 1 6 8 . 1 . 1 0 : 8 0 8 0 / 1 b 6 e d 7 9 f 7 5 5 f 0 a b 9 4 f f 9 a d 6 2 4 7 0 a d 0 a 0 / c a n U n l o a d L i b r a r y { " stat " :0} Kvaser AB, Mölndal, Sweden — www.kvaser.com
