1预备知识——DLX处理器简介

1.1DLX基本结构

1.2DLX流水线结构

1.3DLX基本流水线

1.4常用指令

2实验准备

2.1准备环境——VMware虚拟机

2.2熟悉软件

3实验二指令流水线相关性分析

3.1实验目的

3.2实验环境

3.3实验步骤

3.4实验过程

3.4.1装载程序与数据文件

3.4.2观察数据/控制/结构相关

3.4.2.1数据相关

3.4.2.2控制相关

3.4.2.3结构相关

3.4.3考察增加浮点运算部件对性能的影响

3.4.4考察增加forward部件对性能的影响

3.4.5观察转移指令转移成功与否的流水线开销

3.5实验总结

4实验三 DLX处理器程序设计

4.1实验目的

4.2实验环境

4.3实验原理

4.4实验步骤

4.5实验过程

4.5.1编写汇编程序

4.5.2观察数据/控制/结构相关

4.5.2.1数据相关

4.5.2.2控制相关

4.5.2.3结构相关

4.5.3考察增加浮点运算部件对性能的影响

4.5.4考察增加forward部件对性能的影响

4.5.5观察转移指令转移成功与否的流水线开销

4.6实验总结

5实验四代码优化

5.1实验目的

5.2实验环境

5.3实验原理

5.4实验步骤

5.5实验过程

5.5.1优化汇编程序

5.5.2观察数据/控制/结构相关

5.5.3考察增加浮点运算部件对性能的影响

5.5.4考察增加forward部件对性能的影响

5.6实验总结

6实验五循环展开

6.1实验目的

6.2实验环境

6.3实验原理

6.4实验步骤

6.5实验过程

6.5.1编写矩阵相乘程序

6.5.2观察数据/控制/结构相关

6.5.3考察增加浮点运算部件对性能的影响

6.5.4考察增加forward部件对性能的影响

6.6实验总结

CPU 流水线观察实验报告书课姓学学程：名：号：院：高级计算机体系结构计算机学院 2017 年 11 月

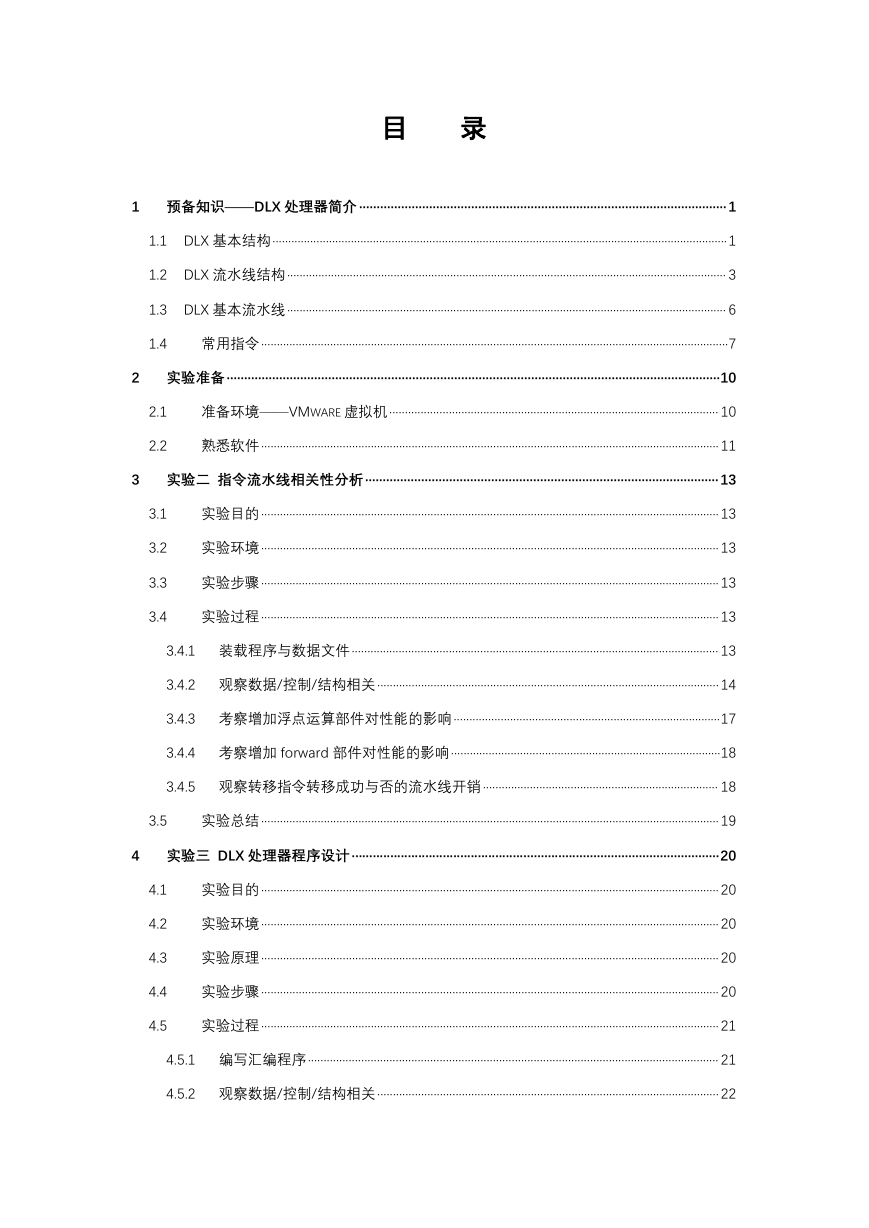

目录 1 预备知识——DLX 处理器简介 ·········································································································1 1.1 DLX 基本结构·················································································································································1 1.2 DLX 流水线结构············································································································································ 3 1.3 DLX 基本流水线············································································································································ 6 1.4 常用指令·····················································································································································7 2 实验准备 ·············································································································································10 2.1 2.2 准备环境——VMWARE 虚拟机········································································································· 10 熟悉软件·················································································································································· 11 3 实验二指令流水线相关性分析 ·····································································································13 3.1 3.2 3.3 3.4 实验目的·················································································································································· 13 实验环境·················································································································································· 13 实验步骤·················································································································································· 13 实验过程·················································································································································· 13 3.4.1 装载程序与数据文件····················································································································· 13 3.4.2 观察数据/控制/结构相关············································································································· 14 3.4.3 考察增加浮点运算部件对性能的影响·····················································································17 3.4.4 考察增加 forward 部件对性能的影响······················································································18 3.4.5 观察转移指令转移成功与否的流水线开销··········································································· 18 3.5 实验总结·················································································································································· 19 4 实验三 DLX 处理器程序设计 ·········································································································20 4.1 4.2 4.3 4.4 4.5 实验目的·················································································································································· 20 实验环境·················································································································································· 20 实验原理·················································································································································· 20 实验步骤·················································································································································· 20 实验过程·················································································································································· 21 4.5.1 编写汇编程序··································································································································· 21 4.5.2 观察数据/控制/结构相关············································································································· 22

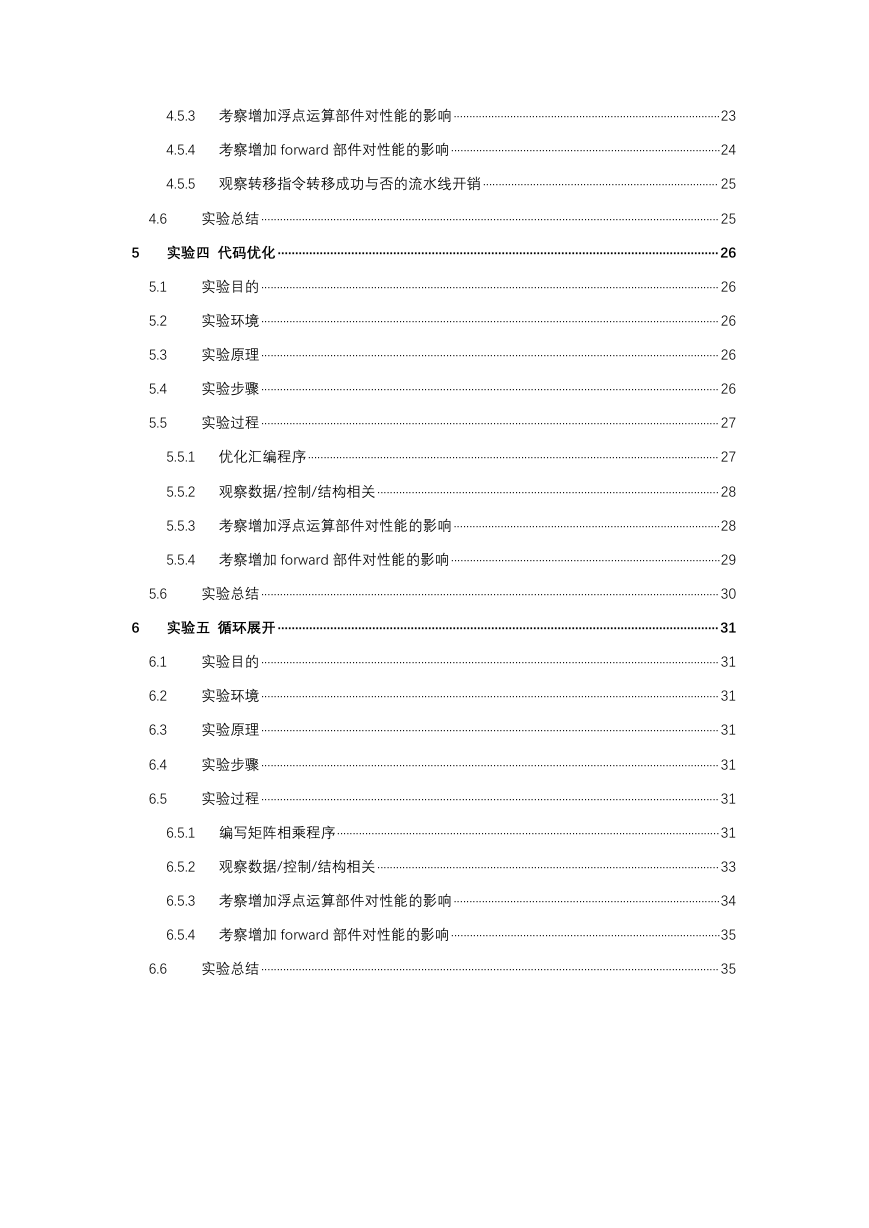

4.5.3 考察增加浮点运算部件对性能的影响·····················································································23 4.5.4 考察增加 forward 部件对性能的影响······················································································24 4.5.5 观察转移指令转移成功与否的流水线开销··········································································· 25 4.6 实验总结·················································································································································· 25 5 实验四代码优化 ······························································································································26 5.1 5.2 5.3 5.4 5.5 实验目的·················································································································································· 26 实验环境·················································································································································· 26 实验原理·················································································································································· 26 实验步骤·················································································································································· 26 实验过程·················································································································································· 27 5.5.1 优化汇编程序··································································································································· 27 5.5.2 观察数据/控制/结构相关············································································································· 28 5.5.3 考察增加浮点运算部件对性能的影响·····················································································28 5.5.4 考察增加 forward 部件对性能的影响······················································································29 5.6 实验总结·················································································································································· 30 6 实验五循环展开 ······························································································································31 6.1 6.2 6.3 6.4 6.5 实验目的·················································································································································· 31 实验环境·················································································································································· 31 实验原理·················································································································································· 31 实验步骤·················································································································································· 31 实验过程·················································································································································· 31 6.5.1 编写矩阵相乘程序··························································································································31 6.5.2 观察数据/控制/结构相关············································································································· 33 6.5.3 考察增加浮点运算部件对性能的影响·····················································································34 6.5.4 考察增加 forward 部件对性能的影响······················································································35 6.6 实验总结·················································································································································· 35

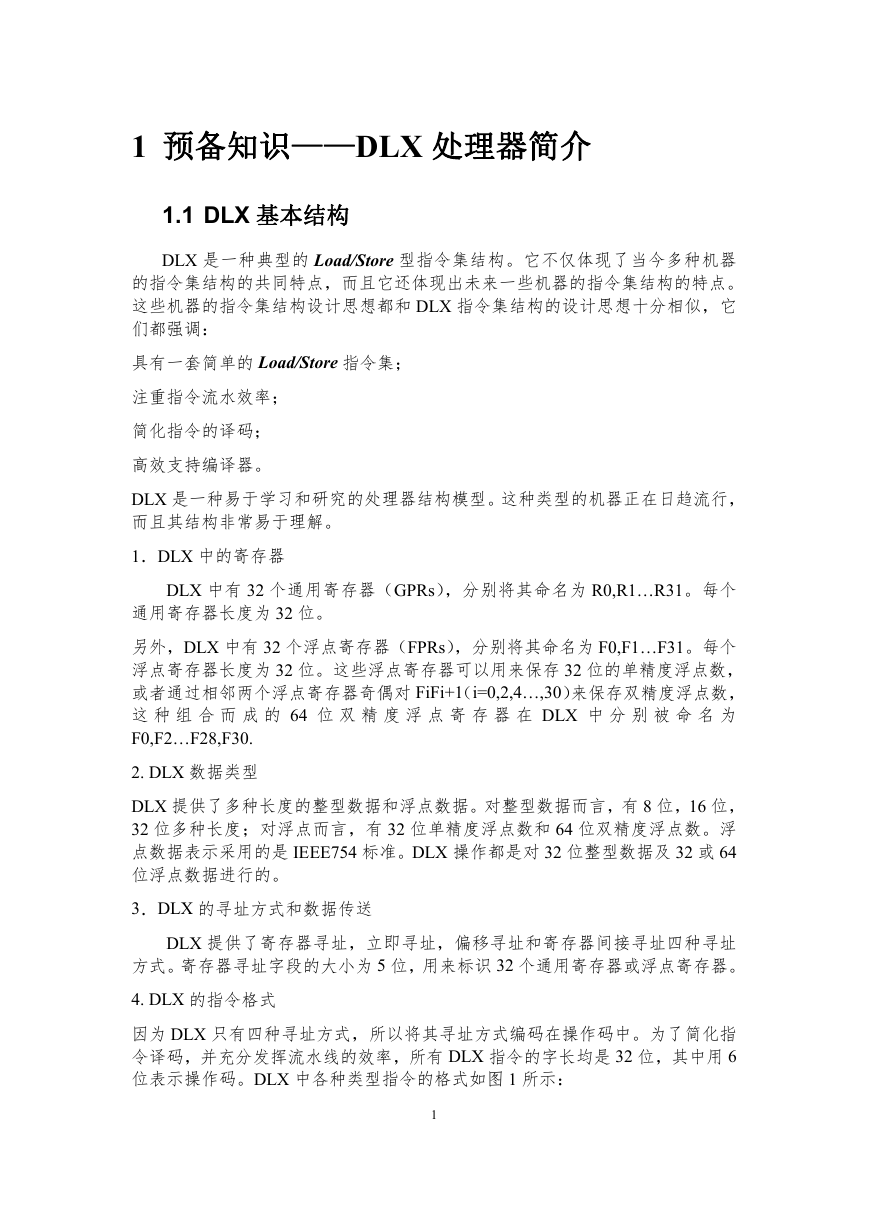

1 预备知识——DLX 处理器简介 1.1 DLX 基本结构 DLX 是一种典型的 Load/Store 型指令集结构。它不仅体现了当今多种机器的指令集结构的共同特点，而且它还体现出未来一些机器的指令集结构的特点。这些机器的指令集结构设计思想都和 DLX 指令集结构的设计思想十分相似，它们都强调：具有一套简单的 Load/Store 指令集；注重指令流水效率；简化指令的译码；高效支持编译器。 DLX 是一种易于学习和研究的处理器结构模型。这种类型的机器正在日趋流行，而且其结构非常易于理解。 1．DLX 中的寄存器 DLX 中有 32 个通用寄存器（GPRs），分别将其命名为 R0,R1…R31。每个通用寄存器长度为 32 位。另外，DLX 中有 32 个浮点寄存器（FPRs），分别将其命名为 F0,F1…F31。每个浮点寄存器长度为 32 位。这些浮点寄存器可以用来保存 32 位的单精度浮点数，或者通过相邻两个浮点寄存器奇偶对 FiFi+1（i=0,2,4…,30）来保存双精度浮点数，这种组合而成的 64 位双精度浮点寄存器在 DLX 中分别被命名为 F0,F2…F28,F30. 2. DLX 数据类型 DLX 提供了多种长度的整型数据和浮点数据。对整型数据而言，有 8 位，16 位， 32 位多种长度；对浮点而言，有 32 位单精度浮点数和 64 位双精度浮点数。浮点数据表示采用的是 IEEE754 标准。DLX 操作都是对 32 位整型数据及 32 或 64 位浮点数据进行的。 3．DLX 的寻址方式和数据传送 DLX 提供了寄存器寻址，立即寻址，偏移寻址和寄存器间接寻址四种寻址方式。寄存器寻址字段的大小为 5 位，用来标识 32 个通用寄存器或浮点寄存器。 4. DLX 的指令格式因为 DLX 只有四种寻址方式，所以将其寻址方式编码在操作码中。为了简化指令译码，并充分发挥流水线的效率，所有 DLX 指令的字长均是 32 位，其中用 6 位表示操作码。DLX 中各种类型指令的格式如图 1 所示： 1

5．DLX 中的操作图 1 DLX 指令中的操作可以分为四种类型，即：Load 和 Store 操作、ALU 操作、分支和跳转操作、浮点操作。 (1)Load 和 Store 操作可以对 DLX 的所有通用寄存器和浮点寄存器进行 Load（载入）和 Store（储存）操作，但是通用寄存器 R0 的 Load 操作没有任何效果。 (2) ALU 操作在 DLX 中，所有的 ALU 指令都是寄存器－寄存器型指令，其运算包含了简单的算术和逻辑运算，如加、减、AND、OR、XOR 和移位。另外，DLX 还允许所有这些指令对立即值进行操作，立即值以 16 位符号扩展形式出现。LHI（Load 高位立即值）操作将立即值载入到一个寄存器的高半部分，而该寄存器的低半部分则设置为 0。这样就可以通过两条 Load 指令构造一个 32 位的常数。正如上面所提到的，R0 主要用来合成一些有用的操作。比如，Load 一个常数就可以看作是一次简单的立即值加操作，其中一个源操作数是 R0；寄存器－寄存器间的数据移动也可以看作是一次简单的加，其中一个源操作数是 R0。这两个操作可以分别用 LI 和 MOV 表示。在 DLX 指令集中，还有一些寄存器比较指令（=，≠，<，>，≤，≥），如果比较结果为真，这些指令就在目标寄存器中填入 1（表示真），否则填入 0（表示假）。 2

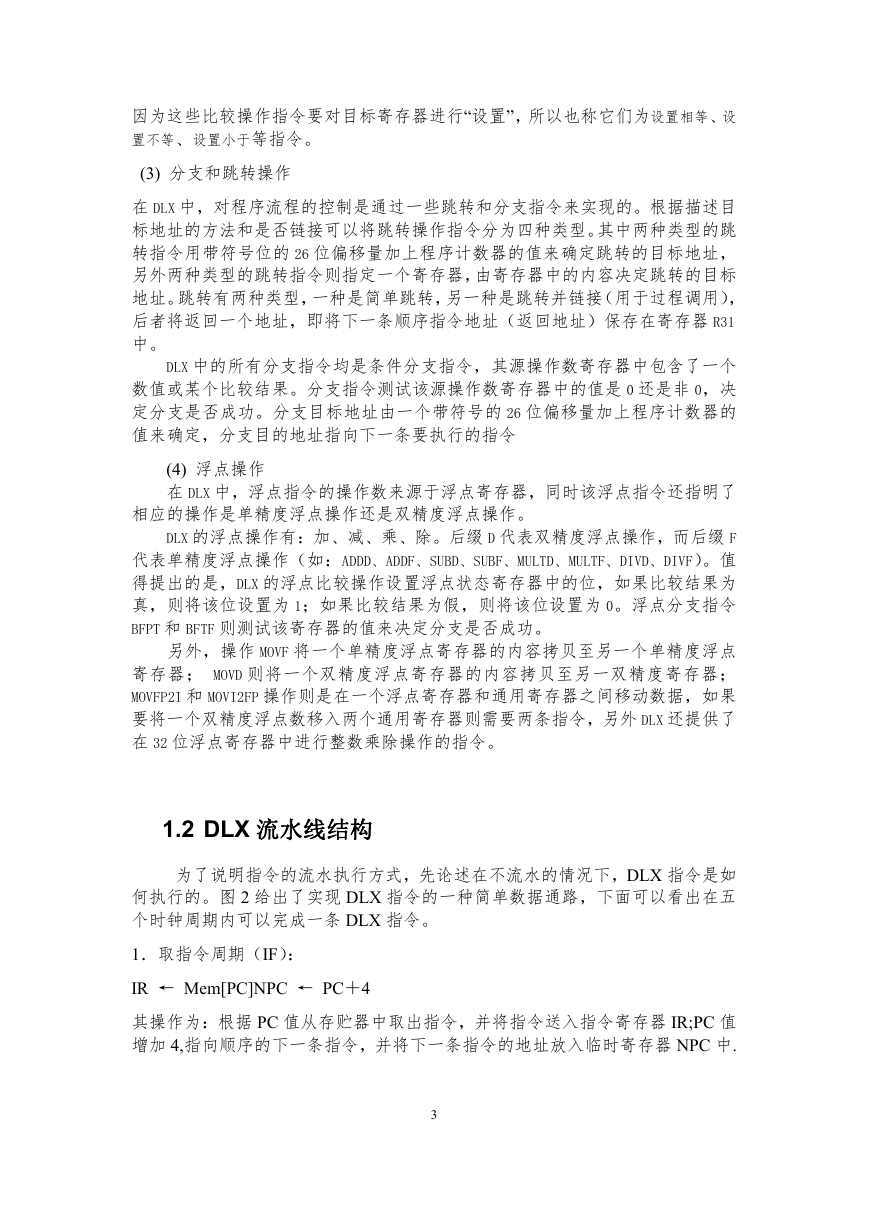

因为这些比较操作指令要对目标寄存器进行“设置”，所以也称它们为设置相等、设置不等、设置小于等指令。 (3) 分支和跳转操作在 DLX 中，对程序流程的控制是通过一些跳转和分支指令来实现的。根据描述目标地址的方法和是否链接可以将跳转操作指令分为四种类型。其中两种类型的跳转指令用带符号位的 26 位偏移量加上程序计数器的值来确定跳转的目标地址，另外两种类型的跳转指令则指定一个寄存器，由寄存器中的内容决定跳转的目标地址。跳转有两种类型，一种是简单跳转，另一种是跳转并链接（用于过程调用），后者将返回一个地址，即将下一条顺序指令地址（返回地址）保存在寄存器 R31 中。 DLX 中的所有分支指令均是条件分支指令，其源操作数寄存器中包含了一个数值或某个比较结果。分支指令测试该源操作数寄存器中的值是 0 还是非 0，决定分支是否成功。分支目标地址由一个带符号的 26 位偏移量加上程序计数器的值来确定，分支目的地址指向下一条要执行的指令 (4) 浮点操作在 DLX 中，浮点指令的操作数来源于浮点寄存器，同时该浮点指令还指明了相应的操作是单精度浮点操作还是双精度浮点操作。 DLX 的浮点操作有：加、减、乘、除。后缀 D 代表双精度浮点操作，而后缀 F 代表单精度浮点操作（如：ADDD、ADDF、SUBD、SUBF、MULTD、MULTF、DIVD、DIVF）。值得提出的是，DLX 的浮点比较操作设置浮点状态寄存器中的位，如果比较结果为真，则将该位设置为 1；如果比较结果为假，则将该位设置为 0。浮点分支指令 BFPT 和 BFTF 则测试该寄存器的值来决定分支是否成功。另外，操作 MOVF 将一个单精度浮点寄存器的内容拷贝至另一个单精度浮点寄存器； MOVD 则将一个双精度浮点寄存器的内容拷贝至另一双精度寄存器； MOVFP2I 和 MOVI2FP 操作则是在一个浮点寄存器和通用寄存器之间移动数据，如果要将一个双精度浮点数移入两个通用寄存器则需要两条指令，另外 DLX 还提供了在 32 位浮点寄存器中进行整数乘除操作的指令。 1.2 DLX 流水线结构为了说明指令的流水执行方式，先论述在不流水的情况下，DLX 指令是如何执行的。图 2 给出了实现 DLX 指令的一种简单数据通路，下面可以看出在五个时钟周期内可以完成一条 DLX 指令。 1．取指令周期（IF）： IR ← Mem[PC]NPC ← PC＋4 其操作为：根据 PC 值从存贮器中取出指令，并将指令送入指令寄存器 IR;PC 值增加 4,指向顺序的下一条指令，并将下一条指令的地址放入临时寄存器 NPC 中. 3

图 2 2．指令译码/读寄存器周期（ID）： A ←Regs[IR6..10] B ←Regs[IR11..15] Imm←(IR16)16 ## IR16..31 其操作为：对指令操作码进行译码，按照给定的寻址方式和地址段中的内容形成操作数的地址，并用这个地址读操作数。操作数可能在驻村中，也可能在通用寄存器中。[8] 指令的译码操作和读寄存器操作是并行进行的。之所以能做到这一点，是因为 DLX 指令格式中，操作码在固定位置。这种技术也称为固定字段译码技术。值得注意的是，在上述过程中，可能读出了一些在后面周期中并不会使用到的寄存器内容，但是这并不会影响指令执行的正确性。相反，却可以有效地降低问题的复杂性。另外，由于立即值在 DLX 指令格式中处于固定位置，因此这里也对其进行符号扩展，以便在下一个周期能使用它。当然由于指令的不同，也许在后面的周期中并不会用到这个立即值，但无论如何，提前形成立即值总是有益无害的。 3．执行/有效地址计算周期（EX）在这个周期，不同的指令有不同的操作。[1] （1）存储器访问：ALUOutput←A＋Imm 当指令为存贮器访问指令时，该周期的操作为：ALU 将操作数相加形成有效地址,并将结果放入临时寄存器 ALUoutput 中。 4

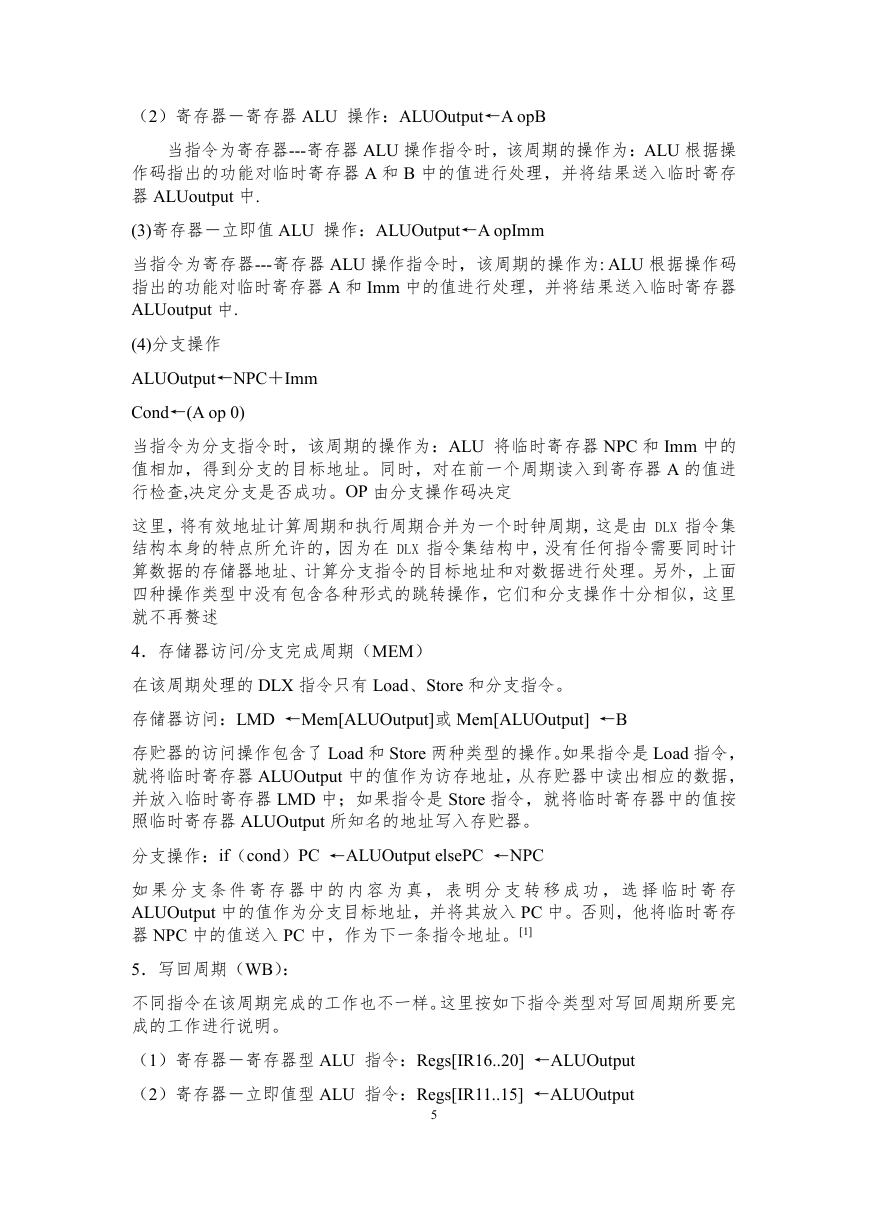

（2）寄存器―寄存器 ALU 操作：ALUOutput←A opB 当指令为寄存器---寄存器 ALU 操作指令时，该周期的操作为：ALU 根据操作码指出的功能对临时寄存器 A 和 B 中的值进行处理，并将结果送入临时寄存器 ALUoutput 中. (3)寄存器―立即值 ALU 操作：ALUOutput←A opImm 当指令为寄存器---寄存器 ALU 操作指令时，该周期的操作为: ALU 根据操作码指出的功能对临时寄存器 A 和 Imm 中的值进行处理，并将结果送入临时寄存器 ALUoutput 中. (4)分支操作 ALUOutput←NPC＋Imm Cond←(A op 0) 当指令为分支指令时，该周期的操作为：ALU 将临时寄存器 NPC 和 Imm 中的值相加，得到分支的目标地址。同时，对在前一个周期读入到寄存器 A 的值进行检查,决定分支是否成功。OP 由分支操作码决定这里，将有效地址计算周期和执行周期合并为一个时钟周期，这是由 DLX 指令集结构本身的特点所允许的，因为在 DLX 指令集结构中，没有任何指令需要同时计算数据的存储器地址、计算分支指令的目标地址和对数据进行处理。另外，上面四种操作类型中没有包含各种形式的跳转操作，它们和分支操作十分相似，这里就不再赘述 4．存储器访问/分支完成周期（MEM）在该周期处理的 DLX 指令只有 Load、Store 和分支指令。存储器访问：LMD ←Mem[ALUOutput]或 Mem[ALUOutput] ←B 存贮器的访问操作包含了 Load 和 Store 两种类型的操作。如果指令是 Load 指令，就将临时寄存器 ALUOutput 中的值作为访存地址，从存贮器中读出相应的数据，并放入临时寄存器 LMD 中；如果指令是 Store 指令，就将临时寄存器中的值按照临时寄存器 ALUOutput 所知名的地址写入存贮器。分支操作：if（cond）PC ←ALUOutput elsePC ←NPC 如果分支条件寄存器中的内容为真，表明分支转移成功，选择临时寄存 ALUOutput 中的值作为分支目标地址，并将其放入 PC 中。否则，他将临时寄存器 NPC 中的值送入 PC 中，作为下一条指令地址。[1] 5．写回周期（WB）：不同指令在该周期完成的工作也不一样。这里按如下指令类型对写回周期所要完成的工作进行说明。（1）寄存器―寄存器型 ALU 指令：Regs[IR16..20] ←ALUOutput （2）寄存器―立即值型 ALU 指令：Regs[IR11..15] ←ALUOutput 5
