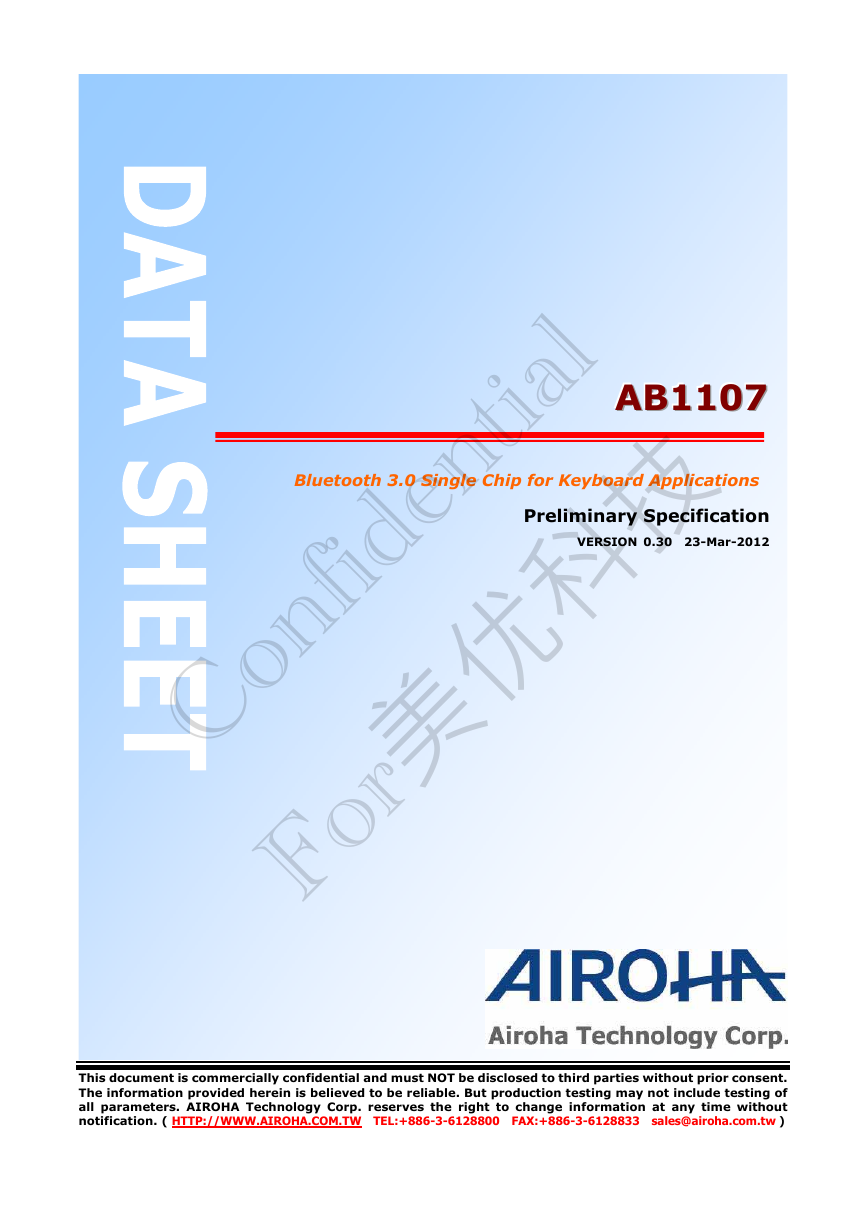

Airoha AB1107 datasheet.pdf
AAABBB111111000777
Bluetooth 3.0 Single Chip for Keyboard Applications
Preliminary Specification
VERSION 0.30 23-Mar-2012
This document is commercially confidential and must NOT be disclosed to third parties without prior consent.
The information provided herein is believed to be reliable. But production testing may not include testing of
all parameters. AIROHA Technology Corp. reserves the right to change information at any time without
notification. ( HTTP://WWW.AIROHA.COM.TW TEL:+886-3-6128800 FAX:+886-3-6128833 sales@airoha.com.tw )
Confidential For美优科技
AB1107
Bluetooth 3.0 Single Chip for
Keyboard Applications

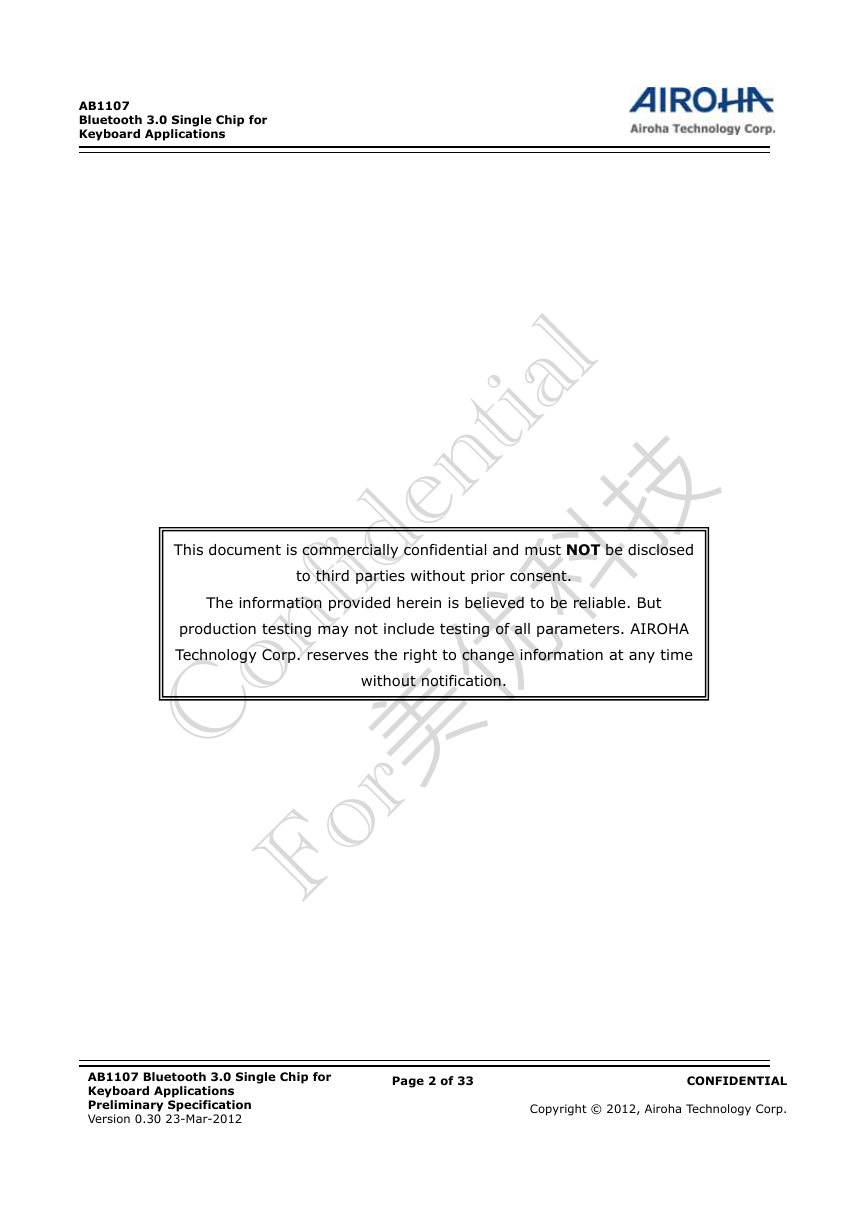

This document is commercially confidential and must NOT be disclosed
to third parties without prior consent.
The information provided herein is believed to be reliable. But
production testing may not include testing of all parameters. AIROHA
Technology Corp. reserves the right to change information at any time
without notification.
AB1107 Bluetooth 3.0 Single Chip for
Keyboard Applications
Preliminary Specification
Version 0.30 23-Mar-2012
Page 2 of 33
CONFIDENTIAL
Copyright © 2012, Airoha Technology Corp.
Confidential For美优科技
AB1107
Bluetooth 3.0 Single Chip for
Keyboard Applications

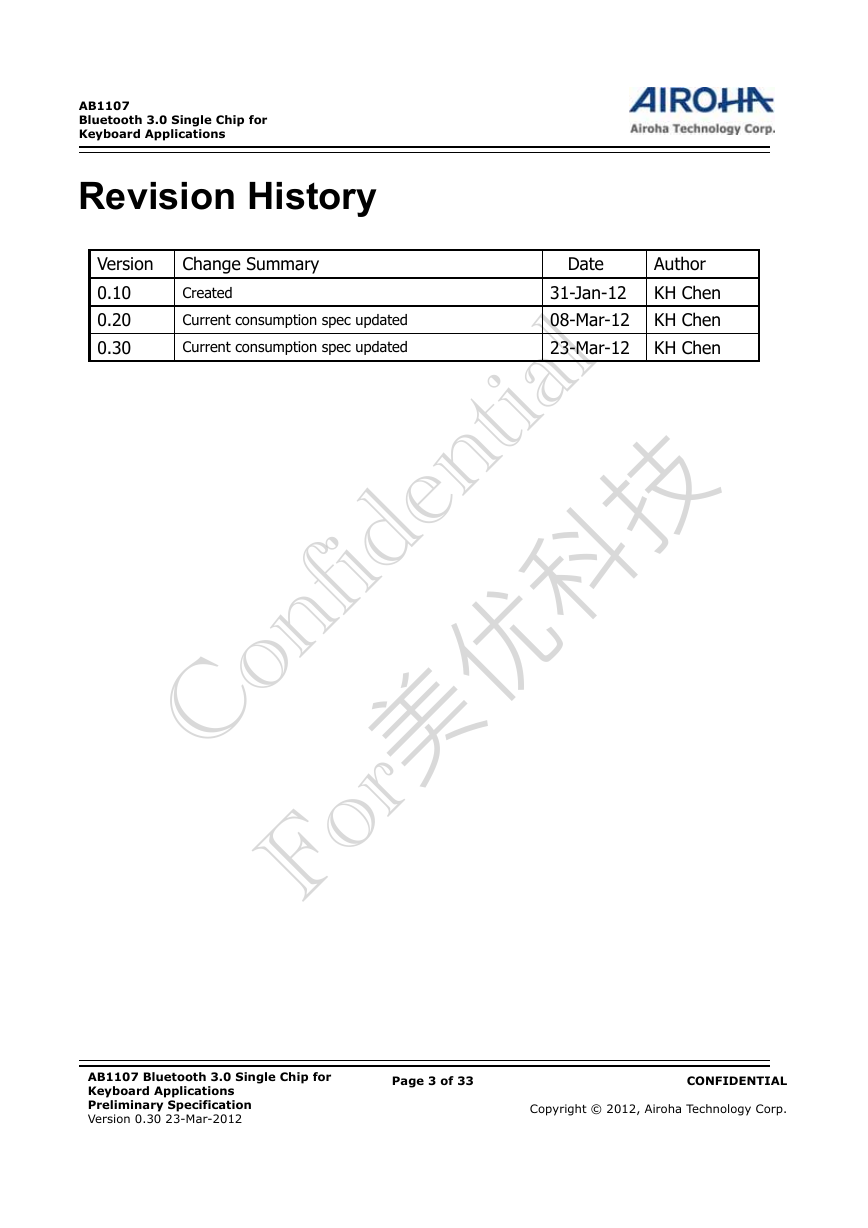

Revision History
Version
0.10
0.20
0.30
Change Summary
Created
Current consumption spec updated
Current consumption spec updated
Date
Author
31-Jan-12
KH Chen
08-Mar-12 KH Chen
23-Mar-12 KH Chen
AB1107 Bluetooth 3.0 Single Chip for
Keyboard Applications
Preliminary Specification
Version 0.30 23-Mar-2012
Page 3 of 33
CONFIDENTIAL
Copyright © 2012, Airoha Technology Corp.
Confidential For美优科技
AB1107
Bluetooth 3.0 Single Chip for
Keyboard Applications

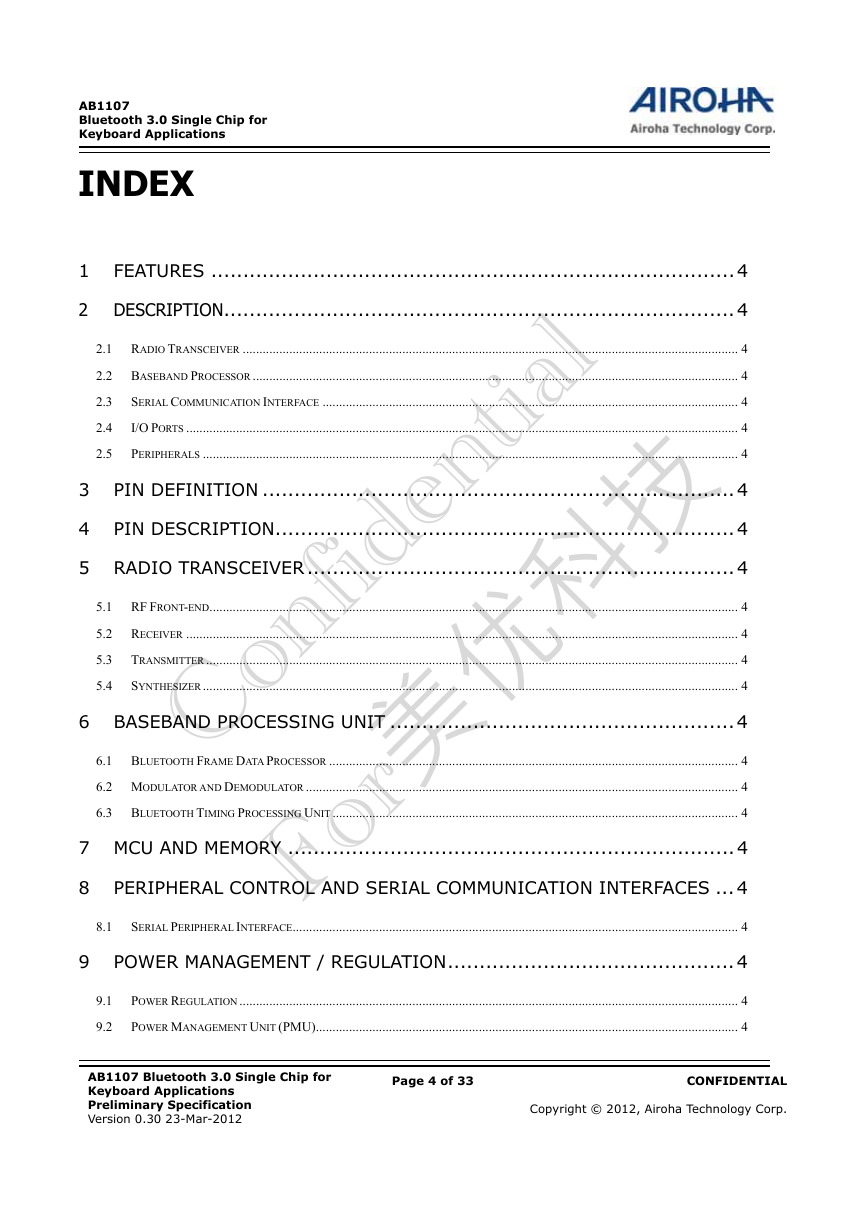

INDEX
1 FEATURES .................................................................................. 4
2 DESCRIPTION................................................................................ 4
2.1 RADIO TRANSCEIVER ..................................................................................................................................................... 4
2.2 BASEBAND PROCESSOR .................................................................................................................................................. 4
2.3 SERIAL COMMUNICATION INTERFACE ............................................................................................................................. 4
2.4
I/O PORTS ...................................................................................................................................................................... 4
2.5 PERIPHERALS ................................................................................................................................................................. 4
3 PIN DEFINITION .......................................................................... 4
4 PIN DESCRIPTION........................................................................ 4
5 RADIO TRANSCEIVER ................................................................... 4
5.1 RF FRONT-END............................................................................................................................................................... 4
5.2 RECEIVER ...................................................................................................................................................................... 4
5.3 TRANSMITTER ................................................................................................................................................................ 4
5.4 SYNTHESIZER................................................................................................................................................................. 4
6 BASEBAND PROCESSING UNIT ...................................................... 4
6.1 BLUETOOTH FRAME DATA PROCESSOR ........................................................................................................................... 4
6.2 MODULATOR AND DEMODULATOR .................................................................................................................................. 4
6.3 BLUETOOTH TIMING PROCESSING UNIT .......................................................................................................................... 4
7 MCU AND MEMORY ...................................................................... 4
8 PERIPHERAL CONTROL AND SERIAL COMMUNICATION INTERFACES ... 4
8.1 SERIAL PERIPHERAL INTERFACE...................................................................................................................................... 4
9 POWER MANAGEMENT / REGULATION............................................. 4
9.1 POWER REGULATION ...................................................................................................................................................... 4
9.2 POWER MANAGEMENT UNIT (PMU)............................................................................................................................... 4
AB1107 Bluetooth 3.0 Single Chip for
Keyboard Applications
Preliminary Specification
Version 0.30 23-Mar-2012
Page 4 of 33
CONFIDENTIAL
Copyright © 2012, Airoha Technology Corp.
Confidential For美优科技
AB1107
Bluetooth 3.0 Single Chip for
Keyboard Applications

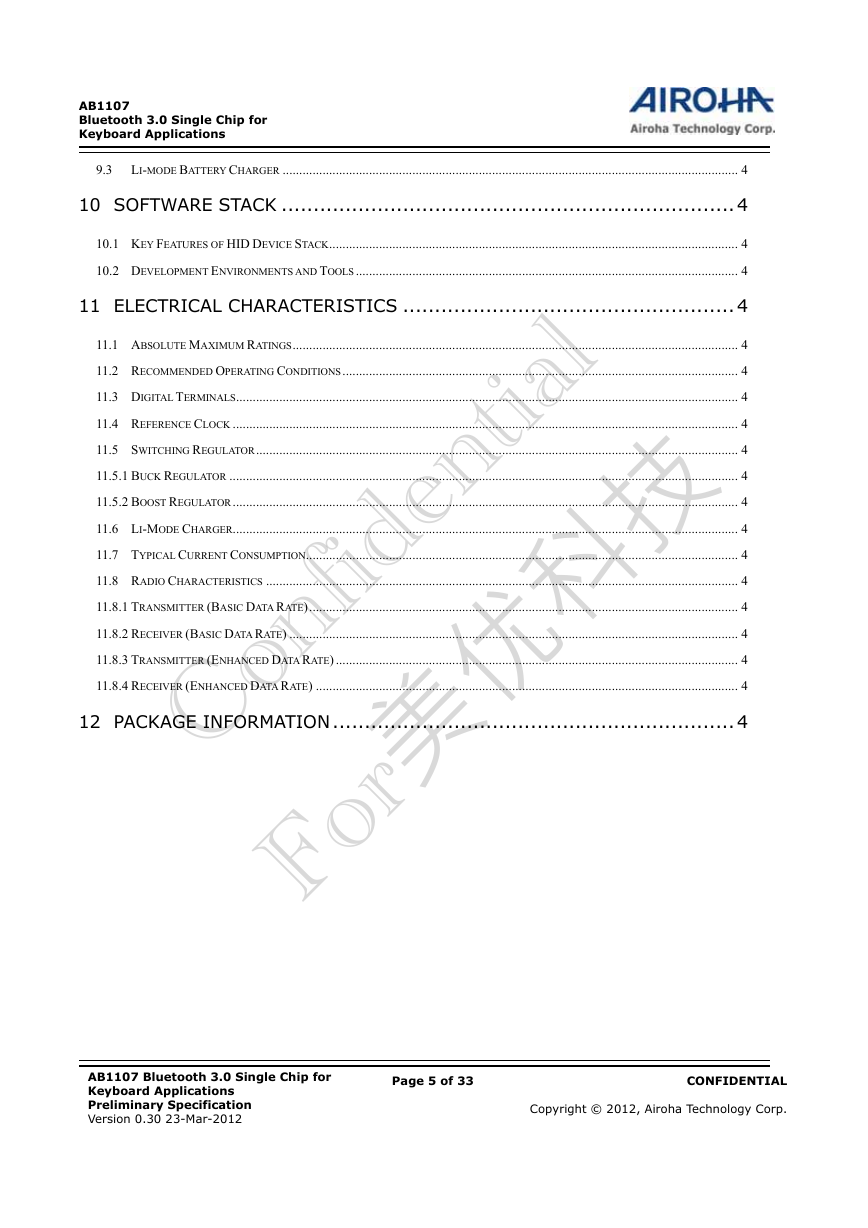

9.3 LI-MODE BATTERY CHARGER ......................................................................................................................................... 4
10 SOFTWARE STACK ....................................................................... 4
10.1 KEY FEATURES OF HID DEVICE STACK........................................................................................................................... 4
10.2 DEVELOPMENT ENVIRONMENTS AND TOOLS................................................................................................................... 4
11 ELECTRICAL CHARACTERISTICS .................................................... 4
11.1 ABSOLUTE MAXIMUM RATINGS...................................................................................................................................... 4
11.2 RECOMMENDED OPERATING CONDITIONS....................................................................................................................... 4
11.3 DIGITAL TERMINALS....................................................................................................................................................... 4
11.4 REFERENCE CLOCK ........................................................................................................................................................ 4
11.5 SWITCHING REGULATOR................................................................................................................................................. 4
11.5.1 BUCK REGULATOR ......................................................................................................................................................... 4
11.5.2 BOOST REGULATOR........................................................................................................................................................ 4
11.6 LI-MODE CHARGER........................................................................................................................................................ 4
11.7 TYPICAL CURRENT CONSUMPTION.................................................................................................................................. 4
11.8 RADIO CHARACTERISTICS .............................................................................................................................................. 4
11.8.1 TRANSMITTER (BASIC DATA RATE)................................................................................................................................. 4
11.8.2 RECEIVER (BASIC DATA RATE) ....................................................................................................................................... 4
11.8.3 TRANSMITTER (ENHANCED DATA RATE) ......................................................................................................................... 4
11.8.4 RECEIVER (ENHANCED DATA RATE) ............................................................................................................................... 4
12 PACKAGE INFORMATION ............................................................... 4
AB1107 Bluetooth 3.0 Single Chip for
Keyboard Applications
Preliminary Specification
Version 0.30 23-Mar-2012
Page 5 of 33
CONFIDENTIAL
Copyright © 2012, Airoha Technology Corp.
Confidential For美优科技
AB1107
Bluetooth 3.0 Single Chip for
Keyboard Applications

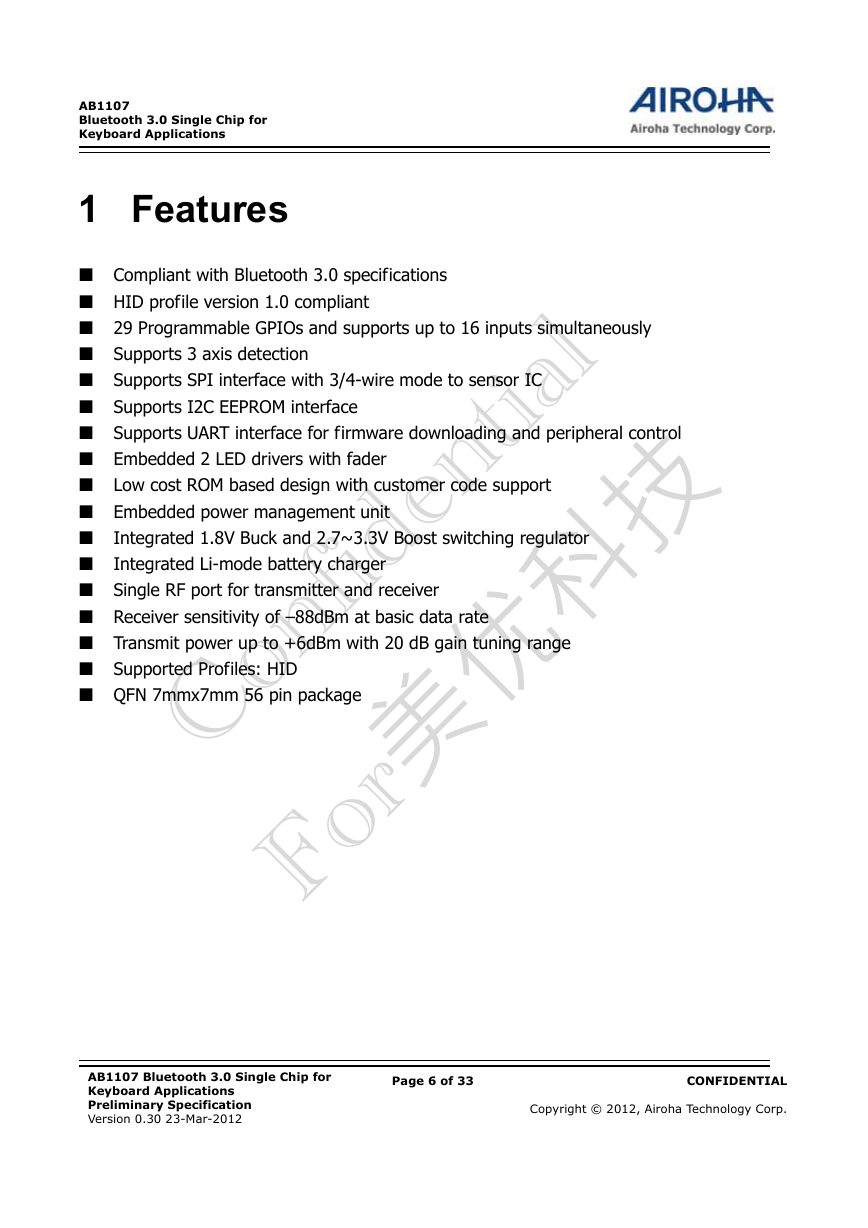

1 Features
Compliant with Bluetooth 3.0 specifications
HID profile version 1.0 compliant
29 Programmable GPIOs and supports up to 16 inputs simultaneously
Supports 3 axis detection
Supports SPI interface with 3/4-wire mode to sensor IC
Supports I2C EEPROM interface
Supports UART interface for firmware downloading and peripheral control
Embedded 2 LED drivers with fader
Low cost ROM based design with customer code support
Embedded power management unit
Single RF port for transmitter and receiver
Receiver sensitivity of –88dBm at basic data rate
Transmit power up to +6dBm with 20 dB gain tuning range
Supported Profiles: HID
QFN 7mmx7mm 56 pin package
Integrated 1.8V Buck and 2.7~3.3V Boost switching regulator
Integrated Li-mode battery charger
AB1107 Bluetooth 3.0 Single Chip for
Keyboard Applications
Preliminary Specification
Version 0.30 23-Mar-2012
Page 6 of 33
CONFIDENTIAL
Copyright © 2012, Airoha Technology Corp.
Confidential For美优科技
AB1107
Bluetooth 3.0 Single Chip for
Keyboard Applications

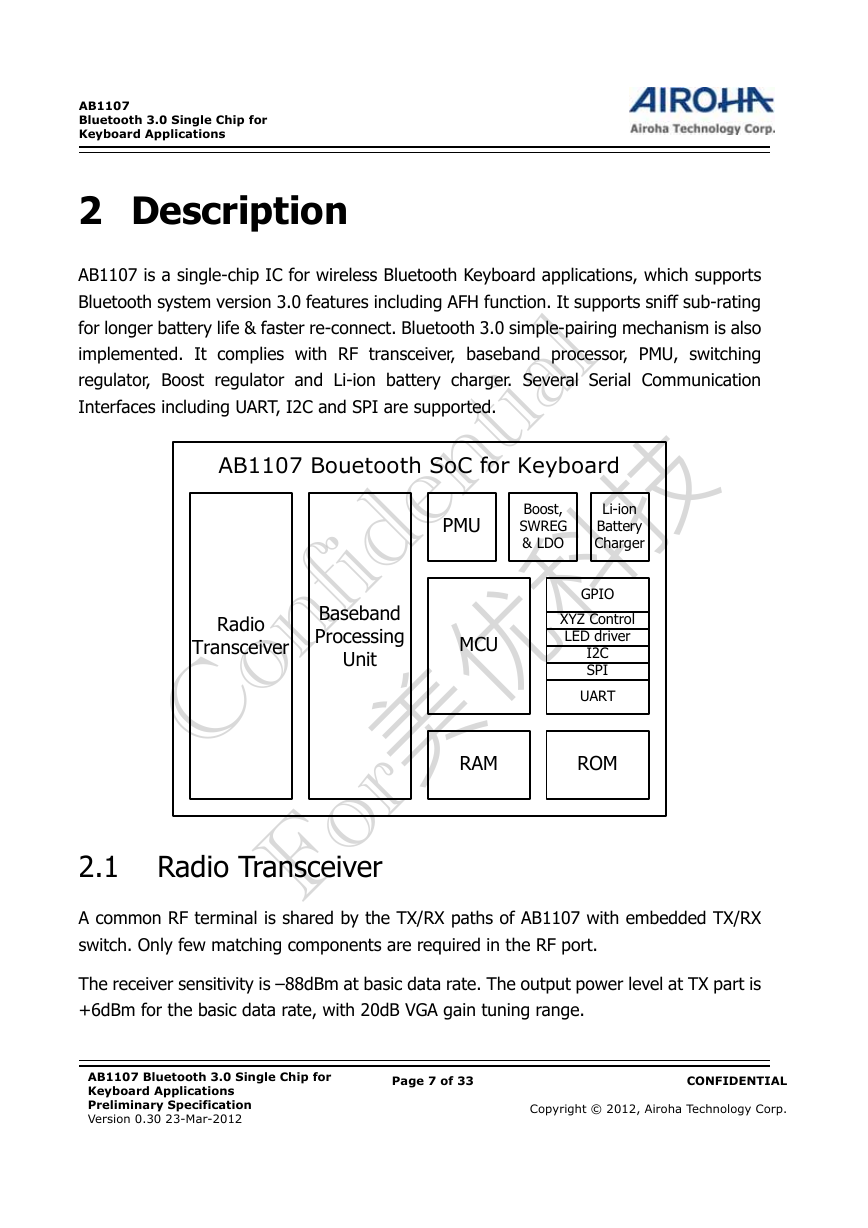

2 Description
AB1107 is a single-chip IC for wireless Bluetooth Keyboard applications, which supports
Bluetooth system version 3.0 features including AFH function. It supports sniff sub-rating
for longer battery life & faster re-connect. Bluetooth 3.0 simple-pairing mechanism is also
implemented. It complies with RF transceiver, baseband processor, PMU, switching
regulator, Boost regulator and Li-ion battery charger. Several Serial Communication
Interfaces including UART, I2C and SPI are supported.
AB1107 Bouetooth SoC for Keyboard
PMU
Boost,
SWREG
& LDO
Li-ion
Battery
Charger
Radio
Transceiver
Baseband
Processing
Unit
MCU
GPIO
XYZ Control
LED driver
I2C
SPI
UART
RAM
ROM
2.1 Radio Transceiver
A common RF terminal is shared by the TX/RX paths of AB1107 with embedded TX/RX
switch. Only few matching components are required in the RF port.
The receiver sensitivity is –88dBm at basic data rate. The output power level at TX part is
+6dBm for the basic data rate, with 20dB VGA gain tuning range.
AB1107 Bluetooth 3.0 Single Chip for
Keyboard Applications
Preliminary Specification
Version 0.30 23-Mar-2012
Page 7 of 33
CONFIDENTIAL
Copyright © 2012, Airoha Technology Corp.
Confidential For美优科技
AB1107
Bluetooth 3.0 Single Chip for
Keyboard Applications
A fractional-N synthesizer is implemented in AB1107 with internal loop filters such that no
external components are required.
An internal crystal oscillator is integrated such that only an external 26MHz crystal is
required. An internal 32.768KHz slow clock is also generated.
2.2 Baseband Processor
The Baseband Processor of AB1107 supports Bluetooth 3.0 specifications including AFH.
A digital data processing unit is in charge of the GFSK, DQPSK and D8PSK
modulation/demodulation, channel filtering, error detection/correction, and burst
framing.
A MCU-based Link Controller is implemented for the whole baseband control functions. A
firmware is in charge of the Link Management Protocols, Profiles and MMI. Several
hardware accelerators are implemented to support the baseband processing such as
encryption.
2.3 Serial Communication Interface
Several Serial Communication Interfaces including UART and SPI are supported in AB1107.
A I2C interface is implemented for EEPROM access.
2.4 I/O Ports
The total number of I/O pins of AB1107 is 29 pins, including 4 pins dedicated for input
only. Other 25 I/O pins are programmable and support both input and output. Up to 16
pins could be programmed as input simultaneously, for example a device with 16 buttons.
A 3-axis detection is supported for external button control. Two LED drivers with faders
for blue/red LEDs are also included.
AB1107 Bluetooth 3.0 Single Chip for
Keyboard Applications
Preliminary Specification
Version 0.30 23-Mar-2012
Page 8 of 33
CONFIDENTIAL
Copyright © 2012, Airoha Technology Corp.
Confidential For美优科技
