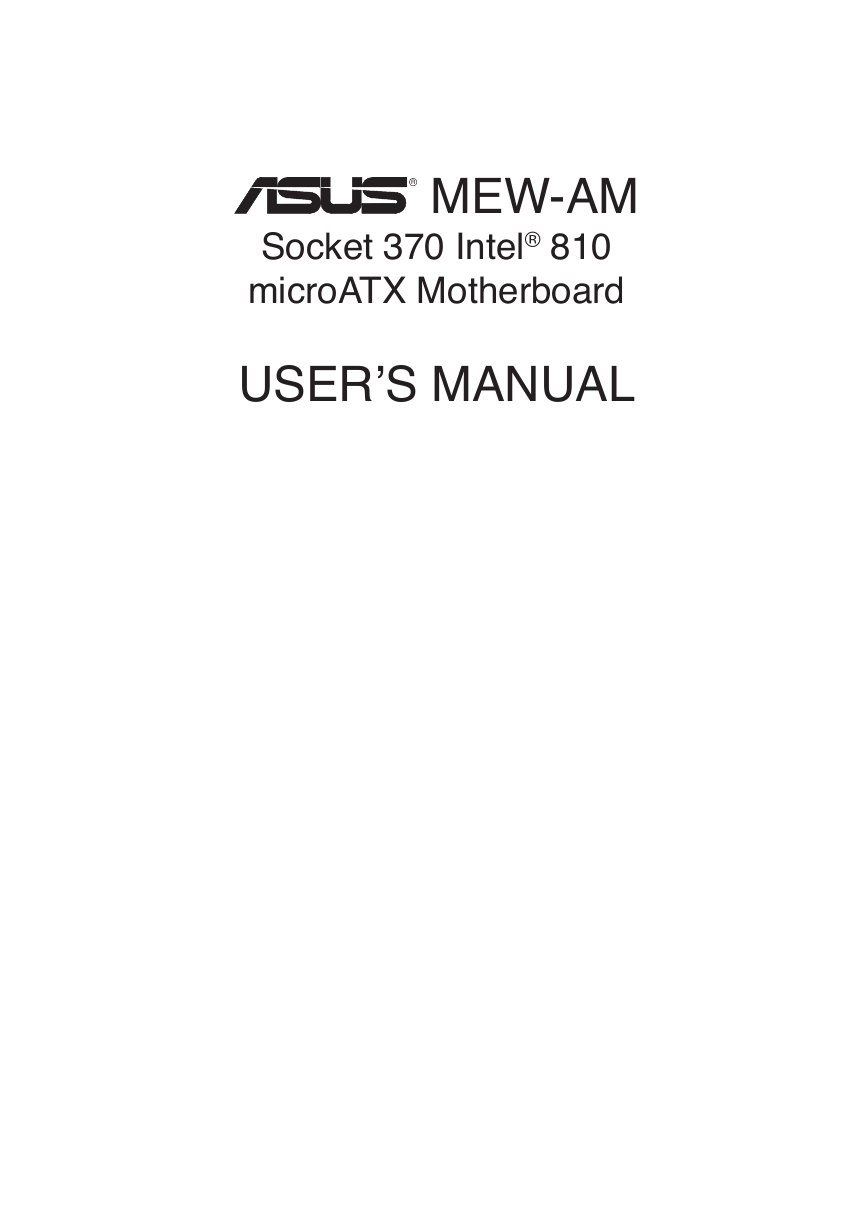

R MEW-AM Socket 370 Intel® 810 microATX Motherboard USER’S MANUAL

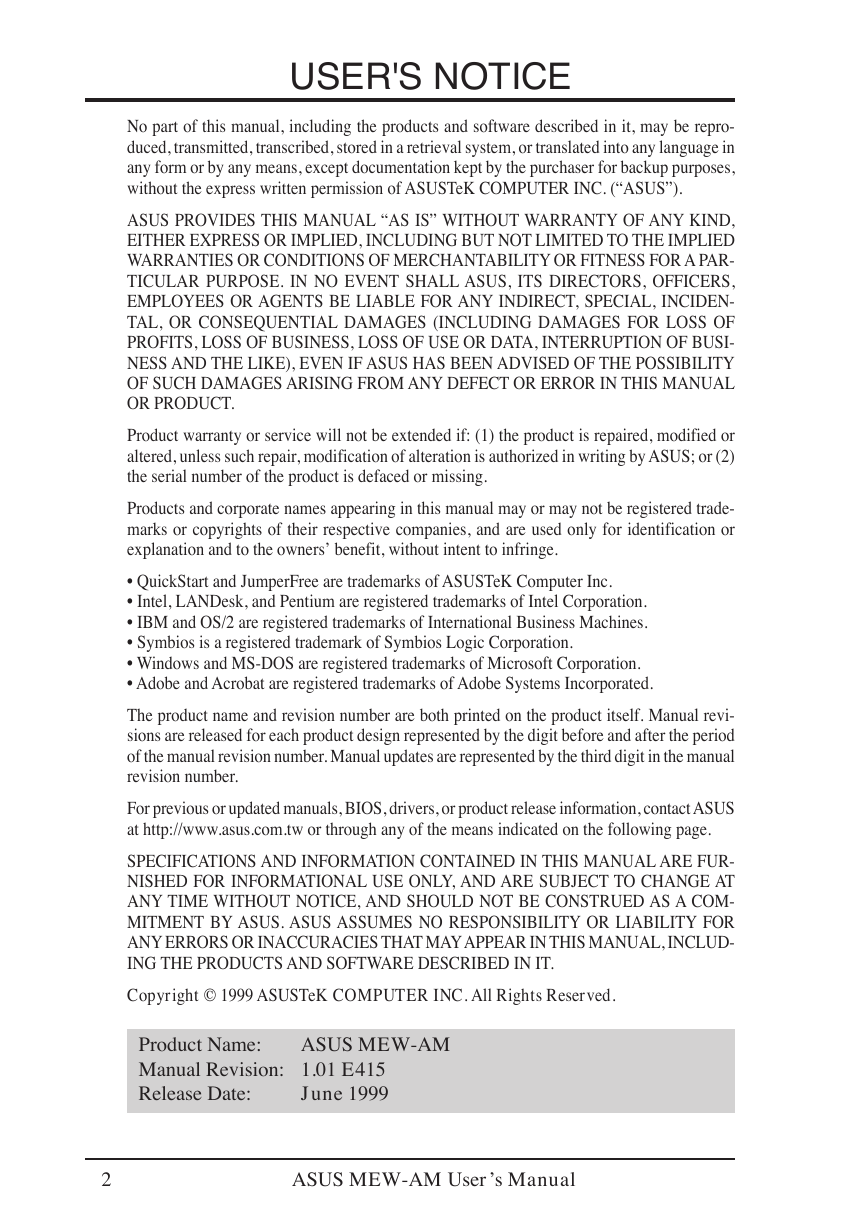

USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • QuickStart and JumperFree are trademarks of ASUSTeK Computer Inc. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • IBM and OS/2 are registered trademarks of International Business Machines. • Symbios is a registered trademark of Symbios Logic Corporation. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved. Product Name: Manual Revision: 1.01 E415 June 1999 Release Date: ASUS MEW-AM 2 ASUS MEW-AM User’s Manual

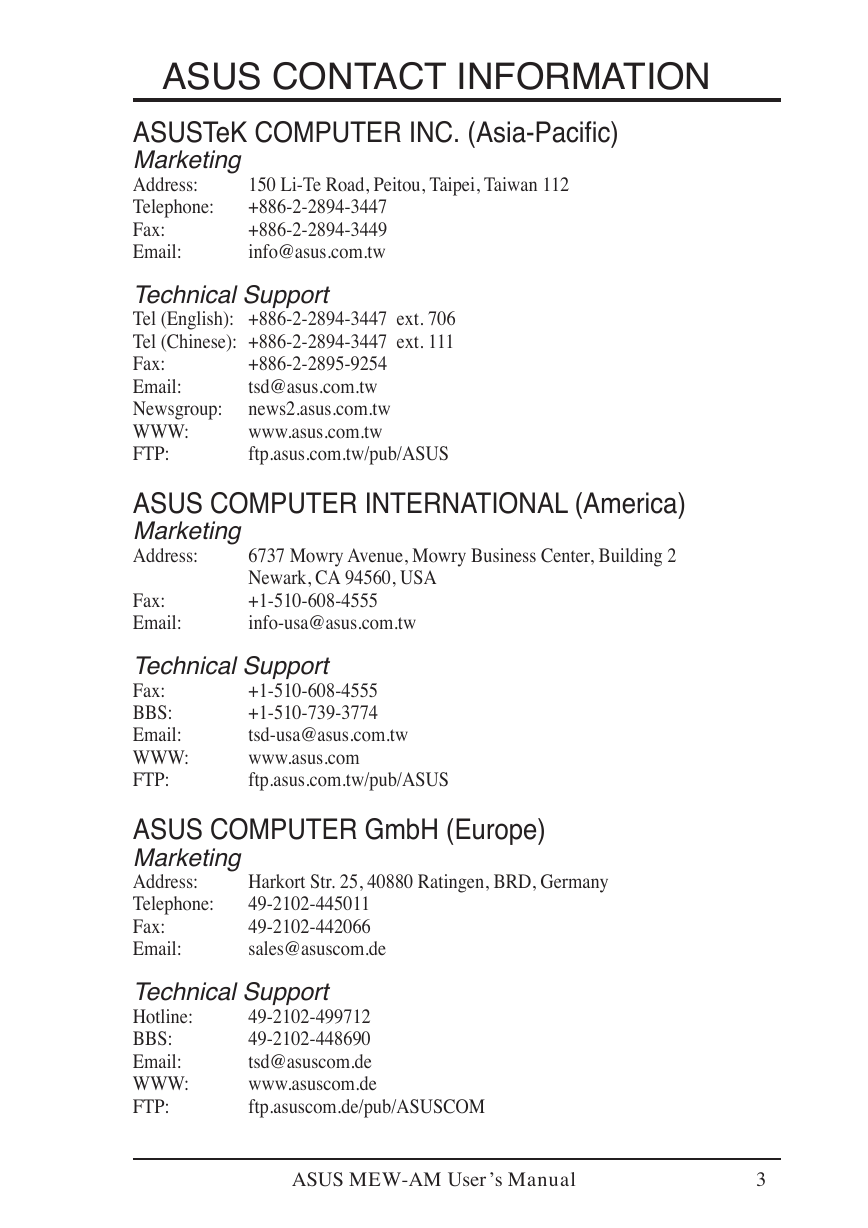

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support Tel (English): +886-2-2894-3447 ext. 706 Tel (Chinese): +886-2-2894-3447 ext. 111 Fax: Email: Newsgroup: WWW: FTP: +886-2-2895-9254 tsd@asus.com.tw news2.asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 info-usa@asus.com.tw Fax: Email: Technical Support Fax: BBS: Email: WWW: FTP: +1-510-608-4555 +1-510-739-3774 tsd-usa@asus.com.tw www.asus.com ftp.asus.com.tw/pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Telephone: Fax: Email: Harkort Str. 25, 40880 Ratingen, BRD, Germany 49-2102-445011 49-2102-442066 sales@asuscom.de Technical Support Hotline: BBS: Email: WWW: FTP: 49-2102-499712 49-2102-448690 tsd@asuscom.de www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS MEW-AM User’s Manual 3

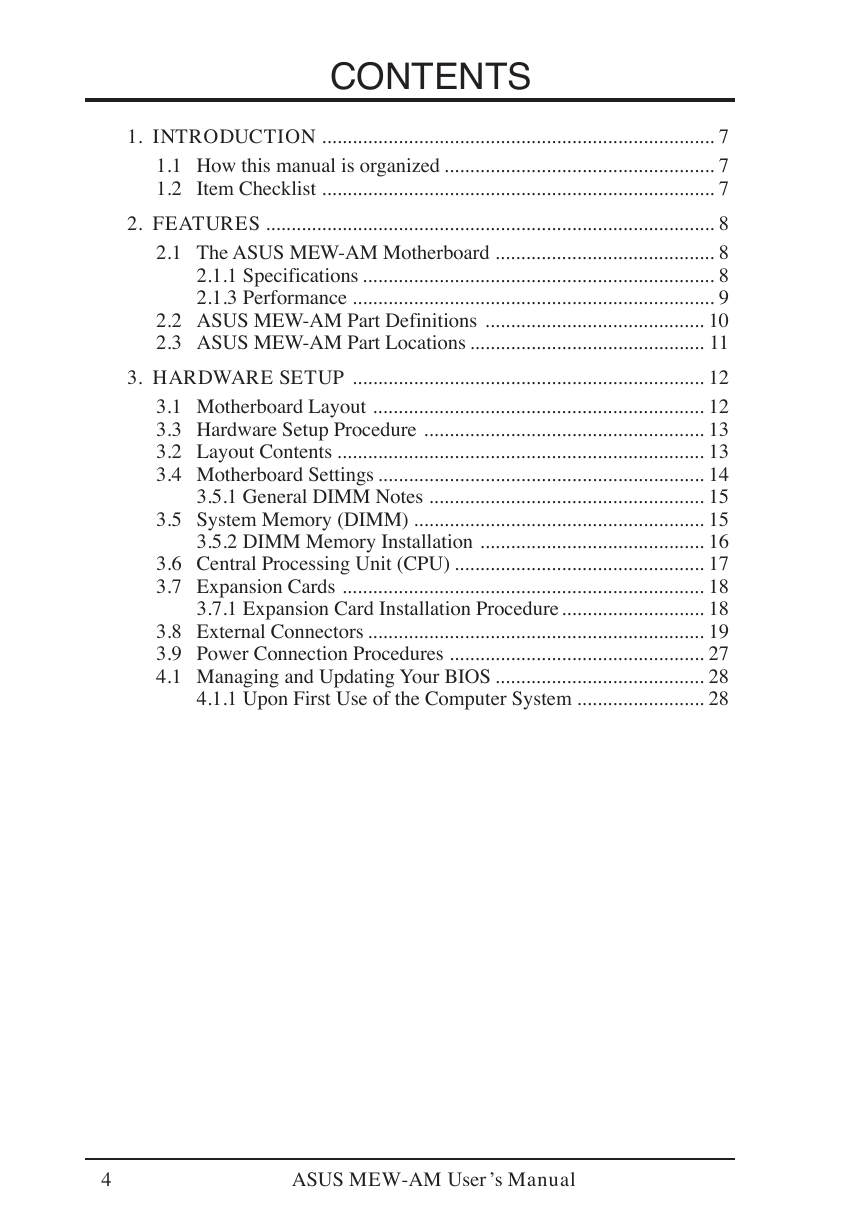

CONTENTS 1. INTRODUCTION ............................................................................. 7 1.1 How this manual is organized ..................................................... 7 1.2 Item Checklist ............................................................................. 7 2. FEATURES ........................................................................................ 8 2.1 The ASUS MEW-AM Motherboard ........................................... 8 2.1.1 Specifications ..................................................................... 8 2.1.3 Performance ....................................................................... 9 2.2 ASUS MEW-AM Part Definitions ........................................... 10 2.3 ASUS MEW-AM Part Locations .............................................. 11 3. HARDWARE SETUP ..................................................................... 12 3.1 Motherboard Layout ................................................................. 12 3.3 Hardware Setup Procedure ....................................................... 13 3.2 Layout Contents ........................................................................ 13 3.4 Motherboard Settings ................................................................ 14 3.5.1 General DIMM Notes ...................................................... 15 3.5 System Memory (DIMM) ......................................................... 15 3.5.2 DIMM Memory Installation ............................................ 16 3.6 Central Processing Unit (CPU) ................................................. 17 3.7 Expansion Cards ....................................................................... 18 3.7.1 Expansion Card Installation Procedure............................ 18 3.8 External Connectors .................................................................. 19 3.9 Power Connection Procedures .................................................. 27 4.1 Managing and Updating Your BIOS ......................................... 28 4.1.1 Upon First Use of the Computer System ......................... 28 4 ASUS MEW-AM User’s Manual

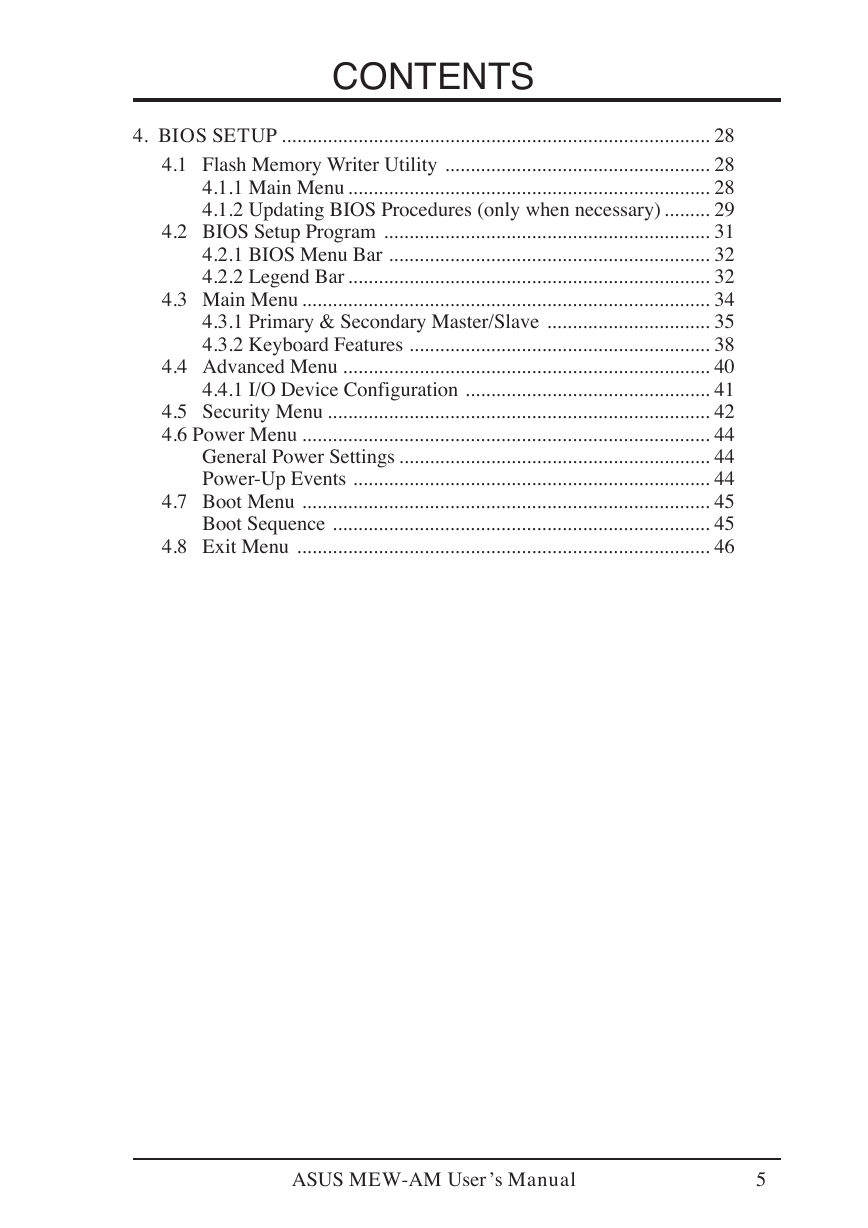

CONTENTS 4. BIOS SETUP .................................................................................... 28 4.1 Flash Memory Writer Utility .................................................... 28 4.1.1 Main Menu ....................................................................... 28 4.1.2 Updating BIOS Procedures (only when necessary) ......... 29 4.2 BIOS Setup Program ................................................................ 31 4.2.1 BIOS Menu Bar ............................................................... 32 4.2.2 Legend Bar ....................................................................... 32 4.3 Main Menu ................................................................................ 34 4.3.1 Primary & Secondary Master/Slave ................................ 35 4.3.2 Keyboard Features ........................................................... 38 4.4 Advanced Menu ........................................................................ 40 4.4.1 I/O Device Configuration ................................................ 41 4.5 Security Menu ........................................................................... 42 4.6 Power Menu ................................................................................ 44 General Power Settings ............................................................. 44 Power-Up Events ...................................................................... 44 4.7 Boot Menu ................................................................................ 45 Boot Sequence .......................................................................... 45 4.8 Exit Menu ................................................................................. 46 ASUS MEW-AM User’s Manual 5

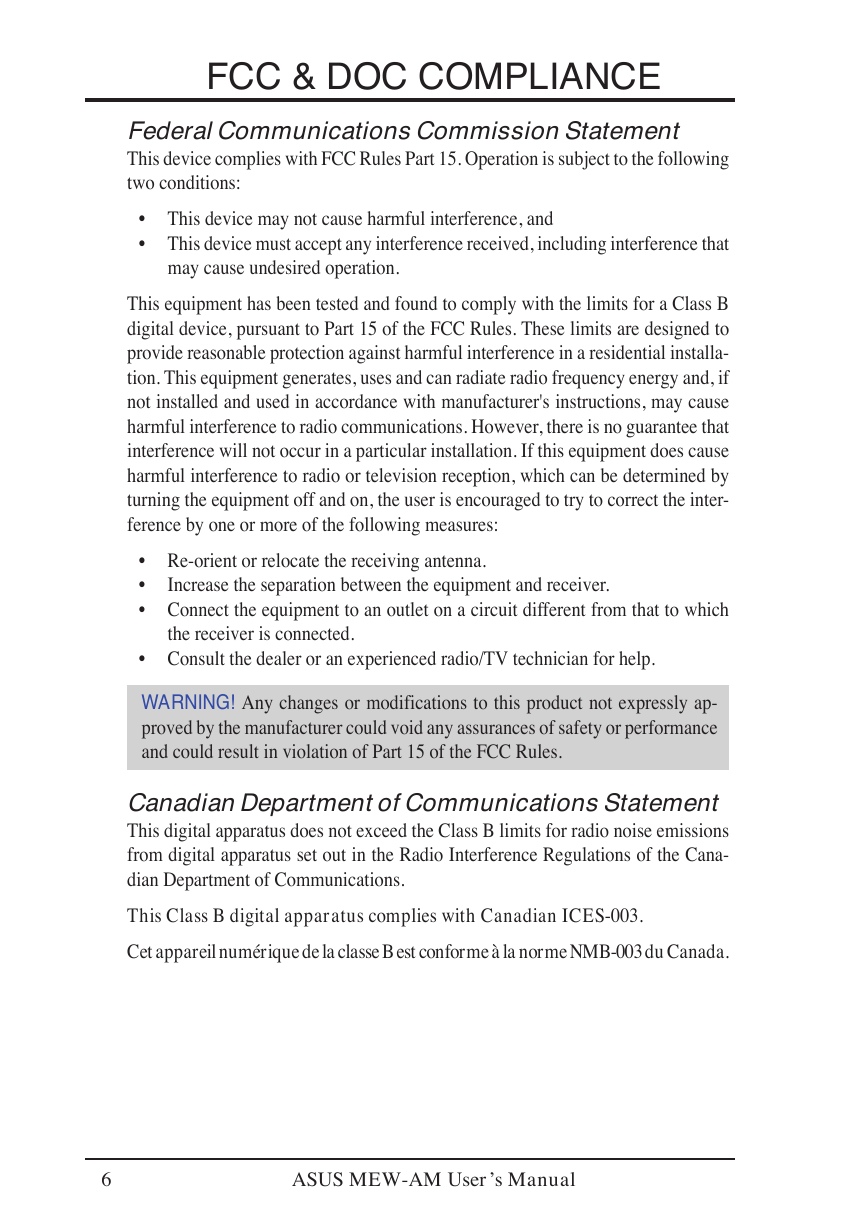

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which Increase the separation between the equipment and receiver. the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Cana- dian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS MEW-AM User’s Manual

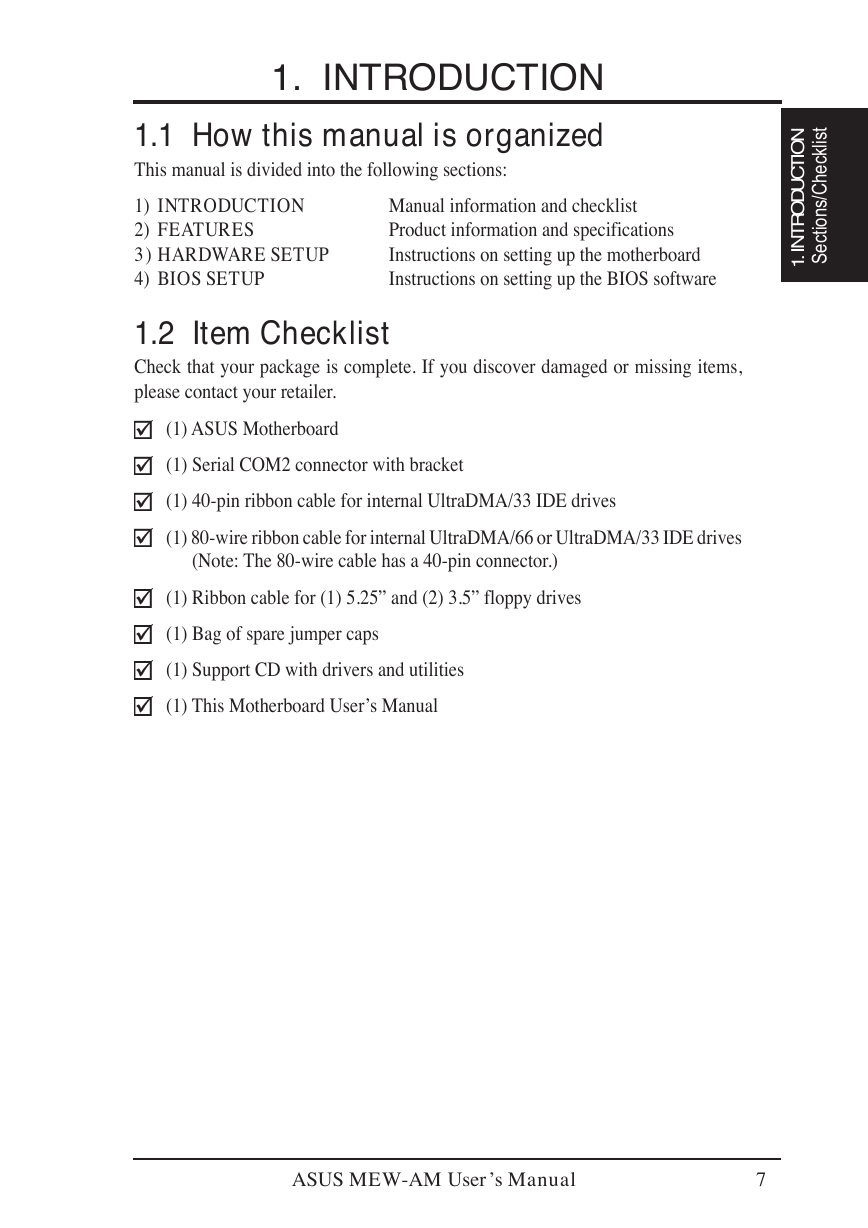

t s I N O T C U D O R T N I . 1 i l k c e h C / s n o i t c e S 1. INTRODUCTION 1.1 How this manual is organized This manual is divided into the following sections: 1) INTRODUCTION 2) FEATURES 3) HARDWARE SETUP 4) BIOS SETUP Manual information and checklist Product information and specifications Instructions on setting up the motherboard Instructions on setting up the BIOS software 1.2 Item Checklist Check that your package is complete. If you discover damaged or missing items, please contact your retailer. (1) ASUS Motherboard (1) Serial COM2 connector with bracket (1) 40-pin ribbon cable for internal UltraDMA/33 IDE drives (1) 80-wire ribbon cable for internal UltraDMA/66 or UltraDMA/33 IDE drives (Note: The 80-wire cable has a 40-pin connector.) (1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy drives (1) Bag of spare jumper caps (1) Support CD with drivers and utilities (1) This Motherboard User’s Manual ASUS MEW-AM User’s Manual 7

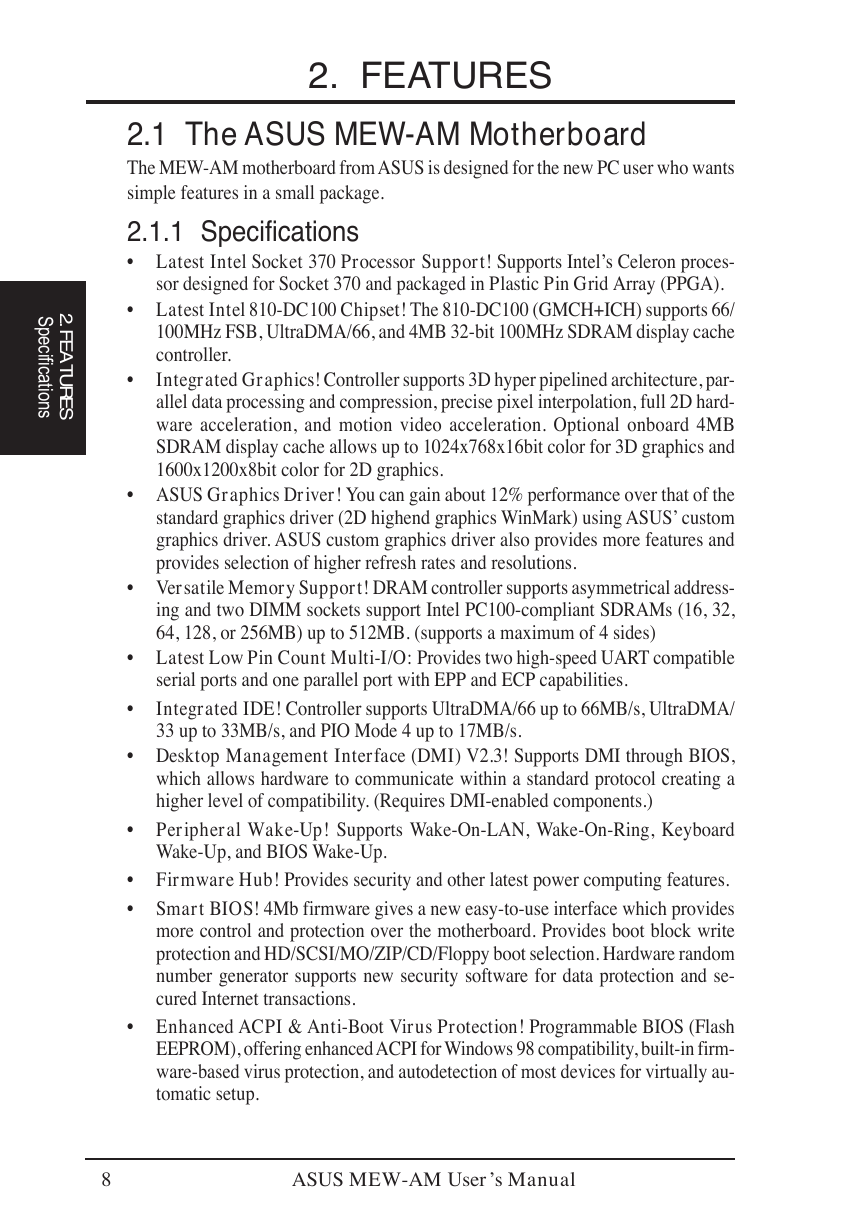

2. FEATURES 2.1 The ASUS MEW-AM Motherboard The MEW-AM motherboard from ASUS is designed for the new PC user who wants simple features in a small package. 2.1.1 Specifications • Latest Intel Socket 370 Processor Support! Supports Intel’s Celeron proces- sor designed for Socket 370 and packaged in Plastic Pin Grid Array (PPGA). • Latest Intel 810-DC100 Chipset! The 810-DC100 (GMCH+ICH) supports 66/ 100MHz FSB, UltraDMA/66, and 4MB 32-bit 100MHz SDRAM display cache controller. Integrated Graphics! Controller supports 3D hyper pipelined architecture, par- allel data processing and compression, precise pixel interpolation, full 2D hard- ware acceleration, and motion video acceleration. Optional onboard 4MB SDRAM display cache allows up to 1024x768x16bit color for 3D graphics and 1600x1200x8bit color for 2D graphics. • • ASUS Graphics Driver! You can gain about 12% performance over that of the standard graphics driver (2D highend graphics WinMark) using ASUS’ custom graphics driver. ASUS custom graphics driver also provides more features and provides selection of higher refresh rates and resolutions. • Versatile Memory Support! DRAM controller supports asymmetrical address- ing and two DIMM sockets support Intel PC100-compliant SDRAMs (16, 32, 64, 128, or 256MB) up to 512MB. (supports a maximum of 4 sides) S p e c i f i c a t i o n s 2 . F E A T U R E S • Latest Low Pin Count Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. Integrated IDE! Controller supports UltraDMA/66 up to 66MB/s, UltraDMA/ 33 up to 33MB/s, and PIO Mode 4 up to 17MB/s. • • • Desktop Management Interface (DMI) V2.3! Supports DMI through BIOS, which allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.) Peripheral Wake-Up! Supports Wake-On-LAN, Wake-On-Ring, Keyboard Wake-Up, and BIOS Wake-Up. Firmware Hub! Provides security and other latest power computing features. Smart BIOS! 4Mb firmware gives a new easy-to-use interface which provides more control and protection over the motherboard. Provides boot block write protection and HD/SCSI/MO/ZIP/CD/Floppy boot selection. Hardware random number generator supports new security software for data protection and se- cured Internet transactions. • • • Enhanced ACPI & Anti-Boot Virus Protection! Programmable BIOS (Flash EEPROM), offering enhanced ACPI for Windows 98 compatibility, built-in firm- ware-based virus protection, and autodetection of most devices for virtually au- tomatic setup. 8 ASUS MEW-AM User’s Manual
