solidworks二次开发全教程系列（靠谱）.doc

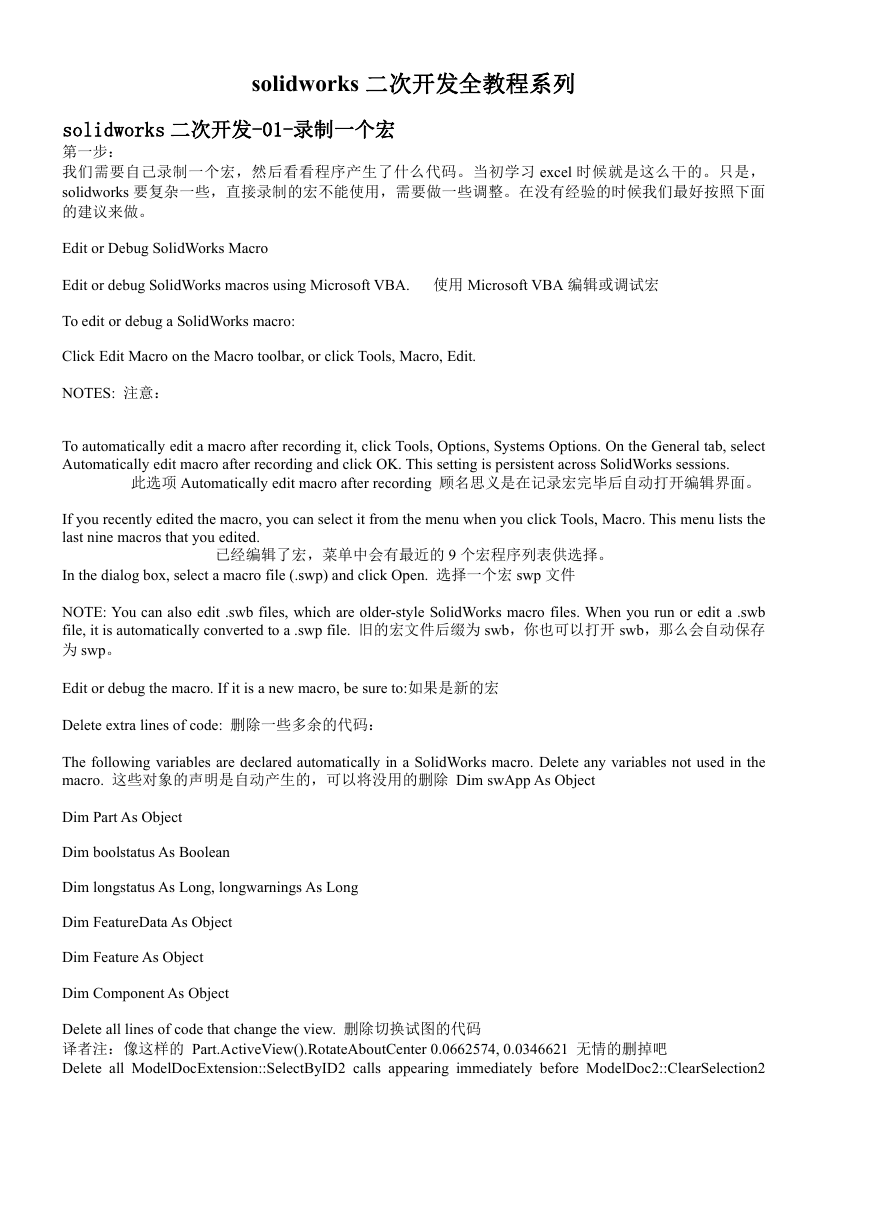

solidworks 二次开发全教程系列
solidworks 二次开发-01-录制一个宏
第一步：
我们需要自己录制一个宏，然后看看程序产生了什么代码。当初学习 excel 时候就是这么干的。只是，
solidworks 要复杂一些，直接录制的宏不能使用，需要做一些调整。在没有经验的时候我们最好按照下面
的建议来做。
Edit or Debug SolidWorks Macro
Edit or debug SolidWorks macros using Microsoft VBA. 使用 Microsoft VBA 编辑或调试宏
To edit or debug a SolidWorks macro:
Click Edit Macro on the Macro toolbar, or click Tools, Macro, Edit.
NOTES: 注意：
To automatically edit a macro after recording it, click Tools, Options, Systems Options. On the General tab, select
Automatically edit macro after recording and click OK. This setting is persistent across SolidWorks sessions.
此选项 Automatically edit macro after recording 顾名思义是在记录宏完毕后自动打开编辑界面。
If you recently edited the macro, you can select it from the menu when you click Tools, Macro. This menu lists the
last nine macros that you edited.
In the dialog box, select a macro file (.swp) and click Open. 选择一个宏 swp 文件
已经编辑了宏，菜单中会有最近的 9 个宏程序列表供选择。
NOTE: You can also edit .swb files, which are older-style SolidWorks macro files. When you run or edit a .swb
file, it is automatically converted to a .swp file. 旧的宏文件后缀为 swb，你也可以打开 swb，那么会自动保存
为 swp。
Edit or debug the macro. If it is a new macro, be sure to:如果是新的宏
Delete extra lines of code: 删除一些多余的代码：
The following variables are declared automatically in a SolidWorks macro. Delete any variables not used in the
macro. 这些对象的声明是自动产生的，可以将没用的删除 Dim swApp As Object
Dim Part As Object
Dim boolstatus As Boolean
Dim longstatus As Long, longwarnings As Long
Dim FeatureData As Object
Dim Feature As Object
Dim Component As Object
Delete all lines of code that change the view. 删除切换试图的代码
译者注：像这样的 Part.ActiveView().RotateAboutCenter 0.0662574, 0.0346621 无情的删掉吧
Delete all ModelDocExtension::SelectByID2 calls appearing immediately before ModelDoc2::ClearSelection2
calls. However, do not delete ModelDocExtension::SelectByID2 calls
ModelDoc2::ClearSelection2 calls.
appearing immediately after
Delete all ModelDoc2::ClearSelection2 calls appearing immediately before ModelDocExtension::SelectByID2.

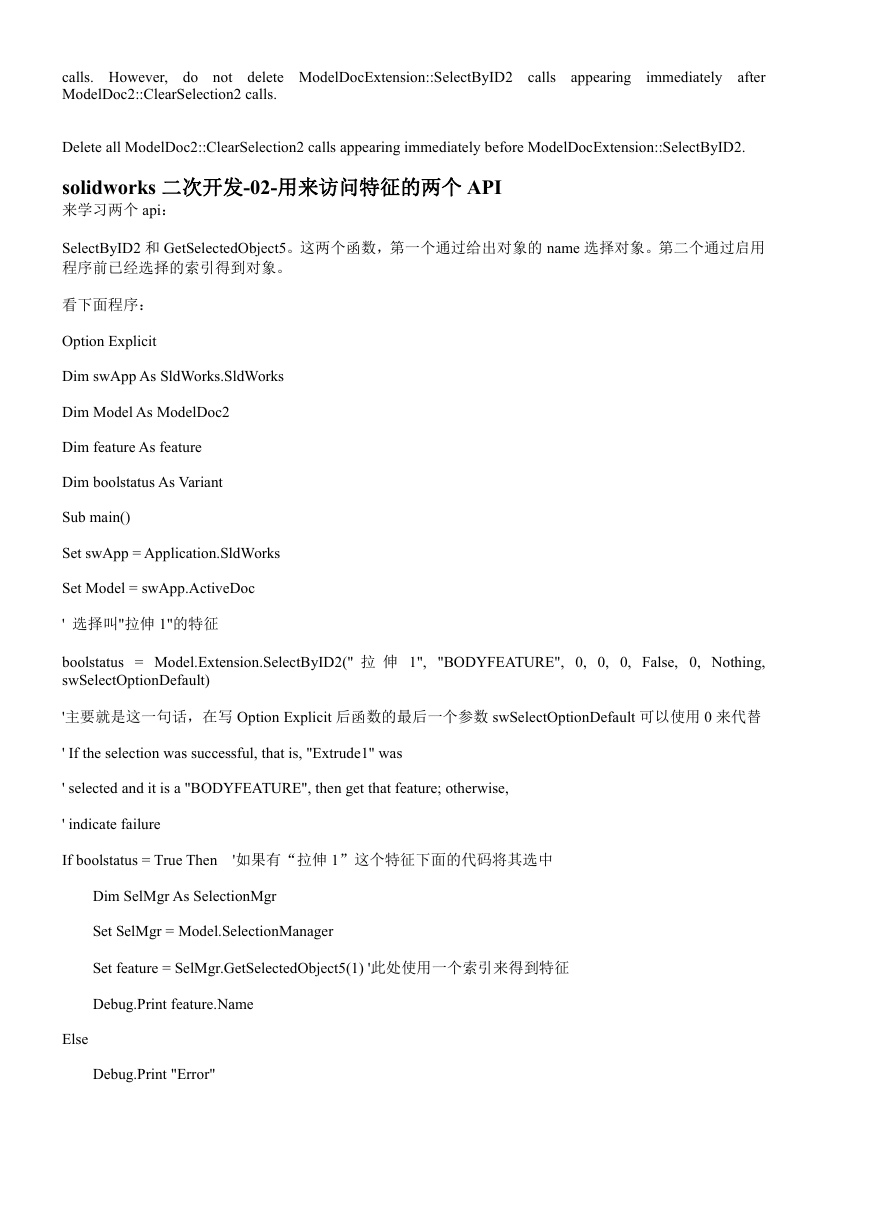

solidworks 二次开发-02-用来访问特征的两个 API
来学习两个 api：
SelectByID2 和 GetSelectedObject5。这两个函数，第一个通过给出对象的 name 选择对象。第二个通过启用
程序前已经选择的索引得到对象。
看下面程序：
Option Explicit
Dim swApp As SldWorks.SldWorks
Dim Model As ModelDoc2
Dim feature As feature
Dim boolstatus As Variant
Sub main()
Set swApp = Application.SldWorks
Set Model = swApp.ActiveDoc
' 选择叫"拉伸 1"的特征
boolstatus = Model.Extension.SelectByID2(" 拉 伸 1", "BODYFEATURE", 0, 0, 0, False, 0, Nothing,
swSelectOptionDefault)
'主要就是这一句话，在写 Option Explicit 后函数的最后一个参数 swSelectOptionDefault 可以使用 0 来代替
' If the selection was successful, that is, "Extrude1" was
' selected and it is a "BODYFEATURE", then get that feature; otherwise,
' indicate failure
If boolstatus = True Then
'如果有“拉伸 1”这个特征下面的代码将其选中
Dim SelMgr As SelectionMgr
Set SelMgr = Model.SelectionManager
Set feature = SelMgr.GetSelectedObject5(1) '此处使用一个索引来得到特征
Debug.Print feature.Name
Else
Debug.Print "Error"
End If
End Sub

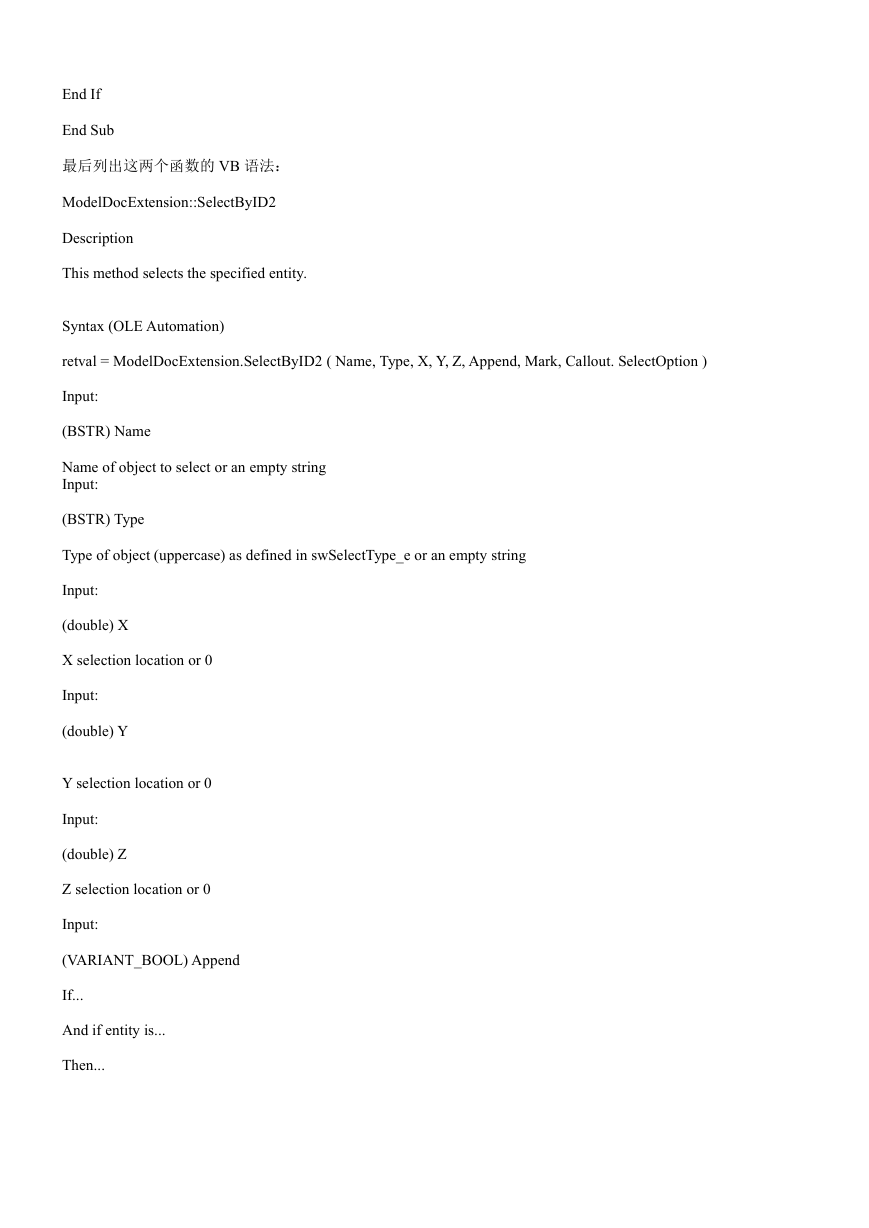

最后列出这两个函数的 VB 语法：
ModelDocExtension::SelectByID2
Description
This method selects the specified entity.
Syntax (OLE Automation)
retval = ModelDocExtension.SelectByID2 ( Name, Type, X, Y, Z, Append, Mark, Callout. SelectOption )
Input:
(BSTR) Name
Name of object to select or an empty string
Input:
(BSTR) Type
Type of object (uppercase) as defined in swSelectType_e or an empty string
Input:
(double) X
X selection location or 0
Input:
(double) Y
Y selection location or 0
Input:
(double) Z
Z selection location or 0
Input:
(VARIANT_BOOL) Append
If...
And if entity is...
Then...

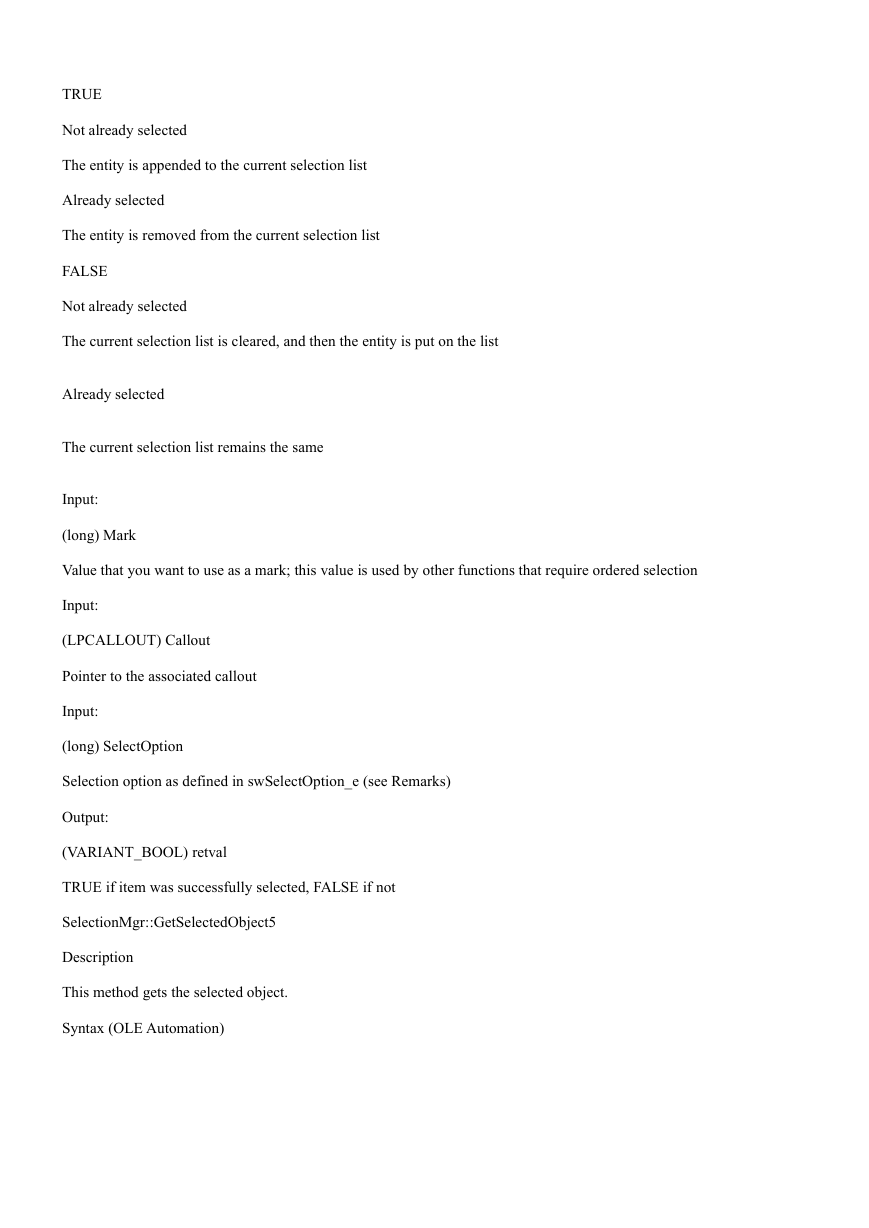

TRUE
Not already selected
The entity is appended to the current selection list
Already selected
The entity is removed from the current selection list
FALSE
Not already selected
The current selection list is cleared, and then the entity is put on the list
Already selected
The current selection list remains the same
Input:
(long) Mark
Value that you want to use as a mark; this value is used by other functions that require ordered selection
Input:
(LPCALLOUT) Callout
Pointer to the associated callout
Input:
(long) SelectOption
Selection option as defined in swSelectOption_e (see Remarks)
Output:
(VARIANT_BOOL) retval
TRUE if item was successfully selected, FALSE if not
SelectionMgr::GetSelectedObject5
Description
This method gets the selected object.
Syntax (OLE Automation)

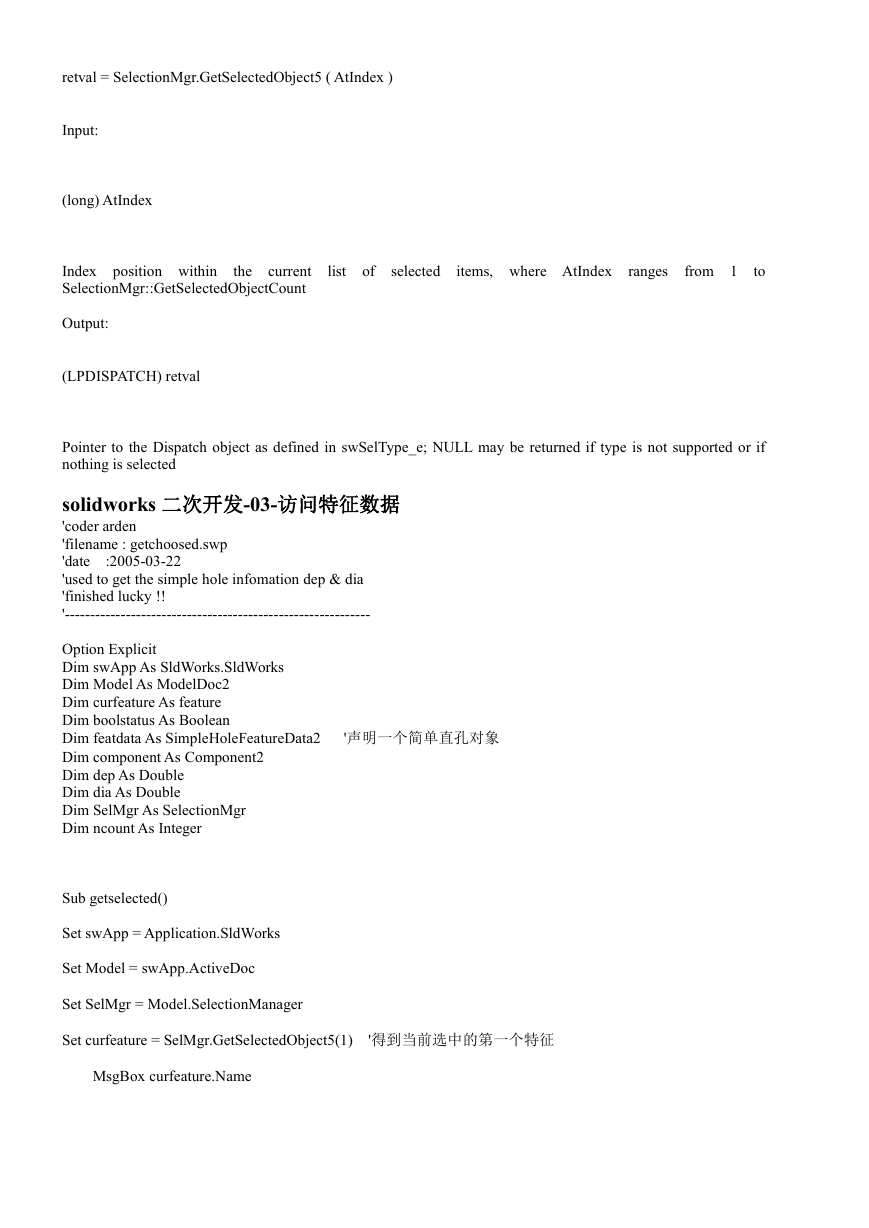

retval = SelectionMgr.GetSelectedObject5 ( AtIndex )
Input:
(long) AtIndex
position within
Index
current
SelectionMgr::GetSelectedObjectCount
the
list
of
selected
items, where AtIndex
ranges
from 1
to
Output:
(LPDISPATCH) retval
Pointer to the Dispatch object as defined in swSelType_e; NULL may be returned if type is not supported or if
nothing is selected
solidworks 二次开发-03-访问特征数据
'coder arden
'filename : getchoosed.swp
'date
'used to get the simple hole infomation dep & dia
'finished lucky !!
'------------------------------------------------------------
:2005-03-22
'声明一个简单直孔对象
Option Explicit
Dim swApp As SldWorks.SldWorks
Dim Model As ModelDoc2
Dim curfeature As feature
Dim boolstatus As Boolean
Dim featdata As SimpleHoleFeatureData2
Dim component As Component2
Dim dep As Double
Dim dia As Double
Dim SelMgr As SelectionMgr
Dim ncount As Integer
Sub getselected()
Set swApp = Application.SldWorks
Set Model = swApp.ActiveDoc
Set SelMgr = Model.SelectionManager
Set curfeature = SelMgr.GetSelectedObject5(1)
'得到当前选中的第一个特征
MsgBox curfeature.Name

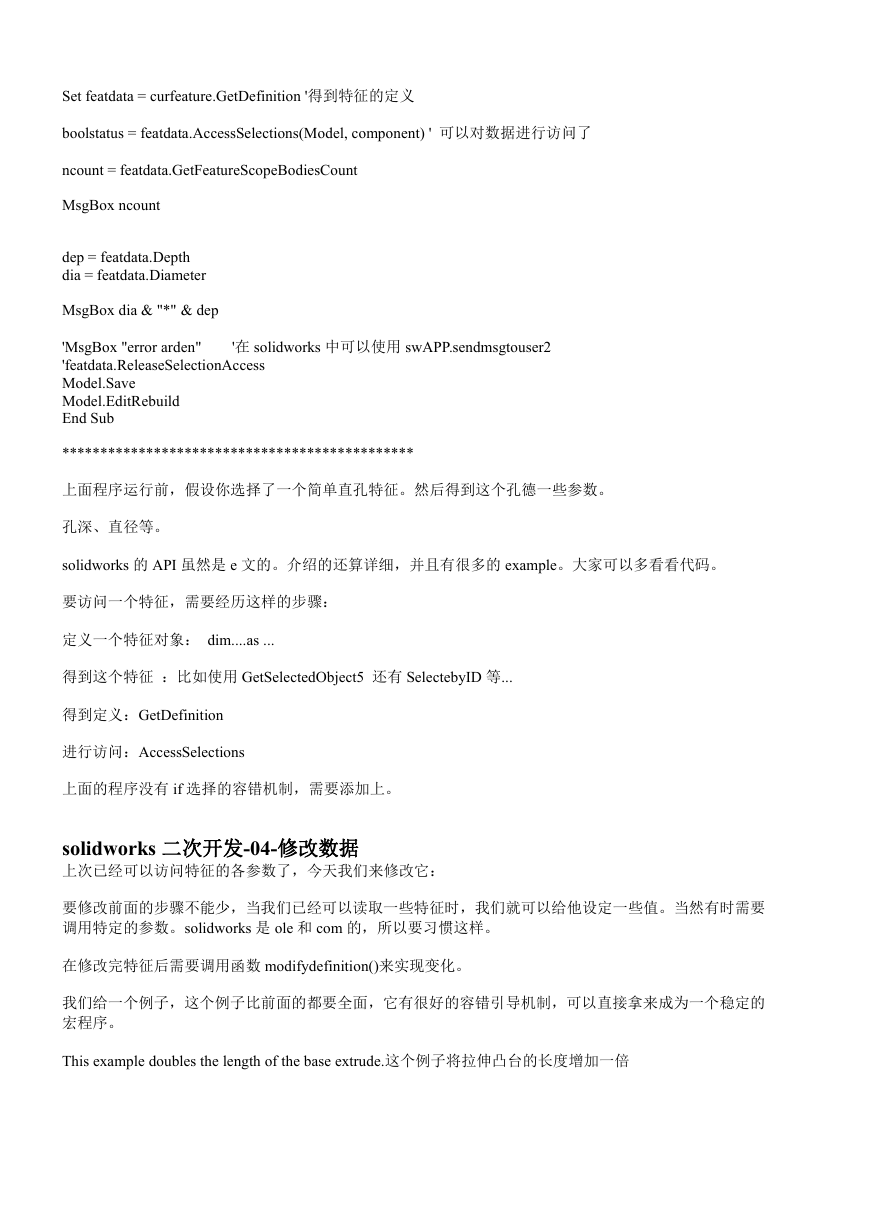

Set featdata = curfeature.GetDefinition '得到特征的定义
boolstatus = featdata.AccessSelections(Model, component) ' 可以对数据进行访问了
ncount = featdata.GetFeatureScopeBodiesCount
MsgBox ncount
dep = featdata.Depth
dia = featdata.Diameter
MsgBox dia & "*" & dep
'在 solidworks 中可以使用 swAPP.sendmsgtouser2
'MsgBox "error arden"
'featdata.ReleaseSelectionAccess
Model.Save
Model.EditRebuild
End Sub
**********************************************
上面程序运行前，假设你选择了一个简单直孔特征。然后得到这个孔德一些参数。
孔深、直径等。
solidworks 的 API 虽然是 e 文的。介绍的还算详细，并且有很多的 example。大家可以多看看代码。
要访问一个特征，需要经历这样的步骤：
定义一个特征对象： dim....as ...
得到这个特征 ：比如使用 GetSelectedObject5 还有 SelectebyID 等...
得到定义：GetDefinition
进行访问：AccessSelections
上面的程序没有 if 选择的容错机制，需要添加上。
solidworks 二次开发-04-修改数据
上次已经可以访问特征的各参数了，今天我们来修改它：
要修改前面的步骤不能少，当我们已经可以读取一些特征时，我们就可以给他设定一些值。当然有时需要
调用特定的参数。solidworks 是 ole 和 com 的，所以要习惯这样。
在修改完特征后需要调用函数 modifydefinition()来实现变化。
我们给一个例子，这个例子比前面的都要全面，它有很好的容错引导机制，可以直接拿来成为一个稳定的
宏程序。
This example doubles the length of the base extrude.这个例子将拉伸凸台的长度增加一倍

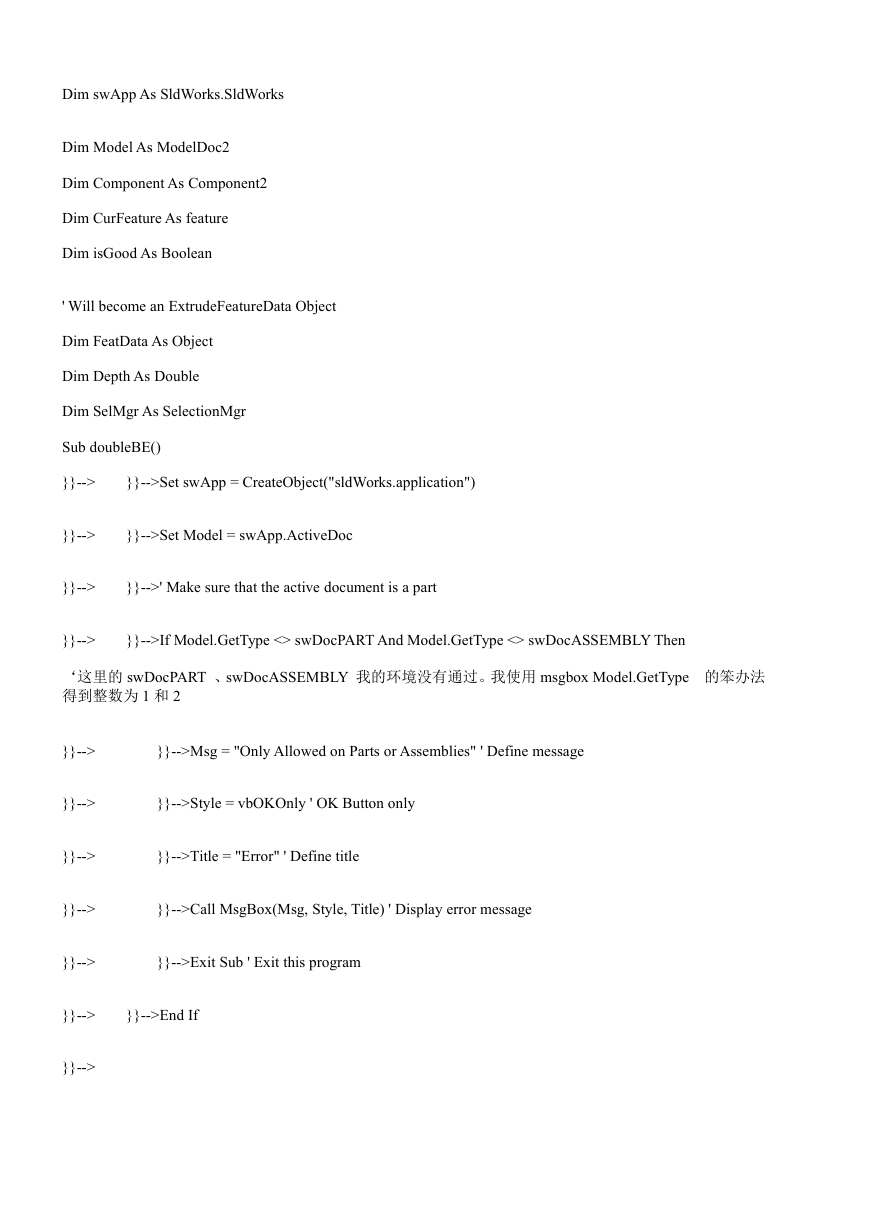

Dim swApp As SldWorks.SldWorks
Dim Model As ModelDoc2
Dim Component As Component2
Dim CurFeature As feature
Dim isGood As Boolean
' Will become an ExtrudeFeatureData Object
Dim FeatData As Object
Dim Depth As Double
Dim SelMgr As SelectionMgr
Sub doubleBE()
}}-->
}}-->Set swApp = CreateObject("sldWorks.application")
}}-->
}}-->Set Model = swApp.ActiveDoc
}}-->
}}-->' Make sure that the active document is a part
}}-->
}}-->If Model.GetType <> swDocPART And Model.GetType <> swDocASSEMBLY Then
‘这里的 swDocPART 、swDocASSEMBLY 我的环境没有通过。我使用 msgbox Model.GetType 的笨办法
得到整数为 1 和 2
}}-->
}}-->
}}-->
}}-->
}}-->
}}-->Msg = "Only Allowed on Parts or Assemblies" ' Define message
}}-->Style = vbOKOnly ' OK Button only
}}-->Title = "Error" ' Define title
}}-->Call MsgBox(Msg, Style, Title) ' Display error message
}}-->Exit Sub ' Exit this program
}}-->
}}-->End If
}}-->
}}-->
}}-->

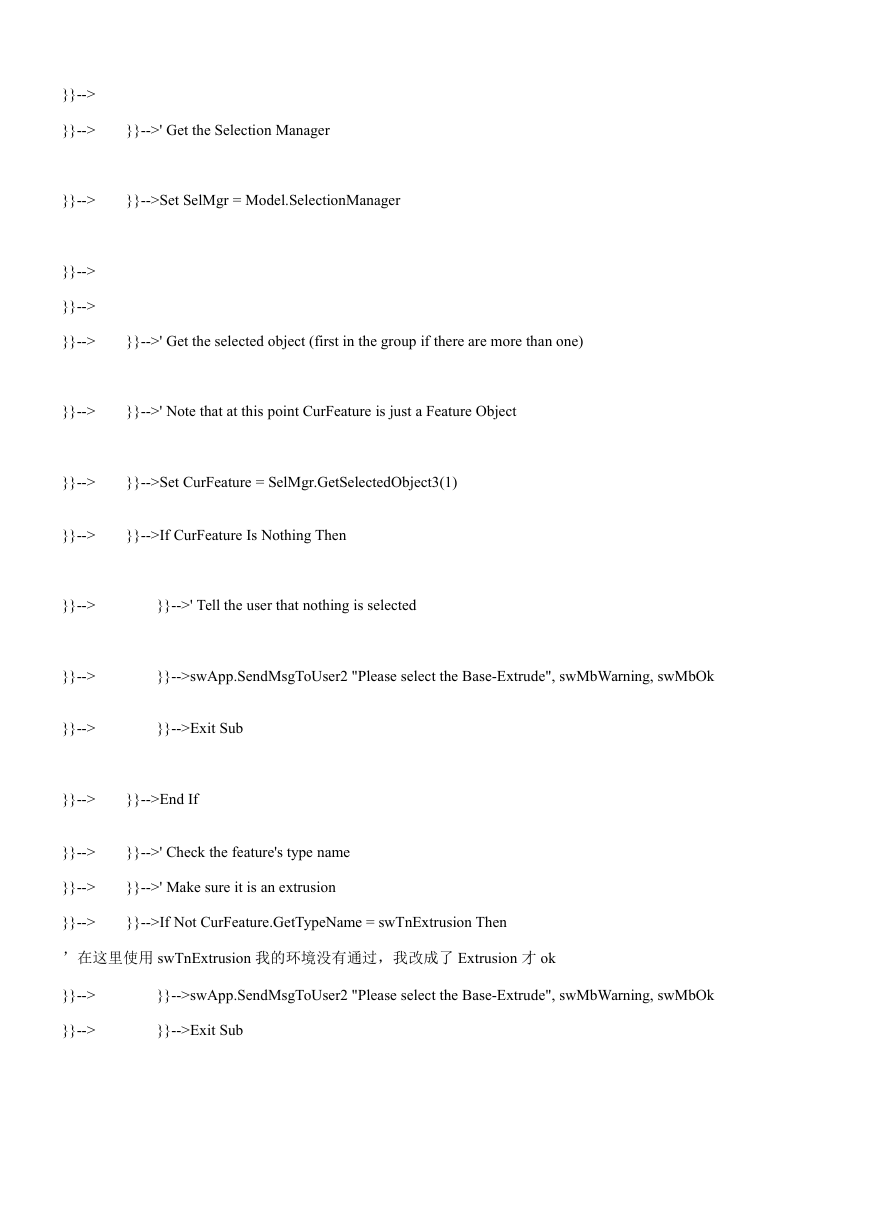

}}-->' Get the Selection Manager
}}-->
}}-->Set SelMgr = Model.SelectionManager
}}-->
}}-->
}}-->
}}-->' Get the selected object (first in the group if there are more than one)
}}-->
}}-->' Note that at this point CurFeature is just a Feature Object
}}-->
}}-->Set CurFeature = SelMgr.GetSelectedObject3(1)
}}-->
}}-->If CurFeature Is Nothing Then
}}-->
}}-->' Tell the user that nothing is selected
}}-->
}}-->
}}-->swApp.SendMsgToUser2 "Please select the Base-Extrude", swMbWarning, swMbOk
}}-->Exit Sub
}}-->
}}-->End If
}}-->
}}-->
}}-->
}}-->' Check the feature's type name
}}-->' Make sure it is an extrusion
}}-->If Not CurFeature.GetTypeName = swTnExtrusion Then
’在这里使用 swTnExtrusion 我的环境没有通过，我改成了 Extrusion 才 ok
}}-->
}}-->
}}-->swApp.SendMsgToUser2 "Please select the Base-Extrude", swMbWarning, swMbOk
}}-->Exit Sub
