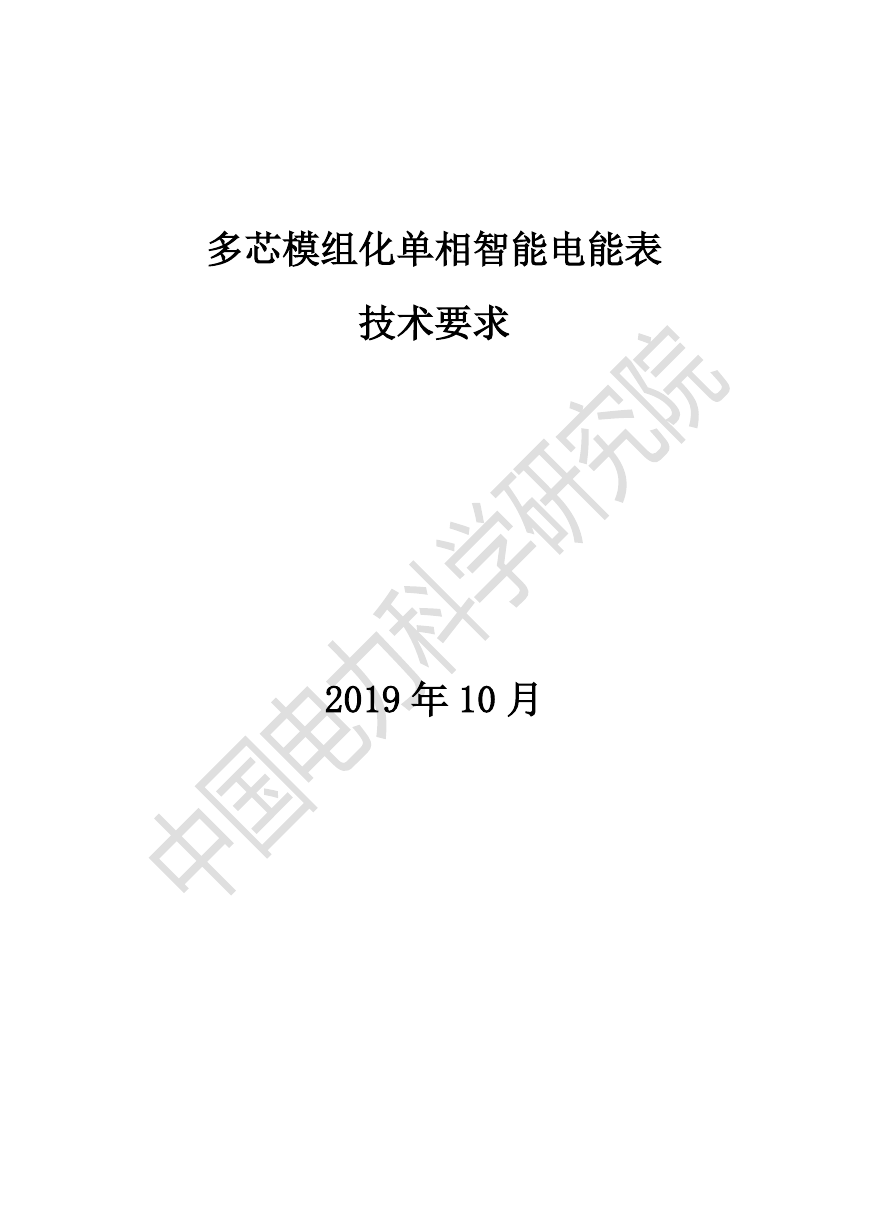

    多芯模组化单相智能电能表 技术要求 2019 年 10 月

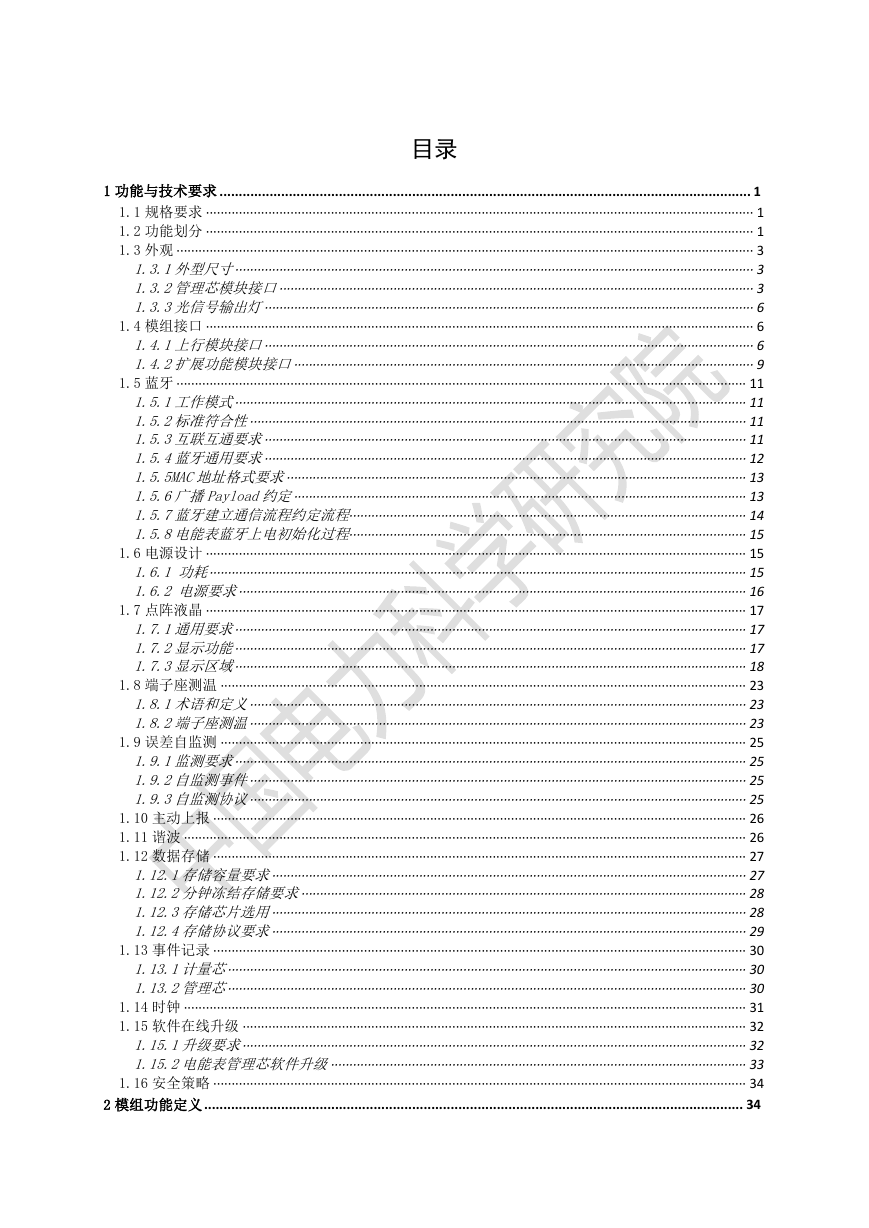

    目录 1 功能与技术要求 .......................................................................................................................................... 1 1.1 规格要求 ····················································································································································· 1 1.2 功能划分 ····················································································································································· 1 1.3 外观 ····························································································································································· 3 1.3.1外型尺寸 ············································································································································· 3 1.3.2管理芯模块接口 ································································································································· 3 1.3.3光信号输出灯 ····································································································································· 6 1.4 模组接口 ····················································································································································· 6 1.4.1上行模块接口 ····································································································································· 6 1.4.2扩展功能模块接口 ····························································································································· 9 1.5 蓝牙 ··························································································································································· 11 1.5.1工作模式 ··········································································································································· 11 1.5.2标准符合性 ······································································································································· 11 1.5.3互联互通要求 ··································································································································· 11 1.5.4蓝牙通用要求 ··································································································································· 12 1.5.5MAC地址格式要求 ····························································································································· 13 1.5.6广播Payload约定 ··························································································································· 13 1.5.7蓝牙建立通信流程约定流程············································································································ 14 1.5.8电能表蓝牙上电初始化过程············································································································ 15 1.6 电源设计 ··················································································································································· 15 1.6.1 功耗 ·················································································································································· 15 1.6.2 电源要求 ·········································································································································· 16 1.7 点阵液晶 ··················································································································································· 17 1.7.1通用要求 ··········································································································································· 17 1.7.2显示功能 ··········································································································································· 17 1.7.3显示区域 ··········································································································································· 18 1.8 端子座测温 ··············································································································································· 23 1.8.1术语和定义 ······································································································································· 23 1.8.2端子座测温 ······································································································································· 23 1.9 误差自监测 ··············································································································································· 25 1.9.1监测要求 ··········································································································································· 25 1.9.2自监测事件 ······································································································································· 25 1.9.3自监测协议 ······································································································································· 25 1.10 主动上报 ················································································································································· 26 1.11 谐波 ························································································································································· 26 1.12 数据存储 ················································································································································· 27 1.12.1存储容量要求 ································································································································· 27 1.12.2分钟冻结存储要求 ························································································································· 28 1.12.3存储芯片选用 ································································································································· 28 1.12.4存储协议要求 ································································································································· 29 1.13 事件记录 ················································································································································· 30 1.13.1计量芯 ············································································································································· 30 1.13.2管理芯 ············································································································································· 30 1.14 时钟 ························································································································································· 31 1.15 软件在线升级 ········································································································································· 32 1.15.1升级要求 ········································································································································· 32 1.15.2电能表管理芯软件升级 ················································································································· 33 1.16 安全策略 ················································································································································· 34 2 模组功能定义 ............................................................................................................................................ 34
    2.1 扩展模块通信 ··········································································································································· 34 2.2 非介入式负荷感知模块 ···························································································································· 35 2.2.1工作流程 ··········································································································································· 35 2.2.2通用要求 ··········································································································································· 36 2.2.3配置参数 ··········································································································································· 36 2.2.4 原始数据 ·········································································································································· 37 2.2.5非介入式负荷感知模块相关扩展 ···································································································· 38 2.3 上行模块 ··················································································································································· 38 2.3.1工作流程 ··········································································································································· 38 2.3.2通用要求 ··········································································································································· 39 2.4 下行模块 ··················································································································································· 39 2.4.1工作流程 ··········································································································································· 39 2.4.2通用要求 ··········································································································································· 39 2.5 有序充电模块 ··········································································································································· 40 2.6 蓝牙通信 ··················································································································································· 41 3 附录 ........................................................................................................................................................... 42 附录 A ........................................................................................................................................................... 42 功能列表 ...................................................................................................................................................... 42 附录 B ........................................................................................................................................................... 45 扩展协议 ...................................................................................................................................................... 45 B.1 变量类对象标识定义 ............................................................................................................................. 45 B.2 参变量类对象标识定义 ......................................................................................................................... 45 B.3 事件类对象标识定义 ............................................................................................................................. 49 B.4 冻结类对象标识定义 .................................................................................................. 错误!未定义书签。 B.5 文件传输类对象标识定义 ..................................................................................................................... 54 B.6 输入输出设备类对象标识定义 .............................................................................................................. 55 B.7 面向对象协议的改动 ............................................................................................................................. 59 附录 C ........................................................................................................................................................... 63 （资料性附录）状态字、特征字、模式字 ................................................................................................. 63 C.1 计量芯系统状态字 ···································································································································· 63 C.2 采样状态字 ················································································································································ 63

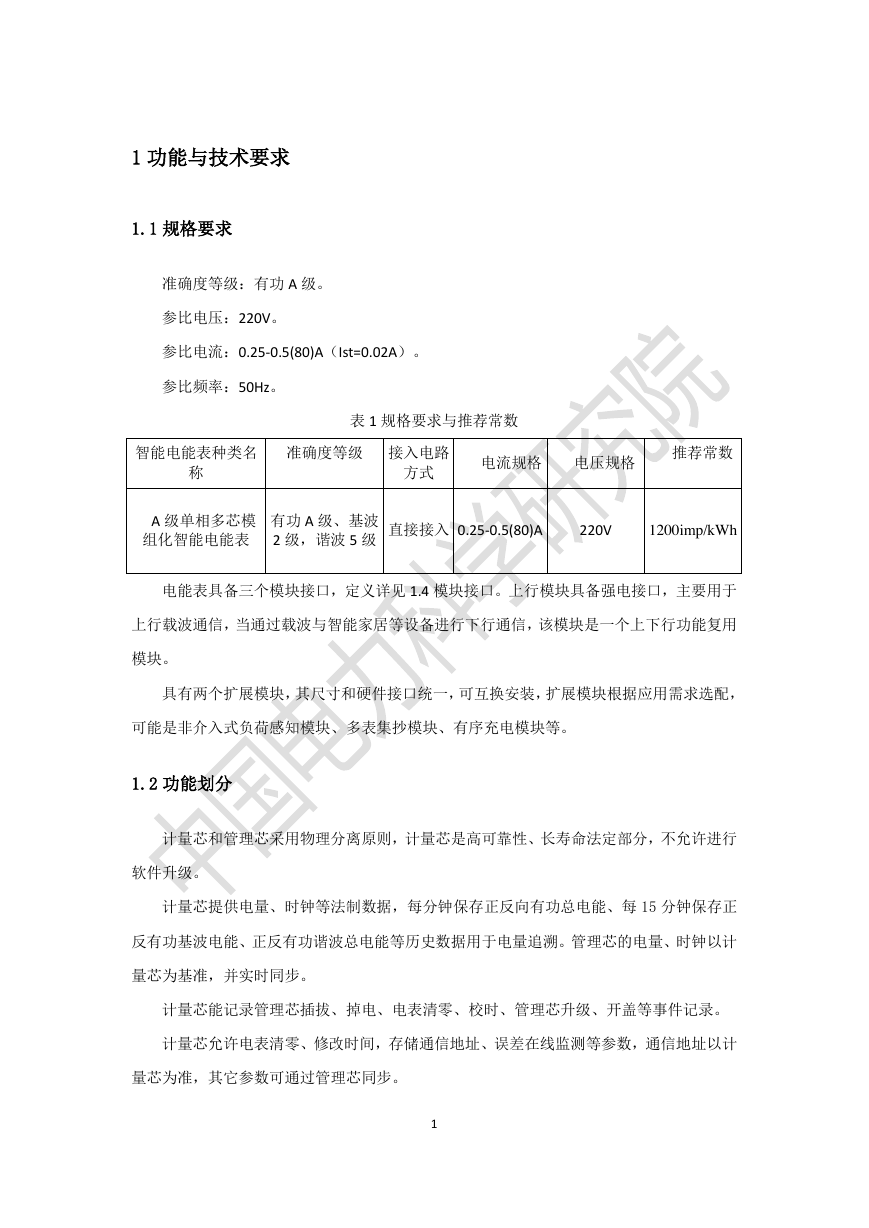

    1 功能与技术要求 1.1 规格要求 准确度等级：有功 A 级。 参比电压：220V。 参比电流：0.25-0.5(80)A（Ist=0.02A）。 参比频率：50Hz。 表 1 规格要求与推荐常数 智能电能表种类名 准确度等级 接入电路 称 方式 电流规格 电压规格 推荐常数 A 级单相多芯模 组化智能电能表 有功 A 级、基波 2 级，谐波 5 级 直接接入 0.25-0.5(80)A 220V 1200imp/kWh 电能表具备三个模块接口，定义详见 1.4 模块接口。上行模块具备强电接口，主要用于 上行载波通信，当通过载波与智能家居等设备进行下行通信，该模块是一个上下行功能复用 模块。 具有两个扩展模块，其尺寸和硬件接口统一，可互换安装，扩展模块根据应用需求选配， 可能是非介入式负荷感知模块、多表集抄模块、有序充电模块等。 1.2 功能划分 计量芯和管理芯采用物理分离原则，计量芯是高可靠性、长寿命法定部分，不允许进行 软件升级。 计量芯提供电量、时钟等法制数据，每分钟保存正反向有功总电能、每 15 分钟保存正 反有功基波电能、正反有功谐波总电能等历史数据用于电量追溯。管理芯的电量、时钟以计 量芯为基准，并实时同步。 计量芯能记录管理芯插拔、掉电、电表清零、校时、管理芯升级、开盖等事件记录。 计量芯允许电表清零、修改时间，存储通信地址、误差在线监测等参数，通信地址以计 量芯为准，其它参数可通过管理芯同步。 1

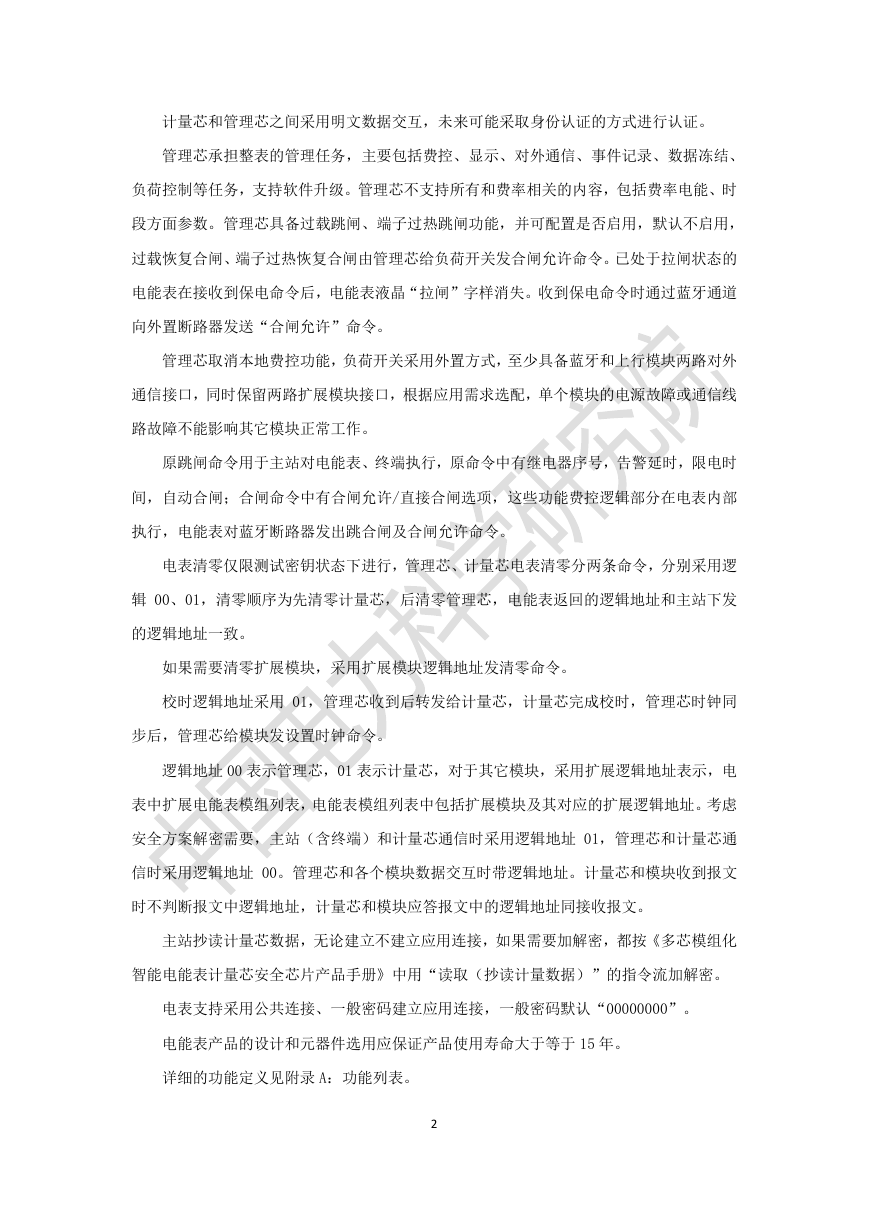

    计量芯和管理芯之间采用明文数据交互，未来可能采取身份认证的方式进行认证。 管理芯承担整表的管理任务，主要包括费控、显示、对外通信、事件记录、数据冻结、 负荷控制等任务，支持软件升级。管理芯不支持所有和费率相关的内容，包括费率电能、时 段方面参数。管理芯具备过载跳闸、端子过热跳闸功能，并可配置是否启用，默认不启用， 过载恢复合闸、端子过热恢复合闸由管理芯给负荷开关发合闸允许命令。已处于拉闸状态的 电能表在接收到保电命令后，电能表液晶“拉闸”字样消失。收到保电命令时通过蓝牙通道 向外置断路器发送“合闸允许”命令。 管理芯取消本地费控功能，负荷开关采用外置方式，至少具备蓝牙和上行模块两路对外 通信接口，同时保留两路扩展模块接口，根据应用需求选配，单个模块的电源故障或通信线 路故障不能影响其它模块正常工作。 原跳闸命令用于主站对电能表、终端执行，原命令中有继电器序号，告警延时，限电时 间，自动合闸；合闸命令中有合闸允许/直接合闸选项，这些功能费控逻辑部分在电表内部 执行，电能表对蓝牙断路器发出跳合闸及合闸允许命令。 电表清零仅限测试密钥状态下进行，管理芯、计量芯电表清零分两条命令，分别采用逻 辑 00、01，清零顺序为先清零计量芯，后清零管理芯，电能表返回的逻辑地址和主站下发 的逻辑地址一致。 如果需要清零扩展模块，采用扩展模块逻辑地址发清零命令。 校时逻辑地址采用 01，管理芯收到后转发给计量芯，计量芯完成校时，管理芯时钟同 步后，管理芯给模块发设置时钟命令。 逻辑地址 00 表示管理芯，01 表示计量芯，对于其它模块，采用扩展逻辑地址表示，电 表中扩展电能表模组列表，电能表模组列表中包括扩展模块及其对应的扩展逻辑地址。考虑 安全方案解密需要，主站（含终端）和计量芯通信时采用逻辑地址 01，管理芯和计量芯通 信时采用逻辑地址 00。管理芯和各个模块数据交互时带逻辑地址。计量芯和模块收到报文 时不判断报文中逻辑地址，计量芯和模块应答报文中的逻辑地址同接收报文。 主站抄读计量芯数据，无论建立不建立应用连接，如果需要加解密，都按《多芯模组化 智能电能表计量芯安全芯片产品手册》中用“读取（抄读计量数据）”的指令流加解密。 电表支持采用公共连接、一般密码建立应用连接，一般密码默认“00000000”。 电能表产品的设计和元器件选用应保证产品使用寿命大于等于 15 年。 详细的功能定义见附录 A：功能列表。 2

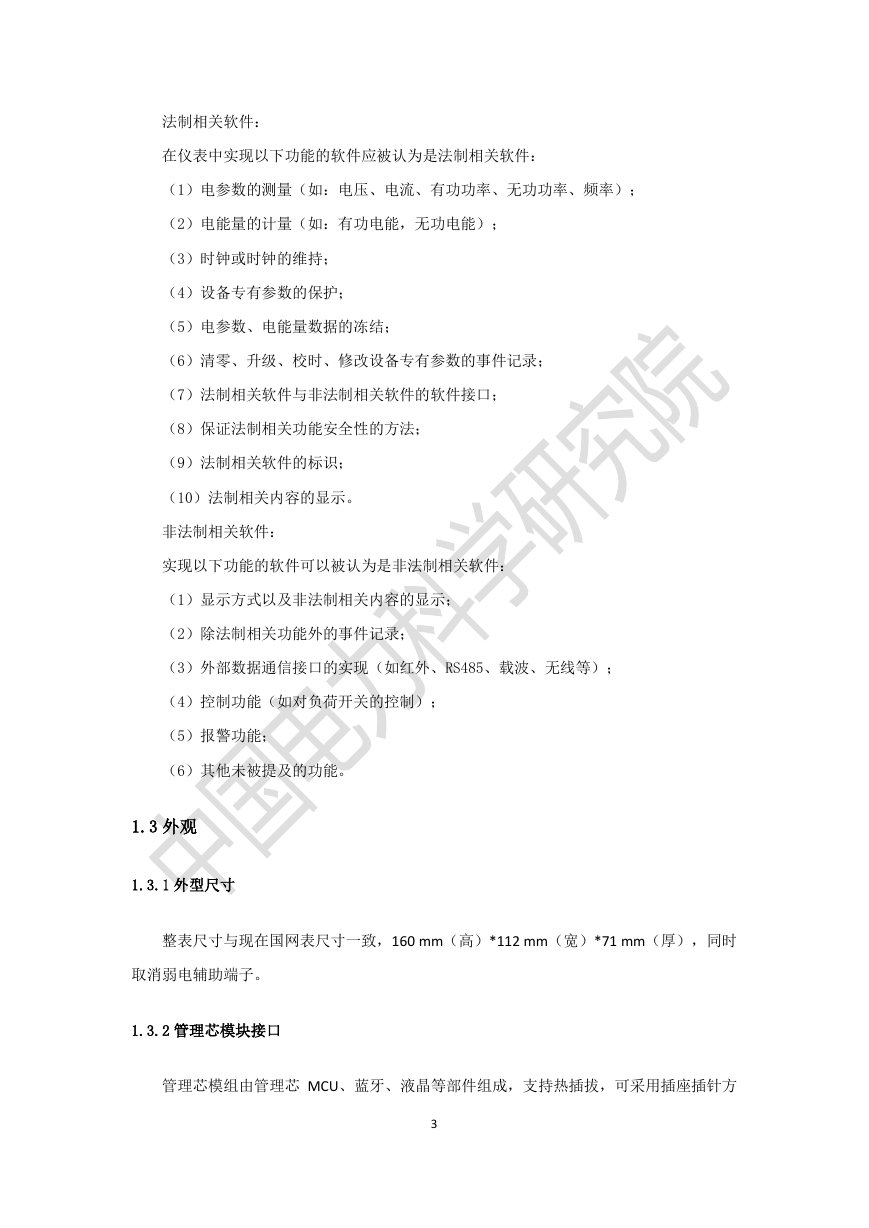

    法制相关软件： 在仪表中实现以下功能的软件应被认为是法制相关软件： （1）电参数的测量（如：电压、电流、有功功率、无功功率、频率）； （2）电能量的计量（如：有功电能，无功电能）； （3）时钟或时钟的维持； （4）设备专有参数的保护； （5）电参数、电能量数据的冻结； （6）清零、升级、校时、修改设备专有参数的事件记录； （7）法制相关软件与非法制相关软件的软件接口； （8）保证法制相关功能安全性的方法； （9）法制相关软件的标识； （10）法制相关内容的显示。 非法制相关软件： 实现以下功能的软件可以被认为是非法制相关软件： （1）显示方式以及非法制相关内容的显示； （2）除法制相关功能外的事件记录； （3）外部数据通信接口的实现（如红外、RS485、载波、无线等）； （4）控制功能（如对负荷开关的控制）； （5）报警功能； （6）其他未被提及的功能。 1.3 外观 1.3.1 外型尺寸 整表尺寸与现在国网表尺寸一致，160 mm（高）*112 mm（宽）*71 mm（厚），同时 取消弱电辅助端子。 1.3.2 管理芯模块接口 管理芯模组由管理芯 MCU、蓝牙、液晶等部件组成，支持热插拔，可采用插座插针方 3

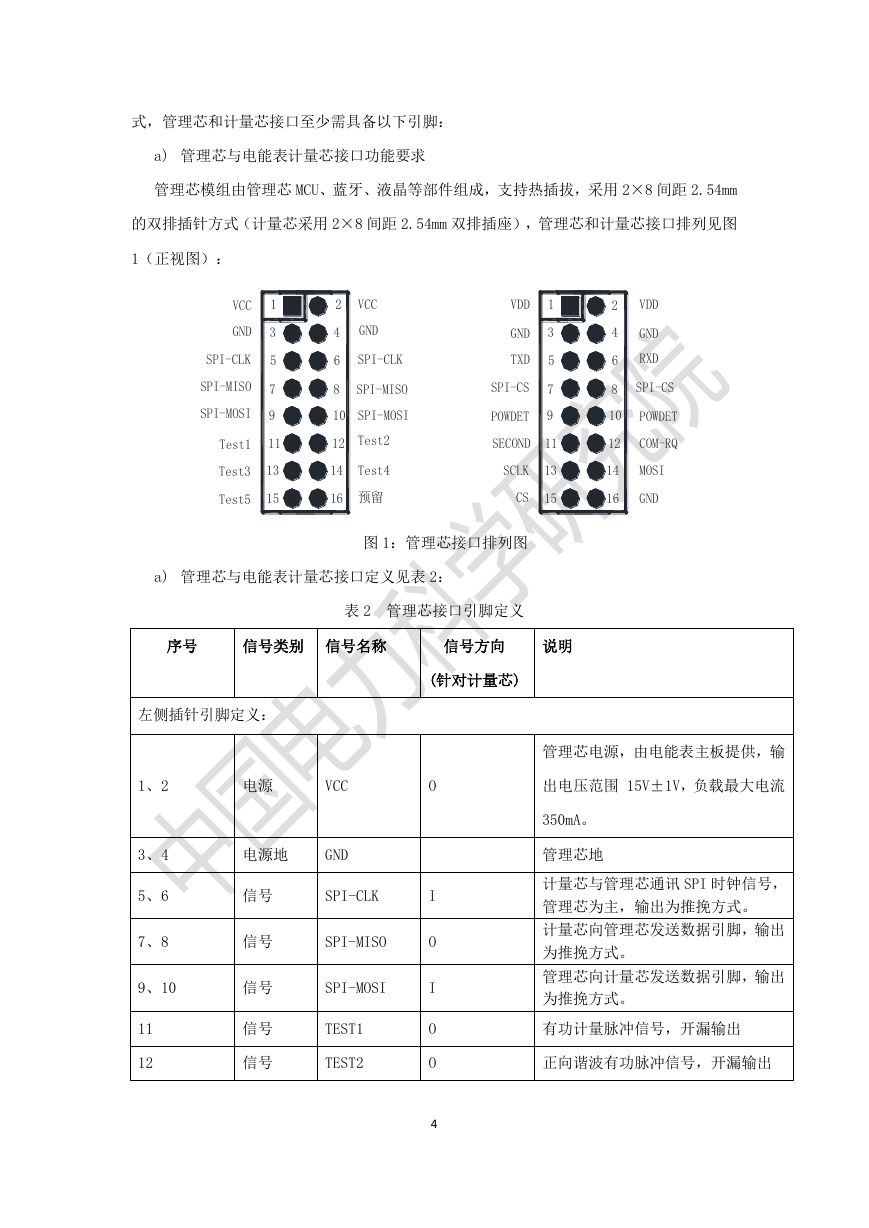

    式，管理芯和计量芯接口至少需具备以下引脚： a) 管理芯与电能表计量芯接口功能要求 管理芯模组由管理芯 MCU、蓝牙、液晶等部件组成，支持热插拔，采用 2×8 间距 2.54mm 的双排插针方式（计量芯采用 2×8 间距 2.54mm 双排插座），管理芯和计量芯接口排列见图 1（正视图）： 图 1：管理芯接口排列图 a) 管理芯与电能表计量芯接口定义见表 2： 表 2 管理芯接口引脚定义 序号 信号类别 信号名称 信号方向 说明 (针对计量芯) 左侧插针引脚定义： 1、2 电源 VCC O 出电压范围 15V±1V，负载最大电流 管理芯电源，由电能表主板提供，输 电源地 GND 管理芯地 350mA。 3、4 5、6 信号 SPI-CLK I 7、8 信号 SPI-MISO O 9、10 信号 SPI-MOSI 11 12 信号 TEST1 信号 TEST2 I O O 4 计量芯与管理芯通讯 SPI 时钟信号， 管理芯为主，输出为推挽方式。 计量芯向管理芯发送数据引脚，输出 为推挽方式。 管理芯向计量芯发送数据引脚，输出 为推挽方式。 有功计量脉冲信号，开漏输出 正向谐波有功脉冲信号，开漏输出 POWDETRXDTXDVCCVCC GNDGNDSPI-CSSPI-CSSPI-CLKSPI-CLKSPI-MISOSPI-MISOSPI-MOSISPI-MOSITest1Test2Test3Test4VDDVDDGNDGNDCOM-RQPOWDETSECONDSCLKMOSICS1357911131524681012141613579111315246810121416GNDTest5预留

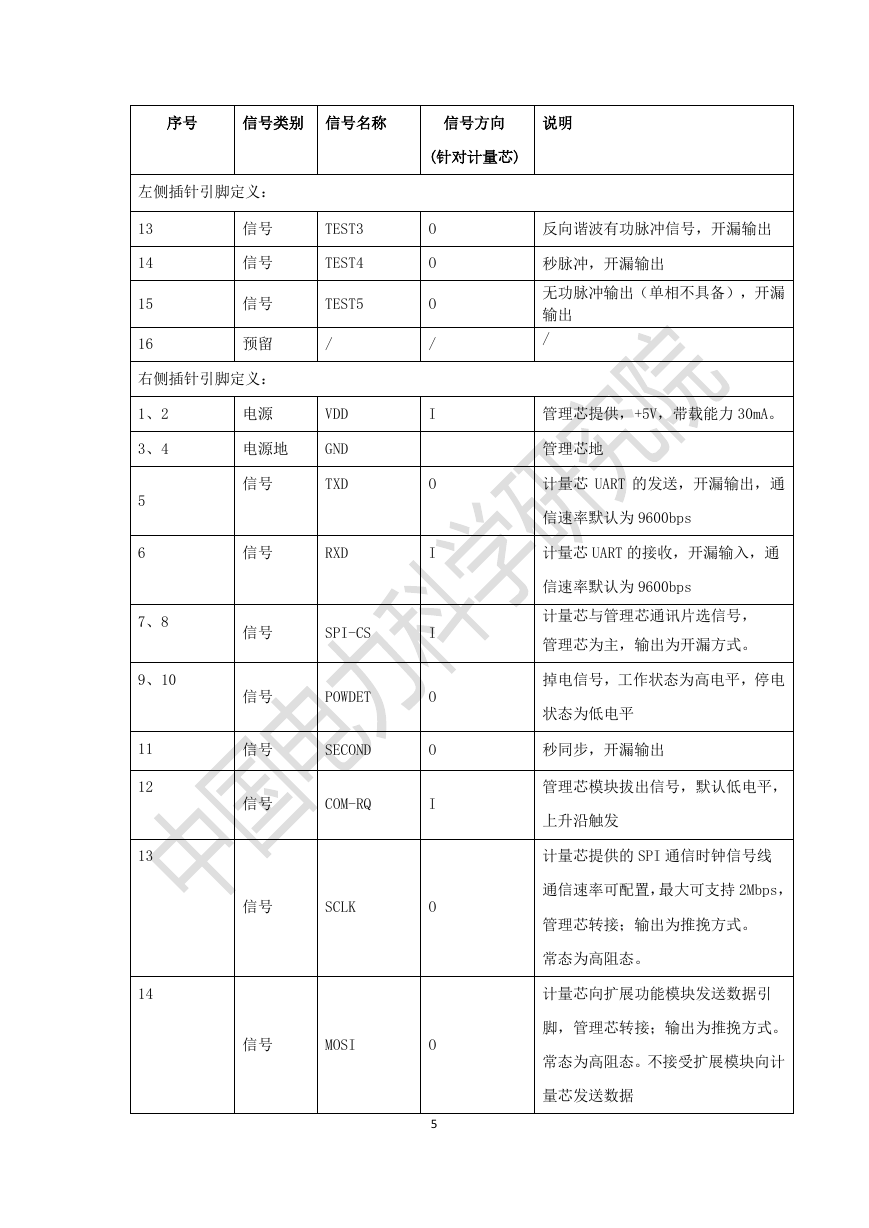

    序号 信号类别 信号名称 信号方向 说明 (针对计量芯) 左侧插针引脚定义： 13 14 15 16 信号 TEST3 信号 TEST4 信号 TEST5 预留 / 右侧插针引脚定义： 电源 VDD 电源地 GND 信号 TXD 信号 RXD 信号 SPI-CS 信号 POWDET 信号 SECOND 信号 COM-RQ 1、2 3、4 5 6 7、8 9、10 11 12 13 14 O O O / I O I I O O I 反向谐波有功脉冲信号，开漏输出 秒脉冲，开漏输出 无功脉冲输出（单相不具备），开漏 输出 / 管理芯提供，+5V，带载能力 30mA。 管理芯地 计量芯 UART 的发送，开漏输出，通 信速率默认为 9600bps 计量芯 UART 的接收，开漏输入，通 信速率默认为 9600bps 计量芯与管理芯通讯片选信号， 管理芯为主，输出为开漏方式。 掉电信号，工作状态为高电平，停电 状态为低电平 秒同步，开漏输出 管理芯模块拔出信号，默认低电平， 上升沿触发 计量芯提供的 SPI 通信时钟信号线 信号 SCLK O 通信速率可配置，最大可支持 2Mbps， 管理芯转接；输出为推挽方式。 信号 MOSI O 常态为高阻态。 计量芯向扩展功能模块发送数据引 脚，管理芯转接；输出为推挽方式。 常态为高阻态。不接受扩展模块向计 量芯发送数据 5
