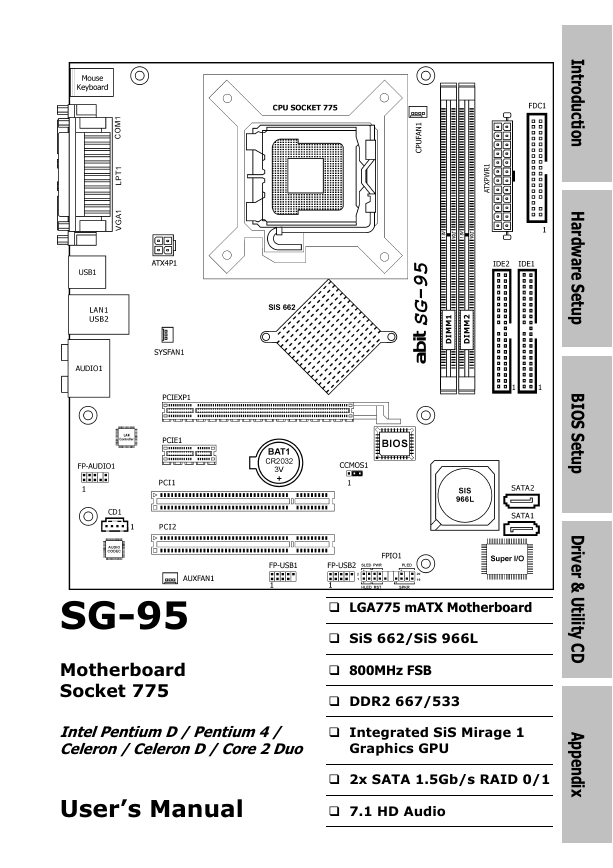

I n t r o d u c t i o n H a r d w a r e S e t u p B I O S S e t u p D r i v e r & U t i l i t y C D A p p e n d x i SG-95 Motherboard Socket 775 Intel Pentium D / Pentium 4 / Celeron / Celeron D / Core 2 Duo LGA775 mATX Motherboard SiS 662/SiS 966L 800MHz FSB DDR2 667/533 Integrated SiS Mirage 1 Graphics GPU 2x SATA 1.5Gb/s RAID 0/1 User’s Manual 7.1 HD Audio

SG-95 User’s Manual English, 1st Edition August, 2006 Copyright and Warranty Notice The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who assumes no liability or responsibility for any errors that may appear in this manual. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular part of this document. In no event shall the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising from any defect or error in this manual or product. Product names appearing in this manual are for identification purpose only and trademarks and product names or brand names appearing in this document are the property of their respective owners. This document contains materials protected under International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual. If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility. ii SG-95

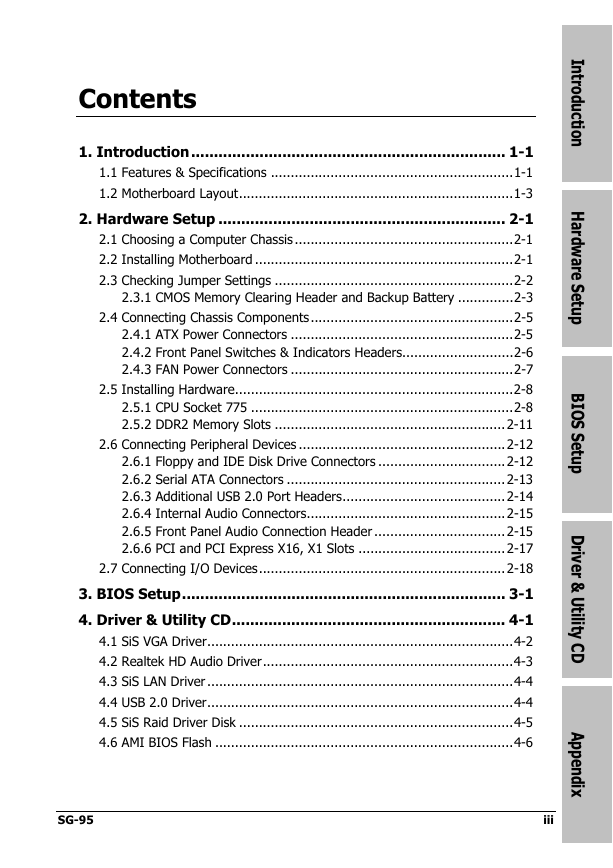

Contents 1. Introduction ..................................................................... 1-1 1.1 Features & Specifications .............................................................1-1 1.2 Motherboard Layout.....................................................................1-3 2. Hardware Setup ............................................................... 2-1 2.1 Choosing a Computer Chassis .......................................................2-1 2.2 Installing Motherboard .................................................................2-1 2.3 Checking Jumper Settings ............................................................2-2 2.3.1 CMOS Memory Clearing Header and Backup Battery ..............2-3 2.4 Connecting Chassis Components...................................................2-5 2.4.1 ATX Power Connectors ........................................................2-5 2.4.2 Front Panel Switches & Indicators Headers............................2-6 2.4.3 FAN Power Connectors ........................................................2-7 2.5 Installing Hardware......................................................................2-8 2.5.1 CPU Socket 775 ..................................................................2-8 2.5.2 DDR2 Memory Slots .......................................................... 2-11 2.6 Connecting Peripheral Devices .................................................... 2-12 2.6.1 Floppy and IDE Disk Drive Connectors ................................ 2-12 2.6.2 Serial ATA Connectors ....................................................... 2-13 2.6.3 Additional USB 2.0 Port Headers......................................... 2-14 2.6.4 Internal Audio Connectors.................................................. 2-15 2.6.5 Front Panel Audio Connection Header ................................. 2-15 2.6.6 PCI and PCI Express X16, X1 Slots ..................................... 2-17 2.7 Connecting I/O Devices.............................................................. 2-18 3. BIOS Setup....................................................................... 3-1 4. Driver & Utility CD............................................................ 4-1 4.1 SiS VGA Driver.............................................................................4-2 4.2 Realtek HD Audio Driver...............................................................4-3 4.3 SiS LAN Driver .............................................................................4-4 4.4 USB 2.0 Driver.............................................................................4-4 4.5 SiS Raid Driver Disk .....................................................................4-5 4.6 AMI BIOS Flash ...........................................................................4-6 SG-95 iii I n t r o d u c t i o n H a r d w a r e S e t u p B I O S S e t u p D r i v e r & U t i l i t y C D A p p e n d x i

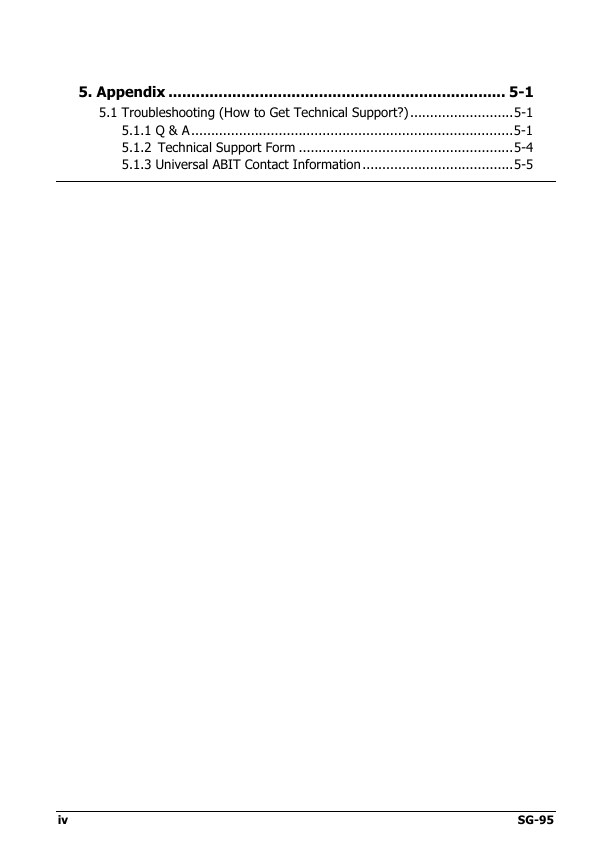

5. Appendix .......................................................................... 5-1 5.1 Troubleshooting (How to Get Technical Support?) ..........................5-1 5.1.1 Q & A .................................................................................5-1 5.1.2 Technical Support Form ......................................................5-4 5.1.3 Universal ABIT Contact Information ......................................5-5 iv SG-95

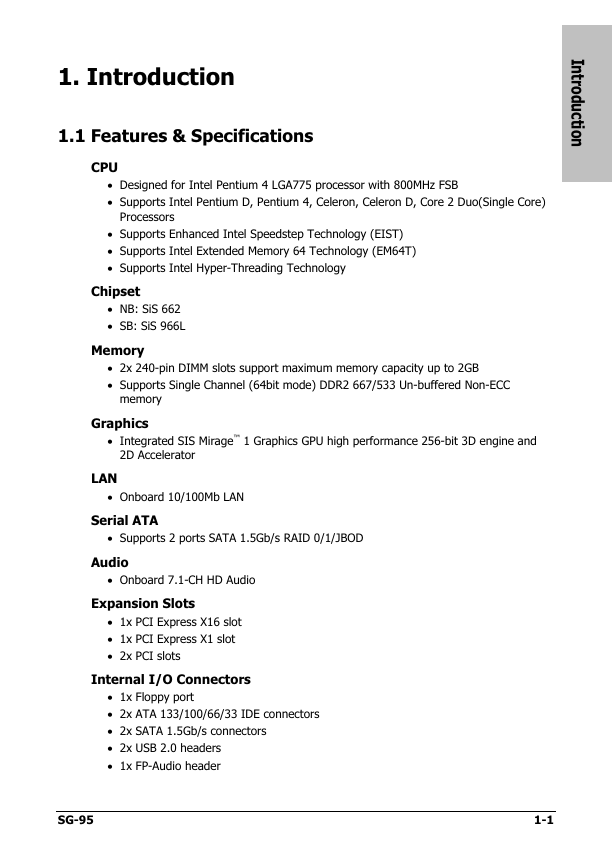

1. Introduction 1.1 Features & Specifications CPU I n t r o d u c t i o n Designed for Intel Pentium 4 LGA775 processor with 800MHz FSB Supports Intel Pentium D, Pentium 4, Celeron, Celeron D, Core 2 Duo(Single Core) Processors Supports Enhanced Intel Speedstep Technology (EIST) Supports Intel Extended Memory 64 Technology (EM64T) Supports Intel Hyper-Threading Technology Chipset NB: SiS 662 SB: SiS 966L Memory 2x 240-pin DIMM slots support maximum memory capacity up to 2GB Supports Single Channel (64bit mode) DDR2 667/533 Un-buffered Non-ECC memory Graphics Integrated SIS Mirage™ 1 Graphics GPU high performance 256-bit 3D engine and 2D Accelerator LAN Onboard 10/100Mb LAN Serial ATA Supports 2 ports SATA 1.5Gb/s RAID 0/1/JBOD Audio Onboard 7.1-CH HD Audio Expansion Slots 1x PCI Express X16 slot 1x PCI Express X1 slot 2x PCI slots Internal I/O Connectors 1x Floppy port 2x ATA 133/100/66/33 IDE connectors 2x SATA 1.5Gb/s connectors 2x USB 2.0 headers 1x FP-Audio header SG-95 1-1

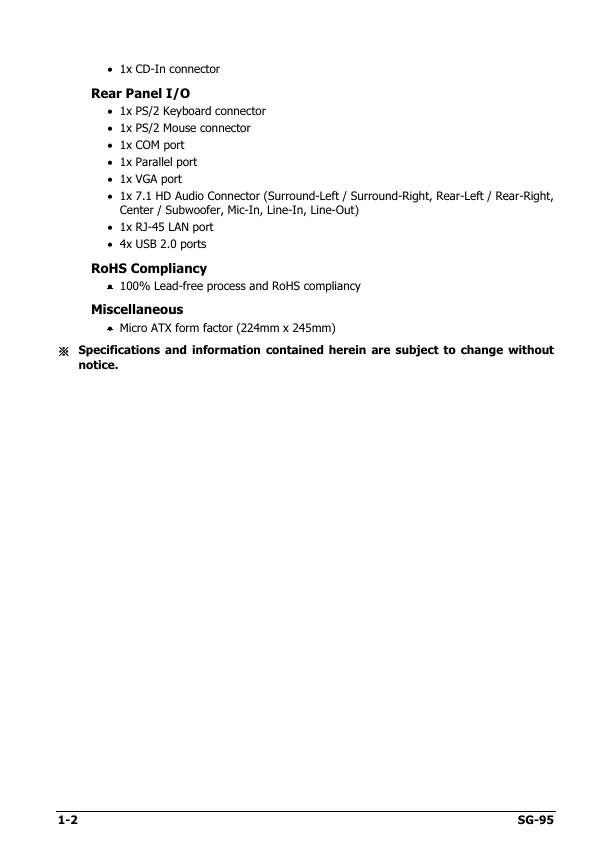

1x CD-In connector Rear Panel I/O 1x PS/2 Keyboard connector 1x PS/2 Mouse connector 1x COM port 1x Parallel port 1x VGA port 1x 7.1 HD Audio Connector (Surround-Left / Surround-Right, Rear-Left / Rear-Right, Center / Subwoofer, Mic-In, Line-In, Line-Out) 1x RJ-45 LAN port 4x USB 2.0 ports RoHS Compliancy 100% Lead-free process and RoHS compliancy Miscellaneous Micro ATX form factor (224mm x 245mm) ※ Specifications and information contained herein are subject to change without notice. 1-2 SG-95

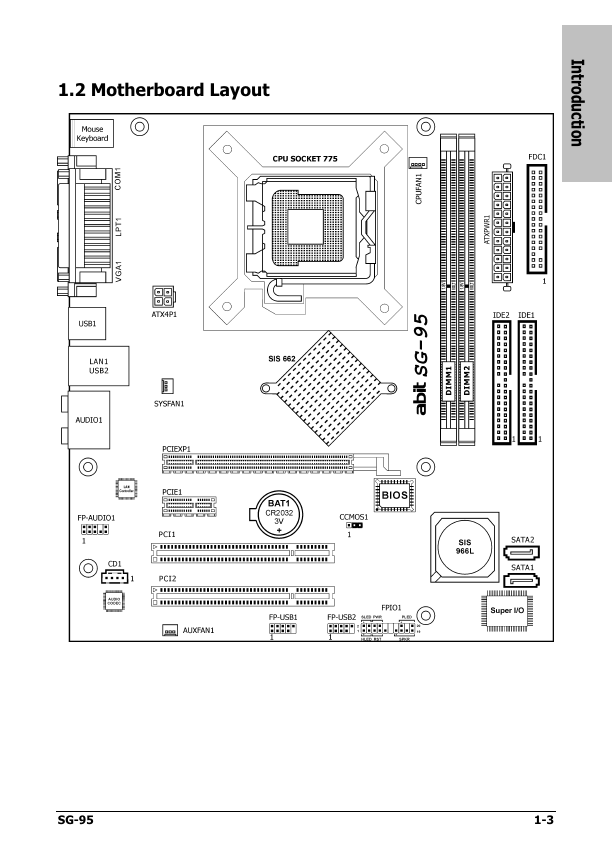

1.2 Motherboard Layout SG-95 I n t r o d u c t i o n 1-3

1-4 SG-95
