1. General Description
2. Features
3. Package Type
4. Functional Diagram
5. Pinout Diagrams
6. Pin Descriptions
6.1 Strapping Table
7. Electrical Characteristics
7.1 Absolute Maximum Ratings
7.2 Recommended Operating Conditions
7.3 DC Electrical Characteristics for VBUS pins
7.4 DC Electrical Characteristics for GPIO pins
7.5 DC Electrical Characteristics for RST# pins
7.6 External Crystal Electrical Specification
7.7 Differential Clock Oscillator Electrical Specification
7.8 External Clock Input Electrical Specification
7.9 Internal Linear Regular Electrical Specification
7.10 Internal Switching Regular Electrical Specification
7.11 Power Consumption Characteristics
8. Power on Sequence
9. PCB Design Guide under Thermal Pad
10. Package Information
11. Top Marking Information

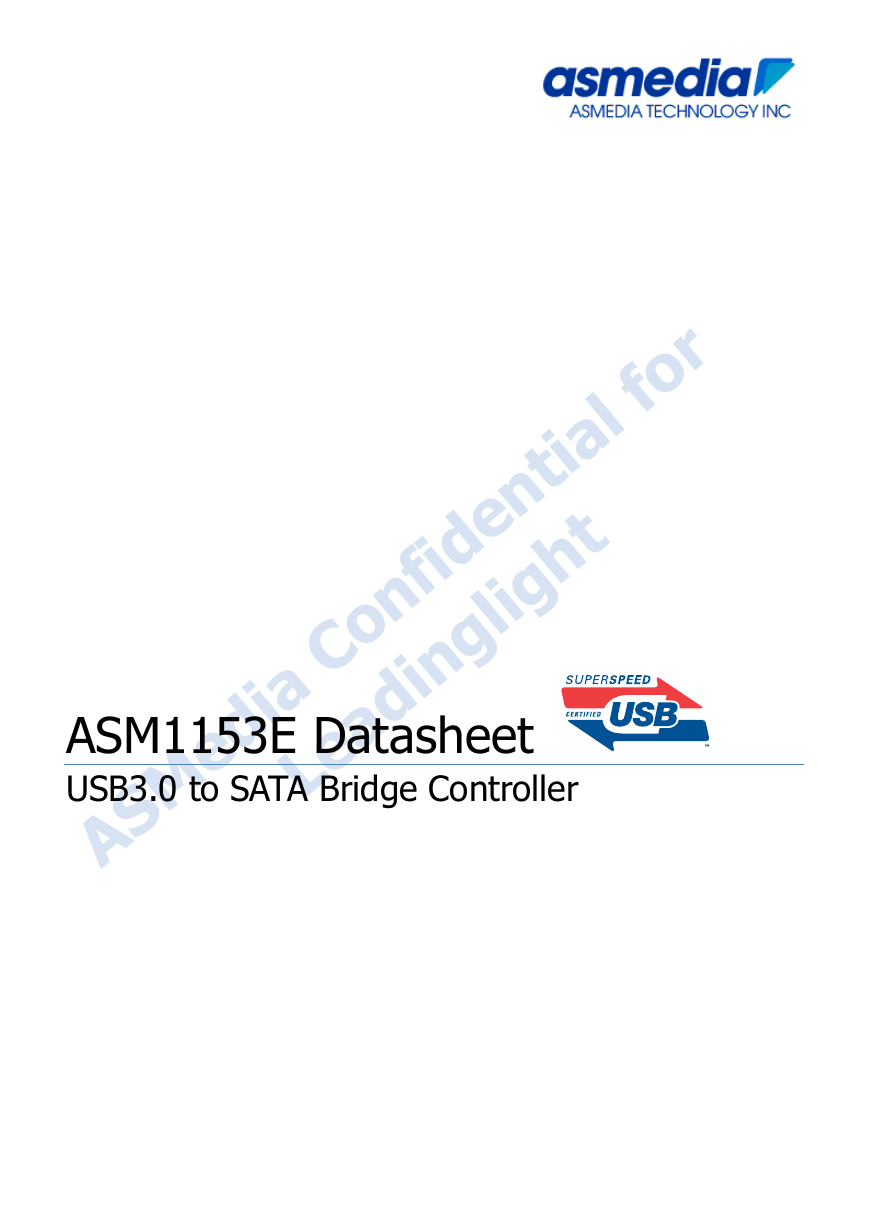

A S M edia C o nfidential for Leadin glig ht ASM1153E Datasheet USB3.0 to SATA Bridge Controller

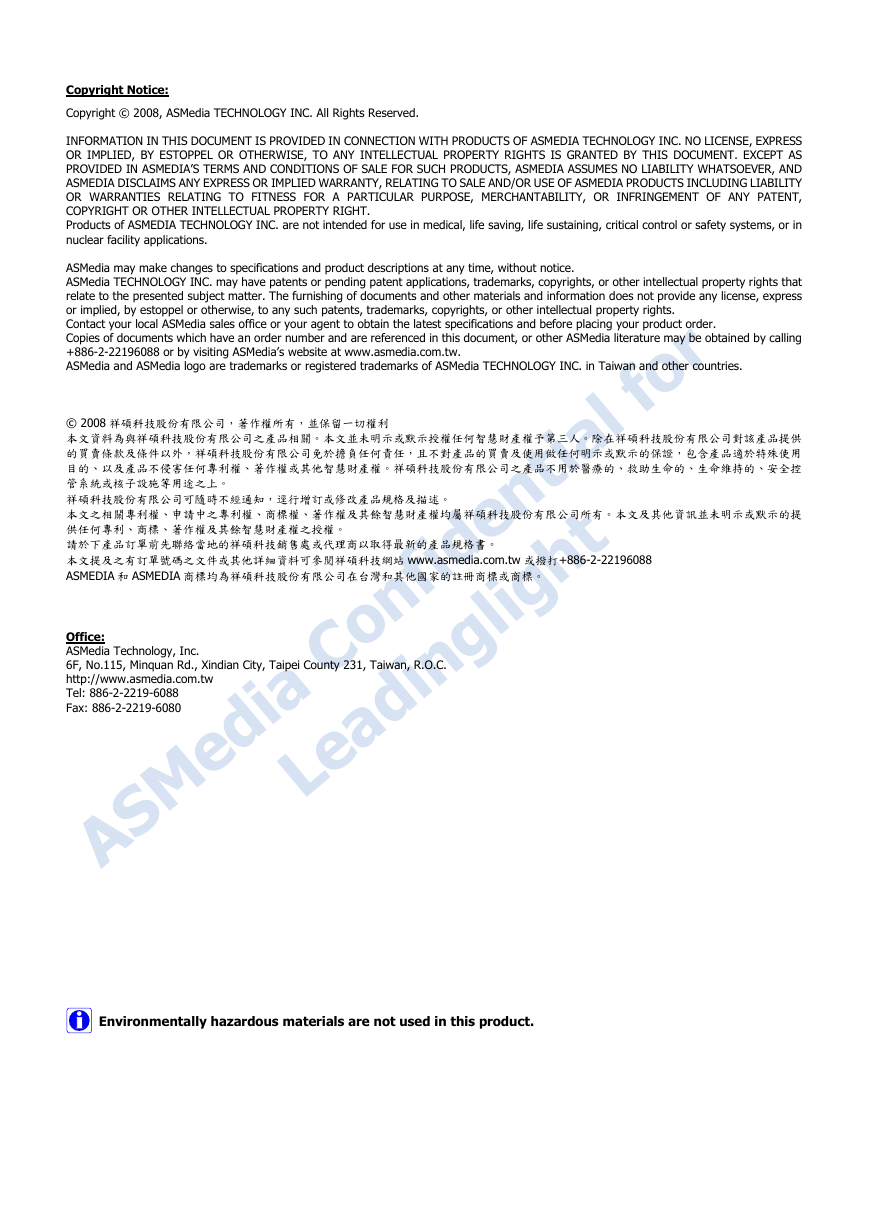

Copyright Notice: A S M edia C o nfidential for Leadin glig ht Copyright © 2008, ASMedia TECHNOLOGY INC. All Rights Reserved. INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH PRODUCTS OF ASMEDIA TECHNOLOGY INC. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN ASMEDIA’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, ASMEDIA ASSUMES NO LIABILITY WHATSOEVER, AND ASMEDIA DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF ASMEDIA PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Products of ASMEDIA TECHNOLOGY INC. are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications. ASMedia may make changes to specifications and product descriptions at any time, without notice. ASMedia TECHNOLOGY INC. may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights. Contact your local ASMedia sales office or your agent to obtain the latest specifications and before placing your product order. Copies of documents which have an order number and are referenced in this document, or other ASMedia literature may be obtained by calling +886-2-22196088 or by visiting ASMedia’s website at www.asmedia.com.tw. ASMedia and ASMedia logo are trademarks or registered trademarks of ASMedia TECHNOLOGY INC. in Taiwan and other countries. © 2008 祥碩科技股份有限公司,著作權所有,並保留一切權利 本文資料為與祥碩科技股份有限公司之產品相關。本文並未明示或默示授權任何智慧財產權予第三人。除在祥碩科技股份有限公司對該產品提供 的買賣條款及條件以外,祥碩科技股份有限公司免於擔負任何責任,且不對產品的買賣及使用做任何明示或默示的保證,包含產品適於特殊使用 目的、以及產品不侵害任何專利權、著作權或其他智慧財產權。祥碩科技股份有限公司之產品不用於醫療的、救助生命的、生命維持的、安全控 管系統或核子設施等用途之上。 祥碩科技股份有限公司可隨時不經通知,逕行增訂或修改產品規格及描述。 本文之相關專利權、申請中之專利權、商標權、著作權及其餘智慧財產權均屬祥碩科技股份有限公司所有。本文及其他資訊並未明示或默示的提 供任何專利、商標、著作權及其餘智慧財產權之授權。 請於下產品訂單前先聯絡當地的祥碩科技銷售處或代理商以取得最新的產品規格書。 本文提及之有訂單號碼之文件或其他詳細資料可參閱祥碩科技網站 www.asmedia.com.tw 或撥打+886-2-22196088 ASMEDIA 和 ASMEDIA 商標均為祥碩科技股份有限公司在台灣和其他國家的註冊商標或商標。 Office: ASMedia Technology, Inc. 6F, No.115, Minquan Rd., Xindian City, Taipei County 231, Taiwan, R.O.C. http://www.asmedia.com.tw Tel: 886-2-2219-6088 Fax: 886-2-2219-6080 Environmentally hazardous materials are not used in this product.

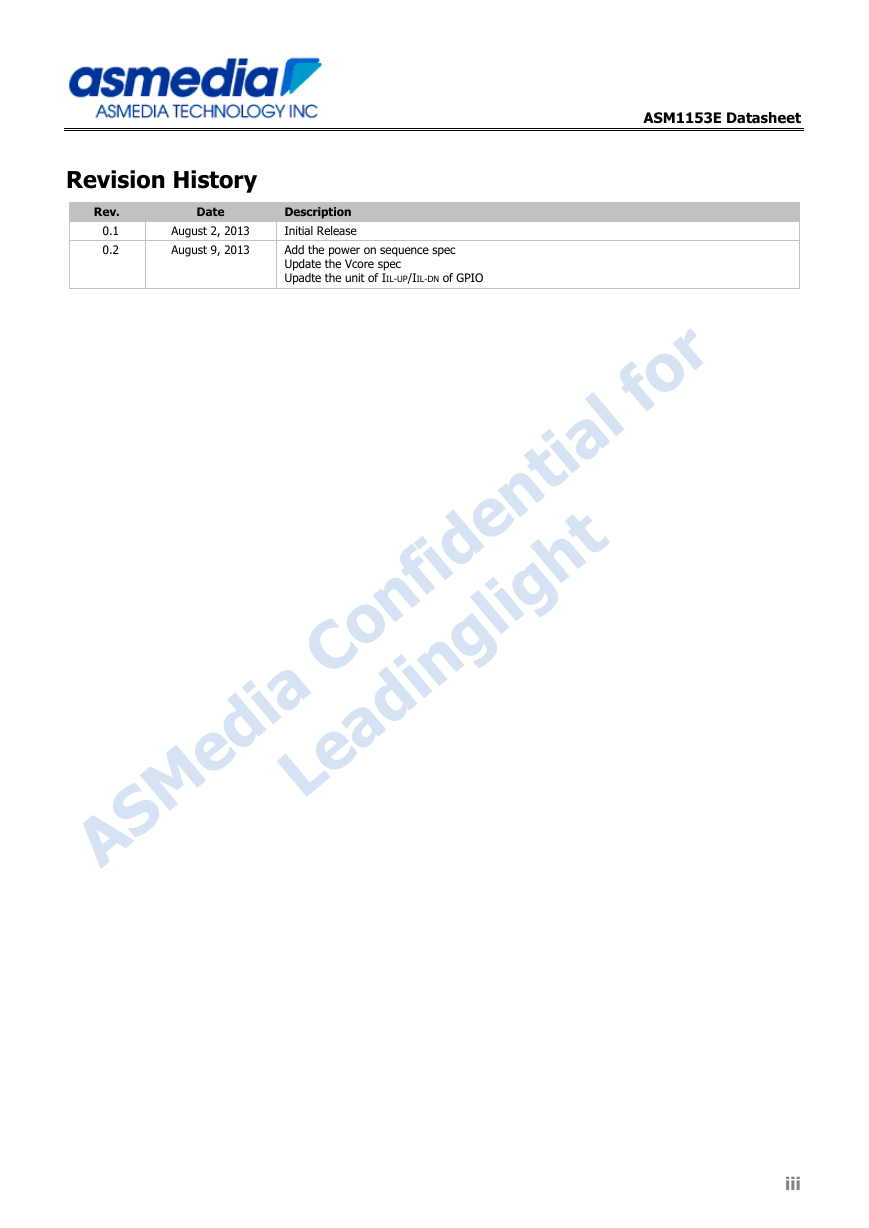

ASM1153E Datasheet Revision History Rev. 0.1 0.2 Date August 2, 2013 August 9, 2013 Description Initial Release Add the power on sequence spec Update the Vcore spec Upadte the unit of IIL-UP/IIL-DN of GPIO A S M edia C o nfidential for Leadin glig ht iii

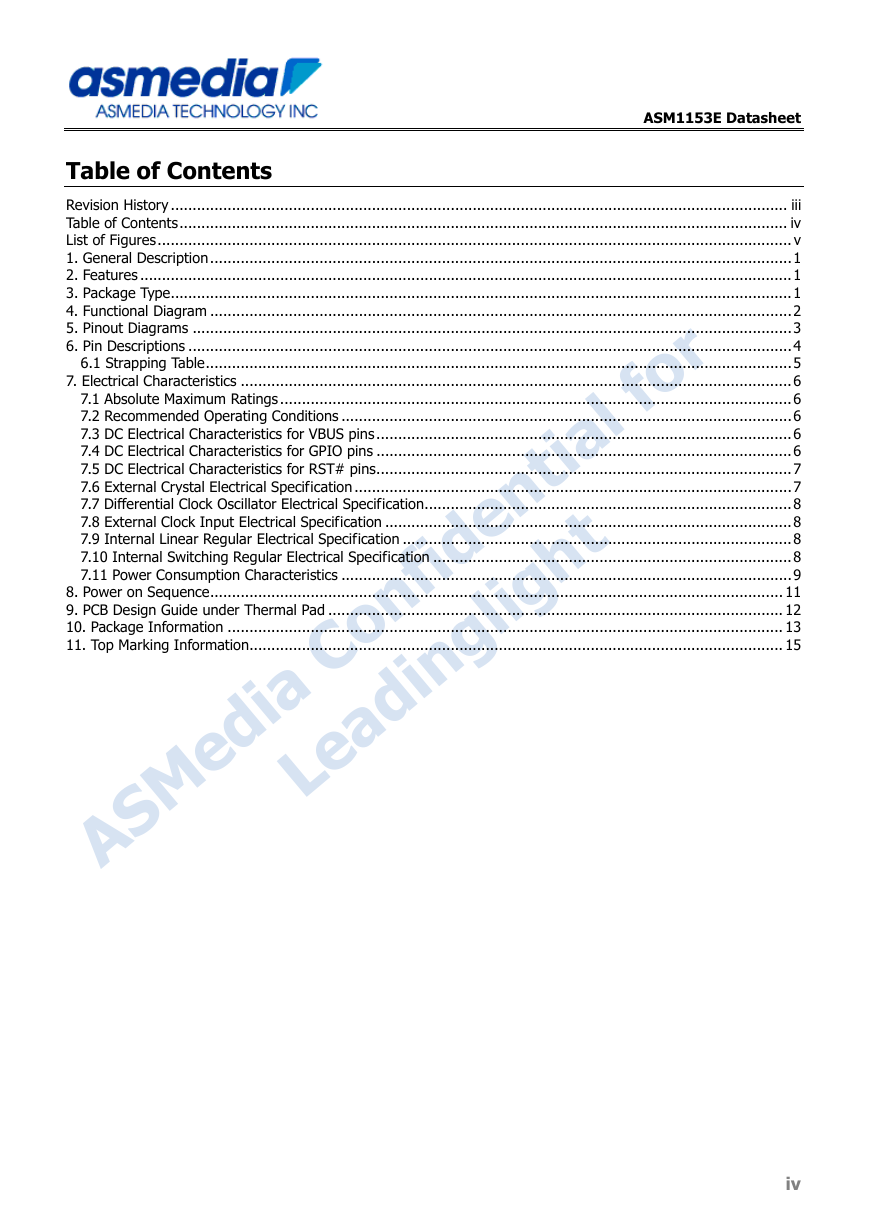

ASM1153E Datasheet Table of Contents Revision History ............................................................................................................................................. iii Table of Contents ........................................................................................................................................... iv List of Figures ................................................................................................................................................. v 1. General Description ..................................................................................................................................... 1 2. Features ..................................................................................................................................................... 1 3. Package Type.............................................................................................................................................. 1 4. Functional Diagram ..................................................................................................................................... 2 5. Pinout Diagrams ......................................................................................................................................... 3 6. Pin Descriptions .......................................................................................................................................... 4 6.1 Strapping Table ...................................................................................................................................... 5 7. Electrical Characteristics .............................................................................................................................. 6 7.1 Absolute Maximum Ratings ..................................................................................................................... 6 7.2 Recommended Operating Conditions ....................................................................................................... 6 7.3 DC Electrical Characteristics for VBUS pins ............................................................................................... 6 7.4 DC Electrical Characteristics for GPIO pins ............................................................................................... 6 7.5 DC Electrical Characteristics for RST# pins ............................................................................................... 7 7.6 External Crystal Electrical Specification .................................................................................................... 7 7.7 Differential Clock Oscillator Electrical Specification.................................................................................... 8 7.8 External Clock Input Electrical Specification ............................................................................................. 8 7.9 Internal Linear Regular Electrical Specification ......................................................................................... 8 7.10 Internal Switching Regular Electrical Specification .................................................................................. 8 7.11 Power Consumption Characteristics ....................................................................................................... 9 8. Power on Sequence ................................................................................................................................... 11 9. PCB Design Guide under Thermal Pad ........................................................................................................ 12 10. Package Information ............................................................................................................................... 13 11. Top Marking Information.......................................................................................................................... 15 A S M edia C o nfidential for Leadin glig ht iv

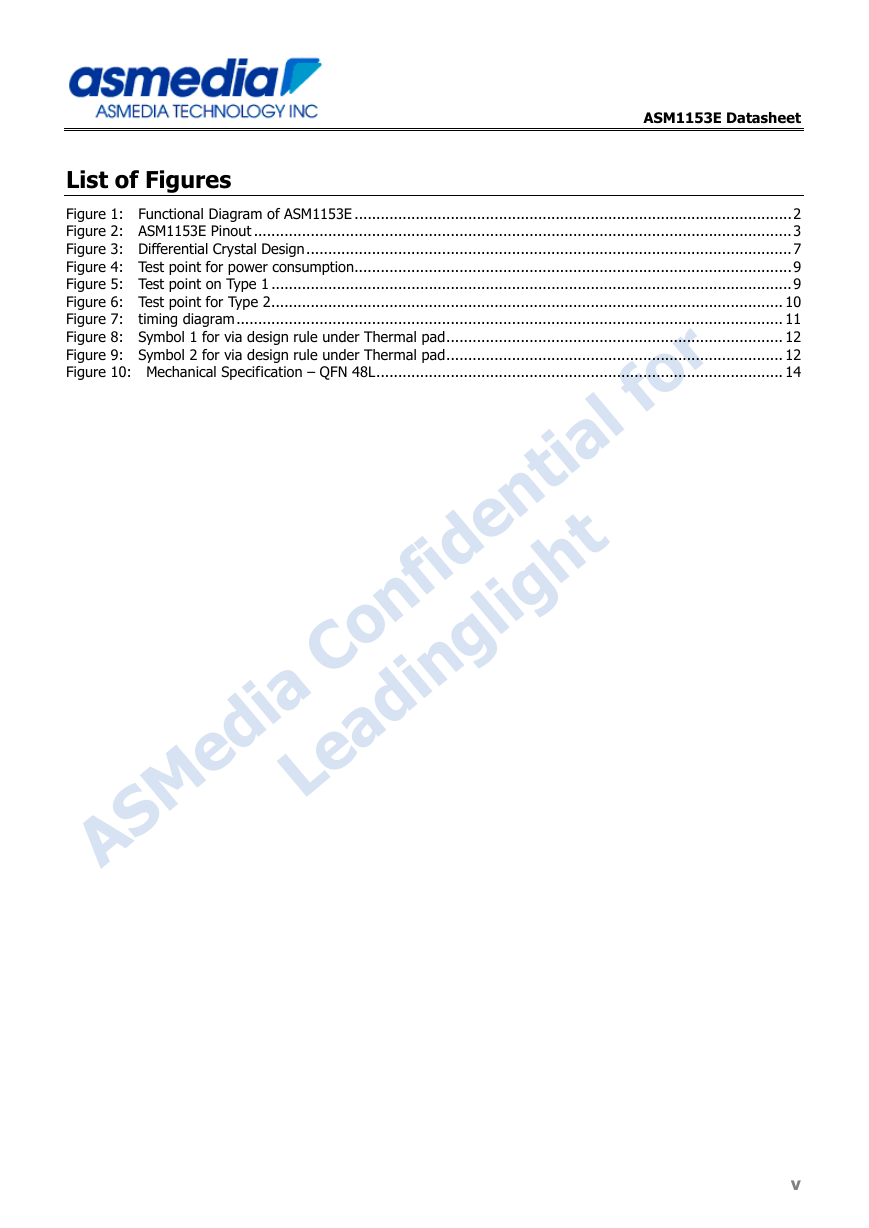

ASM1153E Datasheet List of Figures Figure 1: Functional Diagram of ASM1153E .................................................................................................... 2 Figure 2: ASM1153E Pinout ........................................................................................................................... 3 Figure 3: Differential Crystal Design ............................................................................................................... 7 Figure 4: Test point for power consumption.................................................................................................... 9 Figure 5: Test point on Type 1 ....................................................................................................................... 9 Figure 6: Test point for Type 2 ..................................................................................................................... 10 Figure 7: timing diagram ............................................................................................................................. 11 Figure 8: Symbol 1 for via design rule under Thermal pad ............................................................................. 12 Figure 9: Symbol 2 for via design rule under Thermal pad ............................................................................. 12 Figure 10: Mechanical Specification – QFN 48L ............................................................................................. 14 A S M edia C o nfidential for Leadin glig ht v

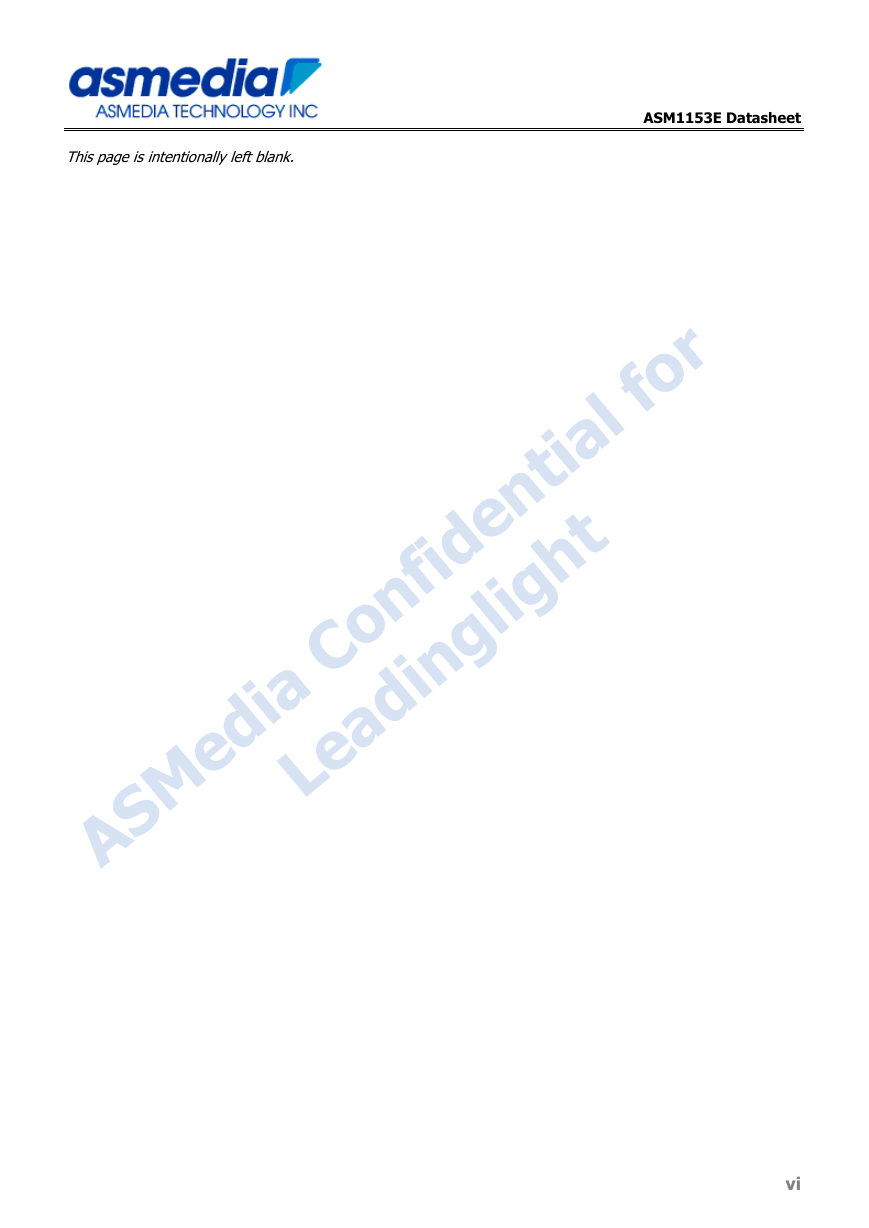

ASM1153E Datasheet This page is intentionally left blank. A S M edia C o nfidential for Leadin glig ht vi

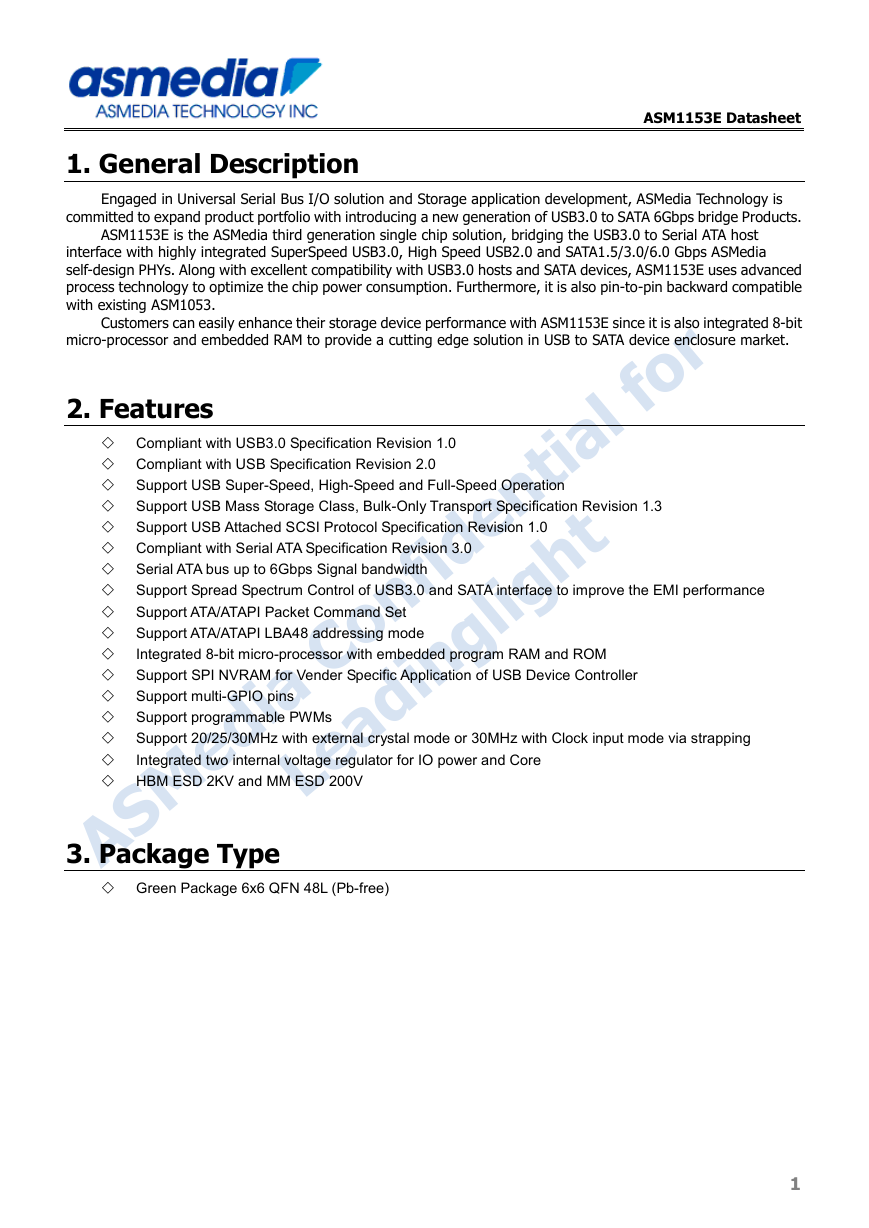

ASM1153E Datasheet 1. General Description Engaged in Universal Serial Bus I/O solution and Storage application development, ASMedia Technology is committed to expand product portfolio with introducing a new generation of USB3.0 to SATA 6Gbps bridge Products. 2. Features ASM1153E is the ASMedia third generation single chip solution, bridging the USB3.0 to Serial ATA host interface with highly integrated SuperSpeed USB3.0, High Speed USB2.0 and SATA1.5/3.0/6.0 Gbps ASMedia self-design PHYs. Along with excellent compatibility with USB3.0 hosts and SATA devices, ASM1153E uses advanced process technology to optimize the chip power consumption. Furthermore, it is also pin-to-pin backward compatible with existing ASM1053. Customers can easily enhance their storage device performance with ASM1153E since it is also integrated 8-bit micro-processor and embedded RAM to provide a cutting edge solution in USB to SATA device enclosure market. A S M edia C o nfidential for Leadin glig ht  Compliant with USB3.0 Specification Revision 1.0  Compliant with USB Specification Revision 2.0  Support USB Super-Speed, High-Speed and Full-Speed Operation  Support USB Mass Storage Class, Bulk-Only Transport Specification Revision 1.3  Support USB Attached SCSI Protocol Specification Revision 1.0  Compliant with Serial ATA Specification Revision 3.0  Serial ATA bus up to 6Gbps Signal bandwidth  Support Spread Spectrum Control of USB3.0 and SATA interface to improve the EMI performance  Support ATA/ATAPI Packet Command Set  Support ATA/ATAPI LBA48 addressing mode   Support SPI NVRAM for Vender Specific Application of USB Device Controller  Support multi-GPIO pins  Support programmable PWMs  Support 20/25/30MHz with external crystal mode or 30MHz with Clock input mode via strapping   HBM ESD 2KV and MM ESD 200V Integrated 8-bit micro-processor with embedded program RAM and ROM Integrated two internal voltage regulator for IO power and Core 3. Package Type  Green Package 6x6 QFN 48L (Pb-free) 1

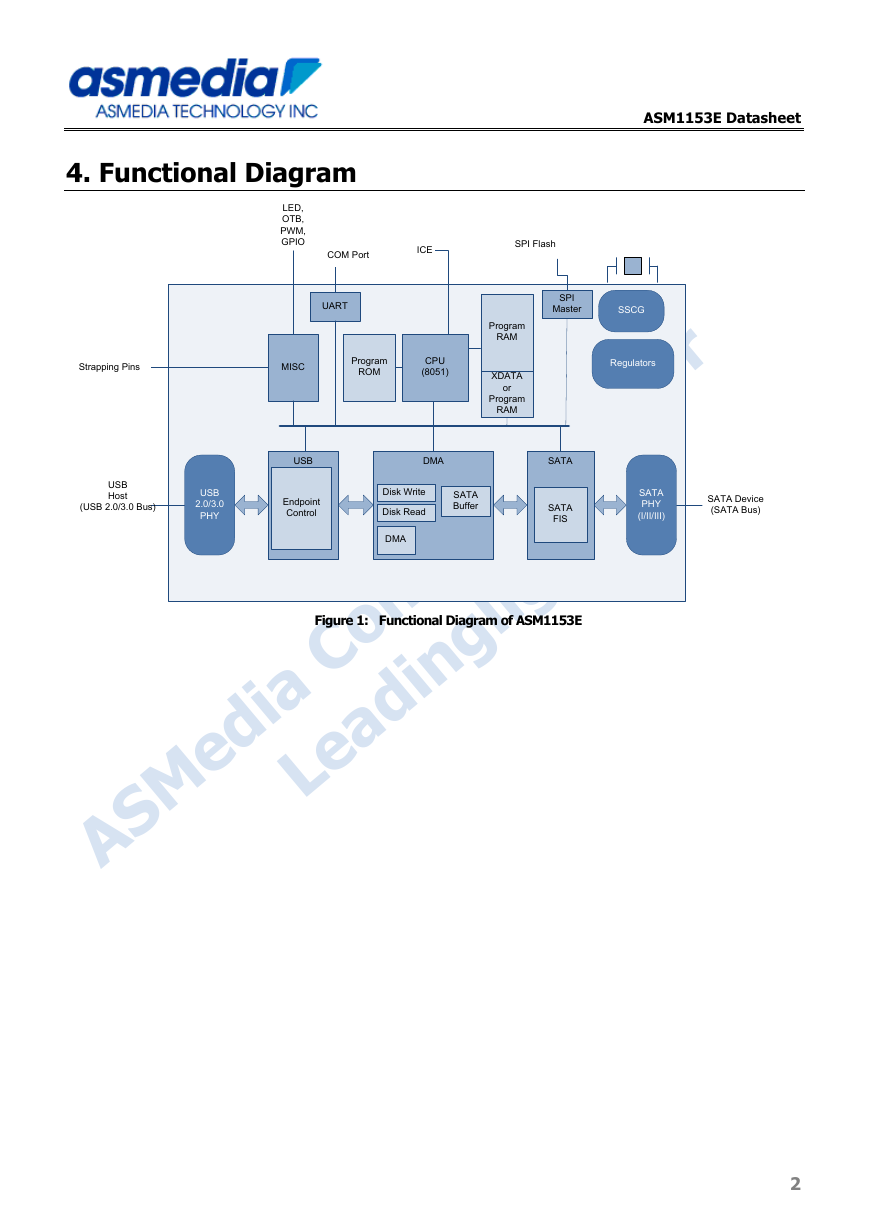

ASM1153E Datasheet 4. Functional Diagram LED, OTB, PWM, GPIO COM Port ICE SPI Flash USB Host (USB 2.0/3.0 Bus) DMA SATA Device (SATA Bus) Strapping Pins MISC CPU (8051) Regulators UART SATA Buffer USB DMA SPI Master SSCG XDATA or SATA SATA FIS Disk Write Disk Read Program ROM Program RAM Program RAM Endpoint Control USB 2.0/3.0 PHY A S M edia C o nfidential for Leadin glig ht Figure 1: Functional Diagram of ASM1153E SATA PHY (I/II/III) 2
