TABLE OF CONTENTS

Before Use

Information for Your Safety

Preparation

Standard Accessories

Names of the Components

Quick Guide

About the Batteries

Inserting/Removing the Batteries/Card (Optional)

About the Built-in Memory/the Card

Setting Up the Clock

Basics of Modes and Menus

Basic settings (Setup menu)

LCD Monitor and Changesto the Display

Basic

Taking Pictures Easily ( Intelligent Auto Mode)

Taking Pictures in the Desired Setting( Program AE Mode)

Taking Pictures with the Zoom

Playing Back Pictures (Q Normal playback mode)

Deleting Pictures

Advanced-Shooting

About the LCD Monitor

Taking Pictures Using the Built-in Flash

Taking Close-up Pictures (AF w Macro Shooting)

Taking Pictures with the Self-timer

Compensating the Exposure

Auto Bracket Recording

Set Aperture/Shutter Speed/Exposure (A/S/M)

Taking Pictures of People, Scenery, etc. Expressively (Advanced Scene Mode)

Scene Mode

Motion Picture Mode

Vacation Date Recording

Displaying the Time at the Travel Destination

Using the [REC] Mode Menu

Advanced-Viewing

Displaying Multiple Screens (Multi Playback)

Displaying Pictures by Recording Date ( CALENDAR)

Using the Playback Zoom

Playing Back Pictures Automatically (a Slide Show)

Searching by Recording Information ( Category Playback)

Playing Back Your Favorite Pictures (★ Favorite Play)

Playing Back Motion Pictures

Using the [PLAYBACK] Mode Menu

Connecting to other equipment

Connecting to a PC

Connecting to a Pict-Bridgecompliant Printer

Playing Back Pictures with a TV Screen

Others

Screen Display

Cautions for Use

Message Display

Troubleshooting

Number of Recordable Pictures and Available Recording Time

Specifications

Digital Camera Accessory System

Digital Camera Accessory Order Form (For USA Customers)

Request for Service Notice (For USA Only)

Limited Warranty (For USA Only)

Customer Services Directory (For USA Only)

Précautions à prendre (Pour le Canada seulement)

Index

Operating Instructions Digital Camera Model No. DMC-LZ10 DMC-LZ8 Before connecting, operating or adjusting this product, please read the instructions completely. For USA assistance, please call: 1-800-211-PANA (7262) or, contact us via the web at: http://www.panasonic.com/contactinfo For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or send e-mail to: lumixconcierge@ca.panasonic.com P PC VQT1L86 VQT1L86_DMC-LZ10_P-PC.indd 1 VQT1L86_DMC-LZ10_P-PC.indd 1 2008/01/21 9:38:10 2008/01/21 9:38:10

Before Use Carefully observe copyright laws. Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted. • Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions. SDHC Logo is a trademark. Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned. THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Product Identiﬁ cation Marking is located on the bottom of unit. Dear Customer, Thank you for choosing Panasonic! You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to ﬁ ll in the information in the box below. The serial number is on the tag located on the underside of your Camera. Be sure to retain this manual as your convenient Camera information source. Model No. Serial No. • • Information for Your Safety WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, * DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. USE ONLY THE RECOMMENDED ACCESSORIES. DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. * * 2 VQT1L86 VQT1L86_DMC-LZ10_P-PC.indd 2 VQT1L86_DMC-LZ10_P-PC.indd 2 2008/01/21 9:38:11 2008/01/21 9:38:11

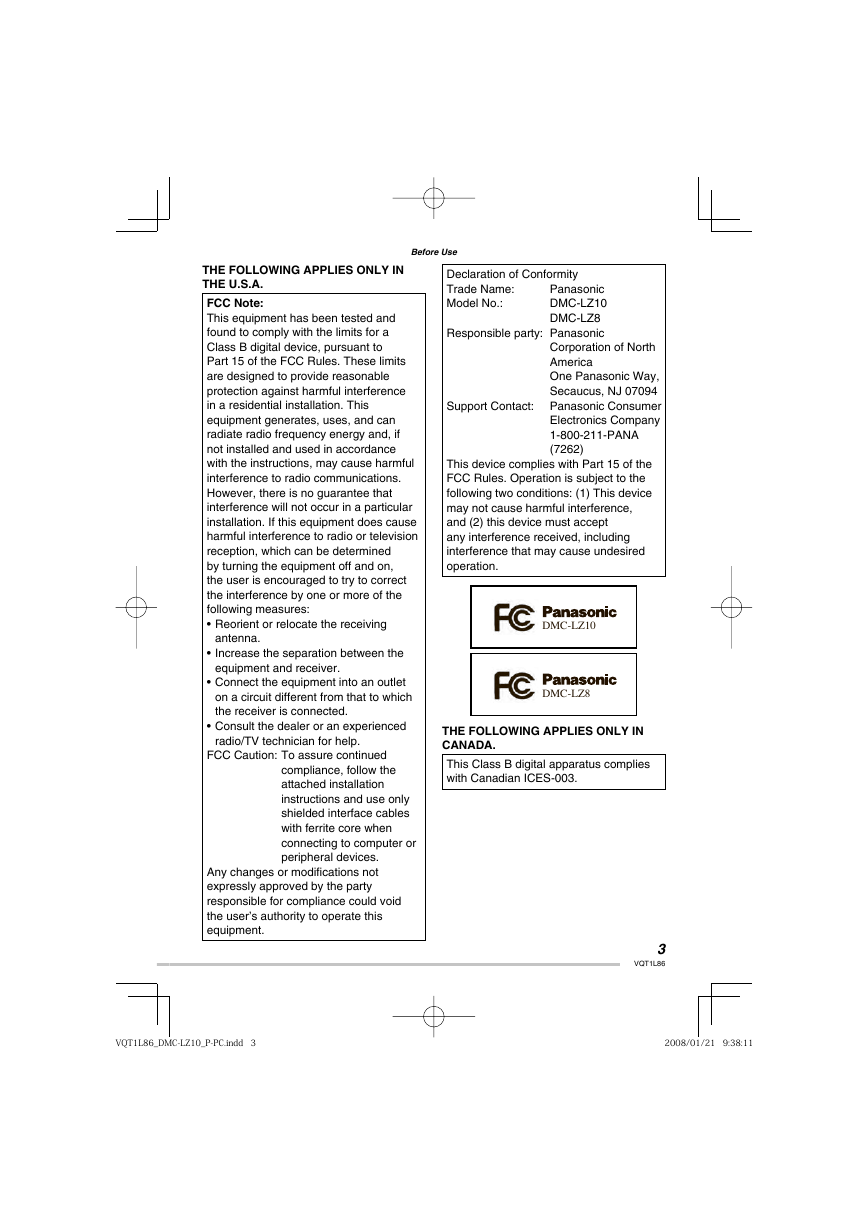

Before Use THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. • • • FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables with ferrite core when connecting to computer or peripheral devices. Any changes or modiﬁ cations not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Declaration of Conformity Trade Name: Model No.: Responsible party: Panasonic Panasonic DMC-LZ10 DMC-LZ8 Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Support Contact: Panasonic Consumer Electronics Company 1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DMC-LZ10 DMC-LZ8 THE FOLLOWING APPLIES ONLY IN CANADA. This Class B digital apparatus complies with Canadian ICES-003. 3 VQT1L86 VQT1L86_DMC-LZ10_P-PC.indd 3 VQT1L86_DMC-LZ10_P-PC.indd 3 2008/01/21 9:38:11 2008/01/21 9:38:11

Before Use ■ • About the LCD monitor Do not press the LCD monitor with excessive force. Uneven colors may appear on the LCD monitor and it may malfunction. Condensation may form on the LCD monitor in places with large temperature differences. Wipe the condensation with a soft, dry cloth. If the camera is cold when you turn it on, the picture on the LCD monitor will be slightly darker than usual at ﬁ rst. However, the picture will return to normal brightness when the internal temperature of the camera increases. Extremely high precision technology is employed to produce the LCD monitor screen. However there may be some dark or bright spots (red, blue or green) on the screen. This is not a malfunction. The LCD monitor screen has more than 99.99% effective pixels with a mere 0.01% of the pixels inactive or always lit. The spots will not be recorded in pictures stored in the built-in memory or a card. -If you see this symbol- Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. • • ■ • • • • Care for the camera Do not strongly shake or bump the camera. The camera may not be operated normally, recording of pictures may be disabled or the lens and the LCD monitor may be damaged. Sand or dust may cause the camera to malfunction. Make sure that sand or dust does not get into the lens, the ﬂ ash or the terminals when using the camera on a beach etc. Make sure that water does not get into the camera when using it on a rainy day or on a beach. This camera is not waterproof. In case the camera comes into contact with water, wipe it off with a dry cloth. When the camera does not operate normally, contact your dealer or your nearest Service Center. 4 VQT1L86 VQT1L86_DMC-LZ10_P-PC.indd 4 VQT1L86_DMC-LZ10_P-PC.indd 4 2008/01/21 9:38:12 2008/01/21 9:38:12

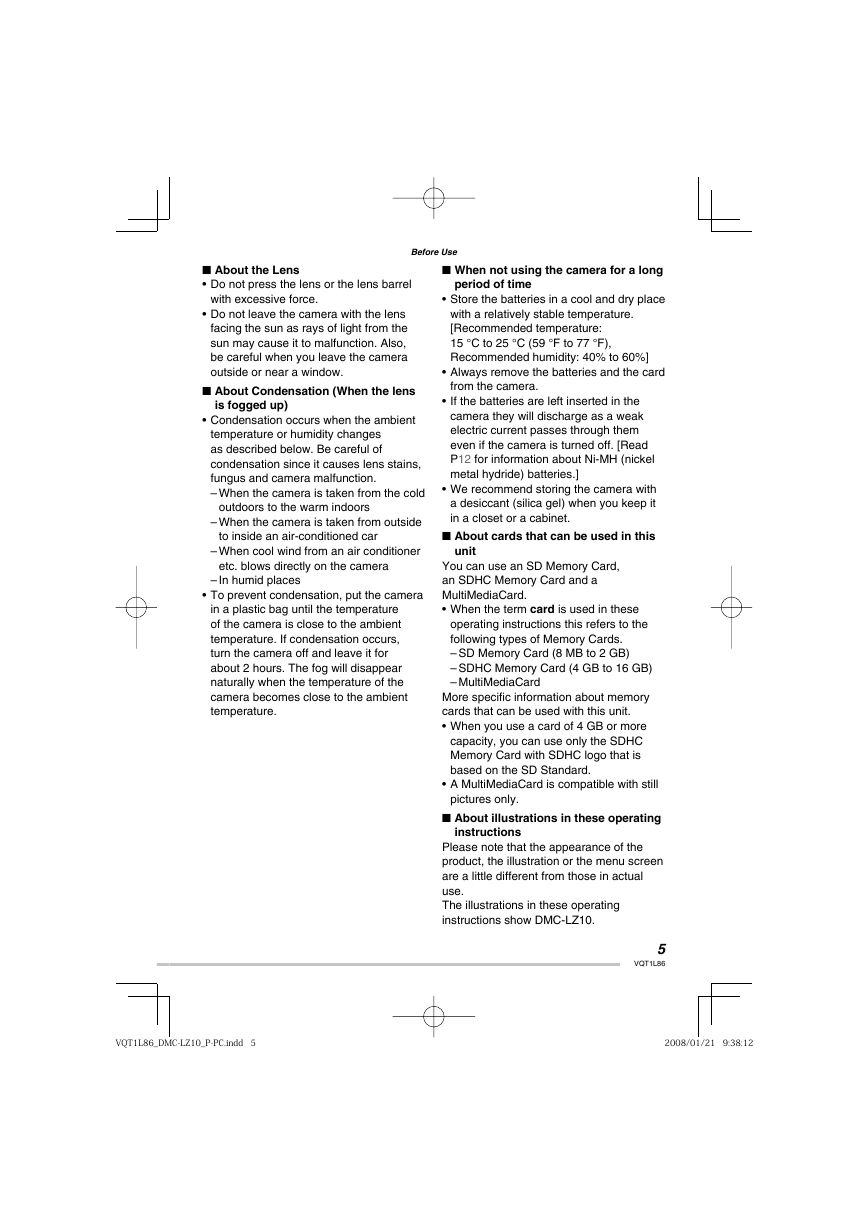

Before Use ■ ■ • • ■ • • About the Lens Do not press the lens or the lens barrel with excessive force. Do not leave the camera with the lens facing the sun as rays of light from the sun may cause it to malfunction. Also, be careful when you leave the camera outside or near a window. About Condensation (When the lens is fogged up) Condensation occurs when the ambient temperature or humidity changes as described below. Be careful of condensation since it causes lens stains, fungus and camera malfunction. – When the camera is taken from the cold outdoors to the warm indoors When the camera is taken from outside to inside an air-conditioned car When cool wind from an air conditioner etc. blows directly on the camera In humid places – To prevent condensation, put the camera in a plastic bag until the temperature of the camera is close to the ambient temperature. If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will disappear naturally when the temperature of the camera becomes close to the ambient temperature. – – When not using the camera for a long period of time Store the batteries in a cool and dry place with a relatively stable temperature. [Recommended temperature: 15 °C to 25 °C (59 °F to 77 °F), Recommended humidity: 40% to 60%] Always remove the batteries and the card from the camera. If the batteries are left inserted in the camera they will discharge as a weak electric current passes through them even if the camera is turned off. [Read P12 for information about Ni-MH (nickel metal hydride) batteries.] We recommend storing the camera with a desiccant (silica gel) when you keep it in a closet or a cabinet. About cards that can be used in this unit • • • • ■ You can use an SD Memory Card, an SDHC Memory Card and a MultiMediaCard. • When the term card is used in these operating instructions this refers to the following types of Memory Cards. – – – SD Memory Card (8 MB to 2 GB) SDHC Memory Card (4 GB to 16 GB) MultiMediaCard More speciﬁ c information about memory cards that can be used with this unit. • When you use a card of 4 GB or more capacity, you can use only the SDHC Memory Card with SDHC logo that is based on the SD Standard. A MultiMediaCard is compatible with still pictures only. About illustrations in these operating instructions ■ • Please note that the appearance of the product, the illustration or the menu screen are a little different from those in actual use. The illustrations in these operating instructions show DMC-LZ10. 5 VQT1L86 VQT1L86_DMC-LZ10_P-PC.indd 5 VQT1L86_DMC-LZ10_P-PC.indd 5 2008/01/21 9:38:12 2008/01/21 9:38:12

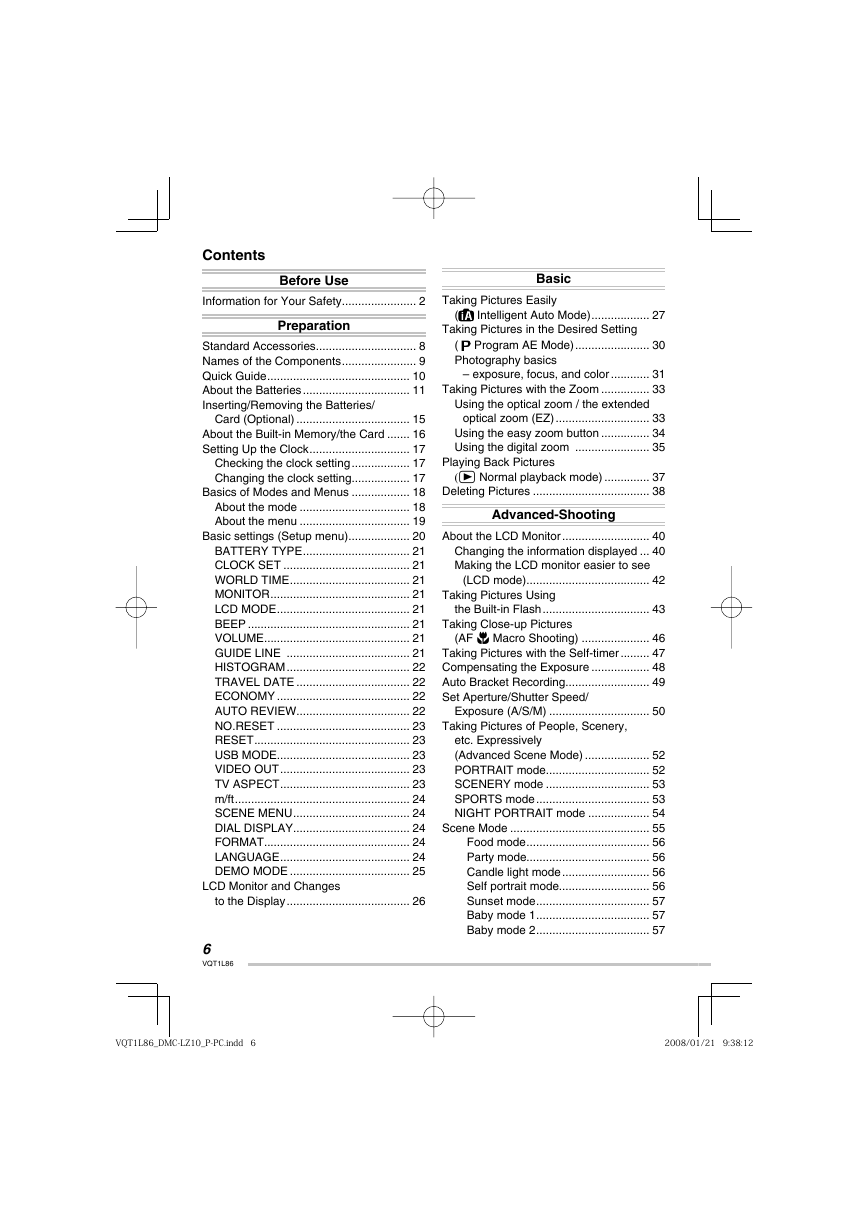

Contents Before Use Basic Information for Your Safety ....................... 2 Preparation Standard Accessories ............................... 8 Names of the Components ....................... 9 Quick Guide ............................................ 10 About the Batteries ................................. 11 Inserting/Removing the Batteries/ Card (Optional) ................................... 15 About the Built-in Memory/the Card ....... 16 Setting Up the Clock ............................... 17 Checking the clock setting .................. 17 Changing the clock setting.................. 17 Basics of Modes and Menus .................. 18 About the mode .................................. 18 About the menu .................................. 19 Basic settings (Setup menu) ................... 20 BATTERY TYPE ................................. 21 CLOCK SET ....................................... 21 WORLD TIME ..................................... 21 MONITOR ........................................... 21 LCD MODE ......................................... 21 BEEP .................................................. 21 VOLUME............................................. 21 GUIDE LINE ...................................... 21 HISTOGRAM ...................................... 22 TRAVEL DATE ................................... 22 ECONOMY ......................................... 22 AUTO REVIEW................................... 22 NO.RESET ......................................... 23 RESET ................................................ 23 USB MODE......................................... 23 VIDEO OUT ........................................ 23 TV ASPECT ........................................ 23 m/ft ...................................................... 24 SCENE MENU .................................... 24 DIAL DISPLAY.................................... 24 FORMAT............................................. 24 LANGUAGE ........................................ 24 DEMO MODE ..................................... 25 LCD Monitor and Changes to the Display ...................................... 26 6 VQT1L86 Taking Pictures Easily ( Intelligent Auto Mode) .................. 27 Taking Pictures in the Desired Setting Program AE Mode) ....................... 30 ( Photography basics – exposure, focus, and color ............ 31 Taking Pictures with the Zoom ............... 33 Using the optical zoom / the extended optical zoom (EZ) ............................. 33 Using the easy zoom button ............... 34 Using the digital zoom ....................... 35 Playing Back Pictures (Q Normal playback mode) .............. 37 Deleting Pictures .................................... 38 Advanced-Shooting About the LCD Monitor ........................... 40 Changing the information displayed ... 40 Making the LCD monitor easier to see (LCD mode) ...................................... 42 Taking Pictures Using the Built-in Flash ................................. 43 Taking Close-up Pictures (AF w Macro Shooting) ..................... 46 Taking Pictures with the Self-timer ......... 47 Compensating the Exposure .................. 48 Auto Bracket Recording .......................... 49 Set Aperture/Shutter Speed/ Exposure (A/S/M) ............................... 50 Taking Pictures of People, Scenery, etc. Expressively (Advanced Scene Mode) .................... 52 PORTRAIT mode................................ 52 SCENERY mode ................................ 53 SPORTS mode ................................... 53 NIGHT PORTRAIT mode ................... 54 Scene Mode ........................................... 55 Food mode ...................................... 56 Party mode...................................... 56 Candle light mode ........................... 56 Self portrait mode............................ 56 Sunset mode ................................... 57 Baby mode 1 ................................... 57 Baby mode 2 ................................... 57 VQT1L86_DMC-LZ10_P-PC.indd 6 VQT1L86_DMC-LZ10_P-PC.indd 6 2008/01/21 9:38:12 2008/01/21 9:38:12

Pet mode......................................... 58 High sensitivity mode ...................... 58 Beach mode .................................... 58 Starry sky mode .............................. 58 Fireworks mode .............................. 59 Snow mode ..................................... 59 Aerial photo mode ........................... 59 High-speed burst mode................... 60 Motion Picture Mode ............................... 61 Vacation Date Recording ........................ 63 Displaying the Time at the Travel Destination .......................................... 65 Using the [REC] Mode Menu .................. 67 [PICTURE SIZE] / [QUALITY] ............. 68 [ASPECT RATIO] ............................... 69 [INTELLIGENT ISO] ........................... 69 [SENSITIVITY] .................................... 70 [WHITE BALANCE] ............................ 70 [METERING MODE] ........................... 72 [AF MODE] / [QUICK AF] ................... 73 [BURST].............................................. 75 [COLOR EFFECT] .............................. 75 [PICT.ADJ.] ......................................... 76 [STABILIZER] ..................................... 76 [MIN. SHTR SPEED] .......................... 77 [AF ASSIST LAMP]............................. 77 Advanced-Viewing Displaying Multiple Screens (Multi Playback) .................................. 78 Displaying Pictures by Recording Date ( CALENDAR) ............................... 79 Using the Playback Zoom ....................... 80 Playing Back Pictures Automatically (a Slide Show) ................................ 81 Searching by Recording Information ( Category Playback) ..................... 83 Playing Back Your Favorite Pictures (★ Favorite Play) ............................... 84 Playing Back Motion Pictures ................. 85 Using the [PLAYBACK] Mode Menu ...... 86 [CALENDAR] ...................................... 86 [TITLE EDIT] ....................................... 86 [TEXT STAMP] ................................... 88 [RESIZE] ............................................. 90 [TRIMMING]........................................ 92 [ASPECT CONV.] ............................... 93 [ROTATE] / [ROTATE DISP.] ............. 94 [FAVORITE] ........................................ 95 [DPOF PRINT] .................................... 96 [PROTECT]......................................... 98 [COPY]................................................ 99 Connecting to other equipment Connecting to a PC .............................. 100 Connecting to a PictBridge- compliant Printer ............................... 103 Playing Back Pictures with a TV Screen ......................................... 107 Others Screen Display ..................................... 108 Cautions for Use ................................... 110 Message Display .................................. 112 Troubleshooting .................................... 114 Number of Recordable Pictures and Available Recording Time ................. 120 Speciﬁ cations ....................................... 124 Digital Camera Accessory System ....... 127 Digital Camera Accessory Order Form (For USA Customers) ............................... 128 Request for Service Notice (For USA Only) ................................. 129 Limited Warranty (For USA Only) ................................. 130 Customer Services Directory (For USA Only) ..................................... 132 Précautions à prendre (Pour le Canada seulement) ............. 133 Index ..................................................... 135 7 VQT1L86 VQT1L86_DMC-LZ10_P-PC.indd 7 VQT1L86_DMC-LZ10_P-PC.indd 7 2008/01/21 9:38:12 2008/01/21 9:38:12

Standard Accessories Before using your camera, check the contents. Preparation ■ Batteries AA Alkaline batteries (LR6) ■ Strap VFC4297 ■ AV Cable K1HA08CD0008 ■ USB Connection Cable K1HA08CD0007 ■ CD-ROM • • • Card is optional. You can record or play back pictures on the built-in memory when you are not using a card. For information about optional accessories, please refer to “Digital Camera Accessory System”. ( P127 ) If any of the accessories are lost, customers in the USA should contact Panasonic’s parts department at 1 800 833-9626 and customers in Canada should contact 1 800 99-LUMIX (1-8- 995-8649) for further information about obtaining. 8 VQT1L86 VQT1L86_DMC-LZ10_P-PC.indd 8 VQT1L86_DMC-LZ10_P-PC.indd 8 2008/01/21 9:38:13 2008/01/21 9:38:13
