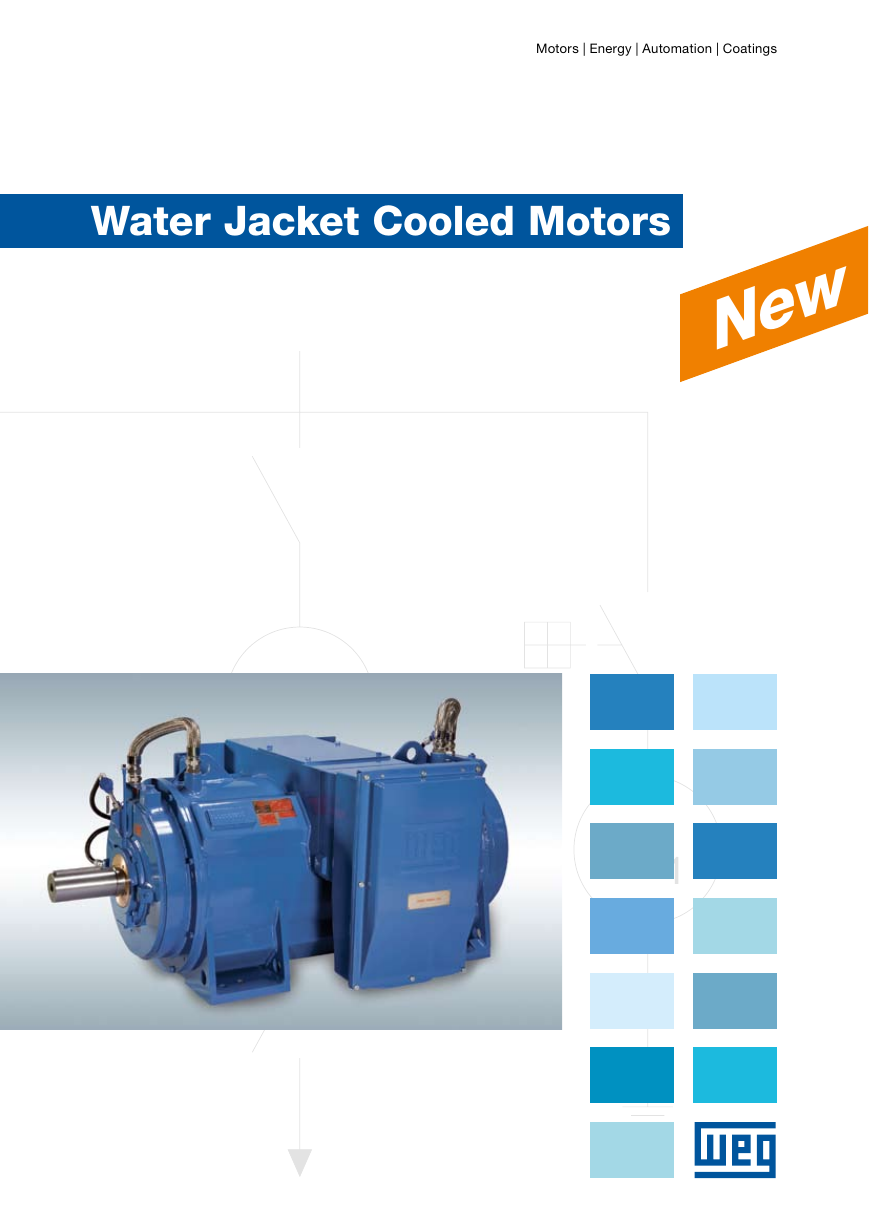

    Motors | Energy | Automation | Coatings Water Jacket Cooled Motors New

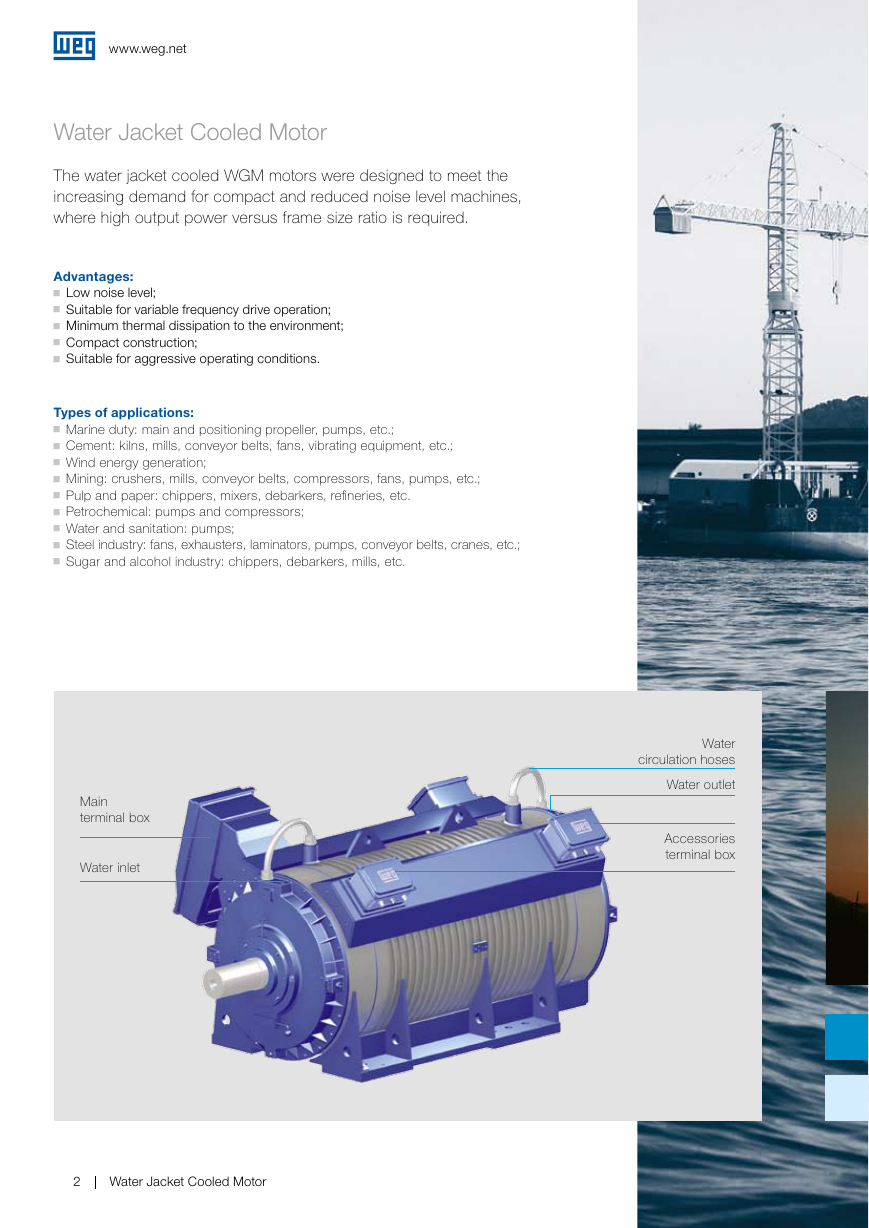

    www.weg.net Water Jacket Cooled Motor The water jacket cooled WGM motors were designed to meet the increasing demand for compact and reduced noise level machines, where high output power versus frame size ratio is required. Advantages: g Low noise level; g Suitable for variable frequency drive operation; g Minimum thermal dissipation to the environment; g Compact construction; g Suitable for aggressive operating conditions. Types of applications: g Marine duty: main and positioning propeller, pumps, etc.; g Cement: kilns, mills, conveyor belts, fans, vibrating equipment, etc.; g Wind energy generation; g Mining: crushers, mills, conveyor belts, compressors, fans, pumps, etc.; g Pulp and paper: chippers, mixers, debarkers, refineries, etc. g Petrochemical: pumps and compressors; g Water and sanitation: pumps; g Steel industry: fans, exhausters, laminators, pumps, conveyor belts, cranes, etc.; g Sugar and alcohol industry: chippers, debarkers, mills, etc. Water circulation hoses Water outlet Accessories terminal box Main terminal box Water inlet  Water Jacket Cooled Motor
    www.weg.net Water Jacket Cooled Motor

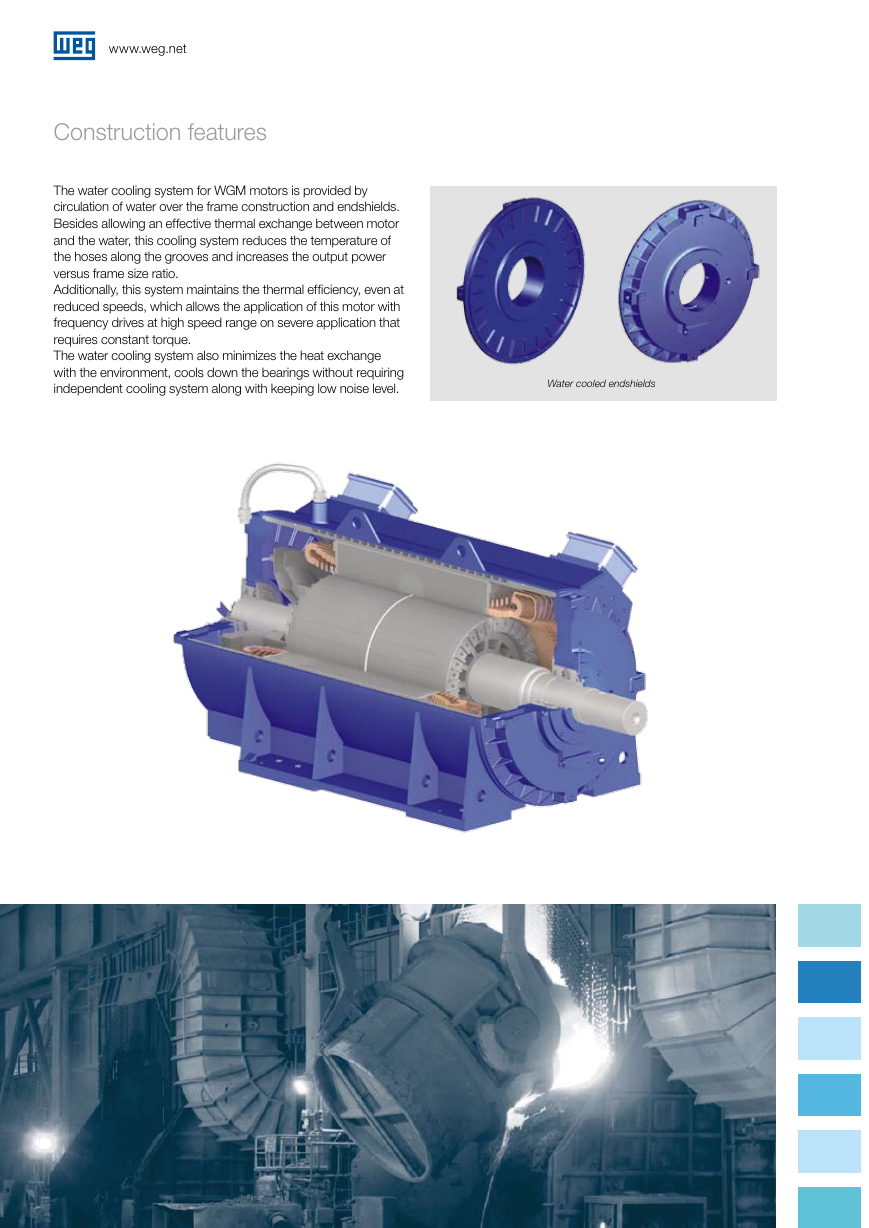

    www.weg.net Construction features The water cooling system for WGM motors is provided by circulation of water over the frame construction and endshields. Besides allowing an effective thermal exchange between motor and the water, this cooling system reduces the temperature of the hoses along the grooves and increases the output power versus frame size ratio. Additionally, this system maintains the thermal efficiency, even at reduced speeds, which allows the application of this motor with frequency drives at high speed range on severe application that requires constant torque. The water cooling system also minimizes the heat exchange with the environment, cools down the bearings without requiring independent cooling system along with keeping low noise level. Water cooled endshields  Water Jacket Cooled Motor

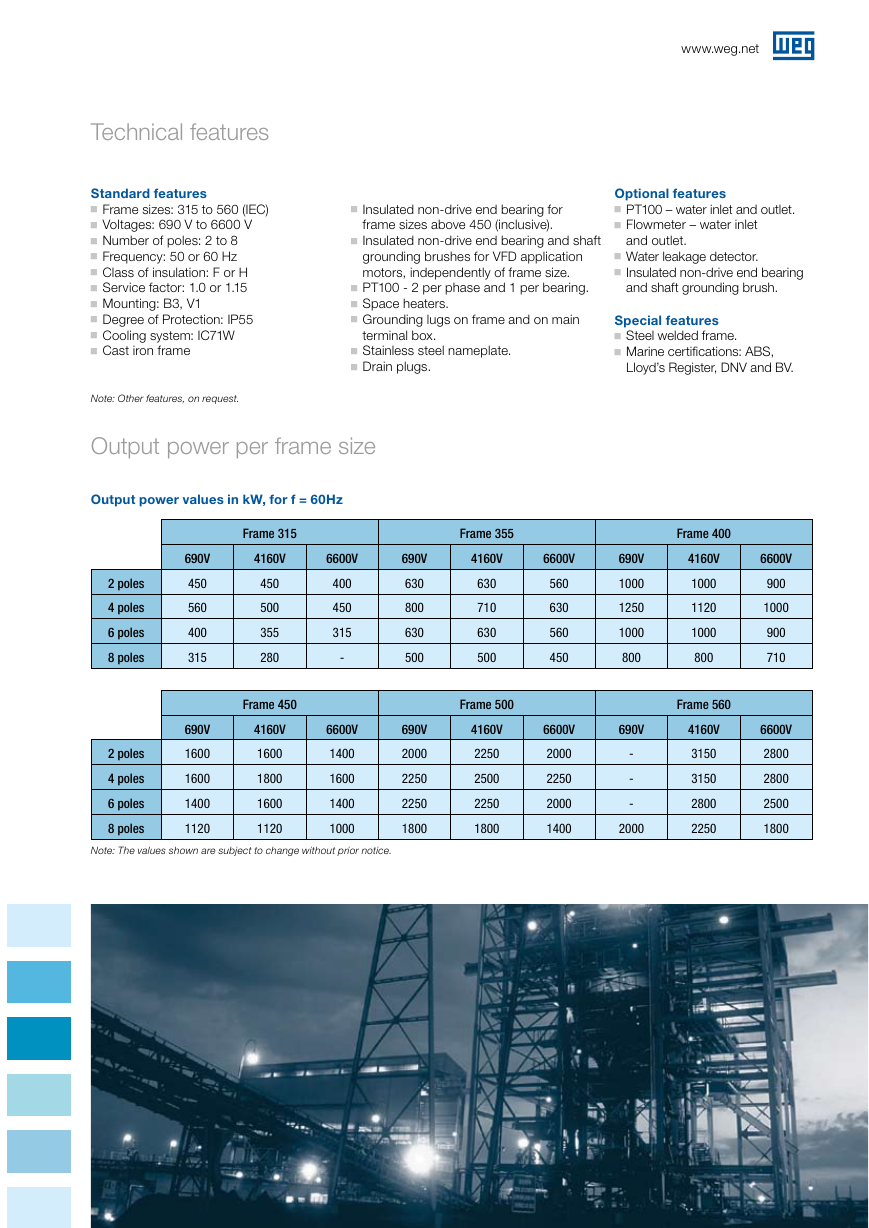

    Technical features Standard features g Frame sizes: 1 to 60 (IEC) g Voltages: 690 V to 6600 V g Number of poles:  to 8 g Frequency: 0 or 60 Hz g Class of insulation: F or H g Service factor: 1.0 or 1.1 g Mounting: B, V1 g Degree of Protection: IP g Cooling system: IC71W g Cast iron frame Note: Other features, on request. frame sizes above 0 (inclusive). g Insulated non-drive end bearing for g Insulated non-drive end bearing and shaft grounding brushes for VFD application motors, independently of frame size. g PT100 -  per phase and 1 per bearing. g Space heaters. g Grounding lugs on frame and on main g Stainless steel nameplate. g Drain plugs. terminal box. Output power per frame size Output power values in kW, for f = 60Hz Frame 315 Frame 355 690V 4160V 6600V 690V 4160V 6600V www.weg.net Optional features g PT100 – water inlet and outlet. g Flowmeter – water inlet and outlet. g Water leakage detector. g Insulated non-drive end bearing and shaft grounding brush. Special features g Steel welded frame. g Marine certifications: ABS, Lloyd’s Register, DNV and BV. Frame 400 4160V 6600V 1000 1120 1000 800 900 1000 900 710 690V 1000 1250 1000 800 630 710 630 500 560 630 560 450 2 poles 4 poles 6 poles 8 poles 2 poles 4 poles 6 poles 8 poles 450 560 400 315 690V 1600 1600 1400 1120 450 500 355 280 400 450 315 - Frame 450 4160V 6600V 1600 1800 1600 1120 1400 1600 1400 1000 630 800 630 500 690V 2000 2250 2250 1800 Note: The values shown are subject to change without prior notice. Frame 500 Frame 560 4160V 6600V 690V 4160V 6600V 2250 2500 2250 1800 2000 2250 2000 1400 - - - 2000 3150 3150 2800 2250 2800 2800 2500 1800 Water Jacket Cooled Motor

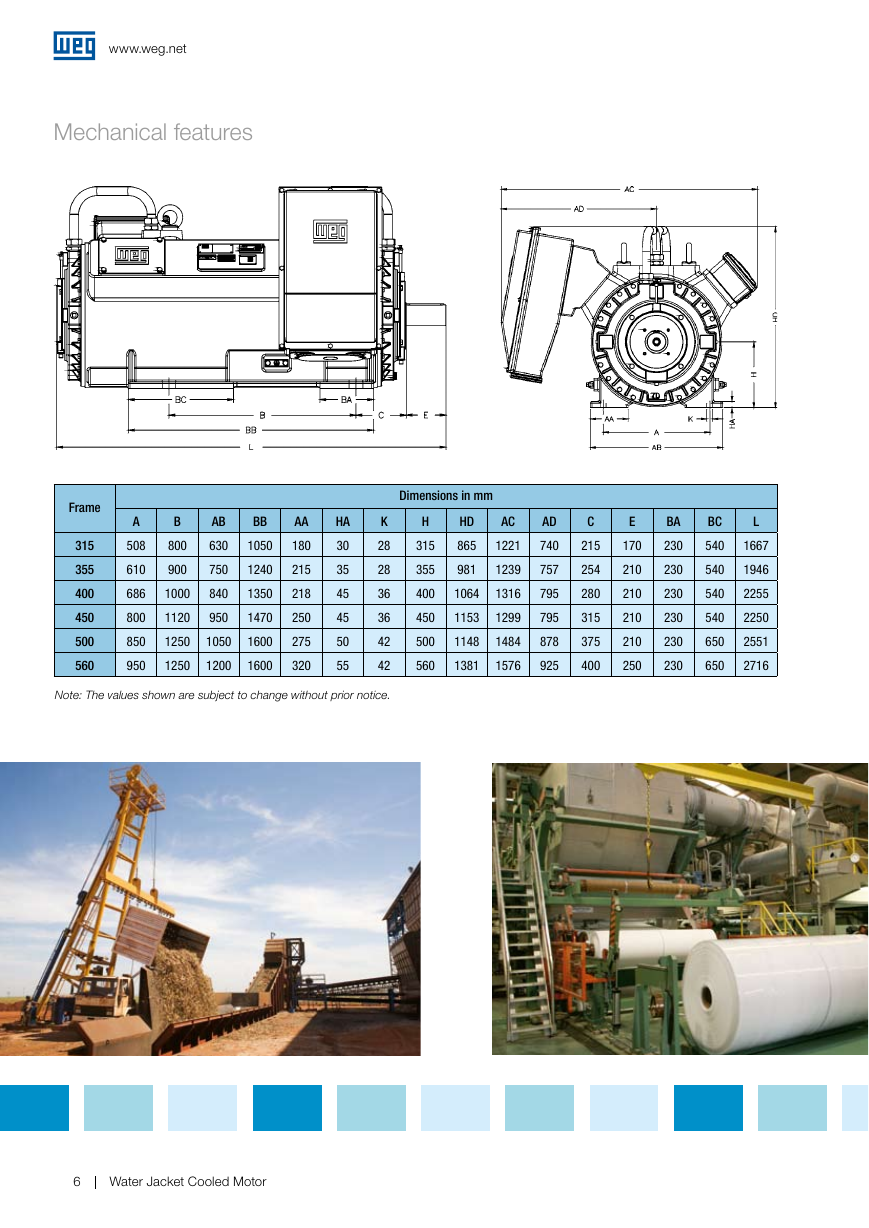

    www.weg.net Mechanical features Frame 315 355 400 450 500 560 Dimensions in mm A 508 610 686 800 850 950 B 800 900 1000 1120 1250 1250 AB 630 750 840 950 1050 1200 BB 1050 1240 1350 1470 1600 1600 AA 180 215 218 250 275 320 HA 30 35 45 45 50 55 K 28 28 36 36 42 42 H 315 355 400 450 500 560 HD 865 981 1064 1153 1148 1381 AC 1221 1239 1316 1299 1484 1576 AD 740 757 795 795 878 925 C 215 254 280 315 375 400 E 170 210 210 210 210 250 BA 230 230 230 230 230 230 BC 540 540 540 540 650 650 L 1667 1946 2255 2250 2551 2716 Note: The values shown are subject to change without prior notice. 6 Water Jacket Cooled Motor
    www.weg.net Water Jacket Cooled Motor 7
    WEG Worldwide Operations ARGENTINA WEG EQUIPAMIENTOS ELECTRICOS S.A. (Headquarters San Francisco-Cordoba) Sgo. Pampiglione 89 Parque Industrial San Francisco 00 - San Francisco Phone(s): + (6) 18 Fax: + (6) 19 info-ar@weg.net www.weg.net/ar AUSTRALIA WEG AUSTRALIA PTY. LTD.  Dalmore Drive Carribean Park Industrial Estate Scoresby VIC 179 - Melbourne Phone(s): 61 () 976 600 Fax: 61 () 97 088 info-au@weg.net www.weg.net/au BELGIUM WEG BENELUX S.A. Rue de l’Industrie 0 D, 100 Nivelles Phone(s): +  (67) 88-80 Fax: +  (67) 8-178 info-be@weg.net www.weg.net/be CHILE WEG CHILE S.A. Los Canteros 8600 La Reina - Santiago Phone(s): (6-) 78 8900 Fax: (6-) 78 890 info-cl@weg.net www.weg.net/cl CHINA WEG (NANTONG) ELECTRIC MOTOR MANUFACTURING CO., LTD. No. 18# - Xinkai South Road, Nantong Economic & Technical Development Zone, Nantong, Jiangsu Province. Phone(s): (86) 01-8989 Fax: (86) 01-89161 info-cn@weg.net www.weg.net/cn COLOMBIA WEG COLOMBIA LTDA Calle 6A N8 -  Portería II - Bodega 7 - San Cayetano II - Bogotá Phone(s): (7 1) 16 0166 Fax: (7 1) 16 077 info-co@weg.net www.weg.net/co FRANCE WEG FRANCE SAS ZI de Chenes – Le Loup 1 Rue du Morellon – BP 78 897 Saint Quentin Fallavier Phone(s): + (0)  7 99 11  Fax: + (0)  7 99 11  info-fr@weg.net www.weg.net/fr GERMANY WEG GERMANY GmbH Alfred-Nobel-Str. 7-9 D-06 Frechen Phone(s): +9 () 9 -0 Fax: +9 () 9 -10 info-de@weg.net www.weg.net/de INDIA WEG Electric (India) Pvt. Ltd. #8, Ground Floor, 1st Main Road, Lower Palace Orchards, Bangalore – 60 00 Phone(s): +91-80-18 007 +91-80-18 006 Fax: +91-80-6 76 info-in@weg.net www.weg.net/in ITALY WEG ITALIA S.R.L. V.le Brianza 0 - 009 - Cinisello Balsamo - Milano Phone(s): (9) 0 619- Fax: (9) 0 6601-78 info-it@weg.net www.weg.net/it JAPAN WEG ELECTRIC MOTORS JAPAN CO., LTD. Matsumoto Bldg. F, --7 Kamata, Ohta-ku, Tokyo, Japan 1-00 Phone(s): (81)  76-998 Fax: (81)  76-99 info-jp@weg.net www.weg.net/jp MEXICO WEG MEXICO, S.A. DE C.V. Carretera Jorobas-Tula Km. ., Manzana , Lote 1 Fraccionamiento Parque Industrial - Huehuetoca, Estado de México - C.P. 680 Phone(s): +  () 1 7 Fax: +  () 1 6 info-mx@weg.net www.weg.net/mx NETHERLANDS WEG NETHERLANDS Sales Office of WEG Benelux S.A. Hanzepoort C 77 DB Oldenzaal Phone(s): +1 (0) 1-71080 Fax: +1 (0) 1-71090 info-nl@weg.net www.weg.net/nl PORTUGAL WEG EURO - INDÚSTRIA ELÉCTRICA, S.A. Rua Eng. Frederico Ulrich Apartado 607 76-908 - Maia Phone(s): +1 9 77 70 Fax: +1 9 77 79 info-pt@weg.net www.weg.net/pt RUSSIA WEG RUSSIA Pochainskaya Str. 17 Nizhny Novgorod 60001 - Russia Phone(s): +7-81-780 Fax: +7-81-780 info-ru@weg.net www.weg.net/ru SPAIN WEG IBERIA S.L. Avenida de la Industria, 88 Coslada - Madrid Phone(s) : () 916  008 Fax : () 916  08 info-es@weg.net www.weg.net/es SINGAPORE WEG SINGAPORE PTE LTD 19, Kampong Ampat, #06-0A KA PLACE. Singapore 688. Phone(s): +6 688 9081 Fax: +6 688 1081 info-sg@weg.net www.weg.net/sg SWEDEN WEG SCANDINAVIA AB Box 10196 Verkstadgatan 9   Kungsbacka Phone(s): (6) 00 700 Fax: (6) 00 706 info-se@weg.net www.weg.net/se UK WEG ELECTRIC MOTORS (U.K.) LTD. 8/9 Walkers Road Manorside Industrial Estate North Moons Moat - Redditch Worcestershire B98 9HE Phone(s):  (0)17 96-78 Fax:  (0)17 91-1 info-uk@weg.net www.weg.net/uk UNITED ARAB EMIRATES WEG MIDDLE EAST FZE JAFZA – JEBEL ALI FREE ZONE Tower 18, 19th Floor, Office LB18190 Dubai – United Arab Emirates info-ae@weg.net www.weg.net/ae USA WEG ELECTRIC CORP. 17 Northbrook Parkway, Suite 90 Suwanee 00 Phone(s): 1-770-8-66 Fax: 1-770-8-16 info-us@weg.net www.weg.net/us VENEZUELA WEG INDUSTRIAS VENEZUELA C.A. Parcela T--A Transversal 9 Urb. Industrial Carabobo Catastral 79-101 Edf. ELIMECA Loc. ELIMECA, Zona Postal 00, Valencia, Edo. Carabobo Phone(s): (8) 1 88 99 Fax: (8) 1 88 99 info-ve@weg.net www.weg.net/ve . e c i t o n r o i r p t u o h t i WEG Equipamentos Elétricos S.A. International Division Av. Prefeito Waldemar Grubba, 000 896-900 - Jaraguá do Sul - SC - Brazil Phone:  (7) 76-00 Fax:  (7) 76-060 www.weg.net j w e g n a h c o t t c e b u s e r a n w o h s s e u a v e h T - 9 0 0  6 0 / 0 0 . 8  6 l
