在线考试系统-英文版.docx
一、Analysis of function requirement
1 .1Introduction
1.1.1 The purpose of user's manual
1.1.2 Background
1.1.3 Definition
1.2 Use
1.2.1 Function
1.2.2 Performance
1.2.2.1 Time characteristics
1.2.2.2 Flexibility
1.2.3 Security
1.3 Operating Environment
1.3.1 Data structure
1.4 The process of using
1.4.1 Installation and Initialization
1.4.2 Input
1.4.2.1 The realistic background of the input data
1.4.2.2 Output Format
1.4.3 To explain the output of each output
1.4.3.1 The realistic background of the output dat
1.4.3.2 Output Format
1.4.4 Query
1.4.5 Error handling and recovery
1.4.6 Terminal Operation
二、Description of technology framework
2.1 FRAMEWORK.
2.2 B/S structure and XML
三、Detailed design
3.1 General framework design(总体架构设计)
3.1.1The General principles of design for the sys
3.2 project pictures including the packages and c
3.3 UML for project, including class diagram, use
3.4 Database design.
3.5 XML design
四、Test
4.1 The test strategy
4.1.1 Introduce
4.1.2 Test design techniques
4.1.3 What is black-box testing.
4.1.4 Functions testing .
4.1.4.1 Administror’s function testing:
4.1.4.2 Teachers’ function testing:
4.2 The test cases, include black-box testing, wh
4.3 Test extreme data
五、Analysis of the tough technology and features
5.1 xml
5.2 eXist
5.3 JavaBean
5.4 Jquery
5.5 Ajax
六、Summary about the project and the course
七、Appendix
7.1 CreateXMLFile
7.2 SearchXML
7.3 UpdateOperate
八、 References

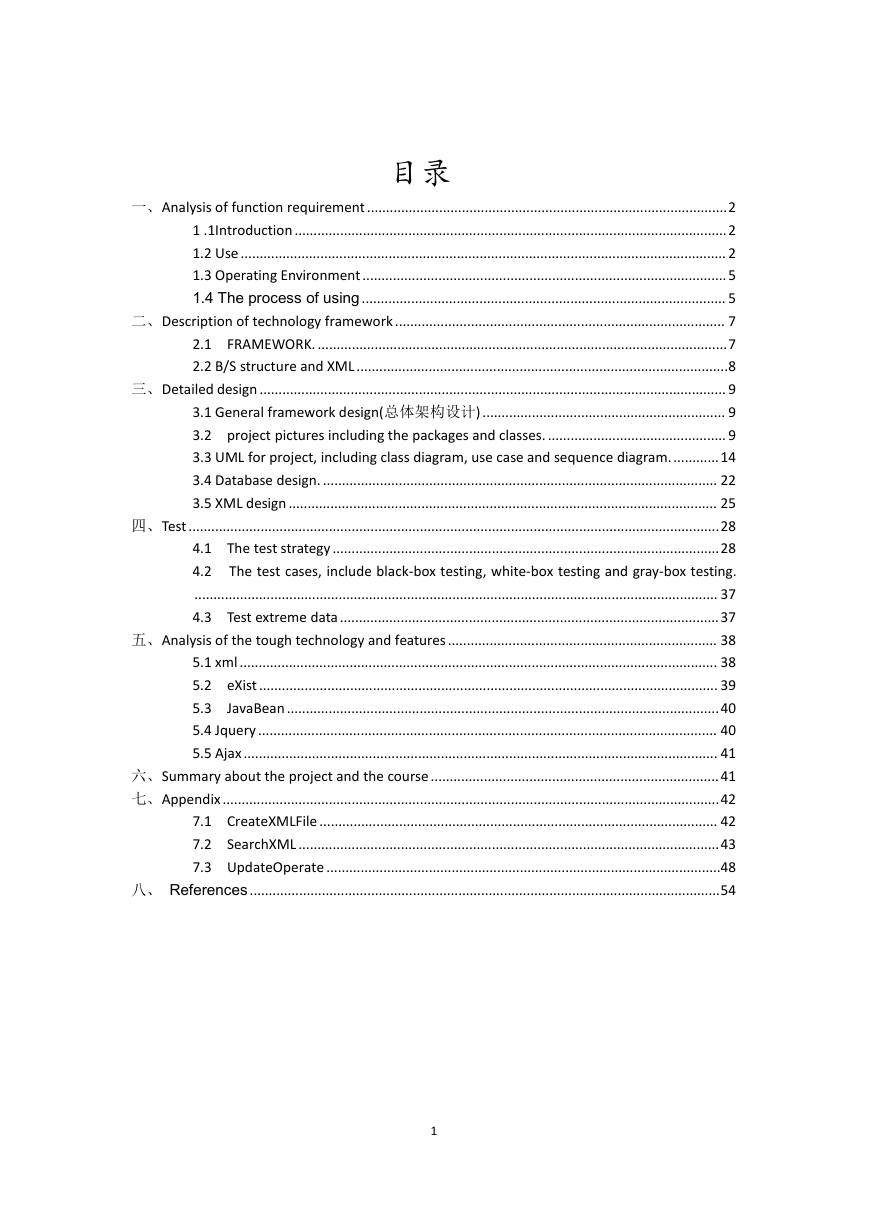

目录
一、Analysis of function requirement...............................................................................................2
1 .1Introduction..................................................................................................................2
1.2 Use ................................................................................................................................ 2
1.3 Operating Environment................................................................................................5
1.4 The process of using................................................................................................ 5
二、Description of technology framework....................................................................................... 7
2.1 FRAMEWORK. ............................................................................................................7
2.2 B/S structure and XML..................................................................................................8
三、Detailed design ........................................................................................................................... 9
3.1 General framework design(总体架构设计)................................................................ 9
3.2 project pictures including the packages and classes................................................ 9
3.3 UML for project, including class diagram, use case and sequence diagram.............14
3.4 Database design. ........................................................................................................ 22
3.5 XML design ................................................................................................................. 25
四、Test............................................................................................................................................28
4.1 The test strategy ......................................................................................................28
4.2
The test cases, include black-box testing, white-box testing and gray-box testing.
.......................................................................................................................................... 37
4.3 Test extreme data....................................................................................................37
五、Analysis of the tough technology and features....................................................................... 38
5.1 xml.............................................................................................................................. 38
5.2 eXist......................................................................................................................... 39
5.3 JavaBean..................................................................................................................40
5.4 Jquery ......................................................................................................................... 40
5.5 Ajax............................................................................................................................. 41
六、Summary about the project and the course ............................................................................41
七、Appendix...................................................................................................................................42
7.1 CreateXMLFile ......................................................................................................... 42
7.2 SearchXML...............................................................................................................43
7.3 UpdateOperate ........................................................................................................48
八、 References............................................................................................................................54
1

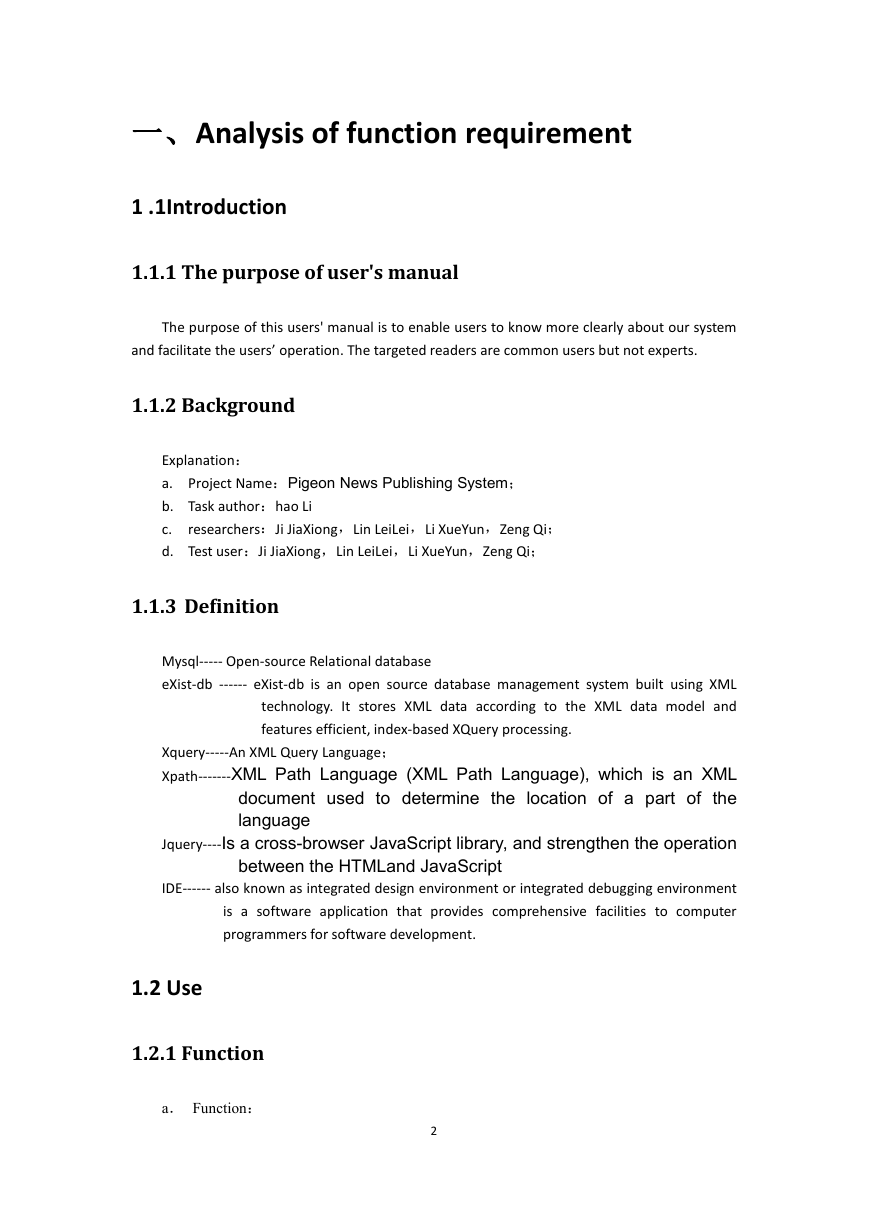

一、Analysis of function requirement
1 .1Introduction
1.1.1 The purpose of user's manual
The purpose of this users' manual is to enable users to know more clearly about our system
and facilitate the users’ operation. The targeted readers are common users but not experts.
1.1.2 Background
Explanation：
a. Project Name：Pigeon News Publishing System；
b. Task author：hao Li
c.
d. Test user：Ji JiaXiong，Lin LeiLei，Li XueYun，Zeng Qi；
researchers：Ji JiaXiong，Lin LeiLei，Li XueYun，Zeng Qi；
1.1.3 Definition
Mysql----- Open-source Relational database
eXist-db ------ eXist-db is an open source database management system built using XML
It stores XML data according to the XML data model and
technology.
features efficient, index-based XQuery processing.
Xquery-----An XML Query Language；
Xpath-------XML Path Language (XML Path Language), which is an XML
the
document used to determine the location of a part of
language
Jquery----Is a cross-browser JavaScript library, and strengthen the operation
between the HTMLand JavaScript
IDE------ also known as integrated design environment or integrated debugging environment
is a software application that provides comprehensive facilities to computer
programmers for software development.
1.2 Use
1.2.1 Function
a． Function：
2

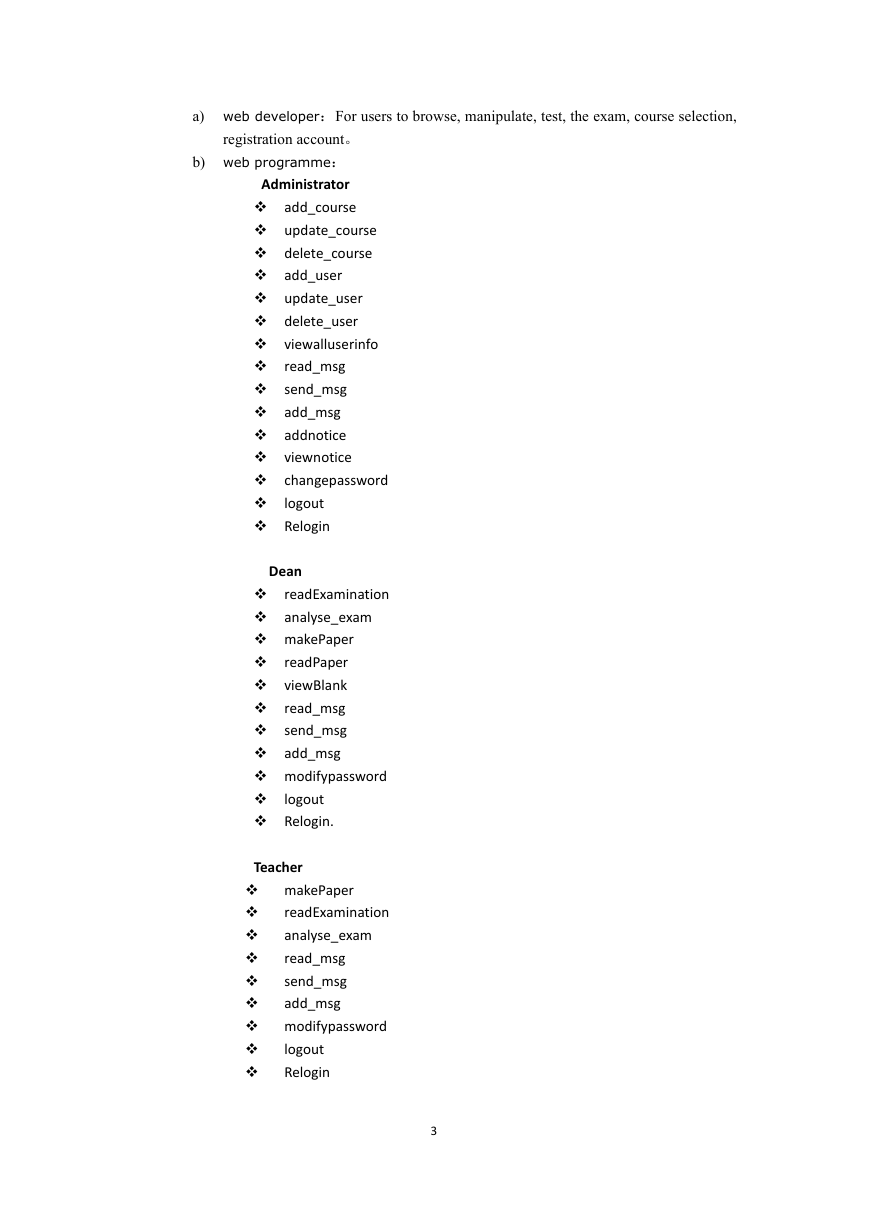

a) web developer：For users to browse, manipulate, test, the exam, course selection,
registration account。
b) web programme：
Administrator
add_course
update_course
delete_course
add_user
update_user
delete_user
viewalluserinfo
read_msg
send_msg
add_msg
addnotice
viewnotice
changepassword
logout
Relogin
Dean
readExamination
analyse_exam
makePaper
readPaper
viewBlank
read_msg
send_msg
add_msg
modifypassword
logout
Relogin.
Teacher
makePaper
readExamination
analyse_exam
read_msg
send_msg
add_msg
modifypassword
logout
Relogin
3

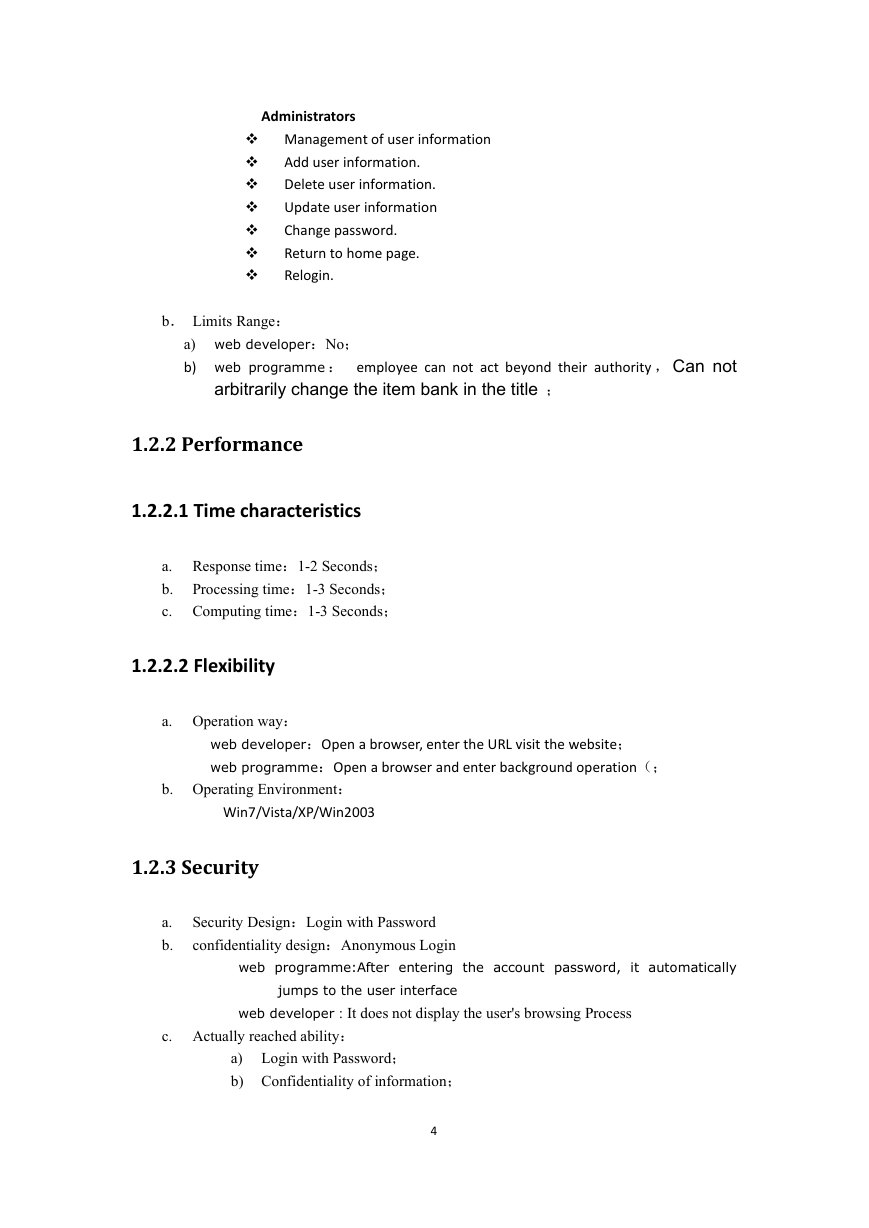

Administrators
Management of user information
Add user information.
Delete user information.
Update user information
Change password.
Return to home page.
Relogin.
b． Limits Range：
a) web developer：No；
b) web programme ： employee can not act beyond their authority ， Can not
arbitrarily change the item bank in the title ；
1.2.2 Performance
1.2.2.1 Time characteristics
a. Response time：1-2 Seconds；
b.
Processing time：1-3 Seconds；
c. Computing time：1-3 Seconds；
1.2.2.2 Flexibility
a. Operation way：
web developer：Open a browser, enter the URL visit the website；
web programme：Open a browser and enter background operation（；
b. Operating Environment：
Win7/Vista/XP/Win2003
1.2.3 Security
a.
b.
Security Design：Login with Password
confidentiality design：Anonymous Login
web programme:After entering the account password, it automatically
jumps to the user interface
web developer : It does not display the user's browsing Process
c. Actually reached ability：
Login with Password；
a)
b) Confidentiality of information；
4

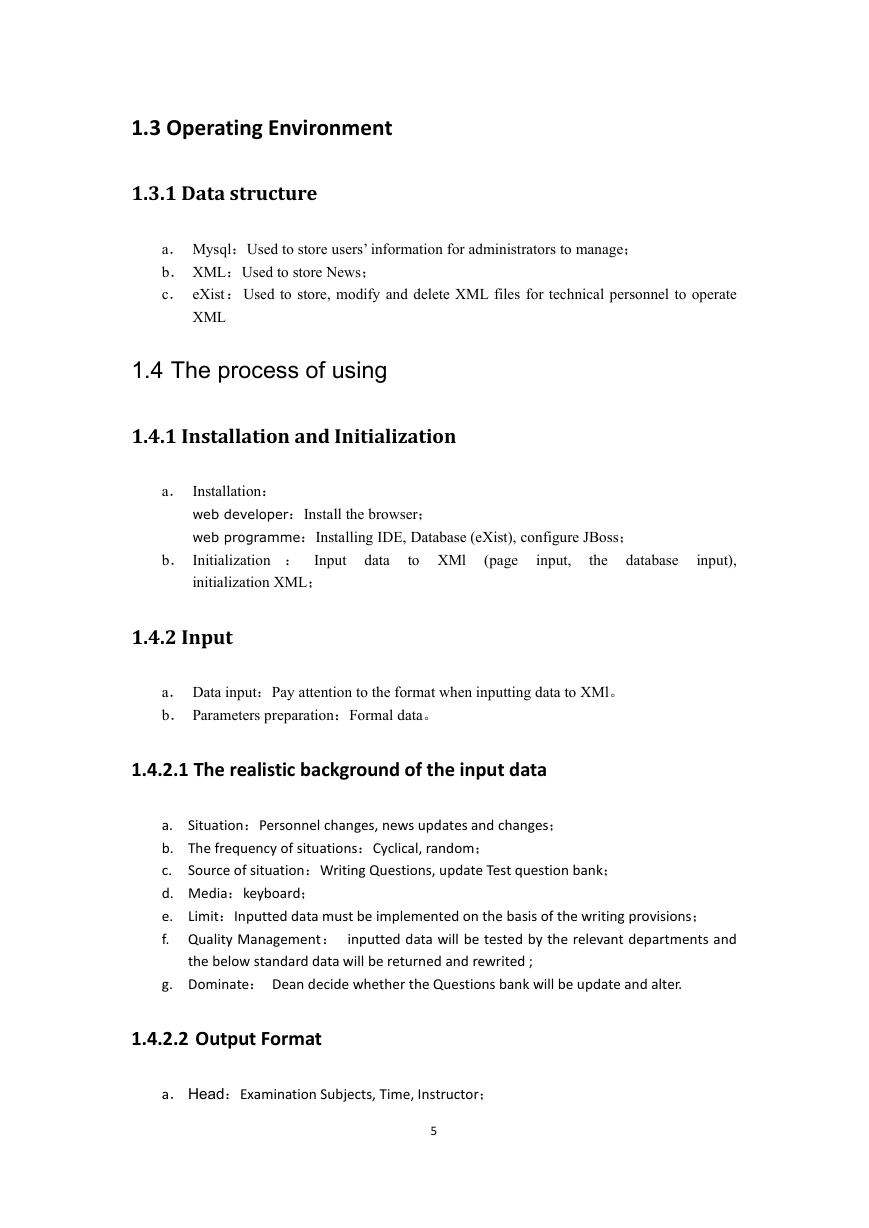

1.3 Operating Environment
1.3.1 Data structure
a． Mysql：Used to store users’ information for administrators to manage；
b． XML：Used to store News；
c． eXist ：Used to store, modify and delete XML files for technical personnel to operate
XML
1.4 The process of using
1.4.1 Installation and Initialization
a． Installation：
web developer：Install the browser；
web programme：Installing IDE, Database (eXist), configure JBoss；
b． Initialization ： Input
data
to XMl
(page
input,
the
database
input),
initialization XML；
1.4.2 Input
a． Data input：Pay attention to the format when inputting data to XMl。
b． Parameters preparation：Formal data。
1.4.2.1 The realistic background of the input data
Situation：Personnel changes, news updates and changes；
Source of situation：Writing Questions, update Test question bank；
a.
b. The frequency of situations：Cyclical, random；
c.
d. Media：keyboard；
e.
f. Quality Management： inputted data will be tested by the relevant departments and
Limit：Inputted data must be implemented on the basis of the writing provisions；
the below standard data will be returned and rewrited ;
g. Dominate： Dean decide whether the Questions bank will be update and alter.
1.4.2.2 Output Format
a． Head：Examination Subjects, Time, Instructor；
5
b． Body：Questions；
c． Tail：Examination Status Tips。

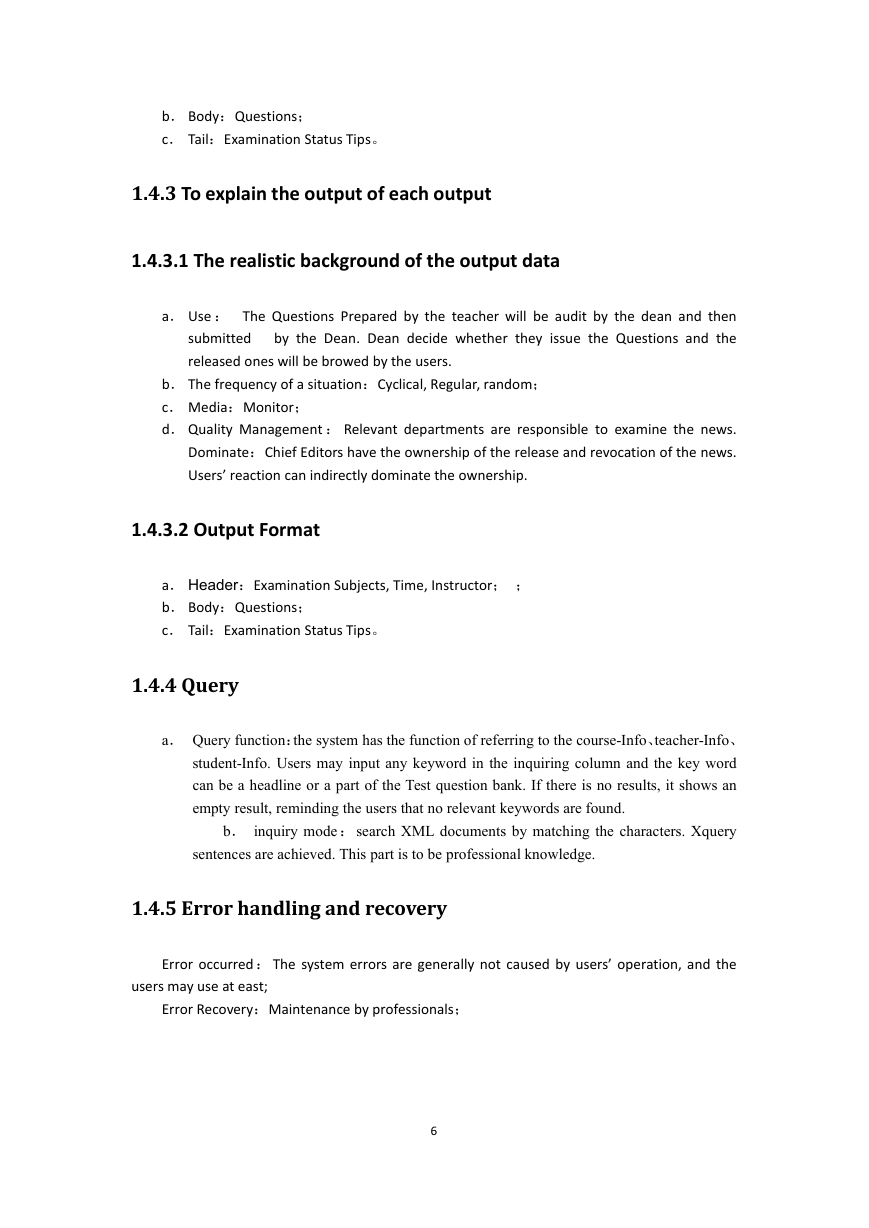

1.4.3 To explain the output of each output
1.4.3.1 The realistic background of the output data
a． Use ： The Questions Prepared by the teacher will be audit by the dean and then
by the Dean. Dean decide whether they issue the Questions and the
submitted
released ones will be browed by the users.
b． The frequency of a situation：Cyclical, Regular, random；
c． Media：Monitor；
d． Quality Management ： Relevant departments are responsible to examine the news.
Dominate：Chief Editors have the ownership of the release and revocation of the news.
Users’ reaction can indirectly dominate the ownership.
1.4.3.2 Output Format
a． Header：Examination Subjects, Time, Instructor； ；
b． Body：Questions；
c． Tail：Examination Status Tips。
1.4.4 Query
a． Query function：the system has the function of referring to the course-Info、teacher-Info、
student-Info. Users may input any keyword in the inquiring column and the key word
can be a headline or a part of the Test question bank. If there is no results, it shows an
empty result, reminding the users that no relevant keywords are found.
b． inquiry mode ：search XML documents by matching the characters. Xquery
sentences are achieved. This part is to be professional knowledge.
1.4.5 Error handling and recovery
Error occurred ：The system errors are generally not caused by users’ operation, and the
users may use at east;
Error Recovery：Maintenance by professionals；
6
1.4.6 Terminal Operation
Operating terminal：
web developer：Install the browser and the computer can be connected with the
Internet or the Local Area Network
web programme：operable servers that can be connected with the Internet or the
Local Area Network
二、Description of technology framework
2.1 FRAMEWORK.
We use MVC model to describe our system. In the view layer, the role of the students
can get the information of each course or take an examination. As a teacher, who can
examine the examination papers or set the paper, and so on. Dean can modify and delete
the paper from all teachers or view the message, and so on. After they send the request,
the control layer would process the request and take the information from the Model layer
to the view layer.

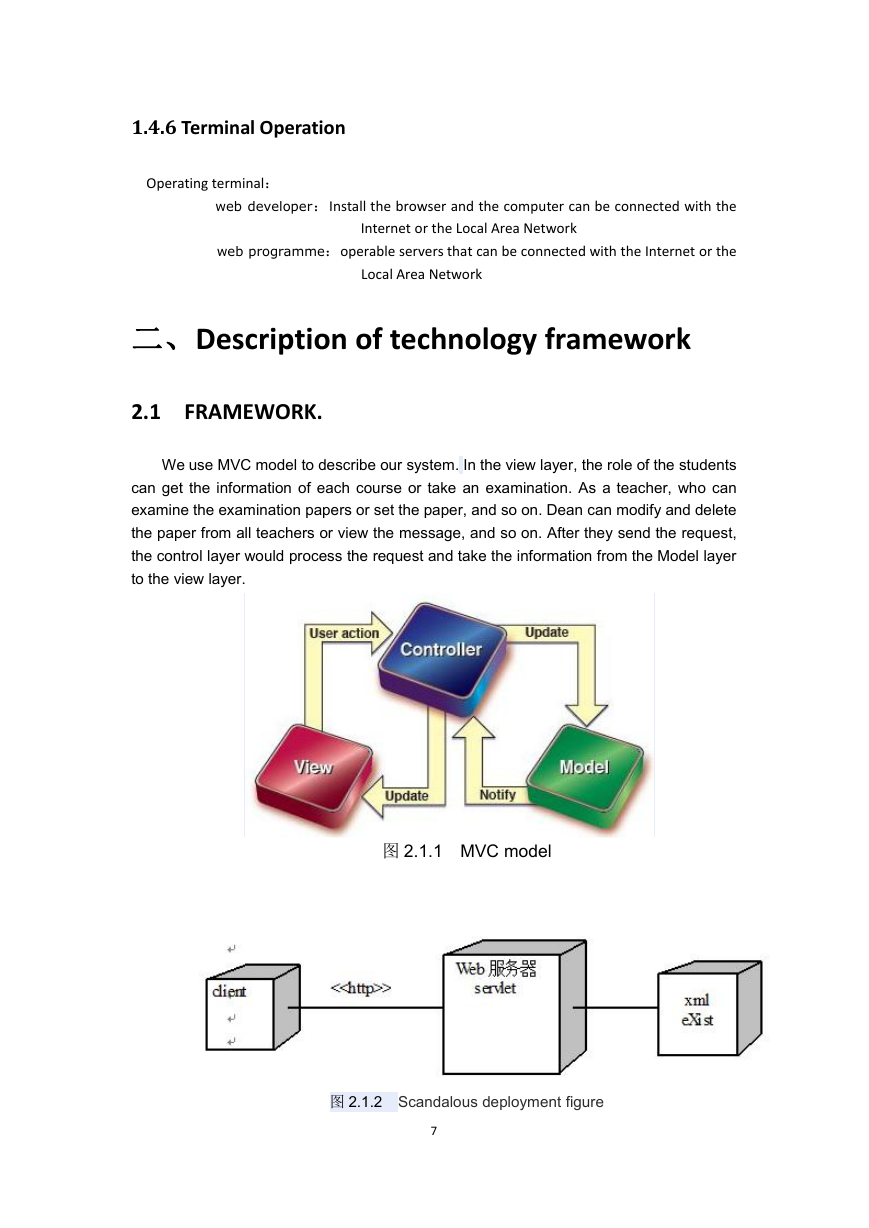

图 2.1.1 MVC model
图 2.1.2 Scandalous deployment figure
7

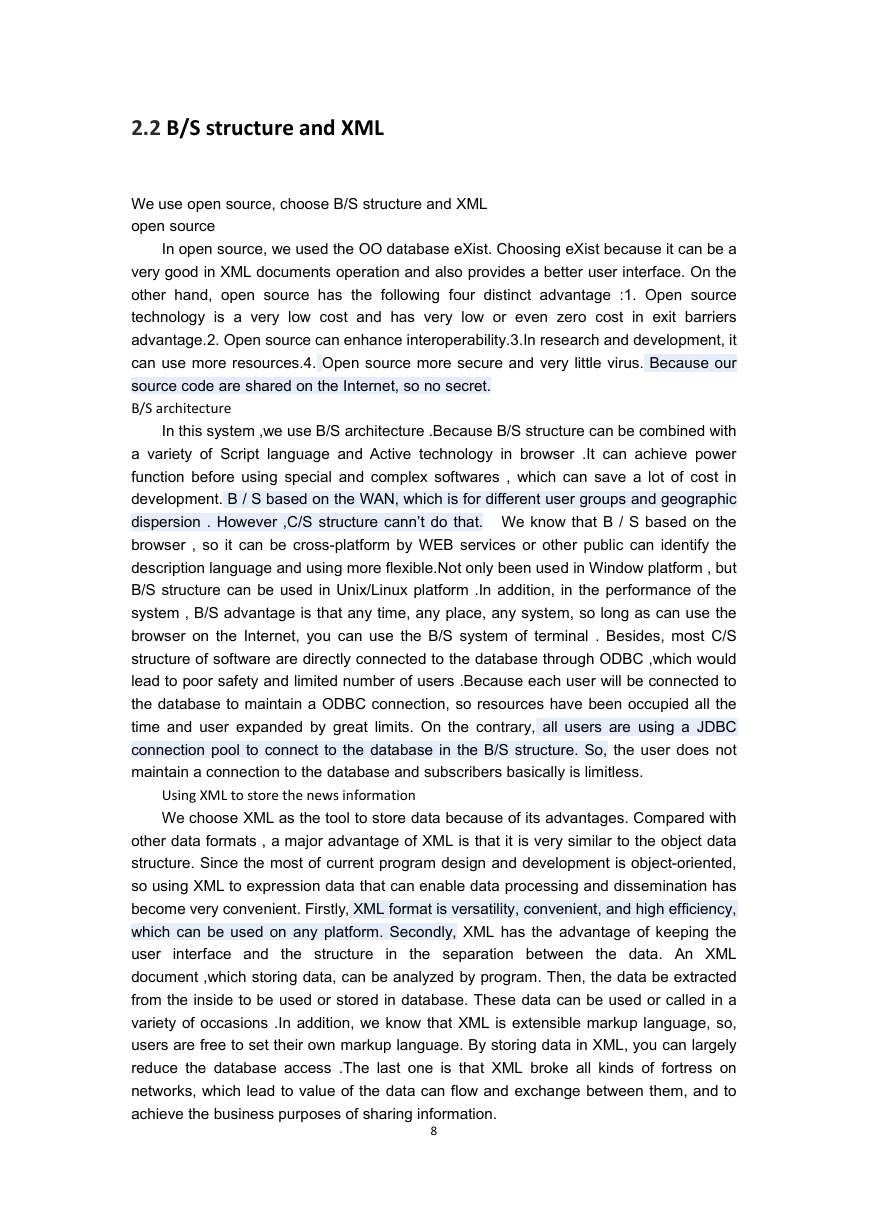

2.2 B/S structure and XML
We use open source, choose B/S structure and XML
open source
In open source, we used the OO database eXist. Choosing eXist because it can be a
very good in XML documents operation and also provides a better user interface. On the
other hand, open source has the following four distinct advantage :1. Open source
technology is a very low cost and has very low or even zero cost
in exit barriers
advantage.2. Open source can enhance interoperability.3.In research and development, it
can use more resources.4. Open source more secure and very little virus. Because our
source code are shared on the Internet, so no secret.
B/S architecture
In this system ,we use B/S architecture .Because B/S structure can be combined with
a variety of Script language and Active technology in browser .It can achieve power
function before using special and complex softwares , which can save a lot of cost in
development. B / S based on the WAN, which is for different user groups and geographic
dispersion . However ,C/S structure cann’t do that. We know that B / S based on the
browser , so it can be cross-platform by WEB services or other public can identify the
description language and using more flexible.Not only been used in Window platform , but
B/S structure can be used in Unix/Linux platform .In addition, in the performance of the
system , B/S advantage is that any time, any place, any system, so long as can use the
browser on the Internet, you can use the B/S system of terminal . Besides, most C/S
structure of software are directly connected to the database through ODBC ,which would
lead to poor safety and limited number of users .Because each user will be connected to
the database to maintain a ODBC connection, so resources have been occupied all the
time and user expanded by great limits. On the contrary, all users are using a JDBC
connection pool to connect to the database in the B/S structure. So, the user does not
maintain a connection to the database and subscribers basically is limitless.
Using XML to store the news information
We choose XML as the tool to store data because of its advantages. Compared with
other data formats , a major advantage of XML is that it is very similar to the object data
structure. Since the most of current program design and development is object-oriented,
so using XML to expression data that can enable data processing and dissemination has
become very convenient. Firstly, XML format is versatility, convenient, and high efficiency,
which can be used on any platform. Secondly, XML has the advantage of keeping the
user
interface and the structure in the separation between the data. An XML
document ,which storing data, can be analyzed by program. Then, the data be extracted
from the inside to be used or stored in database. These data can be used or called in a
variety of occasions .In addition, we know that XML is extensible markup language, so,
users are free to set their own markup language. By storing data in XML, you can largely
reduce the database access .The last one is that XML broke all kinds of fortress on
networks, which lead to value of the data can flow and exchange between them, and to
achieve the business purposes of sharing information.
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
