; function mpc =Untitled5 mpc.version='2'; mpc.baseMVA=100; mpc.Bus=[1 0 0 2 100 60; 3 90 40; 4 120 80; 5 60 30; 6 60 20; 7 200 100 ; 8 200 100 ; 9 60 20; 10 60 20; 11 45 30; 12 60 35; 13 60 35; 14 120 80; 15 60 10; 16 60 20; 17 60 20; 18 90 40; 19 90 40; 20 90 40; 21 90 40; 22 90 40; 23 90 40; 24 420 200; 25 420 200 ; 26 60 25; 27 60 25; 28 60 20; 

0.0922 0.0407; 29 120 70; 30 200 600 ; 31 150 70; 32 210 100 ; 33 60 40;];%IEEE33½ÚµãµÄ¸ººÉ mpc.Branch=[1 1 2 2 2 3 0.4930 0.2511; 3 3 4 0.3660 0.1864; 4 4 5 0.3811 0.1941; 5 5 6 0.8190 0.7070; 6 6 7 0.1872 0.6188; 7 7 8 0.7144 0.2351; 8 8 9 1.0300 0.7400; 9 9 10 1.0440 0.7400; 10 10 11 0.1966 0.065; 11 11 12 0.3744 0.1238; 12 12 13 1.4680 1.1550; 13 13 14 0.5416 0.7129; 14 14 15 0.5910 0.5260; 15 15 16 0.7463 0.5450; 16 16 17 1.2890 1.7210; 17 17 18 0.7320 0.5740; 18 2 19 0.1640 0.1565; 19 19 20 1.5042 1.3554; 20 20 21 0.4095 0.4784; 21 21 22 0.7089 0.9373; 22 3 23 0.4512 0.3083; 23 23 24 0.8980 0.7091; 24 24 25 0.8960 0.7011; 25 6 26 0.2030 0.1034; 26 26 27 0.2842 0.1447; 

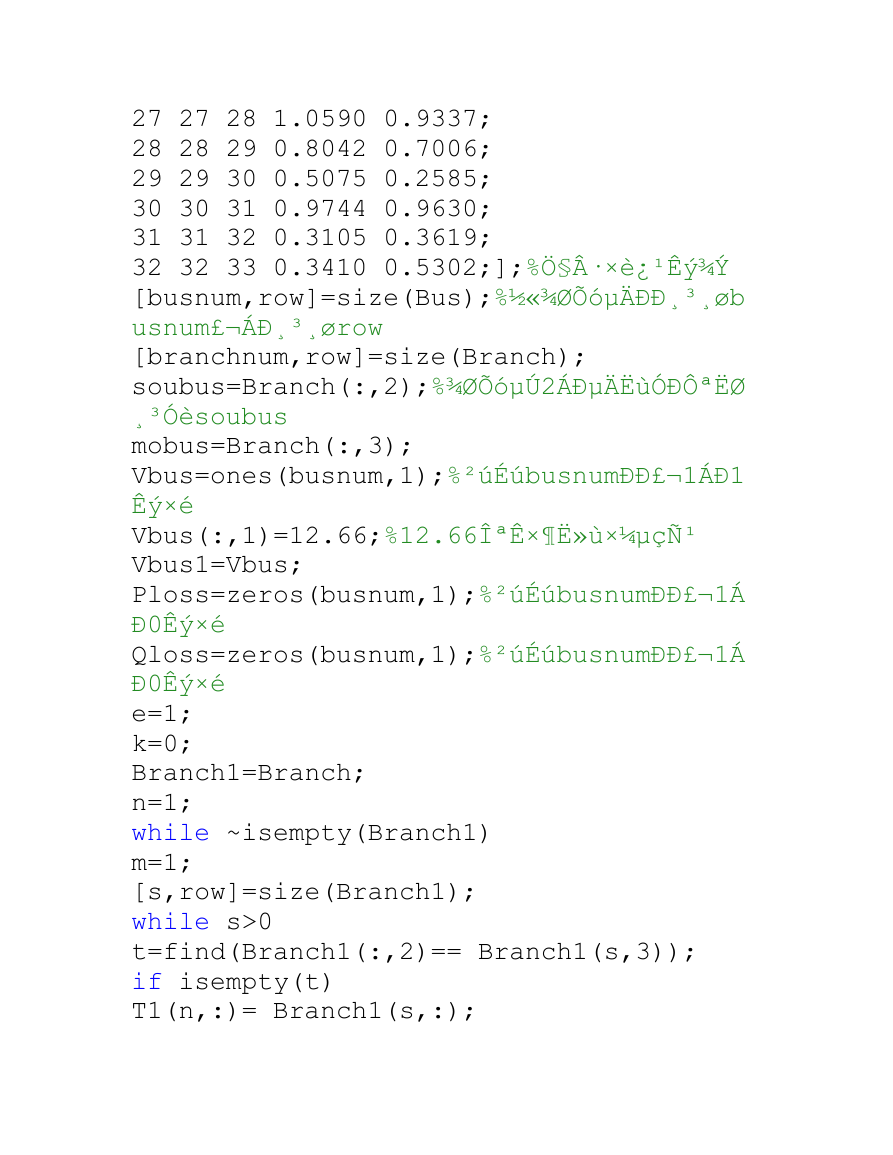

27 27 28 1.0590 0.9337; 28 28 29 0.8042 0.7006; 29 29 30 0.5075 0.2585; 30 30 31 0.9744 0.9630; 31 31 32 0.3105 0.3619; 32 32 33 0.3410 0.5302;];%֧·×迹Êý¾Ý [busnum,row]=size(Bus);%½«¾ØÕóµÄÐи³¸øb usnum£¬Áи³¸ørow [branchnum,row]=size(Branch); soubus=Branch(:,2);%¾ØÕóµÚ2ÁеÄËùÓÐÔªËØ ¸³Óèsoubus mobus=Branch(:,3); Vbus=ones(busnum,1);%²úÉúbusnumÐУ¬1ÁÐ1 Êý×é Vbus(:,1)=12.66;%12.66ΪÊ׶˻ù×¼µçѹ Vbus1=Vbus; Ploss=zeros(busnum,1);%²úÉúbusnumÐУ¬1Á Ð0Êý×é Qloss=zeros(busnum,1);%²úÉúbusnumÐУ¬1Á Ð0Êý×é e=1; k=0; Branch1=Branch; n=1; while ~isempty(Branch1) m=1; [s,row]=size(Branch1); while s>0 t=find(Branch1(:,2)== Branch1(s,3)); if isempty(t) T1(n,:)= Branch1(s,:); 

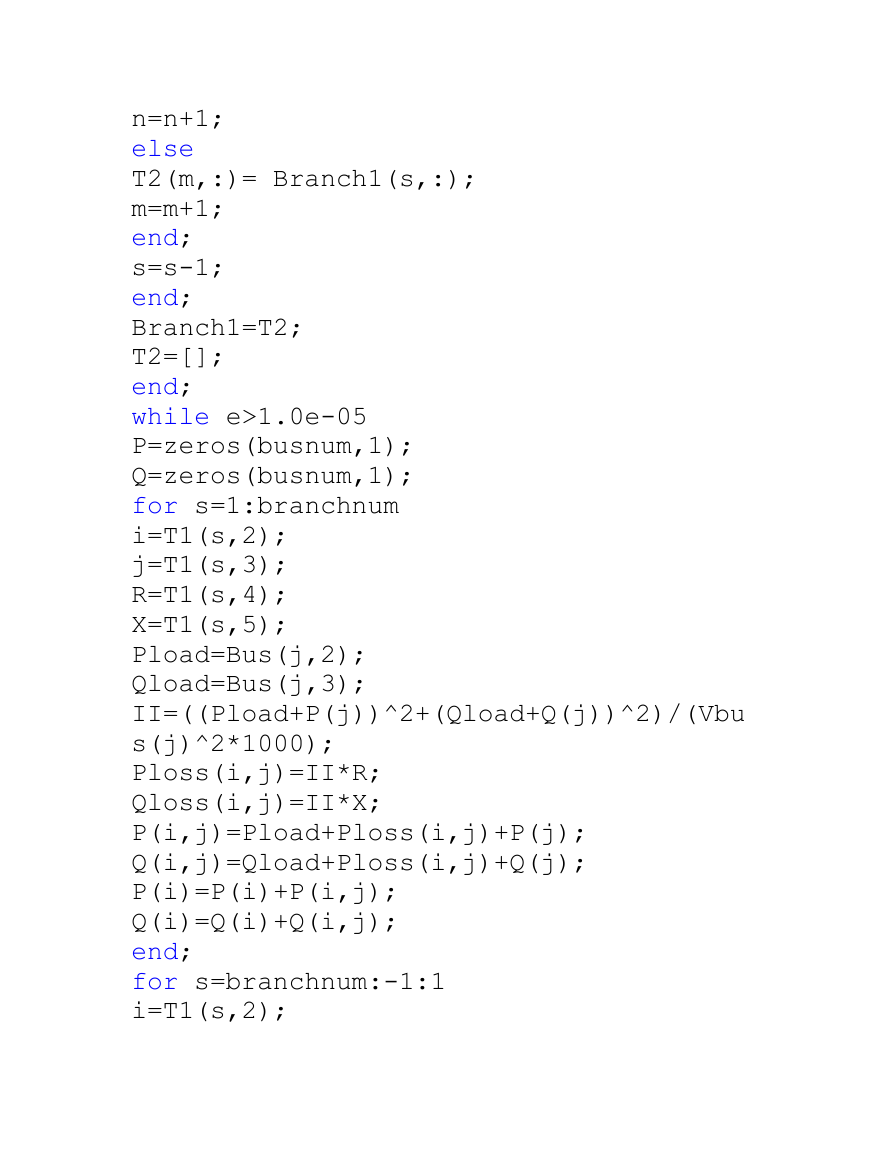

n=n+1; else T2(m,:)= Branch1(s,:); m=m+1; end; s=s-1; end; Branch1=T2; T2=[]; end; while e>1.0e-05 P=zeros(busnum,1); Q=zeros(busnum,1); for s=1:branchnum i=T1(s,2); j=T1(s,3); R=T1(s,4); X=T1(s,5); Pload=Bus(j,2); Qload=Bus(j,3); II=((Pload+P(j))^2+(Qload+Q(j))^2)/(Vbu s(j)^2*1000); Ploss(i,j)=II*R; Qloss(i,j)=II*X; P(i,j)=Pload+Ploss(i,j)+P(j); Q(i,j)=Qload+Ploss(i,j)+Q(j); P(i)=P(i)+P(i,j); Q(i)=Q(i)+Q(i,j); end; for s=branchnum:-1:1 i=T1(s,2); 

j=T1(s,3); R=T1(s,4); X=T1(s,5); Vbus(j)=(Vbus(i)- (P(i,j)*R+Q(i,j)*X)/(Vbus(i)*1000))^2+( (P(i,j)*X-Q(i,j)*R)/(Vbus(i)*1000))^2; Vbus(j)=sqrt(Vbus(j)); end; e=max(abs(Vbus1-Vbus)); Vbus1=Vbus; k=k+1; end
