- Quickstart
Vivicam 40
CONTENTS
1. Camera Precautions ..................................................... 2
2. Vivicam Introduction ................................................... 3
3. Meet The Vivicam ........................................................ 5
4. Ready To Take Pictures ............................................... 9
5. Installing Vivicam Driver and Utility Software.......... 12
6. Transferring Pictures To Your Computer .................. 20
7. Using The Vivicam as a PC Camera ......................... 24
8. SUPPLEMENT ............................................................. 25

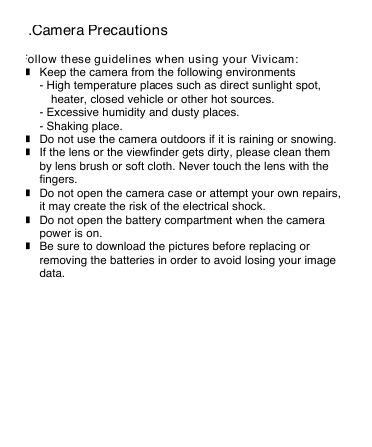

1.Camera Precautions
Follow these guidelines when using your Vivicam:
n Keep the camera from the following environments
- High temperature places such as direct sunlight spot,
heater, closed vehicle or other hot sources.
- Excessive humidity and dusty places.
- Shaking place.
n Do not use the camera outdoors if it is raining or snowing.
n If the lens or the viewfinder gets dirty, please clean them
by lens brush or soft cloth. Never touch the lens with the
fingers.
n Do not open the camera case or attempt your own repairs,
it may create the risk of the electrical shock.
n Do not open the battery compartment when the camera
power is on.
n Be sure to download the pictures before replacing or
removing the batteries in order to avoid losing your image
data.

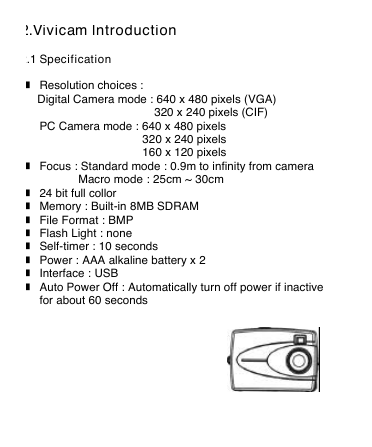

2.Vivicam lntroduction
2.1 Specification
n Resolution choices :
Digital Camera mode : 640 x 480 pixels (VGA)
320 x 240 pixels (CIF)
PC Camera mode : 640 x 480 pixels
320 x 240 pixels
160 x 120 pixels
n Focus : Standard mode : 0.9m to infinity from camera
Macro mode : 25cm ~ 30cm
n 24 bit full collor
n Memory : Built-in 8MB SDRAM
n File Format : BMP
n Flash Light : none
n Self-timer : 10 seconds
n Power : AAA alkaline battery x 2
n Interface : USB
n Auto Power Off : Automatically turn off power if inactive
for about 60 seconds

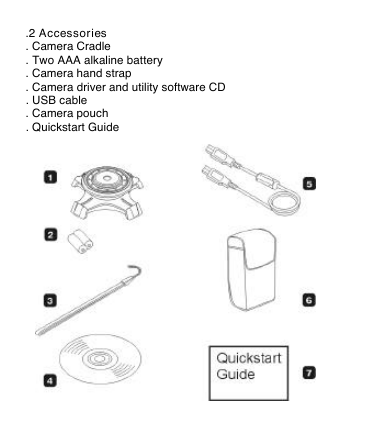

2.2 Accessories
1. Camera Cradle
2. Two AAA alkaline battery
3. Camera hand strap
4. Camera driver and utility software CD
5. USB cable
6. Camera pouch
7. Quickstart Guide
3.Meet The Vivicam
3.1 General Guide
Back
Front
3.2 LCD Panel lndicator
1
n Picture Counter
n
: Total number of pictures you have captured
: Memory full
lmage Resolution
n
2
n
n
3
: 640 x 480 pixels (default setting)
: 320 x 240 pixels
Shooting Environmentt
n
n
: Outdoor (default setting)
: Indoor

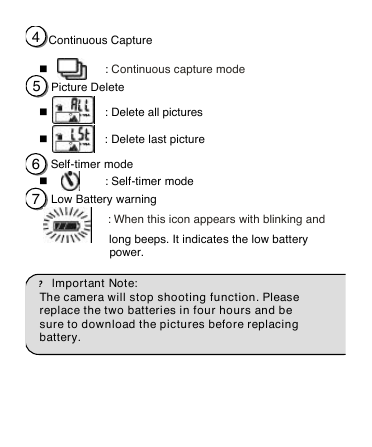

Picture Delete
Continuous Capture
: Continuous capture mode
: Delete all pictures
4
n
5
n
n : Delete last picture
6
Self-timer mode
n
7
: When this icon appears with blinking and
: Self-timer mode
Low Battery warning
long beeps. It indicates the low battery
power.
? lmportant Note:
The camera will stop shooting function. Please
replace the two batteries in four hours and be
sure to download the pictures before replacing
battery.
