RED DIGITAL CINEMA REDCINE-X™ OPERATION GUIDE

TABLE OF CONTENTS

OPERATION GUIDE DISCLAIMER

Trademark Disclaimer

RED SOFTWARE LICENSE AGREEMENT

INTRODUCTION

How REDCINE-X is Used

REDCINE-X User Interface

THEORY OF OPERATION

RAW Image Selection

RAW Image Processing

SYSTEM REQUIREMENTS

MAC

Windows

DOWNLOAD AND INSTALL

MAC

Windows

Downloading Clips From Media to Computer

USER INTERFACE CONTROL OPERATION

Common Keystrokes

Help Function

Menu Bar

MAC

Windows

REDCINE-X (MAC Only)

File

MAC

Windows

New Project

Open Clip

Open Folder

Open Project

Save Project / Save Project As

Close Project

Save Current Look to Camera

Run Script

Exit (Windows)

Edit

Copy All From Bin

Copy Grade

Paste Grade

Settings

Automatically Save RMD Files

Verbose Logging

Snapshot Settings

Use Rocket

Show Instantaneous Frame Rate

Audio

Prefered Playback Channels

Auto Match

Rate Override

Current Bin

Selected Clips in Current Bin

Window

Application Workspace

Reset

Toggle Fullscreen

Save Window Layout

Restore Window Layout

Help

Show Log Folder

Save Report

Browser / Bin / Export Drawer Tabs

Browser

Viewing Clips

Resizing

Right-Click on Clips

Bin

Adding/Removing Clips from Bin

Creating Duplicate Clips

Viewing Clips In Bin

Resizing

Right-Click on Clips

Export

Resizing

Export Drop-Down

Adding New (+) / Editing / Deleting (-) Export Settings

Export Settings Window

Preset Name

Format

File Format

DPX Setup

TIFF Setup

OpenEXR Setup (MAC)

JPEG Setup (MAC)

Quicktime Wrapper (MAC)

Quicktime Setup

Avid AAF & MXF Setup

Output Resolution

Debayer Settings

Output Location

Color

Burn In

Audio

Copy

Edit

Exporting Files (Export Button)

Cancel Export Notification Window

Batch Monitor

Pause (Resume)

Cancel

Abort All

Clear List

Batch List Order

Batch Completion and Status Reports

Audio Tool Window

Zoom

Track 1/2

Scrubber

Set Slate Point

Find Slate in View

Set Slate Offset

Exit

Histogram Tool Window

RGB

Viewing RGB Channels

Resizing

Exit

Detail Tool Window

Refresh Icon

Exit

Clip Settings Tool Window

Collapse/Expand

Resizing

Exit

Look Presets

Apply to Drop Down Menu

Save Look Presets (+)

Delete Look (-)

Edit Look

Preview Look

Apply Look

Look Control


Reset

All Values

Single Value

Color Space

Gamma Space

White Balance

Pick WB

Kelvin

Tint

ISO

FLUT™ Control

Shadow

DRX

Saturation

Contrast

Brightness

Exposure

Red

Green

Blue

Sharpness

Denoise

Curve

Reset

All Values

Single Value

RGB Curves

Curve Presets

Curve Settings

Highlights

Lights

Midtones

Darks

Shadows

Lift : Gamma : Gain

Reset

All Values

Single Value

Color Wheels

Global

Lift

Gamma

Gain

Framing Presets

Apply to Drop Down Menu

Save Framing Preferences (+)

Delete Framing Preference (-)

Preview Framing Preference

Apply Framing Preference

Framing Control

Fit

Crop

Framing Guidelines

Source Resolution

Aspect Ratio

Lift : Gamma : Gain Window

Reset

All Values

Single Value

Lift

Gamma

Gain

Adjustments

Exit

Video Window

Viewing/Editing Clips

Still Store

Playback Preferences

Aspect

Playback Quality

Playback Size

Zoom

Playback Controls

Loop Playback

Playback Status

Set In/Out Points

Reset In/Out Points

Camera Snapshot

Set Video Slate Point

Red Rocket Monitor Out

Resolution

Color Format

Frame Rate

Enable PSF

Red Rocket Indicator

Frame Flag

Framerate

Frame Number Settings

Frame Number

Frame Number Setting

Reset

Resizing

Timeline Window

Adding/Removing Clips

Trim Clip

Slice Clip Tool

Slug Tool

Zoom Tool

Reorder Clips

Audio Clip Controls

Arrow Icon

Speaker Icon

Resizing

Exit

REDCINE-X WORKFLOW

Standard Workflow

Manual Audio Sync Workflow

TROUBLESHOOTING

Log Files

Locating Log files

MAC

Windows

Windows Xp:

Windows Vista and Windows 7:

Compressing Log Files

MAC

Windows

Export Settings Notification Error

Video Window Always on Top

Playback Preferences ............. 36 Playback Controls ................... 37 Set In/Out Points ..................... 37 Camera Snapshot ................... 38 Set Video Slate Point .............. 38 Red Rocket Monitor Out ......... 38 Red Rocket Indicator .............. 39 Frame Flag .............................. 39 Framerate ................................ 39 Frame Number Settings .......... 39 Reset ....................................... 39 Resizing .................................. 39 Timeline Window ......................... 40 Adding/Removing Clips .......... 40 Trim Clip .................................. 40 Slice Clip Tool ......................... 41 Slug Tool ................................. 41 Zoom Tool ............................... 41 Reorder Clips .......................... 41 Audio Clip Controls ................. 41 Resizing .................................. 42 Exit .......................................... 42 REDCINE-X WORKFLOW .............. 43 Standard Workflow ...................... 43 Manual Audio Sync Workflow ..... 44 TROUBLESHOOTING .................... 45 Log Files ...................................... 45 Locating Log files .................... 45 Compressing Log Files ........... 45 Export Settings Notification Error ............................................ 46 Video Window Always on Top ..... 46 Browser / Bin / Export Drawer Tabs ............................................ 14 Browser .................................. 14 Bin .......................................... 15 Export ..................................... 17 Audio Tool Window ..................... 22 Zoom ...................................... 22 Track 1/2 ................................ 22 Exit.......................................... 22 Histogram Tool Window ............. 23 RGB ........................................ 23 Viewing RGB Channels........... 23 Resizing .................................. 23 Exit.......................................... 23 Detail Tool Window ..................... 24 Refresh Icon ........................... 24 Exit.......................................... 24 Clip Settings Tool Window ......... 25 Collapse/Expand .................... 25 Resizing .................................. 25 Exit.......................................... 25 Look Presets........................... 25 Look Control ........................... 27 Framing Presets ..................... 32 Framing Control ...................... 32 Lift : Gamma : Gain Window ....... 33 Reset ...................................... 33 Lift........................................... 33 Gamma ................................... 33 Gain ........................................ 34 Adjustments ........................... 34 Exit.......................................... 34 Video Window ............................. 35 Viewing/Editing Clips .............. 36 Still Store ................................ 36 TABLE OF CONTENTS OPERATION GUIDE DISCLAIMER .................................. 2 Copyright Notice ......................... 2 Trademark Disclaimer ................. 2 RED SOFTWARE LICENSE AGREEMENT .................................. 3 INTRODUCTION ............................. 4 How REDCINE-X is Used ............ 4 REDCINE-X User Interface .......... 5 THEORY OF OPERATION .............. 6 RAW Image Selection.................. 6 RAW Image Processing............... 6 SYSTEM REQUIREMENTS ............ 6 MAC ............................................ 6 Windows ..................................... 6 DOWNLOAD AND INSTALL .......... 7 MAC ............................................ 7 Windows ..................................... 8 DOWNLOADING CLIPS FROM MEDIA TO COMPUTER ................. 8 USER INTERFACE CONTROL OPERATION ................................... 9 Common Keystrokes ................... 9 Help Function .......................... 9 Menu Bar ..................................... 9 MAC ........................................ 9 Windows ................................. 9 REDCINE-X (MAC Only) .......... 10 File .......................................... 10 Edit .......................................... 11 Settings ................................... 11 Audio ....................................... 12 Window ................................... 13 Help......................................... 13 REDCINE-X Operation Guide Build 261 and Higher August 6, 2010 BUILD 261 and Higher AUGUST 6, 2010 © 2009-2010 RED.COM INC. 1

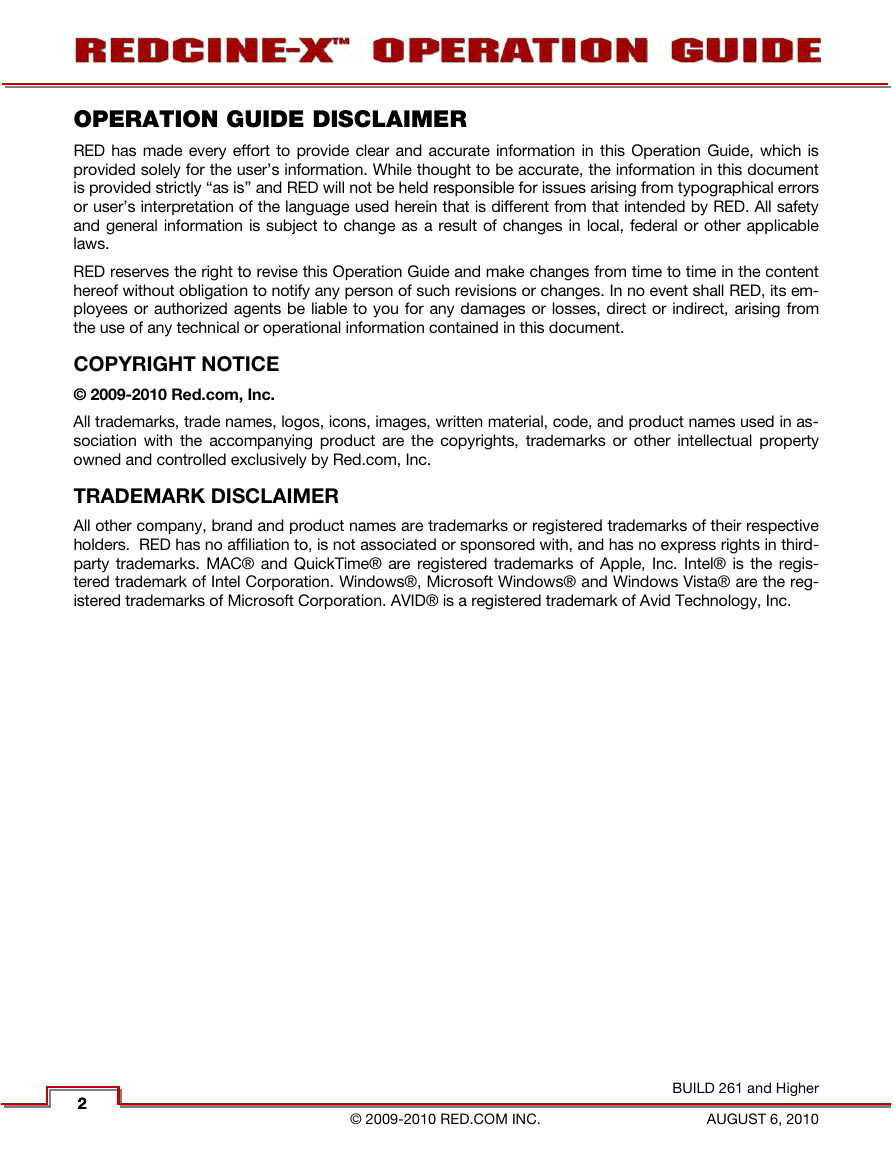

OPERATION GUIDE DISCLAIMER RED has made every effort to provide clear and accurate information in this Operation Guide, which is provided solely for the user’s information. While thought to be accurate, the information in this document is provided strictly “as is” and RED will not be held responsible for issues arising from typographical errors or user’s interpretation of the language used herein that is different from that intended by RED. All safety and general information is subject to change as a result of changes in local, federal or other applicable laws. RED reserves the right to revise this Operation Guide and make changes from time to time in the content hereof without obligation to notify any person of such revisions or changes. In no event shall RED, its em- ployees or authorized agents be liable to you for any damages or losses, direct or indirect, arising from the use of any technical or operational information contained in this document. COPYRIGHT NOTICE © 2009-2010 Red.com, Inc. All trademarks, trade names, logos, icons, images, written material, code, and product names used in as- sociation with the accompanying product are the copyrights, trademarks or other intellectual property owned and controlled exclusively by Red.com, Inc. TRADEMARK DISCLAIMER All other company, brand and product names are trademarks or registered trademarks of their respective holders. RED has no affiliation to, is not associated or sponsored with, and has no express rights in third- party trademarks. MAC® and QuickTime® are registered trademarks of Apple, Inc. Intel® is the regis- tered trademark of Intel Corporation. Windows®, Microsoft Windows® and Windows Vista® are the reg- istered trademarks of Microsoft Corporation. AVID® is a registered trademark of Avid Technology, Inc. 2 2 © 2009-2010 RED.COM INC. BUILD 261 and Higher AUGUST 6, 2010

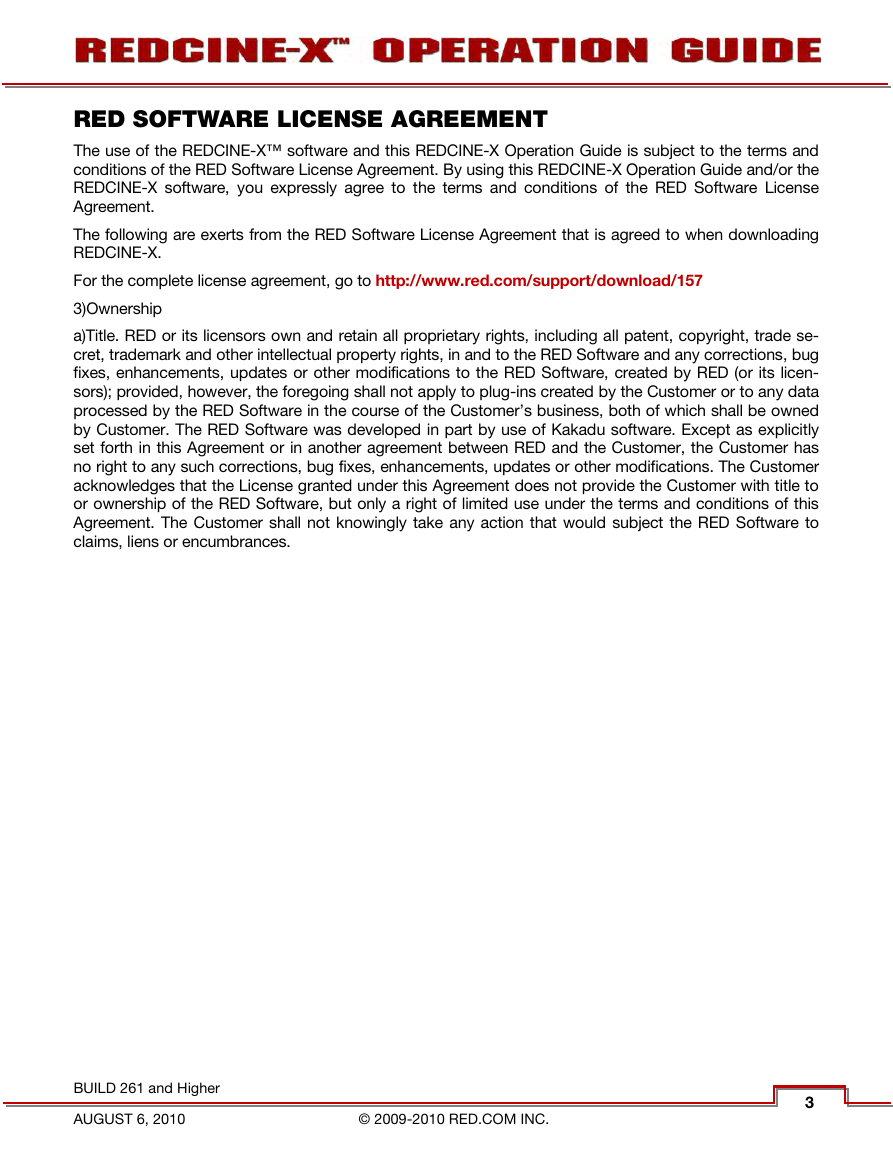

RED SOFTWARE LICENSE AGREEMENT The use of the REDCINE-X™ software and this REDCINE-X Operation Guide is subject to the terms and conditions of the RED Software License Agreement. By using this REDCINE-X Operation Guide and/or the REDCINE-X software, you expressly agree to the terms and conditions of the RED Software License Agreement. The following are exerts from the RED Software License Agreement that is agreed to when downloading REDCINE-X. For the complete license agreement, go to http://www.red.com/support/download/157 3)Ownership a)Title. RED or its licensors own and retain all proprietary rights, including all patent, copyright, trade se- cret, trademark and other intellectual property rights, in and to the RED Software and any corrections, bug fixes, enhancements, updates or other modifications to the RED Software, created by RED (or its licen- sors); provided, however, the foregoing shall not apply to plug-ins created by the Customer or to any data processed by the RED Software in the course of the Customer’s business, both of which shall be owned by Customer. The RED Software was developed in part by use of Kakadu software. Except as explicitly set forth in this Agreement or in another agreement between RED and the Customer, the Customer has no right to any such corrections, bug fixes, enhancements, updates or other modifications. The Customer acknowledges that the License granted under this Agreement does not provide the Customer with title to or ownership of the RED Software, but only a right of limited use under the terms and conditions of this Agreement. The Customer shall not knowingly take any action that would subject the RED Software to claims, liens or encumbrances. BUILD 261 and Higher AUGUST 6, 2010 © 2009-2010 RED.COM INC. 3

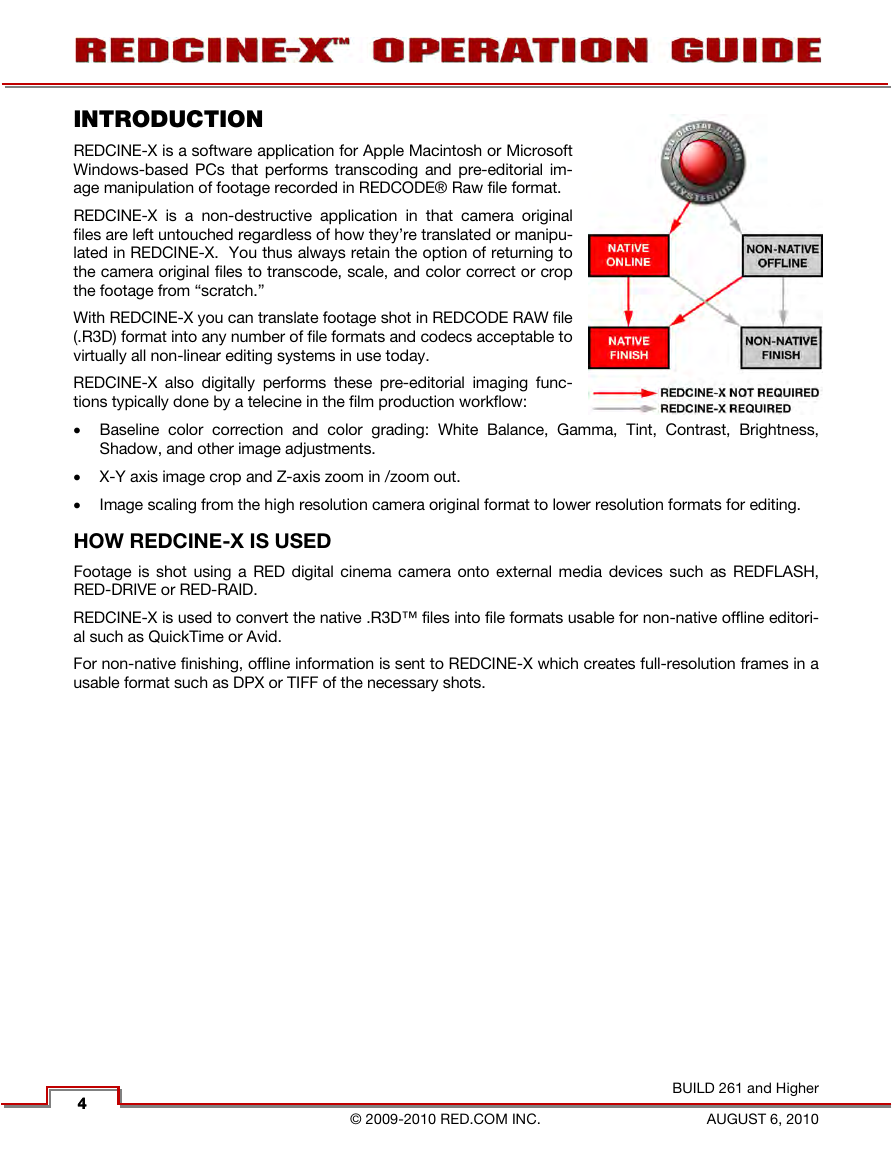

INTRODUCTION REDCINE-X is a software application for Apple Macintosh or Microsoft Windows-based PCs that performs transcoding and pre-editorial im- age manipulation of footage recorded in REDCODE® Raw file format. REDCINE-X is a non-destructive application in that camera original files are left untouched regardless of how they’re translated or manipu- lated in REDCINE-X. You thus always retain the option of returning to the camera original files to transcode, scale, and color correct or crop the footage from “scratch.” With REDCINE-X you can translate footage shot in REDCODE RAW file (.R3D) format into any number of file formats and codecs acceptable to virtually all non-linear editing systems in use today. REDCINE-X also digitally performs these pre-editorial imaging func- tions typically done by a telecine in the film production workflow: • Baseline color correction and color grading: White Balance, Gamma, Tint, Contrast, Brightness, Shadow, and other image adjustments. • X-Y axis image crop and Z-axis zoom in /zoom out. • Image scaling from the high resolution camera original format to lower resolution formats for editing. HOW REDCINE-X IS USED Footage is shot using a RED digital cinema camera onto external media devices such as REDFLASH, RED-DRIVE or RED-RAID. REDCINE-X is used to convert the native .R3D™ files into file formats usable for non-native offline editori- al such as QuickTime or Avid. For non-native finishing, offline information is sent to REDCINE-X which creates full-resolution frames in a usable format such as DPX or TIFF of the necessary shots. 4 4 © 2009-2010 RED.COM INC. BUILD 261 and Higher AUGUST 6, 2010

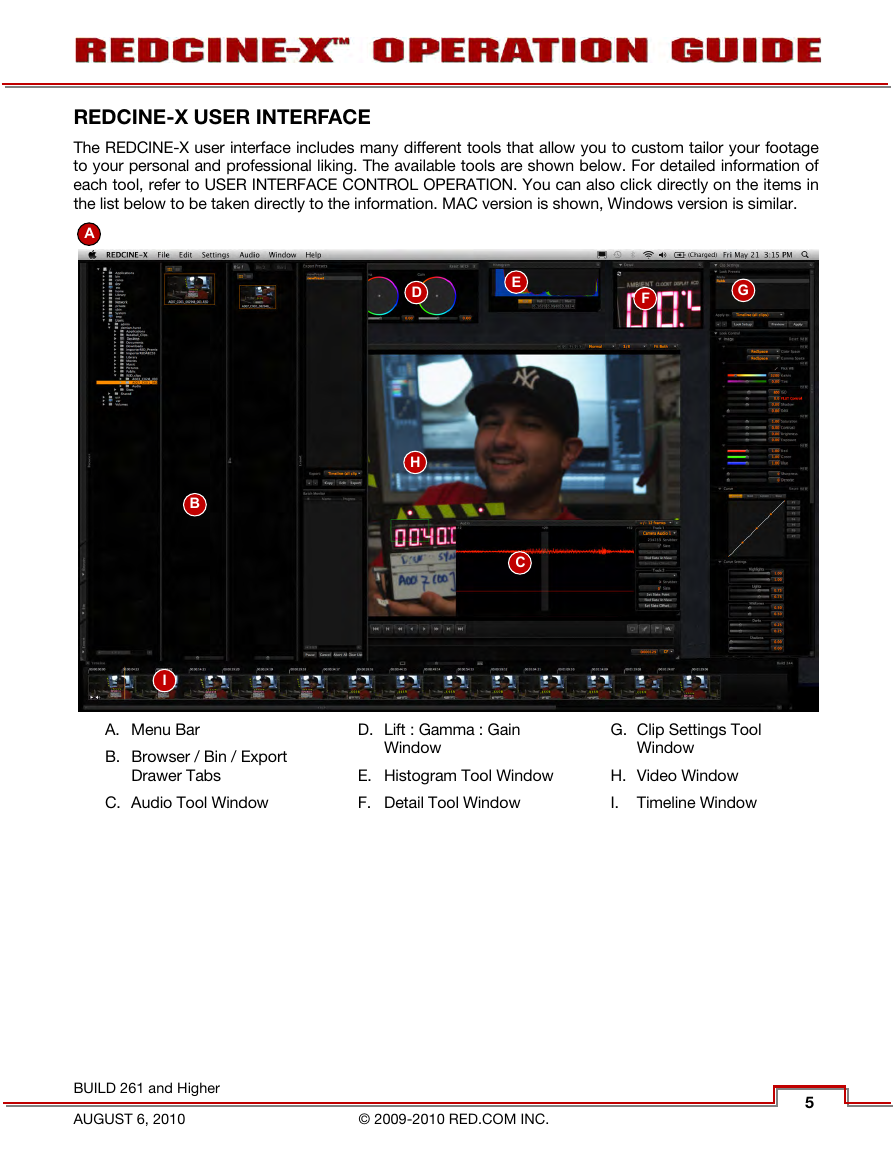

REDCINE-X USER INTERFACE The REDCINE-X user interface includes many different tools that allow you to custom tailor your footage to your personal and professional liking. The available tools are shown below. For detailed information of each tool, refer to USER INTERFACE CONTROL OPERATION. You can also click directly on the items in the list below to be taken directly to the information. MAC version is shown, Windows version is similar. A E F G D H B C I A. Menu Bar B. Browser / Bin / Export Drawer Tabs C. Audio Tool Window D. Lift : Gamma : Gain Window E. Histogram Tool Window F. Detail Tool Window G. Clip Settings Tool Window H. Video Window I. Timeline Window BUILD 261 and Higher AUGUST 6, 2010 © 2009-2010 RED.COM INC. 5

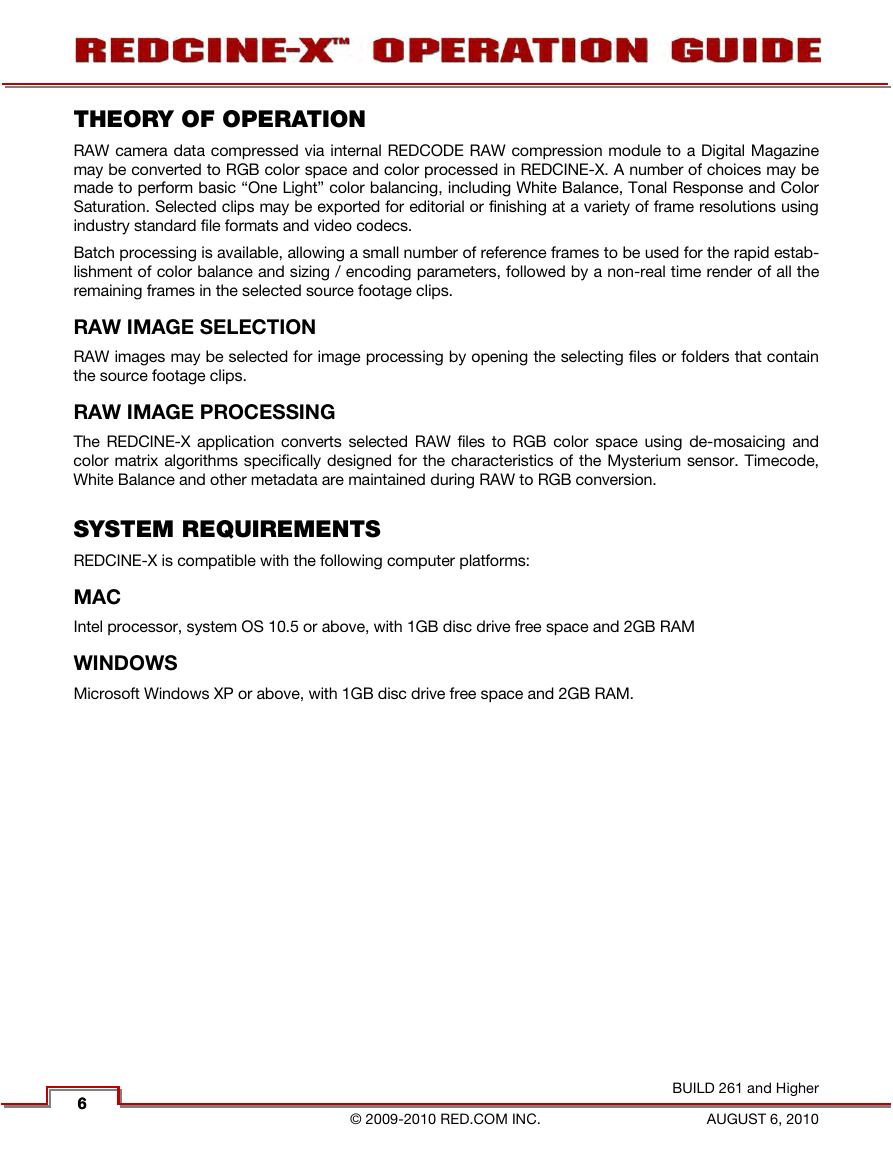

THEORY OF OPERATION RAW camera data compressed via internal REDCODE RAW compression module to a Digital Magazine may be converted to RGB color space and color processed in REDCINE-X. A number of choices may be made to perform basic “One Light” color balancing, including White Balance, Tonal Response and Color Saturation. Selected clips may be exported for editorial or finishing at a variety of frame resolutions using industry standard file formats and video codecs. Batch processing is available, allowing a small number of reference frames to be used for the rapid estab- lishment of color balance and sizing / encoding parameters, followed by a non-real time render of all the remaining frames in the selected source footage clips. RAW IMAGE SELECTION RAW images may be selected for image processing by opening the selecting files or folders that contain the source footage clips. RAW IMAGE PROCESSING The REDCINE-X application converts selected RAW files to RGB color space using de-mosaicing and color matrix algorithms specifically designed for the characteristics of the Mysterium sensor. Timecode, White Balance and other metadata are maintained during RAW to RGB conversion. SYSTEM REQUIREMENTS REDCINE-X is compatible with the following computer platforms: MAC Intel processor, system OS 10.5 or above, with 1GB disc drive free space and 2GB RAM WINDOWS Microsoft Windows XP or above, with 1GB disc drive free space and 2GB RAM. 6 6 © 2009-2010 RED.COM INC. BUILD 261 and Higher AUGUST 6, 2010
