Reference Manual (cover)

Read Me First

Key Combinations

LED Indicators

Touch Pad

Touchscreen

Standby/Hibernation Functions

Security Measures

Computing on the Road

Battery Power

Multimedia Pocket

DVD-ROM & CD-R/RW Drive

WinDVD

B's Recorder/B's CLiP

PC Cards

SD Memory Card

SD Memory Card Security Function

Smart Card

RAM Module

Port Replicator / I/O Box

External Display

Printer

USB Devices

Modem

LAN

Wireless LAN

Hard Disk Drive

Setup Utility

Technical Information

DMI Viewer

Icon Enlarger

Loupe Utility

List of Error Codes

Dealing with Problems (Advanced)

Starting Up

Entering Password

Display

Setup Utility

Shutting Down

Standby/Hibernation Function

Battery Indicator

Keyboard

Network: General

Networking: Wireless LAN (only for models with wireless LAN)

Connecting Peripherals

Disk Operations

Touch Pad / Touchscreen

Sound

SD Card Setup (SD Memory Card security function)

Smart Card

Fast User Switching Function

Others

Check the Computer's Usage Status

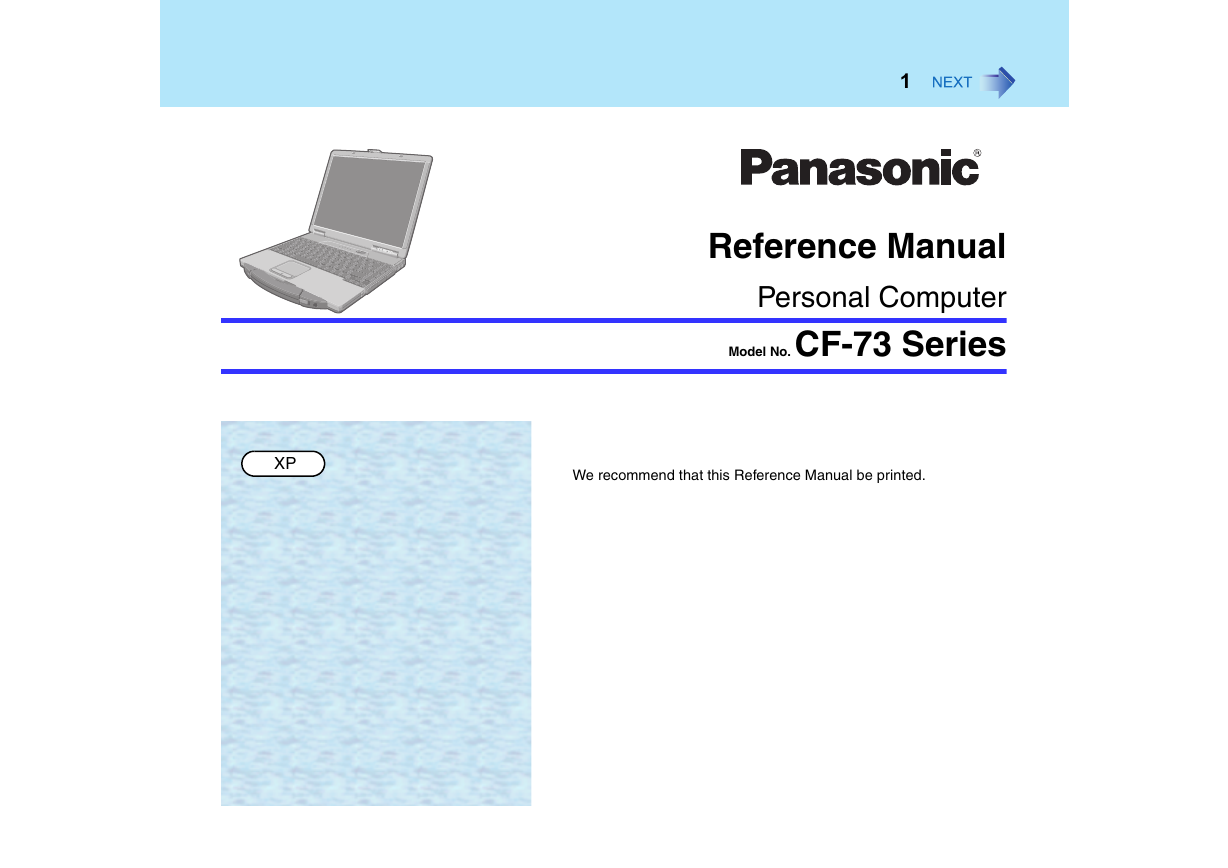

1 Reference Manual Personal Computer Model No. CF-73 Series XP We recommend that this Reference Manual be printed.

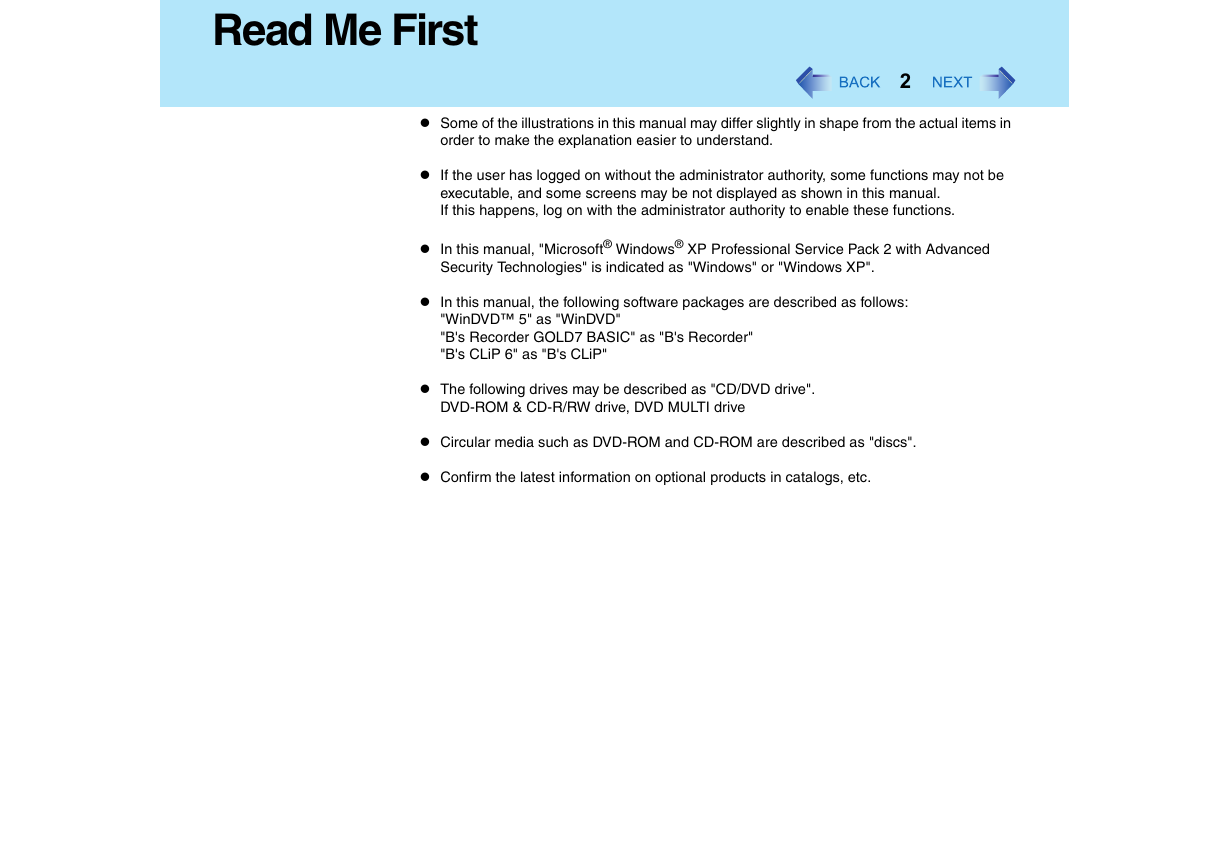

Read Me First 2 Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. If the user has logged on without the administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. In this manual, "Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies" is indicated as "Windows" or "Windows XP". In this manual, the following software packages are described as follows: "WinDVD™ 5" as "WinDVD" "B's Recorder GOLD7 BASIC" as "B's Recorder" "B's CLiP 6" as "B's CLiP" The following drives may be described as "CD/DVD drive". DVD-ROM & CD-R/RW drive, DVD MULTI drive Circular media such as DVD-ROM and CD-ROM are described as "discs". Confirm the latest information on optional products in catalogs, etc.

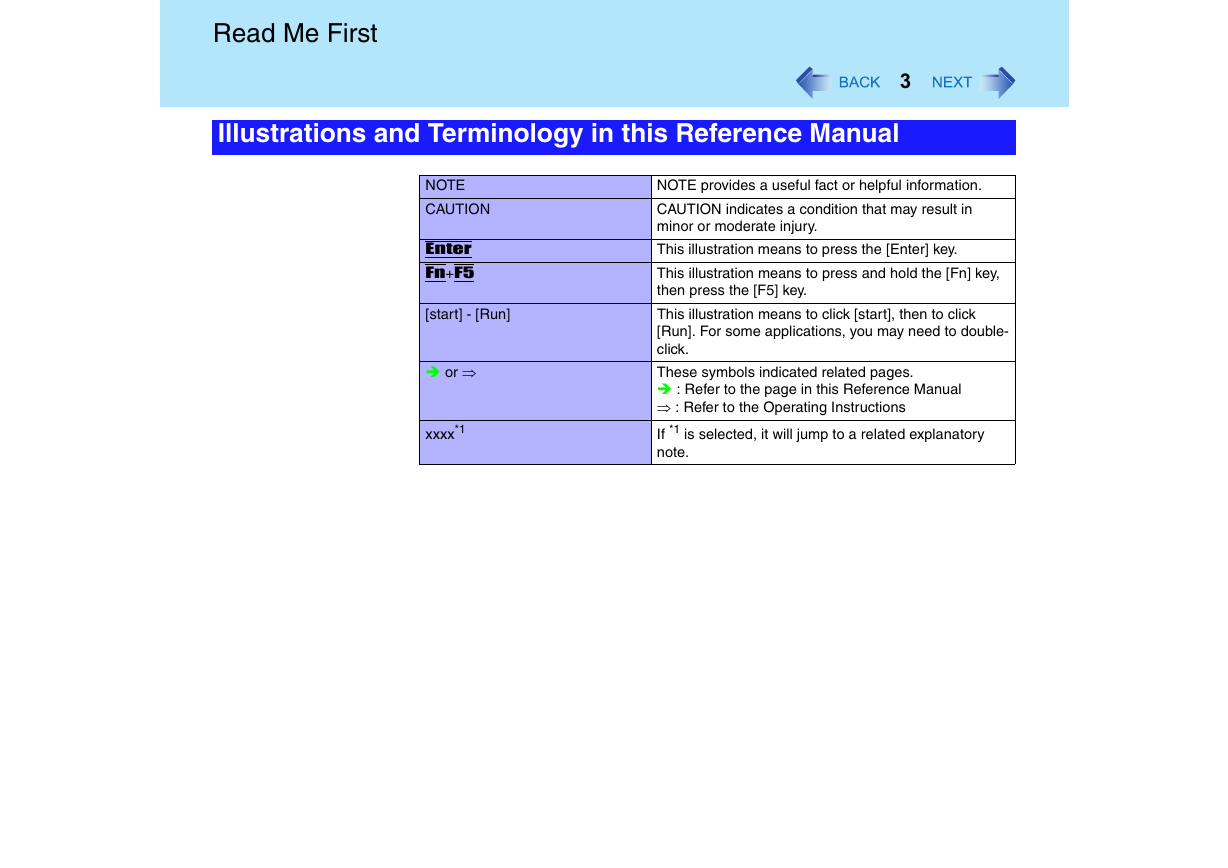

Read Me First Illustrations and Terminology in this Reference Manual 3 NOTE CAUTION Enter Fn+F5 [start] - [Run] or ⇒ xxxx*1 NOTE provides a useful fact or helpful information. CAUTION indicates a condition that may result in minor or moderate injury. This illustration means to press the [Enter] key. This illustration means to press and hold the [Fn] key, then press the [F5] key. This illustration means to click [start], then to click [Run]. For some applications, you may need to double- click. These symbols indicated related pages. : Refer to the page in this Reference Manual ⇒ : Refer to the Operating Instructions If *1 is selected, it will jump to a related explanatory note.

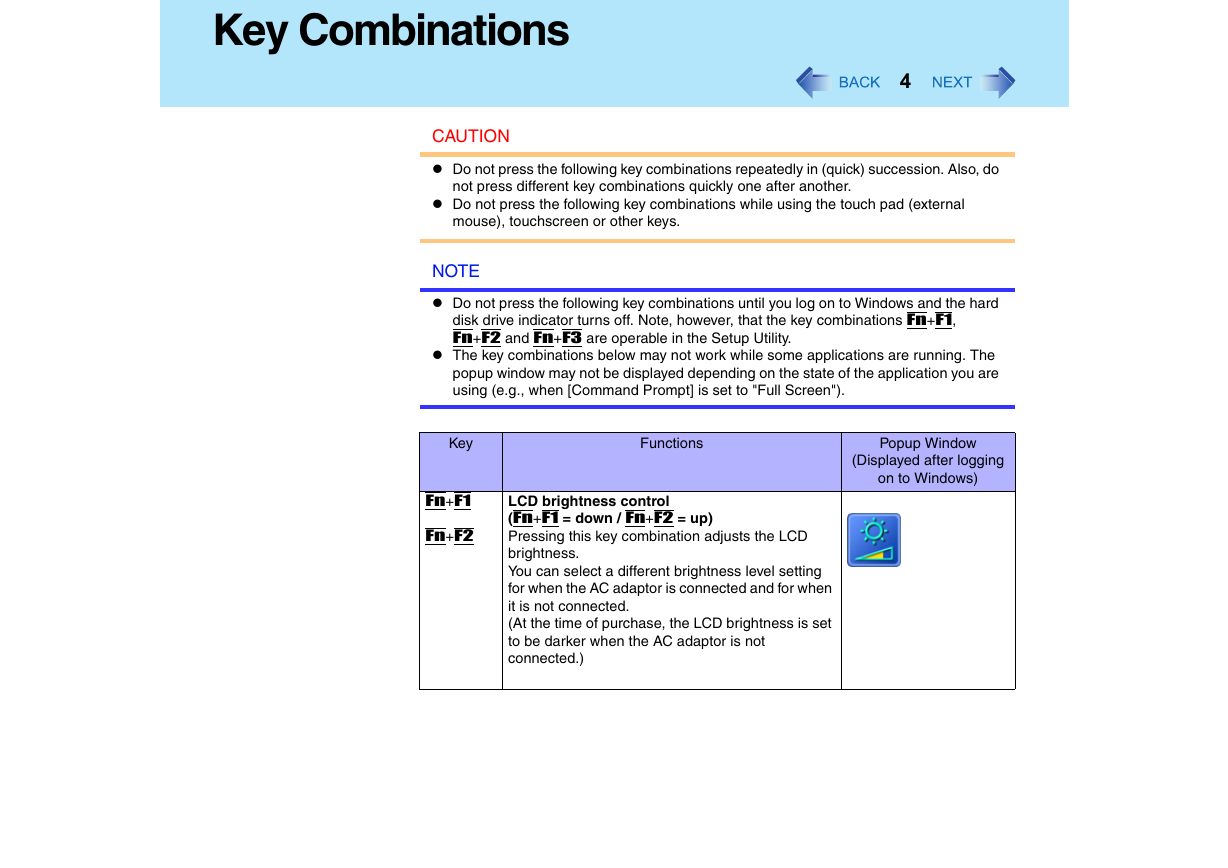

Key Combinations 4 CAUTION Do not press the following key combinations repeatedly in (quick) succession. Also, do not press different key combinations quickly one after another. Do not press the following key combinations while using the touch pad (external mouse), touchscreen or other keys. NOTE Do not press the following key combinations until you log on to Windows and the hard disk drive indicator turns off. Note, however, that the key combinations Fn+F1, Fn+F2 and Fn+F3 are operable in the Setup Utility. The key combinations below may not work while some applications are running. The popup window may not be displayed depending on the state of the application you are using (e.g., when [Command Prompt] is set to "Full Screen"). Key Fn+F1 Fn+F2 Functions Popup Window (Displayed after logging on to Windows) LCD brightness control (Fn+F1 = down / Fn+F2 = up) Pressing this key combination adjusts the LCD brightness. You can select a different brightness level setting for when the AC adaptor is connected and for when it is not connected. (At the time of purchase, the LCD brightness is set to be darker when the AC adaptor is not connected.)

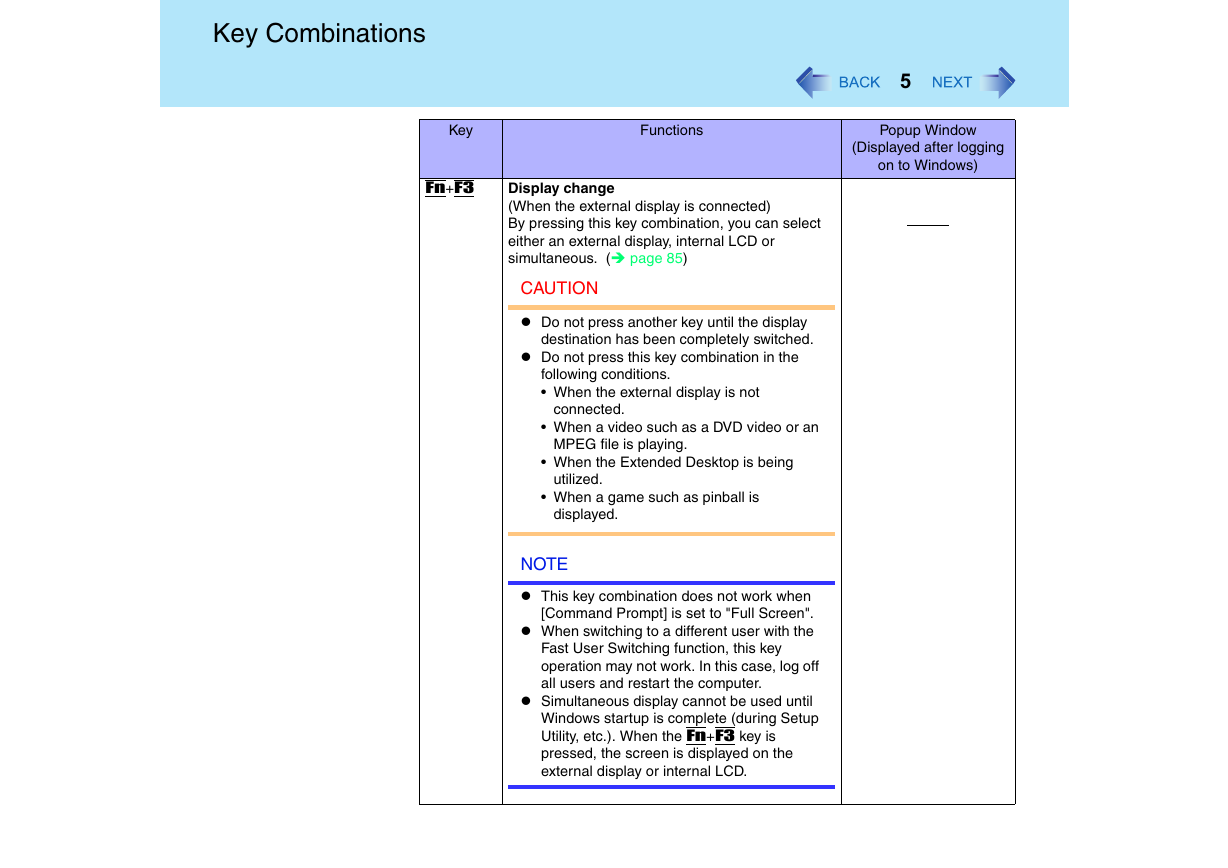

Key Combinations Key Fn+F3 5 Popup Window (Displayed after logging on to Windows) Functions Display change (When the external display is connected) By pressing this key combination, you can select either an external display, internal LCD or simultaneous. ( page 85) CAUTION Do not press another key until the display destination has been completely switched. Do not press this key combination in the following conditions. When the external display is not connected. When a video such as a DVD video or an MPEG file is playing. When the Extended Desktop is being utilized. When a game such as pinball is displayed. NOTE This key combination does not work when [Command Prompt] is set to "Full Screen". When switching to a different user with the Fast User Switching function, this key operation may not work. In this case, log off all users and restart the computer. Simultaneous display cannot be used until Windows startup is complete (during Setup Utility, etc.). When the Fn+F3 key is pressed, the screen is displayed on the external display or internal LCD.

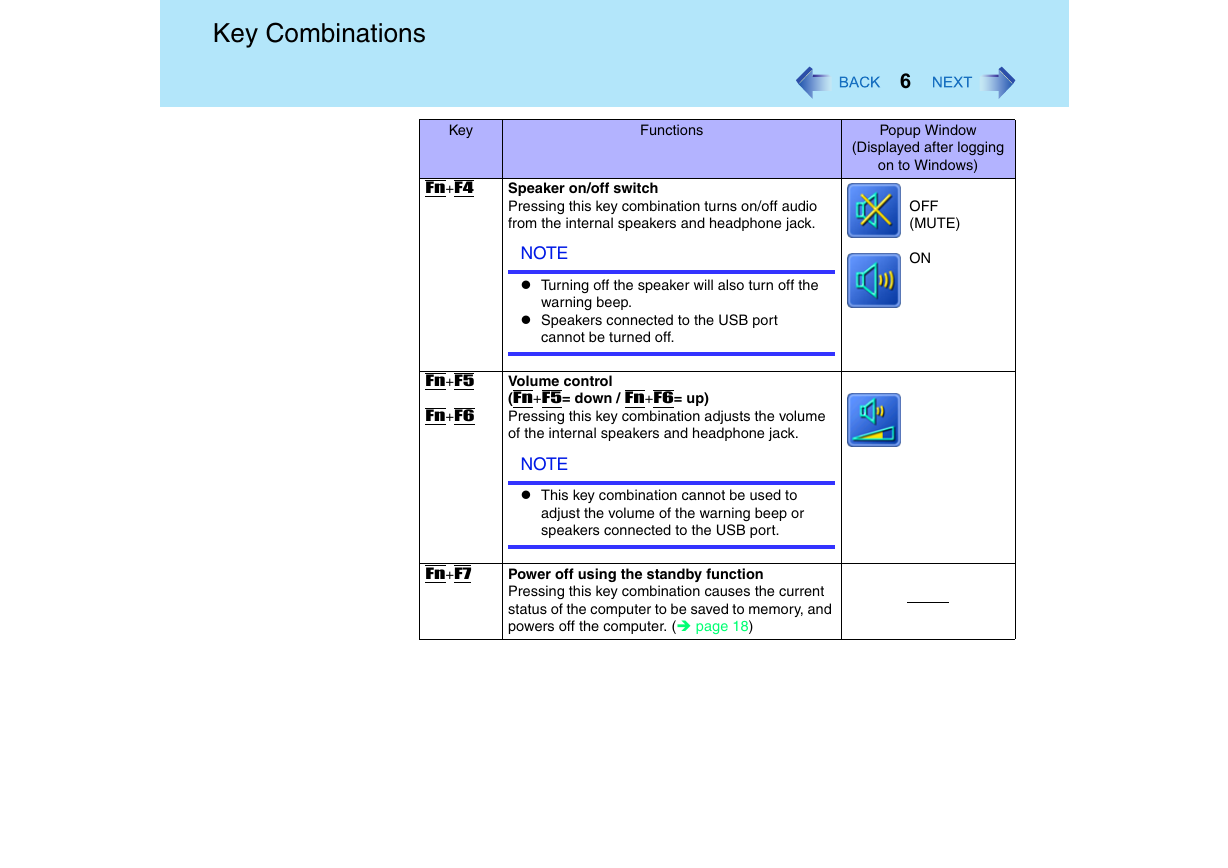

Key Combinations 6 Popup Window (Displayed after logging on to Windows) OFF (MUTE) ON Key Fn+F4 Functions Speaker on/off switch Pressing this key combination turns on/off audio from the internal speakers and headphone jack. NOTE Turning off the speaker will also turn off the warning beep. Speakers connected to the USB port cannot be turned off. Fn+F5 Fn+F6 Volume control (Fn+F5= down / Fn+F6= up) Pressing this key combination adjusts the volume of the internal speakers and headphone jack. NOTE This key combination cannot be used to adjust the volume of the warning beep or speakers connected to the USB port. Fn+F7 Power off using the standby function Pressing this key combination causes the current status of the computer to be saved to memory, and powers off the computer. ( page 18)

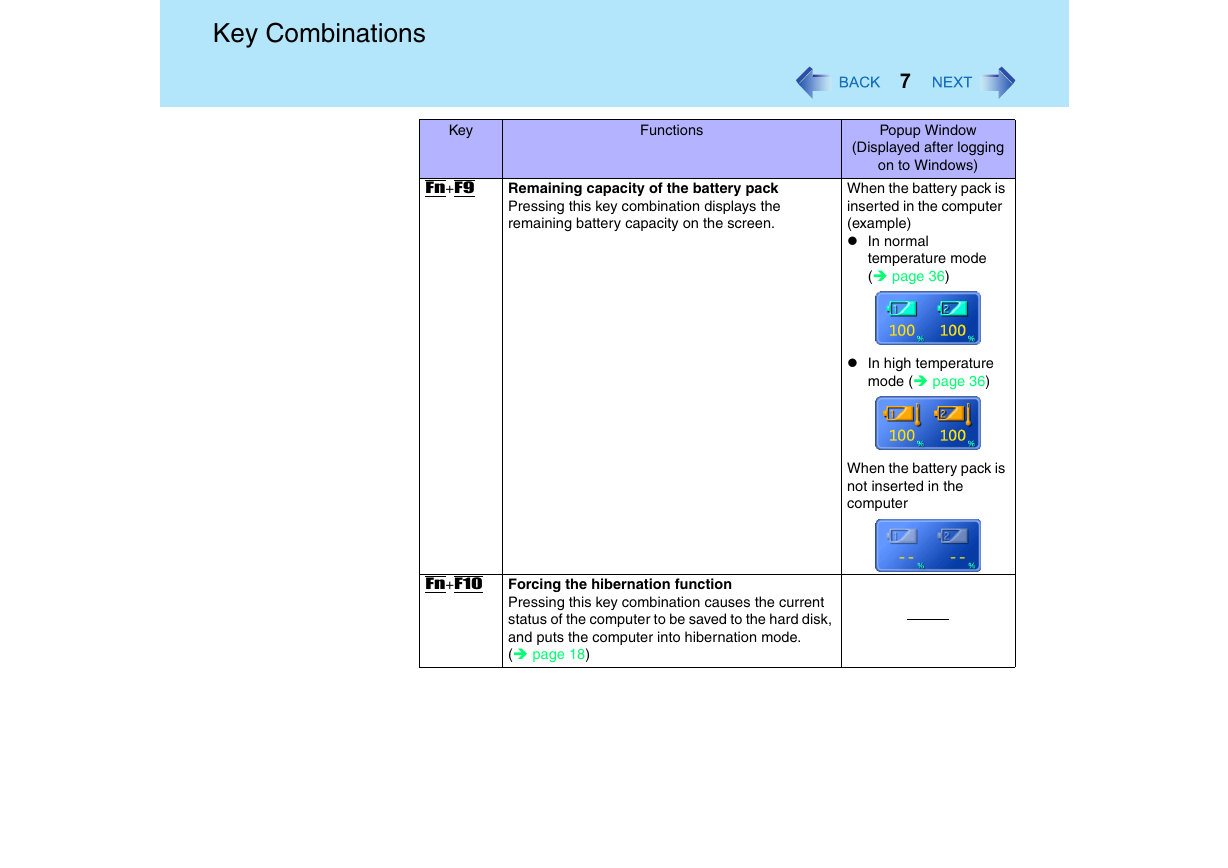

Key Combinations Key Fn+F9 Functions Remaining capacity of the battery pack Pressing this key combination displays the remaining battery capacity on the screen. 7 Popup Window (Displayed after logging on to Windows) When the battery pack is inserted in the computer (example) In normal temperature mode ( page 36) In high temperature mode ( page 36) When the battery pack is not inserted in the computer Fn+F10 Forcing the hibernation function Pressing this key combination causes the current status of the computer to be saved to the hard disk, and puts the computer into hibernation mode. ( page 18)

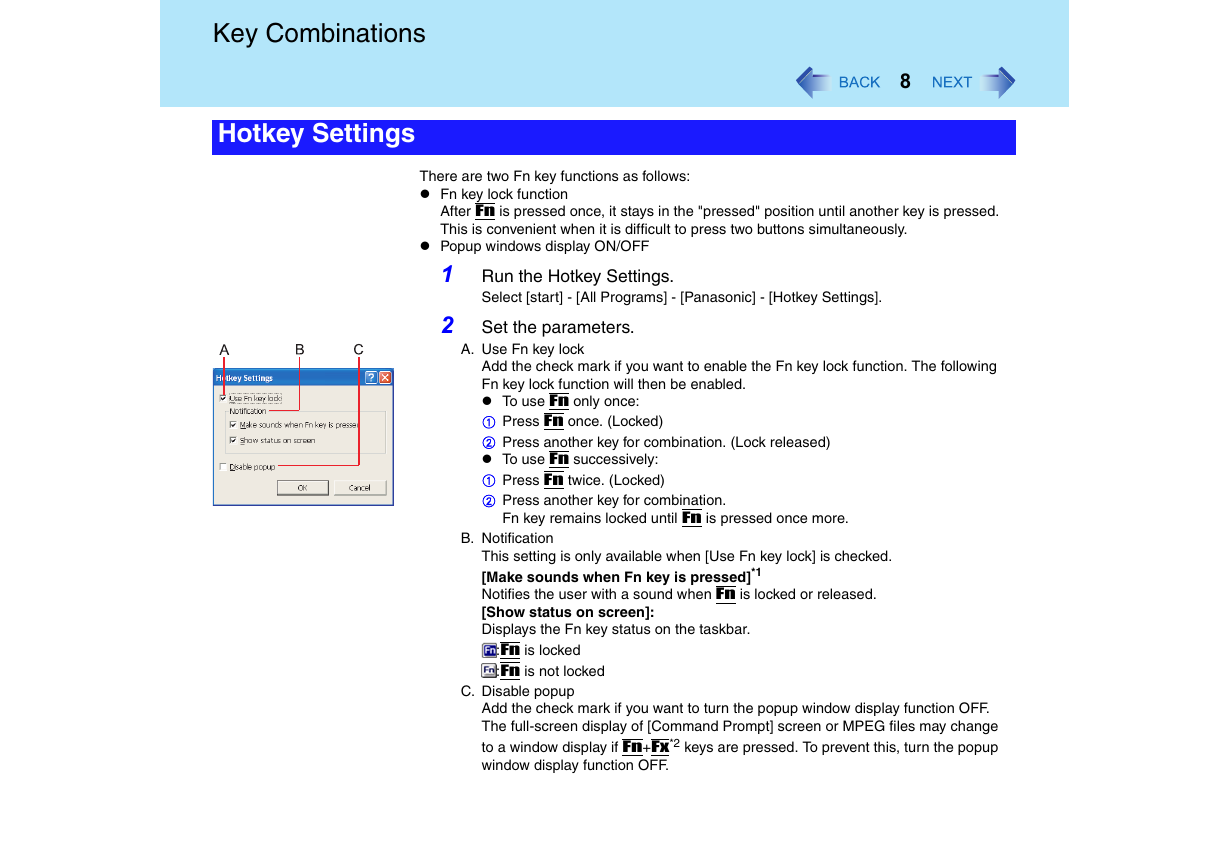

Key Combinations Hotkey Settings 8 There are two Fn key functions as follows: Fn key lock function After Fn is pressed once, it stays in the "pressed" position until another key is pressed. This is convenient when it is difficult to press two buttons simultaneously. Popup windows display ON/OFF 1 2 Run the Hotkey Settings. Select [start] - [All Programs] - [Panasonic] - [Hotkey Settings]. Set the parameters. A. Use Fn key lock Add the check mark if you want to enable the Fn key lock function. The following Fn key lock function will then be enabled. To use Fn only once: A Press Fn once. (Locked) B Press another key for combination. (Lock released) To use Fn successively: A Press Fn twice. (Locked) B Press another key for combination. Fn key remains locked until Fn is pressed once more. B. Notification This setting is only available when [Use Fn key lock] is checked. [Make sounds when Fn key is pressed]*1 Notifies the user with a sound when Fn is locked or released. [Show status on screen]: Displays the Fn key status on the taskbar. :Fn is locked :Fn is not locked C. Disable popup Add the check mark if you want to turn the popup window display function OFF. The full-screen display of [Command Prompt] screen or MPEG files may change to a window display if Fn+Fx*2 keys are pressed. To prevent this, turn the popup window display function OFF.
