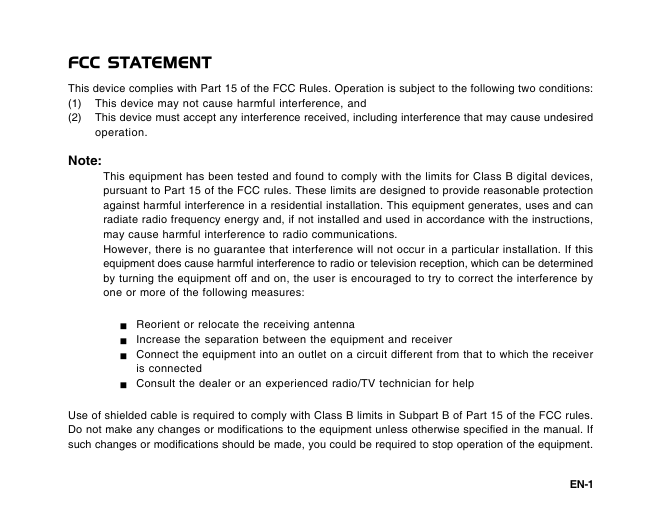

FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) (2) This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. EN-1

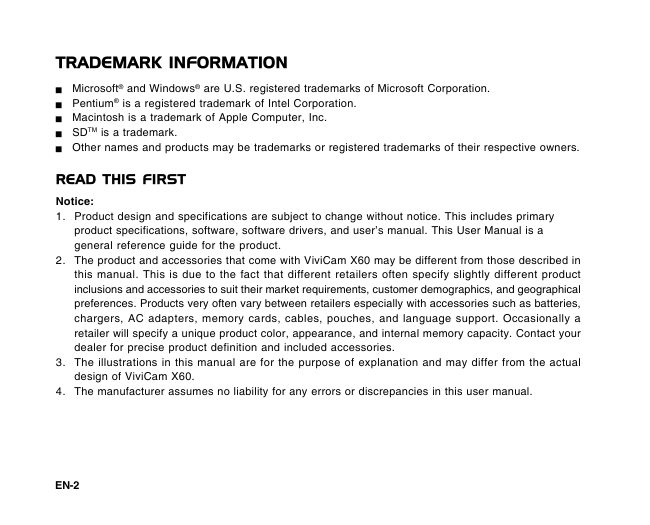

TRADEMARK INFORMATION Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation. Pentium® is a registered trademark of Intel Corporation. Macintosh is a trademark of Apple Computer, Inc. SDTM is a trademark. Other names and products may be trademarks or registered trademarks of their respective owners. READ THIS FIRST Notice: 1. Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and user’s manual. This User Manual is a general reference guide for the product. 2. The product and accessories that come with ViviCam X60 may be different from those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories. 3. The illustrations in this manual are for the purpose of explanation and may differ from the actual design of ViviCam X60. 4. The manufacturer assumes no liability for any errors or discrepancies in this user manual. EN-2

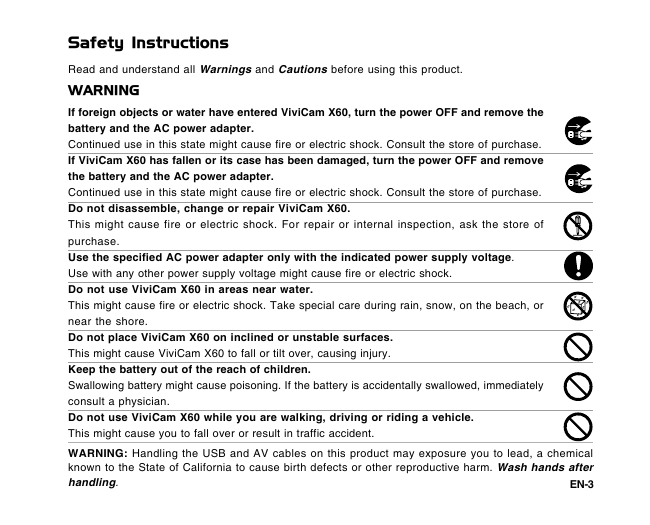

Safety Instructions Read and understand all Warnings and Cautions before using this product. WARNING If foreign objects or water have entered ViviCam X60, turn the power OFF and remove the battery and the AC power adapter. Continued use in this state might cause fire or electric shock. Consult the store of purchase. If ViviCam X60 has fallen or its case has been damaged, turn the power OFF and remove the battery and the AC power adapter. Continued use in this state might cause fire or electric shock. Consult the store of purchase. Do not disassemble, change or repair ViviCam X60. This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase. Use the specified AC power adapter only with the indicated power supply voltage. Use with any other power supply voltage might cause fire or electric shock. Do not use ViviCam X60 in areas near water. This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore. Do not place ViviCam X60 on inclined or unstable surfaces. This might cause ViviCam X60 to fall or tilt over, causing injury. Keep the battery out of the reach of children. Swallowing battery might cause poisoning. If the battery is accidentally swallowed, immediately consult a physician. Do not use ViviCam X60 while you are walking, driving or riding a vehicle. This might cause you to fall over or result in traffic accident. WARNING: Handling the USB and AV cables on this product may exposure you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. EN-3

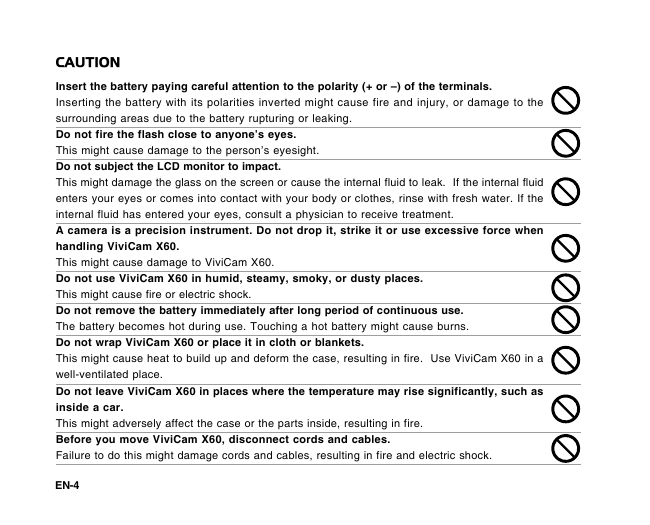

CAUTION Insert the battery paying careful attention to the polarity (+ or –) of the terminals. Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking. Do not fire the flash close to anyone’s eyes. This might cause damage to the person’s eyesight. Do not subject the LCD monitor to impact. This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid has entered your eyes, consult a physician to receive treatment. A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling ViviCam X60. This might cause damage to ViviCam X60. Do not use ViviCam X60 in humid, steamy, smoky, or dusty places. This might cause fire or electric shock. Do not remove the battery immediately after long period of continuous use. The battery becomes hot during use. Touching a hot battery might cause burns. Do not wrap ViviCam X60 or place it in cloth or blankets. This might cause heat to build up and deform the case, resulting in fire. Use ViviCam X60 in a well-ventilated place. Do not leave ViviCam X60 in places where the temperature may rise significantly, such as inside a car. This might adversely affect the case or the parts inside, resulting in fire. Before you move ViviCam X60, disconnect cords and cables. Failure to do this might damage cords and cables, resulting in fire and electric shock. EN-4

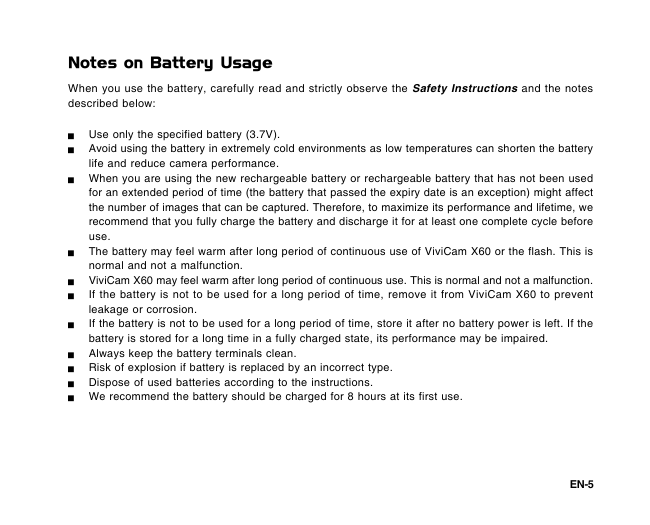

Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: Use only the specified battery (3.7V). Avoid using the battery in extremely cold environments as low temperatures can shorten the battery life and reduce camera performance. When you are using the new rechargeable battery or rechargeable battery that has not been used for an extended period of time (the battery that passed the expiry date is an exception) might affect the number of images that can be captured. Therefore, to maximize its performance and lifetime, we recommend that you fully charge the battery and discharge it for at least one complete cycle before use. The battery may feel warm after long period of continuous use of ViviCam X60 or the flash. This is normal and not a malfunction. ViviCam X60 may feel warm after long period of continuous use. This is normal and not a malfunction. If the battery is not to be used for a long period of time, remove it from ViviCam X60 to prevent leakage or corrosion. If the battery is not to be used for a long period of time, store it after no battery power is left. If the battery is stored for a long time in a fully charged state, its performance may be impaired. Always keep the battery terminals clean. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. We recommend the battery should be charged for 8 hours at its first use. EN-5

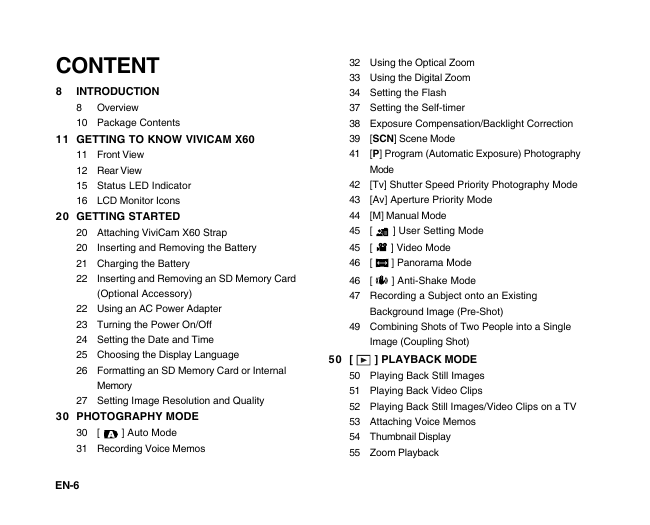

CONTENT 8 INTRODUCTION 8 Overview 10 Package Contents 11 GETTING TO KNOW VIVICAM X60 11 Front View 12 Rear View 15 Status LED Indicator 16 LCD Monitor Icons 20 GETTING STARTED 20 Attaching ViviCam X60 Strap 20 Inserting and Removing the Battery 21 Charging the Battery 22 Inserting and Removing an SD Memory Card (Optional Accessory) 22 Using an AC Power Adapter 23 Turning the Power On/Off 24 Setting the Date and Time 25 Choosing the Display Language 26 Formatting an SD Memory Card or Internal Memory 27 Setting Image Resolution and Quality 30 PHOTOGRAPHY MODE ] Auto Mode 30 [ 31 Recording Voice Memos EN-6 32 Using the Optical Zoom 33 Using the Digital Zoom 34 Setting the Flash 37 Setting the Self-timer 38 Exposure Compensation/Backlight Correction 39 [SCN] Scene Mode 41 [P] Program (Automatic Exposure) Photography Mode 42 [Tv] Shutter Speed Priority Photography Mode 43 [Av] Aperture Priority Mode 44 [M] Manual Mode 45 [ 45 [ 46 [ 46 [ 47 Recording a Subject onto an Existing ] User Setting Mode ] Video Mode ] Panorama Mode ] Anti-Shake Mode Background Image (Pre-Shot) 49 Combining Shots of Two People into a Single Image (Coupling Shot) ] PLAYBACK MODE 50 [ 50 Playing Back Still Images 51 Playing Back Video Clips 52 Playing Back Still Images/Video Clips on a TV 53 Attaching Voice Memos 54 Thumbnail Display 55 Zoom Playback

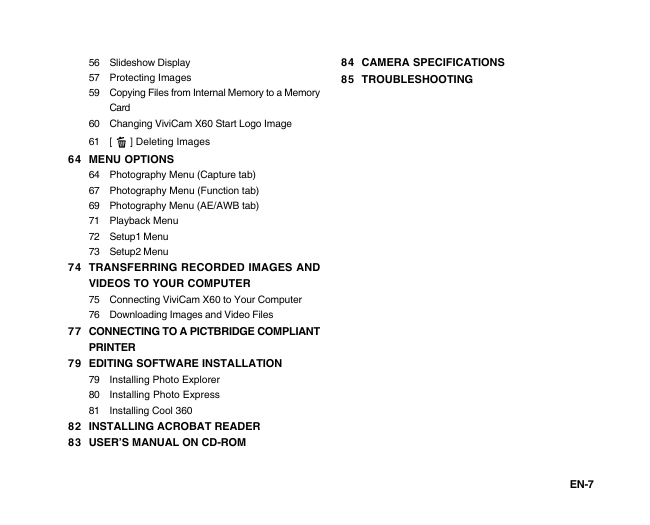

84 CAMERA SPECIFICATIONS 85 TROUBLESHOOTING 56 Slideshow Display 57 Protecting Images 59 Copying Files from Internal Memory to a Memory Card 60 Changing ViviCam X60 Start Logo Image 61 [ ] Deleting Images 64 MENU OPTIONS 64 Photography Menu (Capture tab) 67 Photography Menu (Function tab) 69 Photography Menu (AE/AWB tab) 71 Playback Menu 72 Setup1 Menu 73 Setup2 Menu 74 TRANSFERRING RECORDED IMAGES AND VIDEOS TO YOUR COMPUTER 75 Connecting ViviCam X60 to Your Computer 76 Downloading Images and Video Files 77 CONNECTING TO A PICTBRIDGE COMPLIANT PRINTER 79 EDITING SOFTWARE INSTALLATION 79 Installing Photo Explorer 80 Installing Photo Express 81 Installing Cool 360 82 INSTALLING ACROBAT READER 83 USER’S MANUAL ON CD-ROM EN-7

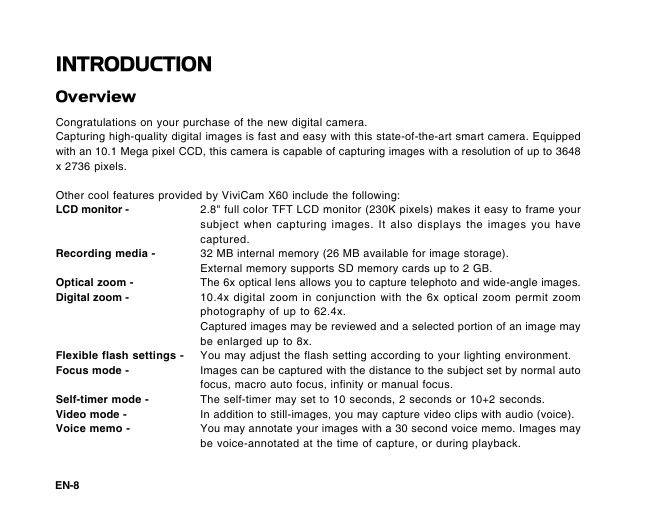

INTRODUCTION Overview Congratulations on your purchase of the new digital camera. Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera. Equipped with an 10.1 Mega pixel CCD, this camera is capable of capturing images with a resolution of up to 3648 x 2736 pixels. Other cool features provided by ViviCam X60 include the following: LCD monitor - 2.8" full color TFT LCD monitor (230K pixels) makes it easy to frame your subject when capturing images. It also displays the images you have captured. 32 MB internal memory (26 MB available for image storage). External memory supports SD memory cards up to 2 GB. The 6x optical lens allows you to capture telephoto and wide-angle images. 10.4x digital zoom in conjunction with the 6x optical zoom permit zoom photography of up to 62.4x. Captured images may be reviewed and a selected portion of an image may be enlarged up to 8x. You may adjust the flash setting according to your lighting environment. Images can be captured with the distance to the subject set by normal auto focus, macro auto focus, infinity or manual focus. The self-timer may set to 10 seconds, 2 seconds or 10+2 seconds. In addition to still-images, you may capture video clips with audio (voice). You may annotate your images with a 30 second voice memo. Images may be voice-annotated at the time of capture, or during playback. Recording media - Optical zoom - Digital zoom - Flexible flash settings - Focus mode - Self-timer mode - Video mode - Voice memo - EN-8
