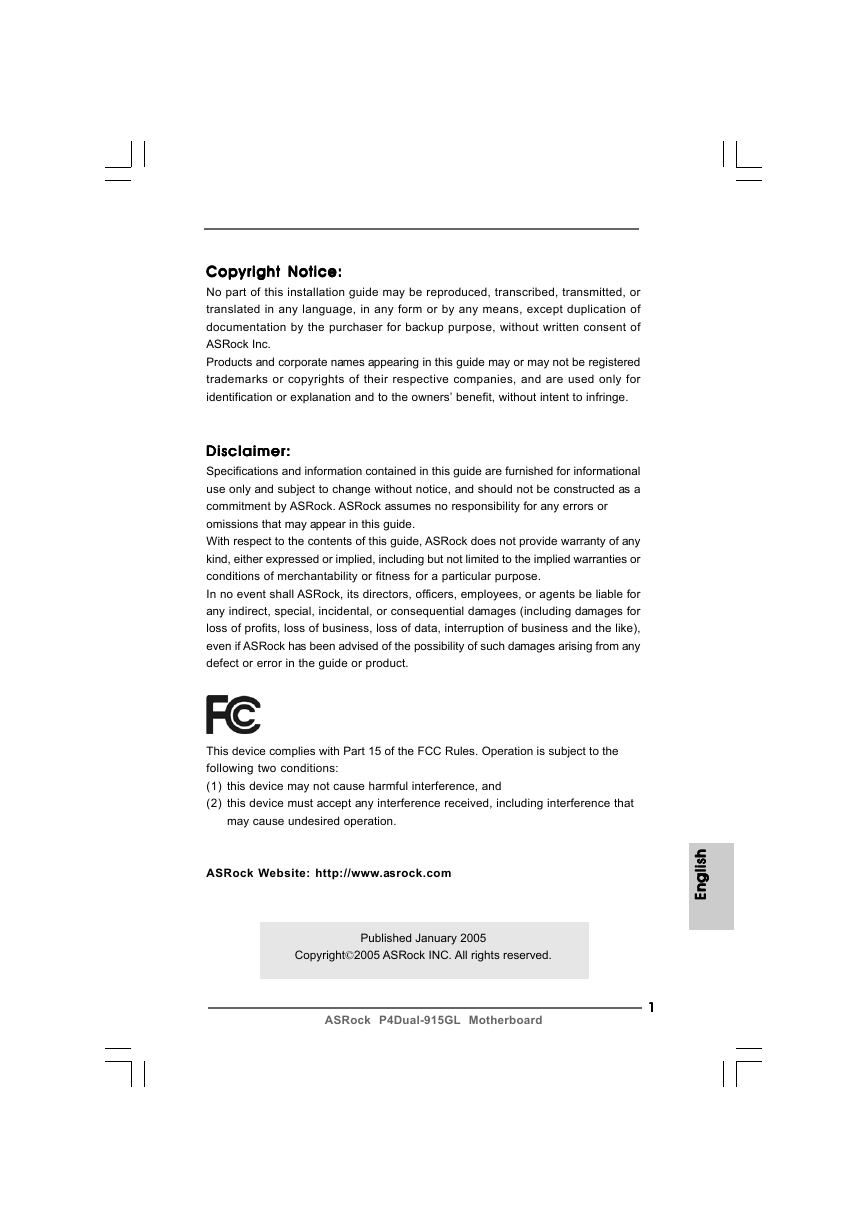

Copyright Notice: Copyright Notice: Copyright Notice: Copyright Notice: Copyright Notice: No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. Disclaimer: Disclaimer: Disclaimer: Disclaimer: Disclaimer: Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ASRock Website: http://www.asrock.com h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E Published January 2005 Copyright©2005 ASRock INC. All rights reserved. ASRock P4Dual-915GL Motherboard 11111

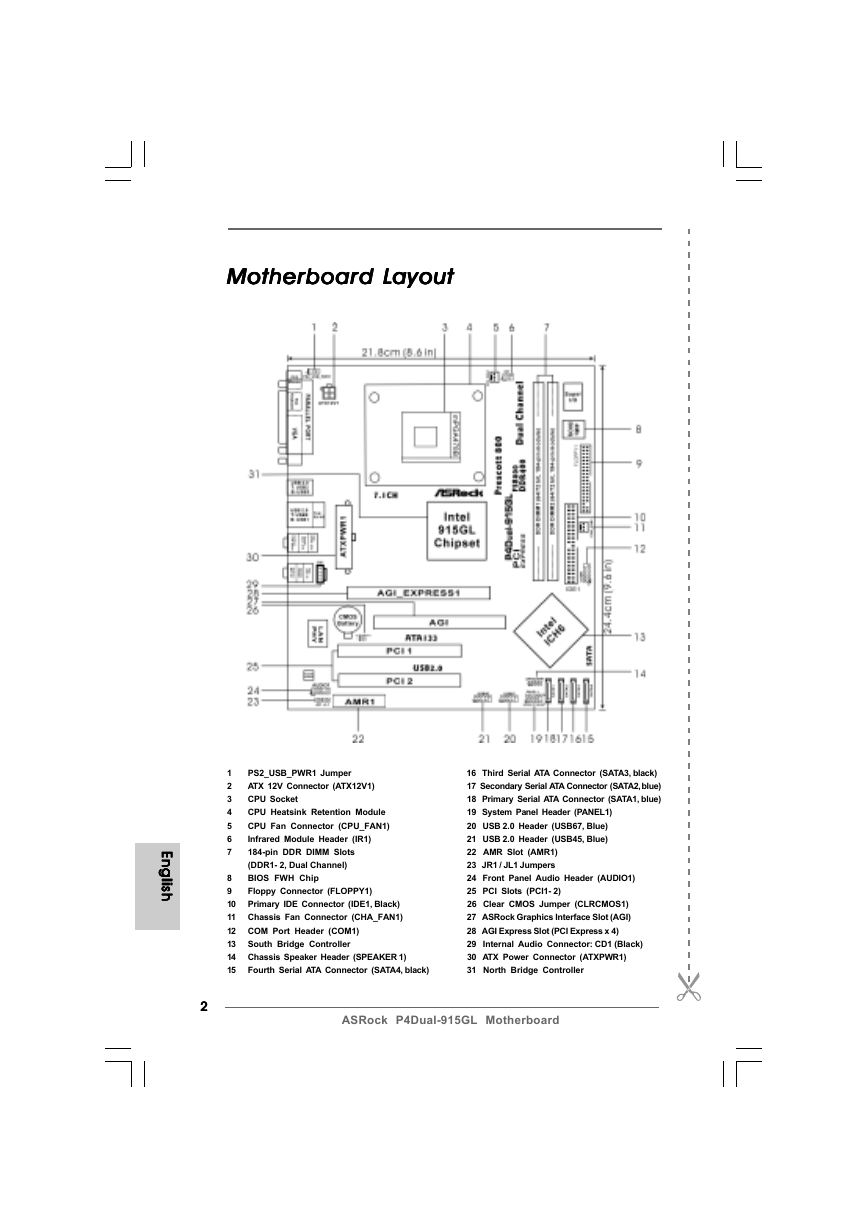

Motherboard L Motherboard L ayout ayout Motherboard Layout ayout Motherboard L Motherboard L ayout 1 2 3 4 5 6 7 E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h PS2_USB_PWR1 Jumper ATX 12V Connector (ATX12V1) CPU Socket CPU Heatsink Retention Module CPU Fan Connector (CPU_FAN1) Infrared Module Header (IR1) 184-pin DDR DIMM Slots (DDR1- 2, Dual Channel) BIOS FWH Chip 8 Floppy Connector (FLOPPY1) 9 10 Primary IDE Connector (IDE1, Black) 11 Chassis Fan Connector (CHA_FAN1) 12 COM Port Header (COM1) 13 14 Chassis Speaker Header (SPEAKER 1) 15 South Bridge Controller Fourth Serial ATA Connector (SATA4, black) 16 Third Serial ATA Connector (SATA3, black) 17 Secondary Serial ATA Connector (SATA2, blue) 18 Primary Serial ATA Connector (SATA1, blue) 19 System Panel Header (PANEL1) 20 USB 2.0 Header (USB67, Blue) 21 USB 2.0 Header (USB45, Blue) 22 AMR Slot (AMR1) 23 JR1 / JL1 Jumpers 24 Front Panel Audio Header (AUDIO1) 25 PCI Slots (PCI1- 2) 26 Clear CMOS Jumper (CLRCMOS1) 27 ASRock Graphics Interface Slot (AGI) 28 AGI Express Slot (PCI Express x 4) 29 Internal Audio Connector: CD1 (Black) 30 ATX Power Connector (ATXPWR1) 31 North Bridge Controller 22222 ASRock P4Dual-915GL Motherboard

ASRock 8CH I/O ASRock 8CH I/O ASRock 8CH I/O ASRock 8CH I/O ASRock 8CH I/O 1 2 3 4 5 6 *7 Parallel Port RJ-45 Port Side Speaker (Gray) Rear Speaker (Black) Central / Bass (Orange) Line In (Light Blue) Front Speaker (Lime) 8 Microphone (Pink) 9 USB 2.0 Ports (USB01) 10 USB 2.0 Ports (USB23) 11 12 13 VGA Port PS/2 Keyboard Port (Purple) PS/2 Mouse Port (Green) * If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker (No. 7) (No. 4) (No. 5) (No. 3) 2 4 6 8 V V V V -- V V V -- -- V V -- -- -- V h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E ASRock P4Dual-915GL Motherboard 33333

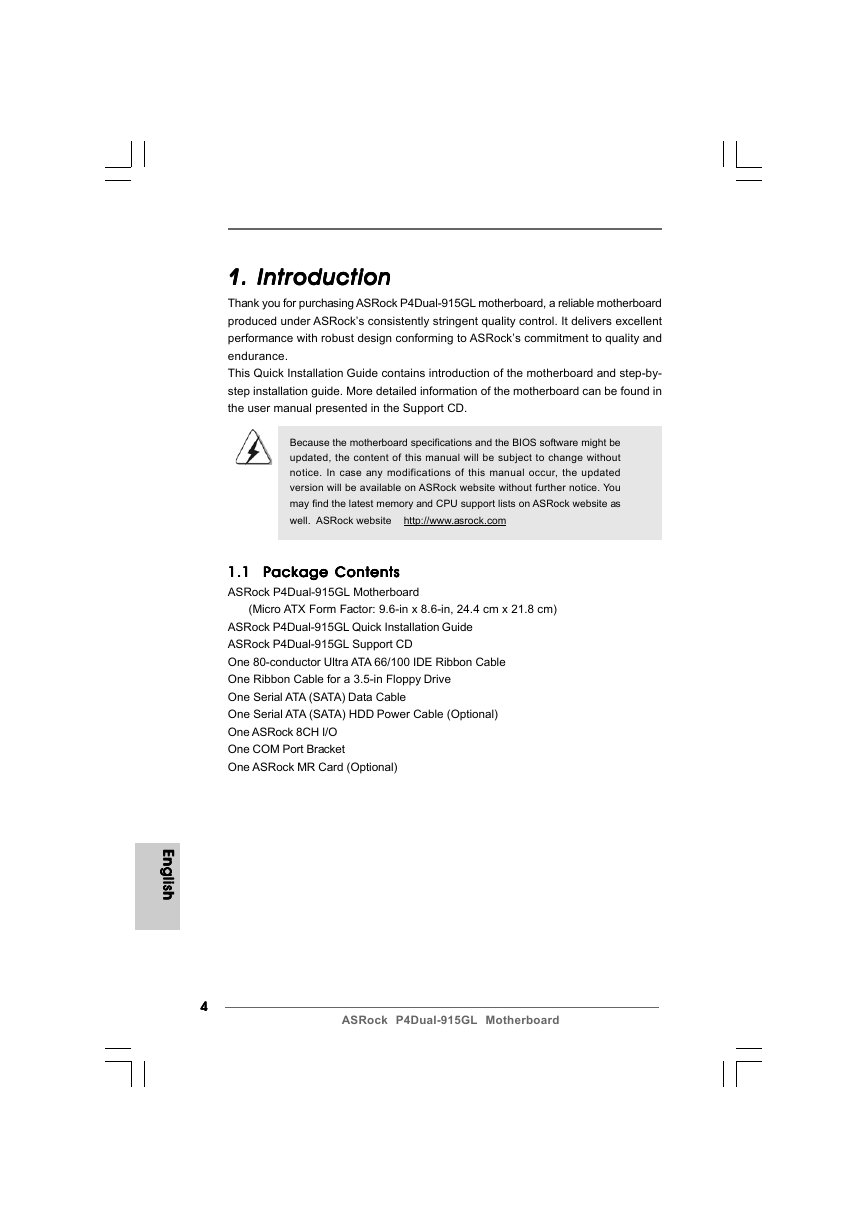

1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction Thank you for purchasing ASRock P4Dual-915GL motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard and step-by- step installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD. Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest memory and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com 1.1 Package Contents 1.1 Package Contents 1.1 Package Contents 1.1 Package Contents 1.1 Package Contents ASRock P4Dual-915GL Motherboard (Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm) ASRock P4Dual-915GL Quick Installation Guide ASRock P4Dual-915GL Support CD One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable One Ribbon Cable for a 3.5-in Floppy Drive One Serial ATA (SATA) Data Cable One Serial ATA (SATA) HDD Power Cable (Optional) One ASRock 8CH I/O One COM Port Bracket One ASRock MR Card (Optional) E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h 44444 ASRock P4Dual-915GL Motherboard

Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm Socket 478, supports Intel® Pentium® 4 / Celeron® (Prescott, Northwood) processor North Bridge: Intel® 915GL chipset, FSB @ 800 / 533MHz, supports Hyper-Threading Technology (see CAUTION 1) South Bridge: Intel® ICH6, supports SATA 1.5Gb/s 2 DDR DIMM slots: DDR1 and DDR2 1.2 Specifications 1.2 Specifications 1.2 Specifications 1.2 Specifications 1.2 Specifications Platform: CPU: Chipsets: Memory: IDE: Serial ATA: supports PC3200 (DDR400) / PC2700 (DDR333), Max. 2GB (see CAUTION 2) Dual Channel Memory Technology support(see CAUTION 3) IDE1: ATA 100 / Ultra DMA Mode 5, supports up to 2 IDE devices Supports up to 4 SATA devices at 1.5Gb/s data transfer rate. (No Support for “RAID” and “Hot Plug” functions) Supports up to 2 floppy disk drives 7.1 channels AC’97 Audio Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN Floppy Port: Audio: PCI LAN: Hardware Monitor:CPU temperature sensing, Chassis temperature sensing, CPU overheat shutdown to protect CPU life (ASRock U-COP)(see CAUTION 4), CPU fan tachometer, Chassis fan tachometer, Voltage monitoring: +12V, +5V, +3.3V, Vcore 2 PCI slots with PCI Specification 2.3 1 slot, supports ASRock MR card (Optional) 1 AGI [ASRock Graphics Interface] slot (see CAUTION 5) PCI slots: AMR slot: AGI slot: AGI Express slot (PCI Express x 4): USB 2.0: 1 slot with PCI Express x 4 , supports PCI Express x 16 Graphic Card (see CAUTION 6) 8 USB 2.0 ports: includes 4 default USB 2.0 ports on the rear panel, plus two headers to support 4 additional USB 2.0 ports (see CAUTION 7) ASRock 8CH I/O: 1 PS/2 Mouse Port, 1 PS/2 Keyboard Port 1 VGA Port 1 Parallel Port (ECP/EPP Support) 4 Ready-to-Use USB 2.0 Ports, 1 RJ-45 Port Audio Jack: Side Speaker / Rear Speaker / Central/Bass / ASRock P4Dual-915GL Motherboard 55555 h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E

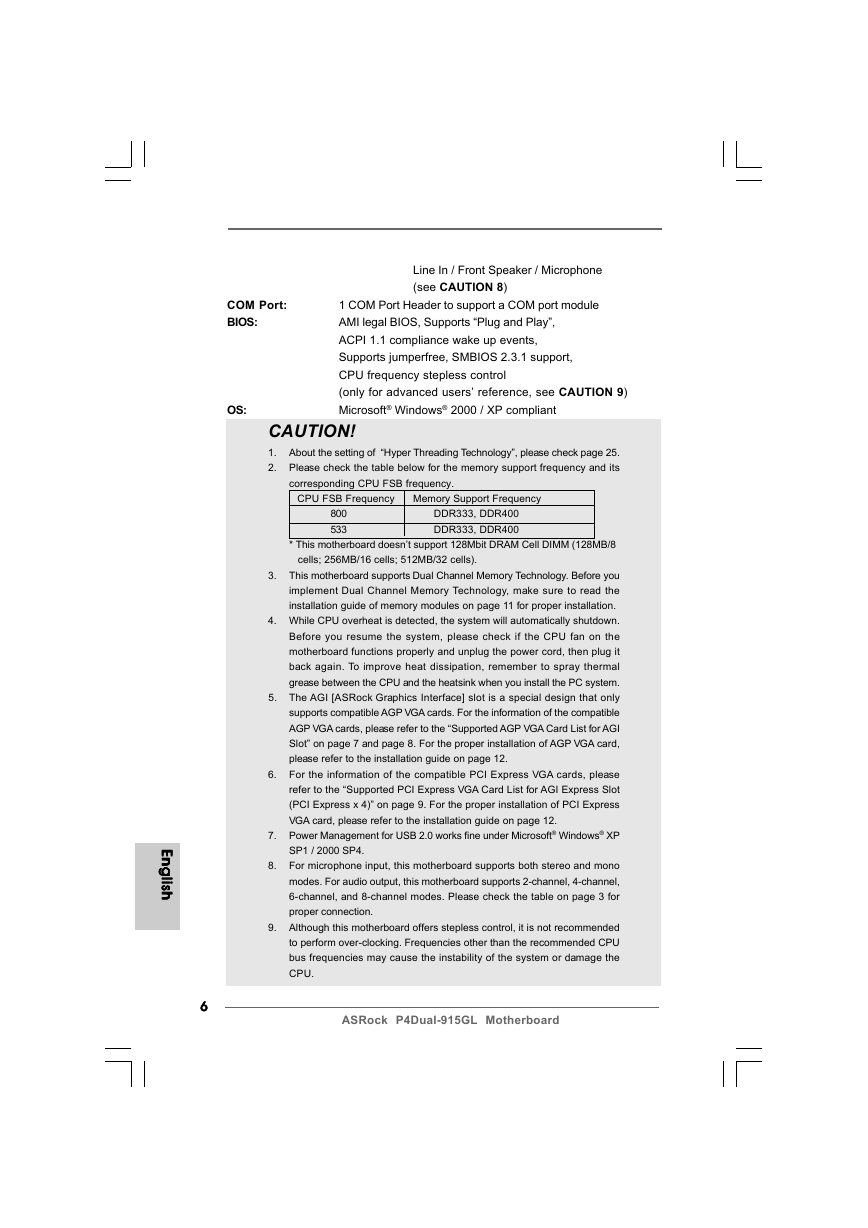

COM Port: BIOS: OS: Line In / Front Speaker / Microphone (see CAUTION 8) 1 COM Port Header to support a COM port module AMI legal BIOS, Supports “Plug and Play”, ACPI 1.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3.1 support, CPU frequency stepless control (only for advanced users’ reference, see CAUTION 9) Microsoft® Windows® 2000 / XP compliant CAUTION! 1. About the setting of “Hyper Threading Technology”, please check page 25. 2. Please check the table below for the memory support frequency and its corresponding CPU FSB frequency. CPU FSB Frequency Memory Support Frequency 800 533 DDR333, DDR400 DDR333, DDR400 * This motherboard doesn’t support 128Mbit DRAM Cell DIMM (128MB/8 cells; 256MB/16 cells; 512MB/32 cells). 3. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 11 for proper installation. 4. While CPU overheat is detected, the system will automatically shutdown. Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system. 5. The AGI [ASRock Graphics Interface] slot is a special design that only supports compatible AGP VGA cards. For the information of the compatible AGP VGA cards, please refer to the “Supported AGP VGA Card List for AGI Slot” on page 7 and page 8. For the proper installation of AGP VGA card, please refer to the installation guide on page 12. 6. For the information of the compatible PCI Express VGA cards, please refer to the “Supported PCI Express VGA Card List for AGI Express Slot (PCI Express x 4)” on page 9. For the proper installation of PCI Express VGA card, please refer to the installation guide on page 12. 7. Power Management for USB 2.0 works fine under Microsoft® Windows® XP SP1 / 2000 SP4. 8. For microphone input, this motherboard supports both stereo and mono modes. For audio output, this motherboard supports 2-channel, 4-channel, 6-channel, and 8-channel modes. Please check the table on page 3 for proper connection. 9. Although this motherboard offers stepless control, it is not recommended to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU. 66666 ASRock P4Dual-915GL Motherboard E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h

1.31.31.31.31.3 Supported AGP VGA Card List for AGI Slot Supported AGP VGA Card List for AGI Slot Supported AGP VGA Card List for AGI Slot Supported AGP VGA Card List for AGI Slot Supported AGP VGA Card List for AGI Slot (for Windows 2000/Windows XP) I. AGP 4X Graphics Chip Vendor n-VIDIA ATI Model Name ASUS AGP-V8170 ASUS AGP-V9180 Magic INNO3D GeForce4 MX440SE Insignia GeForce MX440SE LEADTEK A170TH GIGABYTE GV-AP64S-H POWERCOLOR RADEON 9100 Transcend TS64MVDR7 For the latest updates of the supported AGP VGA card list for AGI slot, please visit ASRock website for details. ASRock website: http://www.asrock.com/support/index.htm h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E ASRock P4Dual-915GL Motherboard 77777

II. AGP 8X Graphics Chip Vendor n-VIDIA ATI Model Name ASUS AGP-V9570/TD ASUS AGP-V9480 ASUS AGP-V9950ULTRA ASUS AGP-V9520-X ASUS AGP-V9570/TD ASUS V9980 Ultra ASUS V9999 Ultra/2DT ASUS ASUS V9400MAGIC ALBATRON GeForce FX5600Series ALBATRON GeForce MX-480 Series ALBATRON GeForce 6600 Aopen Aeolus Fx5200-DV 128 Awin FX5700-LE ELSA AGP-518BL GIGABYTE GV-N57L256D LEADTEK WinFast A360TD LEADTEK WINFAST A340TDH LEADTEK WinFast A340PRO/TD LEADTEK WinFast A400TDH LEADTEK A6600GT/TDH LEADTEK A280LE TD MIS FX5700-TD128 Prolink PV-N36AX PixeIView PV-N35XA Club 3D RADEON 9800 Connect 3D RADEON 9250 GECUBE RADEON 9250/128M GIGABYTE GV-R9000 PRO GIGABYTE GV-9500 MSI RX 9200 SE-T128 POWERCOLOR RADEON 9200SE POWERCOLOR RADEON 9250/128M E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h For the latest updates of the supported AGP VGA card list for AGI slot, please visit ASRock website for details. ASRock website: http://www.asrock.com/support/index.htm Note. ATi 9600, 9550 series, and all Matrox series VGA cards are NOT supported with AGI. 88888 ASRock P4Dual-915GL Motherboard
