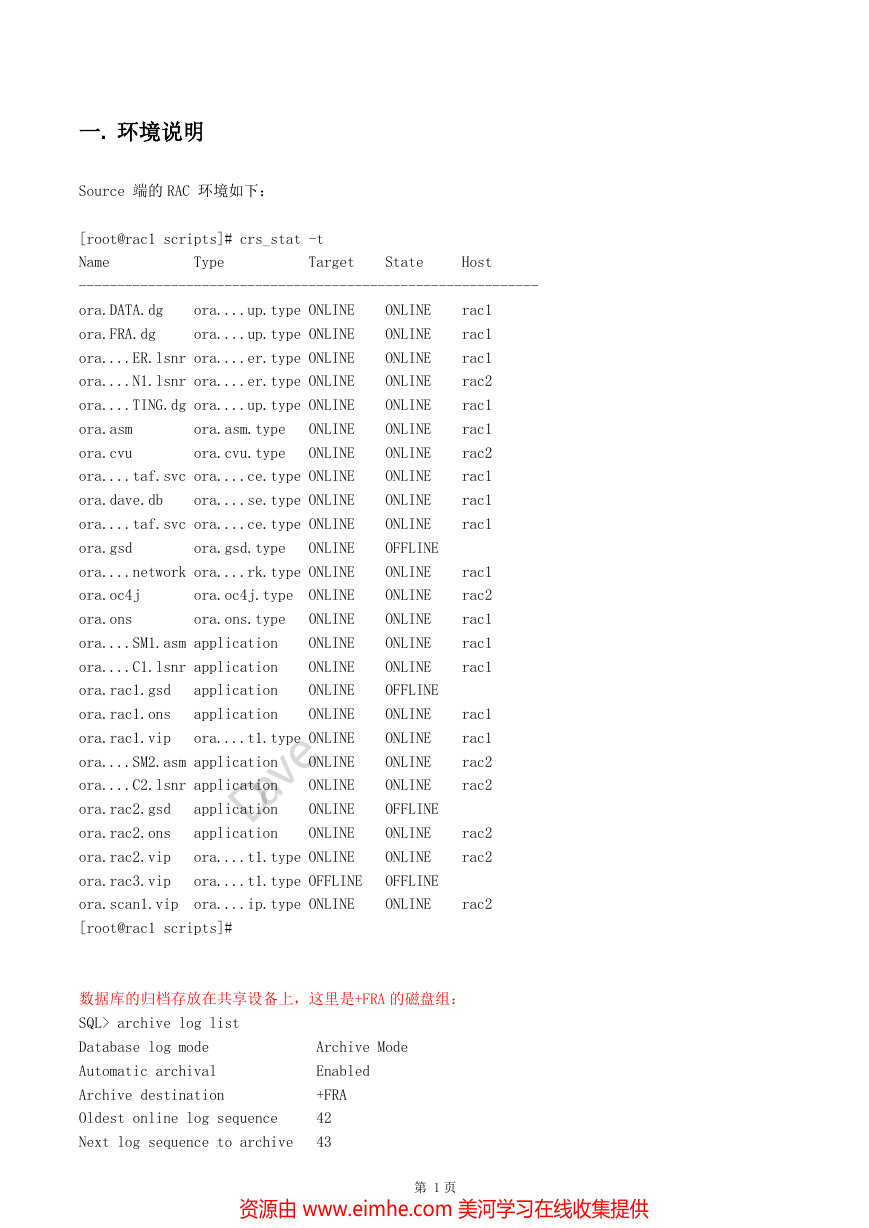

一. 环境说明 Source 端的 RAC 环境如下： [root@rac1 scripts]# crs_stat -t Name Type Target State Host ------------------------------------------------------------ ora.DATA.dg ora....up.type ONLINE ONLINE rac1 ora.FRA.dg ora....up.type ONLINE ONLINE rac1 ora....ER.lsnr ora....er.type ONLINE ONLINE rac1 ora....N1.lsnr ora....er.type ONLINE ONLINE rac2 ora....TING.dg ora....up.type ONLINE ONLINE rac1 ora.asm ora.asm.type ONLINE ONLINE rac1 ora.cvu ora.cvu.type ONLINE ONLINE rac2 ora....taf.svc ora....ce.type ONLINE ONLINE rac1 ora.dave.db ora....se.type ONLINE ONLINE rac1 ora....taf.svc ora....ce.type ONLINE ONLINE rac1 ora.gsd ora.gsd.type ONLINE OFFLINE ora....network ora....rk.type ONLINE ONLINE rac1 ora.oc4j ora.oc4j.type ONLINE ONLINE rac2 ora.ons ora.ons.type ONLINE ONLINE rac1 ora....SM1.asm application ONLINE ONLINE rac1 ora....C1.lsnr application ONLINE ONLINE rac1 ora.rac1.gsd application ONLINE OFFLINE ora.rac1.ons application ONLINE ONLINE rac1 ora.rac1.vip ora....t1.type ONLINE ONLINE rac1 ora....SM2.asm application ONLINE ONLINE rac2 Dave ora....C2.lsnr application ONLINE ONLINE rac2 ora.rac2.gsd application ONLINE OFFLINE ora.rac2.ons application ONLINE ONLINE rac2 ora.rac2.vip ora....t1.type ONLINE ONLINE rac2 ora.rac3.vip ora....t1.type OFFLINE OFFLINE ora.scan1.vip ora....ip.type ONLINE ONLINE rac2 [root@rac1 scripts]# 数据库的归档存放在共享设备上，这里是+FRA 的磁盘组： SQL> archive log list Database log mode Archive Mode Automatic archival Enabled Archive destination +FRA Oldest online log sequence 42 Next log sequence to archive 43 第 1 页资源由 www.eimhe.com 美河学习在线收集提供

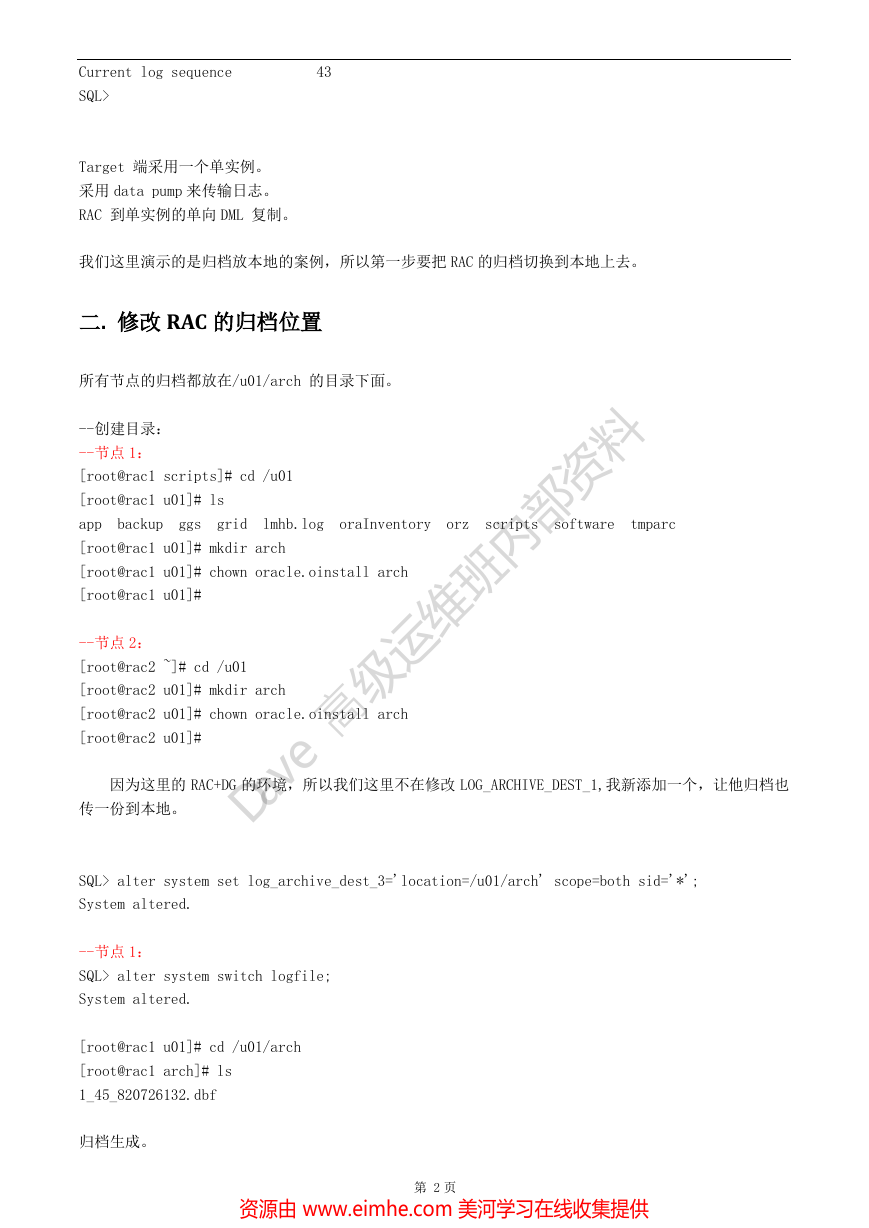

Current log sequence 43 SQL> Target 端采用一个单实例。采用 data pump 来传输日志。 RAC 到单实例的单向 DML 复制。我们这里演示的是归档放本地的案例，所以第一步要把 RAC 的归档切换到本地上去。二. 修改 RAC 的归档位置所有节点的归档都放在/u01/arch 的目录下面。 --创建目录： --节点 1： [root@rac1 scripts]# cd /u01 [root@rac1 u01]# ls [root@rac1 u01]# mkdir arch [root@rac1 u01]# chown oracle.oinstall arch Dave 高 [root@rac2 u01]# 传一份到本地。料资部内班维 app backup ggs grid lmhb.log oraInventory orz scripts software tmparc [root@rac1 u01]# --节点 2： [root@rac2 ~]# cd /u01 [root@rac2 u01]# mkdir arch [root@rac2 u01]# chown oracle.oinstall arch 运级因为这里的 RAC+DG 的环境，所以我们这里不在修改 LOG_ARCHIVE_DEST_1,我新添加一个，让他归档也 SQL> alter system set log_archive_dest_3='location=/u01/arch' scope=both sid='*'; System altered. --节点 1： SQL> alter system switch logfile; System altered. [root@rac1 u01]# cd /u01/arch [root@rac1 arch]# ls 1_45_820726132.dbf 归档生成。第 2 页资源由 www.eimhe.com 美河学习在线收集提供

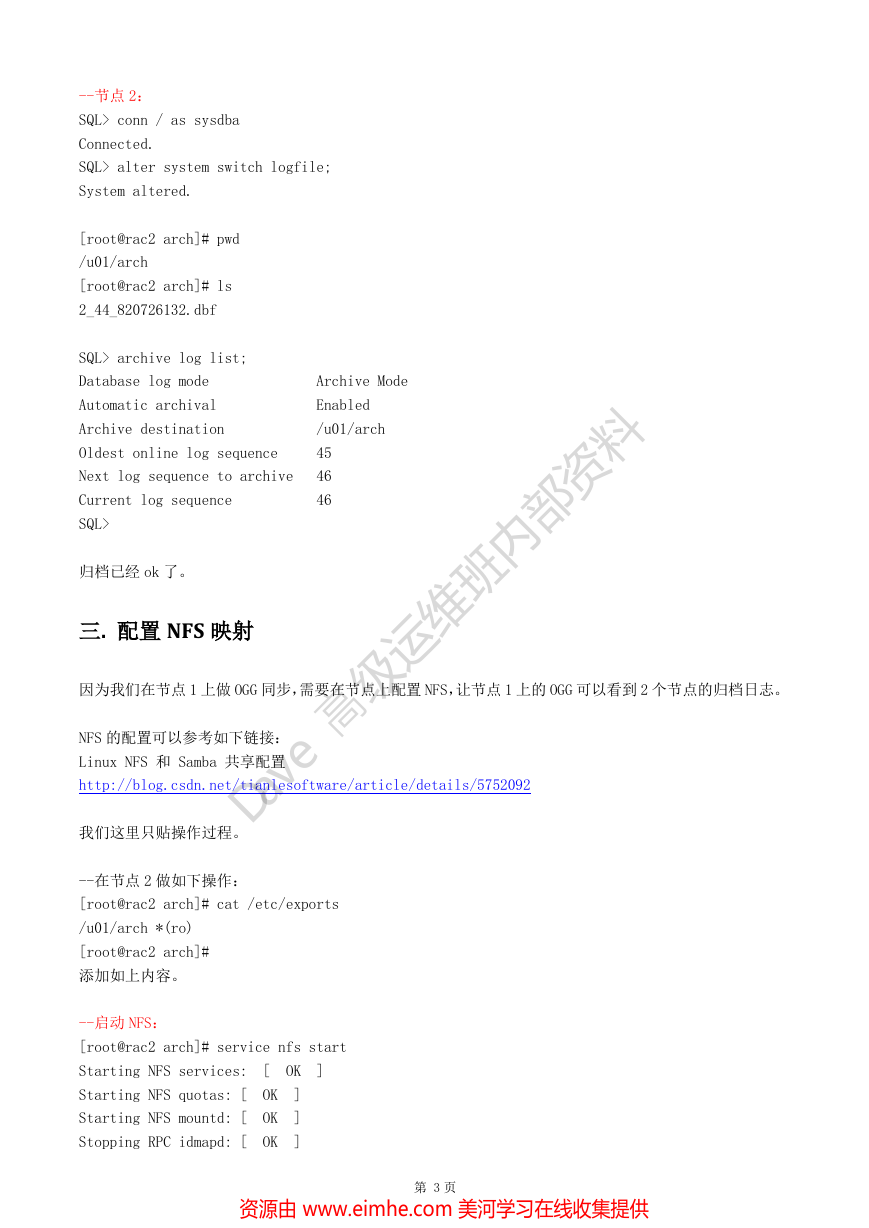

--节点 2： SQL> conn / as sysdba Connected. SQL> alter system switch logfile; System altered. [root@rac2 arch]# pwd /u01/arch [root@rac2 arch]# ls 2_44_820726132.dbf SQL> archive log list; Database log mode Archive Mode Automatic archival Enabled Archive destination /u01/arch Oldest online log sequence 45 Next log sequence to archive 46 Current log sequence 46 SQL> 归档已经 ok 了。三. 配置 NFS 映射 Dave 高料资部内班维运级因为我们在节点 1 上做 OGG 同步，需要在节点上配置 NFS，让节点 1 上的 OGG 可以看到 2 个节点的归档日志。 NFS 的配置可以参考如下链接： Linux NFS 和 Samba 共享配置 http://blog.csdn.net/tianlesoftware/article/details/5752092 我们这里只贴操作过程。 --在节点 2 做如下操作： [root@rac2 arch]# cat /etc/exports /u01/arch *(ro) [root@rac2 arch]# 添加如上内容。 --启动 NFS： [root@rac2 arch]# service nfs start Starting NFS services: [ OK ] Starting NFS quotas: [ OK ] Starting NFS mountd: [ OK ] Stopping RPC idmapd: [ OK ] 第 3 页资源由 www.eimhe.com 美河学习在线收集提供

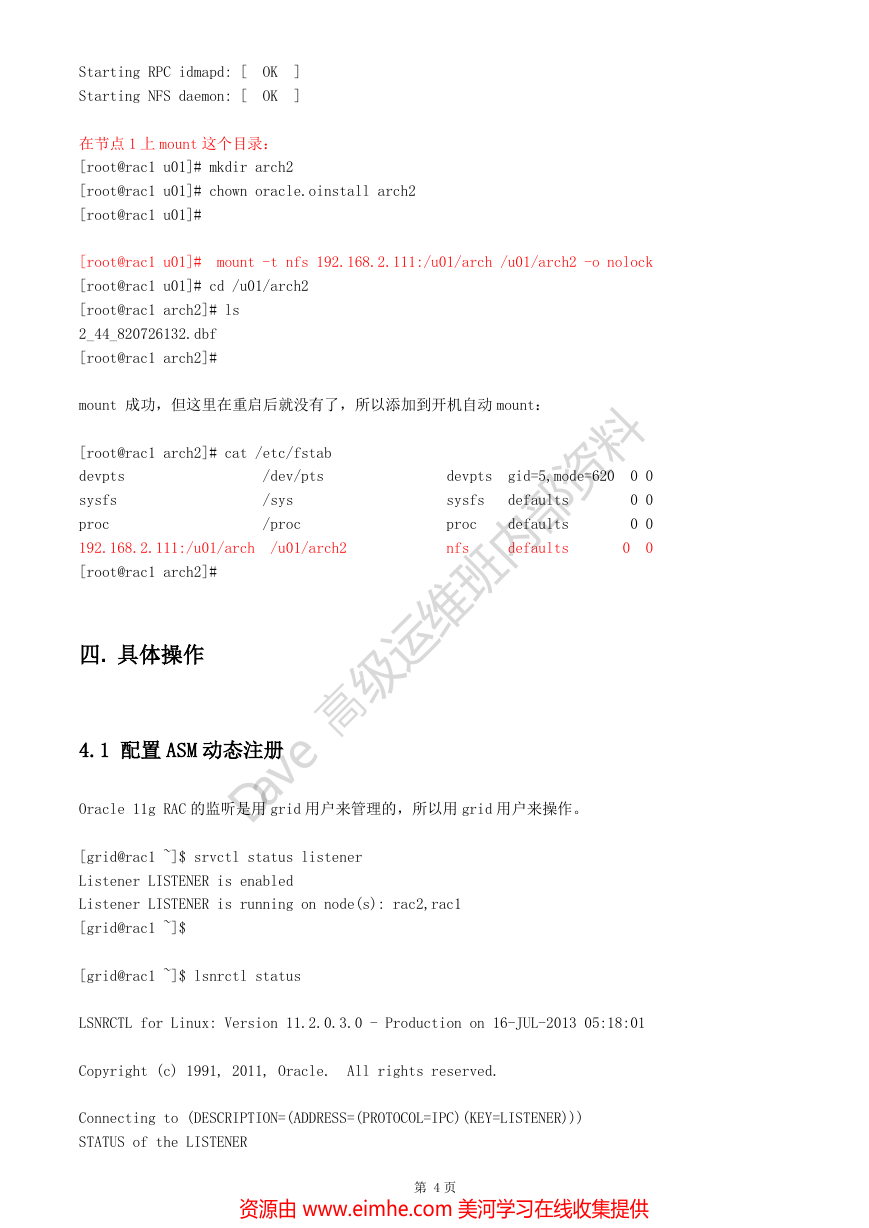

Starting RPC idmapd: [ OK ] Starting NFS daemon: [ OK ] 在节点 1 上 mount 这个目录： [root@rac1 u01]# mkdir arch2 [root@rac1 u01]# chown oracle.oinstall arch2 [root@rac1 u01]# [root@rac1 u01]# mount -t nfs 192.168.2.111:/u01/arch /u01/arch2 -o nolock [root@rac1 u01]# cd /u01/arch2 [root@rac1 arch2]# ls 2_44_820726132.dbf [root@rac1 arch2]# mount 成功，但这里在重启后就没有了，所以添加到开机自动 mount： [root@rac1 arch2]# cat /etc/fstab devpts /dev/pts devpts gid=5,mode=620 0 0 sysfs /sys sysfs defaults 0 0 proc /proc proc defaults 0 0 192.168.2.111:/u01/arch /u01/arch2 nfs defaults 0 0 料资部内班维运级 [root@rac1 arch2]# 四. 具体操作 4.1 配置 ASM 动态注册 Dave 高 Oracle 11g RAC 的监听是用 grid 用户来管理的，所以用 grid 用户来操作。 [grid@rac1 ~]$ srvctl status listener Listener LISTENER is enabled Listener LISTENER is running on node(s): rac2,rac1 [grid@rac1 ~]$ [grid@rac1 ~]$ lsnrctl status LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 16-JUL-2013 05:18:01 Copyright (c) 1991, 2011, Oracle. All rights reserved. Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER))) STATUS of the LISTENER 第 4 页资源由 www.eimhe.com 美河学习在线收集提供

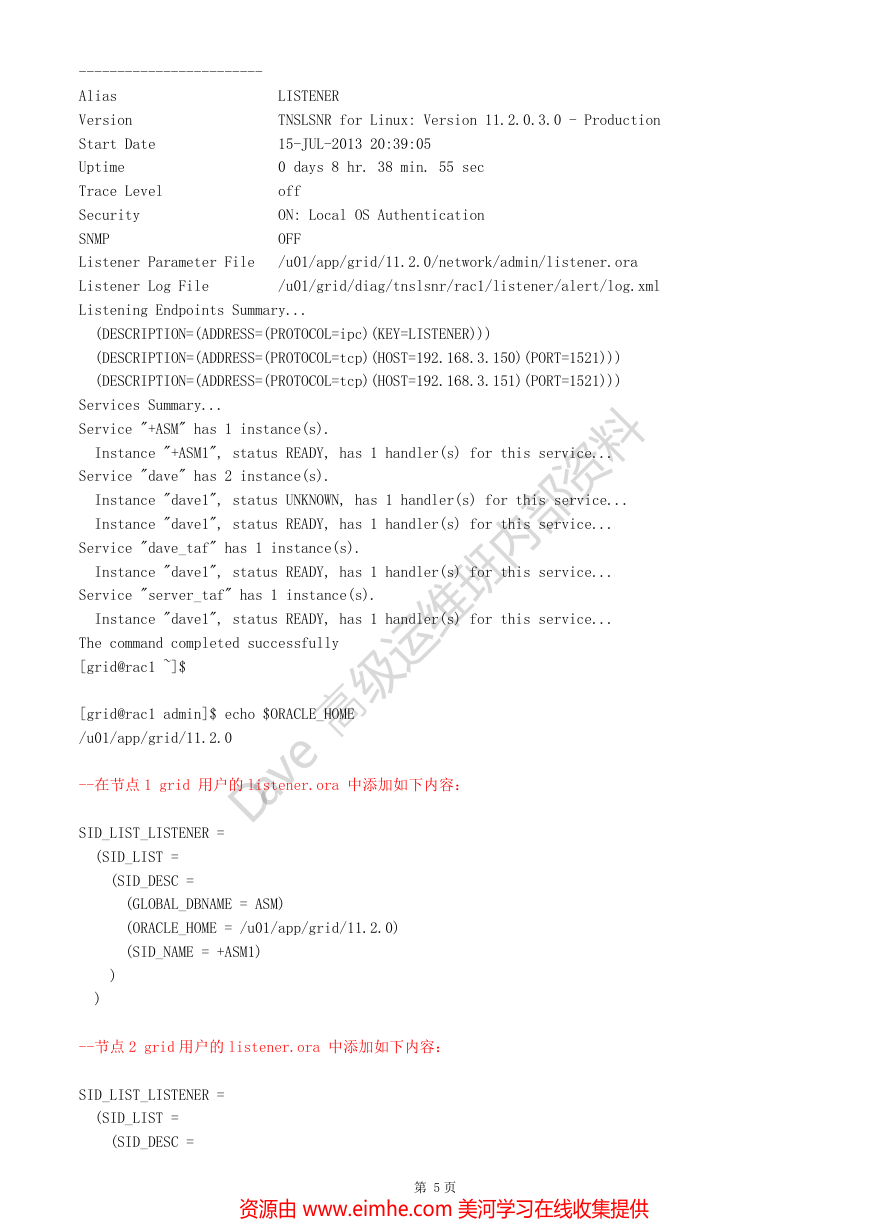

------------------------ Alias LISTENER Version TNSLSNR for Linux: Version 11.2.0.3.0 - Production Start Date 15-JUL-2013 20:39:05 Uptime 0 days 8 hr. 38 min. 55 sec Trace Level off Security ON: Local OS Authentication SNMP OFF Listener Parameter File /u01/app/grid/11.2.0/network/admin/listener.ora Listener Log File /u01/grid/diag/tnslsnr/rac1/listener/alert/log.xml Listening Endpoints Summary... (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER))) (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.3.150)(PORT=1521))) (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.3.151)(PORT=1521))) Services Summary... Service "+ASM" has 1 instance(s). Service "dave" has 2 instance(s). Instance "+ASM1", status READY, has 1 handler(s) for this service... Instance "dave1", status UNKNOWN, has 1 handler(s) for this service... Instance "dave1", status READY, has 1 handler(s) for this service... Service "dave_taf" has 1 instance(s). Instance "dave1", status READY, has 1 handler(s) for this service... Service "server_taf" has 1 instance(s). Instance "dave1", status READY, has 1 handler(s) for this service... 内班维运级料资部 The command completed successfully [grid@rac1 admin]$ echo $ORACLE_HOME [grid@rac1 ~]$ /u01/app/grid/11.2.0 SID_LIST_LISTENER = (SID_LIST = (SID_DESC = Dave 高 --在节点 1 grid 用户的 listener.ora 中添加如下内容： (GLOBAL_DBNAME = ASM) (ORACLE_HOME = /u01/app/grid/11.2.0) (SID_NAME = +ASM1) ) ) --节点 2 grid 用户的 listener.ora 中添加如下内容： SID_LIST_LISTENER = (SID_LIST = (SID_DESC = 第 5 页资源由 www.eimhe.com 美河学习在线收集提供

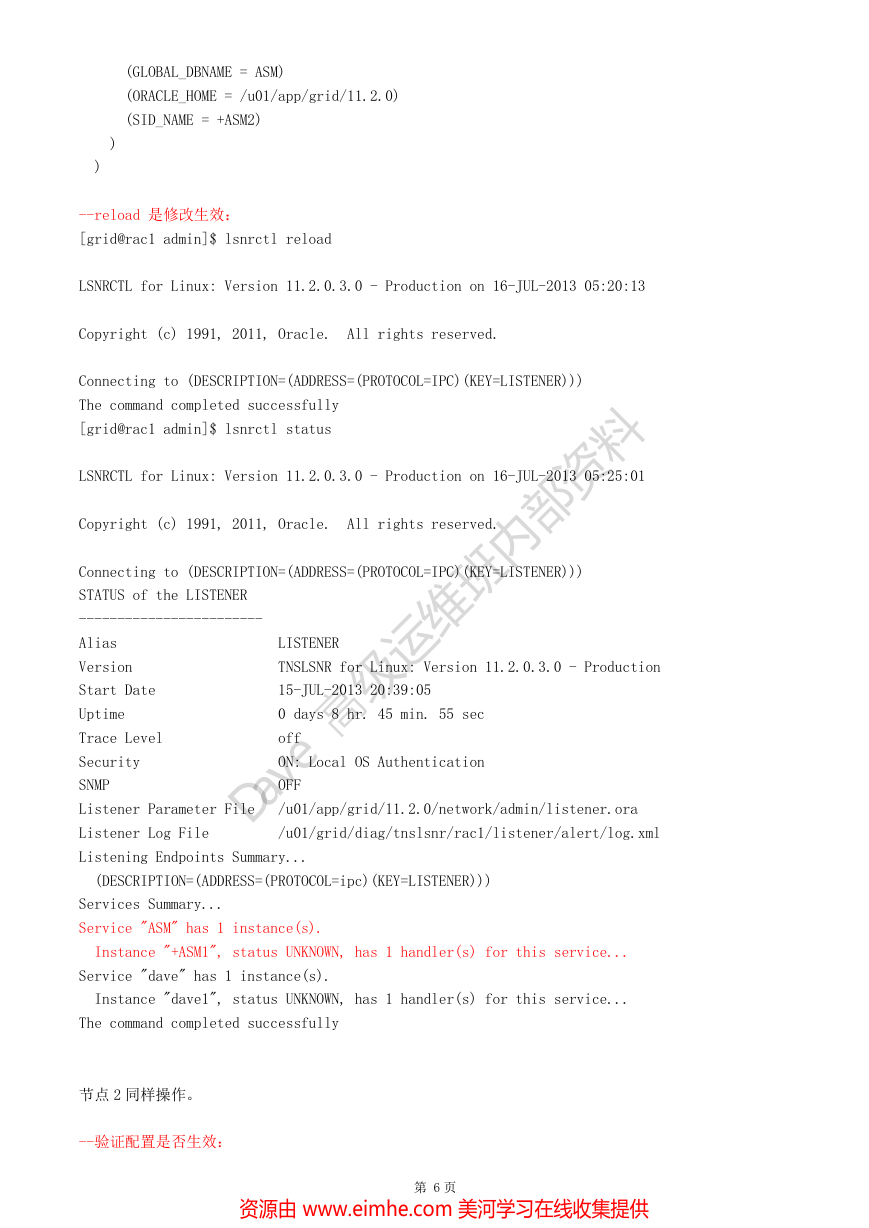

(GLOBAL_DBNAME = ASM) (ORACLE_HOME = /u01/app/grid/11.2.0) (SID_NAME = +ASM2) ) ) --reload 是修改生效： [grid@rac1 admin]$ lsnrctl reload LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 16-JUL-2013 05:20:13 Copyright (c) 1991, 2011, Oracle. All rights reserved. Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER))) The command completed successfully [grid@rac1 admin]$ lsnrctl status LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 16-JUL-2013 05:25:01 Copyright (c) 1991, 2011, Oracle. All rights reserved. Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER))) 料资部 Version TNSLSNR for Linux: Version 11.2.0.3.0 - Production 内班维运级 STATUS of the LISTENER ------------------------ Alias LISTENER Start Date 15-JUL-2013 20:39:05 Uptime 0 days 8 hr. 45 min. 55 sec Trace Level off Security ON: Local OS Authentication SNMP OFF Dave 高 Listener Parameter File /u01/app/grid/11.2.0/network/admin/listener.ora Listener Log File /u01/grid/diag/tnslsnr/rac1/listener/alert/log.xml Listening Endpoints Summary... (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER))) Services Summary... Service "ASM" has 1 instance(s). Instance "+ASM1", status UNKNOWN, has 1 handler(s) for this service... Service "dave" has 1 instance(s). Instance "dave1", status UNKNOWN, has 1 handler(s) for this service... The command completed successfully 节点 2 同样操作。 --验证配置是否生效：第 6 页资源由 www.eimhe.com 美河学习在线收集提供

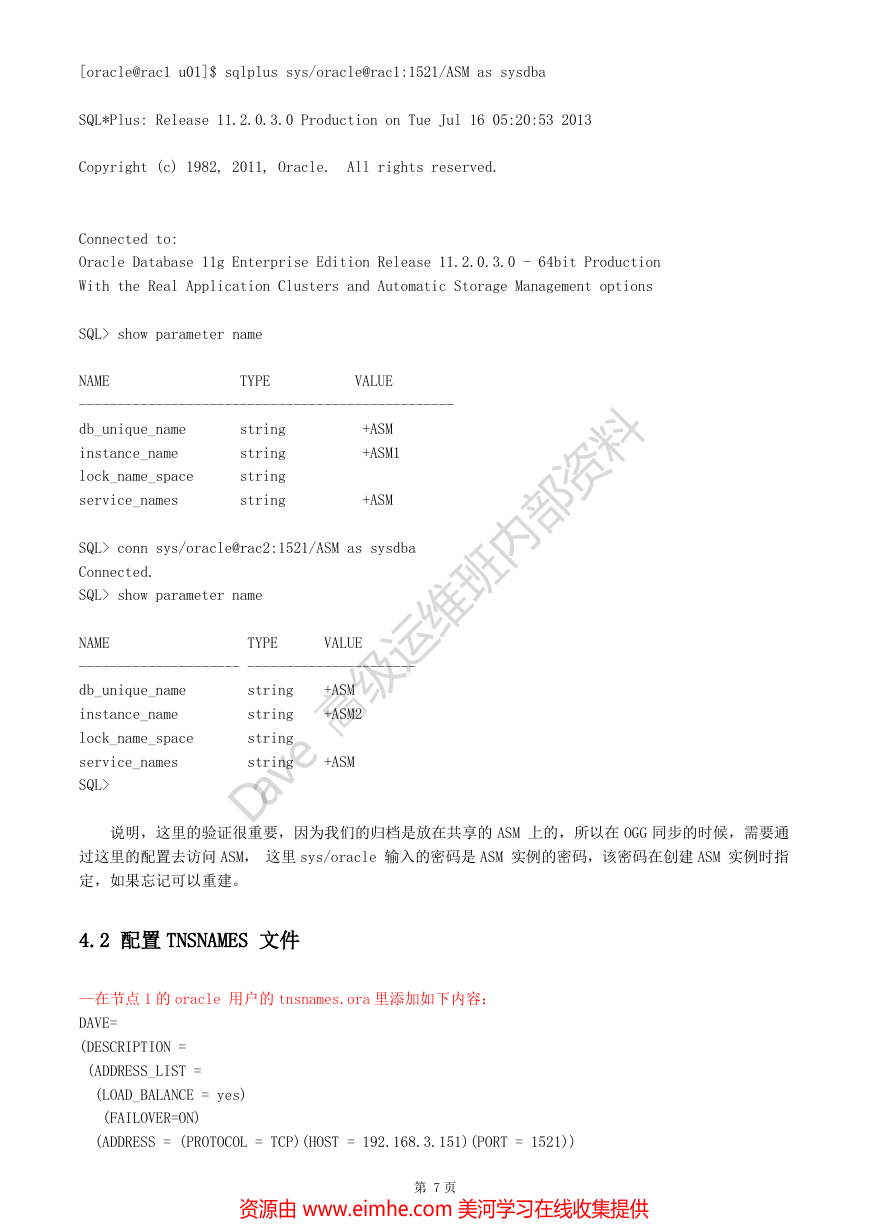

db_unique_name string +ASM instance_name string +ASM1 lock_name_space string service_names string +ASM SQL> conn sys/oracle@rac2:1521/ASM as sysdba Connected. SQL> show parameter name NAME TYPE VALUE --------------------- ---------------------- db_unique_name string +ASM instance_name string +ASM2 lock_name_space string service_names string +ASM Dave 高 SQL> 内班维运级 [oracle@rac1 u01]$ sqlplus sys/oracle@rac1:1521/ASM as sysdba SQL*Plus: Release 11.2.0.3.0 Production on Tue Jul 16 05:20:53 2013 Copyright (c) 1982, 2011, Oracle. All rights reserved. Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production With the Real Application Clusters and Automatic Storage Management options SQL> show parameter name NAME TYPE VALUE ------------------------------------------------- 料资部说明，这里的验证很重要，因为我们的归档是放在共享的 ASM 上的，所以在 OGG 同步的时候，需要通过这里的配置去访问 ASM，这里 sys/oracle 输入的密码是 ASM 实例的密码，该密码在创建 ASM 实例时指定，如果忘记可以重建。 4.2 配置 TNSNAMES 文件 --在节点 1 的 oracle 用户的 tnsnames.ora 里添加如下内容： DAVE= (DESCRIPTION = (ADDRESS_LIST = (LOAD_BALANCE = yes) (FAILOVER=ON) (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.3.151)(PORT = 1521)) 第 7 页资源由 www.eimhe.com 美河学习在线收集提供

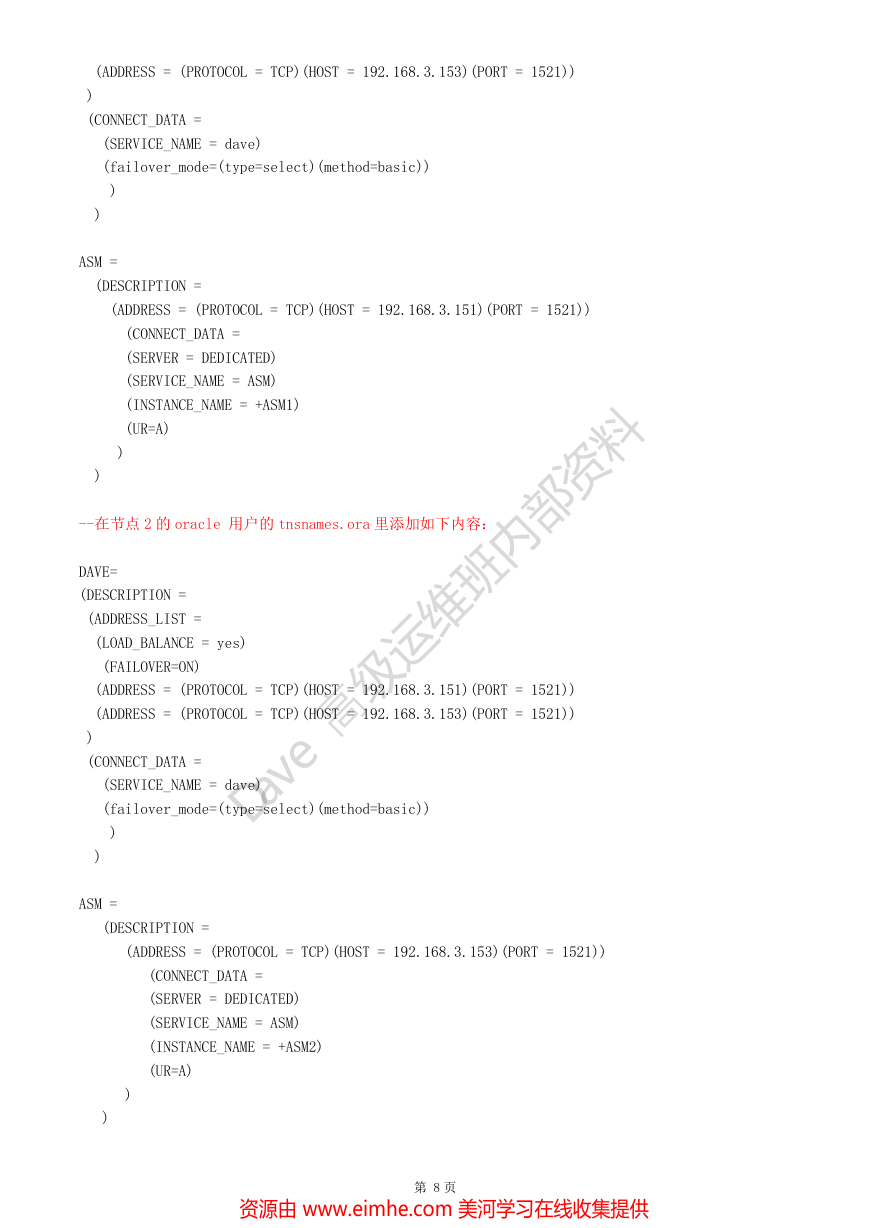

(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.3.153)(PORT = 1521)) ) (CONNECT_DATA = (SERVICE_NAME = dave) (failover_mode=(type=select)(method=basic)) ) ) ASM = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.3.151)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = ASM) (INSTANCE_NAME = +ASM1) (UR=A) ) ) --在节点 2 的 oracle 用户的 tnsnames.ora 里添加如下内容：料资部内 DAVE= (DESCRIPTION = (ADDRESS_LIST = (LOAD_BALANCE = yes) (FAILOVER=ON) 班维运级 (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.3.151)(PORT = 1521)) (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.3.153)(PORT = 1521)) ) (CONNECT_DATA = (SERVICE_NAME = dave) Dave 高 (failover_mode=(type=select)(method=basic)) ) ) ASM = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.3.153)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = ASM) (INSTANCE_NAME = +ASM2) (UR=A) ) ) 第 8 页资源由 www.eimhe.com 美河学习在线收集提供
