HDCP 2.1 spec.pdf

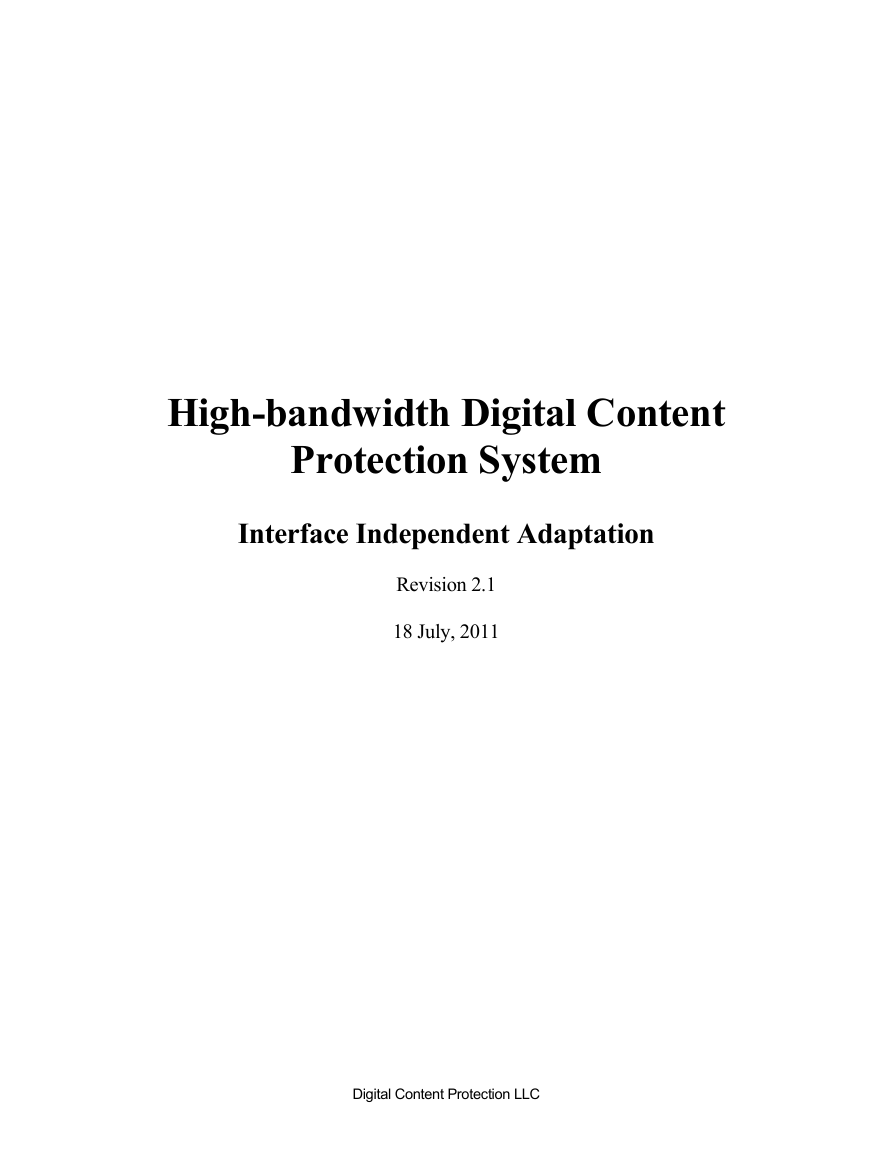

Revision 2.1
18 July, 2011
High-bandwidth Digital Content
Protection System
Interface Independent Adaptation
Digital Content Protection LLC
HDCP Interface Independent Adaptation Specification July 18, 2011
Revision 2.1
Digital Content Protection LLC

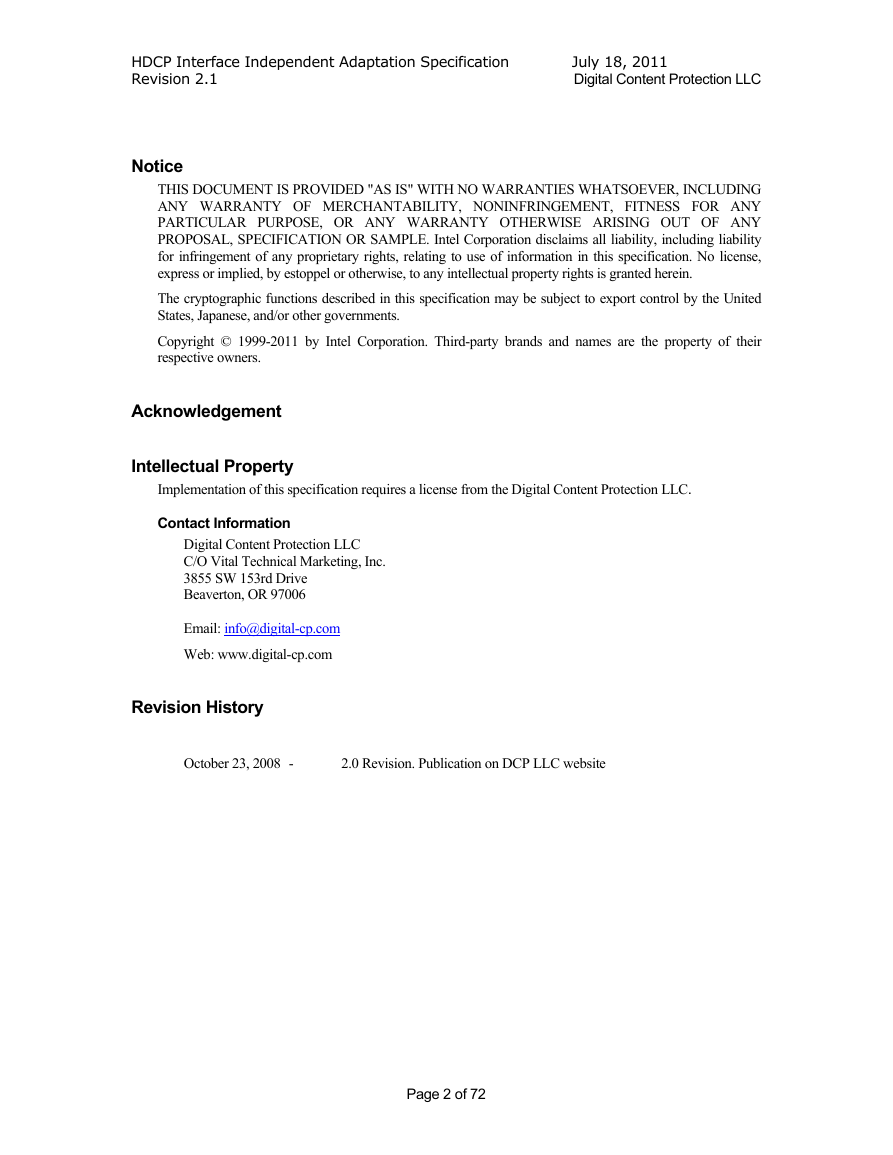

Notice
THIS DOCUMENT IS PROVIDED "AS IS" WITH NO WARRANTIES WHATSOEVER, INCLUDING
ANY WARRANTY OF MERCHANTABILITY, NONINFRINGEMENT, FITNESS FOR ANY
PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OF ANY
PROPOSAL, SPECIFICATION OR SAMPLE. Intel Corporation disclaims all liability, including liability
for infringement of any proprietary rights, relating to use of information in this specification. No license,
express or implied, by estoppel or otherwise, to any intellectual property rights is granted herein.
The cryptographic functions described in this specification may be subject to export control by the United
States, Japanese, and/or other governments.
Copyright © 1999-2011 by Intel Corporation. Third-party brands and names are the property of their
respective owners.
Acknowledgement
Intellectual Property
Implementation of this specification requires a license from the Digital Content Protection LLC.
Contact Information
Digital Content Protection LLC
C/O Vital Technical Marketing, Inc.
3855 SW 153rd Drive
Beaverton, OR 97006
Email: info@digital-cp.com
Web: www.digital-cp.com
Revision History
October 23, 2008 -
2.0 Revision. Publication on DCP LLC website
Page 2 of 72
Digital Content Protection LLC
HDCP Interface Independent Adaptation Specification July 18, 2011
Revision 2.1

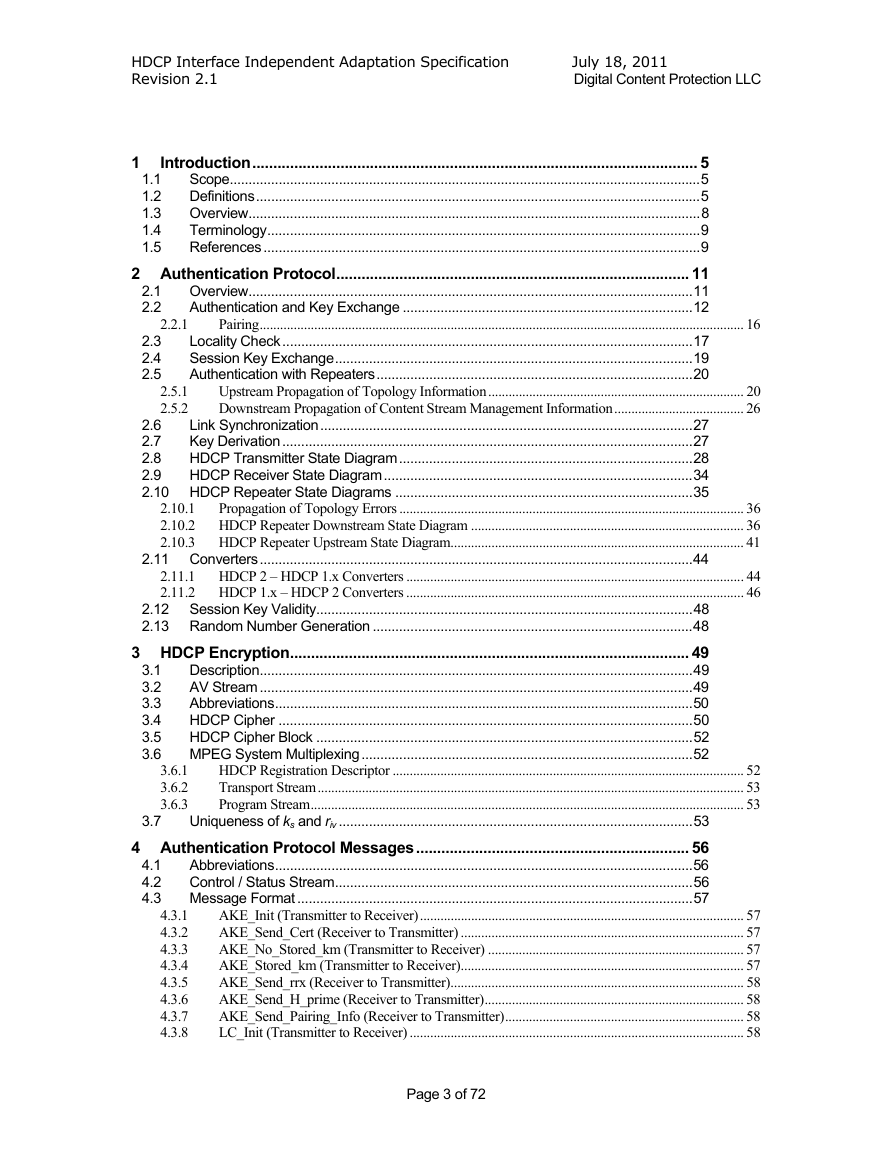

Introduction .......................................................................................................... 5
1
Scope............................................................................................................................. 5
1.1
Definitions ...................................................................................................................... 5
1.2
Overview ........................................................................................................................ 8
1.3
Terminology ................................................................................................................... 9
1.4
References .................................................................................................................... 9
1.5
2 Authentication Protocol .................................................................................... 11
2.1
Overview ...................................................................................................................... 11
Authentication and Key Exchange ............................................................................. 12
2.2
2.3
Locality Check ............................................................................................................. 17
Session Key Exchange ............................................................................................... 19
2.4
Authentication with Repeaters .................................................................................... 20
2.5
2.2.1
Pairing .............................................................................................................................................. 16
2.5.1
2.5.2
Upstream Propagation of Topology Information ........................................................................... 20
Downstream Propagation of Content Stream Management Information ...................................... 26
Link Synchronization ................................................................................................... 27
2.6
Key Derivation ............................................................................................................. 27
2.7
HDCP Transmitter State Diagram .............................................................................. 28
2.8
HDCP Receiver State Diagram .................................................................................. 34
2.9
2.10 HDCP Repeater State Diagrams ............................................................................... 35
2.10.1
Propagation of Topology Errors ..................................................................................................... 36
2.10.2 HDCP Repeater Downstream State Diagram ................................................................................ 36
2.10.3 HDCP Repeater Upstream State Diagram...................................................................................... 41
2.11.1 HDCP 2 – HDCP 1.x Converters ................................................................................................... 44
2.11.2 HDCP 1.x – HDCP 2 Converters ................................................................................................... 46
2.11 Converters ................................................................................................................... 44
2.12 Session Key Validity .................................................................................................... 48
2.13 Random Number Generation ..................................................................................... 48
3 HDCP Encryption ............................................................................................... 49
3.1
Description ................................................................................................................... 49
3.2
AV Stream ................................................................................................................... 49
3.3
Abbreviations ............................................................................................................... 50
3.4
HDCP Cipher .............................................................................................................. 50
3.5
HDCP Cipher Block .................................................................................................... 52
3.6 MPEG System Multiplexing ........................................................................................ 52
3.6.1
3.6.2
3.6.3
HDCP Registration Descriptor ....................................................................................................... 52
Transport Stream ............................................................................................................................. 53
Program Stream ............................................................................................................................... 53
3.7
Uniqueness of ks and riv .............................................................................................. 53
4 Authentication Protocol Messages ................................................................. 56
4.1
Abbreviations ............................................................................................................... 56
4.2
Control / Status Stream ............................................................................................... 56
4.3 Message Format ......................................................................................................... 57
4.3.1
4.3.2
4.3.3
4.3.4
4.3.5
4.3.6
4.3.7
4.3.8
AKE_Init (Transmitter to Receiver) ............................................................................................... 57
AKE_Send_Cert (Receiver to Transmitter) ................................................................................... 57
AKE_No_Stored_km (Transmitter to Receiver) ........................................................................... 57
AKE_Stored_km (Transmitter to Receiver) ................................................................................... 57
AKE_Send_rrx (Receiver to Transmitter) ...................................................................................... 58
AKE_Send_H_prime (Receiver to Transmitter) ............................................................................ 58
AKE_Send_Pairing_Info (Receiver to Transmitter) ...................................................................... 58
LC_Init (Transmitter to Receiver) .................................................................................................. 58
Page 3 of 72
HDCP Interface Independent Adaptation Specification July 18, 2011
Revision 2.1
Digital Content Protection LLC

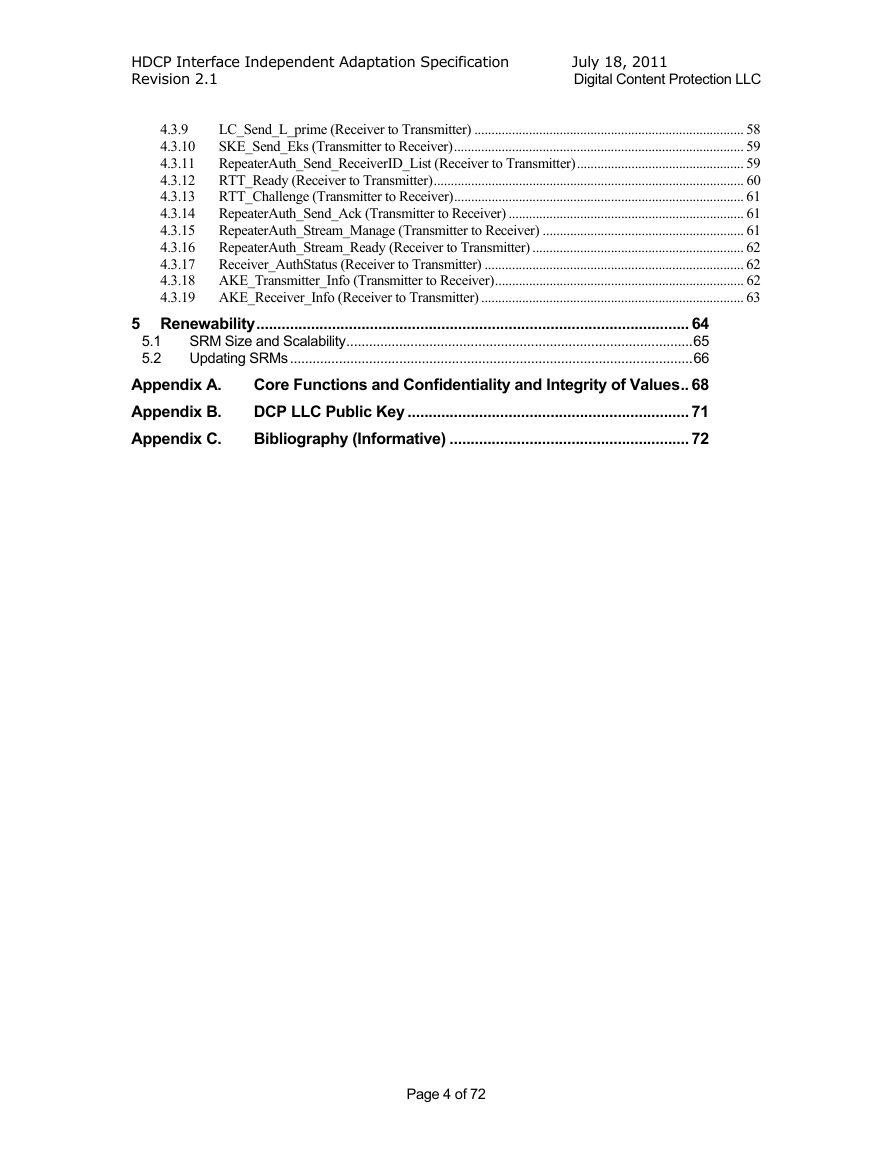

4.3.9
LC_Send_L_prime (Receiver to Transmitter) ............................................................................... 58
4.3.10
SKE_Send_Eks (Transmitter to Receiver) ..................................................................................... 59
4.3.11 RepeaterAuth_Send_ReceiverID_List (Receiver to Transmitter) ................................................. 59
4.3.12 RTT_Ready (Receiver to Transmitter) ........................................................................................... 60
4.3.13 RTT_Challenge (Transmitter to Receiver) ..................................................................................... 61
4.3.14 RepeaterAuth_Send_Ack (Transmitter to Receiver) ..................................................................... 61
4.3.15 RepeaterAuth_Stream_Manage (Transmitter to Receiver) ........................................................... 61
4.3.16 RepeaterAuth_Stream_Ready (Receiver to Transmitter) .............................................................. 62
4.3.17 Receiver_AuthStatus (Receiver to Transmitter) ............................................................................ 62
4.3.18 AKE_Transmitter_Info (Transmitter to Receiver) ......................................................................... 62
4.3.19 AKE_Receiver_Info (Receiver to Transmitter) ............................................................................. 63
5 Renewability ....................................................................................................... 64
5.1
SRM Size and Scalability ............................................................................................ 65
Updating SRMs ........................................................................................................... 66
5.2
Core Functions and Confidentiality and Integrity of Values .. 68
Appendix A.
Appendix B.
DCP LLC Public Key ................................................................... 71
Appendix C.
Bibliography (Informative) ......................................................... 72
Page 4 of 72
HDCP Interface Independent Adaptation Specification July 18, 2011
Revision 2.1

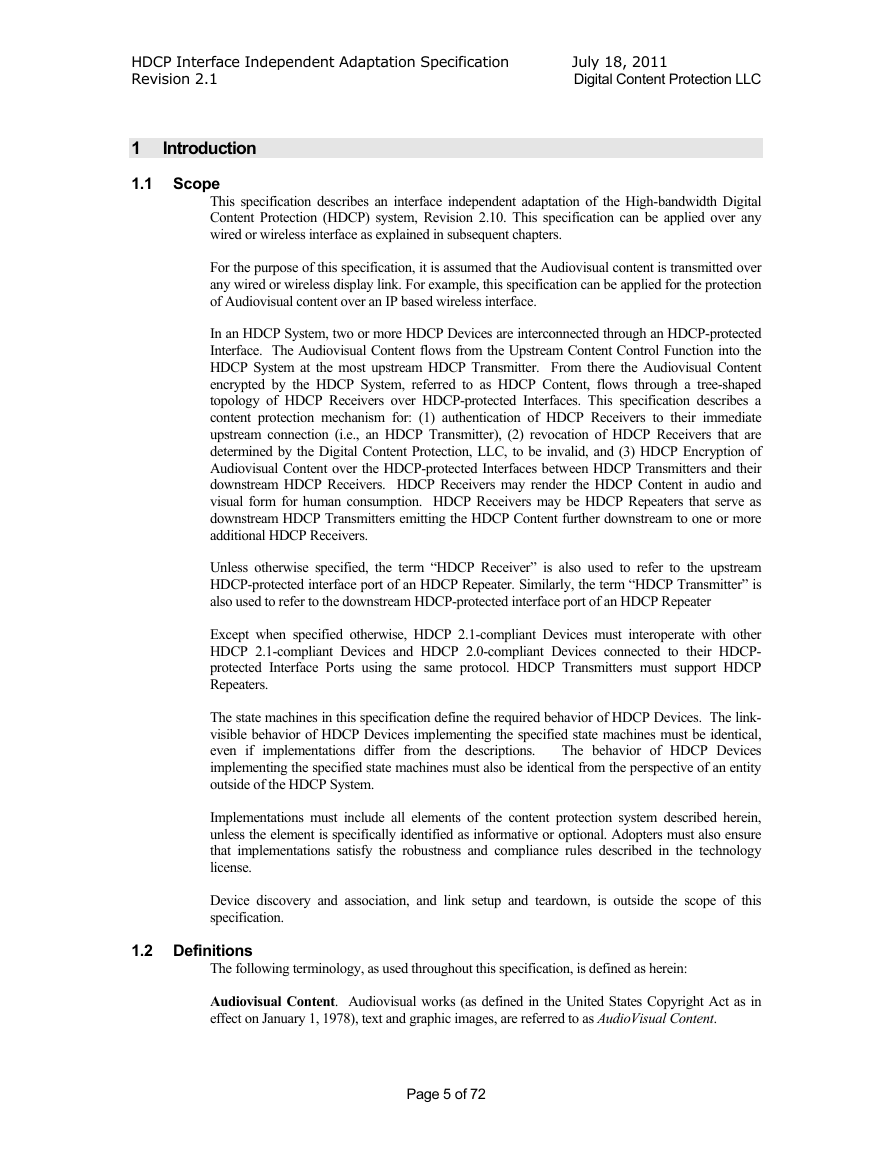

1
Introduction
Digital Content Protection LLC
1.1 Scope
This specification describes an interface independent adaptation of the High-bandwidth Digital
Content Protection (HDCP) system, Revision 2.10. This specification can be applied over any
wired or wireless interface as explained in subsequent chapters.
For the purpose of this specification, it is assumed that the Audiovisual content is transmitted over
any wired or wireless display link. For example, this specification can be applied for the protection
of Audiovisual content over an IP based wireless interface.
In an HDCP System, two or more HDCP Devices are interconnected through an HDCP-protected
Interface. The Audiovisual Content flows from the Upstream Content Control Function into the
HDCP System at the most upstream HDCP Transmitter. From there the Audiovisual Content
encrypted by the HDCP System, referred to as HDCP Content, flows through a tree-shaped
topology of HDCP Receivers over HDCP-protected Interfaces. This specification describes a
content protection mechanism for: (1) authentication of HDCP Receivers to their immediate
upstream connection (i.e., an HDCP Transmitter), (2) revocation of HDCP Receivers that are
determined by the Digital Content Protection, LLC, to be invalid, and (3) HDCP Encryption of
Audiovisual Content over the HDCP-protected Interfaces between HDCP Transmitters and their
downstream HDCP Receivers. HDCP Receivers may render the HDCP Content in audio and
visual form for human consumption. HDCP Receivers may be HDCP Repeaters that serve as
downstream HDCP Transmitters emitting the HDCP Content further downstream to one or more
additional HDCP Receivers.
Unless otherwise specified, the term “HDCP Receiver” is also used to refer to the upstream
HDCP-protected interface port of an HDCP Repeater. Similarly, the term “HDCP Transmitter” is
also used to refer to the downstream HDCP-protected interface port of an HDCP Repeater
Except when specified otherwise, HDCP 2.1-compliant Devices must interoperate with other
HDCP 2.1-compliant Devices and HDCP 2.0-compliant Devices connected to their HDCP-
protected Interface Ports using the same protocol. HDCP Transmitters must support HDCP
Repeaters.
The state machines in this specification define the required behavior of HDCP Devices. The link-
visible behavior of HDCP Devices implementing the specified state machines must be identical,
even if implementations differ from the descriptions. The behavior of HDCP Devices
implementing the specified state machines must also be identical from the perspective of an entity
outside of the HDCP System.
Implementations must include all elements of the content protection system described herein,
unless the element is specifically identified as informative or optional. Adopters must also ensure
that implementations satisfy the robustness and compliance rules described in the technology
license.
Device discovery and association, and link setup and teardown, is outside the scope of this
specification.
1.2 Definitions
The following terminology, as used throughout this specification, is defined as herein:
Audiovisual Content. Audiovisual works (as defined in the United States Copyright Act as in
effect on January 1, 1978), text and graphic images, are referred to as AudioVisual Content.
Page 5 of 72
HDCP Interface Independent Adaptation Specification July 18, 2011
Revision 2.1
Digital Content Protection LLC

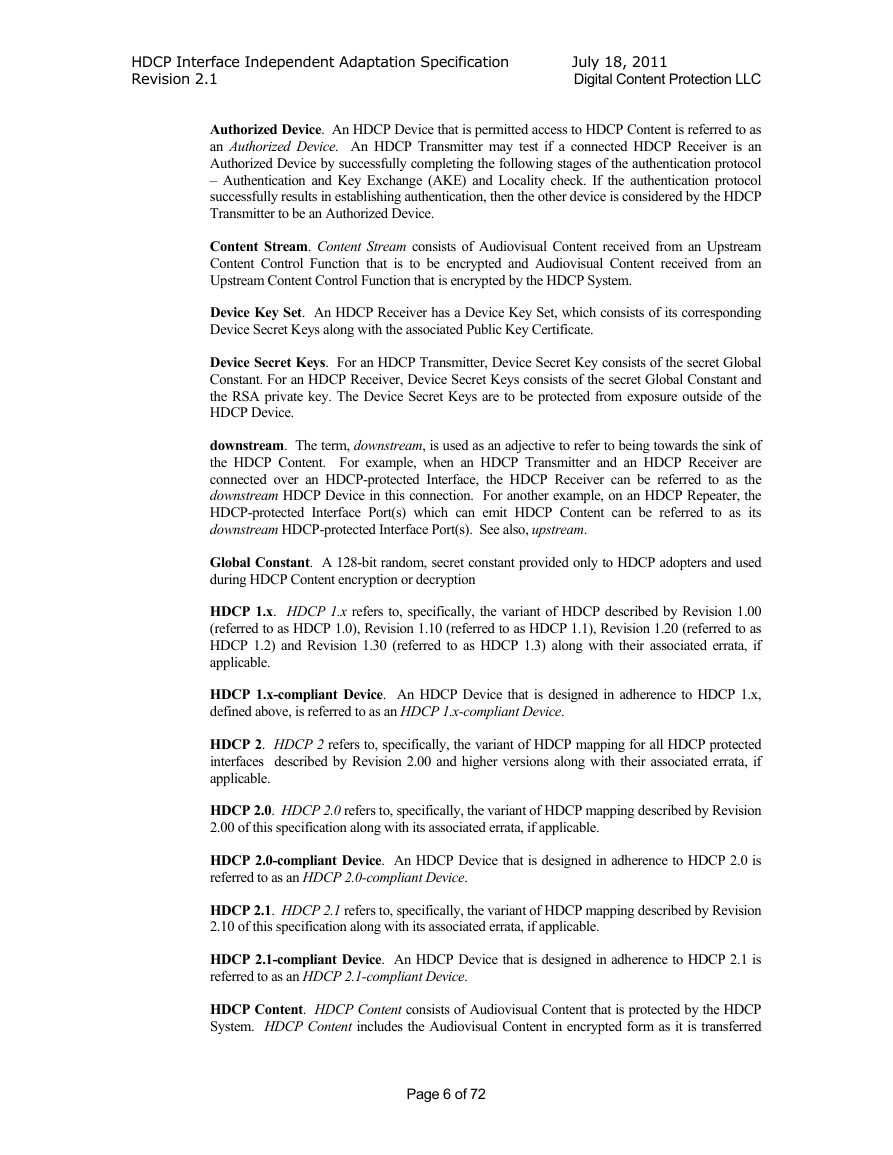

Authorized Device. An HDCP Device that is permitted access to HDCP Content is referred to as
an Authorized Device. An HDCP Transmitter may test if a connected HDCP Receiver is an
Authorized Device by successfully completing the following stages of the authentication protocol
– Authentication and Key Exchange (AKE) and Locality check. If the authentication protocol
successfully results in establishing authentication, then the other device is considered by the HDCP
Transmitter to be an Authorized Device.
Content Stream. Content Stream consists of Audiovisual Content received from an Upstream
Content Control Function that is to be encrypted and Audiovisual Content received from an
Upstream Content Control Function that is encrypted by the HDCP System.
Device Key Set. An HDCP Receiver has a Device Key Set, which consists of its corresponding
Device Secret Keys along with the associated Public Key Certificate.
Device Secret Keys. For an HDCP Transmitter, Device Secret Key consists of the secret Global
Constant. For an HDCP Receiver, Device Secret Keys consists of the secret Global Constant and
the RSA private key. The Device Secret Keys are to be protected from exposure outside of the
HDCP Device.
downstream. The term, downstream, is used as an adjective to refer to being towards the sink of
the HDCP Content. For example, when an HDCP Transmitter and an HDCP Receiver are
connected over an HDCP-protected Interface, the HDCP Receiver can be referred to as the
downstream HDCP Device in this connection. For another example, on an HDCP Repeater, the
HDCP-protected Interface Port(s) which can emit HDCP Content can be referred to as its
downstream HDCP-protected Interface Port(s). See also, upstream.
Global Constant. A 128-bit random, secret constant provided only to HDCP adopters and used
during HDCP Content encryption or decryption
HDCP 1.x. HDCP 1.x refers to, specifically, the variant of HDCP described by Revision 1.00
(referred to as HDCP 1.0), Revision 1.10 (referred to as HDCP 1.1), Revision 1.20 (referred to as
HDCP 1.2) and Revision 1.30 (referred to as HDCP 1.3) along with their associated errata, if
applicable.
HDCP 1.x-compliant Device. An HDCP Device that is designed in adherence to HDCP 1.x,
defined above, is referred to as an HDCP 1.x-compliant Device.
HDCP 2. HDCP 2 refers to, specifically, the variant of HDCP mapping for all HDCP protected
interfaces described by Revision 2.00 and higher versions along with their associated errata, if
applicable.
HDCP 2.0. HDCP 2.0 refers to, specifically, the variant of HDCP mapping described by Revision
2.00 of this specification along with its associated errata, if applicable.
HDCP 2.0-compliant Device. An HDCP Device that is designed in adherence to HDCP 2.0 is
referred to as an HDCP 2.0-compliant Device.
HDCP 2.1. HDCP 2.1 refers to, specifically, the variant of HDCP mapping described by Revision
2.10 of this specification along with its associated errata, if applicable.
HDCP 2.1-compliant Device. An HDCP Device that is designed in adherence to HDCP 2.1 is
referred to as an HDCP 2.1-compliant Device.
HDCP Content. HDCP Content consists of Audiovisual Content that is protected by the HDCP
System. HDCP Content includes the Audiovisual Content in encrypted form as it is transferred

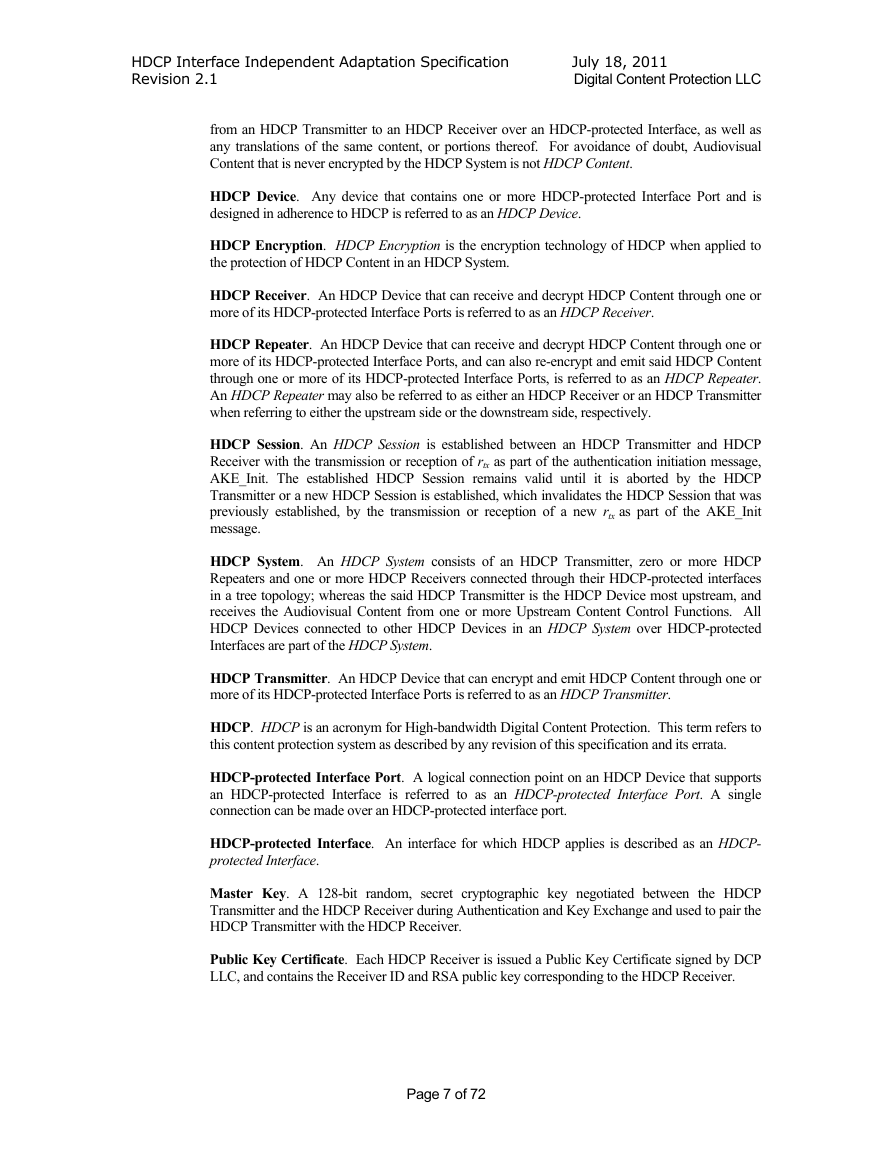

Page 6 of 72
HDCP Interface Independent Adaptation Specification July 18, 2011
Revision 2.1
Digital Content Protection LLC
from an HDCP Transmitter to an HDCP Receiver over an HDCP-protected Interface, as well as
any translations of the same content, or portions thereof. For avoidance of doubt, Audiovisual
Content that is never encrypted by the HDCP System is not HDCP Content.
HDCP Device. Any device that contains one or more HDCP-protected Interface Port and is
designed in adherence to HDCP is referred to as an HDCP Device.
HDCP Encryption. HDCP Encryption is the encryption technology of HDCP when applied to
the protection of HDCP Content in an HDCP System.
HDCP Receiver. An HDCP Device that can receive and decrypt HDCP Content through one or
more of its HDCP-protected Interface Ports is referred to as an HDCP Receiver.
HDCP Repeater. An HDCP Device that can receive and decrypt HDCP Content through one or
more of its HDCP-protected Interface Ports, and can also re-encrypt and emit said HDCP Content
through one or more of its HDCP-protected Interface Ports, is referred to as an HDCP Repeater.
An HDCP Repeater may also be referred to as either an HDCP Receiver or an HDCP Transmitter
when referring to either the upstream side or the downstream side, respectively.
HDCP Session. An HDCP Session is established between an HDCP Transmitter and HDCP
Receiver with the transmission or reception of rtx as part of the authentication initiation message,
AKE_Init. The established HDCP Session remains valid until it is aborted by the HDCP
Transmitter or a new HDCP Session is established, which invalidates the HDCP Session that was
previously established, by the transmission or reception of a new rtx as part of the AKE_Init
message.
HDCP System. An HDCP System consists of an HDCP Transmitter, zero or more HDCP
Repeaters and one or more HDCP Receivers connected through their HDCP-protected interfaces
in a tree topology; whereas the said HDCP Transmitter is the HDCP Device most upstream, and
receives the Audiovisual Content from one or more Upstream Content Control Functions. All
HDCP Devices connected to other HDCP Devices in an HDCP System over HDCP-protected
Interfaces are part of the HDCP System.
HDCP Transmitter. An HDCP Device that can encrypt and emit HDCP Content through one or
more of its HDCP-protected Interface Ports is referred to as an HDCP Transmitter.
HDCP. HDCP is an acronym for High-bandwidth Digital Content Protection. This term refers to
this content protection system as described by any revision of this specification and its errata.
HDCP-protected Interface Port. A logical connection point on an HDCP Device that supports
an HDCP-protected Interface is referred to as an HDCP-protected Interface Port. A single
connection can be made over an HDCP-protected interface port.
HDCP-protected Interface. An interface for which HDCP applies is described as an HDCP-
protected Interface.
Master Key. A 128-bit random, secret cryptographic key negotiated between the HDCP
Transmitter and the HDCP Receiver during Authentication and Key Exchange and used to pair the
HDCP Transmitter with the HDCP Receiver.
Public Key Certificate. Each HDCP Receiver is issued a Public Key Certificate signed by DCP
LLC, and contains the Receiver ID and RSA public key corresponding to the HDCP Receiver.

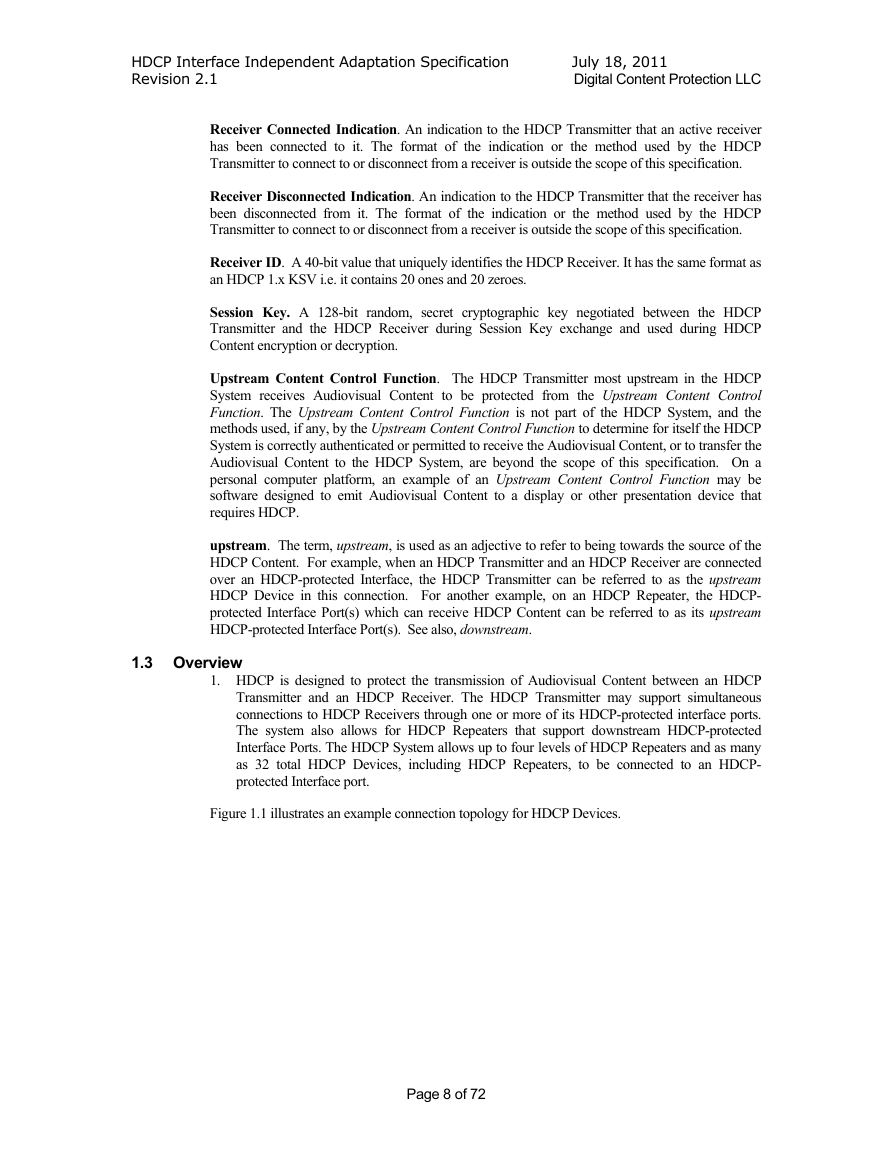

Page 7 of 72
HDCP Interface Independent Adaptation Specification July 18, 2011
Revision 2.1
Digital Content Protection LLC
Receiver Connected Indication. An indication to the HDCP Transmitter that an active receiver
has been connected to it. The format of the indication or the method used by the HDCP
Transmitter to connect to or disconnect from a receiver is outside the scope of this specification.
Receiver Disconnected Indication. An indication to the HDCP Transmitter that the receiver has
been disconnected from it. The format of the indication or the method used by the HDCP
Transmitter to connect to or disconnect from a receiver is outside the scope of this specification.
Receiver ID. A 40-bit value that uniquely identifies the HDCP Receiver. It has the same format as
an HDCP 1.x KSV i.e. it contains 20 ones and 20 zeroes.
Session Key. A 128-bit random, secret cryptographic key negotiated between the HDCP
Transmitter and the HDCP Receiver during Session Key exchange and used during HDCP
Content encryption or decryption.
Upstream Content Control Function. The HDCP Transmitter most upstream in the HDCP
System receives Audiovisual Content to be protected from the Upstream Content Control
Function. The Upstream Content Control Function is not part of the HDCP System, and the
methods used, if any, by the Upstream Content Control Function to determine for itself the HDCP
System is correctly authenticated or permitted to receive the Audiovisual Content, or to transfer the
Audiovisual Content to the HDCP System, are beyond the scope of this specification. On a
personal computer platform, an example of an Upstream Content Control Function may be
software designed to emit Audiovisual Content to a display or other presentation device that
requires HDCP.
upstream. The term, upstream, is used as an adjective to refer to being towards the source of the
HDCP Content. For example, when an HDCP Transmitter and an HDCP Receiver are connected
over an HDCP-protected Interface, the HDCP Transmitter can be referred to as the upstream
HDCP Device in this connection. For another example, on an HDCP Repeater, the HDCP-
protected Interface Port(s) which can receive HDCP Content can be referred to as its upstream
HDCP-protected Interface Port(s). See also, downstream.
1.3 Overview
1. HDCP is designed to protect the transmission of Audiovisual Content between an HDCP
Transmitter and an HDCP Receiver. The HDCP Transmitter may support simultaneous
connections to HDCP Receivers through one or more of its HDCP-protected interface ports.
The system also allows for HDCP Repeaters that support downstream HDCP-protected
Interface Ports. The HDCP System allows up to four levels of HDCP Repeaters and as many
as 32 total HDCP Devices, including HDCP Repeaters, to be connected to an HDCP-
protected Interface port.
Figure 1.1 illustrates an example connection topology for HDCP Devices.
Page 8 of 72
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
